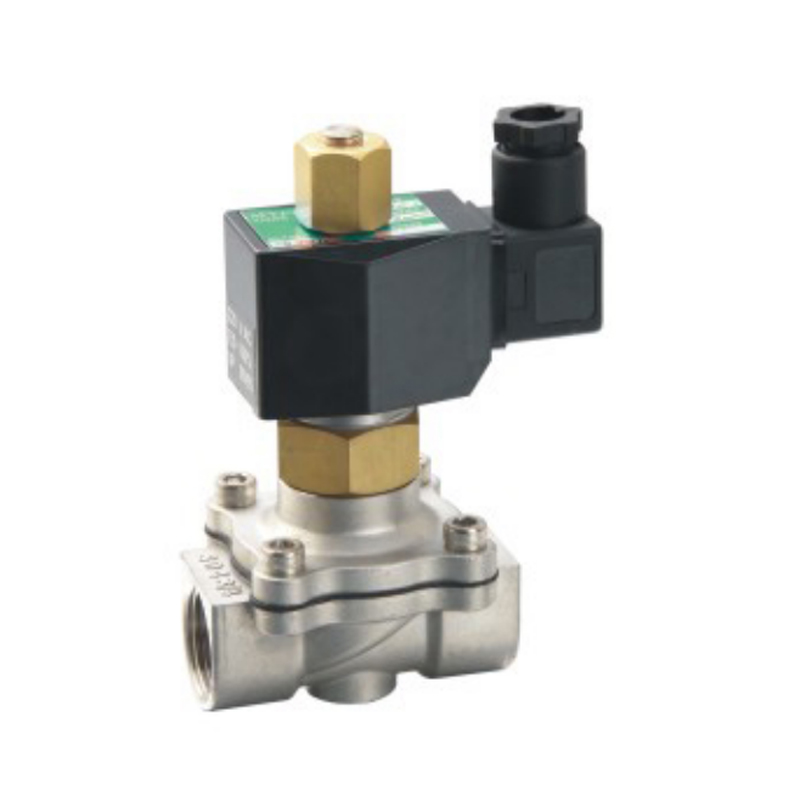

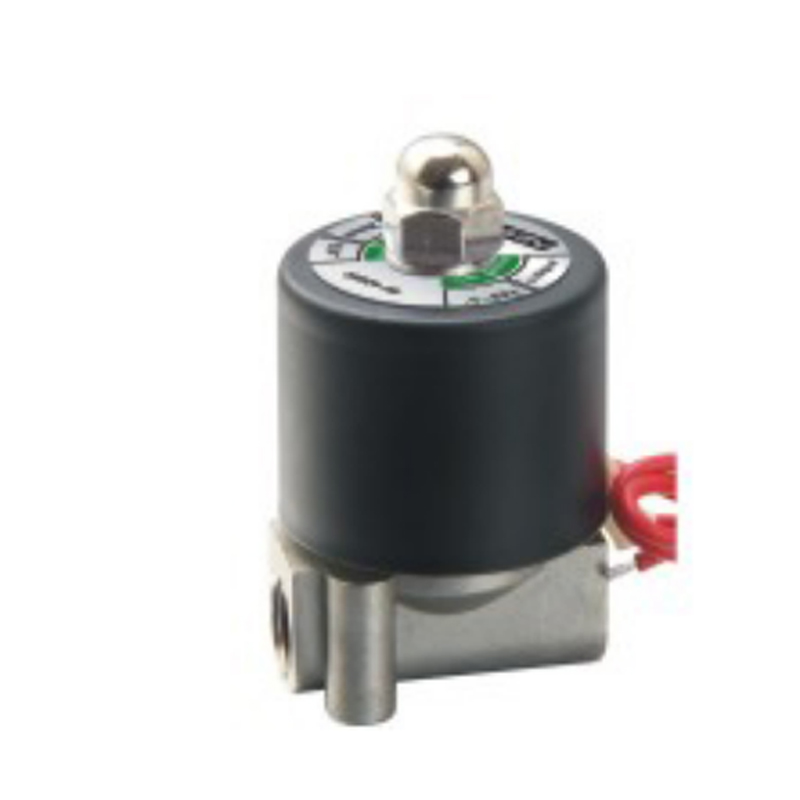

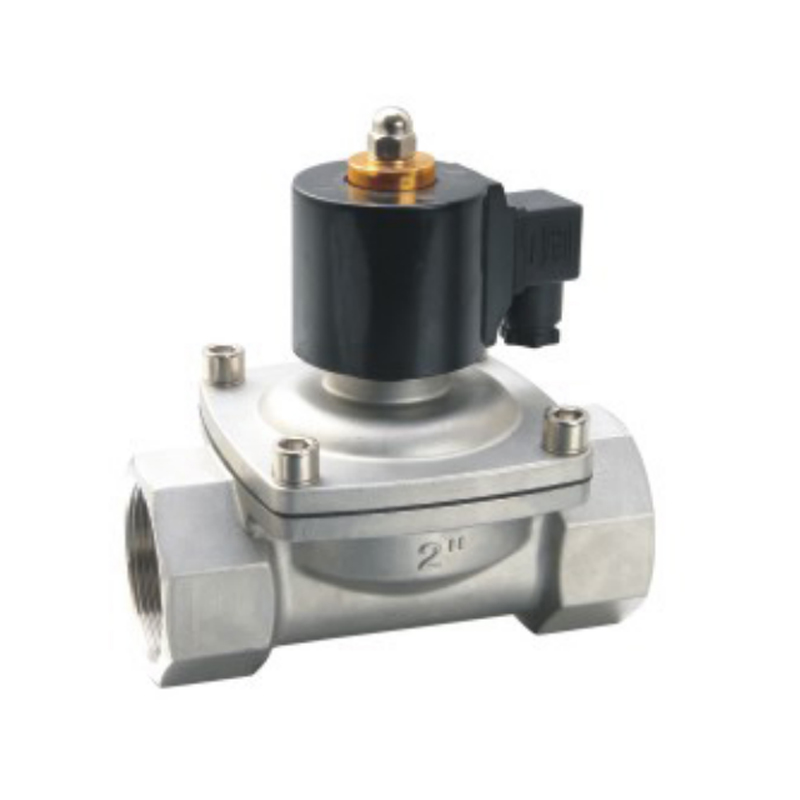

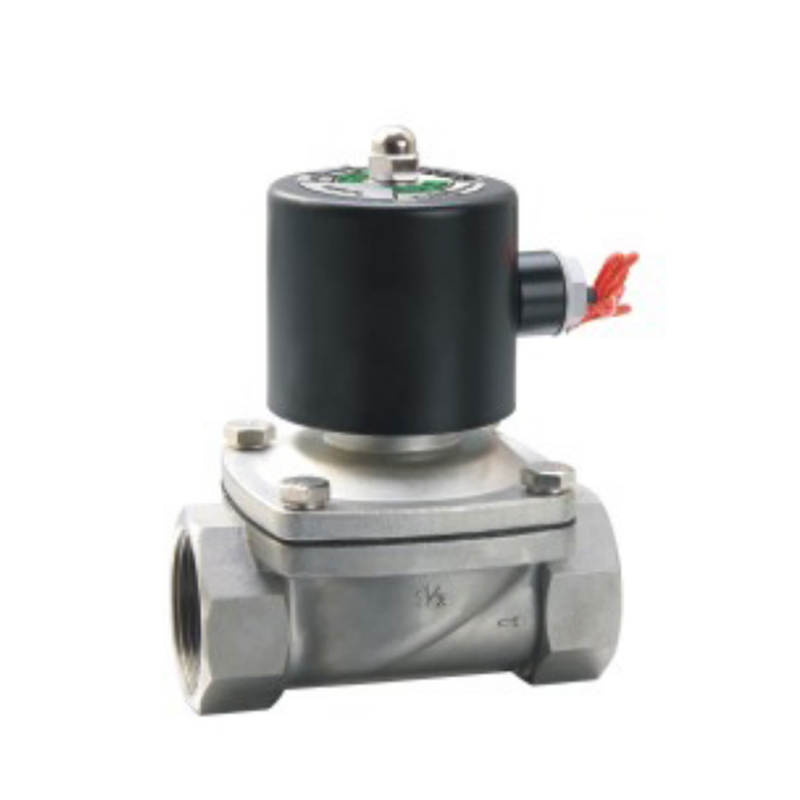

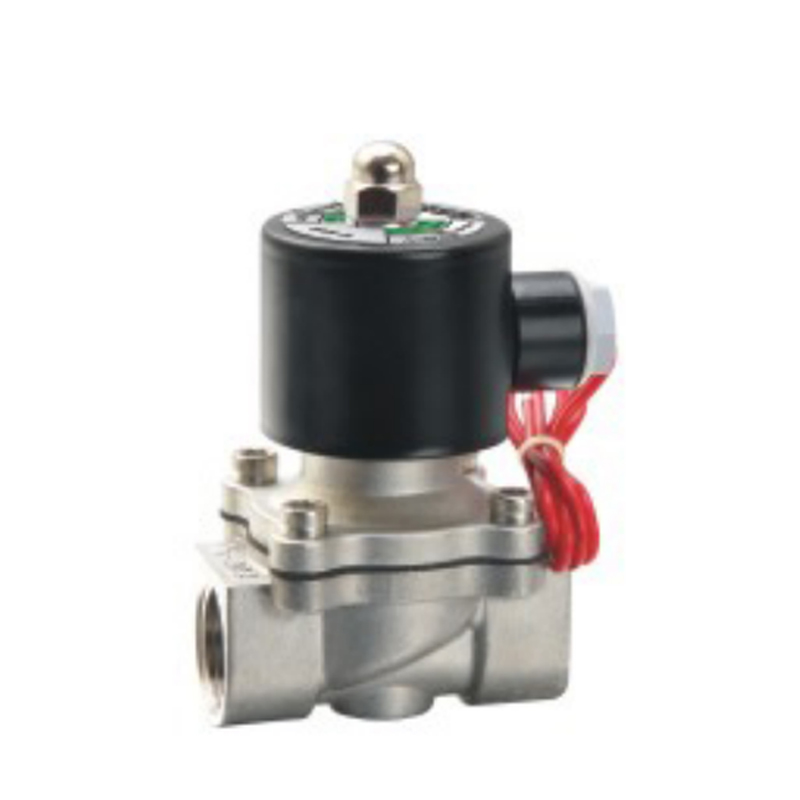

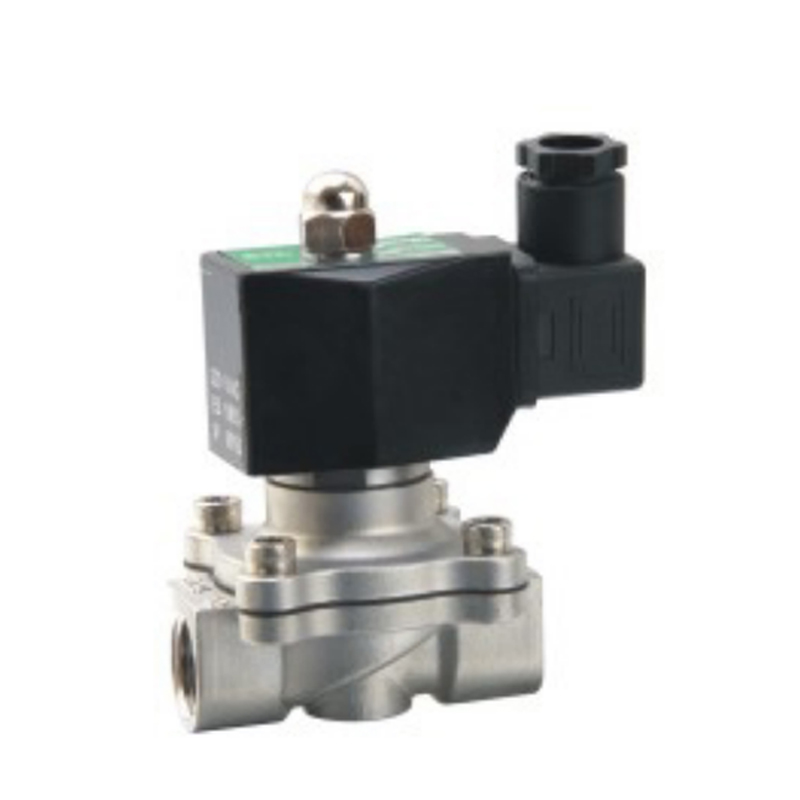

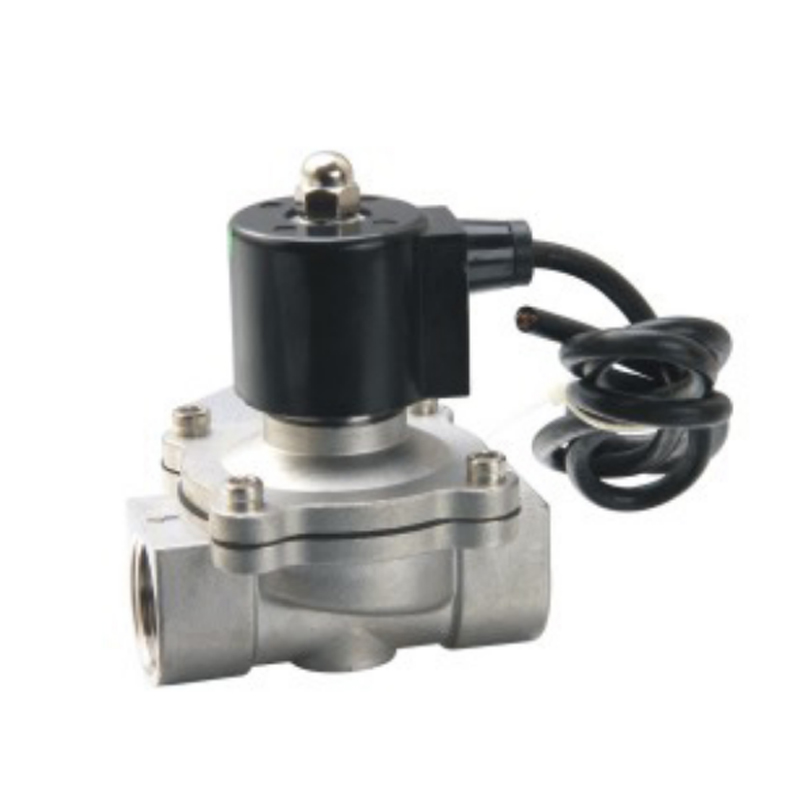

2S Series 2 Position 2 Viam Steel Solenoid Valve Fornitores

Home / Products / Processus Valvulae / 2-Portus valvae fluidae / 2S Series 2 Position 2 Viam Steel Solenoid Valve

2S Series 2 Position 2 Viam Steel Solenoid Valve 2S Series 2 Position 2 Viam Steel Solenoid Valve 2S Series 2 Position 2 Viam Steel Solenoid Valve 2S Series 2 Position 2 Viam Steel Solenoid Valve 2S Series 2 Position 2 Viam Steel Solenoid Valve 2S Series 2 Position 2 Viam Steel Solenoid Valve 2S Series 2 Position 2 Viam Steel Solenoid Valve
  • 2S Series 2 Position 2 Viam Steel Solenoid Valve
  • 2S Series 2 Position 2 Viam Steel Solenoid Valve
  • 2S Series 2 Position 2 Viam Steel Solenoid Valve
  • 2S Series 2 Position 2 Viam Steel Solenoid Valve
  • 2S Series 2 Position 2 Viam Steel Solenoid Valve
  • 2S Series 2 Position 2 Viam Steel Solenoid Valve
  • 2S Series 2 Position 2 Viam Steel Solenoid Valve
2-Portus valvae fluidae

2S Series 2 Position 2 Viam Steel Solenoid Valve

2S Series 2 Position 2 Viam Steel Solenoid Valvae nucleus componentis ad systemata imperium fluidum dispositum. Praecipuum munus agit automation industrialis cum sua altissima efficacia et durabilitate.

Amplis instrumentis aptabilitas: Haec valva solenoidalis apta est ad moderandam varietatem instrumentorum fluidorum, inclusorum liquorum, gasorum et olei levium substantiarum, ad flexibilem applicationem sub diversis conditionibus operariis procurando.
Actio directa mechanismus: Consilium structurae directae-agens simplificat processum moderativum et efficientiam responsionis melioris.
Nulla pressura differentia incipiens facultatem; Aperiri potest certo sub nullis pressionibus conditionibus, augendae stabilitatis systematis operandi.
Magnorum notarum fluxus canalis: Valvae corporis designatio optimizat canalem fluidum ad magnum medium perputandum consequendum.
Princeps firmitatis fideiussor; Altiore structura incorrupta est ad constantiam perficiendam in operatione diuturna.
Qualitas materialis constructio; Valvae corpus praecisione ferro incorrupta conflatum ut corrosionem resistentiae et servitii vitae meliorem efficiat.

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：Nessun articolo precedente
SUCCESSIVO：2W Series 2 Position 2 Via Copper Solenoid Valve

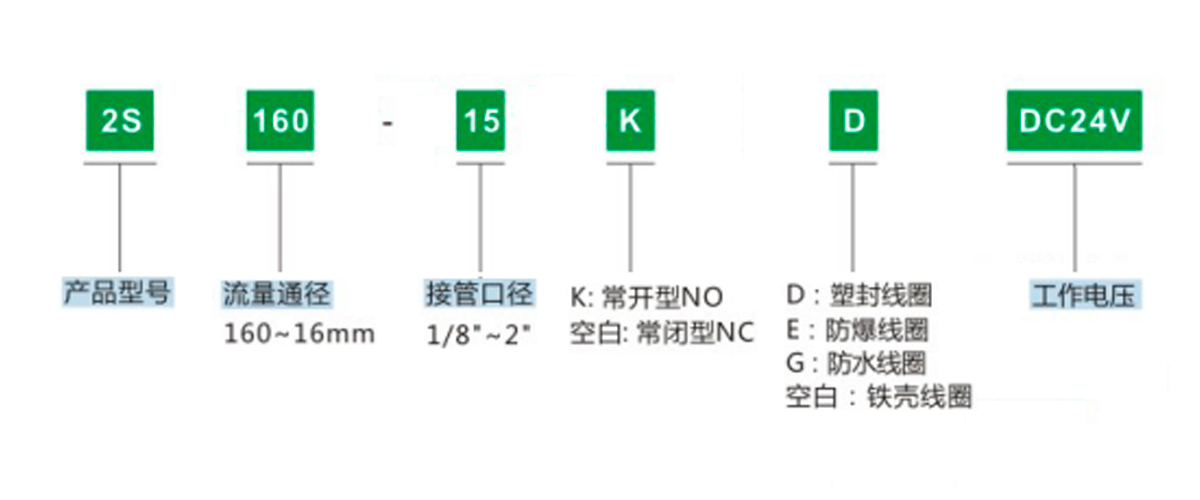

  • Exemplar 2S
    025-06     		2S
    025-08     		2S
    040-10     		2S
    160-10     		2S
    160-15     		2S
    200-20     		2S
    250-25     		2S
    350-35     		2S
    400-40     		2S
    500-50
    Medium usus Aer, aqua, oleum, gas
    Modus operating Direct-agens
    Type Northmanni clausit NC (opens cum ageret)
    Northmanni aperire NO (clausat cum energised)
    Fluxus diametri (mm) 2.5 4 16 16 20 25 35 40 50
    Cv valorem 0.23 0.6 4.8 4.8 7.6 12 24 29 48
    Diameter pipe 1/8" 1/4" 3/8" 3/8" 1/2" 3/4" 1" 11/4" 11/2" 2"
    Liquor viscositas usus Infra 20CST
    Operans pressura (kgf/cm) 0~7 Oleum: 0-5; Gas: 0-7; Aqua: 0-5; Air: 0-7
    Maxime pressura resistentia (kgf/cm) 10 10.5
    Operans temperatus range (℃) -5~80
    Operans voltage range ±10%
    Corpus materiale Diver
    Oleum sigillum materiale NBR, EPDM/Or VIT ON

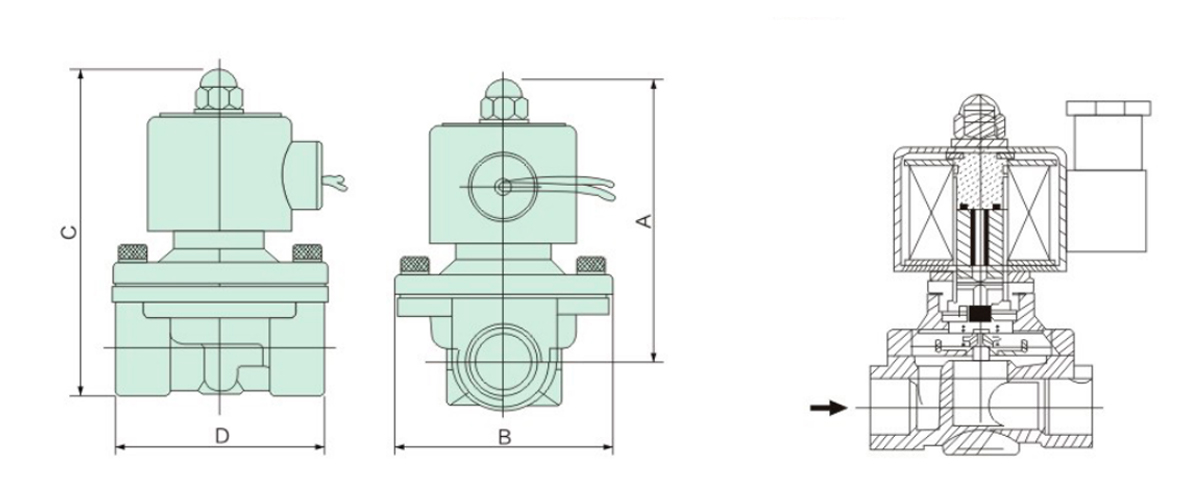

  • Model 2S
    025-06     		2S
    025-08     		2S
    040-10     		2S
    160-10     		2S
    160-15     		2S
    200-20     		2S
    250-25     		2S
    350-35     		2S
    400-40     		2S
    500-50
    A 66 66 74 101.5 101.5 107 111.5 135 142 172
    B 30.3 30.3 32.2 57 57 57 73.5 87 95 123
    C 75 75 85.5 117 117 123.5 134.5 159 172 209
    D 40.5 40.5 52.5 69 69 73 99 116 123 168
