| Exemplar |
ZSE30AF
(Impressio Mixta) |
ZSE30A (Vacuum pressio) |
ISE30A'
(Pressura positiva) |
| Ratum Pressura Range |
-100.0~100.0kPa |
0~-101kPa |
0.0~1.000MPa |
| Pone Premendi Range |
-101.0~101.0kPa |
-101.3~10.0kPa |
-0.100~1.000MPa |
| Pressura Resistente |
300kPa |
1.5MPa |
| Liquor |
Aer, Non mordax, Non flammability |
| Pressura Unit Set Minimum Scale |
kPa |
0.1 |
- |
| MPa |
- |
0.001 |
| kgf/cm² |
0.001 |
0.01 |
| bar |
0.001 |
0.01 |
| psi |
0.01 |
0.1 |
| inHg |
0.1 |
- |
| mmHg |
1 |
- |
| Voltage |
12 ad 24V DC ± 10%, infra 10% apicem laniatus |
| Consummatio Current |
≤40mA Infra (non Lond) |

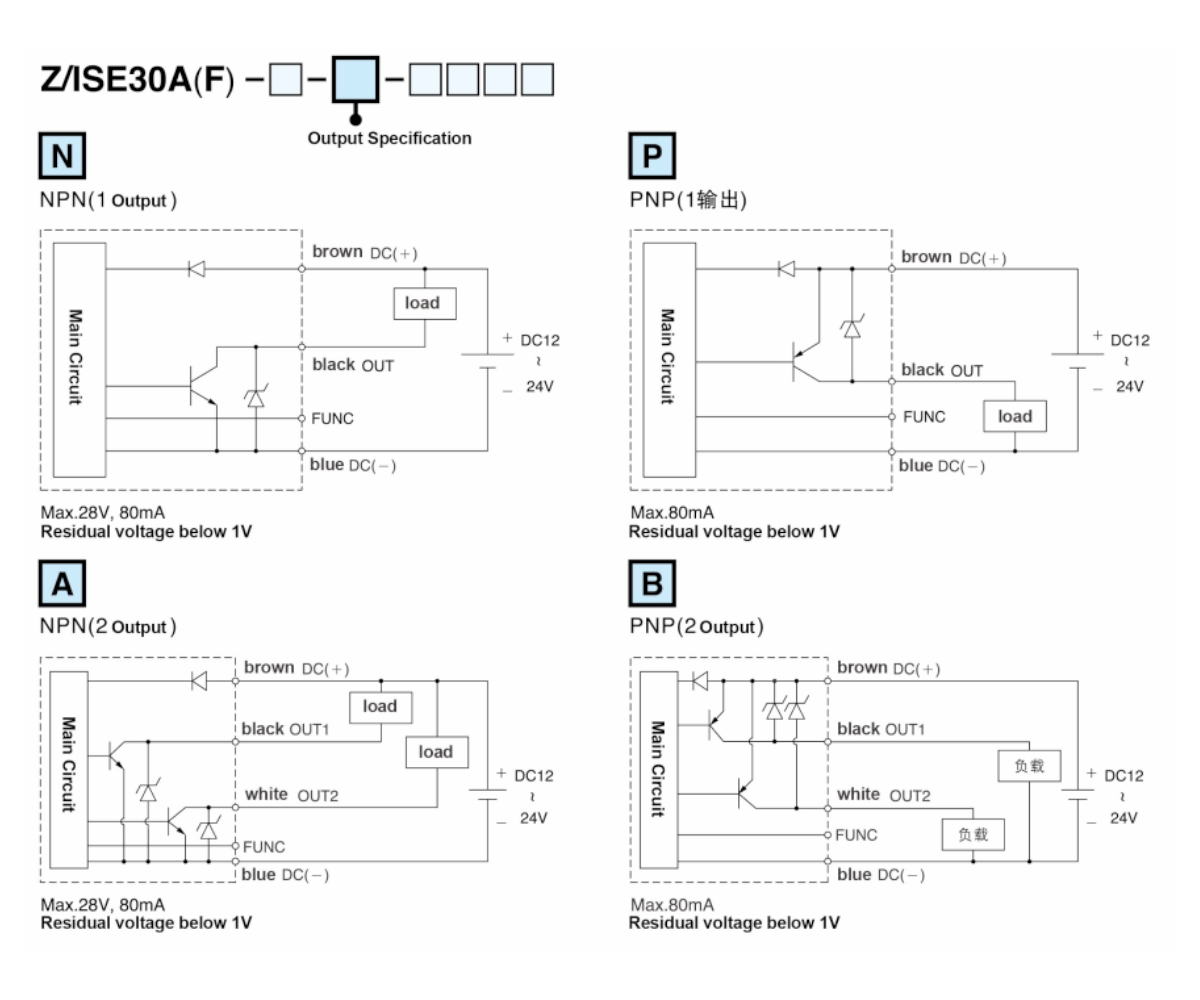

| Transibit Output |
2 NPN output aperta moderatoris
Max.Load current: 125mA
Max.Supple intentionis: 30VDC Max.
Internum pressionis gutta: 1.5V infra Interna pressionis gutta: 1.5V infra |
| Repetere Sagaciter |
±0.2%F.S. ± 1digit Infra |
| Differentialis |
Unicum punctum Profecti exemplar |
Product (I) |
| Differentialis Mode Window |
| Fenestra comparationis modus |
| Reactionem Tempus |
≤2.5ms (Munus ne misoperatio: 25ms, 100ms, 250ms;
500ms, 1000ms, 1500ms ad libitum) |
| Output brevis Circum Protectio |
Ita |

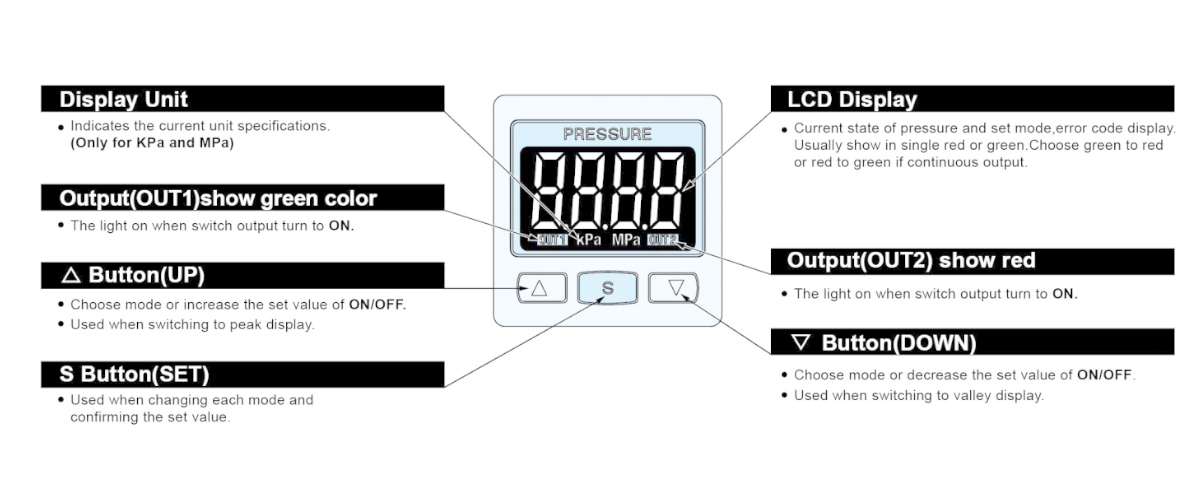

| Ostendere |
3 Colores (rubrum/viridi/orange) display(Sampling rate:5times/second) |
| Ostendere Accuracy |
≤±2%F.S. ±1digit(ambiens temperatus: 25±3℃) |
| Actio Testimonium Lux |
Orange color(1&2 indicator light) OUT1 OUT2 |
Linearum Analog Output
[Voltages output(*2)] |
Output voltage: 1~5V≤±2.5%F.S. (Rated pressura range)
Linealitatis: ≤±1%F.S.
Impedimentum output de 1kΩ |
Analoga lineari
[Voltages output(*3)] |
Praesens output: 4~20mA≤±2.5%F.S. (Rated pressura range)
Linealitatis: ≤±1%F.S.
Maximum onus impedimentum: 300Ω(Voltage est 12V)
600Ω (Voltage is 24V)
Impedimentum minimum onus: 50Ω |
Environmental
Repugnans |
Praesidium campester |
IP40 |
| Ambiens temperatus |
Actio: 0~50℃, Serva: -10 ~ 60℃ (Nec ros vel Unfrozen) |
| Ambiens humiditatem |
Actio et Save: XXXV ~ LXXXV% RH (No ros) |
| Pressura repugnans |
1000V AC 1minute (Ducit et testam plasticam) |
Resistentia Insulation |
500MΩ Supra(500V DC) |
| Vibratio repugnans |
Complexum amplitudinis 1.5mm, minutae 10Hz ~ 55Hz ~ 10Hz, 2 horae quaquaversum (X, Y, Z) |
| Concussa probationem |
100m/s² (10G) 3 Horae quaquaversum (X, Y, Z) |
| Temperatus indoles |
≤±2.5%F.S. |
| Connection diameter |

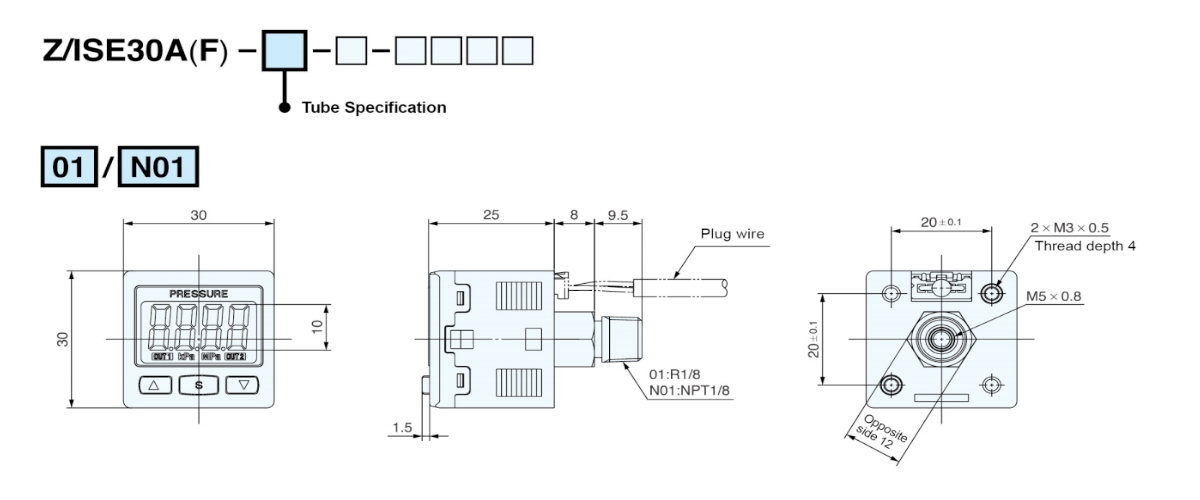

R1M:R1/8",M5;T1M:1/8"NPT,10-32UNF;G1M:G1/8",M5 |
| Specifications filum |
Oleum renitens PVC filum (0.15mm²) |
| Pondus |
De 80g (includere 2meters filum) |
Nota: 1. Unius punctum occasus modus et modus comparationis fenestrae declinationem digitorum 1-8 accommodare potest.
2. Cum eligendo intentione output, non est vena output. Solus unus duorum generum output seligi potest.
3. Cum eligendo output current, nulla est intentione output. Una tantum duorum generum output eligi potest. |
|
