VHK Series Digitus Valve Fornitores

Home / Products / Imperium pneumaticum components / Manual Imperium Valve / VHK Series Digitus Valve

VHK Series Digitus Valve VHK Series Digitus Valve
  • VHK Series Digitus Valve
  • VHK Series Digitus Valve
Manual Imperium Valve

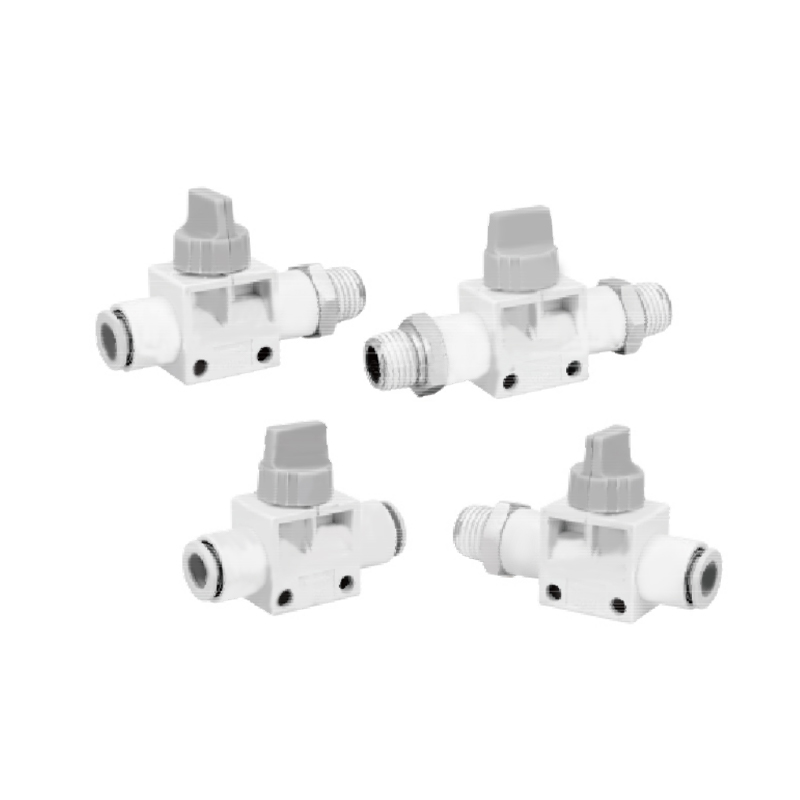

VHK Series Digitus Valve

VHK Series Digitus Valvae est elementum compactum pneumaticum imperium, quod certos fundamentales fluidos in-off et directionem functionum permutationis praebens. Propositum suum intuitivae operationis et systematis aptabilitas consideret, et pro campo praecipuae industriae fluidi temperantiae aptus est.

Cori lineamenta sunt:
Architectura interna profluentia canalis - amplis profluentibus facultatem consequitur ad occurrendum requisitis fluxum instrumentorum gasi compressi typici.
Sigillum exclusivum positivum - nucleus structurae sedis valvae adoptatur ut signandi fidem in statu clauso servet et periculum ultrices internorum minuat.
Modularis interfaciei compatibilitas - series specificationis interfaces limbis providetur ut signa exterioris diametri fistularum amet industrialium ac simpliciorem in-situm integrationem accommodent.
Pressio residua mechanismum emissio - specificae trium viarum figuratio medium pressionis pressionis functionem habet, quae passive residua pressionis in actuatoris parte in loco clauso emittere potest.
Humani-machinae commercium optimizationis - tractatoriae rotariae clare situm habet notam monstrantem, quae conformis est operationi industriae intuitivae; eius aperiens et claudens ictum sequitur regulam logicam gyrationis vexillum.

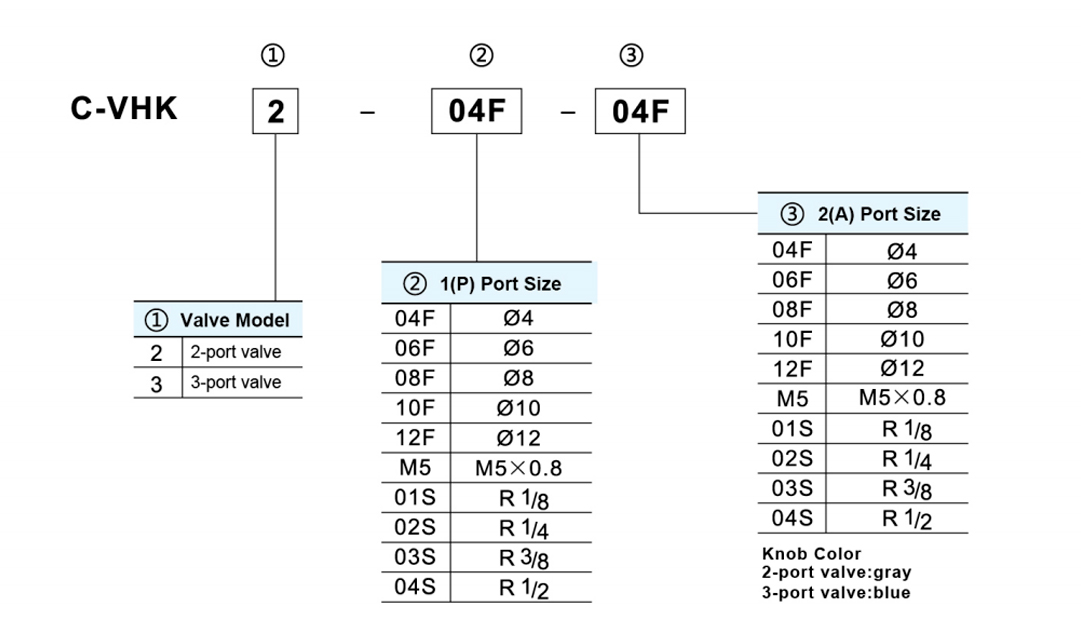

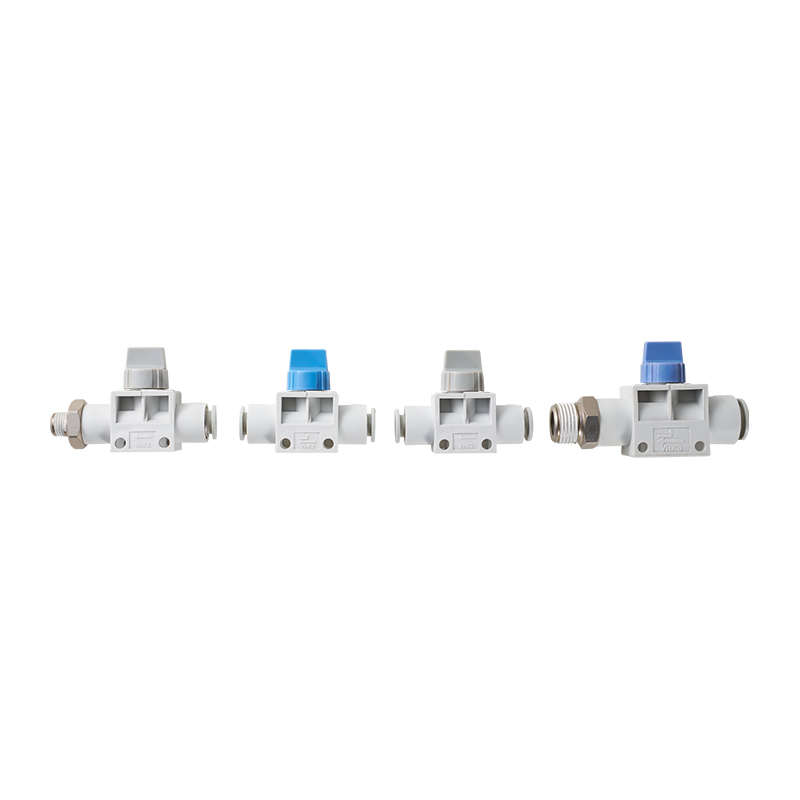

Munus visualis sativum - Velox differentiatio visualis inter 2-modo et 3-modo valvae rationes per colorem coding corporis actuatoris, cum griseo indicans basicas in/off functiones et caeruleum significans functiones directionales mutandi.

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：Nessun articolo precedente
SUCCESSIVO：HSV Series Manu Valvae PROLAPSIO
  • Valvae 2/3-portum valvae
    Liquor Air
    Probatur Pressura 1.5 Mpa
    Max Operans Pressionem 1.0 Mpa
    Operans Pretium Range -100kPa
    Ambientem Et Fluidum Tempus 0 ad 60℃
    Lorem Tubing Materia Nylon, Polyurethane

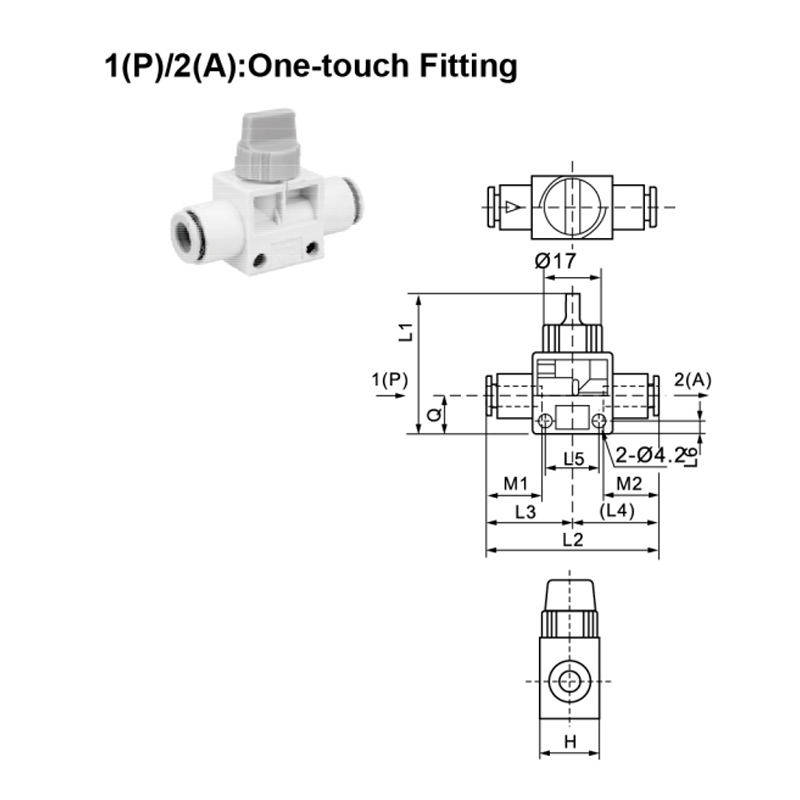

  • Lorem
    Tubing O.D
    (mm)     		Model H L1 L2 L3 L4 L5 L6 M1 M2 Q efficax
    Area
    (mm²)     		Pondus
    (g)
    1(P)R
    2(A)     		2(A)R
    3(R)
    1(P) 2(A)
    4 4 C-VHK□-04F-04F 18 41 47.6 23.8 23.8 16.5 3.5 15.8 15.8 11 3.4 1.2 15
    6 4 C-VHK口-06F-04F 18 41 48 24.3 23.7 16.5 3.5 16.8 15.8 11 5.1 1.2 15
    6 C-VHK□-06F-06F 48.6 24.3 16.8 7.2 16
    8 6 C-VHK□-06F-06F 18 41 50.5 26.2 24.3 16.5 3.5 18.7 16.8 11 9 1.2 16
    8 C-VHK□-08F-08F 52.4 26.2 18.7 9.7 17
    10 8 C-VHK□-10F-08F 22 46 58.5 30.5 28 21.5 4 20.8 18.7 14 13.7 3.2 28
    10 C-VHK□-10F-10F 61 30.5 20.8 16.1 29
    12 10 C-VHK□-12F-10F 22 46 62 31.5 30.5 21.5 4 21.8 20.8 14 17 3.2 31
    12 C-VHK□-12F-12F 63 31.5 21.8 17.5 32

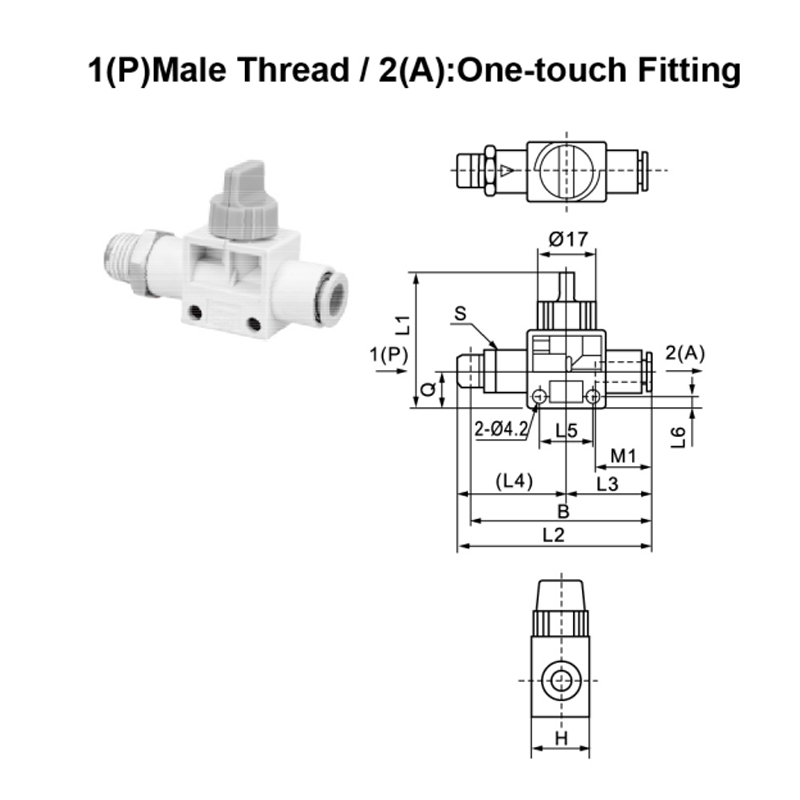

    Connection
    Thread     		Lorem
    tubing o.D
    (mm)     		Model H L1 L2 L3 L4 L5 L6 M1 Q efficax Area
    ( mm²)     		Pondus
    (g)     		B S
    Latitudo
    Per "
    Flats
    1(P) 2(A) 1P)R2(A) 2(A)R3/R)
    M5 4 C-VHK□-M5-04F 18 41 52.9 23.8 29.1 16.5 3.5 15.8
    16.8     		11 2.0 1.2 19 49 11
    6 C-VHK□-M5-06F 83.9 24.3 29.6 21 50 13
    1/8 4 C-VHK□-01S-04F 18 41 55.4 23.8 31.6 16.5 3.5 15.8
    16.8     		11 3.4 1.2 21 51 11
    6 C-VHK□-01S-06F 56.9 24.3 32.6 7.2 23 53 13
    8 C-VHK□-01S-08F 62.2 26.2 36 18.7 9.7 31 58 17
    1/4 6 C-VHK□-02S-06F 18 41 60.4 24.3 36.1 16.5 3.5 16.8
    18.7     		11 7.2 1.2 31 54 14
    8 C-VHK□-02S-08F 65.2 26.2 39 9.7 32 59 17
    10 C-VHK□-02S-10F 22 46 73.8 30.5 43.3 21.5 4 20.8
    21.8     		14 16.1 3.2 49 68 19
    12 C-VHK□-02S-12F 76.3 31.5 44.8 17.5 63 70 22
    3/8 6 C-VHK□-03S-06F 18 41 62.4 24.3 38.1 16.5 3.5 16.8 11 7.2 1.2 41 56 17
    8 C-VHK□-03S-08F 66.2 26.2 40 18 9.7 40 60
    10 C-VHK□-03S-10F 22 46 74.8 30.5 44.3 21.5 4 20.8
    21.8     		14- 16.1 3.2 51 68 19
    12 C-VHK□-03S-12F 77.3 31.5 45.8 17.5 64 71 22
    1/2 10 C-VHK□-04S-10F -22 46 78.2 30.5 47.7 21.5 4 20.8
    21.8     		14- 16.1 3.2 72 70 22
    12 C-VHK□-04S-12F 80.2; 31.5 48.7 17.5 70 72

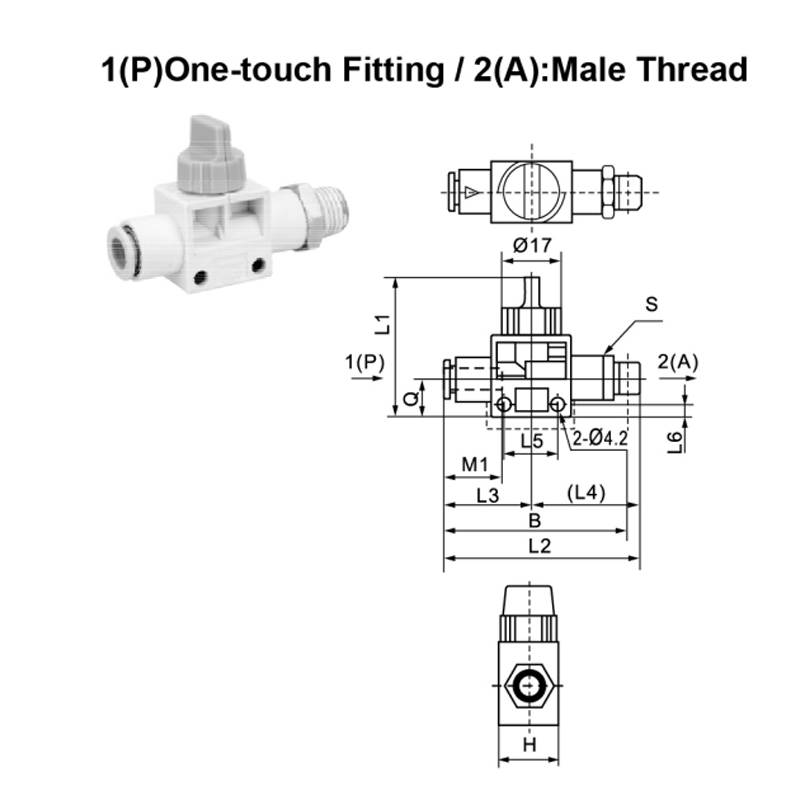

    Lorem
    tubing o.D
    (mm)     		Model Connection
    Thread
    2(A)     		H L1 L2 L3 L4 L5 L6 M1 Q efficax Area
    (mm²)     		Pondus
    (g)     		B S
    Latitudo
    Per "
    Flats
    1(P) 1P)R2(A) 2(A)R3/R)
    4 C-VHK□-04F-M5 M5 18 41 52.9 23.8 29.
    31.6     		16.5 3.5 15.8 11 2.0 1.2 19 49 11
    C-VHK□-04F-01S 1/8 55.4 3.4 21 51 13
    6 C-VHK□-06F-M5 M5 18 41 53.9 24.3 29.6 16.5 3.5 16.8 11 2.0 1.2 21 50 11
    C-VHK□-06F-01S 1/8 56.9 32.6 7.2 23 53 13
    C-VHK□-06F-02S 1/4 60.4 36.1 31 54 17
    C-VHK□-06F-03S 3/8 62.4 38.1 41 56 14
    8 C-VHK□-08F-01S 1/8 18 41 62.2 26.2 36 16.5 3.5 18.7 11 9.7 1.2 31 58 17
    C-VHK□-08F-02S 1/4 65.2 39 32 59 19
    C-VHK□-08F-03S 3/8 66.2 40 40 60 22
    10 C-VHK□-10F-02S 1/4 22 46 73.8 30.5 43.3 21.5 4 20.8 14 16.1 3.2 49 68 17
    C-VHK□-10F-03S 3/8 74.8 44.3 51
    C-VHK□-10F-04S 1/2 78.2 47.7 72 70 19
    12 C-VHK□-12F-02S 1/4 22 46 76.3 31.5 44.8 21.5 4 21 14 17.5 3.2 63 70 22
    C-VHK□-12F-03S 3/8 77.3 45.8 64 71
    C-VHK□-12F-04S 1/2 80.2 48.7 70 72

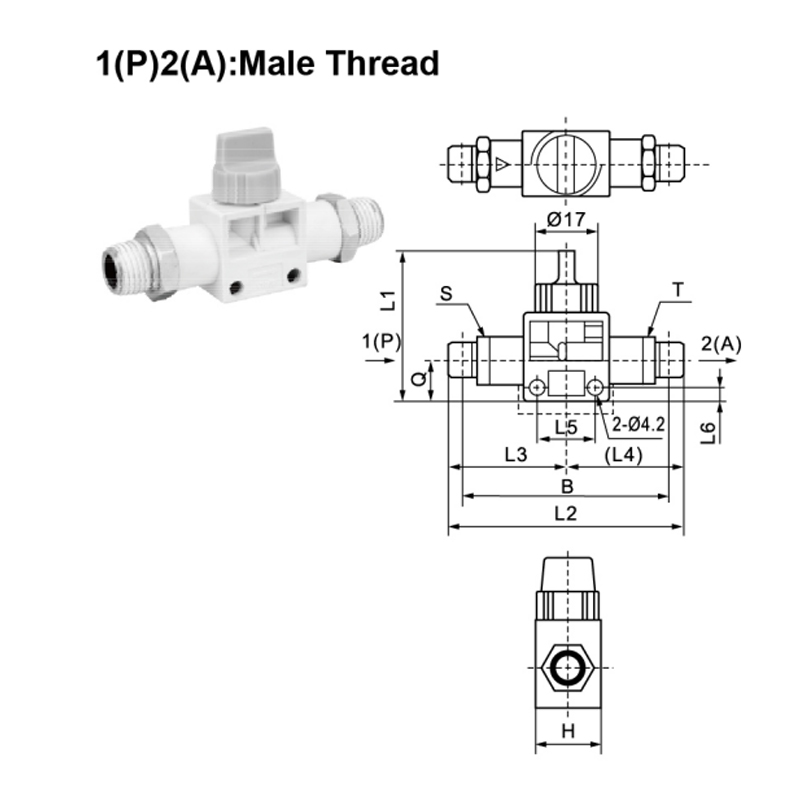

    Connexio sequela Model H L1 L2 L3 L4 L5 L6 Q efficax Area
    (mm²)
    Pondus
    (g)     		B S
    Latitudo
    Per "
    Flats     		T
    Latitudo
    Per "
    Flats
    1(P) 2(A) 1P)R2(A) 2(A)R3R)
    M5 M5 C-VHK□-M5-M5 18 41 58.2 29.1 29.1 16.5 3.5 11 2.0 1.2 23 51 11 11
    1/8 M5 C-VHK□-01S-M5 18 41 61.6 32.6 29 16.5 3.5 11 2.0 1.2 26 54 13 13
    1/8 C-VHK□-01S-01S 65.2 32.6 8.6 30 57
    14 1/8 C-VHK□-02S-01S 18 41 71.6 39 32.6 16.5 3.5 11 9.0 1.2 39 62 17 13
    1/4 C-VHK□-02S-02S 78 39 9.7 47 66 17
    3/8 1/4 C-VHK□-03S-02S 22 46 85.1 44.3 40.8 21.5 4 14 13.7 3.2 65 73 19 17
    3/8 C-VHK□-03S-03S 88.6 44.3 16.1 72 76 19
    1/2 3/8 C-VHK□-04S-03S 22 46 93 48.7 44.3 21.5 4 14 15.1 3.2 90 79 22 19
    1/2 C-VHK□-04S-04S 97.4 48.7 17.5 101 81 22
