4V Series Nauclerus Operated 5 Way Solenoid Valve Fornitores

Home / Products / Imperium pneumaticum components / Solenoid Valvae / 4V Series Nauclerus Operated 5 Way Solenoid Valve

4V Series Nauclerus Operated 5 Way Solenoid Valve 4V Series Nauclerus Operated 5 Way Solenoid Valve 4V Series Nauclerus Operated 5 Way Solenoid Valve
  • 4V Series Nauclerus Operated 5 Way Solenoid Valve
  • 4V Series Nauclerus Operated 5 Way Solenoid Valve
  • 4V Series Nauclerus Operated 5 Way Solenoid Valve
Solenoid Valvae

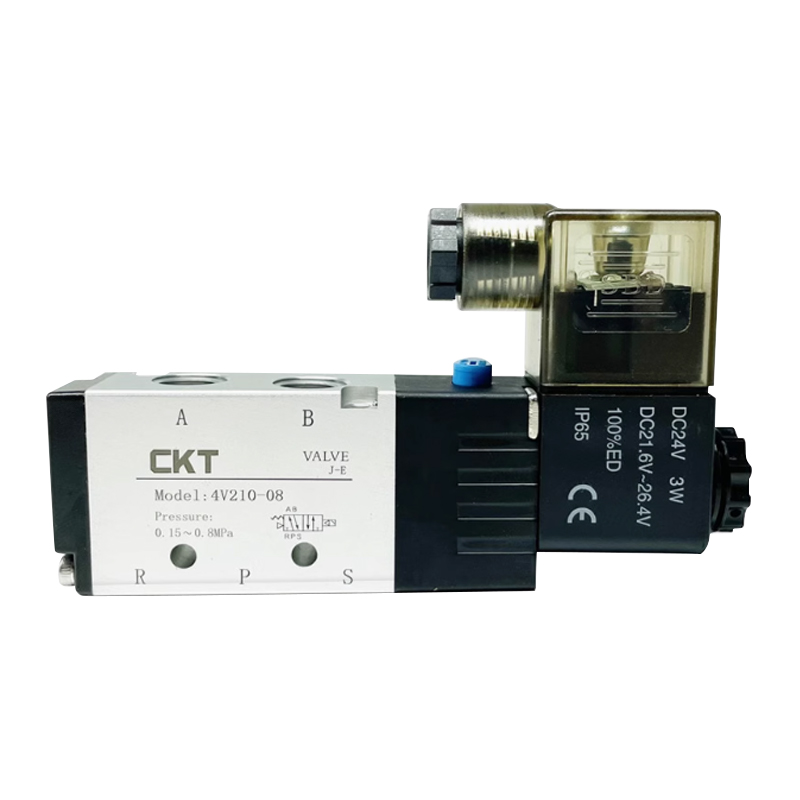

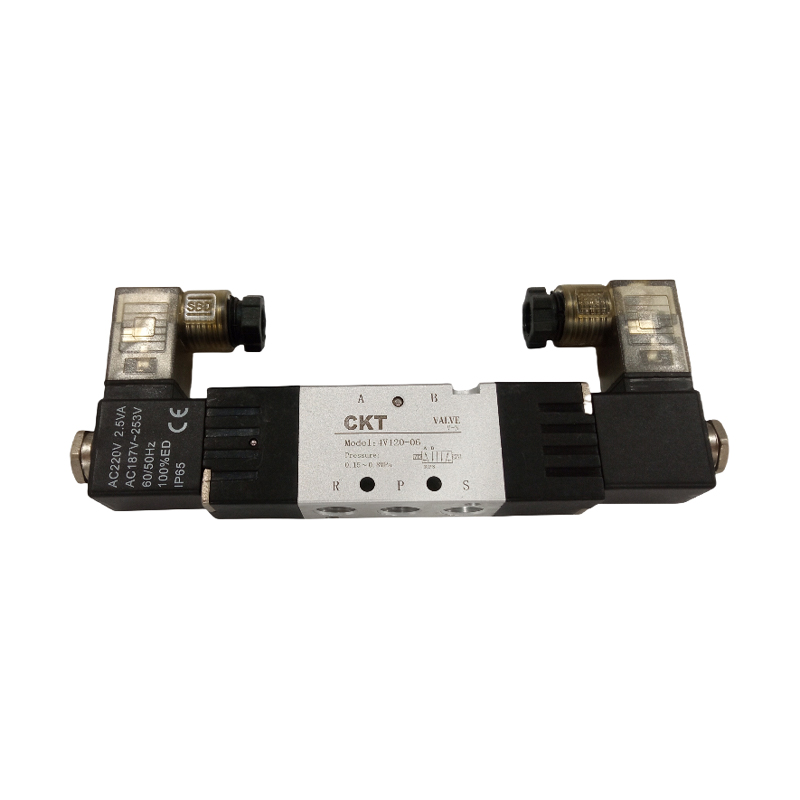

4V Series Nauclerus Operated 5 Way Solenoid Valve

4V series gubernator valvulae solenoides operatae sunt, ad systemata pneumatica industriae destinata, fluxum aeris compressi per signa electrica accurate moderantur et apta sunt ad motum cylindrorum et actuatorum reciprocum impellendum.

Praecipua lineamenta:
Columnae sigillum structura labens; Fusculum valvae delapsum consilium columnae adoptat, cum elementi signandi praecisione aptum, intellegens ratem altam valde humilem et responsionem dynamicam persecutionem, ut actionis fidem adhibeat.
Tribus-positio centralis munus ad libitum; Triplex valvae genus positionis tres configurationes functiones centrales praebet: sigillum centrum, centrum exhauriunt et centrum pressionis, ut obviam exigenti oneris vel custodiae vel securitatis emissio sub diversis condicionibus operantes.
Memoria Dual Caput Coil Function: Dual electrically valvulae duae positionis moderatae possunt locum FUSUS claudere cum unum caput solenoideum de-energitur, obtinens statum currentem aeris viam, donec signum e contrario initus est.
Olei liberorum lubricationis convenientiae: Interna structura et signatio materiae compatiuntur cum aere compresso non-lubricato, eliminato fiduciae olei mistrorum et multiplicitate sustentationis minuendae.
Integrated Manual Operatio Mechanismus: Valvae corpus vexillum cum machinatione mechanica coacta mutandi, quae faciliorem reddit apparatum committendi, subitis interventus, vel lineam aeris temperantia in eventu potentiae deficiendi.
Lata intentione aptabilitas: gyrus amplis intentionum voltages ab DC12V ad AC220V amplis industriae sustinet, integrationem electricam simpliciorem reddens.
Valvae modularis coetus institutionis: imum conforme ISO 5599 vexillum porti aerei layout, directe reclinatum et constitutum in basi integrali, ad cognoscendam compactam compositionem plurium valvularum et optimize spatium utendo rate.

1. Columnae illapsum structura, signatio bona, responsiva;
2. Tres valvulae solenoides positiones habent tres functiones centrales eligendi;
3. Dual-caput duo valvulae solenoides positio memoriam functionis habent;
4. Nihil opus est oleo praelinm addere;
5. Cum fabrica manuali, institutionem expediat et debugging; VI, fabrica manuali apposita, institutionem expediat et debugging; 6, caput duale positio valvulae solenoidei cum functione memoriae. Favens institutioni et debugging;
6. Variae sunt gradus intentionis mensurae pro delectu;
7. Integrari potest cum basi valvae catervae, spatii institutionis salvificae

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：4M Series Gubernator Operated Parte Panel 5 Via Solenoid Valvae
SUCCESSIVO：3V Series Nauclerus Operated 3 Way Solenoid Valve
  • Compatible Liquor Air
    Operans Impetus dolor 0.15 MPa ~ 0.8 MPa
    Impetus sustinere 1.2 MPa
    Ambient & Fluid Temperature 5°C ~ 60°C
    Voltage Range -10% ~ 10%
    Praesidium Rating IP65
    Calor Resistentia Classis Classis B
    Connection Type Terminatio Type
    Lubricatio Non required
    Maximum Operating Frequency 5 Hz

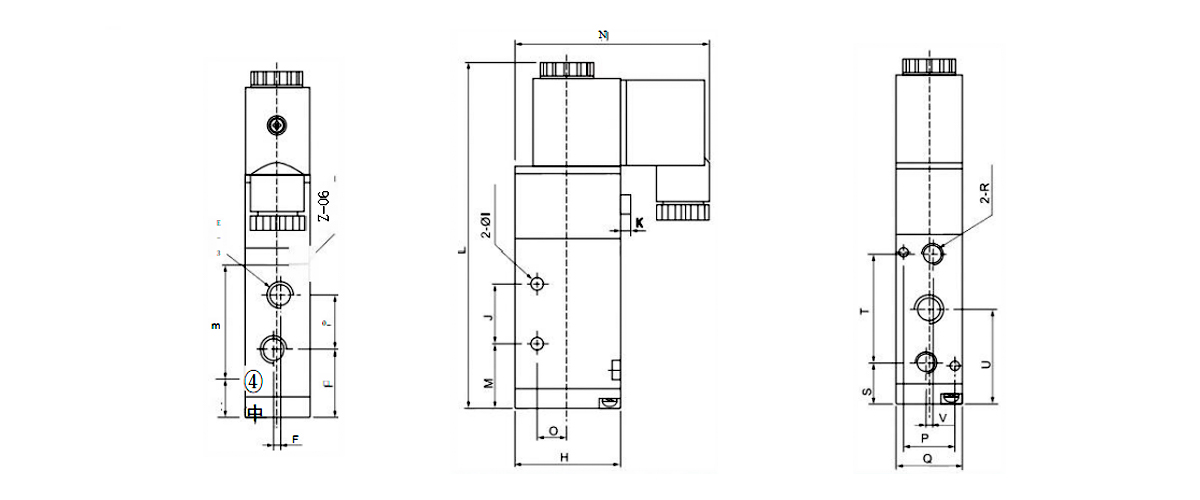

  • Model A B C D E F G H I J K L M N O P Q R S T U V
    4V110-M5 13.2 30 14 21.2 M5×0.8 0 3.3 27 3.3 14 2.5 99.4 21.2 55 9.5 13 18 M5×0.8 14.7 27 28.2 0
    4V110-06 13.2 30 16 20.2 Rc1/8 3 3.3 27 3.3 14 2.5 99.4 21.2 55 9.5 13 18 Rc1/8 14.2 28 28.2 1
    4V210-06 12.7 38 18 22.7 Rc1/8 0 3.2 35 4.3 20 3 117 21.7 66.7 10.5 17 22 Rc1/8 13.7 36 31.7 0
    4V210-08 12.7 38 21 21.2 Rc1/4 3 3.2 35 4.3 20 3 117 21.7 66.7 10.5 17 22 Rc1/8 13.7 36 31.7 0
    4V310-08 15 50 22 29 Rc1/4 0 4.3 40 4.3 24 2.4 135 28 69.2 13.5 20 27 Rc1/4 17.5 45 40 0
    4V310-10 15 50 24 28 Rc3/8 4 4.3 40 4.3 24 2.4 135 28 69.2 13.5 20 27 Rc1/4 17.5 45 40 0
    4V410-15 21 72 36 39 Rc1/2 4 4.3 50 5.5 28 2.8 168.4 43 74.2 17.5 27 34 Rc1/2 25.5 63 57 0

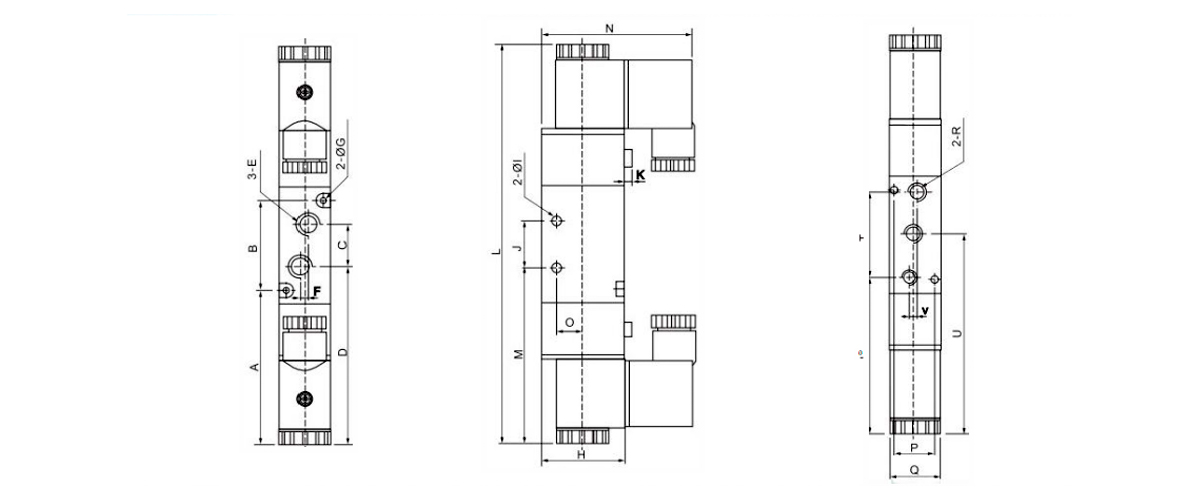

    Model A B C D E F G H I J K L M N 0 P Q R S T U V
    4V120-M5 56.2 30 14 64.3 M5×0.8 0 3.3 27 3.3 14 2.5 142.4 64.2 55 9.5 13 18 M5×0.8 57.7 27 71.2 0
    4V120-06 56.2 30 16 63.2 Rc1/8 3 3.3 27 3.3 14 2.5 142.4 64.2 55 9.5 13 18 Rc1/8 57.2 28 71.2 1
    4V220-06 66.4 38 18 76.4 Rc1/8 0 3.2 35 4.3 20 3 171 75.4 66.7 10.5 17 22 Rc1/8 67.4 36 85.4 0
    4V220-08 66.4 38 21 74.9 Rc1/4 3 3.2 35 4.3 20 3 171 75.4 66.7 10.5 17 22 Rc1/8 67.4 36 85.4 0
    4V320-08 69.9 50 22 83.9 Rc1/4 0 4.3 40 4.3 24 2.4 190 82.9 69.2 13.5 20 27 Rc1/4 72.4 45 94.9 0
    4V320-10 69.9 50 24 82.9 Rc3/8 4 4.3 40 4.3 24 2.4 190 82.9 69.2 13.5 20 27 Rc1/4 72.4 45 94.9 0
    4V420-15 75.4 72 36 93.4 Rc1/2 4 4.3 50 5.5 28 2.8 222.8 97.4 74.2 17.5 27 34 Rc1/2 79.9 63 111.4 0

    Model A B C D E F G H I J K L M N O P Q R S T U V
    4V130-M5 56.2 30 14 64.3 M5×0.8 0 3.3 27 3.3 14 2.5 157.4 64.2 55 9.5 13 18 M5×0.8 57.7 27 71.2 0
    4V130-06 56.2 30 16 63.2 Rc1/8 3 3.3 27 3.3 14 2.5 157.4 64.2 55 9.5 13 18 Rc1/8 57.2 28 71.2 1
    4V230-06 66.4 38 18 76.4 Rc1/8 0 3.2 35 4.3 20 3 190 75.4 66.7 10.5 17 22 Rc1/8 67.4 36 85.4 0
    4V230-08 66.4 38 21 74.9 Rc1/4 3 3.2 35 4.3 20 3 190 75.4 66.7 10.5 17 22 Rc1/8 67.4 36 85.4 0
    4V330-08 69.9 50 22 83.9 Rc1/4 0 4.3 40 4.3 24 2.4 209 82.9 69.2 13.5 20 27 Rc1/4 72.4 45 94.9 0
    4V330-10 69.9 50 24 82.9 Rc3/8 4 4.3 40 4.3 24 2.4 209 82.9 69.2 13.5 20 27 Rc1/4 72.4 45 94.9 0
    4V430-15 75.4 72 36 93.4 Rc1/2 4 4.3 50 5.5 28 2.8 243.8 97.4 74.2 17.5 27 34 Rc1/2 79.9 63 111.4 0
