Cylindri Accessories Fornitores

Home / Products / Air Cylindri / Cylindri Accessories / Cylindri Accessories

Cylindri Accessories Cylindri Accessories Cylindri Accessories Cylindri Accessories Cylindri Accessories
  • Cylindri Accessories
  • Cylindri Accessories
  • Cylindri Accessories
  • Cylindri Accessories
  • Cylindri Accessories
Cylindri Accessories

Cylindri Accessories

Accessoria cylindrica sunt nuclei systematis cylindrici componentes adiuvantes. Eorum selectio scientifica peremptorium munus agit in eo ut fides, moderatio accurationis, servitii vita et efficientia cylindri operandi. Haec accessionum series comprehendere potest comprehensivam cylindri observantiam sub variis conditionibus operariis emendare, sustentationem gratuita reducere, et ad missiones altas per vires materiae productionem automatam altam, subtilitatem processus technologiae et consilium sistens optimized. ​

Core Features
1. Maximum fidem: Factus e magna vi mixturae fictionis, potest sustinere 1.6MPa pressionis laborat et ±5% pressionis fluctuationis; oleum nitrile resistens Flexilis et polytetrafluoroethylene composita signans components potest plus quam 8000 horarum ultrices liberorum operationum in emissione distantiae 30℃ ad 120℃, signanter reducendo periculum temporis temporis. ​

2. Subtilitas imperium; Parem tolerantia gradum IT5 attingit, finis faciei runout est ≤0.01mm/m, ut coaxialitas errorum inter cylindrum et onus sit ≤0.02mm, pistonis motus rectitudo declinationis intra 0.05mm/100mm refrenatur, et repetitio positionis accuratio ±0.01mm attingit.

3. Ultra-longam vitam; Superficies durae chromae tractationis (durae supra HV700), friction coefficiens labens ut humilis ac 0.08, cum gestus sui lubricantibus, motus ≤0.001mm/100,000 gestare, plusquam 3 decies centena milia cyclorum liberorum laborantium sub condicionibus aestimatis obtineri possunt, et vita est tribus partibus longior quam accessoriis ordinariis. ​

4. Maximum efficientiam et industriam salutaris; Alveus rivus profundus redigit ad coefficiens dragmas in via per 30% et auget velocitatem gasi responsionis per 20%; leve aluminium mixturae materialis (density 2.7g/cm³) inertiam motus minuit, et vis consummationis minuitur per 15% sub condiciones altae celeritatis (1m/s), quae efficientiam lineae productionis meliorat..

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：Nessun articolo precedente
SUCCESSIVO：Nessun articolo successivo

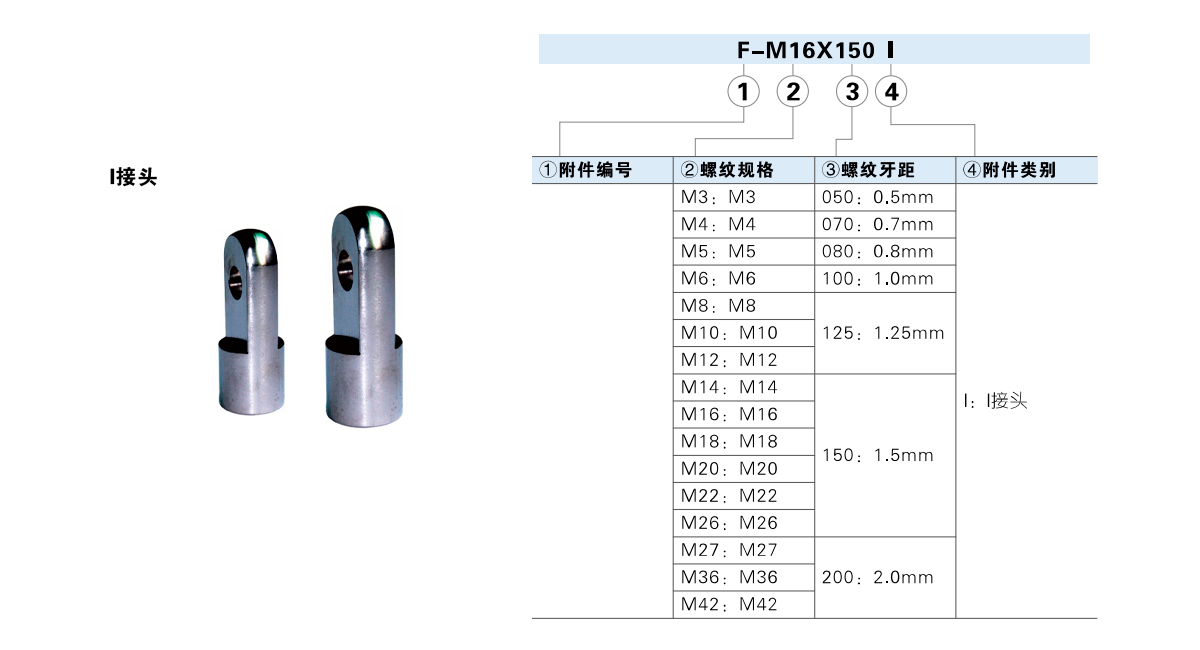

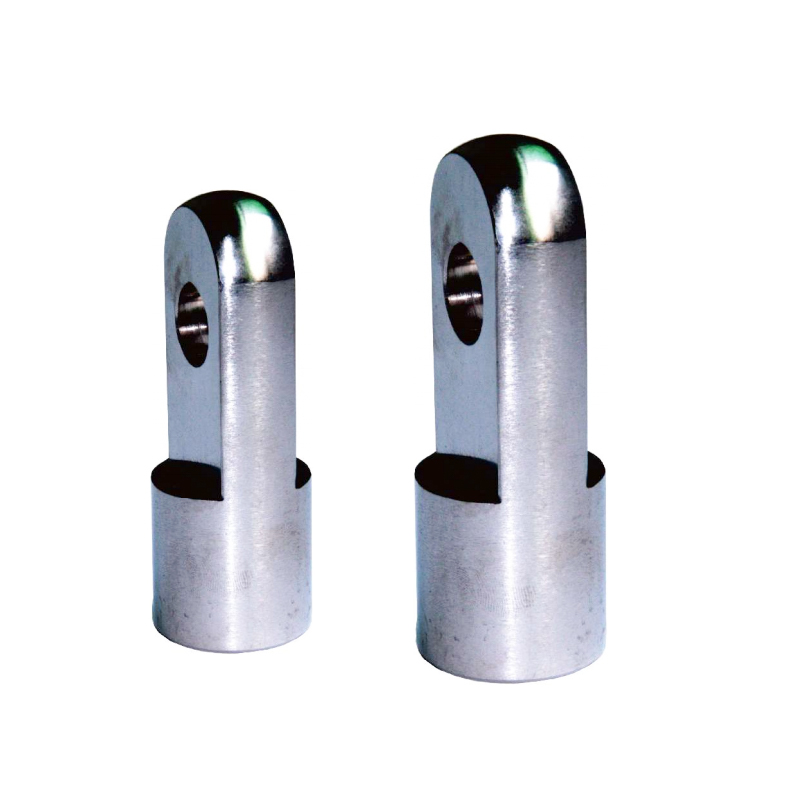

  • Cylinder Series Accessories Name SE SAI
    32 40 50 63 80 100 125 32 40 50 63 80 100 125 160 200
    F-M10X1251 ● ●
    F-M12X1251 ● ●
    F-M16X150l ● ● ● ●
    F-M20X150l ● ● ● ●
    F-M27X2001 ● ●
    F-M36X2001 ● ●
    Cylinder Series Accessories Name SG/SGC SC/SAU SC JSI
    125 160 200 250 32 40 50 63 80 100 125 160 200 250 32 40 50 63 80 100 125
    F-M10X1251 ● ●
    F-M12X1251 ●
    F-M14X150l ●
    F-M16X1501 ● ●
    F-M18X150l ● ●
    F-M20X1501 ● ●
    F-M22X1501 ●
    F-M26X1501 ●
    F-M27X2001 ● ● ●
    F-M36X2001 ● ● ● ●
    F-M42X2001 ● ●
    Cylinder Series Accessories Name MI MPG
    8 10 12 16 20 25 32 40 6 8 10 12 16
    F-M3X0501 ●
    F-M4X0701 ● ● ● ●
    F-M5X0801 ● ●
    F-M6X1001 ● ●
    F-M8X1251 ●
    F-M10×1251 ● ●
    F-M12X125l ●

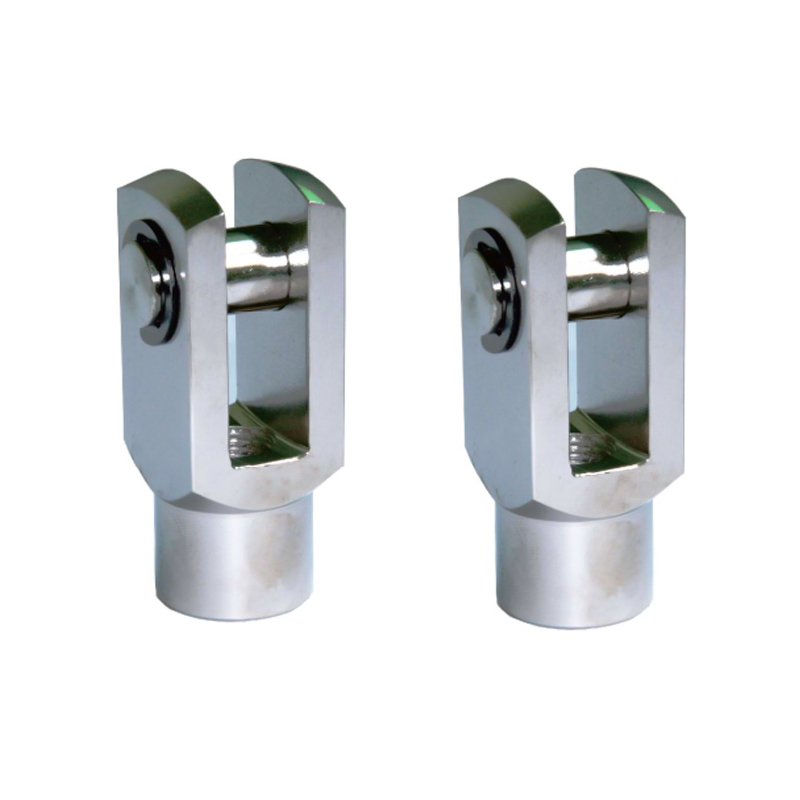

    Cylinder Series Accessories Name SE SAL
    32 40 50 63 80 100 125 32 40 50 63 80 100 125 160 200
    F-M10X125Y ● ●
    F-M12X125Y ● ●
    F-M16X150Y ● ● ● ●
    F-M20X150Y ● ● ● ●
    F-M27X200Y ● ●
    F-M36X200Y ● ●
    Cylinder Series Accessories Name SG/SGC SC/SAU SC JSI
    125 60 200 250 32 40 50 63 80 100 125 160 200 250 32 40 50 63 80 100 125
    F-M10X125Y ● ●
    F-M12X125Y ●
    F-M14X150Y ●
    F-M16X150Y ● ●
    F-M18X150Y ● ●
    F-M20X150Y
    F-M22X150Y ● ● ●
    F-M26X150Y ●
    F-M27×200Y ● ● ●
    F-M36X200Y ● ● ● ●
    F-M42X200Y ● ●
    Cylinder Series Accessories Name MI MPG
    8 10 12 16 20 25 32 40 6 8 10 12 16
    F-M3X050Y ●
    F-M4X070Y ● ● ● ●
    F-M5X080Y ● ●
    F-M6X100Y ● ●
    F-M8X125Y ●
    F-M10X125Y ● ●
    F-M12X125Y ●

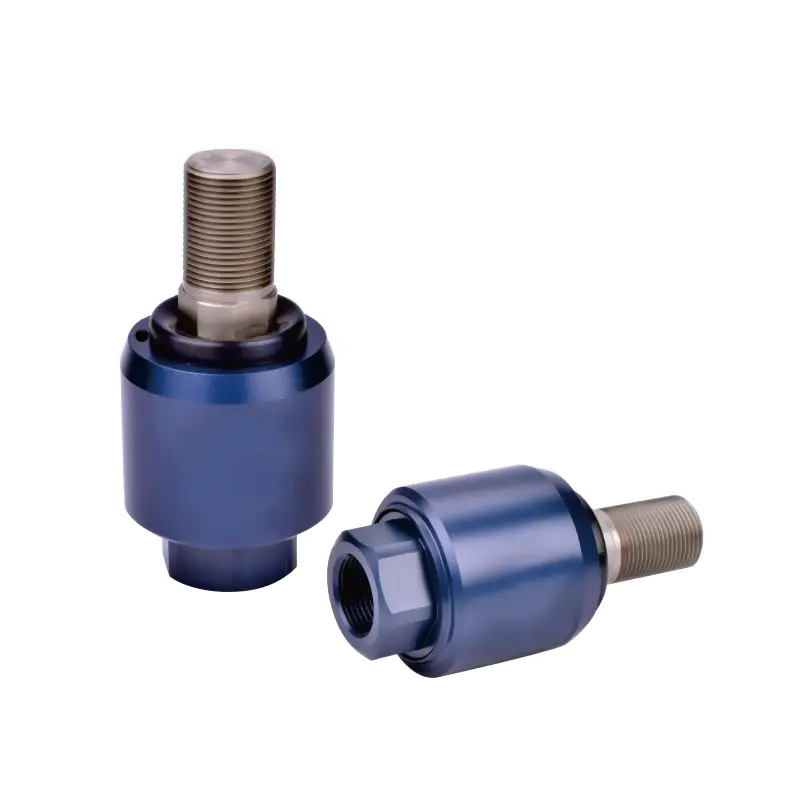

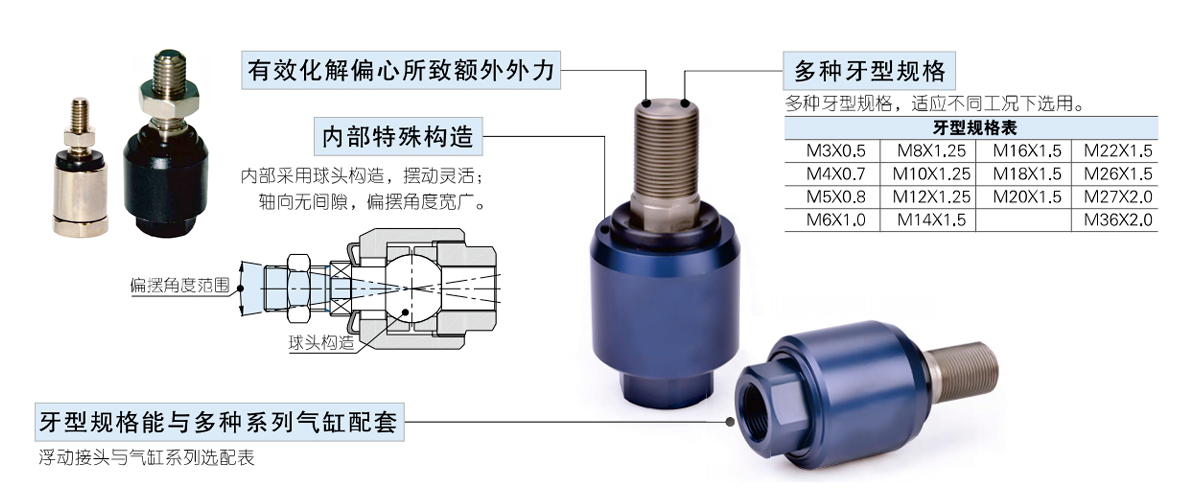

    Series cylindrica ACQ
    Cylindrus Series Floating Articulus Specifications PB** MI MA MF          MBL Natantes iuncturam speciem 2 16 20 25 32 40 50 63 80 100
    4 6 10 12 16 8 10 12 16 20 25 32 40 16 20 25 32 40 50 63 20 25 32 40 20 25 32 40 50 63 F-M8X125F ●
    F-M3X050F ● F-M10X125F ●
    F-M4X070F ● ● ● F-M12X125F
    F-M5X080F ● ● F-M14X150F ● ●
    F-M6X100F ● ● ● F-M16X150F
    F-M8X125F ● ● ● ● F-M18X150F ● ●
    F-M10X125F ● ● ● ● ● ● ● ● F-M20X150F
    F-M12X125F ● ● ● F-M22X150F ●
    F-M14X150F ● ● ● ● ● F-M26X150F ●

    Cylindrus Series Floating Articulus Specifications SG/SGC SE SAL SAL/SC SC/SAU JSI
    125 160 200 250 32 40 50 63 80 100 125 32 40 50 63 80 100 125 160 200 32 40 50 63 80 100 32 40 50 63 80 100 125
    F-M10X125F ● ● ● ●
    F-M12X125F ● ● ●
    F-M14X150F ●
    F-M16X150F ● ● ● ● ● ●
    F-M18X150F ● ●
    F-M20X150F ● ● ● ● ● ●
    F-M22X150F ●
    F-M26X150F ●
    F-M27×200F ● ● ● ●
    F-M36×200F ● ● ● ●

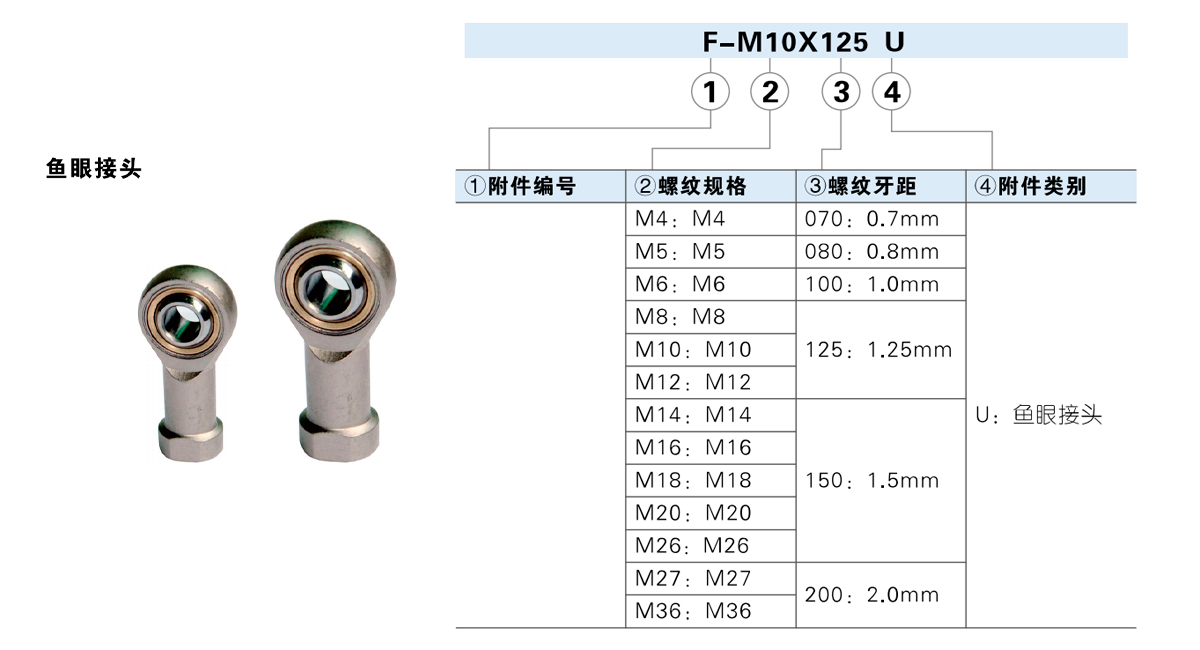

    Cylinder Series Accessories Name SE SAI SAI/SC
    32 40 50 63 80 100 125 32 40 50 63 80 100 125 160 200
    F-M10X125U ● ●
    F-M12X125U ● ●
    F-M16X150U ● ● ● ●
    F-M20X150U ● ● ● ●
    F-M27X200U ● ●
    F-M36X200U ● ●
    Cylinder Series Accessories Name SG/SGC SC/SAU JSI
    125 160 200 250 32 40 50 63 80 100 32 40 50 63 80 100 125
    F-M10X125U ● ●
    F-M12X125U ●
    F-M14X150U ●
    F-M16X150U ●
    F-M18X150U ● ● ●
    F-M20X150U ● ●
    F-M26X150U ●
    F-M27X200U ● ●
    F-M36X200U ● ●
    Cylinder Series Accessories Name ACQ
    12 16 20 25 32 40 50 63 80 100
    F-M5X080U ●
    F-M6X100U ●
    F-M8X125U ●
    F-M10X125U ●
    F-M14X150U ● ●
    F-M18X150U ● ●
    F-M26X150U ●
    Cylinder Series Accessories Name MA MF MBL
    16 20 25 32 40 50 63 20 25 32 40 20 25 32 40 50 63
    F-M6X100U ●
    F-M8X125U ● ● ●
    F-M10X125U ● ● ● ● ● ●
    F-M12X125U ● ●
    F-M14X150U ● ● ● ●
    Cylinder Series Accessories Name PB** MI
    4 6 10 12 16 8 10 12 16 20 25 32 40
    F-M4X070U ● ● ●
    F-M5X080U ● ●
    F-M6X100U ● ●
    F-M8X125U ●
    F-M10X125U ● ●
    F-M12X125U ●

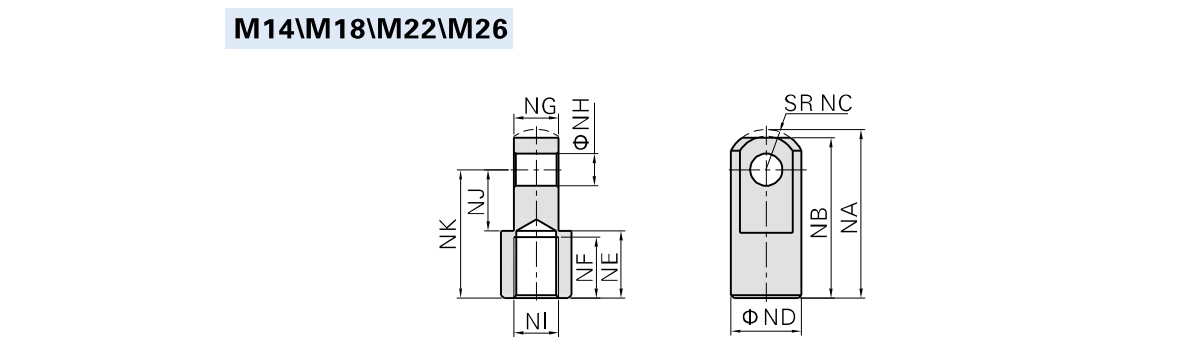

  • Exemplar/Symbolum NA NB NC ND NE NF NG NH NJI NK NI
    F-M14X1501 52.5 50 12.5 22 21 19 13.8 10 19 40 M14×1.5
    F-M18X1501 66.5 64 16.5 28 27 24 19.8 14 24 50 M18×1.5
    F-M22X1501 83.5 80 23.5 40 29 26 29.8 22 34 60 M22×1.5
    F-M26X1501 83.5 80 23.5 40 29 26 29.8 22 34 60 M26×1.5

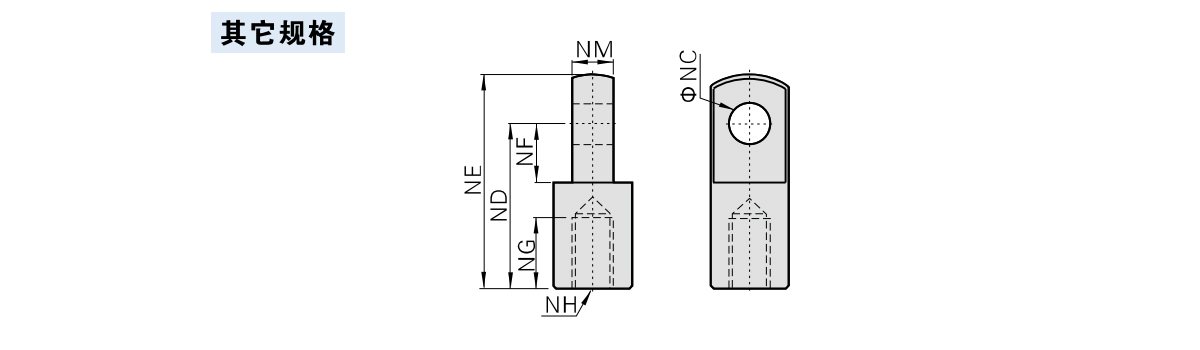

    Exemplar/Symbolum NC ND NE NF NG NH NM
    F-M3×050l 3 12 15.5 5 5 M3×0.5 3
    F-M4×070l 4 16 21 6.8 8 M4×0.7 4
    F-M5×080l 5 25 32 14.1 7.5 M5×0.8 6.3
    F-M6×1001 6 21 28 8.5 8 M6×1.0 6
    F-M8×1251 8 30 40 11 15 M8×1.25 8
    F-M10×1251 10 40 50 15 20 M10×1.25 10
    F-M12×1251 12 48 62 24 20 M12×1.25 12
    F-M16×150l 16 64 82 32 23 M16×1.5 16
    F-M20×1501 20 80 102 40 30 M20×1.5 20
    F-M27×200l 30 110 139 51 45 M27×2.0 30
    F-M36×200l 35 144 181 65 55 M36×2.0 35
    F-M42×200l 40 168 211 85 62 M42×2.0 40

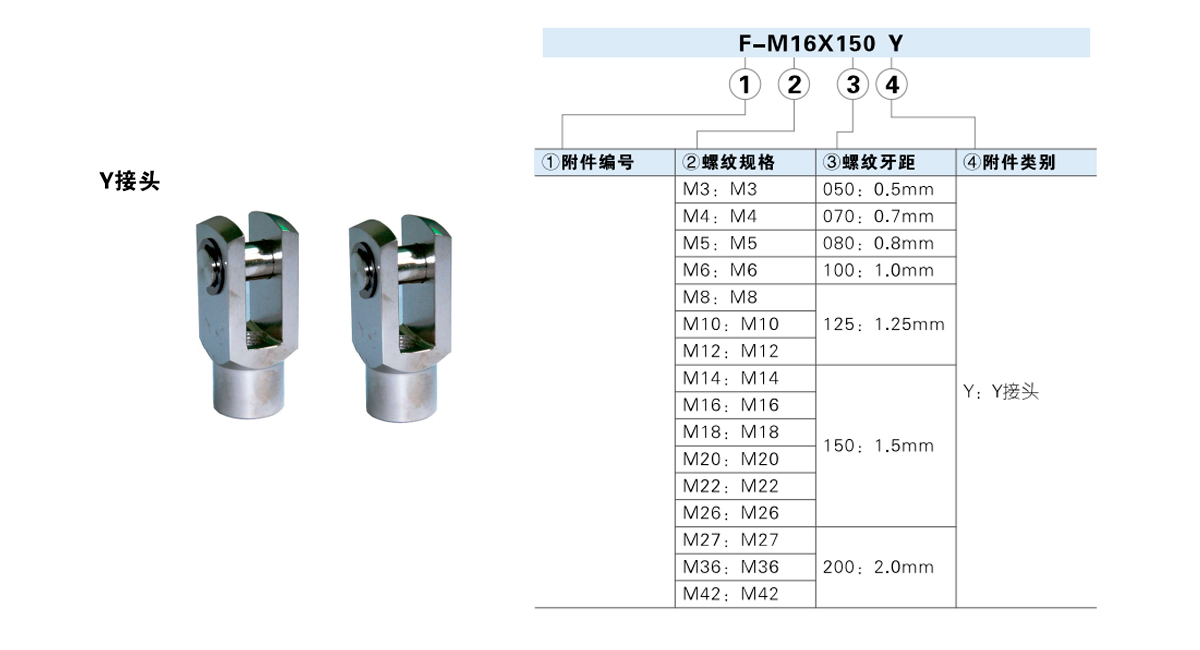

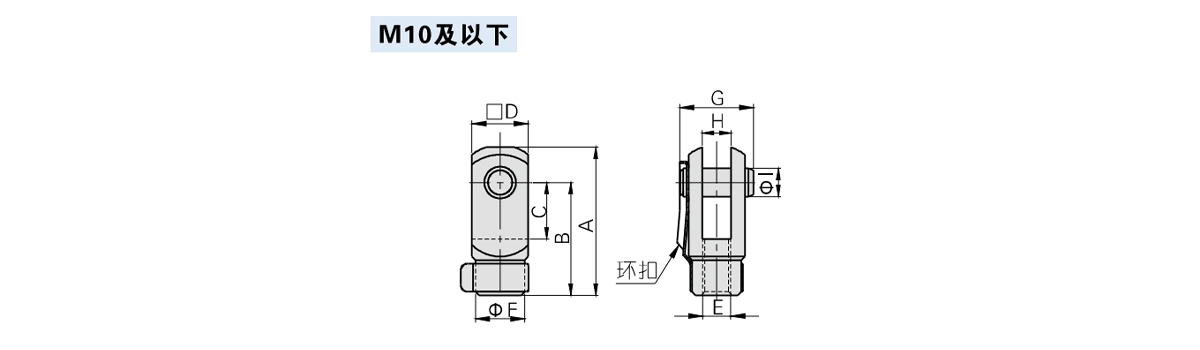

    Exemplar/Symbolum A B C D F E G H I
    F-M3X050Y 15.5 12 5 6 6 M3×0.5 9 3 3
    F-M4X070Y 22 16 8 8 7 M4×0.7 11.5 4 4
    F-M5X080Y 28 21 10.2 12 10 M5×0.8 15.5 6.5 5
    F-M6X100Y 32 24 12 12 10 M6×1.0 16 6 6
    F-M8X125Y 42 32 16 16 14 M8×1.25 21 8 8
    F-M10X125Y 52 40 20 19 18 M10×1.25 25 10 10

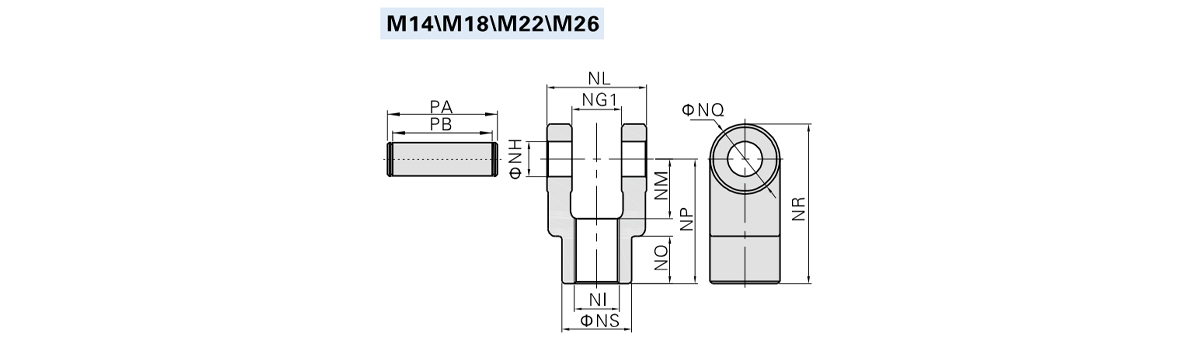

    Exemplar/Symbolum NG1 NH NI NL NM NO NP NQ NR NS PA PB***
    F-M14X150Y 14.2 10 M14×1.5 27.8 19 17 40 22 51 22 34.6 28.8
    F-M18X150Y 20.2 14 M18×1.5 39.8 24 19 50 28 64 28 47 40.8
    F-M22X150Y 30.2 22 M22×1.5 59.8 34 20 65 40 85 40 69.2 60.8
    F-M26X150Y 30.2 22 M26×1.5 59.8 34 20 65 40 85 40 69.2 60.8

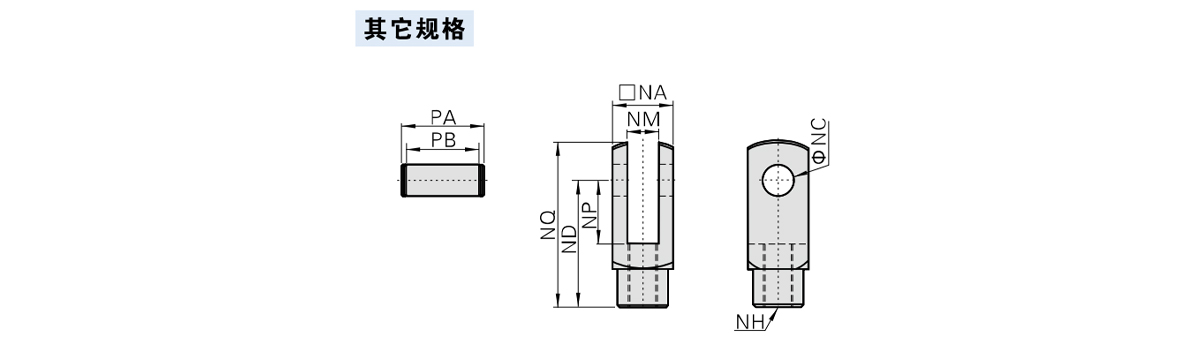

    Exemplar/Symbolum NA NC ND NP NQ NM NH PA PB***
    F-M12×125Y 25.4 12 48 24 62 12 M12×1.25 32.4 26.2
    F-M16X150Y 32 16 64 32 80 16 M16×1.5 39 32.8
    F-M20×150Y 44.4 20 80 40 101 20 M20×1.5 53.4 45.2
    F-M27×200Y 54 30 110 55 139 30 M27×2.0 64.2 54.8
    F-M36X200Y 70 35 144 73 179 35 M36×2.0 80.2 70.8
    F-M42×200Y 85 40 168 86 211 40.3 M42×2.0 115 93

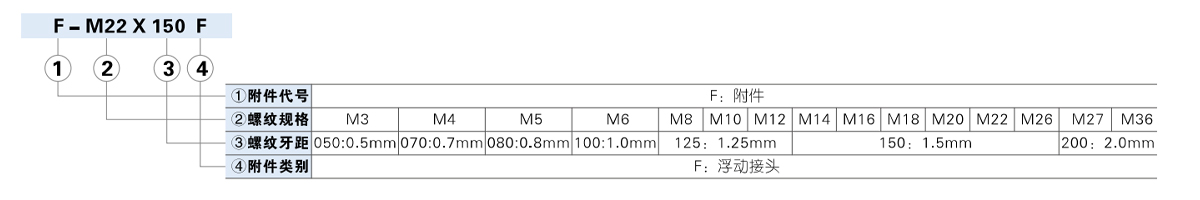

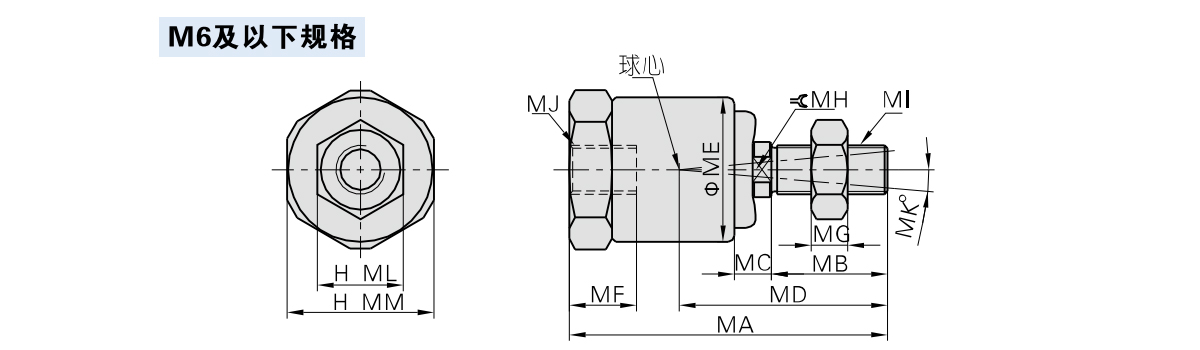

    Exemplar/Symbolum MA MB MC MD ME MF MG MH MIMJ ML MM Angulus ultricies Aculeis excambium
    F-M3X050F 23.5 7.5 3 15 12.8 5 2.4 4 M3×0.5 5.5 13 ±5° 0.5
    F-M4X070F 26 9.5 3 17 12.8 5.5 3 4 M4×0.7 7 13 ±5° 0.5
    F-M5X080F 34.5 13.5 3.5 22.8 13.8 7.5 4 6 M5×0.8 8 14 ±5° 0.5
    F-M6X100F 34.5 13.5 3.5 22.8 13.8 7.5 4 6 M6×1.0 10 14 ±5° 0.5

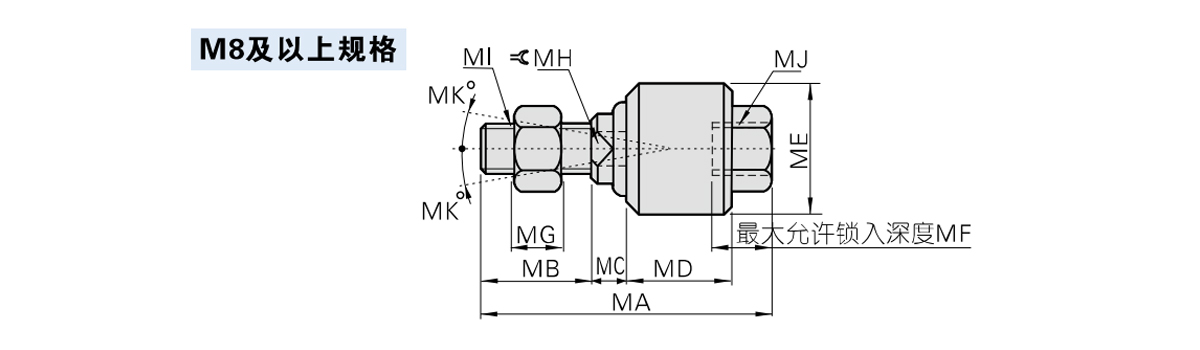

    Exemplar/Symbolum MA MB MC MD ME MF MG MH MI/MJ MK
    F-M8X125F 51 20 6 17 24 10.5 6 8 M8×1.25 13
    F-M10X125F 58 22 7 21 26 11 6 10 M10×1.25 12
    F-M12X125F 58 22 8 21 28 11 7 12 M12×1.25 12
    F-M14×150F 70 22.5 8.5 28 34.5 16 8 15 M14×1.5 12
    F-M16X150F 90 27 10 41 44.5 19 8 17 M16×1.5 7
    F-M18X150F 92 27 10 41 44.5 21 11 18 M18×1.5 7
    F-M20×150F 102 29 13 46 53 22 10 22 M20×1.5 10
    F-M22×150F 108 32 13 46 53 25 13 22 M22×1.5 5
    F-M26×150F 120 32 14.5 52.5 59.5 28 13 27 M26×1.5 5
    F-M27X200F 136.5 40 14.5 52.5 59.5 35 13.5 27 M27×2.0 5
    F-M36X200F 194.5 60 20.5 77.5 84 50 18 36 M36×2.0 5

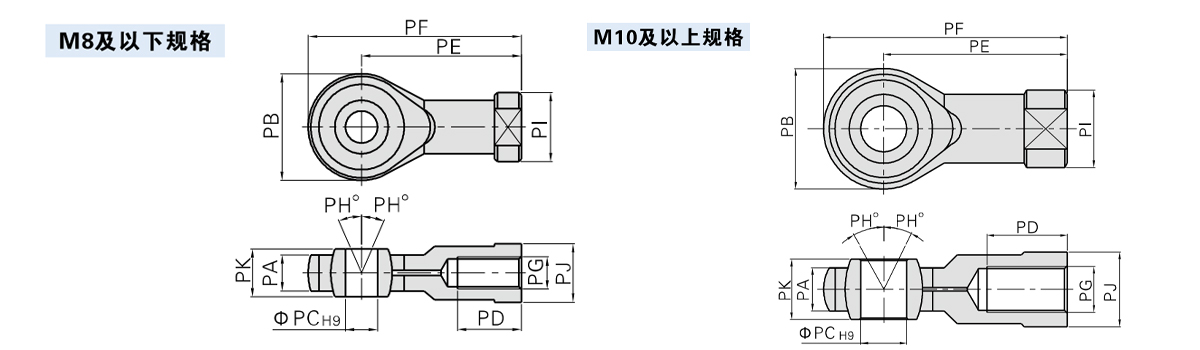

    Exemplar/Symbolum PA PB*** PC PD PE PF PG PH PI PJ PK
    F-M4X070U 6 18 5 10 27 36 M4×0.7 13 12.5 10 8
    F-M5X080U 6 18 5 10 27 36 M5×0.8 13 12.5 10 8
    F-M6X100U 6.8 20 6 12 30 40 M6×1.0 13 13 11 9
    F-M8X125U 9 24 8 16 36 48 M8×1.25 13 16 14 12
    F-M10X125U 11 26 10 20 43 56 M10×1.25 13 19 17 14
    F-M12×125U 12 32 12 22 50 66 M12×1.25 13 22 19 16
    F-M14X150U 14 36 14 28 57 75 M14×1.5 13 25 22 19
    F-M16X150U 15 40 16 28 64 84 M16×1.5 15 27 22 21
    F-M18X150U 16.5 46 18 30 71 94 M18×1.5 15 31 27 23
    F-M20X150U 18 46 20 33 77 100 M20×1.5 15 34 30 25
    F-M26×150U 22 60 25 48 94 124 M26×1.5 15 42 36 31
    F-M27×200U 25 70 30 51 110 145 M27×2.0 15 50 41 37
    F-M36X200U 27.5 80 35 56 125 165 M36×2.0 15 57.5 50 43
