2W Series 2 Position 2 Via Copper Solenoid Valve Fornitores

Home / Products / Processus Valvulae / 2-Portus valvae fluidae / 2W Series 2 Position 2 Via Copper Solenoid Valve

2W Series 2 Position 2 Via Copper Solenoid Valve 2W Series 2 Position 2 Via Copper Solenoid Valve 2W Series 2 Position 2 Via Copper Solenoid Valve 2W Series 2 Position 2 Via Copper Solenoid Valve 2W Series 2 Position 2 Via Copper Solenoid Valve 2W Series 2 Position 2 Via Copper Solenoid Valve 2W Series 2 Position 2 Via Copper Solenoid Valve 2W Series 2 Position 2 Via Copper Solenoid Valve 2W Series 2 Position 2 Via Copper Solenoid Valve 2W Series 2 Position 2 Via Copper Solenoid Valve 2W Series 2 Position 2 Via Copper Solenoid Valve 2W Series 2 Position 2 Via Copper Solenoid Valve 2W Series 2 Position 2 Via Copper Solenoid Valve 2W Series 2 Position 2 Via Copper Solenoid Valve 2W Series 2 Position 2 Via Copper Solenoid Valve 2W Series 2 Position 2 Via Copper Solenoid Valve 2W Series 2 Position 2 Via Copper Solenoid Valve
  • 2W Series 2 Position 2 Via Copper Solenoid Valve
  • 2W Series 2 Position 2 Via Copper Solenoid Valve
  • 2W Series 2 Position 2 Via Copper Solenoid Valve
  • 2W Series 2 Position 2 Via Copper Solenoid Valve
  • 2W Series 2 Position 2 Via Copper Solenoid Valve
  • 2W Series 2 Position 2 Via Copper Solenoid Valve
  • 2W Series 2 Position 2 Via Copper Solenoid Valve
  • 2W Series 2 Position 2 Via Copper Solenoid Valve
  • 2W Series 2 Position 2 Via Copper Solenoid Valve
  • 2W Series 2 Position 2 Via Copper Solenoid Valve
  • 2W Series 2 Position 2 Via Copper Solenoid Valve
  • 2W Series 2 Position 2 Via Copper Solenoid Valve
  • 2W Series 2 Position 2 Via Copper Solenoid Valve
  • 2W Series 2 Position 2 Via Copper Solenoid Valve
  • 2W Series 2 Position 2 Via Copper Solenoid Valve
  • 2W Series 2 Position 2 Via Copper Solenoid Valve
  • 2W Series 2 Position 2 Via Copper Solenoid Valve
2-Portus valvae fluidae

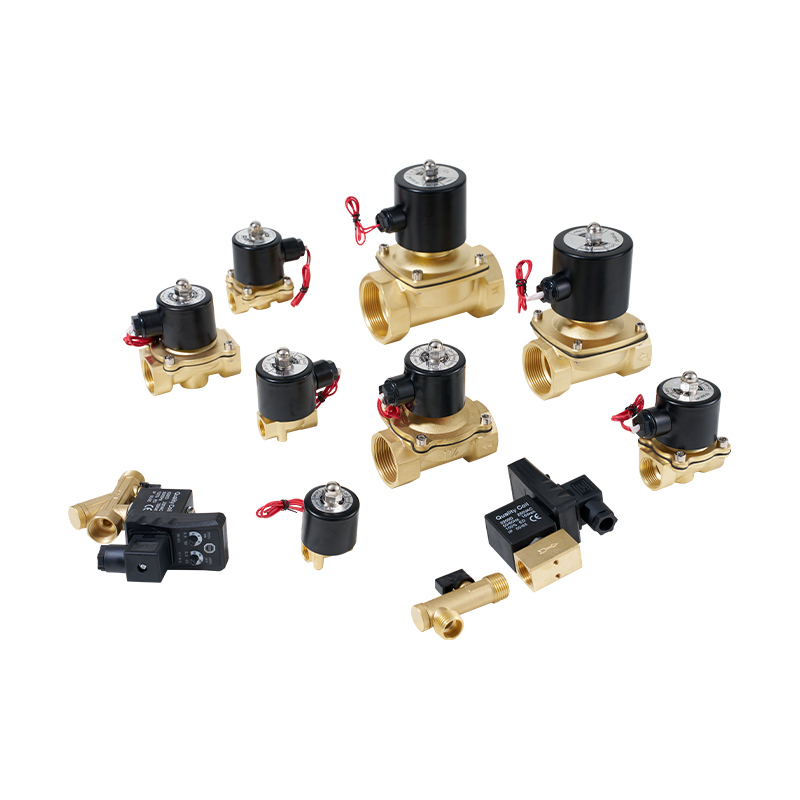

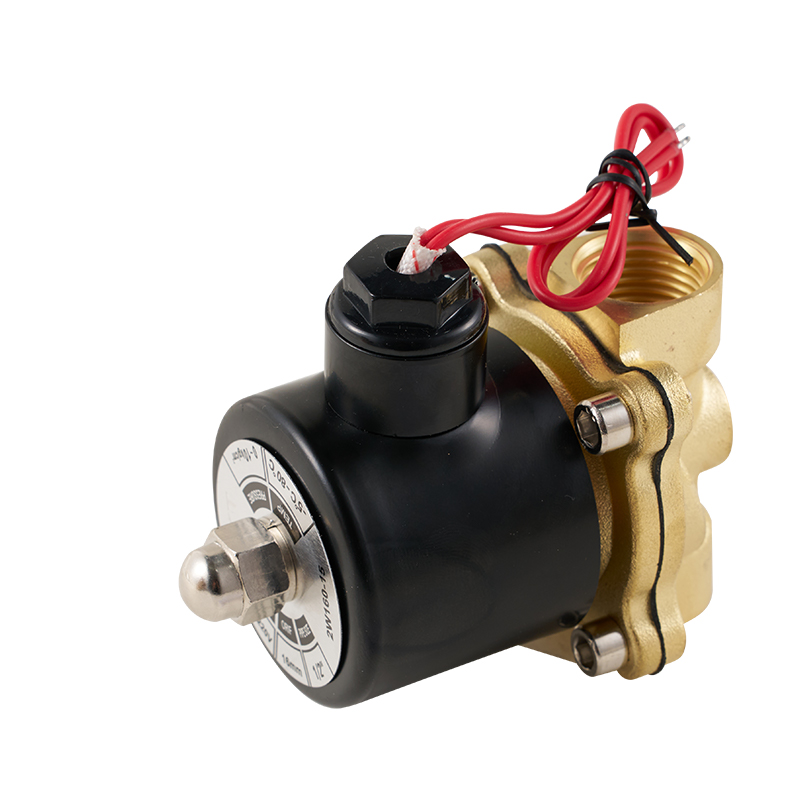

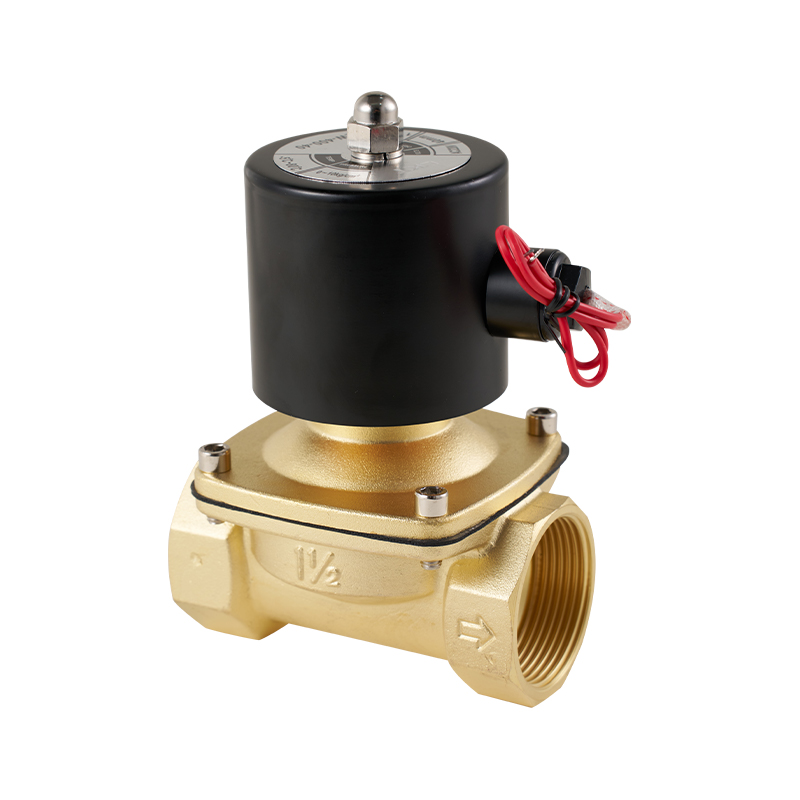

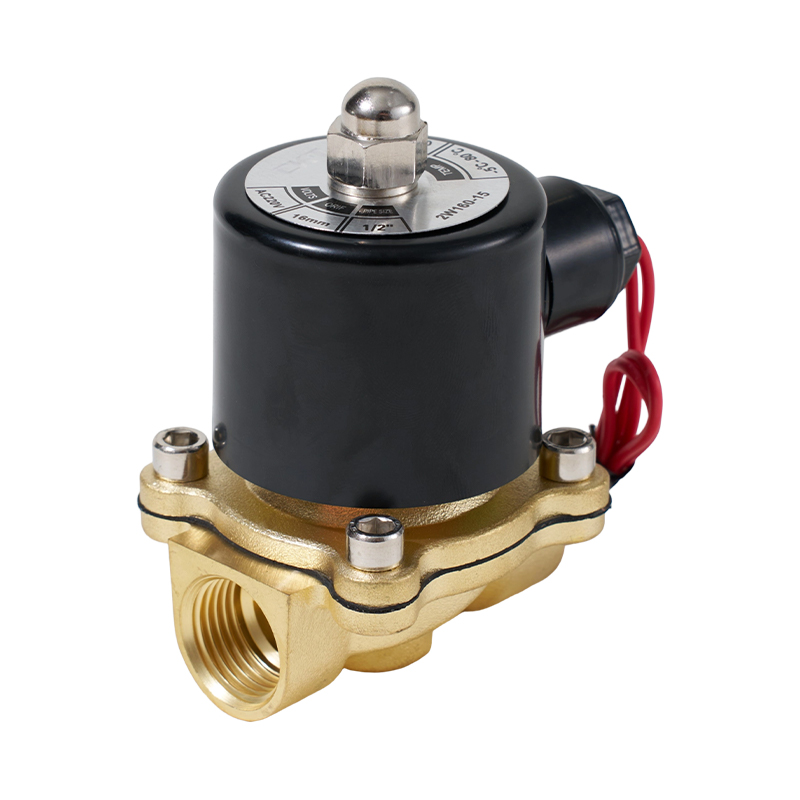

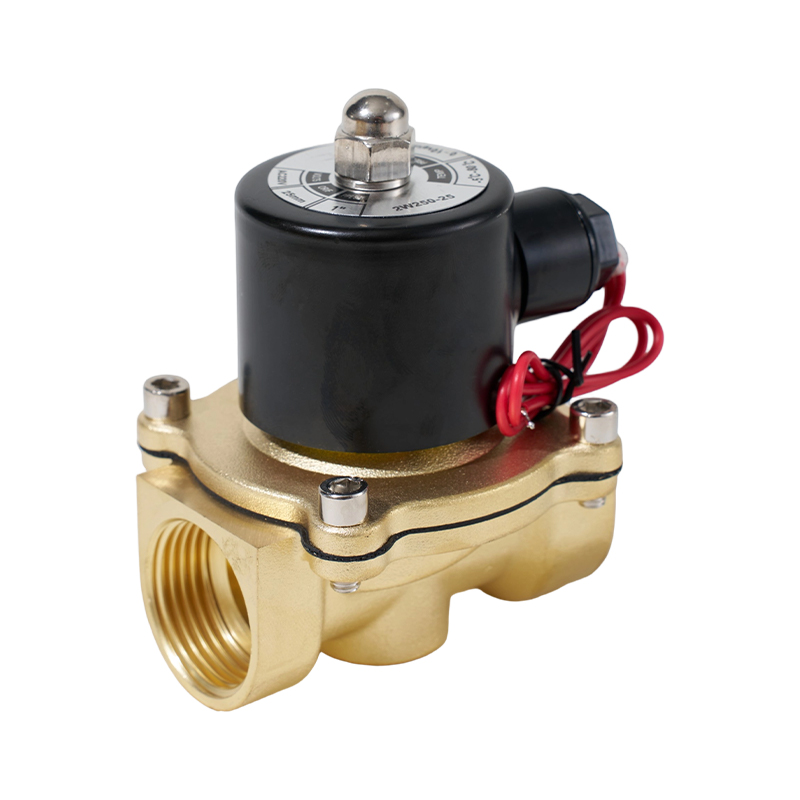

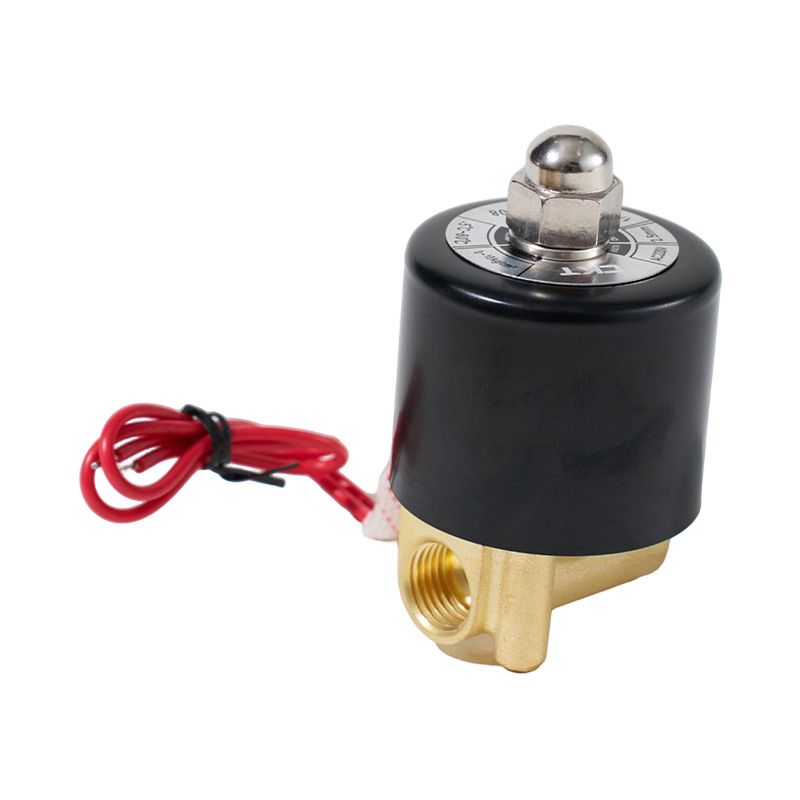

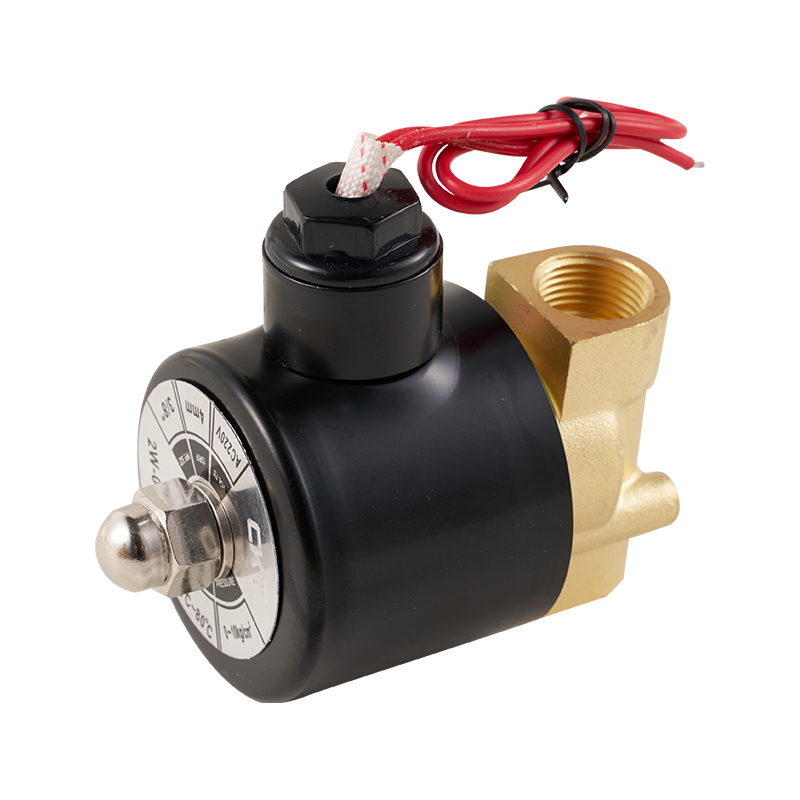

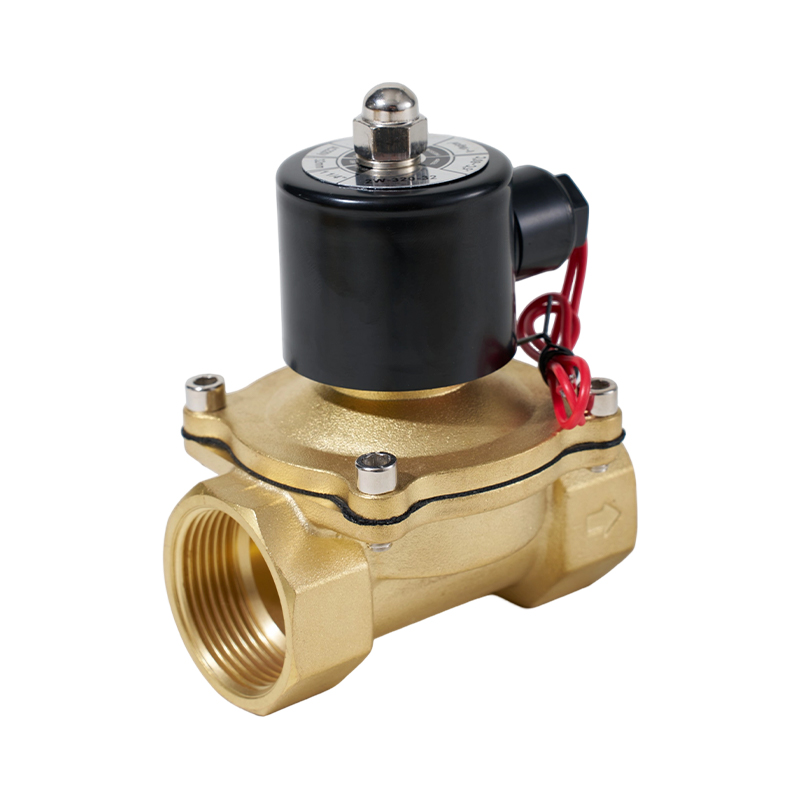

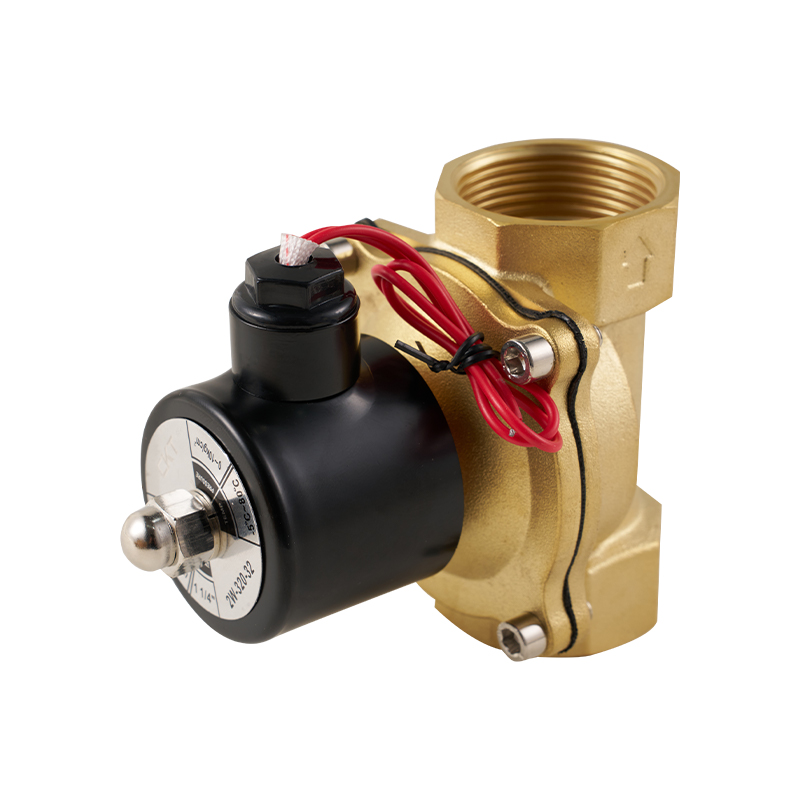

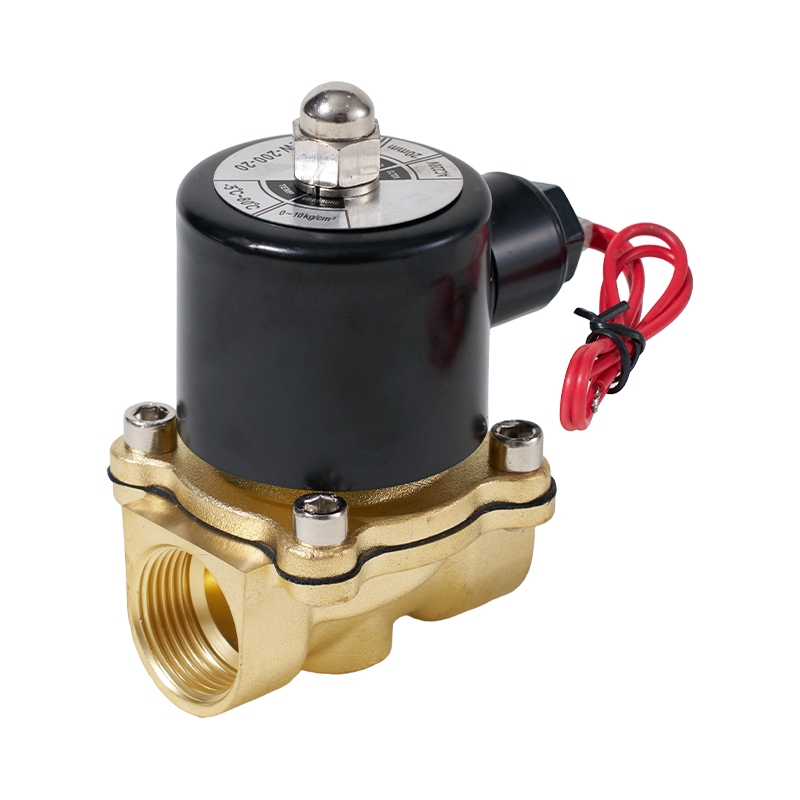

2W Series 2 Position 2 Via Copper Solenoid Valve

2W Series 2 Position 2 Via Valvae Cupreae Solenoidalis est nucleus componentis communiter usus in agro ditionis fluidi industrialis. Ordinatur ad perficiendam celeriter mutandi operationem instrumentorum interdum, coniungendo characteres simplicis structurae et effectus efficientiae altae.
Instrumentorum communicationis applicabilis: Apta instrumentis fluidis communibus ut liquidis, vaporibus et oleis levibus, ac diversis ambitibus industrialibus aptare possunt.
Delineatio structuralis lineamenta: Adoptatio directi-agens constructionis principium, interna simplicificat et efficientiam responsionis melioris.
Apta notae operationis: Suscipe nulla valvae pressio munus aperiendi ut lenis satus-usque sub pressuris vel nullis condicionibus pressurae lenis curet.
Commoda fluunt effectus perficiendi: Cum capacitate processui ampla fluunt, apta ad medium et altum evolutionem rate applicationis missionum.
Certa perficientur: Suprema designatio stabilitatem tendit, quae in humilitate defectus longi temporis operationis reflectitur.
Materiae structurae descriptio: Corpus valvulae aereae, habita ratione et vi et corrosione resistendi.
Series diversitatis lectionis: Haec series figurarum varietatem praebet, quae molliter accommodari et optimized ad moderandas postulationes possunt.

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：2S Series 2 Position 2 Viam Steel Solenoid Valve
SUCCESSIVO：Nessun articolo successivo
  • Exemplar 2W025
    -06     		2W040
    -08     		2W040
    -10     		2W160
    -10     		2W160
    -15     		2W200
    -20     		2W250
    -25     		2W350
    -35     		2W400
    -40     		2W500
    -50
    Medium usus Aer, aqua, oleum, gas
    Modus operating Direct-agens
    Type Northmanni clausit genus NC (opens cum ageret)
    Northmanni aperta generis NO (obcludit cum ageret)
    Fluxus diametri (mm) 2.5 4 16 16 20 25 35 40 50
    Cv valorem 0.23 0.6 4.8 4.8 7.6 12 24 29 48
    Diameter pipe 1/8" 1/4" 3/8" 3/8" 1/2" 3/4" 1" 11/4" 11/2" 2"
    Liquor viscositas usus Infra 20CST
    Operans pressura (kgf/cm) 0~7 Oleum: 0-5; Gas: 0-7; Aqua: 0-5; Air: 0-7
    Maxime pressura resistentia (kgf/cm) 10 10.5
    Operans temperatus range (℃) -5~80
    Operans voltage range ±10%
    Corpus materiale 2W: Brass
    Oleum sigillum materiale Flexilis nitrile (NBR conventional genus)

  • Exemplar 2W025
    -06     		2W025
    -08     		2W040
    -10     		2W160
    -10     		2W160
    -15     		2W200
    -20     		2W250
    -25     		2W350
    -35     		2W400
    -40     		2W500
    -50

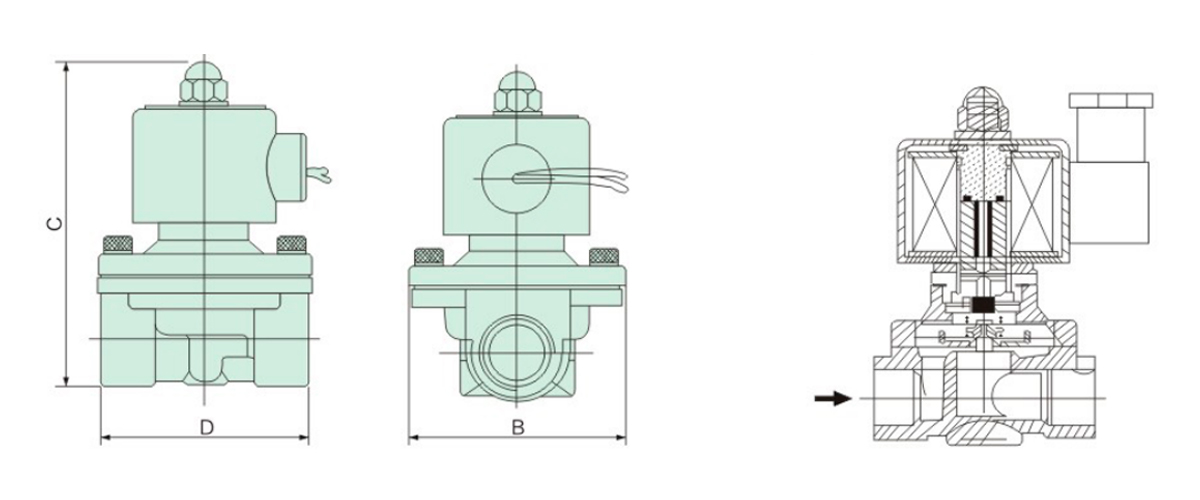

    B 30.3 30.3 32.2 57 57 57 72 77 88 95
    C 76 76 88 96 102 102 109 131 165 176
    D 43 43 51 64 64 67 84 98 108 132

    Exemplar 2W250
    -25 Super     		2W350
    -35 Super     		2W400
    -40 Super     		2W500
    -50 Super
    B 78 94 94 111
    C 114 160 165 185
    D 88 116 116 153
