MHL2 Series (Parallel Aperiens et Claudens Type) Lata Type Pneumatica Gripper Fornitores

Home / Products / Air Cylindri / Pneumatica Grippers / MHL2 Series (Parallel Aperiens et Claudens Type) Lata Type Pneumatica Gripper

MHL2 Series (Parallel Aperiens et Claudens Type) Lata Type Pneumatica Gripper MHL2 Series (Parallel Aperiens et Claudens Type) Lata Type Pneumatica Gripper
  • MHL2 Series (Parallel Aperiens et Claudens Type) Lata Type Pneumatica Gripper
  • MHL2 Series (Parallel Aperiens et Claudens Type) Lata Type Pneumatica Gripper
Pneumatica Grippers

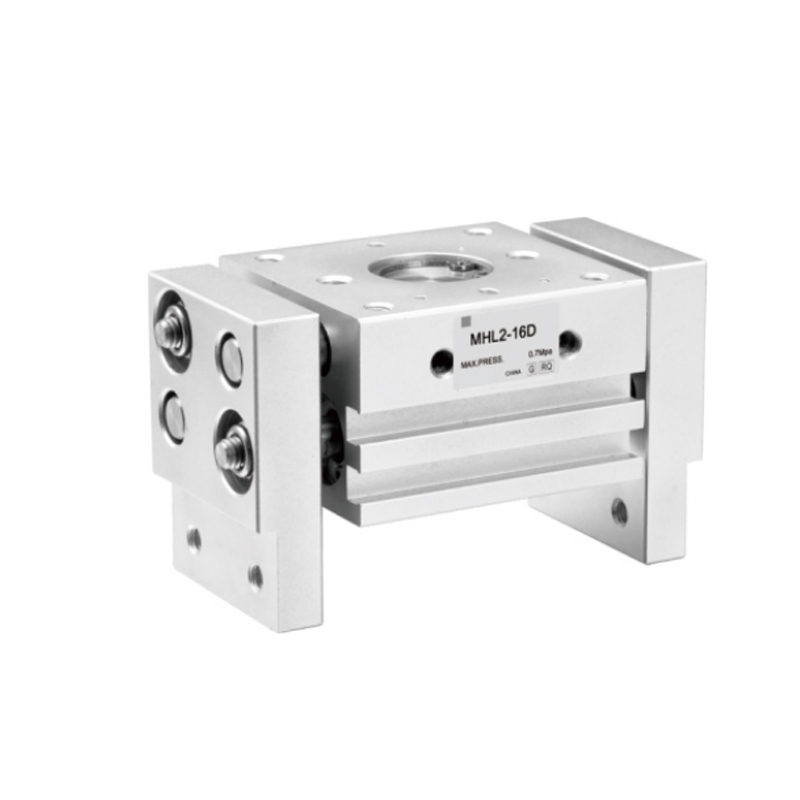

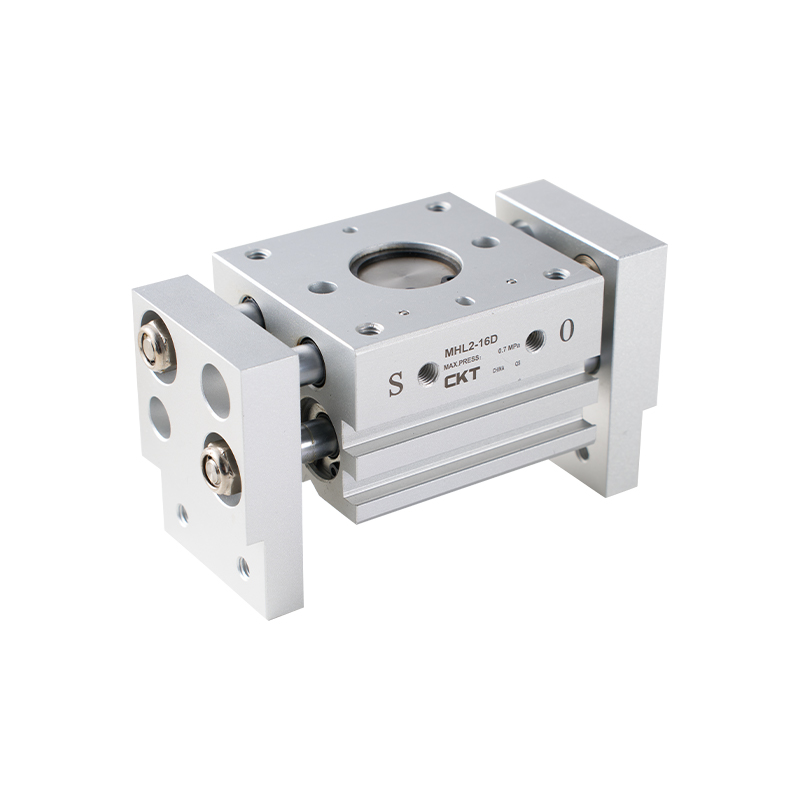

MHL2 Series (Parallel Aperiens et Claudens Type) Lata Type Pneumatica Gripper

·Locus digiti longus, ad res magnas aptandas
Piston · Dual consilio vim tenens auget potest
· Eculeus et operatio digitos synchrone aperire et claudere sinit
· Pulvis-probationis consilio ob usum specialium sigillorum

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：MHY2 Series (Fulcrum Open/Close Type) / Cam Type 180° Open/Close Pneumatica Gripper
SUCCESSIVO：MHC2 Series (Fulcrum Aperiens et Clausula Type) Pneumatica Gripper
  • Diameter cylindricus (mm) 10 16 20 25 32 40
    Liquor usus est Air
    Genus actio Duplex agens
    Maximum operating pressura MPa 0.6
    Minimum operating pressura MPa 0.15 0.1
    Ambiens et fluidum temperatus -10～60℃
    Repeatability ±0.1mm
    Nota I) vim habentes N 14 45 74 131 228 396
    Pipe nexu diametro M5×0.8 Rc1/8
    Nota 1: In pressione 0,5 MPa et punctum fibulationis 40 mm (Ø10~Ø25) vel 80 mm (Ø32/Ø40)

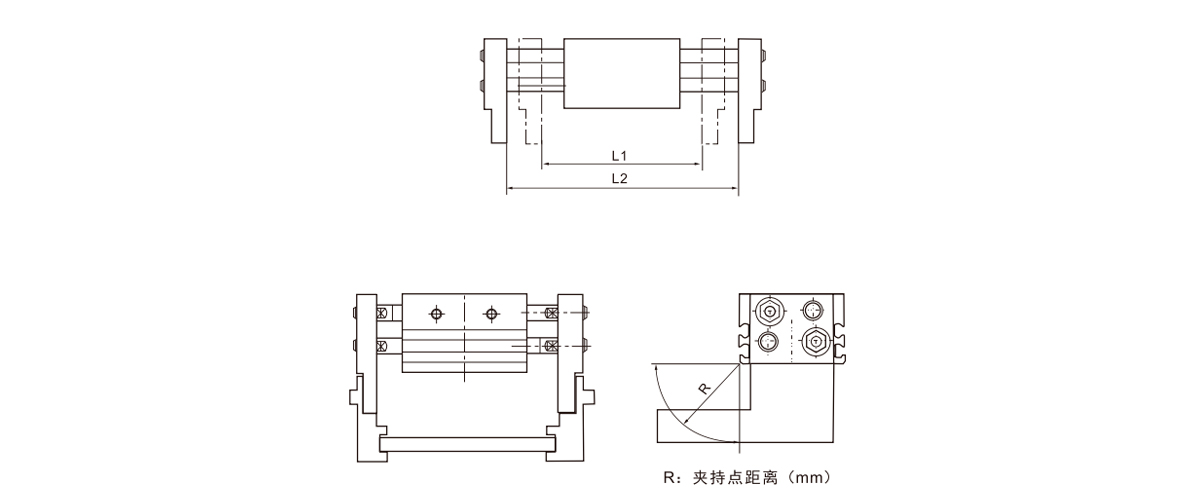

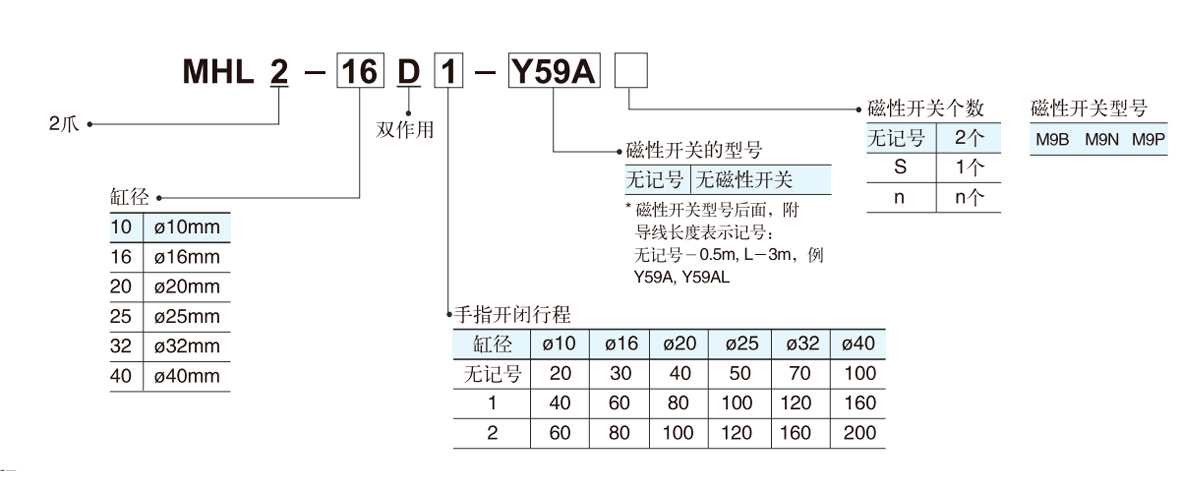

  • Model Diameter cylindricus
    (mm)     		Maximum operating
    frequentia
    c.p.m     		Aperta / clausa plaga
    mm
    (L2-L1)     		Clausa latitudo
    mm
    (L1)     		foramen latitudo
    mm
    (L2)
    MHL2-10D 10 60 20 56 76
    MHL2-10D1 40 40 78 118
    MHL2-10D2 60 96 156
    MHLL2-16D 16 60 30 68 98
    MHL2-16D1 40 60 110 170
    MHL2-16D2 80 130 210
    MHL2-20D 20 60 40 82 122
    MHL2-20D1 40 80 142 222
    MHL2-20D2 100 162 262
    MHL2-25D 25 60 50 100 150
    MHL2-25D1 40 100 182 282
    MHL2-25D2 120 200 320
    MHL2-32D 32 30 70 150 220
    MHL2-32D1 20 120 198 318
    MHL2-32D2 160 242 402
    MHL2-40D 40 30 100 188 288
    MHL2-40D1 20 160 246 406
    MHL2-40D2 200 286 486

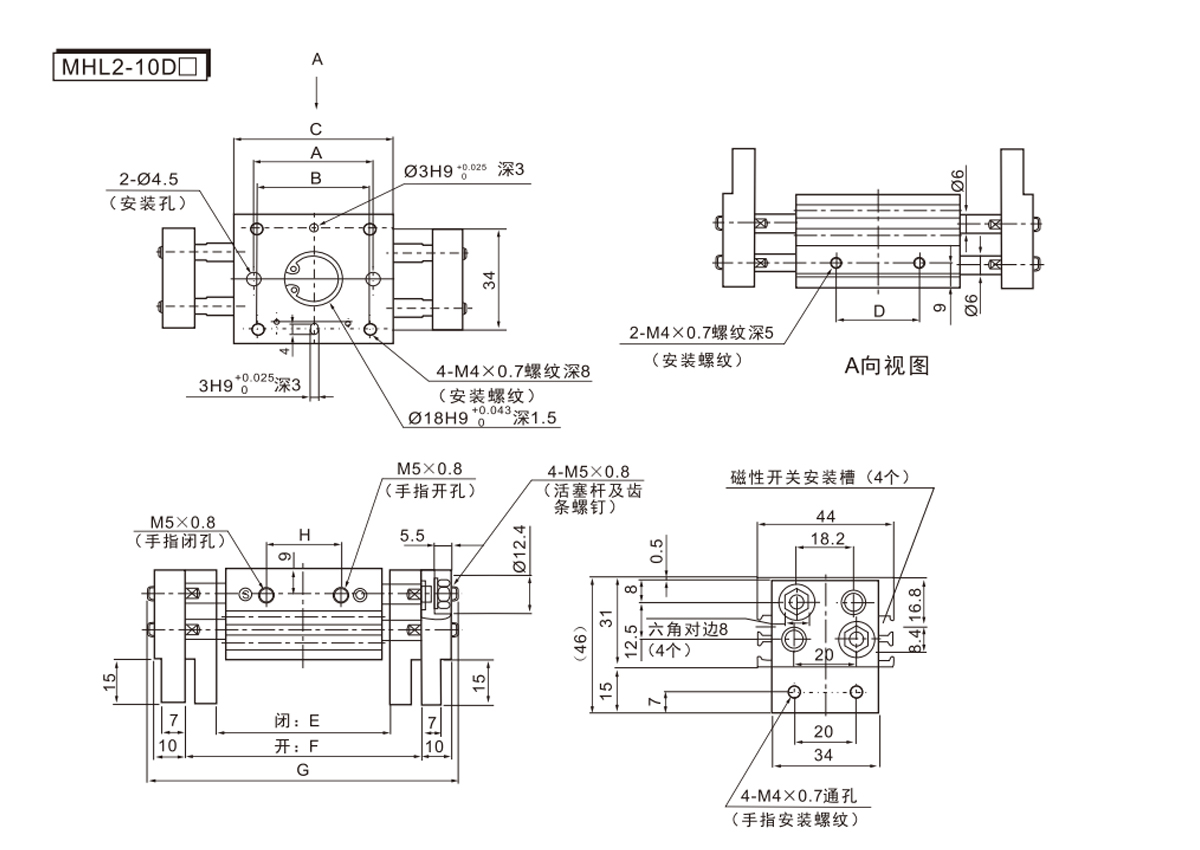

    Model A B C D E F G H
    MHL2-10D 38 36 51 26 56 76 100 24
    MHL2-10D1 54 52 67 42 78 118 142 39
    MHL2-10D2 72 70 85 60 96 156 180 57

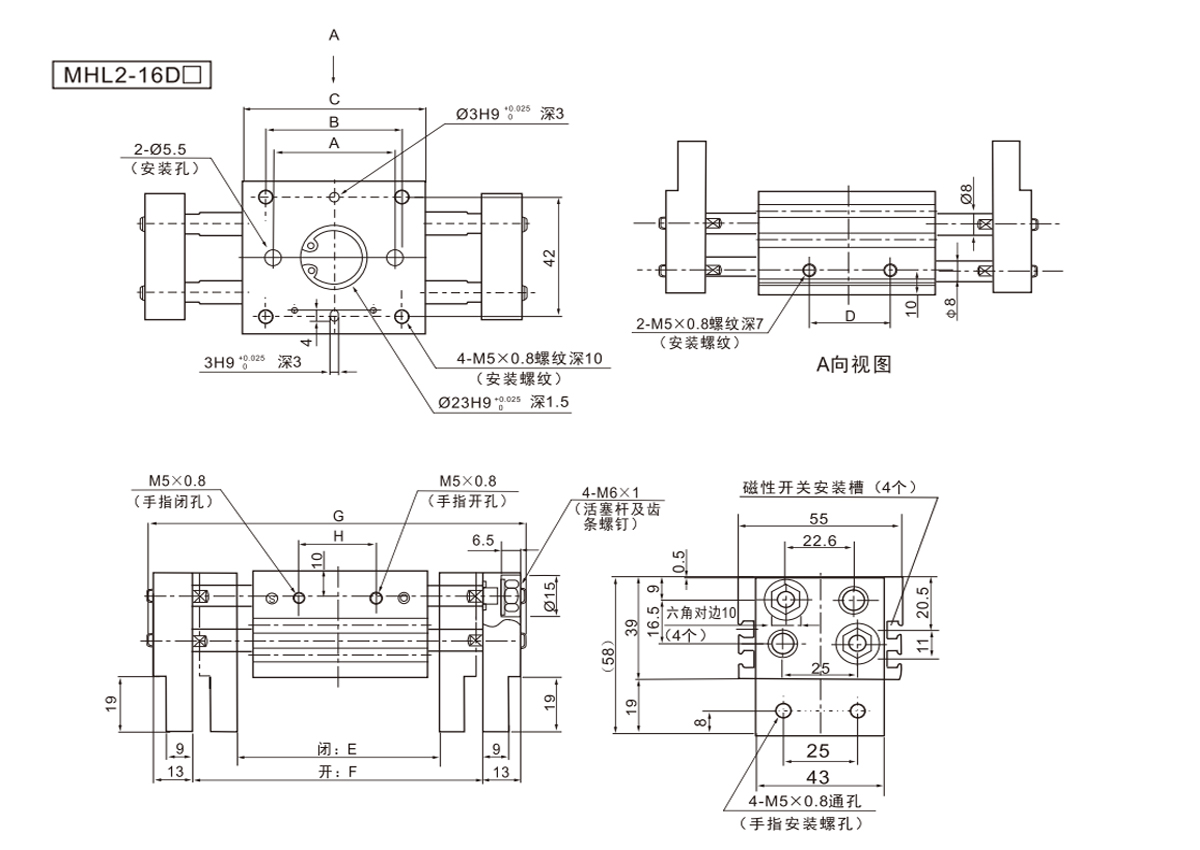

    Model A B C D E F G H
    MHL2-16D 40 45 60 28 68 98 128 26
    MHL2-16D1 70 75 90 58 110 170 200 50
    MHL2-16D2 90 95 110 78 130 210 240 70

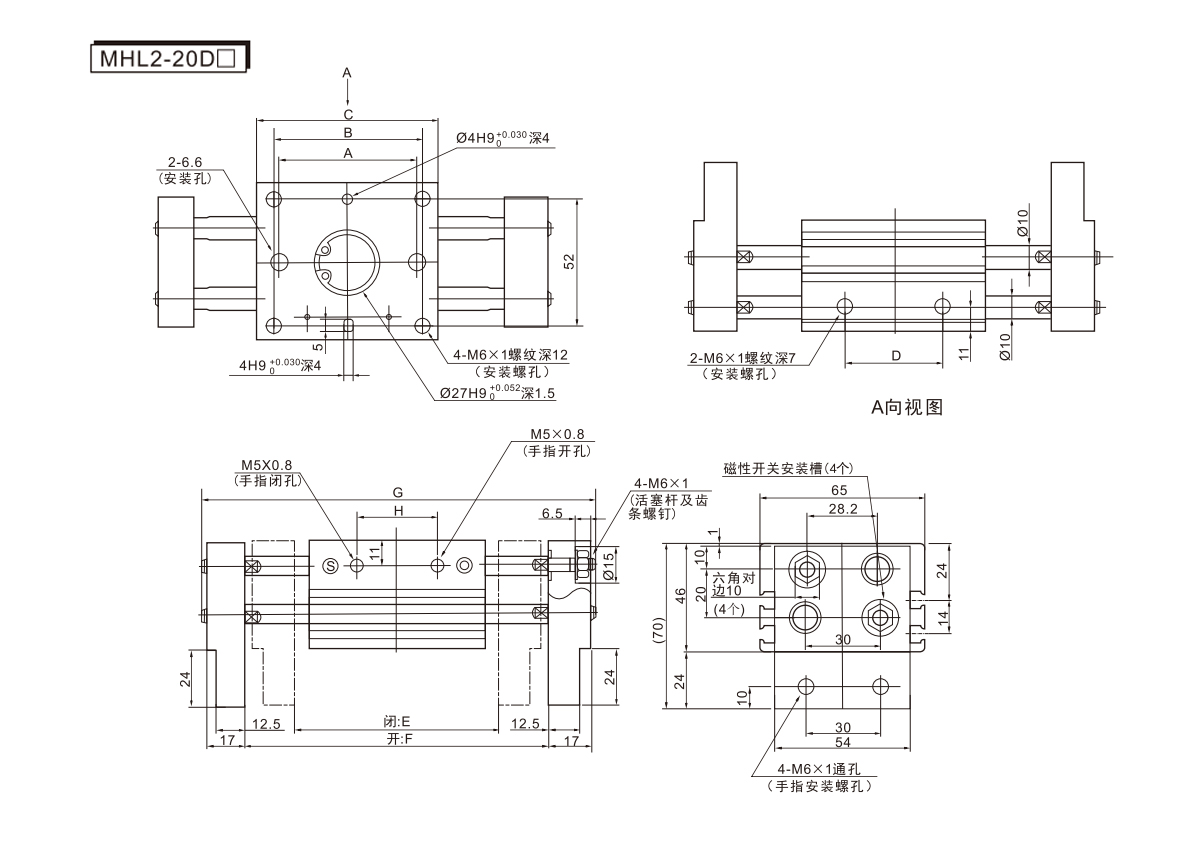

    Model A B C D E F G H
    MHL2-20D 54 58 71 38 82 122 160 32
    MHL2-20D1 96 100 113 80 142 222 260 68
    MHL2-20D2 116 120 133 100 162 262 300 88

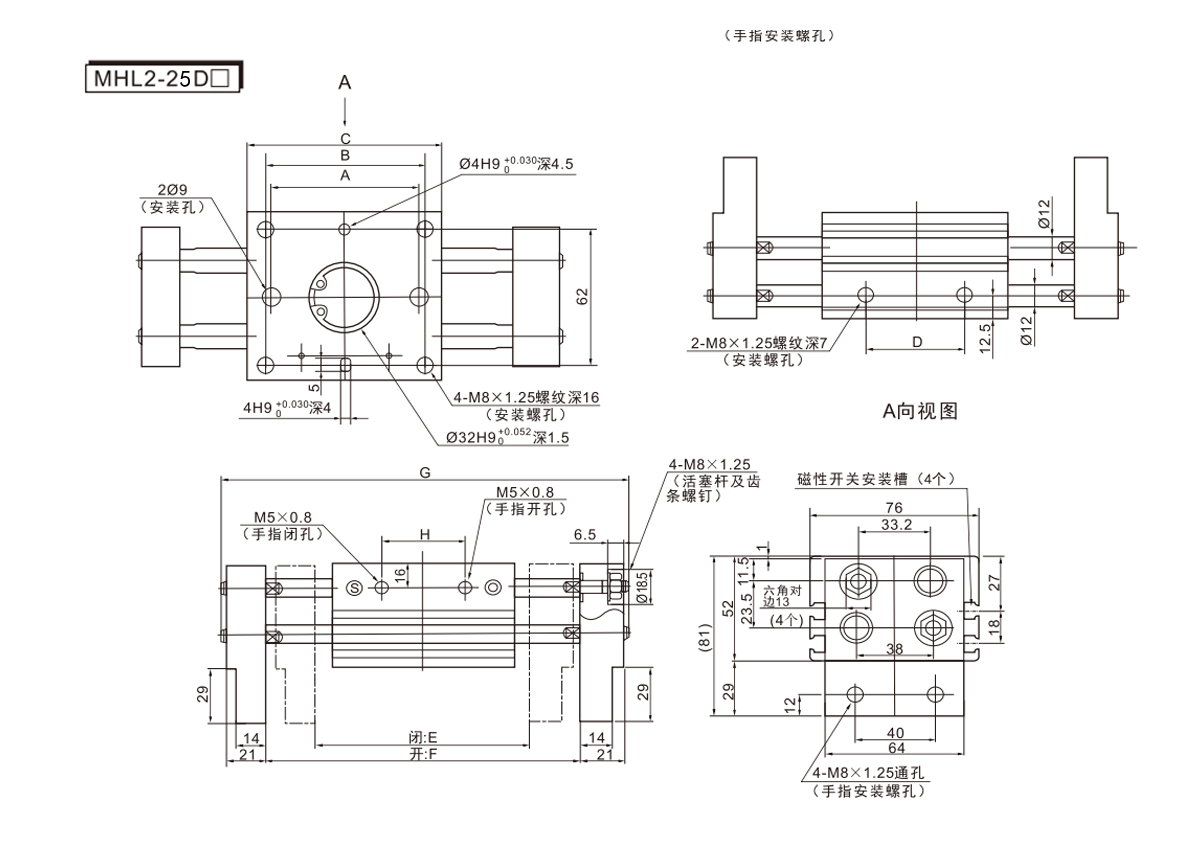

    Model A B C D E F G H
    MHL2-25D 66 70 88 48 100 150 196 38
    MHL2-25D1 120 124 142 102 182 282 328 86
    MHL2-25D2 138 142 160 120 200 320 366 104

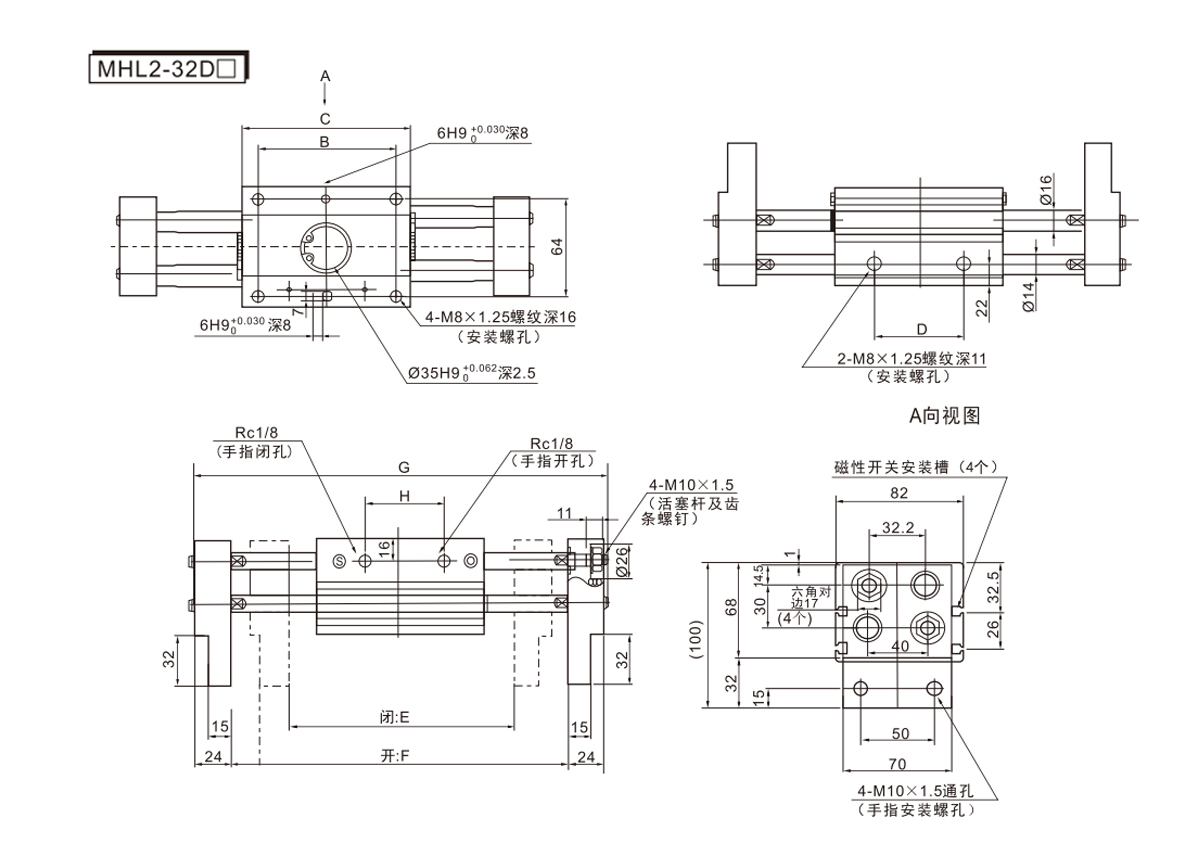

    Model B C D E F G H
    MHL2-32D 86 110 60 150 220 272 56
    MHL2-32D1 134 158 108 198 318 370 104
    MHL2-32D2 178 202 152 242 402 454 148

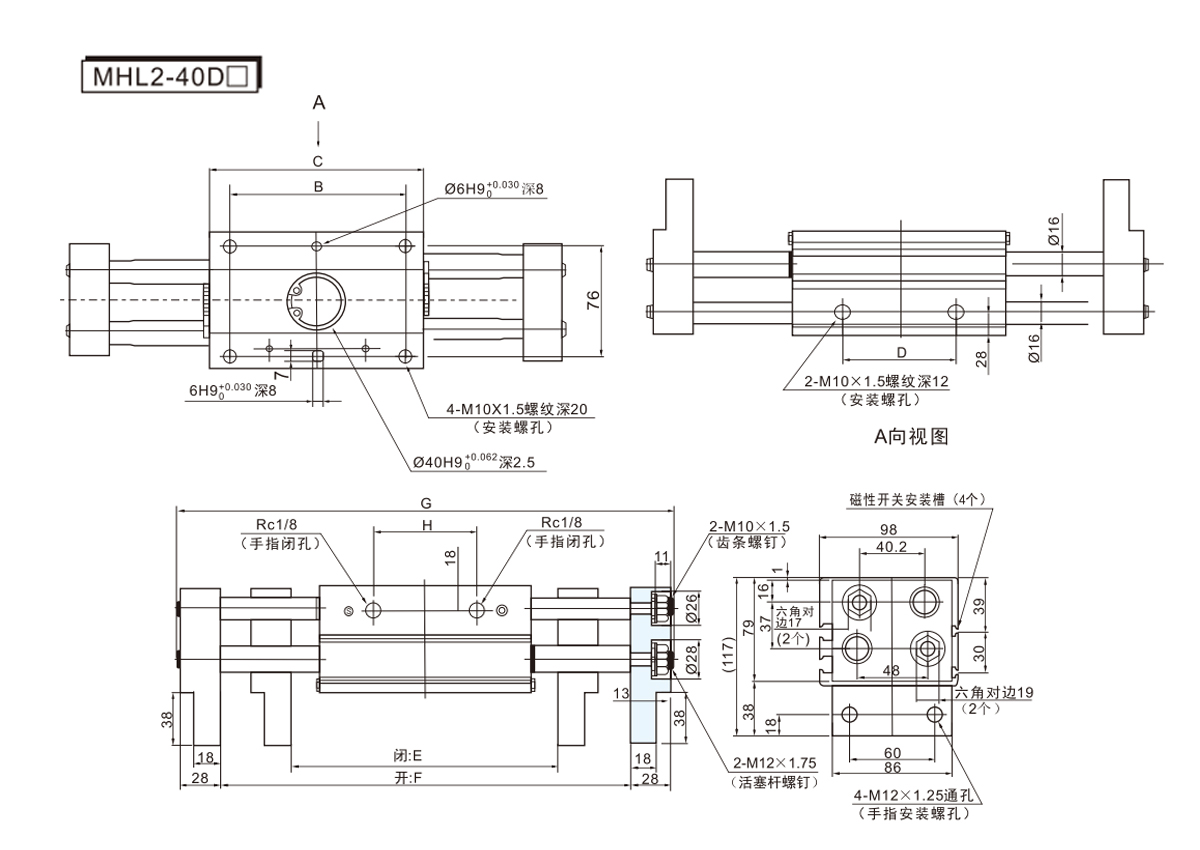

    Model B C D E F G H
    MHL2-40D 116 148 80 188 288 348 72
    MHL2-40D1 174 206 138 246 406 466 130
    MHL2-40D2 214 246 178 286 486 546 170
