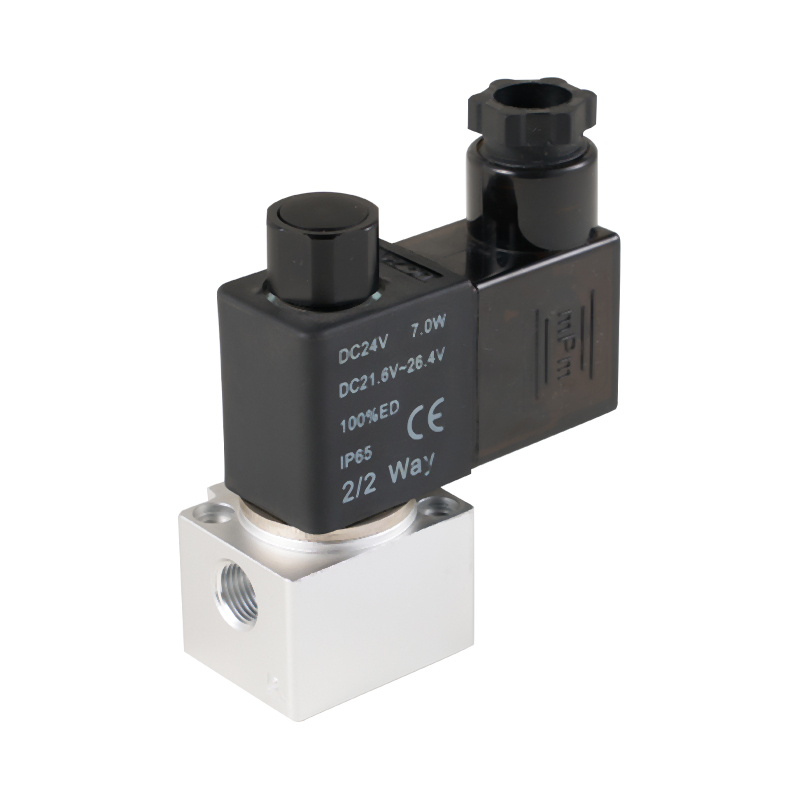

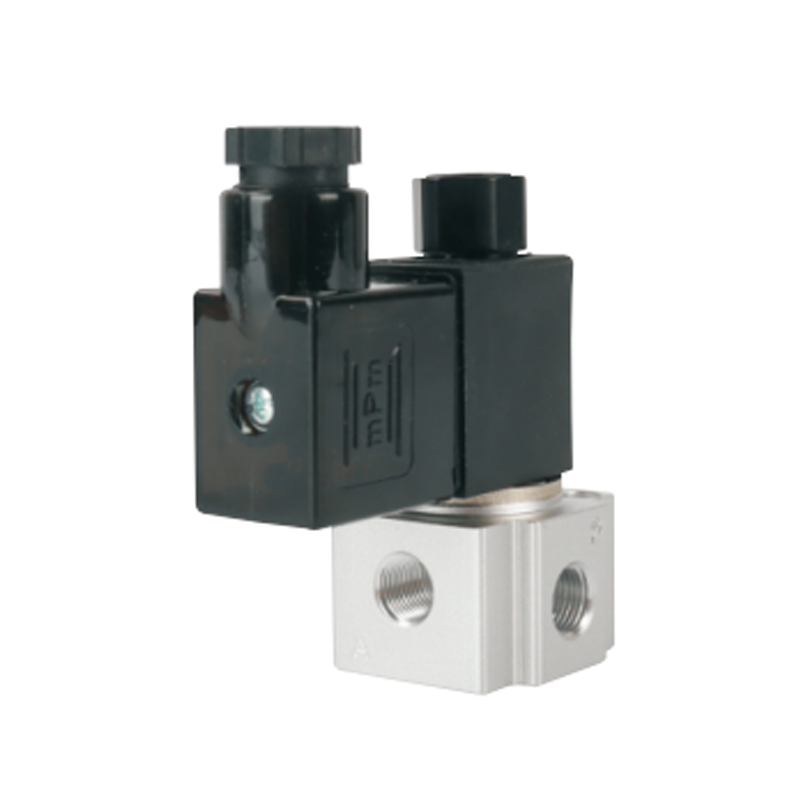

3V2 Series Direct Actus 3 Port 2 Position Solenoid Valvae Fornitores

Home / Products / Imperium pneumaticum components / Solenoid Valvae / 3V2 Series Direct Actus 3 Port 2 Position Solenoid Valvae

3V2 Series Direct Actus 3 Port 2 Position Solenoid Valvae 3V2 Series Direct Actus 3 Port 2 Position Solenoid Valvae
  • 3V2 Series Direct Actus 3 Port 2 Position Solenoid Valvae
  • 3V2 Series Direct Actus 3 Port 2 Position Solenoid Valvae
Solenoid Valvae

3V2 Series Direct Actus 3 Port 2 Position Solenoid Valvae

1. Directa agendi structura, sensitiva commutatio;
2. Communiter clausa typum et normaliter apertum genus libitum est;
3. Coaxial abscise structuram, signationem bonam, magna fluxus;
4. Nihil opus est oleo lubricationis;
5. Fabrica manualis adnectitur, quae ad institutionem et debugging pertinet;
6. Varii gradus intentionis vexillum praesto sunt ad delectu.

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：3PA Series Direct Actus 3 Way Valve SELEX VALVE
SUCCESSIVO：4M Series Gubernator Operated Parte Panel 5 Via Solenoid Valvae
  • Item Imprimis Parameters
    Standard Voltage AC220V, AC110V, AC24V, DC12V .
    Operans intentione dolor AC:±15% DC:±10%
    Virtus Consummatio AC:7VA DC:7.0W
    Praesidium Classis Ip65(DIN40050)
    Calor Resistentia Classis Classis B
    Connection Form DIN Pentium Type, Outlet Type
    Excitatio Tempus Minus quam 0.05 seconds
    Maximum Factum Frequency① X temporibus / secundo

    Maximum frequentia agendi est in re publica otiosa

    Model 3V206 3V208
    medium opus Aer (percolatur per 40μm vel plures)
    Modus agendi Direct-agens
    Glandulae qua- les PT1/8 PT1/4
    Numerus positionum Triplex and doublex.
    Effective crucis-Lorem area 3.2mm²(Cv=0.18) 3.4mm²(Cv=0.19)
    Lubricatio Non required
    Pressura range 0~0.8MPa(0~114psi)
    Guaranteed pressura 1.2MPa (175psi)
    Operating temperatus -20~70
    Corpus materiale aluminium

    Dens genus is available in NPT et receptor G dentes.

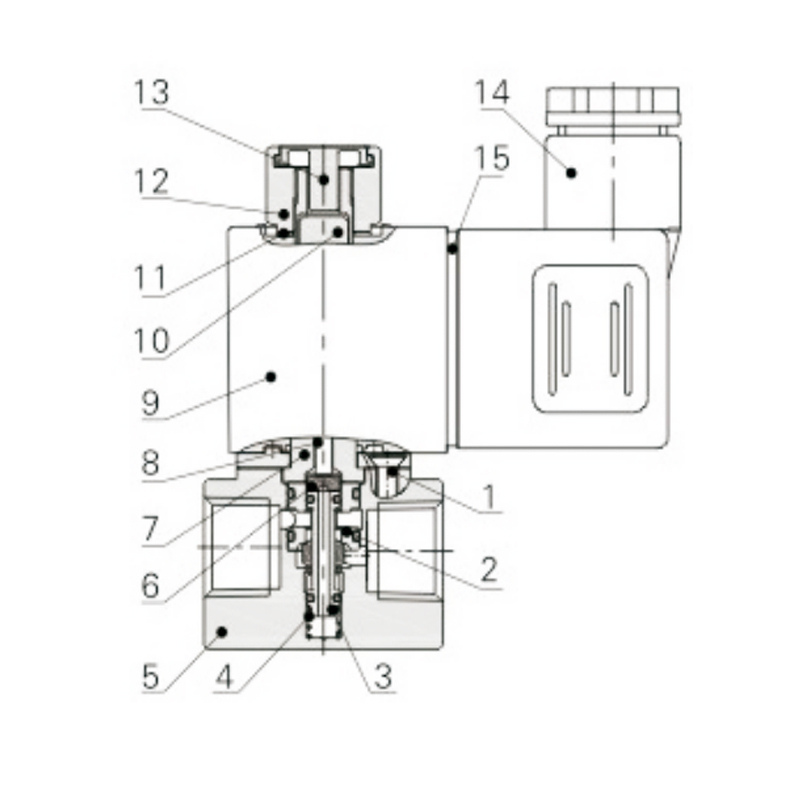

  • Numerus Nomen Numerus Nomen
    1 Countersunk Cochleas 9 Coil
    2 spacer 10 Set mobile ferrum
    3 set cuspide 11 Fixum elementum
    4 Ver 12 Certum Nux
    5 Corpus 13 Manual Pushbutton
    6 Gasket 14 Wiring Terminal
    7 Solenoid set 15 Terminatio Spacer
    8 Top talea

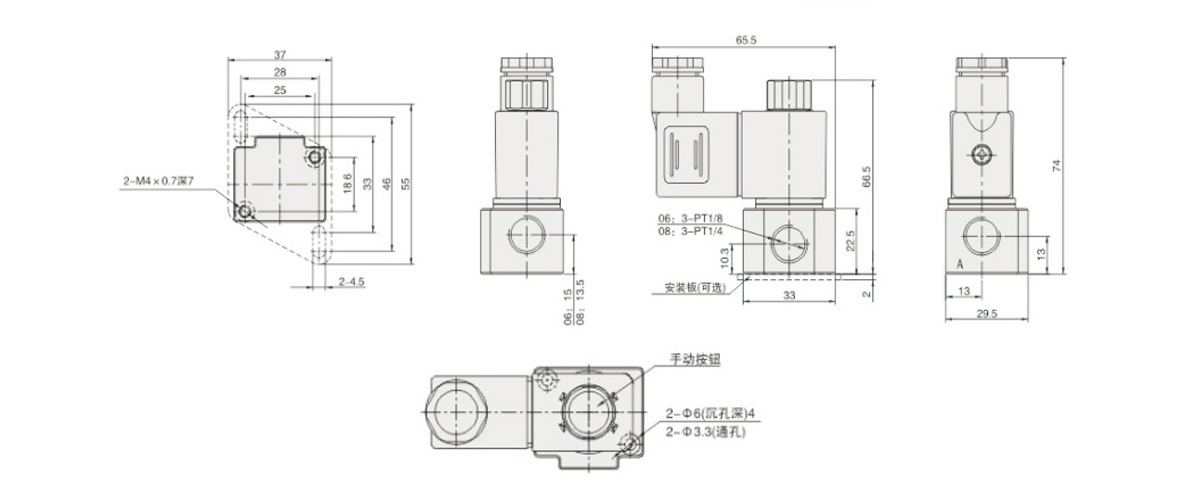

    DIN Pentium Type

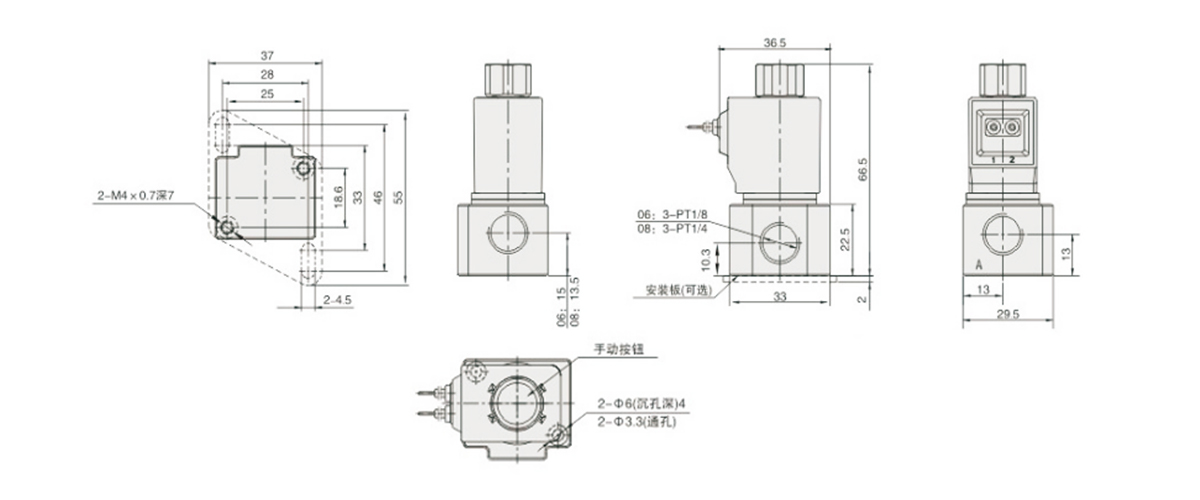

    Accipe-ex genere
