CTM/CTX I Series Integrated Vacuum Generator Fornitores

Home / Products / Vacuum Components / Vacuum Generator / CTM/CTX I Series Integrated Vacuum Generator

CTM/CTX I Series Integrated Vacuum Generator CTM/CTX I Series Integrated Vacuum Generator
  • CTM/CTX I Series Integrated Vacuum Generator
  • CTM/CTX I Series Integrated Vacuum Generator
Vacuum Generator

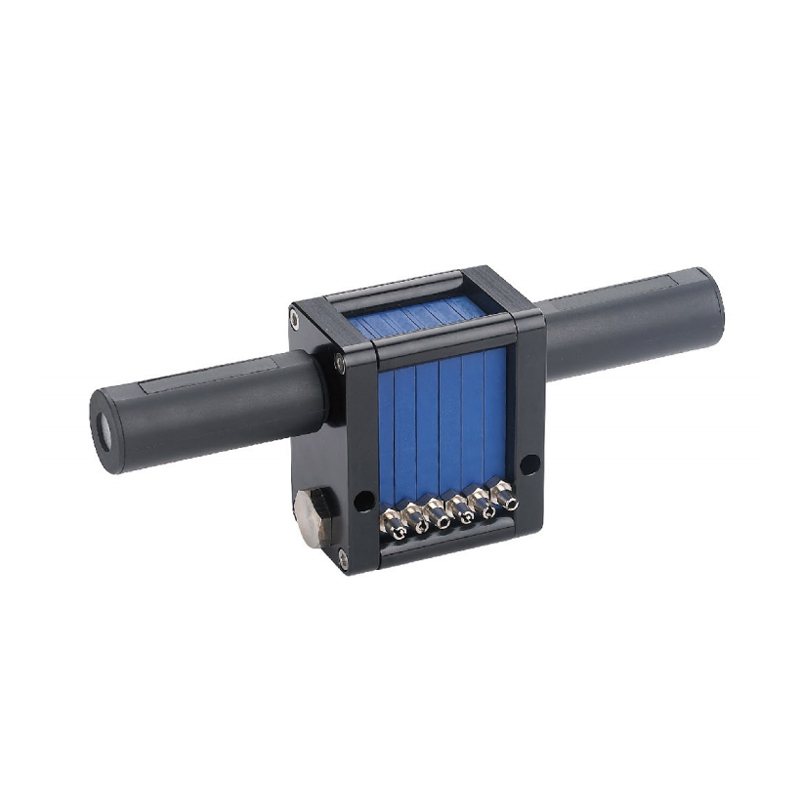

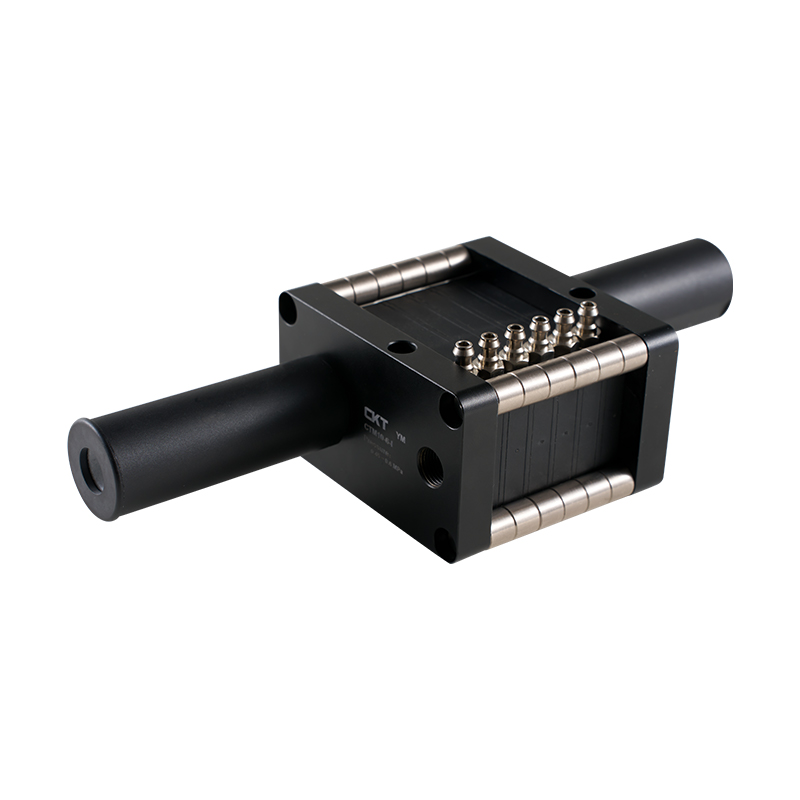

CTM/CTX I Series Integrated Vacuum Generator

CTM/CTX I Series Integrata Vacuum Generator pactum et efficax vacuum generans modulus ad tractationem automated designatus est. Instantaneae negativae pressionis generat per compressiones aëris rumpit, ac reponit solitum vacuum traditum, et ad missiones spatium constrictas et pulsandas apta est.

Key features

1. Jet technologia

Nullae partes motrices mechanicae, purae pneumaticae, vacui generationis (pretii typici -85kPa), vitam longam et sustentationem liberorum habent.

Multi-scaena divulgationis alveus reducet consumptionem gasorum plus quam 40%, idoneam ad fontem 0.1-1.5MPa gasi.

2. maxime velox responsio facultatem

Constitue/remissionem vacuum in milliseconds, sustine altum frequentiam operationis ex 300 temporibus/minutis.

Lata temperatura range operandi (-20℃~80℃), pulveri et olei caligo ambitu resistens.

3. Promptus ad usum architecturae

Praecipuum corpus integrat unitates eliquationis et silentii, quae directe coniungi possunt cum poculo suctionis vel fine brachii roboti.

Modularis consilium sustinet ordinationem variabilem frequentiam fluxus et compatitur cum PLC/IIoT potestate.
4. varius apta

Solve spatium limitationis carpi roboti, et cognosce comprehensionem vacuum infixa.
Consilium oleum-liberum in mundo requisitis cibi/pharmaceuticis occurrit et in componentibus electronicis millimetris gradu tractari potest.

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：ZK2 Series Vacuum Unitarum / Vacuum Generator
SUCCESSIVO：Nessun articolo successivo
  • Vacuum fluxus (L/min) diversorum gradus vacui (-kPa)
    Model Specifi
    -cation     		Supply
    pressura
    (bar)     		Air
    consummatio
    (L/min)     		0 10 20 30 40 50 60 70 80 90 Maximilianus.
    Vacuum Level
    (-kPa)
    CTM 05×1 4.5 12 25 15 12.5 11 10 7.5 5.5 2 0.6 - 85
    10×1 4.5 28 32 28 24 22 18 15 11 5 1.35 - 85
    CTX 05×1 4.5 18 23 14 10 9 7.5 6 4 2.8 1.5 0.44 92
    10×1 4.5 31 32 21 18 16 14 11 9.5 5.5 2.5 1.1 92

    Vacation tempus (s/L) ad gradus (-kPa)
    Model Specifi
    -cation     		Supply
    pressura
    (bar)     		Air
    consummatio
    (L/min)     		10 20 30 40 50 60 70 80 90 Maximilianus.
    Vacuum Level
    (-kPa)
    CTM 05×1 4.5 12 0.2 0.59 1.1 1.58 2.4 3.52 5.3 10.3 - 85
    10×1 4.5 28 0.12 0.28 0.6 0.81 1.18 1.82 2.65 5.21 - 85
    CTX 05×1 4.5 18 0.21 0.81 1.52 2.35 3.48 4.85 6.57 10.5 19.3 92
    10×1 4.5 31 0.14 0.4 0.78 1.22 1.77 2.4 3.3 4.95 9.62 92

    Parameter euismod
    Model Specification Supple pressura
    (MPa)     		Maximilianus.Vacuum Level
    (-kPa)     		Maximilianus.vacuum flow
    (L/min)     		Aeris consummatio
    (L/min)     		sonitus gradu
    (dB(A))     		Pondus
    (g)     		Commendatur caliga diam
    (mm)
    Aeris copiam
    (P)     		Vacuum
    (V)     		Exhauriunt portum
    (E)
    CTM 05×2 0.45-0.6 85 25×2 29-41 55-60 67 6 6 3/8×1
    05×3 25×3 44-64 55-60 80 6 3/8×1
    05×4 25×4 61-85 55-60 247 8 3/8×1
    05x5 25x5 71-104 60-65 255 8 3/8×1
    05x6 25×6 89-125 60-65 281 8 3/8×1
    05×7 25×7 104-145 60-65 299 8 3/8×1
    05×8 25×8 120-168 60-65 317 10 3/8×1
    05×9 25×9 132-190 60-65 335 10 3/8×1
    05×10 25×10 148-211 60-65 353 10 3/8×1
    05×11 25×11 165-232 60-65 371 10 3/8×1
    05×12 25×12 180-252 60-65 389 10 3/8x2
    05×13 25×13 195-275 60-65 417 10 3/8x2
    05×14 25×14 208-293 60-65 435 10 3/8×2
    05×15 25×15 225-316 60-65 453 12 3/8x2
    05×16 25×16 241-335 60-65 471 12 3/8×2
    CTM 10×2 0.45-0.6 85 32x2 61-85 55-60 67 8 6 3/8×1
    10×3 32×3 91-125 60-65 80 8 3/8×1
    10x4 32/4 121-167 60-65 247 10 3/8×1
    10x5 32-5 151-212 60-65 255 10 3/8×1
    10x6 32×6 185-255 60-65 281 10 3/8×2
    10x7 32x7 211-295 60-65 299 10 3/8×2
    10×8 32/8 241-335 60-65 327 10 3/8×2
    10×9 32×9 271-376 60-65 345 12 3/8×2
    10×10 32×10 301-421 60-65 363 12 3/8×2
    10×11 23×11 332-463 60-63 381 12 3/8x2
    10×12 23×12 361-505 60-63 399 12 3/8×2
    CTX 05×2 0.45-0.6 93 23×2 43-49 55-60 67 6 6 3/8×1
    05x3 23x3 65-73 55-60 80 6 3/8×1
    05x4 23x4 85-96 60-63 247 8 3/8×1
    05×5 23×5 106-121 60-63 255 8 3/8×1
    05×6 23x6 130-144 60-63 281 8 3/8×1
    05×7 23x7 151-167 60-63 299 8 3/8×1
    05×8 23×8 173-193 60-63 317 10 3/8×1
    05×9 23x9 195-217 60-63 335 10 3/8×1
    05×10 23×10 215-241 60-63 353 10 3/8×1
    05×11 23×11 238-265 60-63 371 10 3/8×1
    05×12 23×12 260-289 60-63 389 10 3/8×2
    05×13 32×13 281-313 60-63 417 10 3/8×2
    05×14 32×14 346-335 63-65 435 10 3/8×2
    05×15 32×15 389-361 63-65 453 10 3/8×2
    05×16 32×16 346-385 63-65 471 10 3/8x2
    CTX 10x2 0.45-0.6 93 32×2 87-96 60-63 67 6 6 3/8×1
    10x3 32x3 130-145 63-65 80 6 3/8×1
    10x4 32x4 173-193 63-65 247 8 3/8×1
    10x5 32x5 215-241 63-65 255 8 3/8×1
    10x6 32x6 260-288 63-65 281 10 3/8×2
    10x7 32x7 303-337 63-65 299 10 3/8x2
    10x8 32x8 346-385 63-65 327 10 3/8×2
    10x9 32×9 389-433 63-65 345 12 3/8x2
    10×10 32×10 433-481 63-65 363 12 3/8×2
    10×11 32×11 476-529 63-65 381 12 3/8×2
    10×12 32×12 519-578 63-65 399 12 3/8x2
    *Marce: Haec series producta temperatus laborat -20° ad 80°, maxima copia pressurarum 7bar.

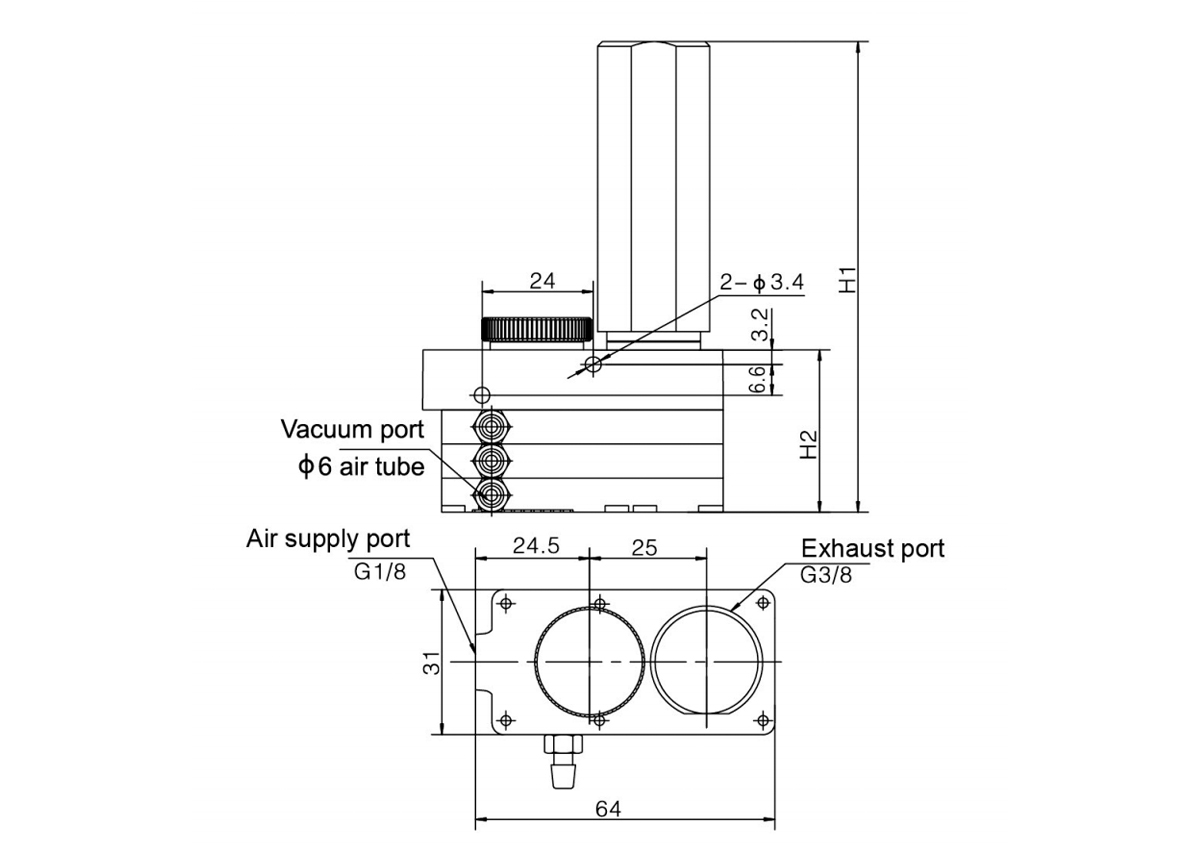

  • Model Specification H1 H2 Aeris copiam port
    specificatio     		Vacuum port
    specificatio     		Exhauriunt portum
    specificatio
    CT M
    CT X     		5(10)2 91.5 27.5 G1/8F M5 φ6 externi silentii
    5(10)3 99 35 G1/8F M5 φ6 externi silentii

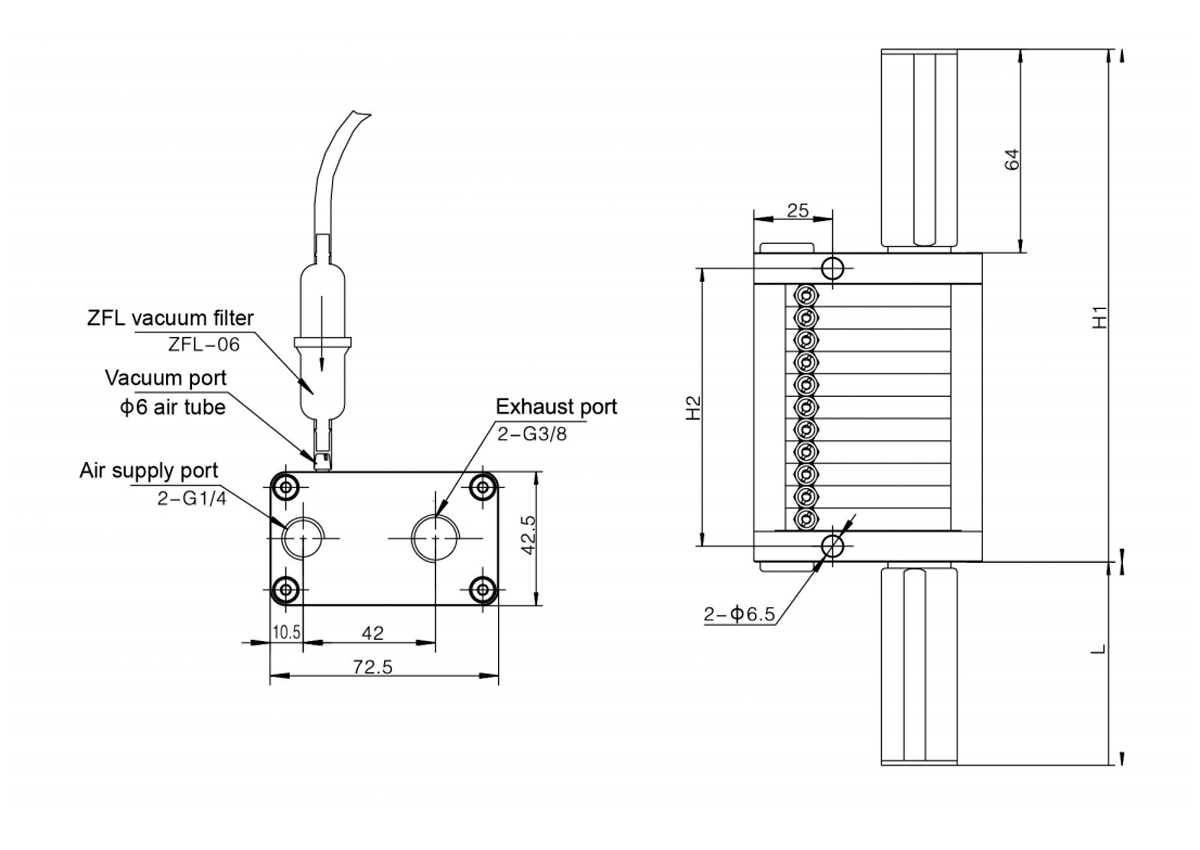

    Model Tabula composita 5 10 Aeris copiam port specification Vacuum portum specification Exhauriunt portum specification
    H1 H2 L H1 H2 L
    CTM
    CTX     		4 113 39 - 113 39 - G 1/4F M5 φ6
    Aeris tube     		Externa  silentium
    5 121 47 - 121 47 -
    6 128 54 - 128 54 64
    7 135 61 - 135 61 64
    8 142 68 - 142 68 64
    9 150 76 - 150 76 64
    10 157 83 - 157 83 64
    11 164 90 - 164 90 64
    12 172 98 64 172 98 64
    13 179 105 64 - - -
    14 186 112 64 - - -
    15 194 120 64 - - -
    16 201 127 64 - - -
