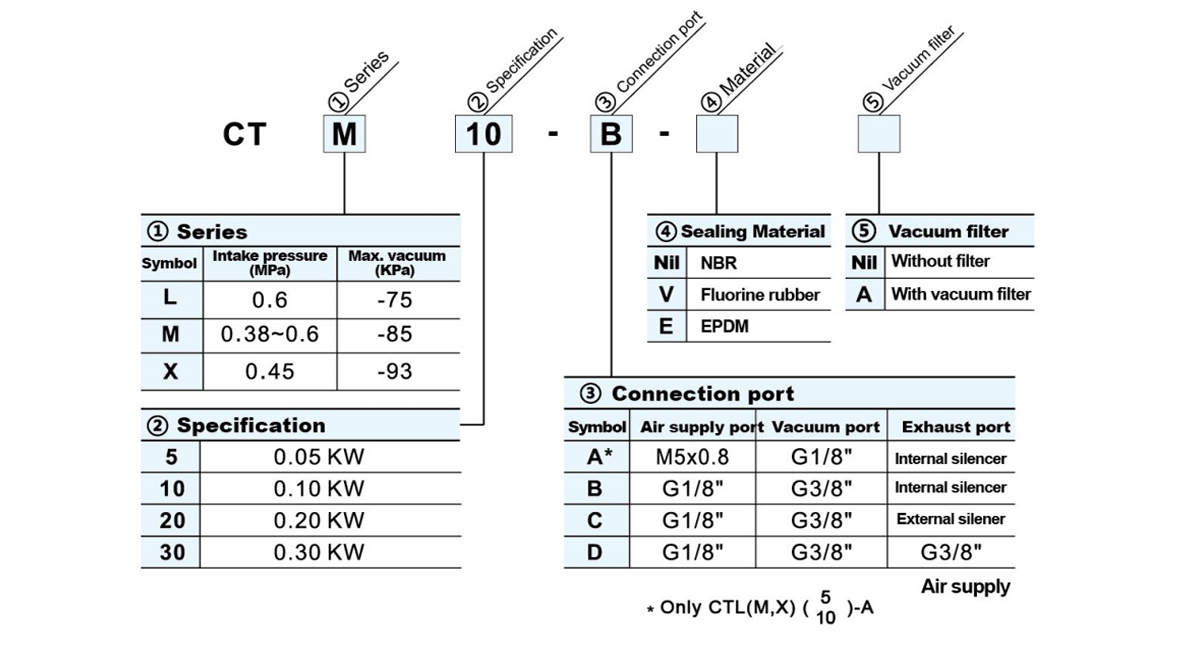

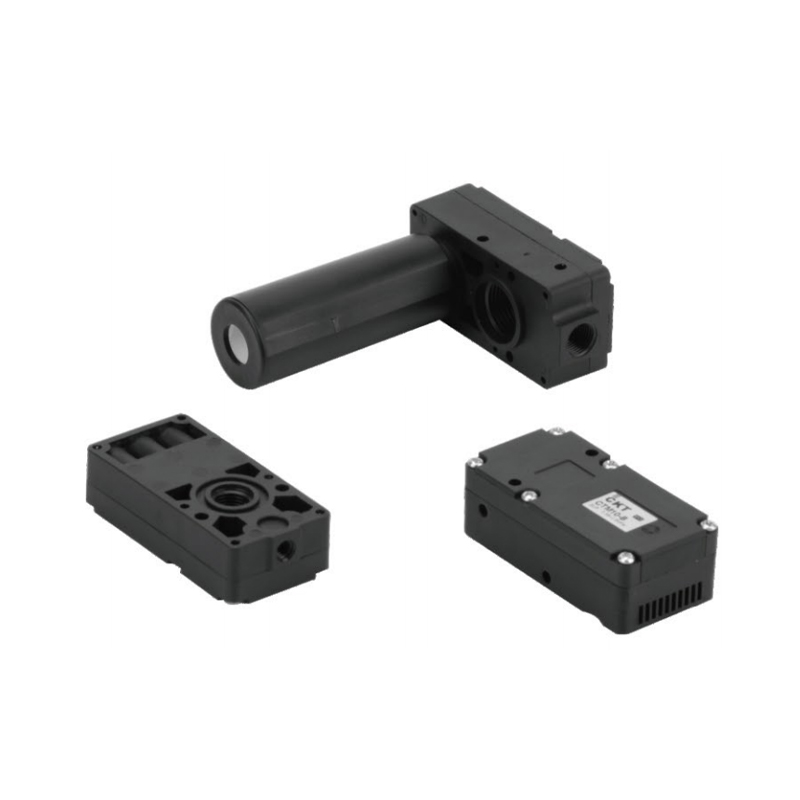

CT Series MINI Multistage Vacuum Generator
  • CT Series MINI Multistage Vacuum Generator
CT Series Multistage vacuum generante

CT Series MINI Multistage Vacuum Generator

Mediocrem, leve pondus, facile install.
Duo scaena diffundens utitur ad conservandum fluxum et suctum vacuum augendum.
Praesto sunt in duabus speciebus: constructum- silentii, externum silentii.

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：Nessun articolo precedente
SUCCESSIVO：Nessun articolo successivo
  • Parameter euismod
    Exemplar Copia aeris
    (MPa)     		Maximilianus. Vacuum gradum
    (-kPa)     		Maximilianus. Vacuum fluit
    (L/min)     		Aeris consumptio
    (L/min)     		Strepitum campum
    (dB(A))     		Commendatur caligae dia. (mm)
    Aeris copiam(P) Vacuum(V)
    CTM05 0.45-0.6 85 35-37 12-20 50-65 6 8
    CTM10 70-75 28-42 55-68 6 10
    CTM  20 141-150 55-85 60-68 8 12
    CTM30 175-220 87-125 60-68 10 12
    CTX  05 93 30-32 18-22 50-65 6 8
    CTX  10 52-63 31-40 55-68 6 10
    CTX  20 100-125 79-89 60-69 8 12
    CTX  30 180-185 128-137 60-69 10 12

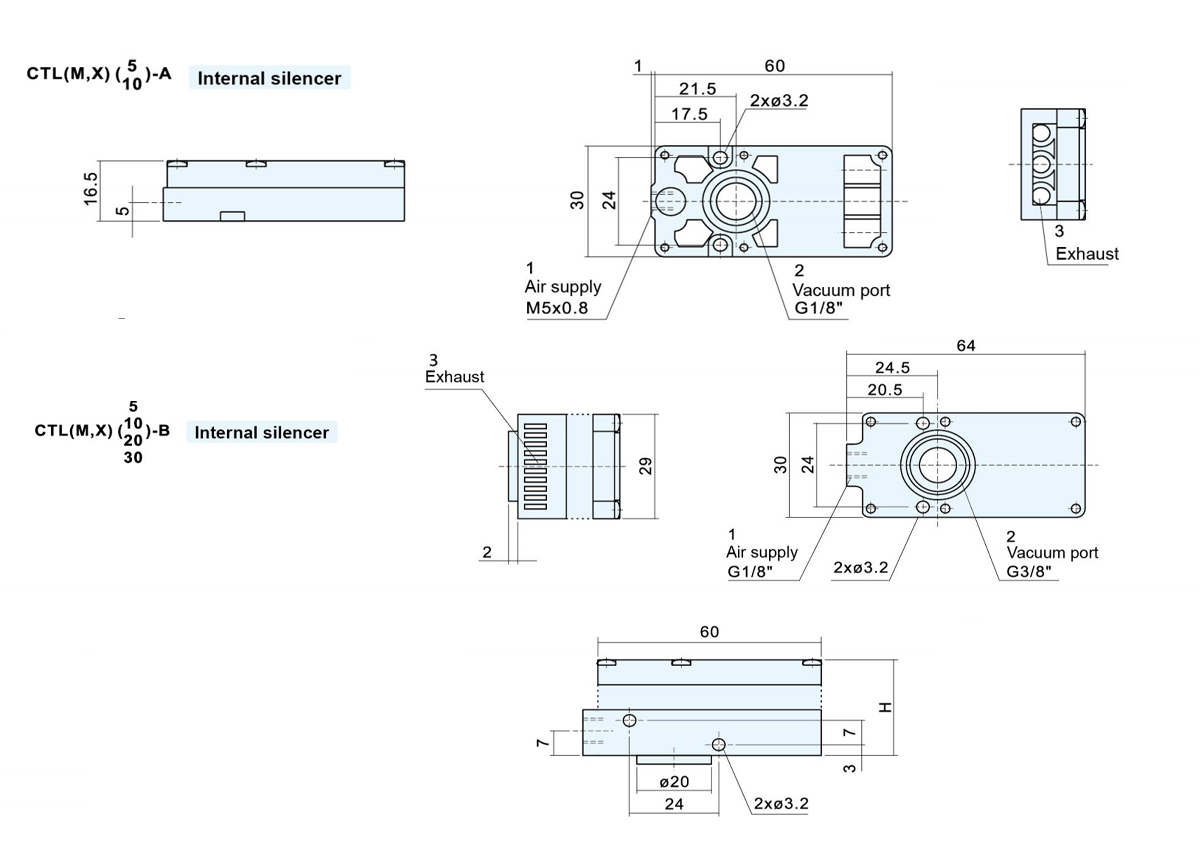

  • Exemplar H
    CTL(M,X)5-B 20.5
    CTL(M,X)10-B 20.5
    CTL (M, X) 20-B 28
    CTL(M, X)30-B 35.5

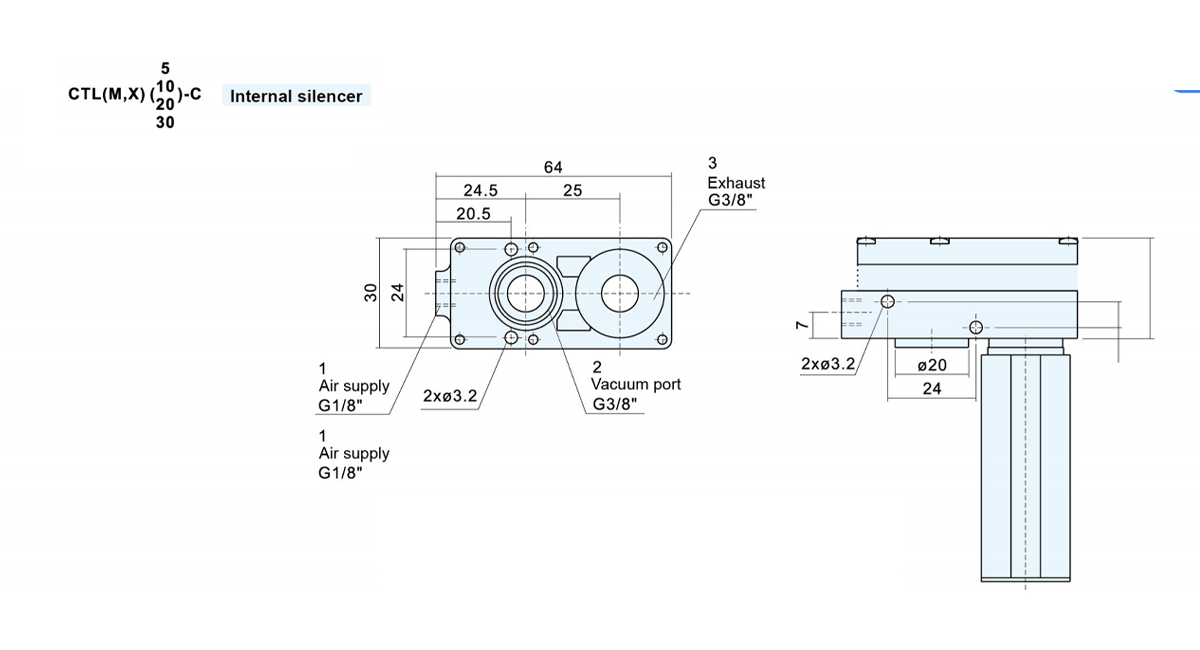

    Exemplar H
    CTL(M,X)5-C 20.5
    CTL(M,X)10-C 20.5
    CTL (M, X) 20-C 28
    CTL (M, X) 30-C 35.5

    Exemplar Qty
    CTL(M,X)5 1
    CTL(M,X)10
    CTL (M, X) 20 2
    CTL (M, X) 30 3

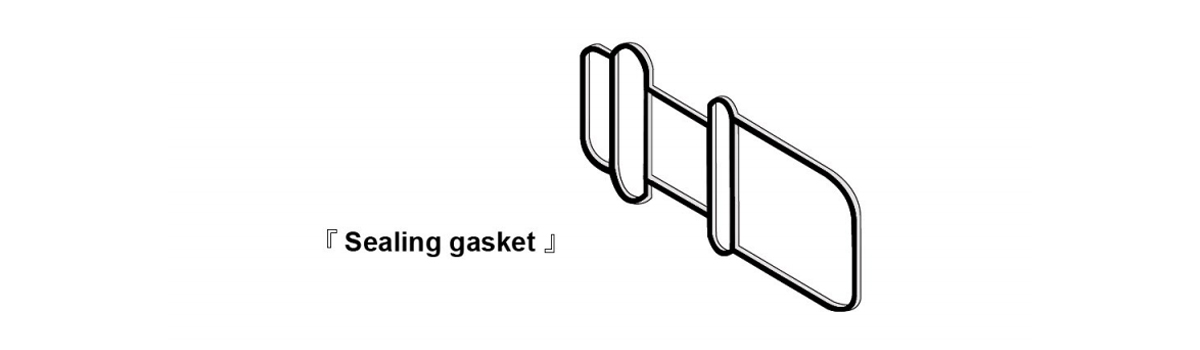

    Materia Exemplar
    NBR CT-S1
    Fluorinum  rubber CT-S1-V
    EPDM CT-S1-E

    Exemplar Qty
    CTL(M,X)5 1
    CTL(M,X)10
    CTL (M, X) 20 2
    CTL (M, X) 30 3

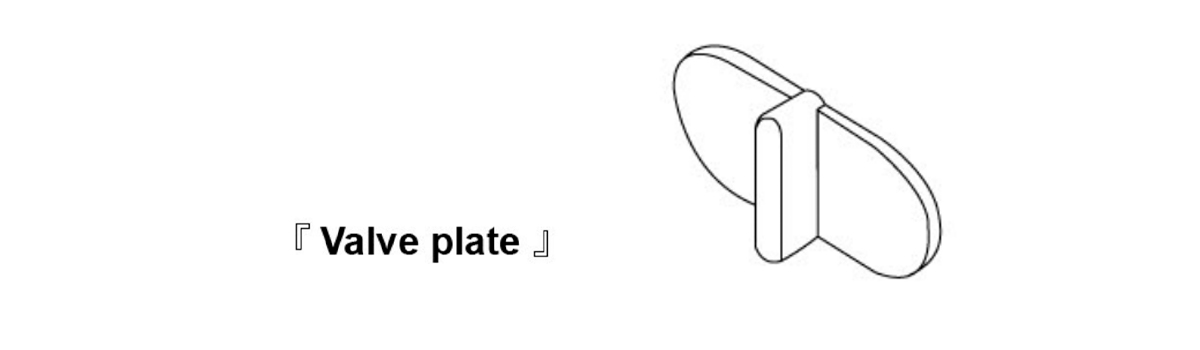

    Materia Exemplar
    NBR CT-S2
    Fluorinum  rubber CT-S2-V
    EPDM CT-S2-E
    Ornamentum includit gaskets obsignantes, valvae obsignantes, et laminas columellas metallicas.
    Exemplar NBR Fluorinum Purgamentum EPDM
    CTL(M,X)5 CT-SN-10 CT-SV-10 CT-SE-10
    CTL(M,X)10
    CTL (M, X) 20 CT-SN-20 CT-SV-20 CT-SE-20
    CTL (M, X) 30 CT-SN-30 CT-SV-30 CT-SE-30

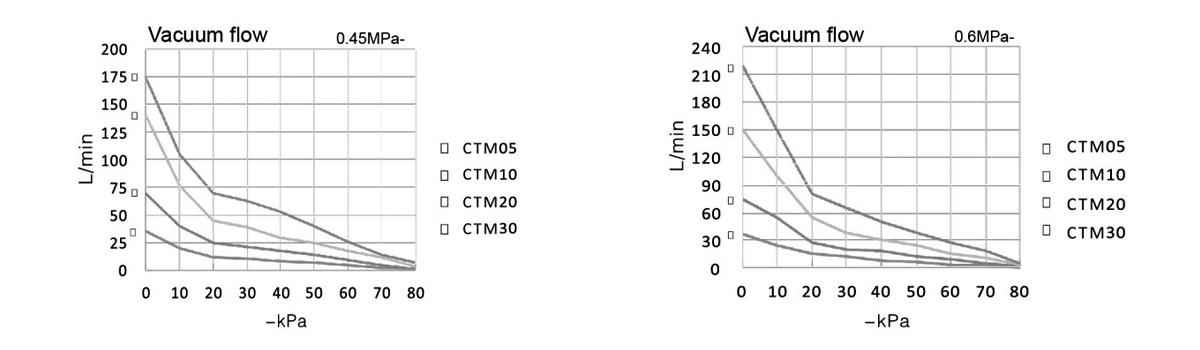

    CTM Series  Vacuum fluxum (L/min) in graduum vacui varios (-kPa)
    Exemplar Air
    supplementum
    (MPa)     		Air
    consummatio
    (L/min)     		0 10 20 30 40 50 60 70 80 Maximilianus.
    Vacuum planum
    (-kPa)
    CTM05 0.45 12 35 20.5 12 10.5 8.5 6.5 4.5 2.5 0.8 85
    CTM10 28 70 40.5 25 21 18 14 9.5 5 1.3
    CTM 20 55 141 77 45 39.5 29.5 25 17.5 12 3
    CTM30 0.5 87 175 105 70 63 53 40 26 14 6.5
    CTM05 0.6 20 37 25 15.5 12 8 6 4 2.7 0.6
    CTM10 42 75 55 27 20 18 12 9 5 2
    CTM 20 85 150 100 55 38 30 24 16 11 3.2
    CTM30 125 220 150 81 65 50 38 27 18 5

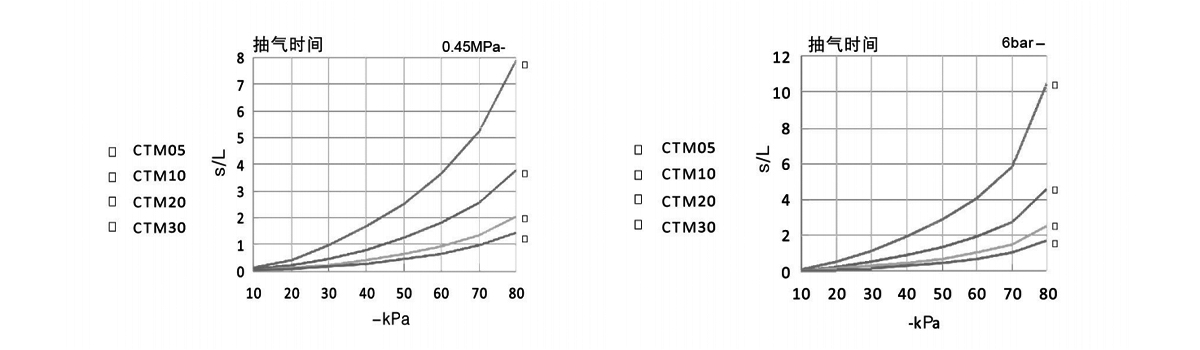

    CTM Series Evacuatio temporis (s/L) ad diversos gradus vacuos (-kPa) perveniat.
    Exemplar Aer   Supple
    Pressura
    (MPa)     		Air
    Consummatio
    (L/min)     		10 20 30 40 50 60 70 80 Maximilianus.
    Vacuum Level
    (-kPa)
    CTM 05 0.45 12 0.11 0.42 0.95 1.66 2.5 3.65 5.25 7.89 85
    CTM 10 28 0.08 0.2 0.44 0.8 1.24 1.8 2.55 3.8
    CTM 20 55 0.04 0.12 0.23 0.41 0.65 0.93 1.33 2.03
    CTM 30 0.5 87 0.03 0.09 0.16 0.27 0.43 0.66 0.95 1.43
    CTM 05 0.6 20 0.13 0.51 1.15 1.93 2.87 4.09 5.84 10.46
    CTM 10 42 0.03 0.23 0.53 0.92 1.37 1.95 2.77 4.62
    CTM 20 85 0.02 0.15 0.28 0.46 0.71 1.02 1.48 2.55
    CTM 30 125 0.02 0.08 0.14 0.31 0.49 0.69 1.02 1.75

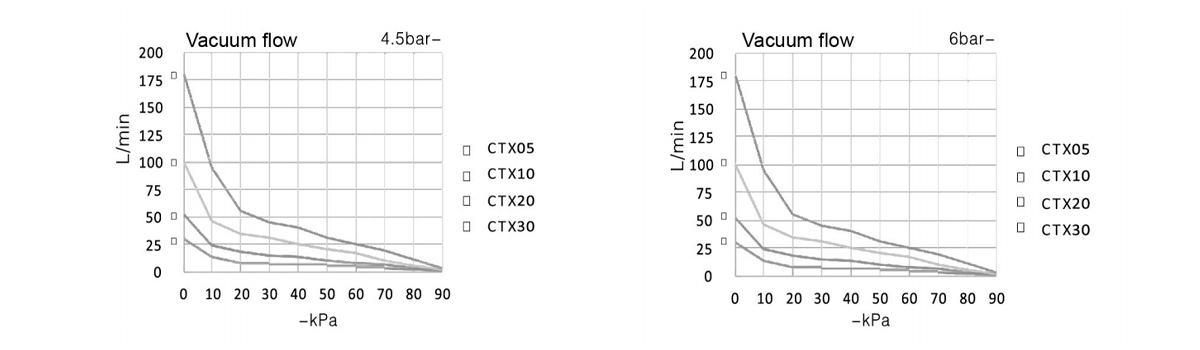

    CTX Series Vacuum fluxus (L/min) in diversis campestribus vacuo(-kPa)
    Exemplar Aer   Supple
    Pressura
    (MPa)     		Air
    Consummatio
    (L/min)     		0 10 20 30 40 50 60 70 80 90 Maximilianus.
    Vacuum Level
    (-kPa)
    CTX05 0.45 18 30 13 7.5 7 6 5 4 3.2 1.8 0.4 92
    CTX 10 31 52 24 18 15 13 10.5 8 6 2.5 0.8
    CTX 20 79 100 46 34 30.5 25 21 17 10.5 5 1.6
    CTX 30 0.5 128 180 95 55 45.5 40.5 30.5 25 19 11.5 3
    CTX05 0.6 22 32 20 8.5 7.5 6 5 4 3 1.5 0.15
    CTX 10 40 63 36 18 16 12.5 10.5 8.5 6 3.5 0.5
    CTX 20 89 125 73 35 30 25 22 18 12 7 0.9
    CTX 30 137 185 103 51 46 38 31 25 19 12 1.8

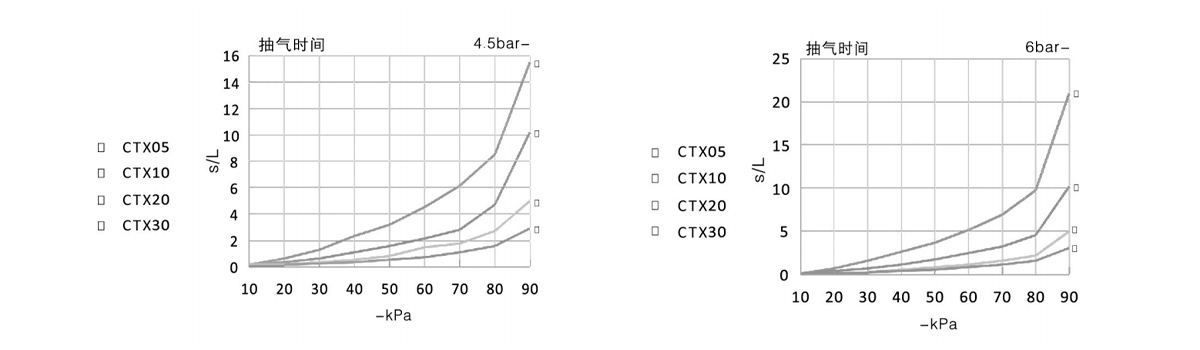

    CTX Series Evacuatio temporis(s/L) ad diversos gradus vacuos (-kPa)
    Exemplar Air Supple
    Pressura
    (MPa)     		Air
    Consummatio
    (L/min)     		10 20 30 40 50 60 70 80 90 Maximilianus.
    Vacuum Level
    (-kPa)
    CTX05 0.45 18 0.13 0.6 1.26 2.3 3.2 4.5 6.15 8.5 15.5 92
    10 31 0.11 0.3 0.65 1.1 1.55 2.15 2.85 4.7 10.2
    20 79 0.09 0.16 0.32 0.55 0.8 1.5 1.8 2.7 5
    30 0.5 128 0.06 0.12 0.23 0.36 0.53 0.76 1.1 1.6 2.9
    CTX05 0.6 22 0.15 0.71 1.52 2.54 3.72 5.12 6.95 9.70 21 93
    10 40 0.09 0.32 0.71 1.18 1.74 2.4 3.26 4.55 10.2
    20 89 0.046 0.15 0.31 0.52 0.77 1.08 1.54 2.15 4.92
    30 137 0.025 0.123 0.23 0.38 0.58 0.82 1.11 1.54 3
