ASV Series Quick Exhaust Valve
  • ASV Series Quick Exhaust Valve
Imperium Valvae influunt / Reprehendo Valvae

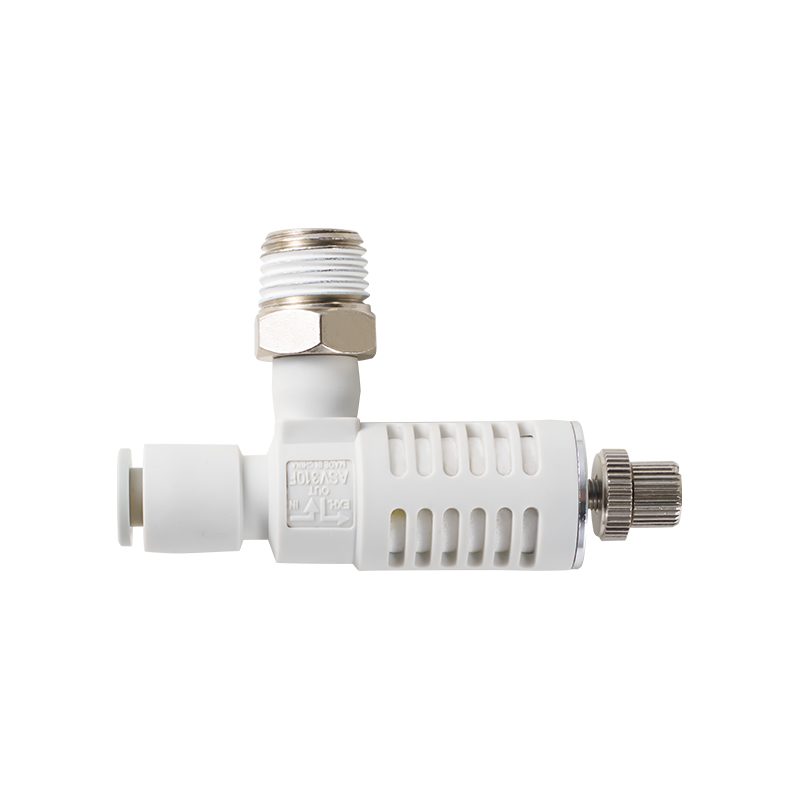

ASV Series Quick Exhaust Valve

Series ASV valvae velox exhauriendi peculiaris valvae usus est ad accelerandum processum exhauriendi actus in systematis pneumaticis. Reset responsio tempus minuit cylindrici vel pneumatici componentis, ut viam exhaurit optimizing et perficiendi dynamicam systematis meliorem.

core features
Exhauriunt iter ipsum

Canalem humilem resistentiae constitue directe ad atmosphaeram ut pressionem impeditam subsidio gasi in interiore actuatoris cavitate constituas et actionem morae per pressionis posterioris causatam removeat.


Integrated eget design

Unius valvae corpus integrat functiones duplices attractii pressionis differentiae diversitatis et exhauriendi velox, sine necessitate circumscriptionum complexorum externarum, structuram systematis simpliciorem.


Operatio conditio apta

Internum momentum staterae structurae pressionis aeris ambigua adaptat ac stabilia exhaurit notas sub crebris condicionibus initio-stii vel oneris mutationis conservat.


Ratio efficientiam melius

Abbreviando cyclum exhauriendum et minuendo tempus ociosum instrumenti, cycli rate et industria utendo efficacia instrumenti pneumatici oblique meliorantur.


Culpa diminutio mechanism

Automatice vertas ad modum exhauriendi cum copia aeris interrumpitur ad evitandam inexpugnabilem motum actus ob residua pressionis.

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：AK Series Perscriptio Valvae
SUCCESSIVO：ASP Series Volo Imperium Valvae Cum Nauclero Operated Reprehendo Valvae
  • Model ASV120F ASV220F ASV310F·410F ASV510F
    Liquor usus est Air
    Guaranteed pressura resistentia 1.5MPa
    Maximum operating pressura 1MPa
    Minimum operating pressura 0.1MPa
    Ambiens temperatus et fluidus temperatus -5 ad LX ° F (sed non constringitur)
    Nota 1 materiam fistulam idoneam Nylon, mollis nylon, polyurethane
    Libitum Circularis cincinno nut Cum adipiscing custodiam, cincinno nucis rotundi
    Nota 1) Operam maximam pressionis nylon mollis et polyurethane operantis.

    Velox valvulam exhauriunt et suffocare valvae integrant exhauriunt. Summus celeritate adhiberi potest coegi cylindrorum.
    Proxime II temporibus efficax crucis-Lorem area (comparari celeritate imperium valvulae)
    Exemplar correspondentes: ASV310F, 410F, 510F
    ● Instructus silentii et celeri mutatione connector
    Vexillum corporis valvae flammae-retardantis resinae (Ul specificatione V-0)
    Exemplar correspondentes: ASV310F, 410F, 510F
    Omnes partes aereae sunt electrolytice nickel-patella

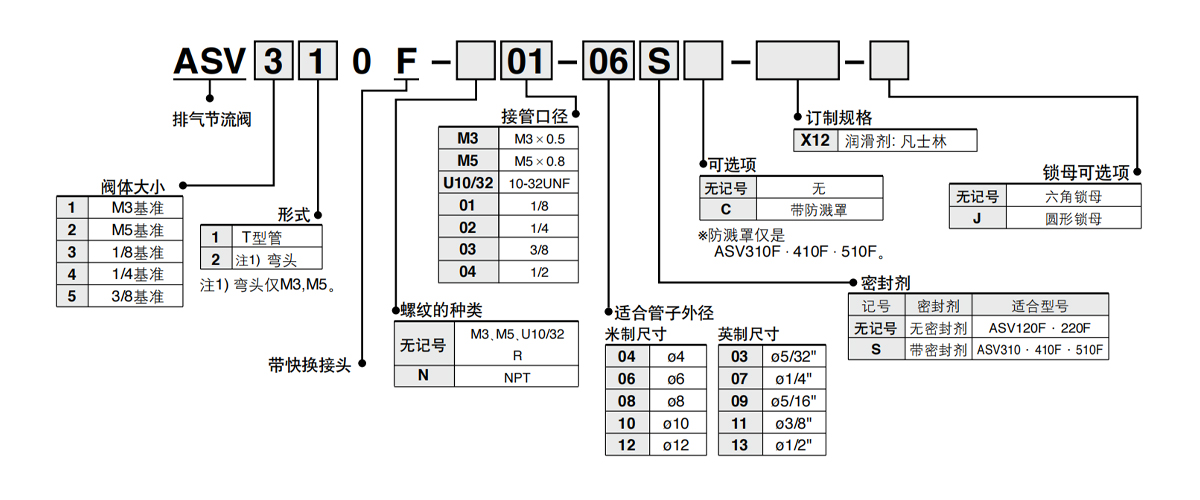

  • Exemplar Donec diam Apta fistula diametri exterioris (mm) Sonus velocitatis fluxus dm³/(s·bar) Ratio critica pressura
    4 6 8 10 12 5132" 1/4" 5/16" 3/8" 1/2" N-OUT EXH-EXH IN-EXTRA EXH-EXH.
    ASV120F-M3 M3×0.5 ● 0.06 0.06 0.25 0.15
    ASV220F-M5 M5×0.8 ● ● 0.26 0.26
    ASV310F-01 R1/8 ● ● 1.4 1.6 0.35
    ASV310F-02 R1/4 ● ● 1.4 1.6
    ASV410F-01 R1/8 ● ● 2.7 2.8
    ASV410F-02 R1/4 ● ● 2.7 2.8
    ASV410F-03 R3/8 ● ● 2.7 2.8
    ASV510F-02 R1/4 ● ● 4.6 5.4
    ASV510F-03 R3/8 ● ● 5.4 5.8
    ASV510F-04 R1/2 ● 5.4 5.8
    ASV220F-U10/32 10-32UNF ● 0.26 0.26 0.15
    ASV310F-N01 NPT1/8 1.4 1.6 0.35
    ASV310F-N02 NPT1/4 ● 1.4 1.6
    ASV410F-N01 NPT1/8 ● ● 2.7 2.8
    ASV410F-N02 NPT1/4 ● ● 2.7 2.8
    ASV410F-N03 NPT3/8 ● ● 2.7 2.8
    ASV510F-N02 NPT1/4 ● ● 4.6 5.4
    ASV510F-N03 NPT3/8 ● ● 5.4 5.8
    ASV510F-N04 NPT1/2 ● ● 5.4 5.8

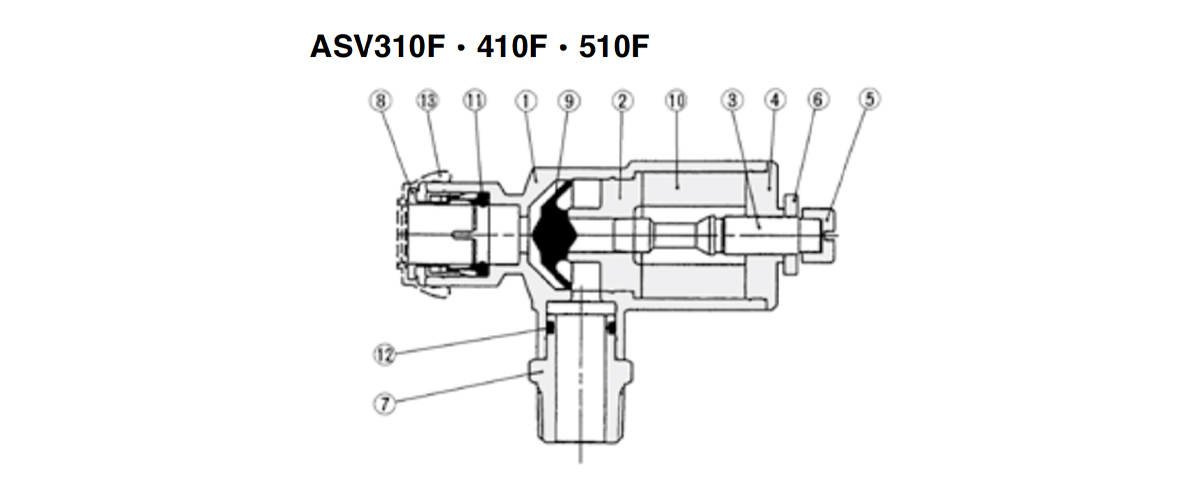

  • Component partes
    Numerus Pars nominis Materia Nota
    1 Corpus valvae PBT
    2 Corpus valvae B Nota aenea 1) Electroless nickel plating
    3 Valvae sedes anulum Brass Electroless nickel plating
    4 Silencing material PVA spongia
    5 Handwheel PBT M3 type: Brass electroless nickel plating
    6 Acus valvae Brass Electroless nickel plating
    7 Acus valvae guide seat Brass Electroless nickel plating
    8 Cincinno nucis Ferro Nota III) Zinc nota chromatis 2)
    9 Valvae core HNBR
    10 signantes fragmen NBR
    11 Separans anulum POM
    12 Codex signantes Diver / NBR M3 genus est PVC
    13 Dimittis sleeve -
    14 O anulum NBR
    15 O anulum NBR
    Nota 1) M3 type is made of stainless steel.
    Nota 2) Round lock nuts are electroplated with nickel.
    Nota 3) Round lock nuts are made of brass.

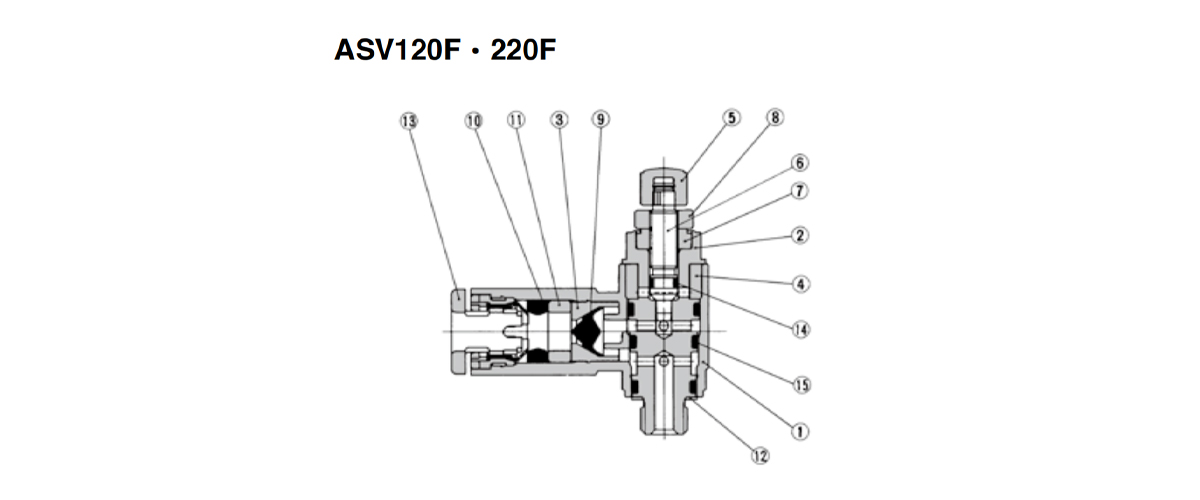

    Component partes
    Numerus Pars nominis Materia Nota
    1 Corpus valvae PBT UL94V-0
    2 Valvae sedes anulum Aluminium alloy Chromate curatio
    3 Acus valvae Aluminium alloy Electroless nickel plating
    4 Acus valvae guide seat Aluminium alloy Electroless nickel plating
    5 Handwheel Brass Electroless nickel plating
    6 Cincinno nucis Ferro Nota 2) Zinc chromate nota 1)
    7 Press, apta iuncturam Brass Electroless nickel plating
    8 Dimittis sleeve -
    9 Valvae core Polyurethane rubber
    10 Reductio materiae sonitus PVA spongia
    11 signantes fragmen NBR
    12 O anulum NBR
    13 Cover Flamma retardans CR UL94V-0
    Nota 1) Round lock nuts are electroplated with nickel.
    Nota 2) Round lock nuts are made of brass, except for ASV310F and ASV410F, which are made of steel.

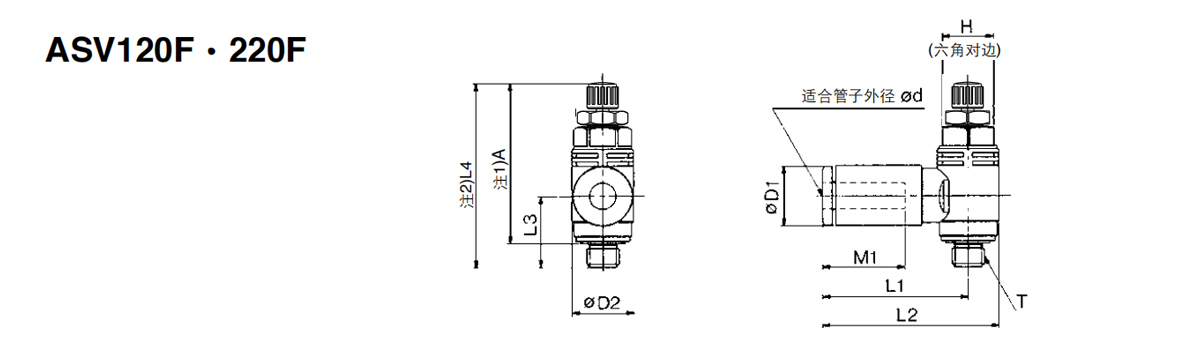

    Metrica dimensiones
    Model Apta fistulae diametri exterioris d T H D1 D2 L1 L2 L3 L4 A M1 Qualitas
    g
    Maximilianus. Min. Maximilianus. Min.
    ASV120F-M3-04 4 M3×0.5 5.5 9.3 7.2 21.4 25 9.8 28.6 26.1 25.8 23.3 12.7 5
    ASV220F-M5-04 4 M5×0.8 8 9.3 9.6 22.8 27.6 11.1 31.4 28.6 27.7 24.9 12.7 8
    ASV220F-M5-06 6 M5×0.8 8 11.6 9.6 23.6 28.4 11.1 31.4 28.6 27.7 24.9 13.5 9
    Nota 1) Reference dimensions after screwing in M thread
    Nota 2) L4 is the reference dimension.

    dimensiones imperiales
    Model Apta fistulae diametri exterioris d T H D1 D2 L1 L2 L3 L4 A M1 Qualitas
    g
    Maximilianus. Min. Maximilianus. Min.
    ASV220F-U10/32-03 5/32" 10-32UNF 8 9.3 9.6 22.8 27.6 11.1 31.4 28.6 27.7 24.9 12.7 8
    ASV220F-U10/32-07 1/4" 10-32UNF 8 12 9.6 23.6 28.4 11.1 31.4 28.6 27.7 24.9 13.7 9
    Nota 1) Reference dimensions after screwing in U10/32 thread.
    Nota 2) L4 is the reference dimension.

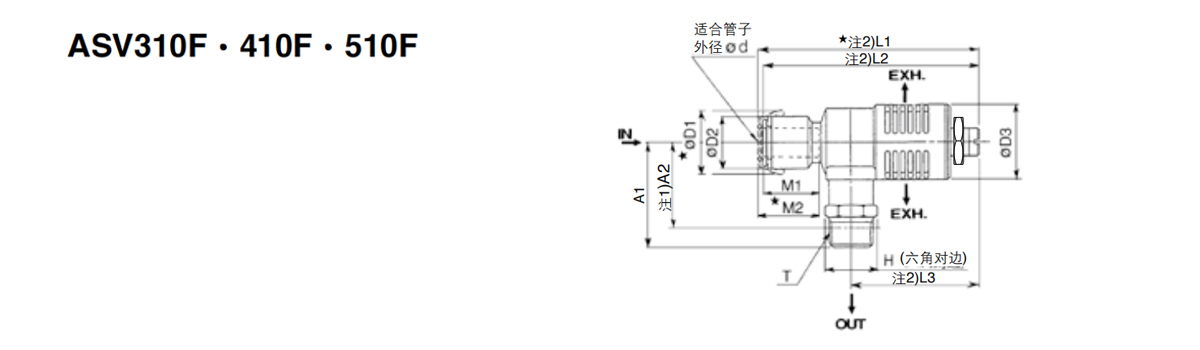

    Metrica dimensiones
    Model Apta fistulae diametri exterioris d T H D1 D2 D3 L1 L2 L3 Nota 2)
    A1     		A2 M1 M2 Qualitas
    g
    Maximilianus. Min. Maximilianus. Min. Maximilianus. Min.
    ASV310F-01-06S 6 R1/8 10 16.8 12.8 17.6 71.9 65.9 69.9 63.9 45.8 39.8 26.5 23.4 17 19 22
    ASV310F-01-08S 8 19.3 15.2 73.8 67.8 71.8 65.8 19 21 23
    ASV310F-02-06S 6 R1/4 14 16.8 12.8 17.6 71.9 65.9 69.9 63.9 45.8 39.8 30.9 25.4 17 19 30
    ASV310F-02-08S 8 19.3 15.2 73.8 67.8 71.8 65.8 19 21 31
    ASV410F-01-08S 8 R1/8 12 19.3 15.2 24 83.1 75.6 81.1 73.6 52.8 45.3 29.8 26.7 19 21 39
    ASV410F-01-10S 10 23.3 18.5 85.2 77.7 83.2 75.7 21 23 41
    ASV410F-02-08S 8 R1/4 14 19.3 15.2 24 83.1 75.6 81.1 73.6 52.8 45.3 34.2 28.7 19 21 47
    ASV410F-02-10S 10 23.3 18.5 85.2 77.7 83.2 75.7 21 23 49
    ASV410F-03-08S 8 R3/8 17 19.3 15.2 24 83.1 75.6 81.1 73.6 52.8 45.3 35.6 30.4 19 21 61
    ASV410F-03-10S 10 23.3 18.5 85.2 77.7 83.2 75.7 21 23 63
    ASV510F-02-10S 10 R1/4 17 23.3 18.5 30 88.2 82.2 86.2 80.2 53.6 47.6 39.3 33.8 21 23 69
    ASV510F-02-12S 12 25.7 20.9 89.8 83.8 87.8 81.8 22 24 74
    ASV510F-03-10S 10 R3/8 17 23.3 18.5 30 88.2 82.2 86.2 80.2 53.6 47.6 40.7 35.5 21 23 73
    ASV510F-03-12S 12 25.7 20.9 89.8 83.8 87.8 81.8 22 24 78
    ASV510F-04-10S 10 R1/2 22 23.3 18.5 30 88.2 82.2 86.2 80.2 53.6 47.6 44.9 37.6 21 23 95
    ASV510F-04-12S 12 25.7 20.9 89.8 83.8 87.8 81.8 22 24 100
    ★: Dimensiones cum operculo.
    Nota 1) Reference dimensions after screwing in R thread.
    Nota 2) L1, L2, and L3 are reference dimensions.

    dimensiones imperiales
    Model Apta fistulae diametri exterioris d T H D1 D2 D3 L1 L2 L3 Nota 2)
    A1     		Nota 1)
    A2     		M1 M2 Qualitas
    g
    Maximilianus. Min. Maximilianus. Min. Maximilianus. Min.
    ASV310F-N01-07 1/4" NPT1/8 12.7 17.2 13.2 17.6 73 67 71 65 45.8 39.8 26.5 23.4 16.8 18.8 22
    ASV310F-N01-09 5/16" 19.3 15.2 73.8 67.8 71.8 65.8 19 21 23
    ASV310F-N02-07 1/4" NPT1/4 14.3 17.2 13.2 17.6 73 67 71 65 45.8 39.8 30.9 25.4 16.8 18.8 30
    ASV310F-N02-09 5/16" 19.3 15.2 73.8 67.8 71.8 65.8 19 21 31
    ASV410F-N01-09 5/16" NPT1/8 12.7 19.3 15.2 24.4 83.1 75.6 81.1 73.6 52.8 45.3 29.8 26.7 19 21 39
    ASV410F-N01-11 3/16" 23.3 18.5 85.2 77.7 83.2 75.7 21 23 41
    ASV410F-N02-09 5/16" NPT1/4 14.3 19.3 15.2 24.4 83.1 75.6 81.1 73.6 52.8 45.3 34.2 28.7 19 21 47
    ASV410F-N02-11 3/16" 23.3 18.5 85.2 77.7 83.2 75.7 21 23 49
    ASV410F-NO3-09 5/16" NPT3/8 17.5 19.3 15.2 24.4 83.1 75.6 81.1 73.6 52.8 45.3 35.6 30.4 19 21 61
    ASV410F-N03-11 3/16" 23.3 18.5 85.2 77.7 83.2 75.7 21 23 63
    ASV510F-N02-11 3/16" NPT1/4 17.5 23.3 18.5 30 88.2 82.2 86.2 80.2 53.6 47.6 39.3 33.8 21 23 69
    ASV510F-N02-13 1/2" 26.5 21.7 89.8 83.8 87.8 81.8 21.8 23.8 74
    ASV510F-N03-11 3/16" NPT3/8 17.5 23.3 18.5 30 88.2 82.2 86.2 80.2 53.6 47.6 40.7 35.5 21 23 73
    ASV510F-NO3-13 1/2" 26.5 21.7 89.8 83.8 87.8 81.8 21.8 23.8 78
    ASV510F-N04-11 3/16" NPT1/2 22.2 23.3 18.5 30 88.2 82.2 86.2 80.2 53.6 47.6 44.9 37.6 21 23 95
    ASV510F-N04-13 1/2" 26.5 21.7 89.8 83.8 87.8 81.8 21.8 23.8 100
    ★: Dimensiones cum operculo.
    Nota 1) Reference dimensions after NPT thread is screwed in.
    Nota 2) L1, L2, and L3 are reference dimensions.
