PCV Series Induction Check Valve Fornitores

Home / Products / Accessorium pneumaticum / Imperium Valvae influunt / Reprehendo Valvae / PCV Series Induction Check Valve

PCV Series Induction Check Valve PCV Series Induction Check Valve PCV Series Induction Check Valve PCV Series Induction Check Valve
  • PCV Series Induction Check Valve
  • PCV Series Induction Check Valve
  • PCV Series Induction Check Valve
  • PCV Series Induction Check Valve
Imperium Valvae influunt / Reprehendo Valvae

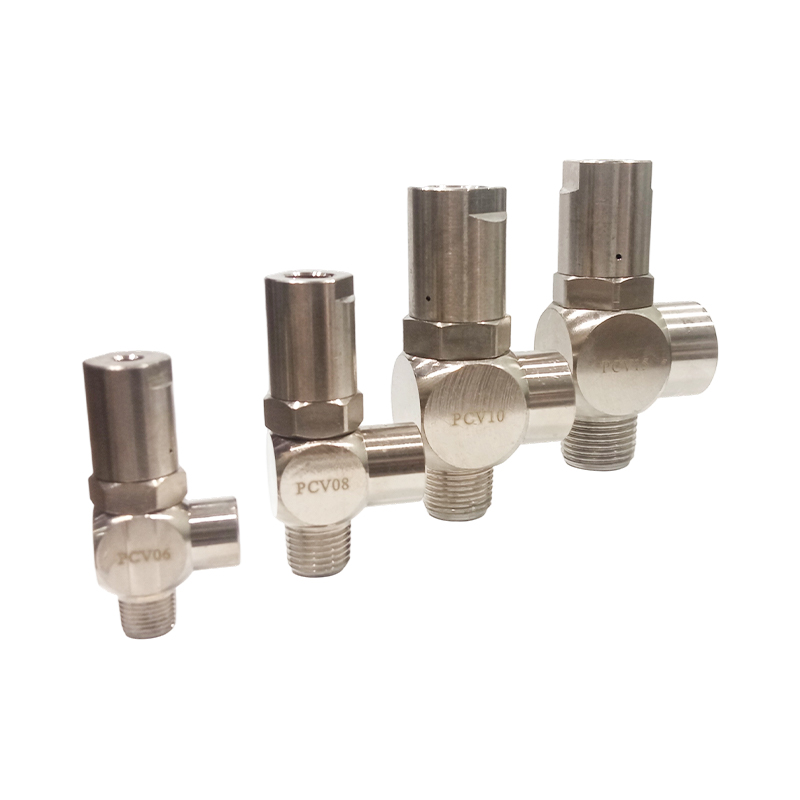

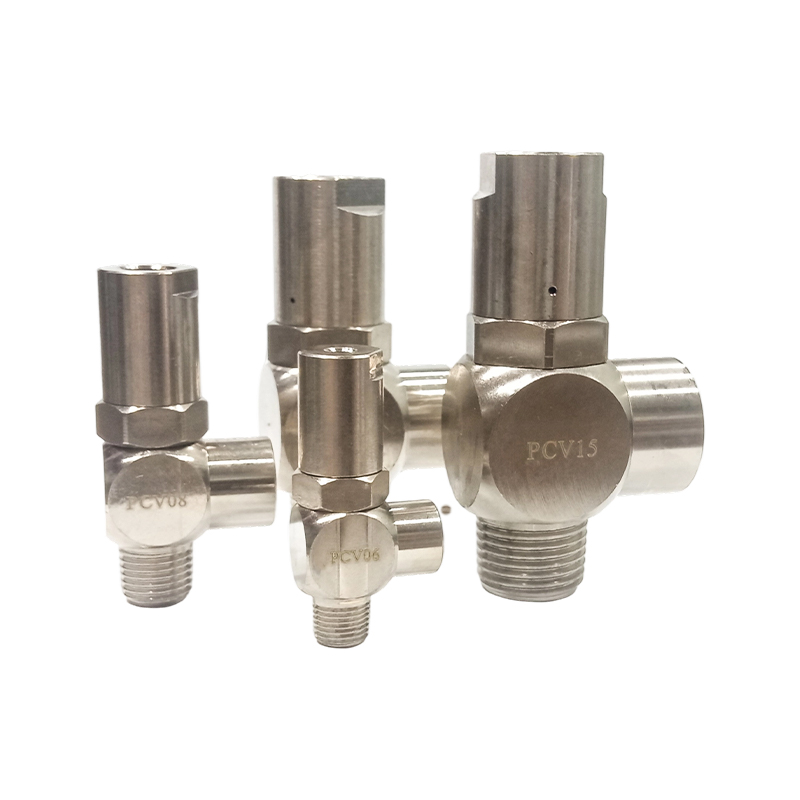

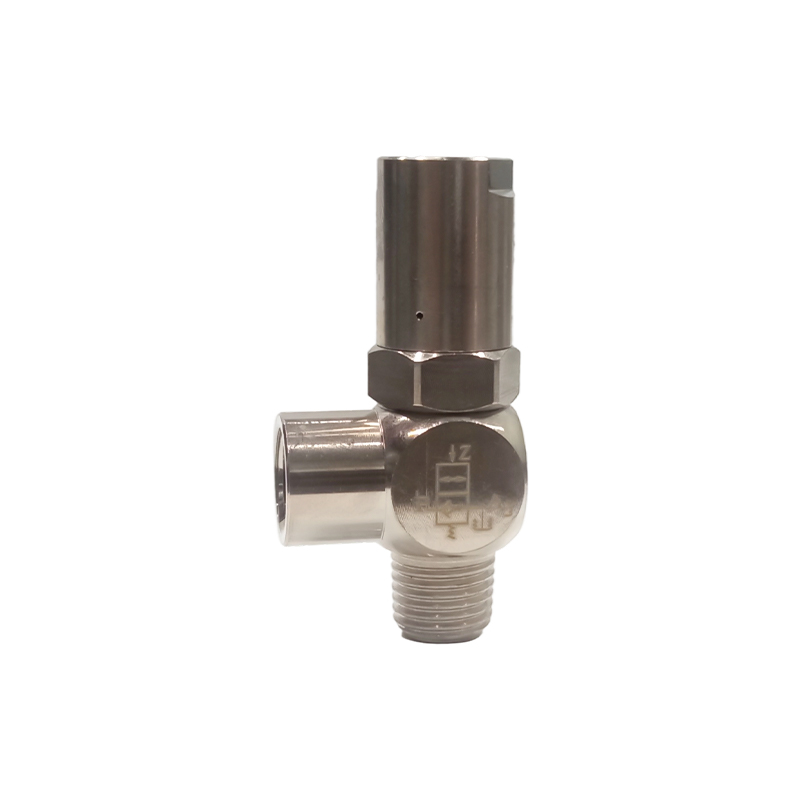

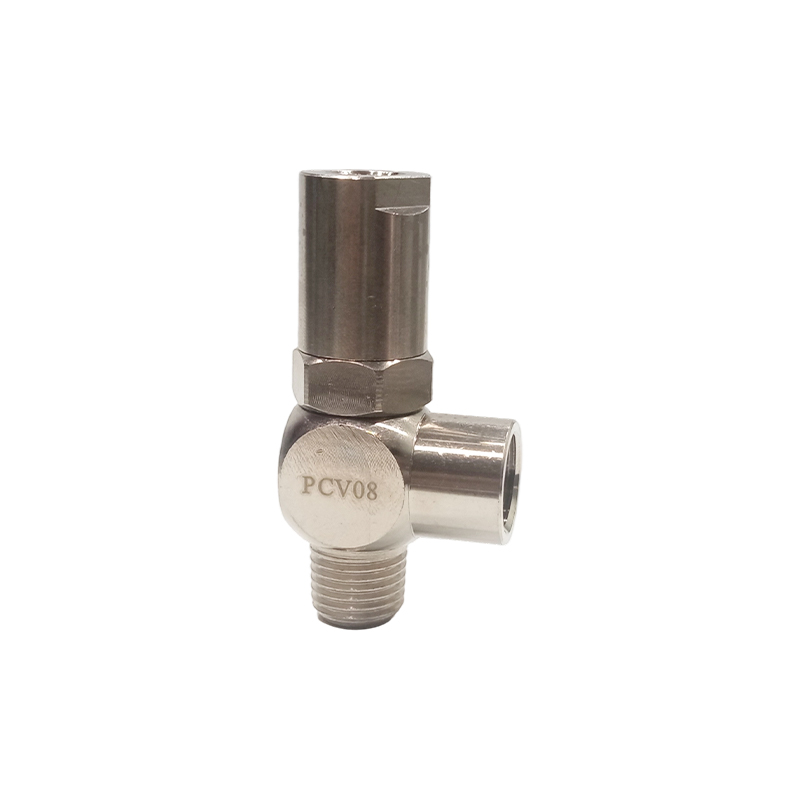

PCV Series Induction Check Valve

cylindrus statim ad situm subsistit.

·Prohibet cylindrum ab auto-propellente intermissione.

· Salus circuitus ad pressionem tuendam.

· Praecipua ambitus consilio et applicatione.

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：Nessun articolo precedente
SUCCESSIVO：AK Series Perscriptio Valvae
  • Specifications
    Utere fluida Air
    Ensure pressura resistentia 1.5MPa
    Maximum operating pressura 1MPa
    Minimum operating pressura 0.15MPa
    Materia tibia idonea Nylon, mollis nylon, polyurethane
    Nota: Attende ad maximam pressuram operating pressionis mollis nylon et polyurethane.

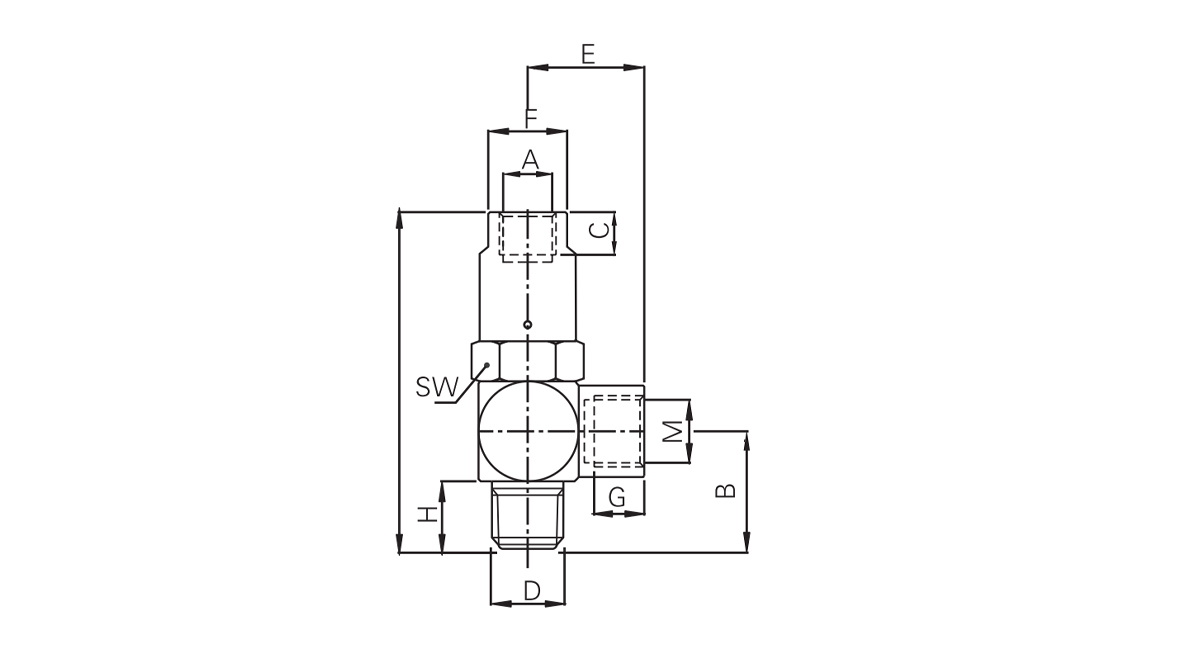

  • Magnitudo chart
    Model A F C E B M G D H L SW Pondus (g)
    PCV-06 M5 12 5.5 16 16.5 G1/8 8 PT1/8 7.5 48.5 14 55
    PCV-08 G1/8 14 8.5 20.3 21 G1/4 8.5 PT1/4 10 59.5 17 95.4
    PCV-10 G1/4 16 10 25 26.5 G3/8 11 PT3/8 11 75 22 212.7
    PCV-15 G1/4 19 10 28 30 G1/2 12 PT1/2 14 80 24 276.5

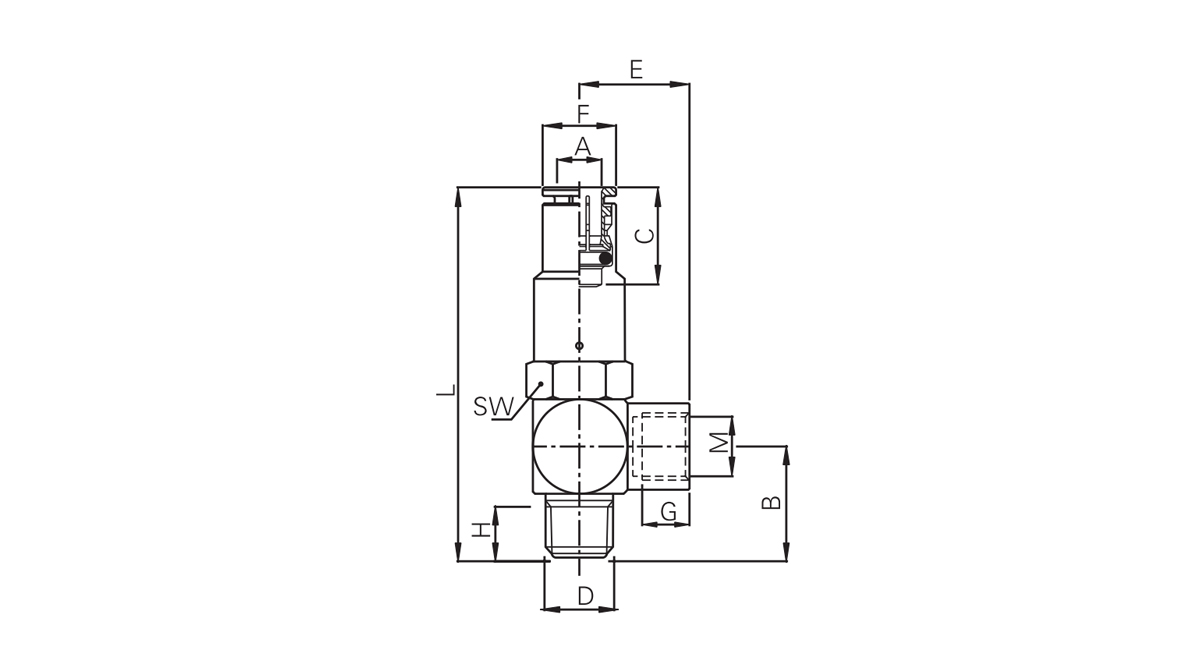

    Magnitudo chart
    Model A F C E B M G D H L SW Pondus (g)
    PCV-06F 6 11.8 17 16 16.5 G1/8 8 PT1/8 7.5 58.5 14 -
    PCV-08F 6 11.8 17 20.3 21 G1/4 8.5 PT1/4 10 67 17 -
    PCV-10F 8 13.6 17.5 25 26 G3/8 11 PT3/8 11 82 22 -
    PCV-15F 8 13.6 17.5 28 29.5 G1/2 12 PT1/2 14 87 24 -
