CU/CUK Series Free Monte Cylindro Fornitores

Home / Products / Air Cylindri / Free Monte Cylindro / CU/CUK Series Free Monte Cylindro

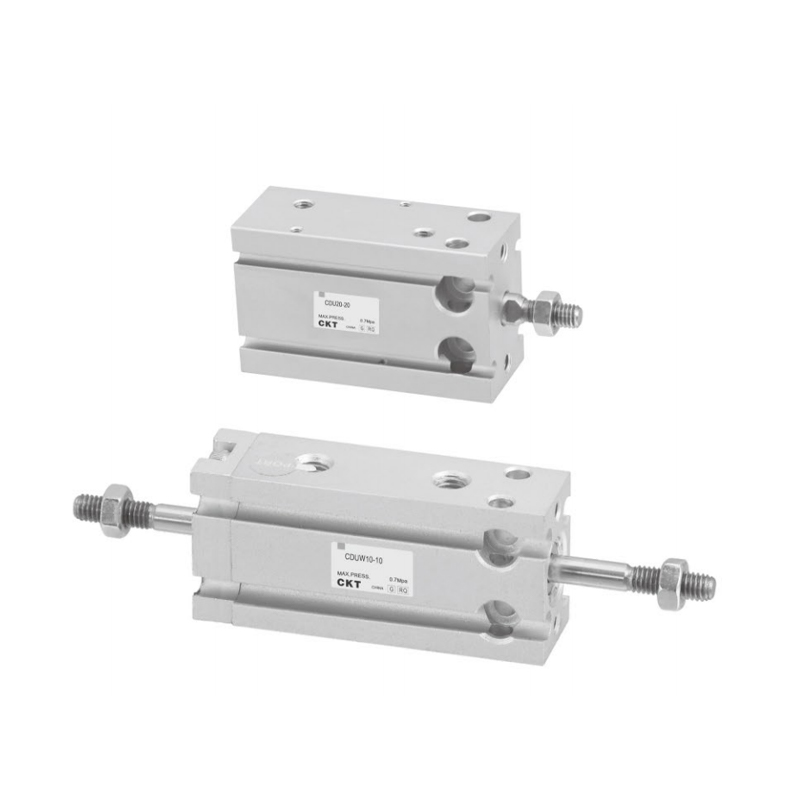

CU/CUK Series Free Monte Cylindro
  • CU/CUK Series Free Monte Cylindro
Free Monte Cylindro

CU/CUK Series Free Monte Cylindro

CU/CUK Series Free Mons Cylindrus est modularis liber cylindri mons, qui per structuram optimam institutionis integrationem mechanicam valde flexibilem consequitur. Eius consilium ad simpliciorem processum institutionem spectat et ad multiplices condiciones operandas accommodans, et ad praecisionem motus moderandi requisita sub dynamico onere missionum apta est.

Core Features
▸ Libertas structuralis: Corpus interfaces fixas multi-axiales praebet, positiones institutiones non normas sustinet et partes adaptores eliminat;

PERFUSORIUS et compages compacta: Humilis-inertia corporis designatio signanter reducit systema onus et optimizat spatii utendo;

Multiplex specificatio options: Amplis diametris cylindrici tegit et iuncturas ictuum aptat ad differentiam oneris et obsessionis missionum;

Princeps stabilitatis rector: Anconius humus praecisionem unam obolus duce structuram ad perficiendum diuturnum oleum et operationem stabilem;

▸ inaedificata in sensorem ratio: Constructio packaging consilio magneticae coitu transitum removet periculum interventus externi et opiniones positionis integrat.

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：CUJB Series Libera Installation Cylindri
SUCCESSIVO：Nessun articolo successivo
  • Bore magnitudinem(mm) 6 10 16 20 25 32
    Liquor Air
    Actio Duplex agens
    Unum agens: Spring reditus / extend
    Max.Operans Pressura 0.7MPa
    Min.
    Operating
    Pressura
    (MPa)     		Duplex
    agens     		una polus 0.12 0.06 0.05
    Duplex rod, non-rotating rod, pneumatic cushioning 0.15 0.1 0.08
    Non rotating genus duplex virga 0.18 0.13 0.11
    Unius
    agens     		Standard 0.2 0.15 0.13
    Non rotating 0.23 0.18 0.16
    Ambientem Et Fluidum Tempus Cum auto switch: -10 ~ 60℃, Sine auto switch: -10 ~ 70℃
    Pulvinar Tum fines rubber bumper
    Piston Celeritas 50~500mm/s
    Longitudo tolerantiam(mm) 1
    Lubricatio Non requiratur
    Adscendens Liberum montem (sorcors aliquot adscendens)
    Virgam non-cavendam Accuracitatem ±0.8° ±0.5°
    Portus Amplitudo M5×0.8 45665
    *Si unctionem exigitur, quaeso utere oleum Turbinum No. 1 ISOVG32.

  • StrokelAuto Switch Model
    Bore
    magnitudine
    (mm)     		Vexillum plaga (mm) Longa plaga
    (duplum agere)
    *Auto Model switch
    (mons directum)
    Duplex agens Unum agens
    6 5,10,15;
    20,25,30     		5,10,15 40         .            50                                                                       60 M9N
    M9B
    M9P
    10
    16
    20 5,10,15;20,
    25,30,40,50     		60,70
    80,90
    100
    25
    32
    Filum longitudo notans: Non notati - 0,5 m, L - 3 m, Z - 5 m Exemplum: M9N, M9NL

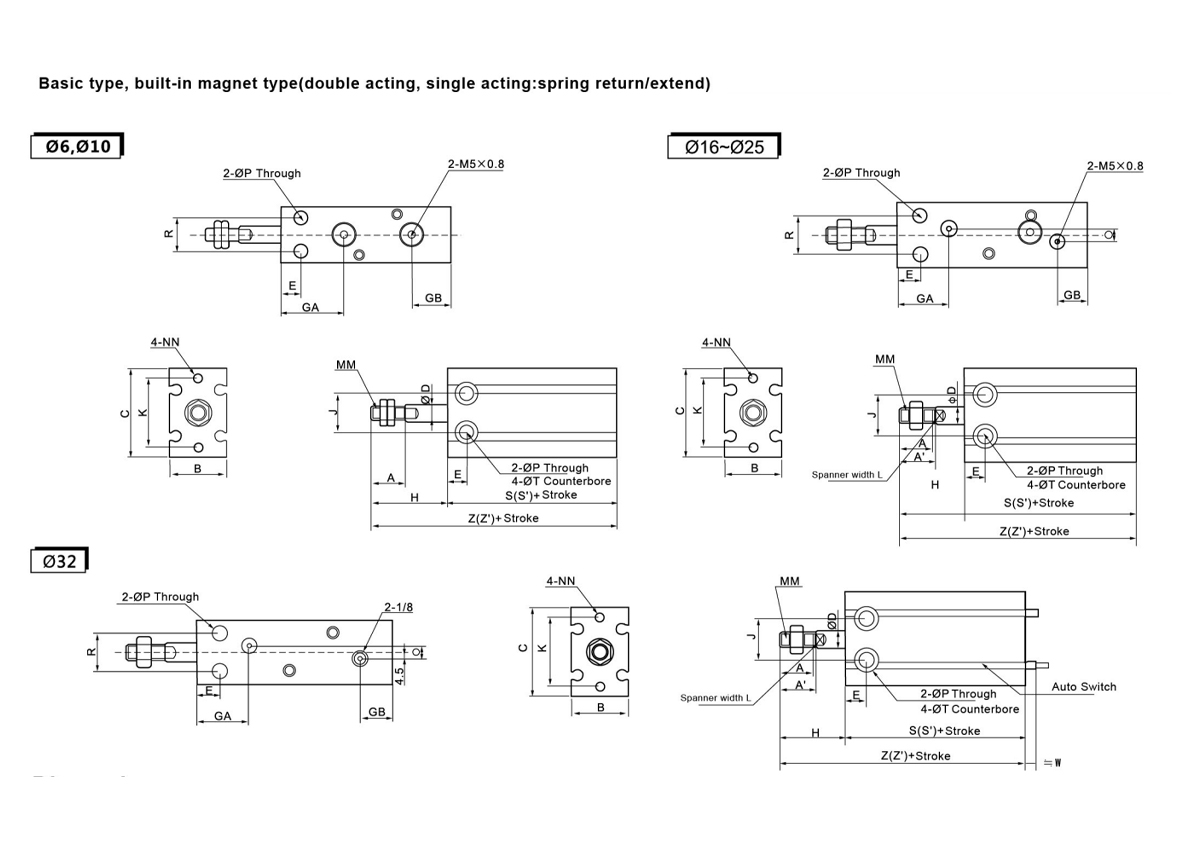

  • Dimension
    Exemplar A A' B C D E GA GB J K L MM NN P Q R T
    C-C□ U6 7 - 13 22 3 7 15 10 10 17 - M3×0.5 M3×0.5
    Deep5     		3.2 - 7 6deep4.8
    C-C□ U10 10 - 15 24 4 7 16.5 10 11 18 - M4×0.7 M3×0.5 Deep5 3.2 - 9 6deep5
    C-C□ U16 11 12.5 20 32 6 7 16.5 11.5 14 25 5 M5×0.8 M4×0.7 Deep6 4.5 4 12 7.6deep6.5
    C-C□ U20 12 14 26 40 8 9 19 12.5 16 30 6 M6×1.0 M5×0.8 Deep8 5.5 9 16 9.3deep8
    C-C□ U25 15.5 18 32 50 10 10 21.5 13 20 38 8 M8×1.25 M5×0.8Deep8 5.5 9 20 9.3deep9
    C-C□ U32 19.5 22 40 62 12 11 23 13 24 48 10 M10×1.25 M6×1.0Deep9 6.6 13.5 24 11deep11.5
    Duplex agendi ratio
    Exemplar H Typus fundamentalis Constructum in Magnet
    S Z W S' Z'
    C-C□ U6-□ D 13 33 46 2.5 33 46
    C-C□ U10-□ D 16 36 52 1 36 52
    C-C□ U16-□ D 16 30 46 0 40 56
    C-C□ U20-□ D 19 36 55 1 46 65
    C-C□ U25-□ D 23 40 63 -1 50 73
    C-C□ U32-□ D 27 42 69 -4 52 79
    Unius Actus (Ver Redi) Dimensio
    Exemplar H Typus fundamentalis Constructum in Magnet
    S Z W S' Z'
    5st 10st 15st 5st 10st 15st 5st 10st 15st 5st 10st 15st
    C-C□ U6-□ S 13 38 43 48 51 56 61 2.5 38 43 48 51 56 61
    C-C□ U10-□ S 16 41 46 56 57 62 72 1 41 46 56 57 62 72
    C-C□ U16-□ S 16 35 40 50 51 56 66 0 45 50 60 61 66 76
    C-C□ U20-□ S 19 41 46 56 60 65 75 1 51 56 66 70 75 85
    C-C□ U25-□ S 23 45 50 60 68 73 83 -1 55 60 70 78 83 93
    C-C□ U32-□ S 27 47 52 62 74 79 89 -4 57 62 72 84 89 99
    Single Actus (Ver Extende) Dimensio
    Exemplar H Typus fundamentalis Constructum in Magnet
    S Z W S' Z'
    5st 10st 15st 5st 10st 15st 5st 10st 15st 5st 10st 15st 5st 10st 15st
    C-C□ U6-□ T 18 23 28 38 43 48 56 66 76 2.5 38 43 48 56 66 76
    C-C□ U10-□ T 21 26 31 41 46 56 62 72 87 1 41 46 56 62 72 87
    C-C□ U16-□ T 21 26 31 45 50 60 66 76 91 0 45 50 60 66 76 91
    C-C□ U20-□T 24 29 34 41 46 56 65 75 90 1 51 56 66 75 85 100
    C-C□ U25-□ T 28 33 38 45 50 60 73 83 98 -1 55 60 70 83 93 108
    C-C□ U32-□T 32 37 42 47 52 62 79 89 104 -4 57 62 72 89 99 114

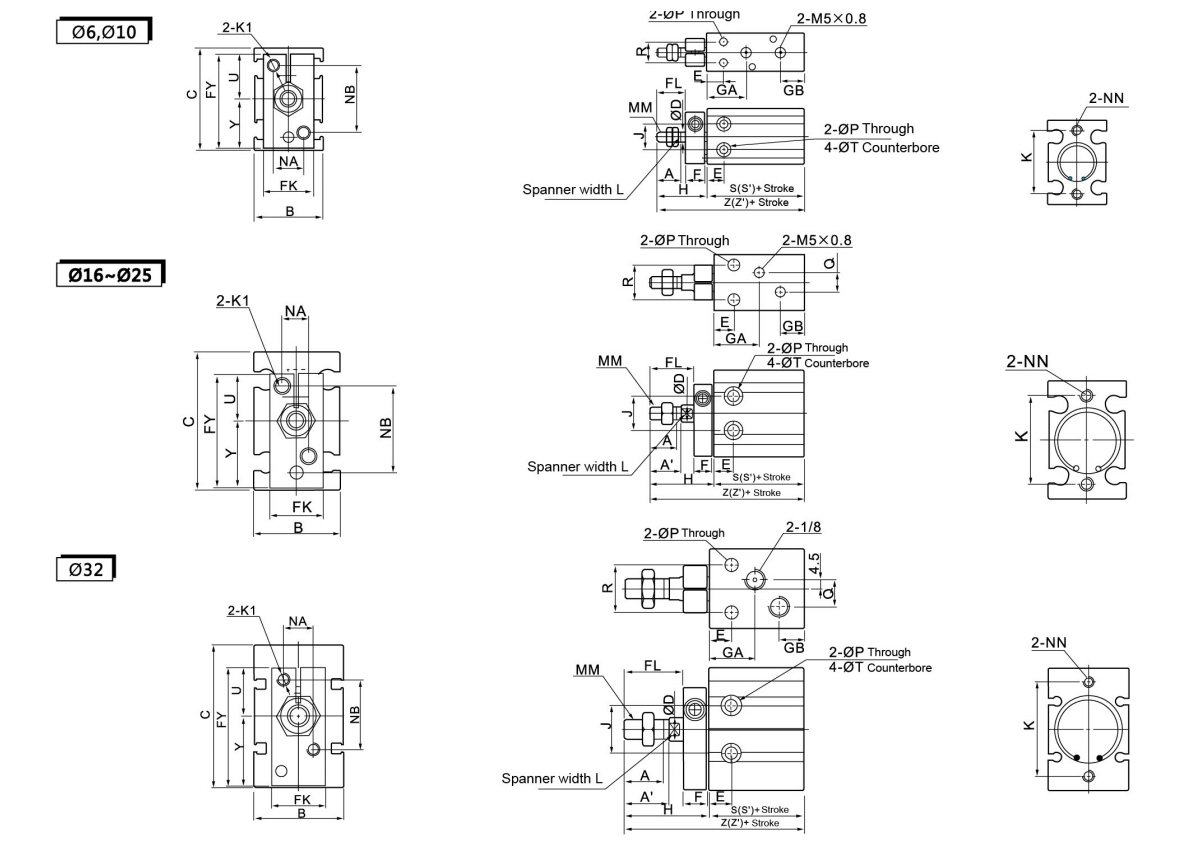

    Dimension
    Exemplar A A' B C D E F FL FK FY* GA GB H J K L MM NA NB NN P Q R T U Y K1
    C-C□ UK6 7 - 13 22 3 7 8 9 11 20.5 15 10 18 10 17 - M3×0.5 6 14 M3×0.5deep5 3.4 - 7 6deep4.8 10 10.5 M3
    C-C□ UK10 10 - 15 24 4 7 8 12 12 22 16.5 10 21 11 18 - M4×0.7 7 15 M3×0.5deep5 3.4 - 9 6deep5 10.5 11.5 M3
    C-C□ UK16 11 12.5 20 32 6 7 8 17 13 28 16.5 11.5 26 14 25 5 M5×0.8 6 18 M4×0.7deep6 4.5 4 12 7.6deep6.5 12.5 15.5 M4
    C-C□ UK20 12 14 26 40 8 9 8 20 16 33 19 12.5 29 16 30 6 M6×1.0 8 20 M5×0.8deep8 5.5 9 16 9.3deep8 13.5 19.5 M4
    C-C□ UK25 15.5 18 32 50 10 10 10 22 20 43.5 21.5 13 33 20 38 8 M8×1.25 10 28 M5×0.8deep8 5.5 9 20 9.3deep9 19 24.5 M5
    C-C□ UK32 19.5 22 40 62 12 11 12 29 24 51.5 23 12.5 42 24 48 10 M10×1.25 12 32 M6×1.0deep9 6.6 13.5 24 11deep11.5 21 30.5 M5
    Duplex agendi ratio
    Exemplar H Sine Auto
    Switch     		inaedificata
    Magnes SWITCH
    S Z W S' Z'
    C-C□ UK6-□D 18 33 51 2.5 33 51
    C-C□ UK10-□D 21 36 57 1 36 57
    C-C□ UK16-□D 26 30 56 0 40 66
    C-C□ UK20-□ D 29 36 65 1 46 75
    C-C□ UK25-□D 33 40 73 -1 50 83
    C-C□ UK32-□D 42 42 84 -4 52 94
    Unius Actus (Ver Redi) Dimensio
    Exemplar H Sine Auto Switch Constructum in Magnet Switch
    S Z W S Z'
    5st 10st 15st 5st 10st 15st 5st 10st 15st 5st 10st 15st
    C-C□ UK6-□ S 18 38 43 48 56 61 66 2.5 38 43 48 56 61 66
    C-C□ UK10-□ S 21 41 46 56 62 67 77 1 41 46 56 62 67 77
    C-C□ UK16-□ S 26 35 40 50 61 66 76 0 45 50 60 71 76 86
    C-C□ UK20-□ S 29 41 46 56 70 75 85 1 51 56 66 80 85 95
    C-C□ UK25-□ S 33 45 50 60 78 83 93 -1 55 60 70 88 93 103
    C-C□ UK32-□ S 42 47 52 62 89 94 104 -4 57 62 72 99 104 114
    Single Actus (Ver Extende) Dimensio
    Exemplar H T U Y Sine Auto Switch Constructum in Magnet Switch
    S Z W S' Z'
    5st 10st 15st 5st 10st 15st 5st 10st 15st 5st 10st 15st 5st 10st 15st
    C-C□ UK6-□T 23 28 33 6Deep4.8 10 10.5 38 43 48 61 71 81 2.5 38 43 48 61 71 81
    C-C□ UK10-□T 26 31 36 6Deep5 10.5 11.5 41 46 56 67 77 92 1 41 46 56 67 77 92
    C-C□ UK16-□T 31 36 41 7.6Deep6.5 12.5 15.5 45 50 60 76 86 101 0 45 50 60 76 86 101
    C-C□ UK20-□ T 34 39 44 9.5Deep8 13.5 19.5 41 46 56 75 85 100 1 51 56 66 85 95 110
    C-C□ UK25-□T 38 43 48 9.5Deep9 19 24.5 45 50 60 83 93 108 -1 55 60 70 93 103 118
    C-C□ UK32-□T 47 52 57 11Deep11.5 21 30.5 47 52 62 94 104 119 -4 57 62 72 104 114 129
