AC/AD Series Hydraulic quiddam Fornitores

Home / Products / Accessorium pneumaticum / Hydraulica Buffer / AC/AD Series Hydraulic quiddam

AC/AD Series Hydraulic quiddam AC/AD Series Hydraulic quiddam AC/AD Series Hydraulic quiddam AC/AD Series Hydraulic quiddam AC/AD Series Hydraulic quiddam AC/AD Series Hydraulic quiddam
  • AC/AD Series Hydraulic quiddam
  • AC/AD Series Hydraulic quiddam
  • AC/AD Series Hydraulic quiddam
  • AC/AD Series Hydraulic quiddam
  • AC/AD Series Hydraulic quiddam
  • AC/AD Series Hydraulic quiddam
Hydraulica Buffer

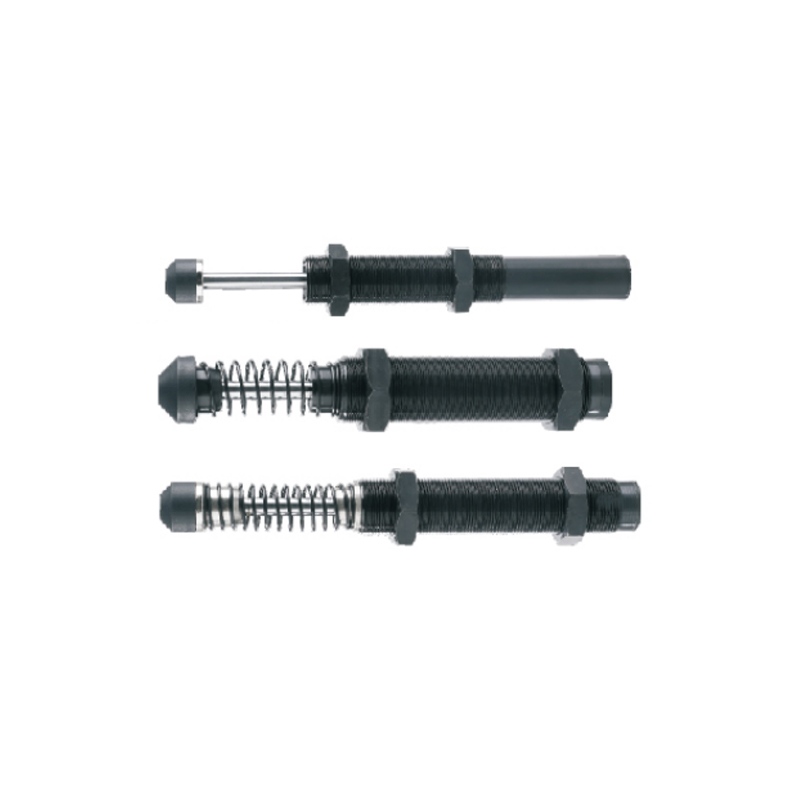

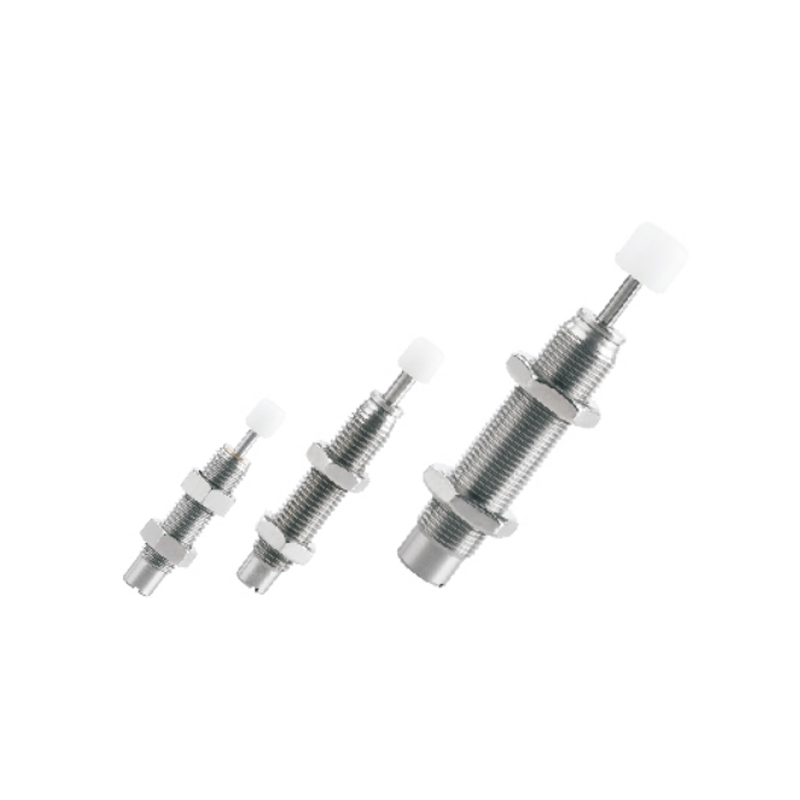

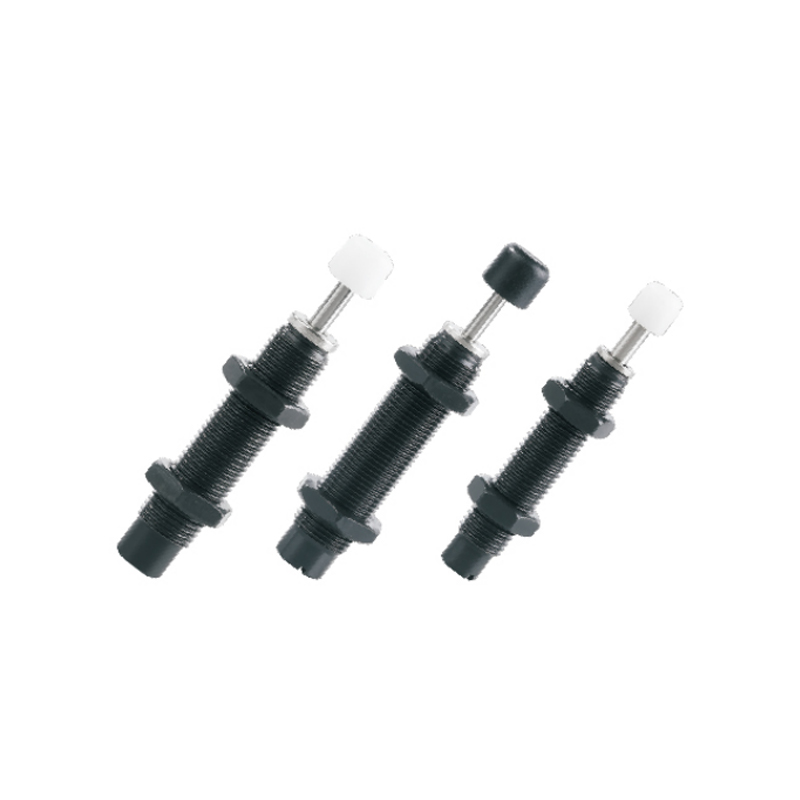

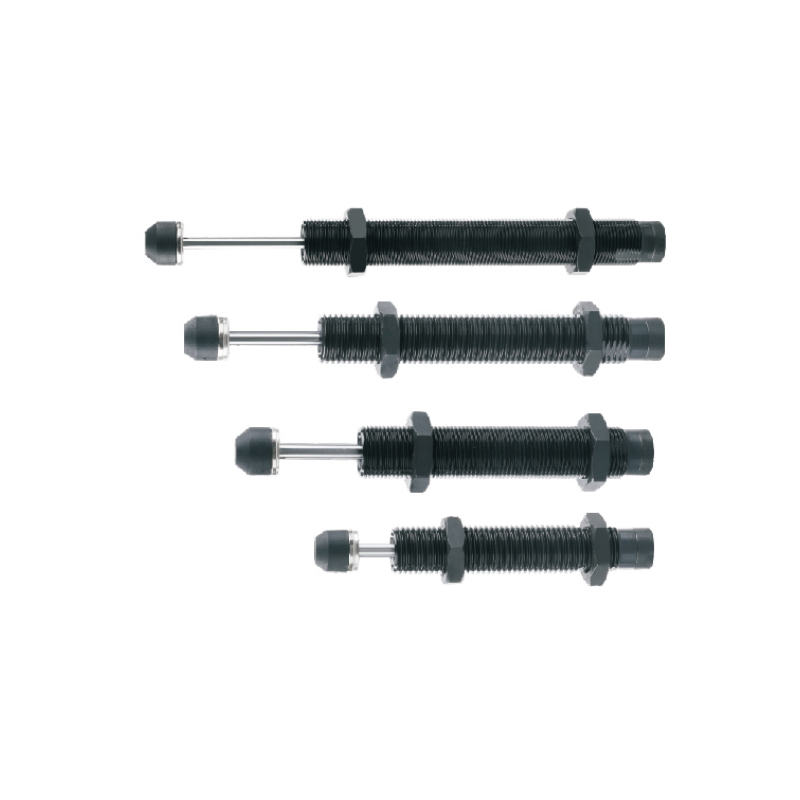

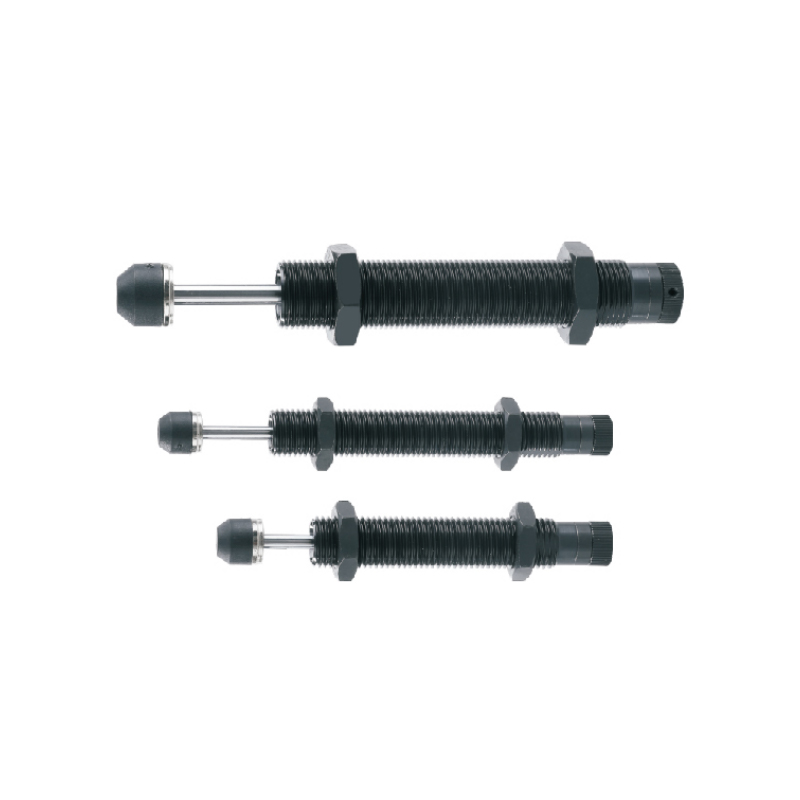

AC/AD Series Hydraulic quiddam

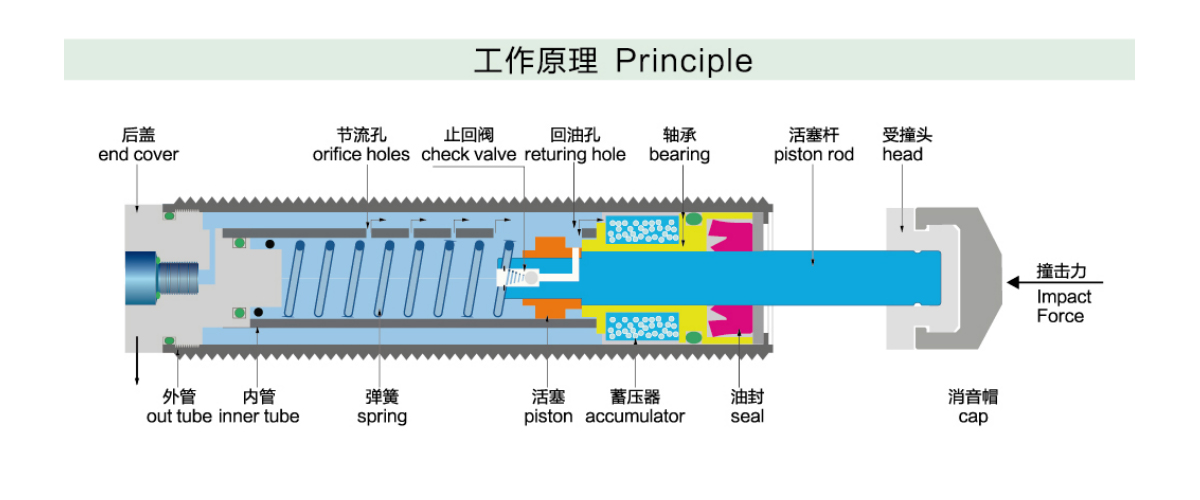

AC/AD series opponi hydraulicae sunt industriae gradus motuum energiae dissipationis machinas quae energiam motuum impulsum convertunt in industriam caloris per throttlum effectum olei hydraulici, lenis braking et vibrationis ditionem instrumentorum assequentes.

core features
1. Damping modus

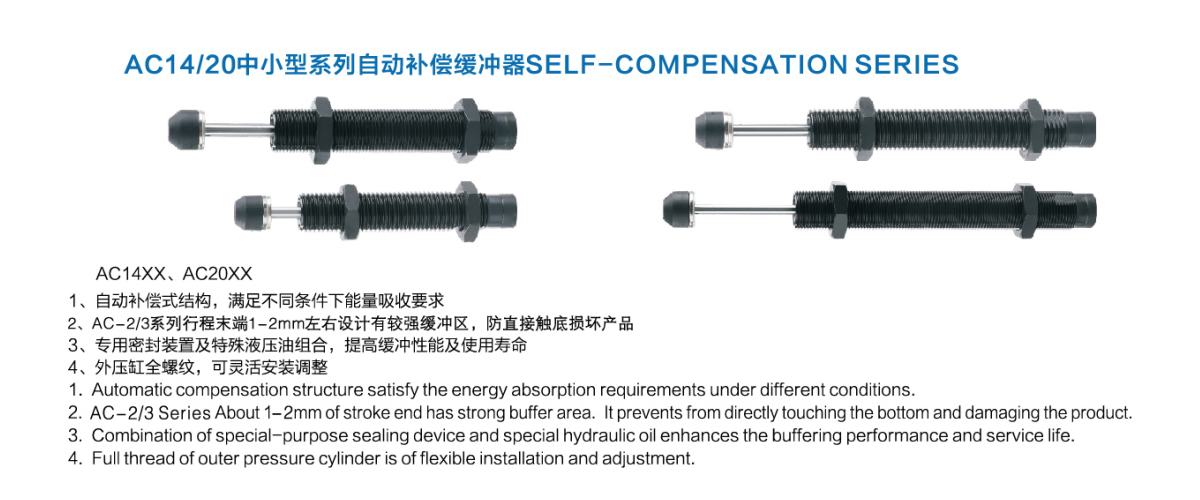

AC: certa debilitare, oneribus stabili stabilibus apta.

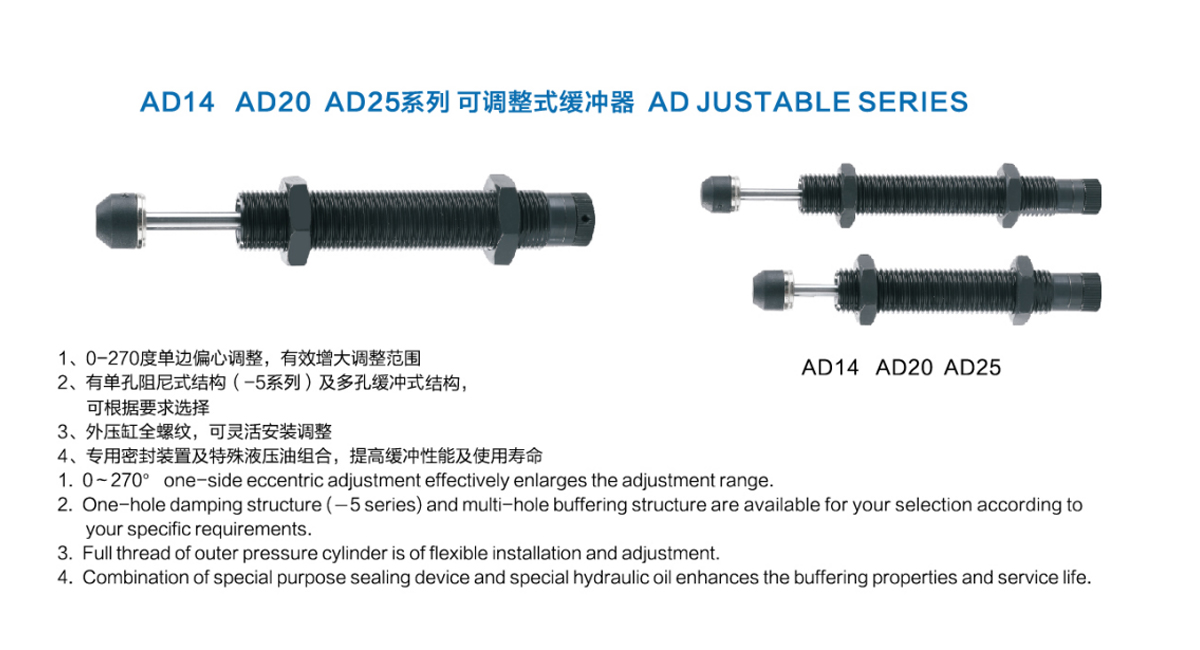

AD: adjustable damping, apta ad variabiles missionem missionem.

2. Diuturna structura
Repugnantes partes gerunt et late temperatus range signandi consilium (-10℃~80℃) obtinet stabilitatem sub magno frequentia impulsum.

3. Engineering convenientiae
Multi-interfaciei institutionis subsidium, onus coverage ex 85KG ad plura talenta, et ad figurationes non normas divulgari possunt ut explosionis probationis / corrosionis-probationis.

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：Nessun articolo precedente
SUCCESSIVO：RB Series Hydraulica quiddam

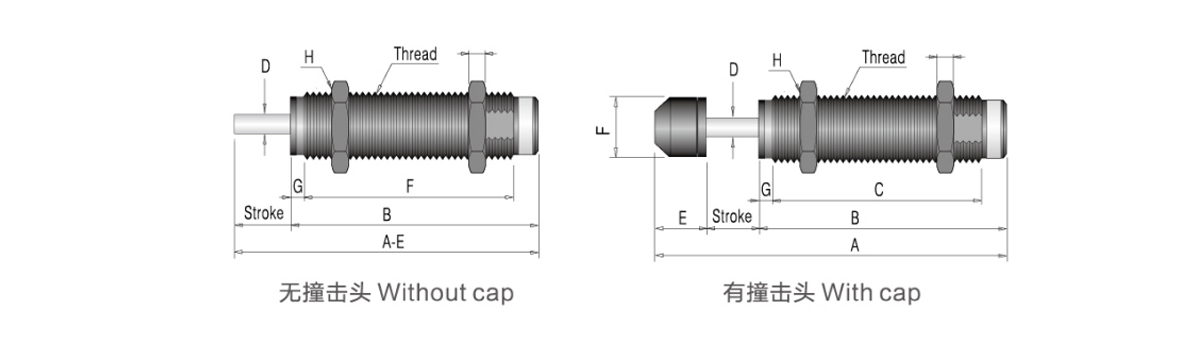

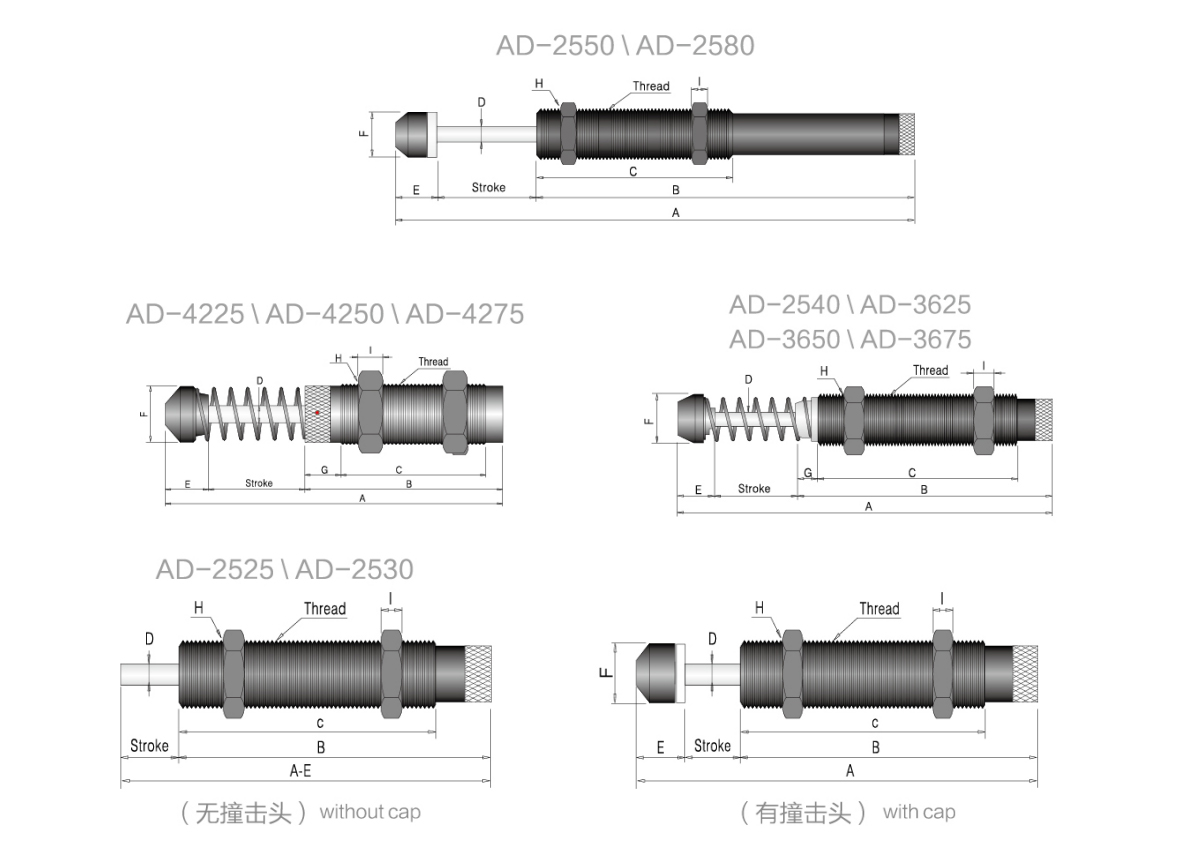

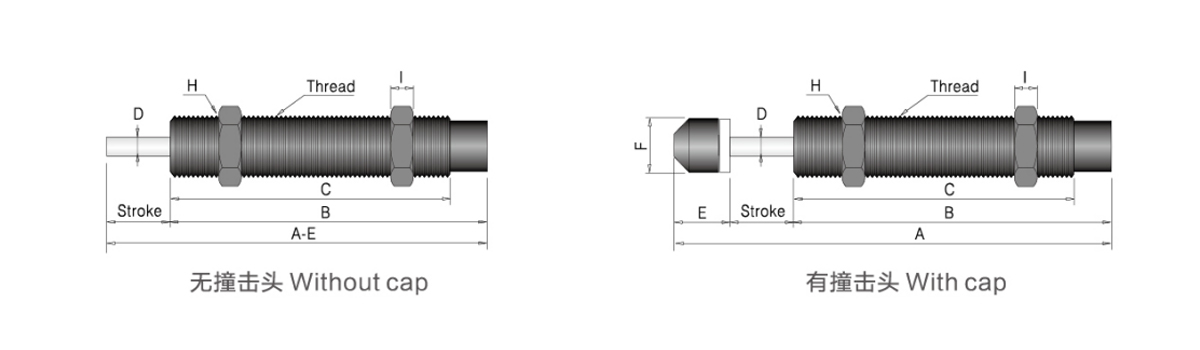

  • Model Thread Plaga
    (mm)     		A B C D E F G H I

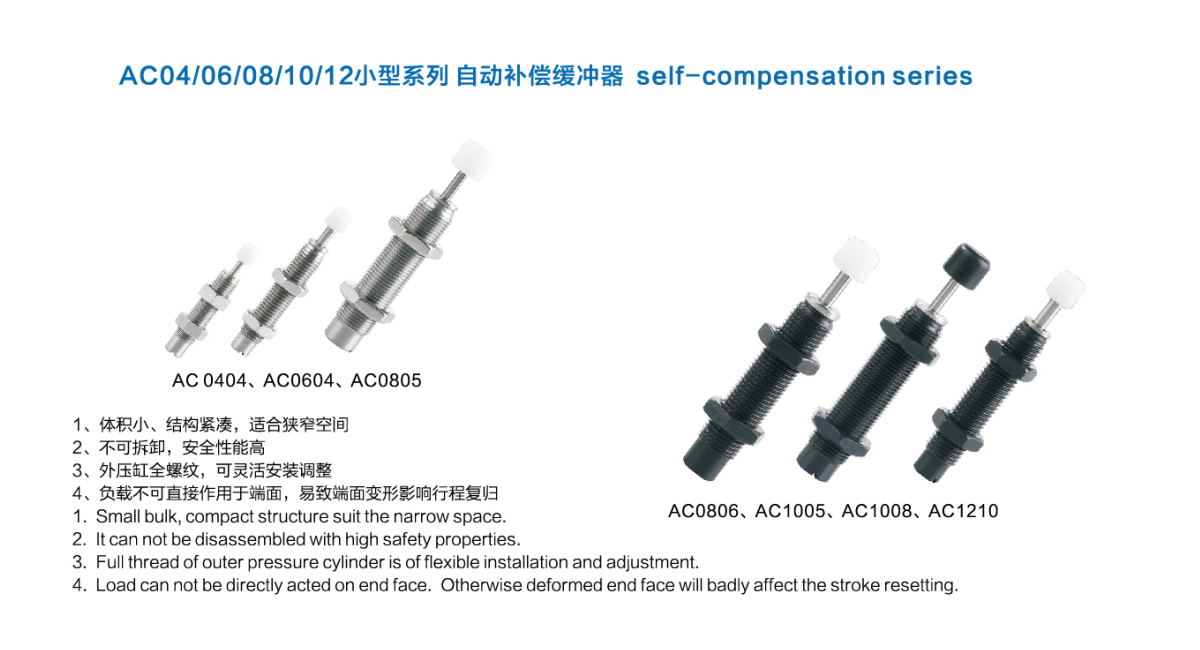

    AC0404-N M4×0.5 4 28.6 24.6 19.6 1.2 - - - 6.9 3
    AC0404 M4×0.5 4 32.6 24.6 19.6 1.2 4 3 - 6.9 3
    AC0604-N M6×0.75/1.0 4 29 25 20.6 1.8 - - 0.6 7.9 3
    AC0604 M6×0.75/1.0 4 34 25 20.6 1.8 5 4.6 0.6 7.9 3
    AC0806-N M8×1.0 6 46.3 39.6 32.6 3 - - 1.0 11 3.7
    AC0806 M8×1.0 6 52.6 39.6 32.6 3 6.3 6.5 1.0 11 3.7
    AC1005-N M10×1.0 5 32.5 27.5 18.2 3 - - - 27 7
    AC1005 M10×1.0 5 40.5 27.5 18.2 3 7.2 8.3 - 12.7 3
    AC1007-N M10×1.0 7 53.6 46.7 39 3 - - 2.0 12.7 3.7
    AC1007 M10×1.0 7 60.8 46.7 39 3 7.2 8.3 2.0 12.7 3.7
    AC1210-N M12×1.0 10 62.7 53.4 43.5 3 - - 1.3 16.8 4.2
    AC1210 M12×1.0 10 71.7 53.4 43.5 3 9 10.3 1.3 16.8 4.2
    AC1412-SMN M14×1.5 12 63.3 56.3 46.5 4 - - 2.0 19 5.5
    AC1412-SM M14×1.5 12 75.6 56.3 46.5 4 11.5 12.3 2.0 19 5.5


    Model
    Thread     		Plaga
    (mm)     		A B C D E F G H I
    AC1410-N M14×1.5 10 85 75 65 4 - - - 19 5.5
    AC1410 M14×1.5 10 97.2 75 65 4 12.2 12.2 - 19 5.5
    AC1412-N M14×1.5 12 87 75 65 4 - - - 19 5.5
    AC1412 M14×1.5 12 99.2 75 65 4 12.2 12.2 - 19 5.5
    AC1416 M14×1.011.5 16 110 82 72 4 12.2 12.2 - 19 5.5
    AC1420 M14×1.011.5 20 127 95 72 4 12.2 12.2 - 19 5.5
    AC1425 M14×1.011.5 25 132 95 86 4 12.2 12.2 - 19 5.5
    AC1610 M16×1.011.5 10 97.2 75 65 4 12.2 12.2 - 26 6
    AC1612 M16×1.011.5 12 99.2 75 65 4 12.2 12.2 - 26 6
    AC1616 M16×1.0\1.5 16 110 82 72 4 12.2 12.2 - 26 6
    AC1620 M16×1.0\1.5 20 127 95 72 4 12.2 12.2 - 26 6
    AC1625 M16×1.0\1.5 25 132 95 86 4 12.2 12.2 - 26 6
    AC2016-N M20×1.5 16 127.5 95 85 6 - - - 27 7
    AC2016 M20×1.5 16 127.5 95 85 6 15.8 17.8 - 27 7
    AC2020-N M20×1.5 20 131.5 95 85 6 - - - 27 7
    AC2020 M20×1.5 20 131.5 95 85 6 15.8 17.8 - 27 7
    AC2025 M20×1.5 25 151.8 111 101 6 15.8 17.8 - 27 7
    AC2030 M20×1.5 30 156.8 111 101 6 15.8 17.8 - 27 7
    AC2050 M20×1.5 50 218.8 153 143 5 15.8 17.8 - 27 7
    AC2065 M20×1.5 65 270 190 180 6 15.8 17.8 - 27 7

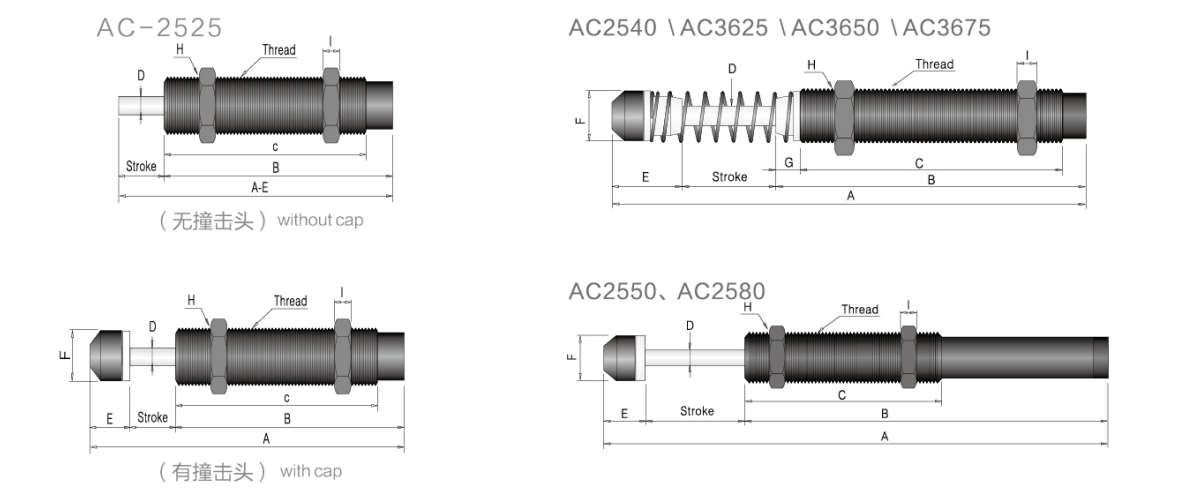

    Model Thread Plaga
    (mm)     		A B C D E F G H I

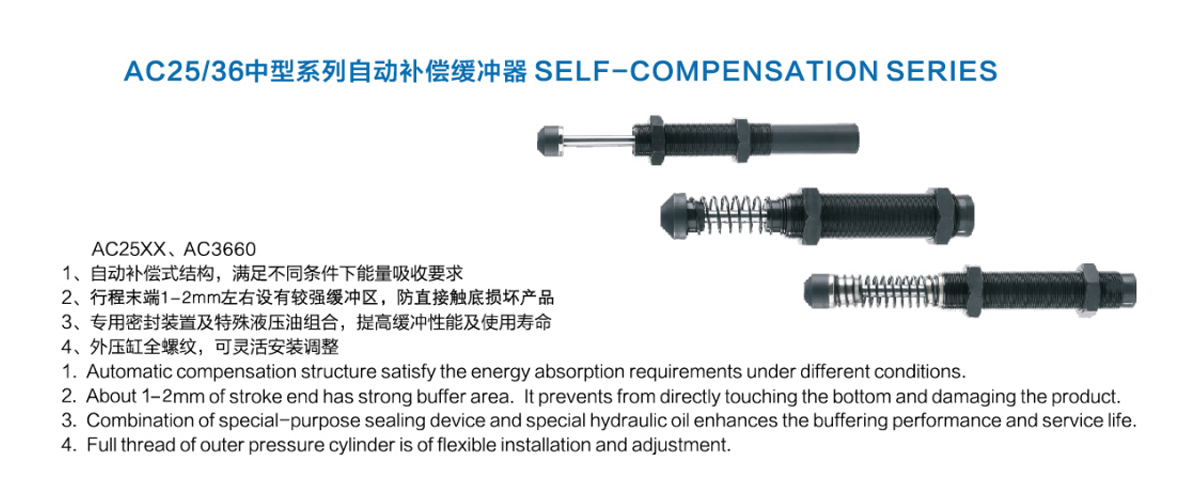

    AC2525 M25×1.5 25 145 106 97 8 18.5 22 - 32 9.5
    AC2530 M25×1.5 30 150 106 97 8 18.5 22 - 32 9.5
    AC2540 M25×1.5 40 210.5 144.5 117 8 37 22 10 32 9.5
    AC2550 M25×1.5 50 235 166 100 8 18.5 22 - 32 9.5
    AC2580 M25×1.5 80 330 230 100 8 18.5 22 - 32 9.5
    AC2725 M27×1.5 25 145 106 97 8 18.5 22 - 35.8 10.4
    AC3625 M36×1.5 25 195 133 100 10 32.5 35.5 17 44.5 13.5
    AC3650 M36×1.5 50 242 173 134 10 32.5 35.5 17 44.5 13.5
    AC3675 M36×1.5 75 293 199 161 10 32.5 35.5 17 44.5 13.5

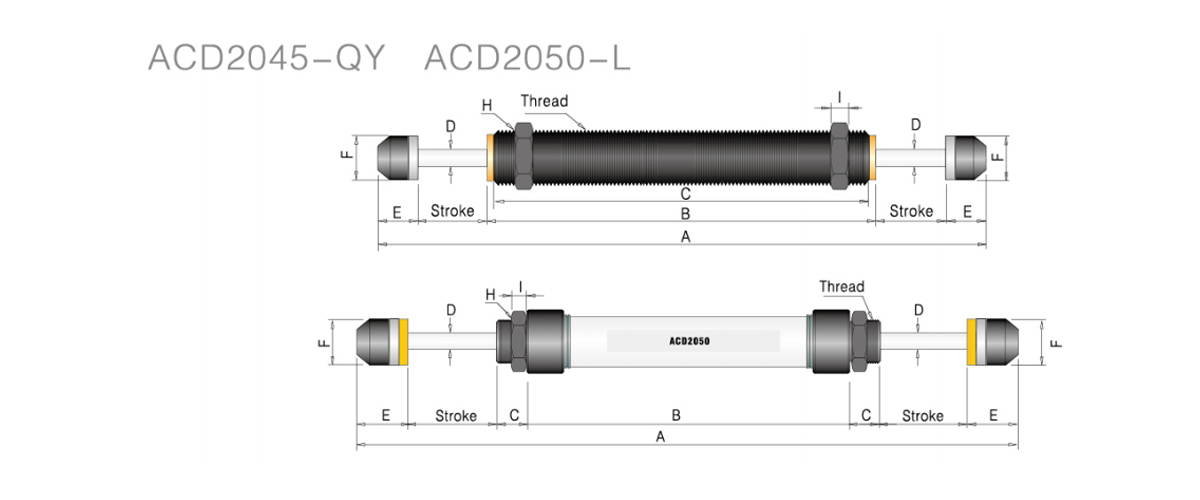

    Model Thread Plaga
    (mm)     		A B C D E F G H I

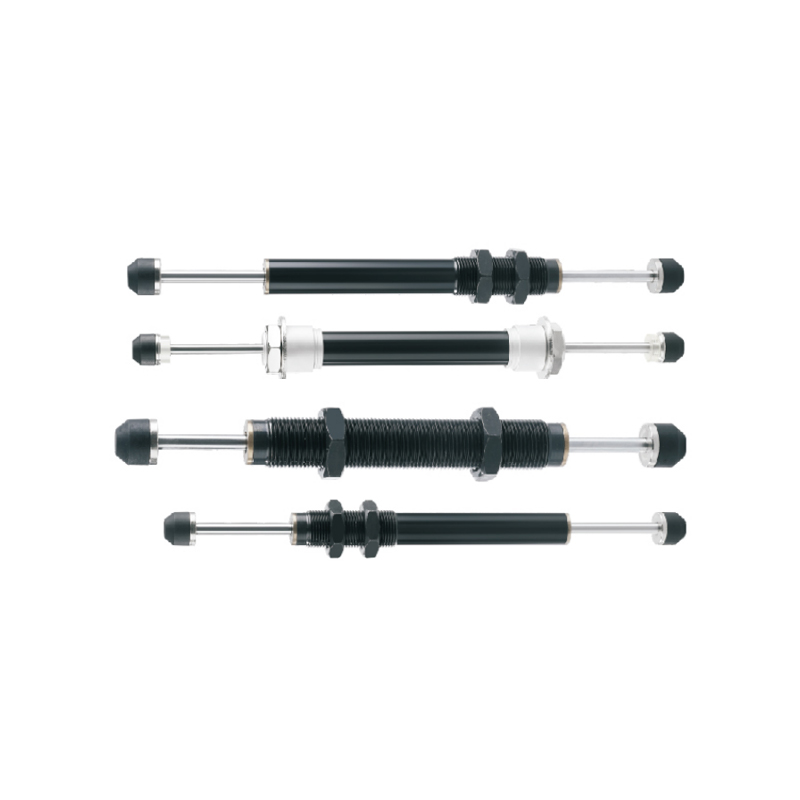

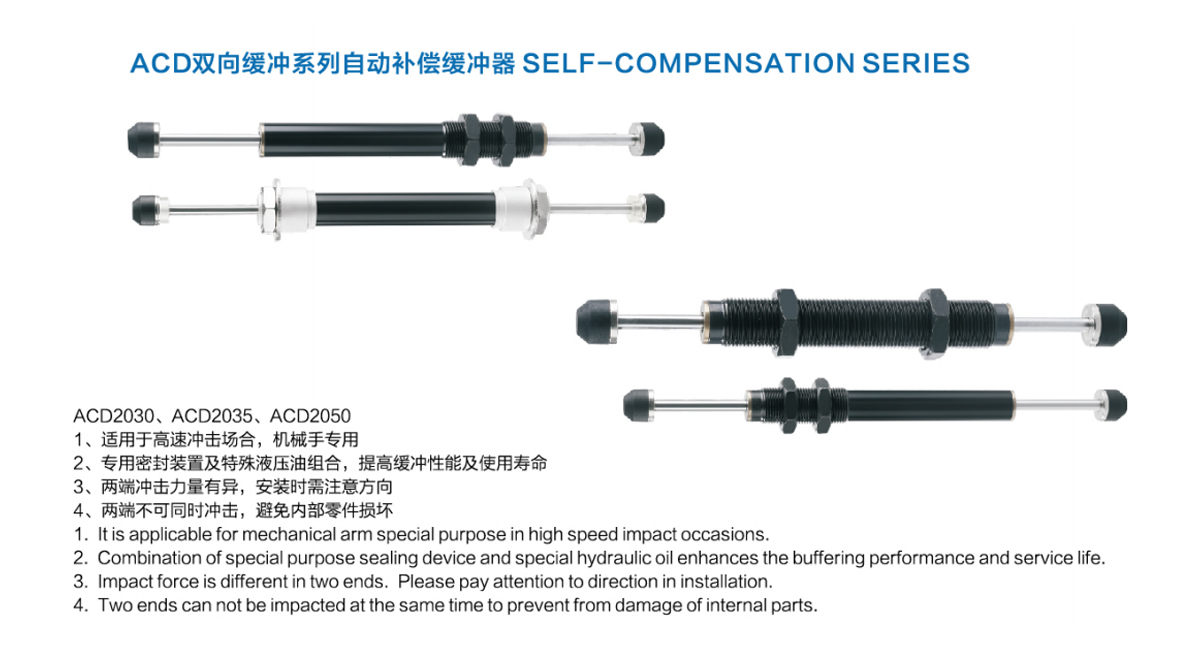

    ACD2030 M20×1.5 30 215 123 46 6 15.8 18 2 27 7
    ACD2035 M20×1.5 35 225 123 46 6 15.8 18 2 27 7
    ACD2050-2 M20×1.5 50 278 148 50 6 15.8 18 - 27 7
    ACD2050 Fundo M20×1.5 50 318 185 175 6 15.8 18 2 27 7
    ACD2050-W M20×1.5 50 315 148 12 6 15.8 18 2 27 7

    Model Thread Plaga
    mm     		A B C D E F G H I
    ACJ1007 M10×1.0 7 72.5 58 43.5 3 7.2 8.5 - 12.7 3.7
    ACJ1210 M12×1.0 10 82.8 64.1 52.7 3 7.2 8.5 - 12.7 3.7

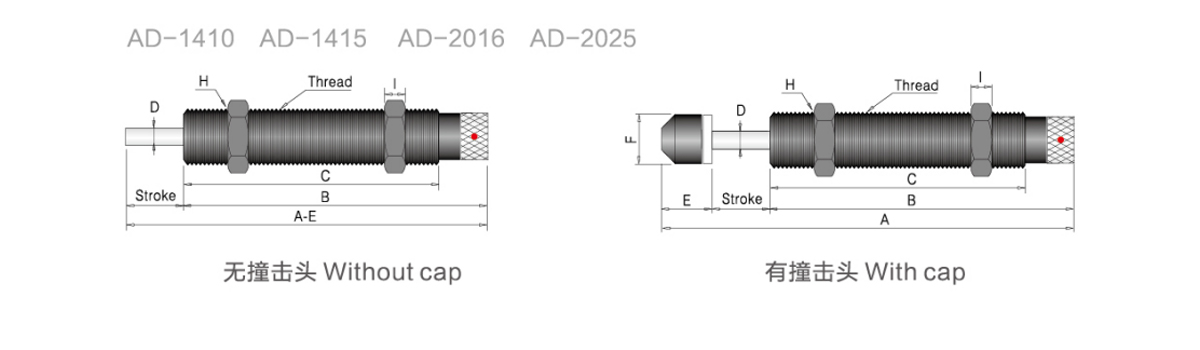

    AD1410-N M14×1.5 10 92.3 80.3 65.5 4 - - - 19 5.5
    AD1410 M14×1.5 10 102.3 80.3 65.5 4 12 12 - 19 5.5
    AD1412-N M14×1.5 12 94.3 80.3 65.7 4 - - - 19 5.5
    AD1412 M14×1.5 12 104.3 80.3 65.7 4 12 12 - 19 5.5
    AD1416 M14×1.5 16 115.3 87.3 72.4 4 12 12 - 19 5.5
    AD1420 M14×1.5 20 132.5 100.5 85 4 12 12 - 19 5.5
    AD1425 M14×1.5 25 137.5 100.5 85 4 12 12 - 19 5.5
    AD1610 M16×1.5 10 102.3 80.3 65.5 4 12 12 - 22 6
    AD1612 M16×1.5 12 104.3 80.3 65.7 4 12 12 - 22 6
    AD1616 M16×1.5 16 115.3 87.3 72.4 4 12 12 - 22 6
    AD1620 M16×1.5 20 132.5 100.5 85 4 12 12 - 22 6
    AD1625 M16×1.5 25 137.5 100.5 85 4 12 12 - 22 6
    AD2016-N M20×1.5 16 116.1 100.3 85 6 - - - 26 7
    AD2016 M20×1.5 16 132.1 100.3 85 6 15.8 18 - 26 7
    AD2020 M20×1.5 20 136.1 100.3 85 6 15.8 18 - 26 7
    AD2025 M20×1.5 25 157 116.3 101 6 15.8 18 - 26 7
    AD2030 M20×1.5 30 162 116.3 101 6 15.8 18 - 26 7
    AD2050 M20×1.5 50 212 157 143 5 15.8 18 - 26 7
    AD2065 M20×1.5 65 273 190 180 6 15.8 18 - 26 7

    Model Thread Plaga
    mm     		A B C D E F G H I
    AD2525-N M25×1.5 25 160 117 98 8 6 22 - 32 9.5
    AD2525 M25×1.5 25 141.5 117 98 8 18.5 22 - 32 9.5
    AD2530 M25×1.5 30 165 117 98 8 18.5 22 - 32 9.5
    AD2540 M25×1.5 40 221 144.5 117 8 37 22 - 32 9.5
    AD2550 M25×1.5 50 245 176.5 100 8 18.5 22 - 32 9.5
    AD2580     M25×1.5 80 340 243 100 8 18.5 22 - 32 9.5
    AD3625 M36×1.5 25 195 133 100 10 32.5 35.5 17 44.5 13.5
    AD3650 M36×1.5 50 251 173 134 10 32.5 35.5 17      44.5 13.5
    AD3675 M36×1.5 75 304 199 161 10 32.5 35.5 17 44.5 13.5
    AD4225 M42×1.5 25 190 127 84 12 35 43.5 19 49 14
    AD4250 M42×1.5 50 249 164 120 12 35 43.5 19 49 14
    AD4275 M42×1.5 75 300 190 147 12 35 43.5 19 49 14
