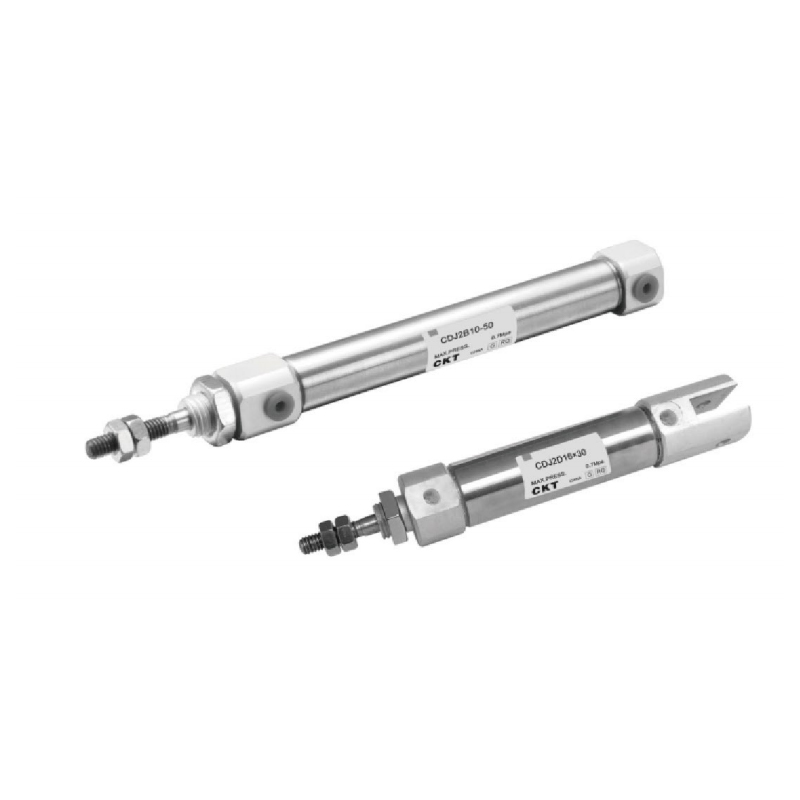

CJ2 Series Steel Mini Cylinder (Double Acting)
  • CJ2 Series Steel Mini Cylinder (Double Acting)
Mini Cylinder

CJ2 Series Steel Mini Cylinder (Double Acting)

CJ2 Series Stainless Steel Mini Cylindri (Double Agens) destinatur missionum spatio cogente automationis. Eius structurae minuatur ratio levitatis exigentiae et fundamentalis environmental tolerantiam per immaculatam nucleum chalybem attingit. Idoneus est ad condiciones operandas cum specialibus requisitis ad institutionem magnitudinis et materialis.

Core Features
Minature Structure
Sumens principium miniaturizationis designationis, signanter redigit spatium occupatum ab instrumento, optimizat synchrone mortuum pondus, et ad integrationem praecisionem instrumentorum accommodat.

Compositum materiale constructione
Coniunctio levis ponderis mixturae extremitatis involucrum et corpus cylindricum ferro incorruptum meliorat firmitatem partium, servato robore structurae.

Sustentationem libero lubricationis system
Prae-instituit diu terminus lubricationis medium, nullum opus ducatus replere per totam vitam cyclum, reducendo necessitatem sustentationis downtime.

Modular institutionem interface
Varias solutiones involucri posterioris figurae praebet, multi-angulum oneris nexum sustinet, et processum integrationis apparatum simpliciorem facit.

Basic environmental aptabilitas
Immaculata chalybea compages corporis et conventus anconarum exesa resistere possunt instrumentorum conventionalium mordax, eiusque applicationis limites sub speciali operatione condiciones expandentes..

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：CJ2 Series Steel Mini Cylinder (Single Acting)
SUCCESSIVO：Nessun articolo successivo
  • Bore Size (mm) 6 10
    Liquor Air
    Actio Duplex agens
    Max Operating Pressura (MPa) 0.7
    Min Operating Pressura (MPa) 0.12 0.06
    Ambiens & Fluid Temperature Sine auto switch: -10℃~70℃, Cum auto switch: -10℃~60℃
    Piston Speed 50~ 750mm/s
    Pulvinar Flexilis adfixum / aere adfixum
    Longitudo tolerantia plaga (mm) 1
    *Lubrication Non requiratur
    Portus Location M5×0.8
    Quaeso utere ISOVG32 si vis lubrica uti.

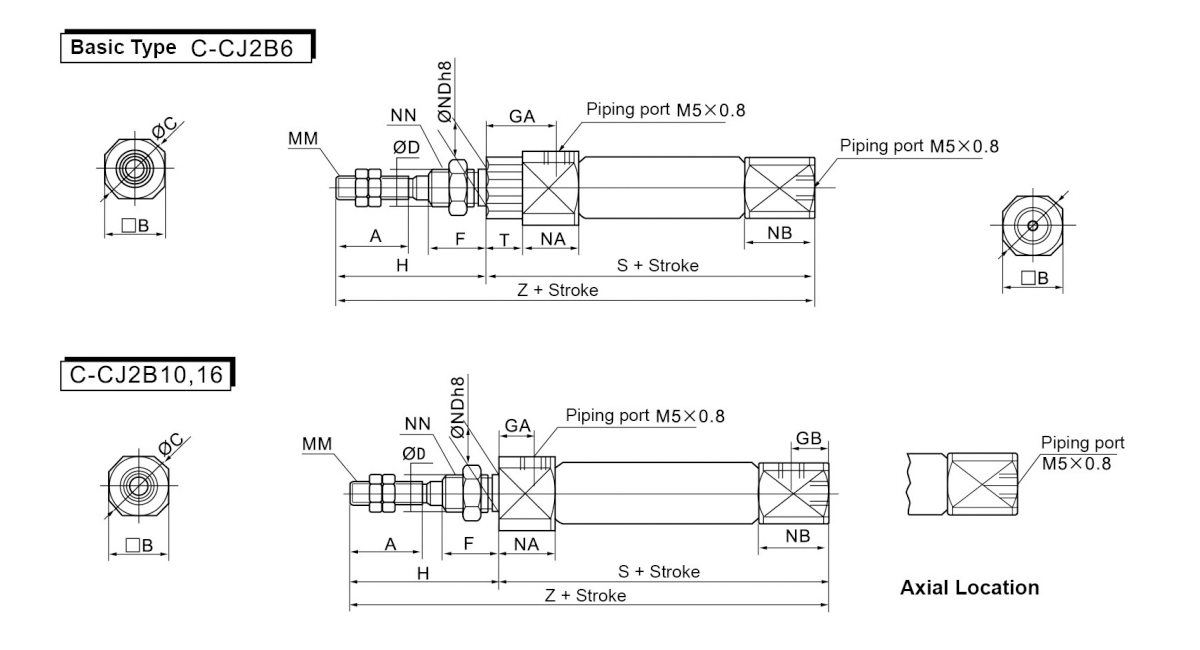

  • Bore Magnitudo (mm) A B C D F GA GB H MM NA NB NDh8 NN S T Z
    6 15 12 14 3 8 14.5 - 28 M3×0.5 16 7 6 M6×1.0 49 3 77
    10 15 12 14 4 8 8 5 28 M4×0.7 12.5 9.5 8 M8×1.0 46 - 74
    16 15 18.3 20 5 8 8 5 28 M5×0.8 12.5 9.5 10 M10×1.0 47 - 75

    Bore
    Size

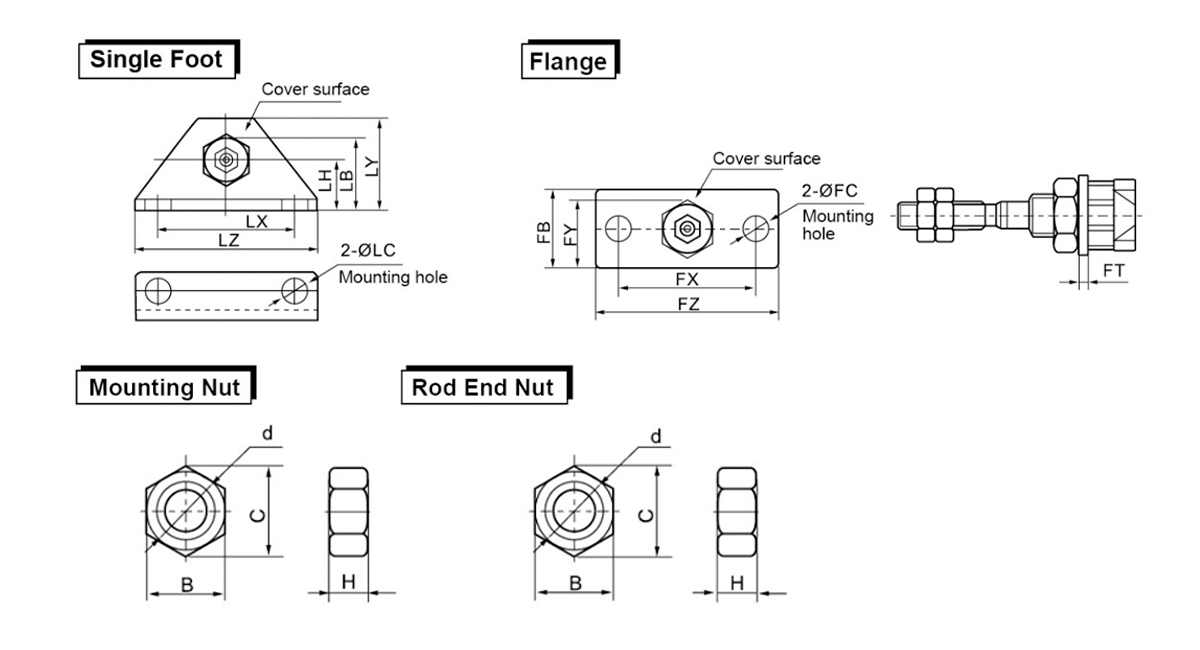

    (mm)     		Unius pedis Flange Adscendens Nut Virga finis Nut
    Components
    Model     		LB LC LH LX LY LZ Components
    Model     		FB* FC FX FY* FZ FT Components
    Model     		B C D H Components
    Model     		B C D H
    6 CJ-L006B 13 4.5 9 24 16.5 32 CJ-F006B 11 4.5 24 14 32 1.6 SNJ-006B 8 9.2 M6×1 4 NTJ-006A 5.5 6.4 M3×0.5 2.4
    10 CJ-L010B 15 4.5 9 24 16.5 32 CJ-F010B 13 4.5 24 14 32 1.6 SNJ-010B 11 12.7 M8×1 4 NTJ-010A 7 8.1 M4×0.7 3.2
    16 CJ-L016B 23 5.5 14 33 25 40 CJ-F016B 19 5.5 33 20 42 2.3 SNJ-016B 14 16.2 M10×1 4 NTJ-016A 8 9.2 M5×0.8 4

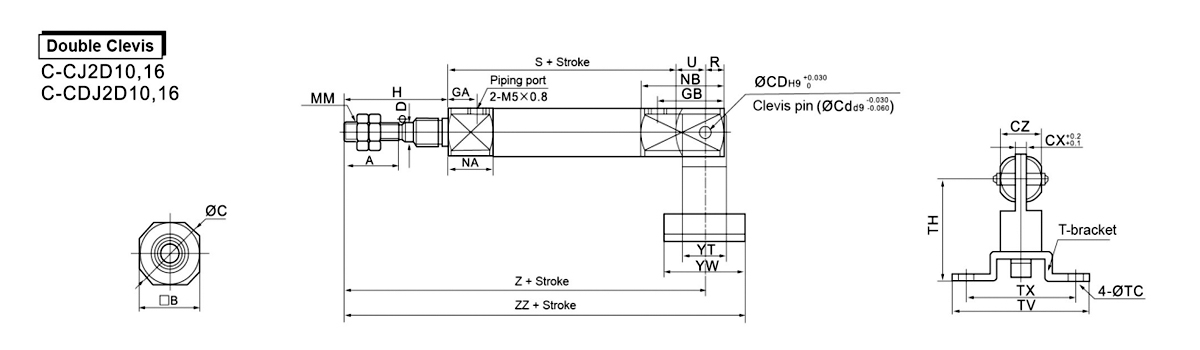

    Bore Magnitudo (mm) A B C CD(cd) | CX CZ D GA GB H MM NA NB R S U Z ZZ
    10 15 12 14 3.3 3.2 12 4 8 18 28 M4×0.7 12.5 22.5 5 46 8 82 93
    16 15 18 20 5 6.5 18 5 8 23 28 M5×0.8 12.5 27.5 8 47 10 85 99

    Bore Size

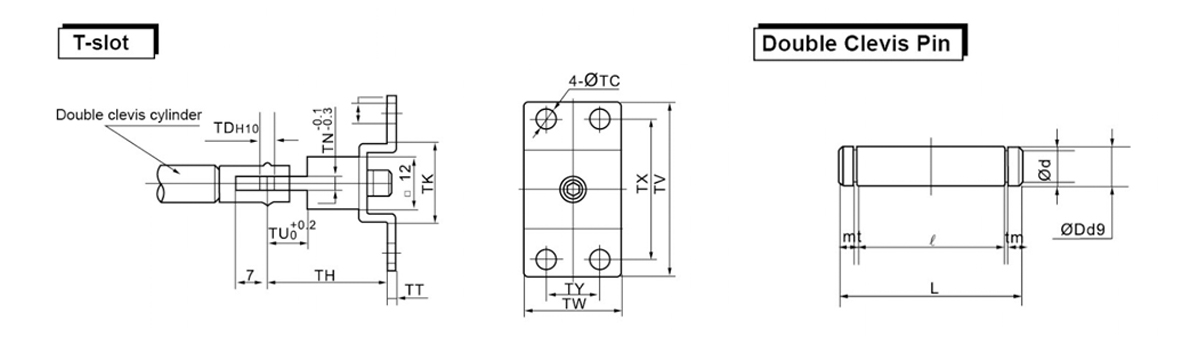

    (mm)     		T-slot Geminus Clevis Pin
    Components
    Model     		TC TC(H10) TH TK TN TT TU TV TW TX TY Components
    Model     		Dd9 Od L ℓ m t
    10 CJ-T010B 4.5 3.3 0.048 29 18 3.1 2 9 40 22 32 12 CD-J010 5 -0.03 3 15.2 12.2 1.2 0.3
    0 -0.06
    16 CJ-T016B 5.5 5 0.048 0.048 35 20 6.4 2.3 14 48 28 38 16 CD-Z015 3.3 -0.03 4.8 22.7 18.3 1.5 0.7
    0 -0.06


    Bore Size

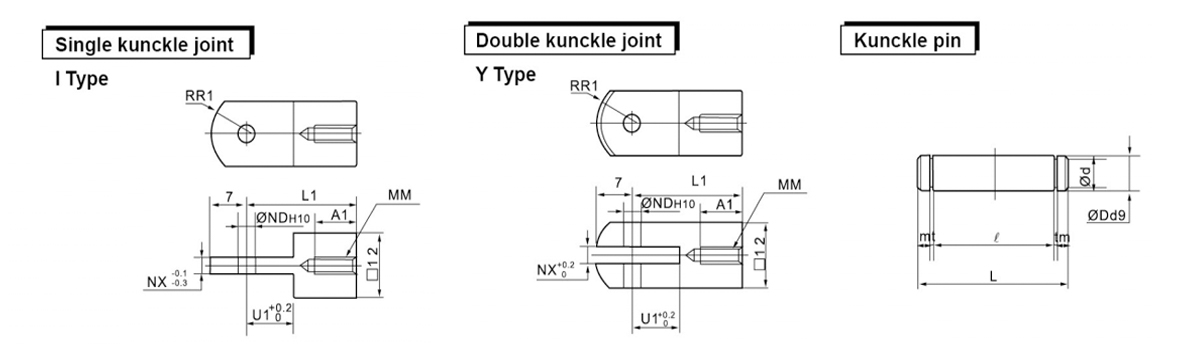

    (mm)     		Typus Unius articulus sum iuncturam Ego Typus duplex articuli iuncturam Kunckle pin
    Components
    Model     		A1 ND(H10) L1 MM U1 NX R1 Components
    Model     		A1 ND(H10) L1 MM U NX R1 Components
    Model     		Dd9 L d ℓ m t
    10 I-J010B 8 3.3 0.048 21 M4×0.7 9 3.1 8 Y-J010B 8 3.3 0.048 M4×0.7 10 3.2 8 CD-J010 3.3 -0.03 3 15.2 12.2 1.2 0.3
    0 0 -0.06
    16 I-J016B 8 5 0.048 25 M5×0.8 14 6.4 12 Y-J016B 11 5 0.048 M5×0.8 10 6.5 12 IY-J015 5 -0.03 16.6 4.8 12.2 1.5 0.7
    0 0 -0.06
