AW Series Filter Pressure Regulator Fornitores

Home / Products / Pneumatica Pressura Control Components / F.R.L modularis. Unitates AC Series / AW Series Filter Pressure Regulator

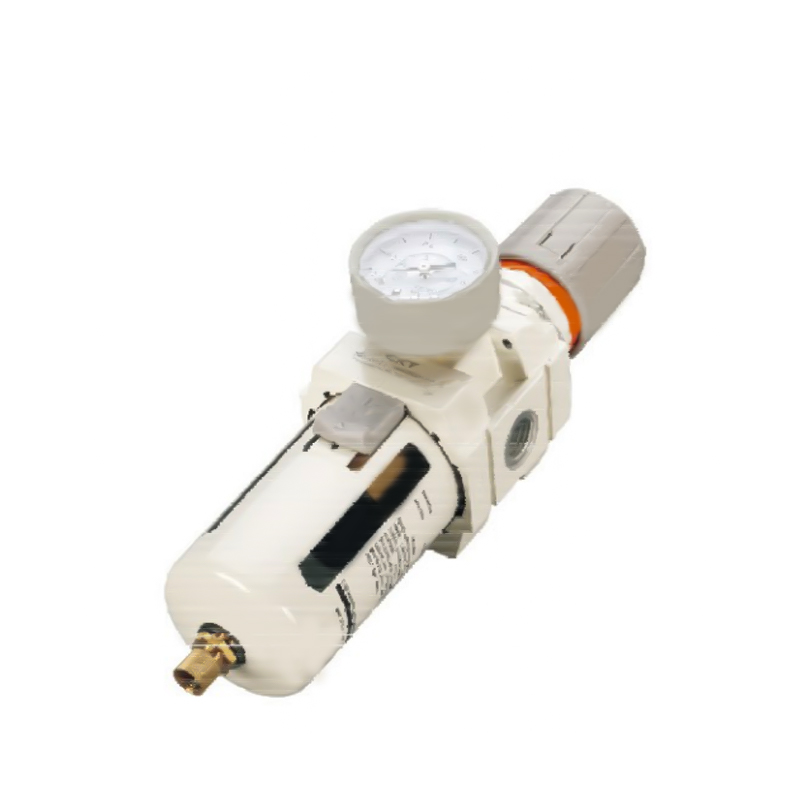

AW Series Filter Pressure Regulator
  • AW Series Filter Pressure Regulator
F.R.L modularis. Unitates AC Series

AW Series Filter Pressure Regulator

AW Series Pressurae Filtri Regulator est clavis aeris fons processus componentis in systematibus industrialibus pneumaticis. eliquare et pressionis functiones integrat ad ordinandas functiones aerem purum et pressionis-stabile compressum pro actuatoribus praebere, ad constantiam et diuturnum operationis systematis procurandum.

1. Multi scaena immunditiae interceptionis facultatem

Constructum in alta efficientia filtrationis structurae solidas particulas et residuas liquidas in fonte aere penitus separare possunt, periculum contagionis pipelini minuentes.


2. Impetus dynamic statera imperium

Pressio mechanismi regulans notas habet humilis hysteresis, et pressionis pressionis fluctuatio angusta est, quae efficaciter pressionem activitatis onus mutationes causatas supprimit.


3. conventus modularis interface

Vexillum portum consilio iungo velox adoptatur, quod compatitur cum multiplicibus gasis ametinis et involucris pipelineis, signanter minuendi in-situm cycli institutionis.


4. Full-scaena speciem coverage

Graduum series fluunt gradus 2000/3000/4000/5000 praebet ut condiciones circuituum pneumaticorum operationibus diversarum magnitudinum accommodare.


5. universalis pipeline adaptatio

Sustinet 1/8" ad 1" crucis-diametri fistulae configurationem ad consequi celeri compatible instruere cum existentium gas retiacula copia.

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：AC Series Filter Compositum (Two Piece)
SUCCESSIVO：AL Series Lubricator
  • Probatur Pressura 1.5Mpa{15.3kgf/cm²}
    Max Operans Pressionem 1.0Mpa{10.2kgf/cm²}
    Ambientem Et Fluidum Tempus 5~60℃
    Colum Apertura 5μm
    Cratera Material Polycarbonate
    Cratera praesidiaria C-AW1000~2000 (Sine)     C-AW3000~5000(Cum)
    Pone Premendi Range C-AW1000:0.05~0.7Mpa(0.51~7.1kgf/cm²)
    C-AW2000~5000:0.05~0.85Mpa(0.51~8.7kgf/cm²)
    Animadverte: 2,10,20,40,70,100μm pro optional

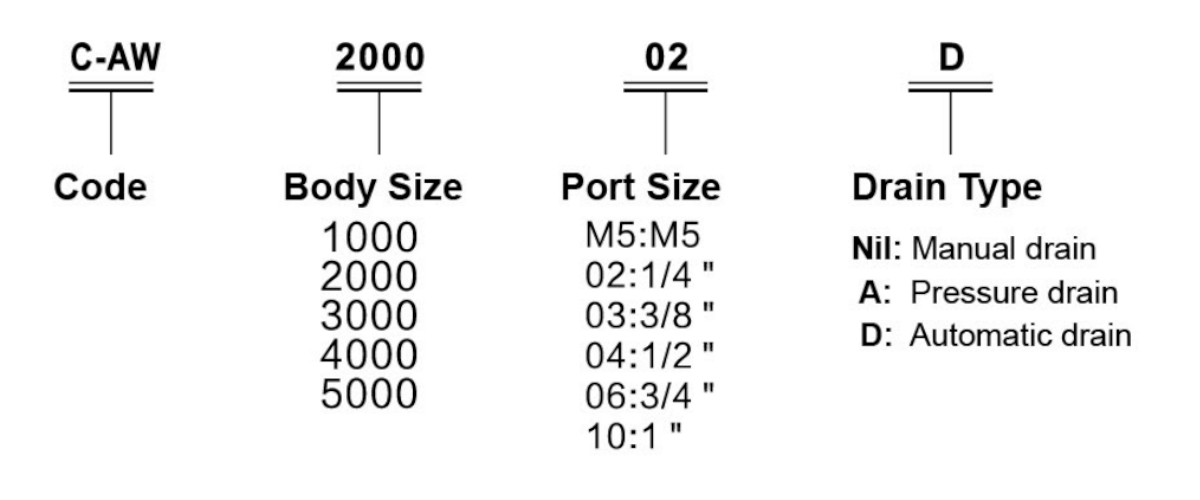

    Exemplar Specification
    Ratum  Portus Amplitudo
    Rc(PT)     		Gaudium Portus Amplitudo
    Rc(PT)     		Pondus
    (Kgf)
    Manual Drain Automaticum Exhaurire
    C-AW1000-M5 C-AW1000-M5D 100 M5×8 1/16 0.09
    C-AW2000-02 C-AW2000-02D 550 1/4 1/8 0.36
    C-AW3000-02 C-AW3000-02D 2000 1/4 1/8 0.56
    C-AW3000-03 C-AW3000-03D 2000 3/8 1/8 0.56
    C-AW4000-03 C-AW4000-03D 4000 3/8 1/4 1.15
    C-AW4000-04 C-AW4000-04D 4000 1/2 1/4 1.15
    C-AW4000-06 C-AW4000-06D 4500 3/4 1/4 1.21
    C-AW5000-06 C-AW5000-06D 5000 3/4 1/4
    C-AW5000-10 C-AW5000-10D 5000 1 1/4
    Nota: 1. Vexillum exhauriens normaliter apertum est (N.O.). Series etiam C-AW3000~4000 normaliter clausa (N.C.) optionem praebet. Minimum operandi vis est: normaliter aperta - 0.1 MPa (1 kgf/cm²), normaliter clausa - 0.15 MPa (1.5 kgf/cm²).
    2. Sub pressione 0.7 MPa (7.1 kgf/cm²).

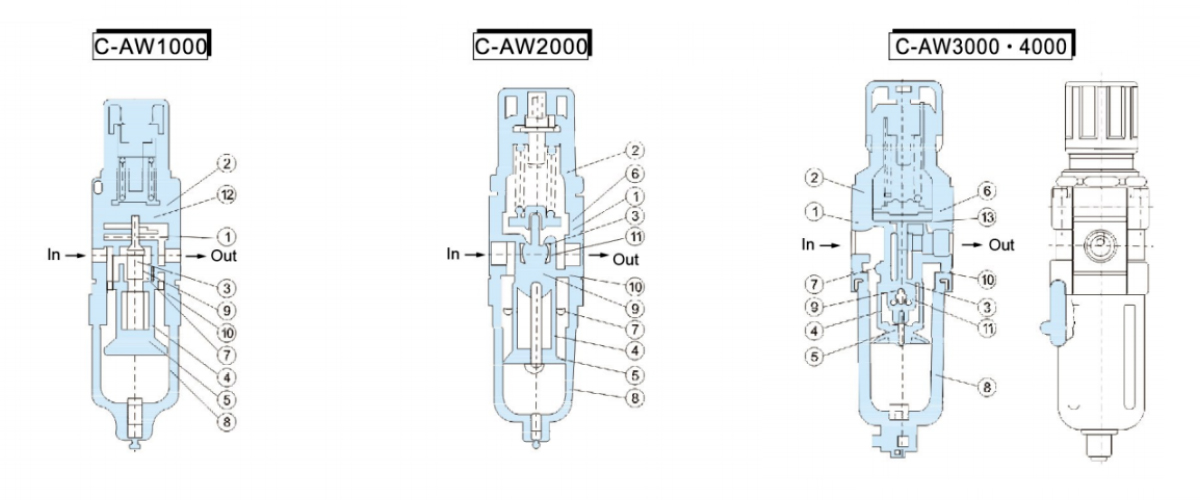

  • Praecipua Components
    Item Nomen Materia Animadverte
    C-AW1000~2000 C-AW3000 C-AW4000/C-AW4000-06
    1 Corpus Cadmiae Die-cast Aluminium Die-cast Aluminium Die-cast White
    2 Bonnet Metacetaldehyde Aluminium Die-cast Niger

    Componnets
    Item Nomen Materia Partem No.
    C-AW1000 C-AW2000 C-AW3000 C-AW4000 C-AW4000-06
    3 Valvae Conventus aes NBR - - - - -
    4 Filtrum elementum Resina - - - - -
    5 Bulkhead ABS - - - - -
    6 Diaphragma Conventus NBR - - - - -
    7 Deflectens Plate ABS - - - - -
    8 Crater Conventus Polycarbonate - - - - -
    9 Valvae Spring Diver - - - - -
    10 Corpus O-ring NBR - - - - -
    11 Valvae o-anulus NBR - - - - -
    12 MY-annulus NBR - - - - -
    13 O anulum NBR - - - - -

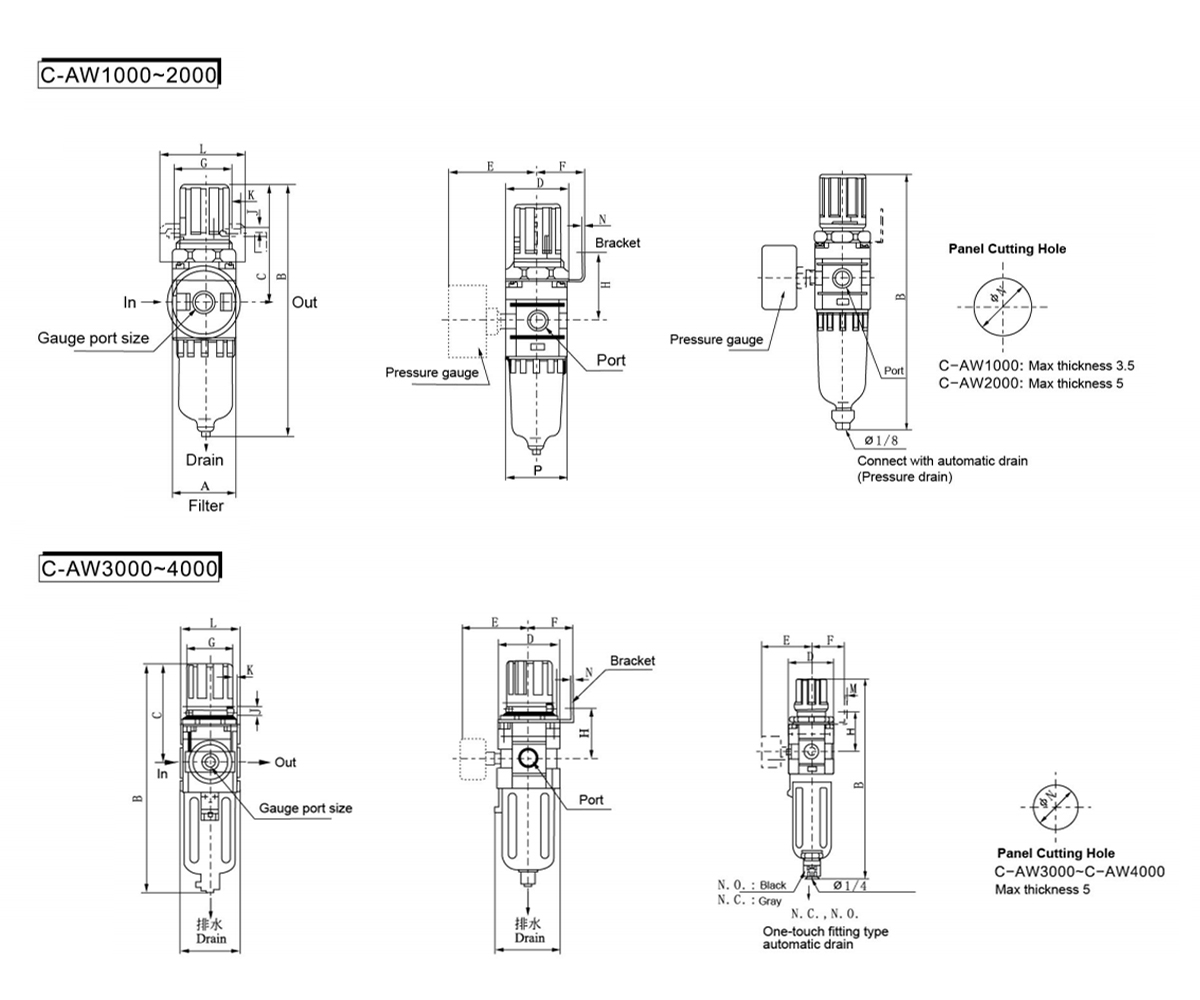

    Model Port
    Magnitudo     		A B C D E F G H J K L M N P Connect With
    Automatic Exhaurire
    B
    C-AW1000 M5×0.8 25 109.5 50.5 25 26 25 28 30 4.5 6.5 40 2.0 20.5 28 130
    C-AW2000 1/4 40 164.5 78 40 56.8 30 30 45 5.4 15.4 55 2.3 33.5 40 187.5
    C-AW3000 1/4 ·3/8 53 211 92.5 53 60.8 41 40 46 6.5 8.0 53 2.3 42.5 56 248.5
    C-AW4000 3/8 · 1/2 70 262.5 112 70 70.5 50 54 54 8.5 10.5 70 2.3 52.5 73 300
    C-AW4000-06 3/4 75 267 114 70 70.5 50 54 56 8.5 10.5 70 2.3 52.5 73 304
