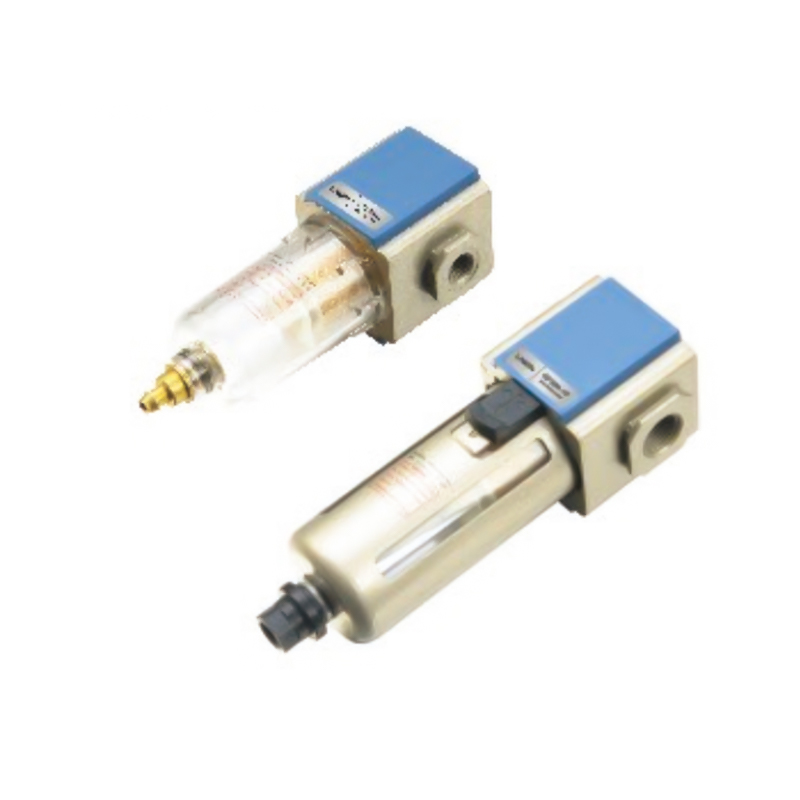

GF Series Air Filter
  • GF Series Air Filter
F.R.L modularis. G Series

GF Series Air Filter

  1. Unique structurae fluxus dirigens permittit gasi circulationi apte gyrari, eoque efficacius liquorem in gas separans et solidas particulas fideliter percolando;
  2. Parva pressura damnum, altum aqua separationem efficientiam, et magna aqua calicem capacitatem;
  3. Accurate eliquare 5μm et 40μm libitum est;
  4. Modi adficio sumendi tres sunt ex, inclusis manualibus, pressione differentiali et INCILE automatic;
  5. Potes uti fixum bracket ad institutionem.
E-mail: manager@cktworld.com
Scarica
PRECEDENTE：GR Series Pressure Regulans Valve
SUCCESSIVO：Nessun articolo successivo

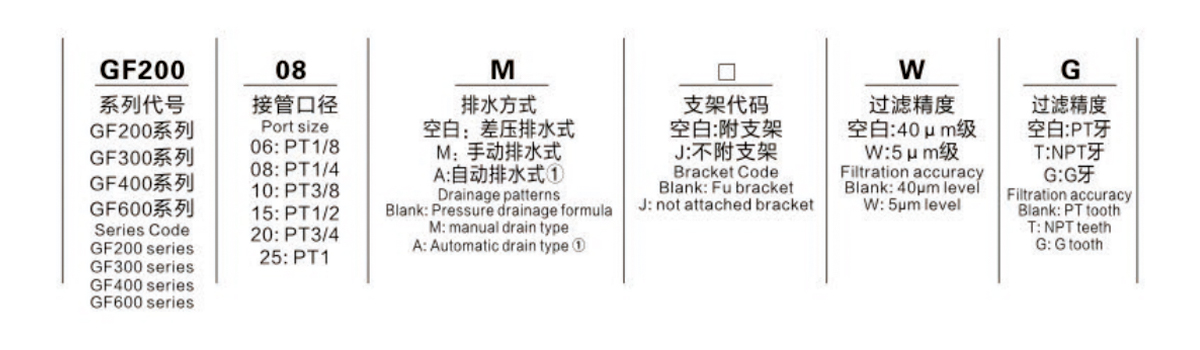

  • Model GF200-06 GF200-08 GF300-08 GF300-10 GF300-15 GF400-10 GF400-15 GF600-20 GF600-25
    medium opus Air
    Connection diameter PT1/8 PT1/4 PT1/4 PT3/8 PT1/2 PT3/8 PT1/2 PT3/4 PT1
    Filtrum elementum accurate 40μm vel 5μm
    Operans pressura range Genus pressio automatic et differentialis INCILE: 0.15-0.9 MPa (20-130 psi) INCILE Manual genus: 0.05-0.9 MPa (7-130 psi)
    Guaranteed pressura resistentia 1.5Mpa (215Psi)
    Operans temperatus range -20~70℃
    Aqua sparguntur poculum capacitatis 10CC 40CC 80CC 230CC
    Pondus 135g 360g 680g 1440g

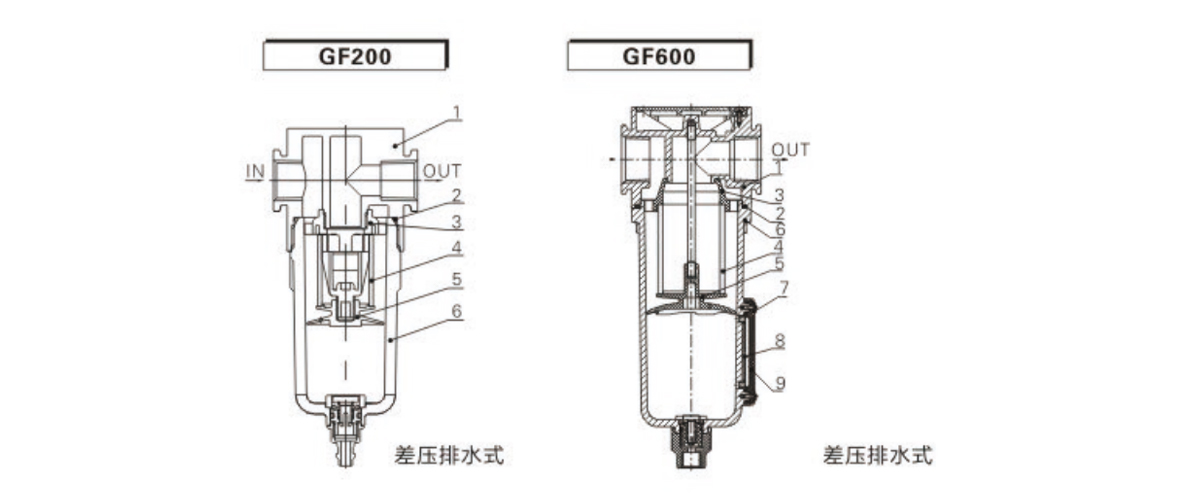

  • Numerus Nomen Materia
    1 Aqua corpus sparguntur Aluminium alloy
    2 O anulum NBR
    3 Deflector POM altum viscositas
    4 Filtrum elementum Particulae aeneae sinitae (40μm)
    Particulae aeneae sinteratae (GF600)
    Polypropylene fibra
    5 Umbella informibus determinatio sedis POM altum viscositas
    6 Aqua sparguntur poculum Aluminium offensionum (GF600)/PC (alia)
    7 Liquido gradu METIOR tutela cover SPCC
    8 Liquor gradu METIOR Leak ne codex Fluorine rubber
    9 Liquido gradu MODULUS interiorem operimentum PC

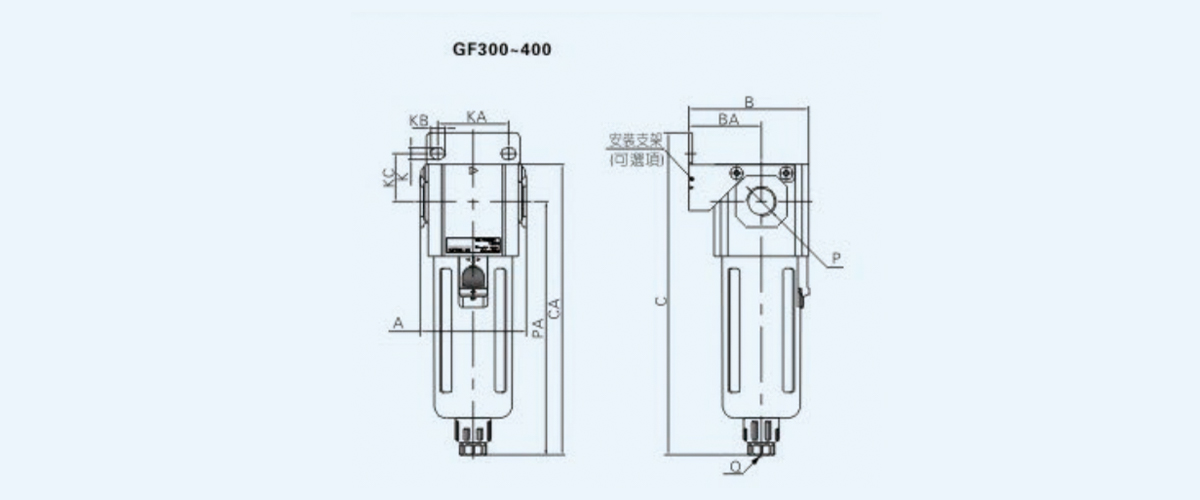

    Exemplar/Symbolum A B BA C CA K KA KB KC P PA Q
    GF300-08 60 67.5 41 182 164 6.5 40 8 27 PT1/4 143 G1/8
    GF300-10 60 67.5 41 182 164 6.5 40 8 27 PT3/8 143 G1/8
    GF300-15 60 67.5 41 182 164 6.5 40 8 27 PT1/2 143 G1/8
    GF400-10 80 85.5 50 208 191.5 8.6 55 11 33.5 PT3/8 166.5 G1/4
    GF400-15 80 85.8 50 208 191.5 8.6 55 11 33.5 PT1/2 166.5 G1/4
