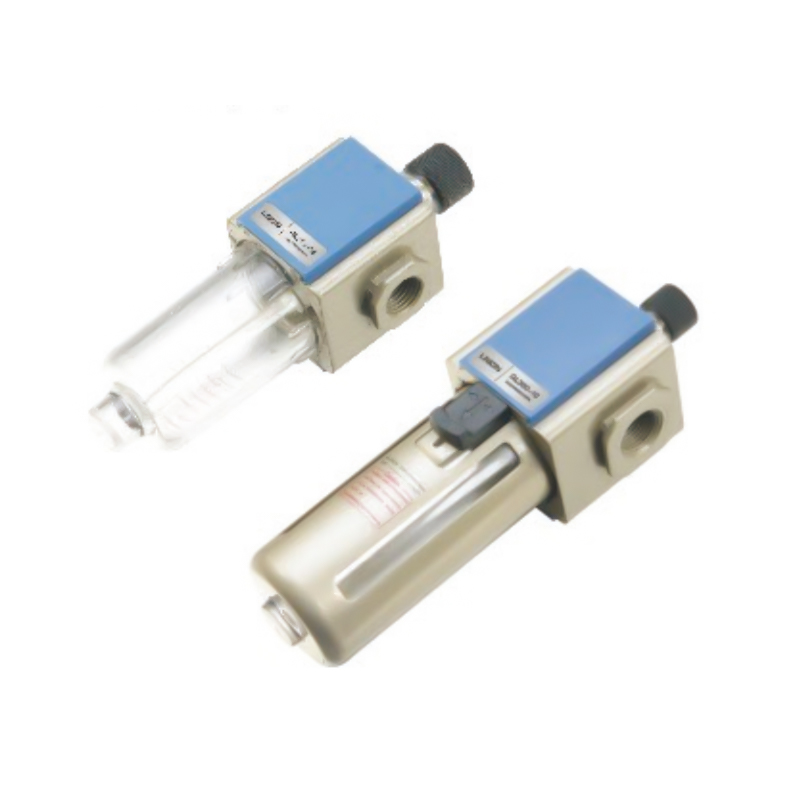

GL Series Lubricator
  • GL Series Lubricator
F.R.L modularis. G Series

GL Series Lubricator

1. Oleum destillans structuram formam adhibet hiatus signandi, et oleum tionibus firmior ac firmior copia est;
2. Olei copia temperatio anulum unum tantum circulum gyrari potest, et copia olei magnitudine basically lineari distribuitur. Copia olei quantitatem pro positione librae annuli dure computari potest;
3. Praecipua destillatio olei CERVIX structura negativam pressionem olei destillatione creat, et caligo humilis est;
4. Gas sinc refuelri potest, et calix olei magnam facultatem habet;
5. Potest institui uti fixum bracket.

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：GPR Series Pressure Regulans Valvae
SUCCESSIVO：GR Series Pressure Regulans Valve

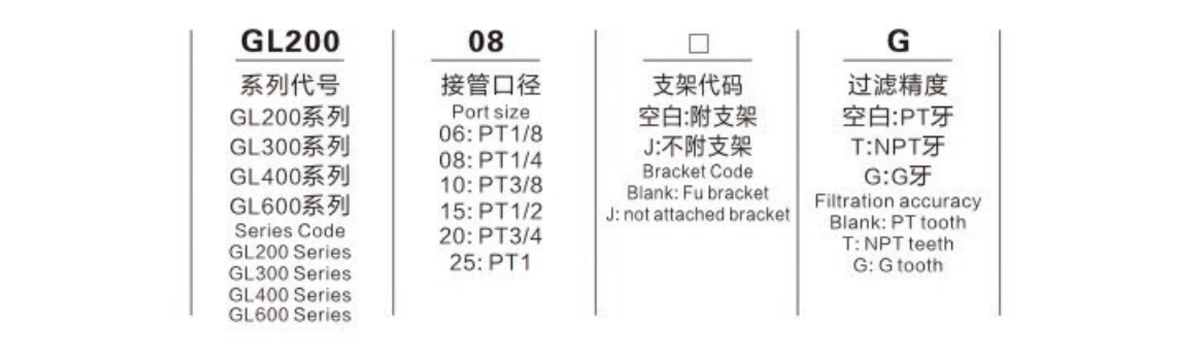

  • Model GL200-06 GL200-08 GL300-08 GL300-10 GL300-15 GL400-10 GL400-15 GL600-20 GL600-25
    medium opus Air
    Diameter pipe PT1/8 PT1/4 PT1/4 PT3/8 PT1/2 PT3/8 PT1/2 PT3/4 PT1
    Operans pressura range 0.05~0.9Mpa(7~130Psi)
    Guaranteed pressura resistentia 1.5Mpa (215Psi)
    Operans temperatus range -20~70℃
    Capacitas oleum poculum ISO VG32 vel equivalent oleum
    Aqua sparguntur poculum capacitatis 25CC 75CC 160CC 380CC
    Pondus 130g 360g 670g 1300g

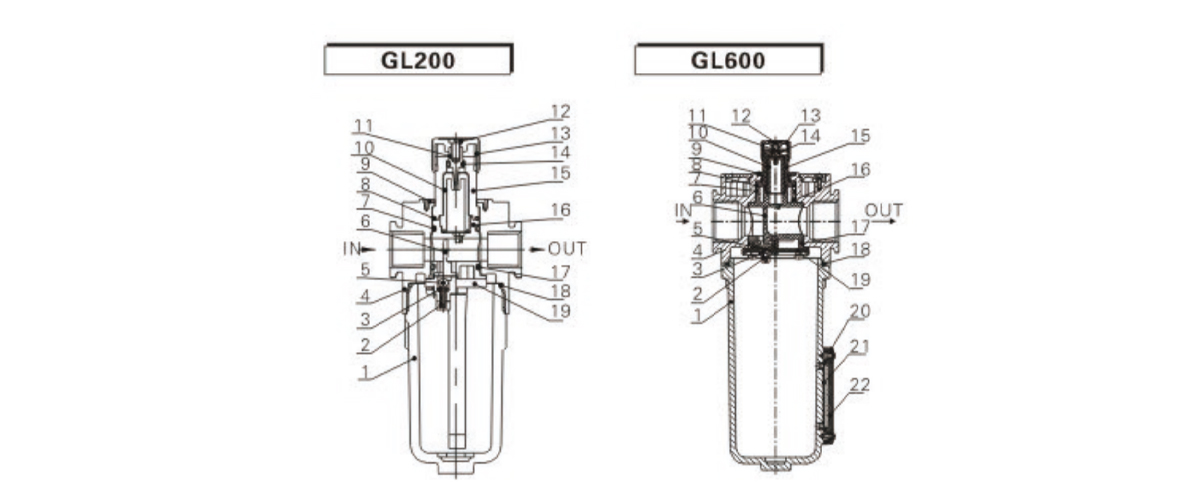

  • Number Nomen Materia Number Nomen Materia
    1 Oil cup Aluminium offensionum (GL600) PC (alia) 12 Set screw Brass
    2 Spring Diver 13 De revolutionibus anulum POM
    3 O inauris NBR 14 O inauris NBR
    4 Oiler Aluminium alloy 15 De revolutionibus aspectus vitrei PC
    5 Steel ball Diver 16 Injector main body Pa66
    6 Partitio laminae PU 17 O inauris NBR
    7 O inauris NBR 18 O inauris NBR
    8 O inauris NBR 19 Solum operimentum Injector POM
    9 Dial POM 20 Liquido gradu METIOR tutela cover SPCC
    10 Drip tube PC 21 Liquido gradu METIOR Leak-probatio gasket Fluorine rubber
    11 Oleum iniectio acus Brass 22 Liquido gradu MODULUS interiorem operimentum PC

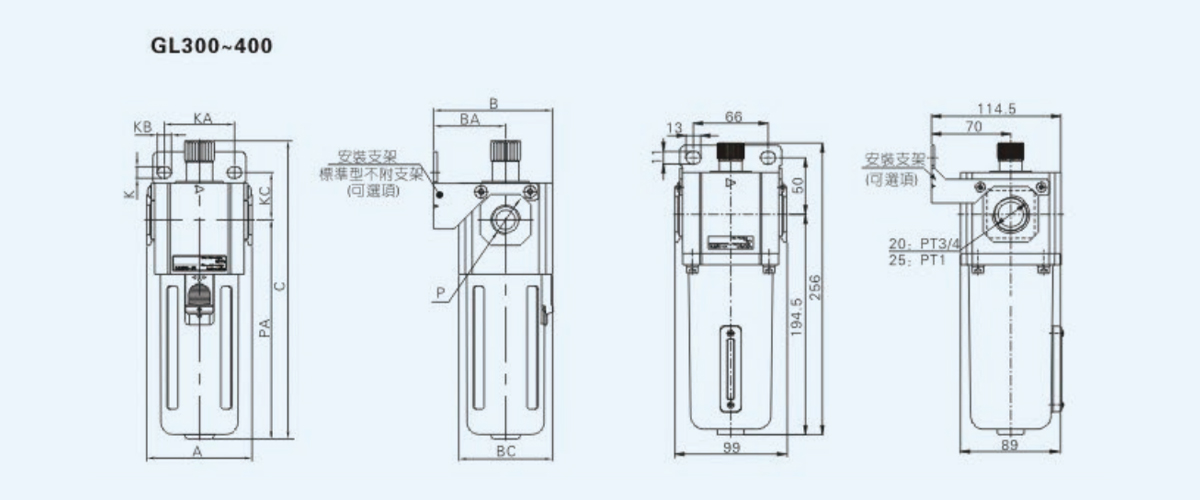

    Exemplar/Symbolum A B BA BC C K KA KB KC P PA
    GL300-08 60 68 41 53.5 169 6.5 40 8 27 PT1/4 125
    GL300-10 60 68 41 53.5 169 6.5 40 8 27 PT3/8 125
    GL300-15 60 68 41 53.5 169 6.5 40 8 27 PT1/2 125
    GL400-10 80 85.5 50 71 190 8.5 55 11 33.5 PT3/8 142
    GL400-15 80 85.5 50 71 190 8.5 55 11 33.5 PT1/2 142
