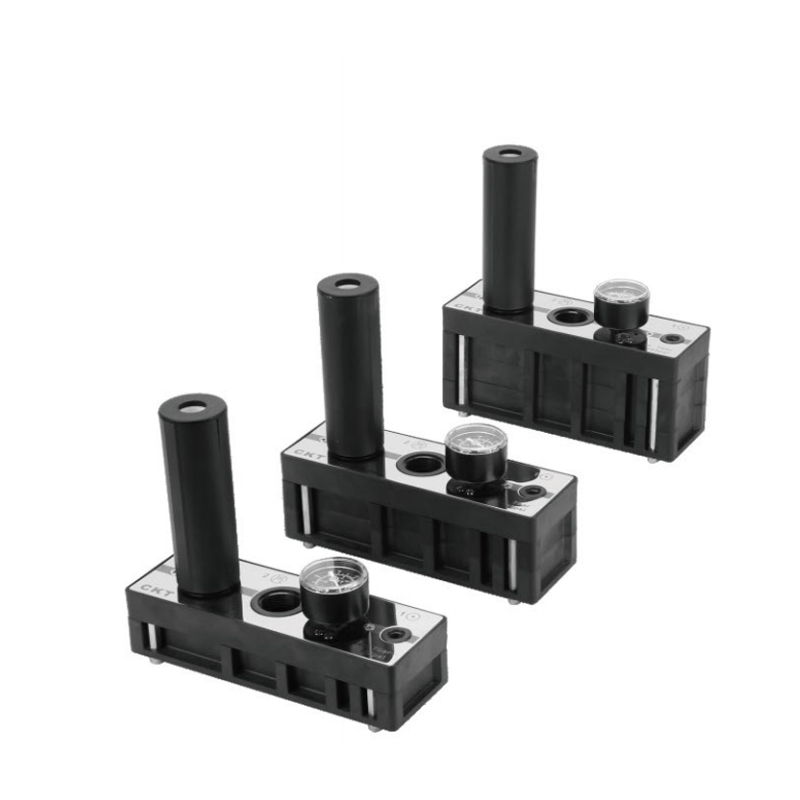

C Series Multistage Vacuum Generator
  • C Series Multistage Vacuum Generator
Multistage Vacuum Generator

C Series Multistage Vacuum Generator

C Series Multistage Vacuum Generator genus est machinae quae utitur aere compresso ad depellendum et generandum vacuum per peculiarem structuram alvei sui fluxum designat. Eius nucleus principium est loci humilis pressurae effectus ab alta velocitate aeris fluxus causatus, qui maxime convenit missionibus automationibus industrialibus, qui fontem efficientem et compactum vacuum requirunt nec sentinam vacuum traditionalem requirunt.

Architectura industriae hierarchicae conversionis;

Diversa ab uno-scaena generante, haec series multi-statis seriem praecisionis fluit canalis designationis. Aer compressus dilatat et accelerat in singulis conclavibus singillatim, et per superpositionem effectus expansionis gasi progressivi et Venturi effectus, plenior et gradiente utendo navitatis airfluentis effectum est, eoque validiore vacui suctu capacitatis sub eisdem conditionibus aeris copiam obtinens.

Geometria optimized notae campi et fluunt;

Alveus internus fluens specialiter topologice optimized est, incluso COLLUM CONVERGENS, cubiculum mixtum et sectionem diffusionem sensim dilatans. Haec conformatio geometrica efficaciter aerem perducere potest ad magnam celeritatem vigentem efformandam, maxima vi ac stabilitate formationis zonae pressae localis. Formae specificae partium clavium efficientem ingressum et translationem moleculorum gasorum promovent.

Significans statera inter efficientiam et consummationem gas:

Multi-scaena industria extrahendi mechanismum est nucleum altitudinis eius efficientiae. Unum processum expansionis gasi dissoluendo in plures gradus energiae, gradum vacuum vel ratem flare, quae per unitatem aeris compressi consummationis generari potest, signanter emendatur. Hoc efficit consumptio gasi universalis plerumque melior quam conventionalis unius temporis generantis, cum idem vacuum obtinet effectum, melius reflectens oeconomiam operantem.

Vacuum firmum stabilis-statu output:

Ipsa structura multi-statis certum quiddam et moderans effectum habet. Cum adversus leves fluctuationes in onere vel levi mutatione in copia pressionis gasorum, output vacuum campestri robustiorem vim ostendit, firmam negativam pressionem firmiorem praebens pro comprehensione comprehensione, adsorptione et aliis processibus.

Foedus topologiae et onus aptabilitas:

Quamvis interna complexa compages, altiore eius sarcina compacta manet et facile in calculis instrumentis constrictis in armamentis complendis. Eius notae flare id melius accommodare possunt ad systemata cum diversis ecelesiasticis rates accommodare vel quae celeri vacui formatione requirunt, praesertim ad officinas processus per superficiebus raris et irregularibus..

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：Nessun articolo precedente
SUCCESSIVO：Nessun articolo successivo
  • Technica       parametros                                                                                                                                    haec  esse
    Model Max.vacuum fluxus
    (I/min)     		Max.air
    consummatio
    (I/min)     		Max.vacuum gradum
    (kPa)     		Strepitum campum
    (dB(A))     		> Diameter minimum caligarum in mm (tubus longitudinis ≤ 2 m)
    Copia aeris Vacuum exhaustum
    CL25 360 105 -80 65 4 12 12
    CL50 650 210 6 15 15
    CL75 820 315 8 19 22
    CL100 990 420 8 19 22
    CL125 1100 525 10 25 32
    CL150 1300 630 10 25 32
    CL175 1680 735 10 32 40
    CL200 2060 840 10 32 40
    CM25 354 105 -92 4 12 12
    CM50 647 210 6 15 15
    CM75 890 315 8 19 22
    CM100 1100 420 8 19 22
    CM125 1200 525 10 25 32
    CM150 1380 630 10 25 32
    CM175 1490 735 10 32 40
    CM200 1580 840 10 32 40
    CH25 168 156 -98.6 4 12 12
    CH50 365 318 6 15 15
    CH75 504 456 8 19 22

    Vacuum fluxus (I/min) et tempus evacuationis (s/L) in diversis gradibus vacui (-kPa)
    Model Vacuum fluxus (I/min) Vacationis tempus(s)
    0 10 20 30 40 50 60 70 80 90 98
    CL25 360 210[0.02] 156[0.05] 102[0.1] 54[0.18] 36[0.33] 30[0.33] 21[0.8] - - -
    CL50 650 420[0.01] 265[0.025] 176[0.05] 108[0.09] 72 [0.17] 60 [0.27] 36[0.4] - - -
    CL75 820 630[0.008] 370[0.017] 245[0.033] 162[0.06] 108 [0.11] 90[0.18] 50[0.27] - - -
    CL100 990 740[0.007] 480[0.015] 323[0.029] 206[0.05] 144[0.083] 120[0.13] 70[0.2] - - -
    CL125 1100 848[0.006] 550[0.014] 390[0.026] 240[0.045] 180[0.076] 150[0.11] 87 [0.19] - - -
    CL150 1300 910[0.005] 618[0.013] 456[0.022] 280[0.037] 216[0.062] 170[0.095] 102[0.15] - - -
    CL175 1680 1060[0.005] 680[0.012] 510[0.021] 314[0.035] 267[0.06] 190[0.087] 120[0.14] - - -
    CL200 2060 1210[0.004] 740[0.01] 575[0.018] 365[0.03] 294[0.051] 220[0.078] 134 [0.12] - - -
    CM25 354 220[0.022] 120[0.062] 78 [0.12] 43[0.22] 34[0.37] 25[0.57] 10[1.2] 5 [1.9] 0.8[4.2] -
    CM50 647 400[0.011] 240[0.031] 156[0.06] 87 [0.11] 69[0.19] 52[0.29] 20[0.6] 10[1.16] 1.6[2.2] -
    CM75 890 600[0.009] 360[0.021] 234[0.04] 131[0.07] 82 [0.14] 67 [0.19] 30[0.45] 15[0.788] 2.4 [1.73] -
    CM100 1100 750[0.006] 480[0.016] 290[0.031] 150[0.063] 109 [0.105] 72[0.174] 40[0.3] 20[0.526] 3.2[1.1] -
    CM125 1200 900[0.006] 570[0.014] 350[0.03] 185[0.055] 135[0.092] 89 [0.151] 50[0.26] 25[0.46] 4 [1.96] -
    CM150 1380 1020[0.005] 601 [0.014] 416[0.028] 220[0.047] 163[0.078] 108 [0.129] 60[0.22] 30[0.394] 5[0.823] -
    CM175 1490 1120[0.005] 655[0.013] 474[0.026] 255[0.039] 190[0.065] 129[0.108] 70[0.19] 35[0.329] 5.6[0.686] -
    CM200 1580 1200[0.005] 700[0.011] 525[0.022] 290[0.027] 216[0.054] 144[0.1] 80 [0.153] 40[0.274] 6.4[0.67] -
    CH25 168 126[0.032] 90[0.075] 54 [0.15] 24[0.32] 18[0.64] 12[1.1] 8 [1.7] 6[2.6] 5[3.9] 0.3[12]
    CH50 365 292[0.025] 177[0.045] 132[0.1] 69[0.25] 54[0.49] 40[0.73] 29[1.1] 12 [1.6] 5 [1.6] 0.45[7.8]
    CH75 504 396 [0.018] 282[0.033] 162[0.06] 90[0.11] 72 [0.18] 51 [0.27] 37 [0.42] 25[0.62] 6 [1.3] 0.6[5.4]

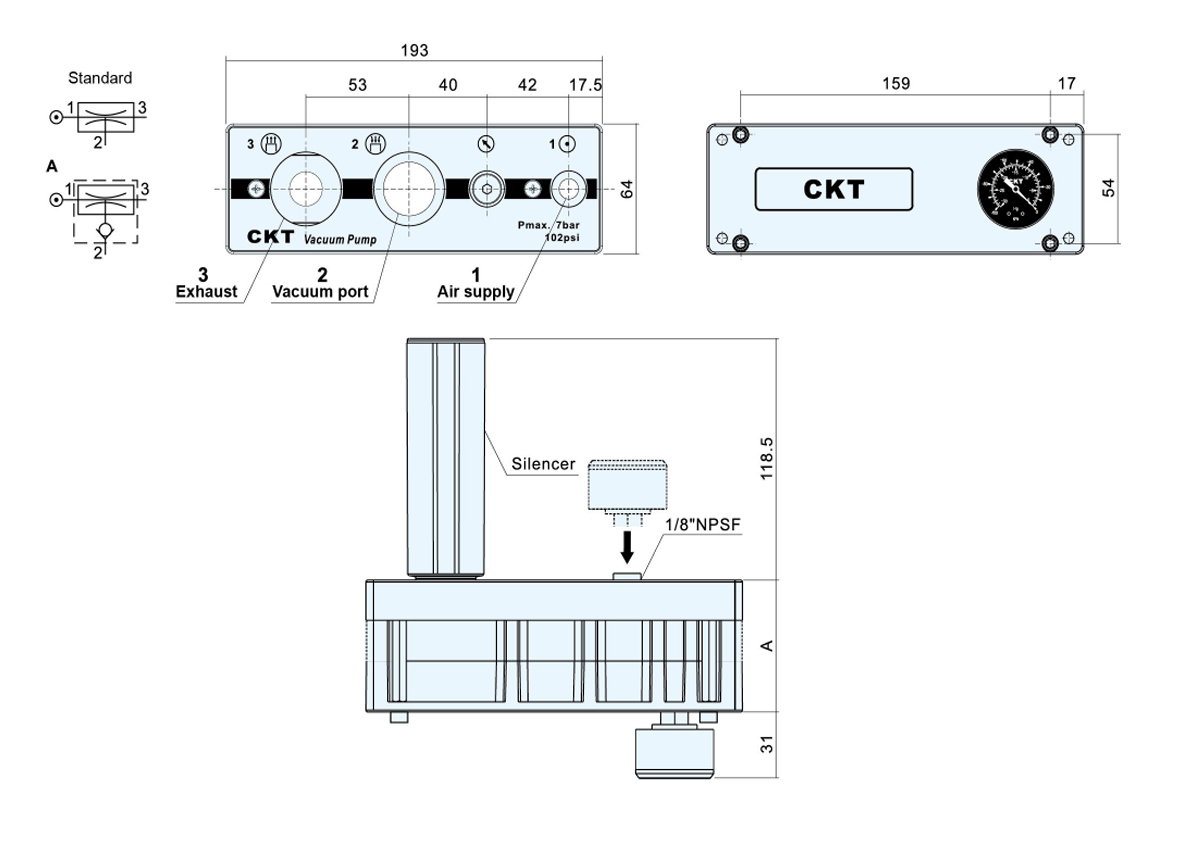

  • Exemplar A
    C□25 45
    C□50
    C□75 65
    C□100
    C□125 85
    C□150
    C□175 105
    C□200

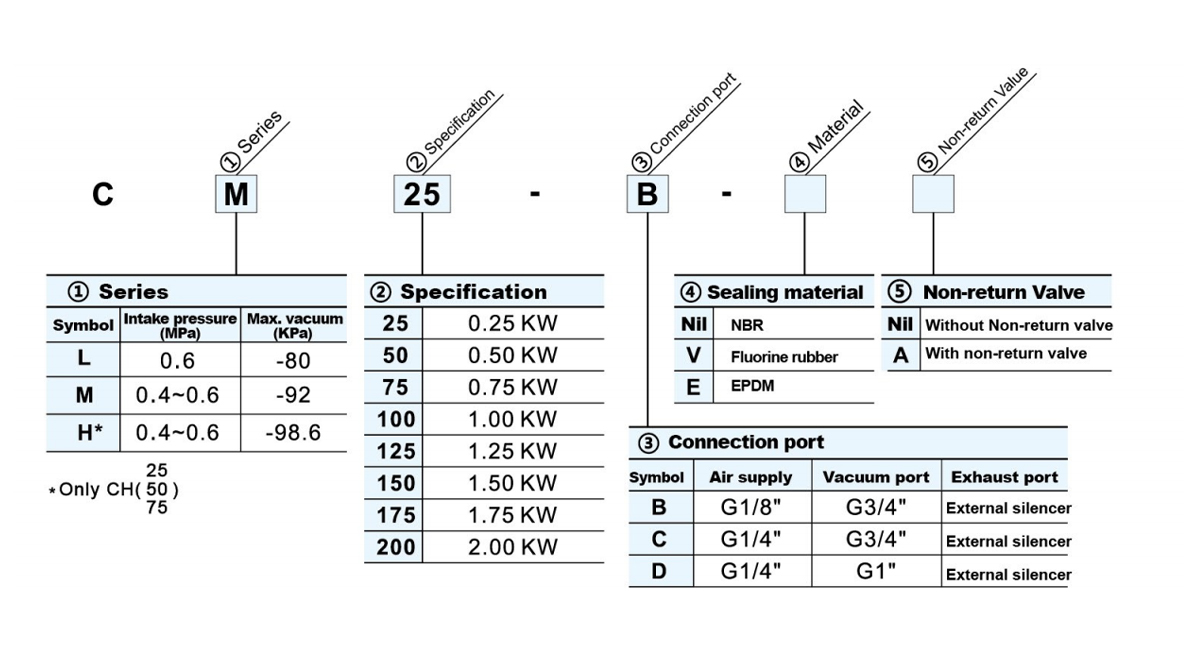

    Exemplar Aeris copiam Vacuum exhaustum
    C□□-B G1/8" G3/4" G3/4"
    C□□-C G1/4" G3/4" G3/4"
    C□□-D G1/4" G1" G3/4"

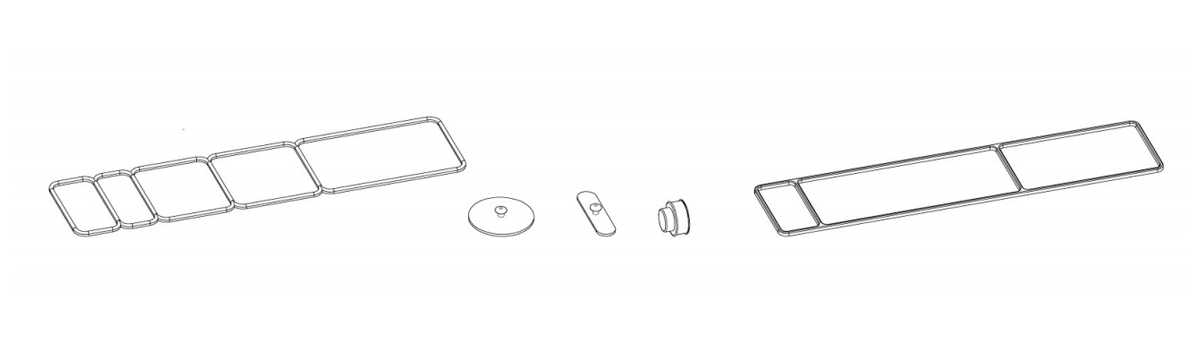

    signare
    Exemplar NBR Fluorinum  rubber EPDM
    CL(M,H)25 C-SN-25 C-SV-25 C-SE-25
    CL(M,H)75 C-SN-75 C-SV-75 C-SE-75
    CL(M)125 C-SN-125 C-SV-125 C-SE-125
    CL(M)175 C-SN-175 C-SV-175 C-SE-175
