CDJPB Series (Double Acting) Acus Cylindri
  • CDJPB Series (Double Acting) Acus Cylindri
Acus Cylindrus

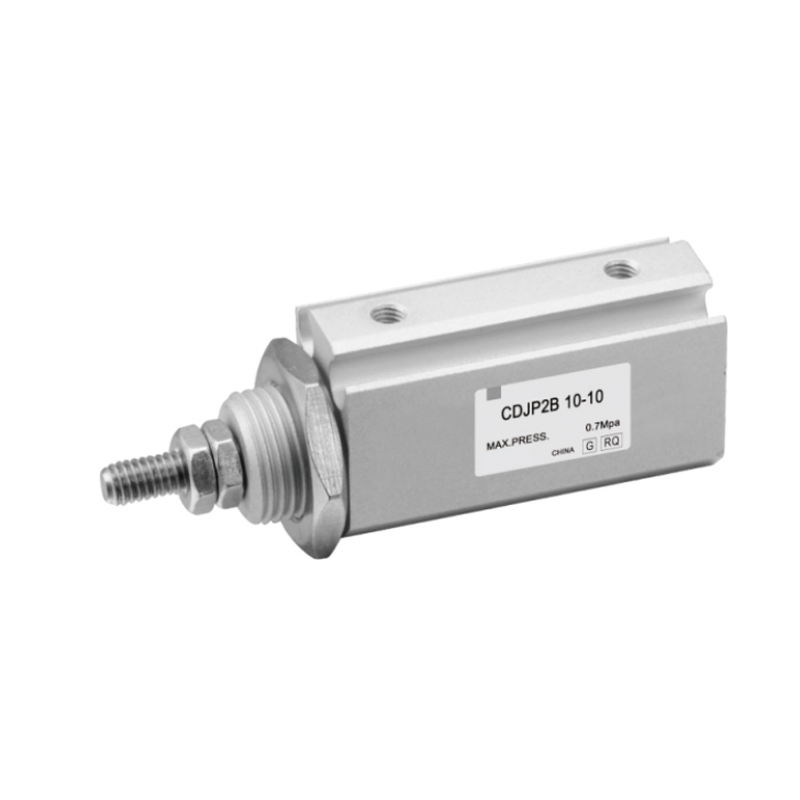

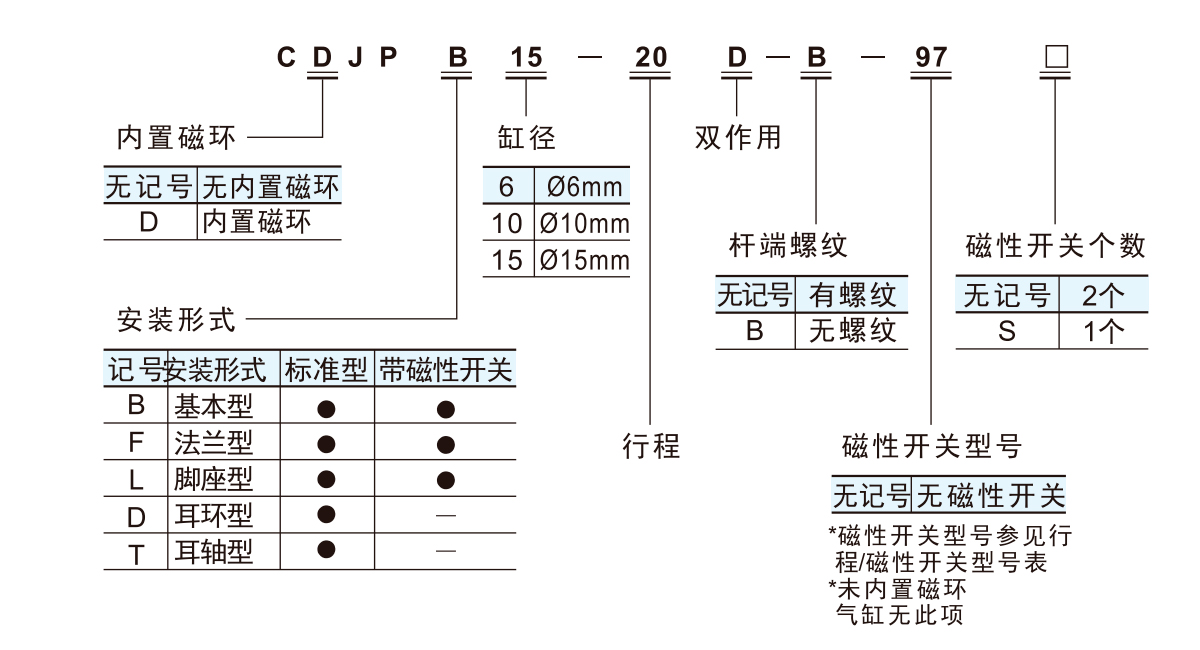

CDJPB Series (Double Acting) Acus Cylindri

CDJPB Series (Double Acting) Acus Cylindrus praecisio est actuator pneumaticus missionibus spatio constrictis designatus. Motum reciprocum per structuram compactam efficientem linearem consequitur et apta ad systemata automationum valde integrata convenit.

Core lineamenta:

1. Extremum spatium utendo: Magnopere intensiva schematismi et corporis leve signanter optimizant apparatum spatii extensionis et aptabilitatem systematis ad locorum angustias emendare.

2. Configurationis flexibilitas; Multiplices specificationum plagarum et cylindrici diametri parametri circulos tegit, ad differentiam oneris ac dynamici requisita accommodat, ac applicationem latitudinem efficit.

3. Ratio integrationis libertatis; Topologiam institutionem modulari sustinet ac accessionem interfaciem extensam, eique paratam utendi notam et complexionem integrationem integrationem minuens.

4. Deprehensio unitatis Embedded: Inductionem magneticam non-contatam integram formare structuram topologiae corporis formare, et debugging-liberi positionis functionis signum feedback percipit..

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：Nessun articolo precedente
SUCCESSIVO：CJPB Series (Single Acting) Acus Cylindri
  • Diameter cylindricus (mm) 6 10 15
    Liquor usus est Air
    Genus actio Duplex agens
    Maximum pressionis operating MPa 0.7
    Minimum impressionis operativae MPa 0.12 0.06
    Ambiens et fluidum temperatus Non magnetica switch: -10°C,
    Magnetic switch: -10°C ad 60°C
    Buffering Flexilis buffers ad utrumque
    Celeritas Piston 50~500mm/s
    Patientia plaga mm 10
    *Lubrication Non requiratur
    Connection diameter M5×0.8
    * Si lubricationis opus est, utere Turbine oleum No.

  • Diameter cylindricus

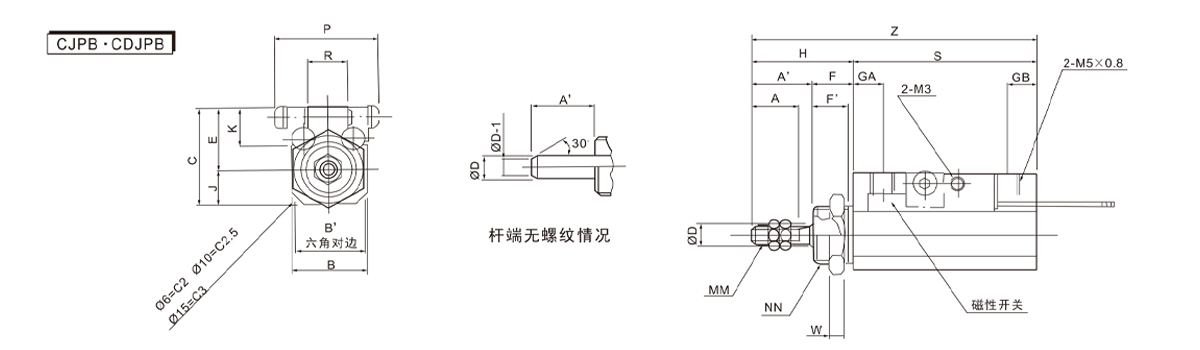

    (mm)     		A A' B B' D F F' GA GB H J K MM NN R S W Z Magnetic switch
    5st 10st 15st 20st 30st 5st 10st 15st 20st 30st C E P
    6 7 9 14 14 3 8 6.5 6 6 17 6 8 M3×0.5 M10×1.0 7 30.5 35.5 40.5 45.5 - 3 47.5 52.5 57.5 62.5 - 16.5 10.5 20
    10 10 12 15 17 5 8 6.5 6 7 20 7 8 M4×0.7 M12×1.0 8 30.5 35.5 40.5 45.5 55.5 4 50.5 55.5 60.5 65.5 75.5 20 13 21
    15 12 14 20 19 6 10 8.5 6 7 24 9 8 M5×0.8 M14×1.0 10 30.5 35.5 40.5 45.5 55.5 5 54.5 59.5 64.5 69.5 79.5 24.5 15.5 23

    Diameter cylindricus

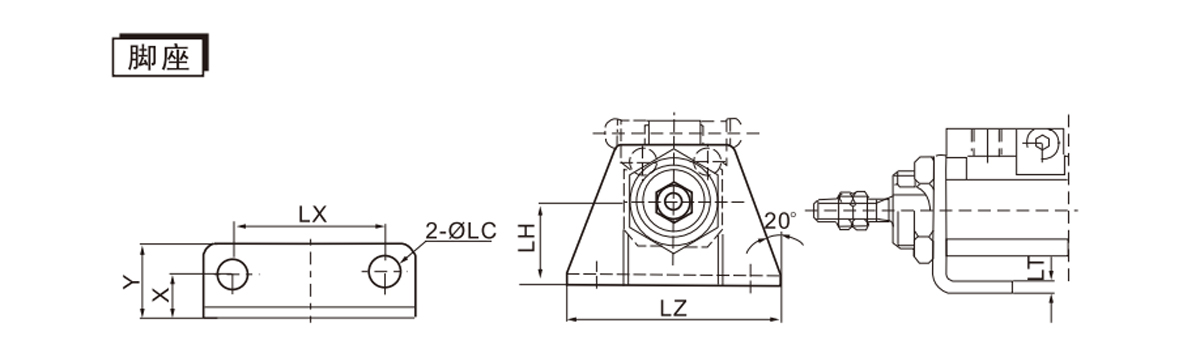

    (mm)     		Footrest
    Pars numerus LH LT LZ LX X Y LC
    6 CP-L006 11 1.6 28 20 6.5 10.5 3.4
    10 CP-L010 13 1.6 33 24 7 12 4.5
    15 CP-L015 18 2.3 43 30 10 16.5 4.5

    Diameter cylindricus

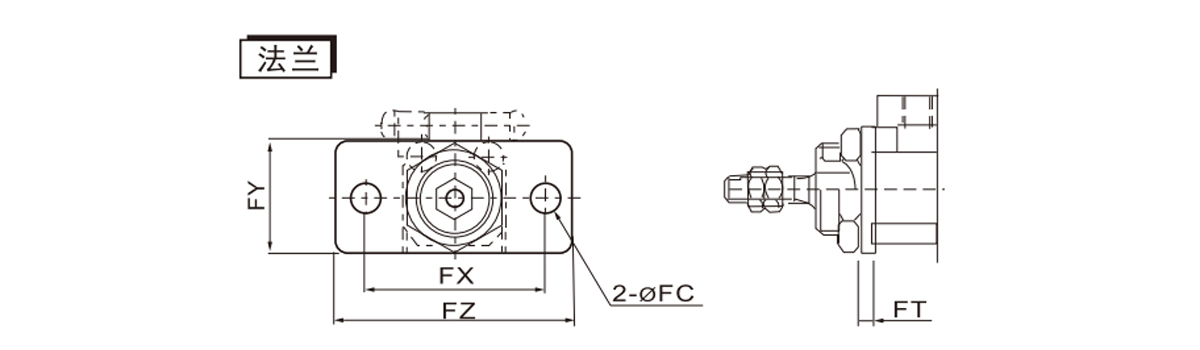

    (mm)     		Flange
    Pars numerus FT FX FY* FZ FC
    6 CP-F006 1.6 24 16 32 3.4
    10 CP-F010 1.6 28 18 37 4.5
    15 CP-F015 2.3 36 22 49 5.5

    Diameter cylindricus
    (mm)     		Auris pars numero hastili sede S Z ZZ R
    5st 10st 15st 20st 30st 5st 10st 15st 20st 30st 5st 10st 15st 20st 30st
    6 CP-T006 35.5 40.5 45.5 50.5 - 48.5 53.5 58.5 63.5 - 52.5 57.5 62.5 67.5 - 7
    10 CP-T010 40.5 45.5 50.5 55.5 65.5 54 59 64 69 79 60.5 65.5 70.5 75.5 85.5 8
    15 CP-T015 42 47 52 57 67 58 63 68 73 83 66 71 76 81 91 10

    Diameter cylindricus

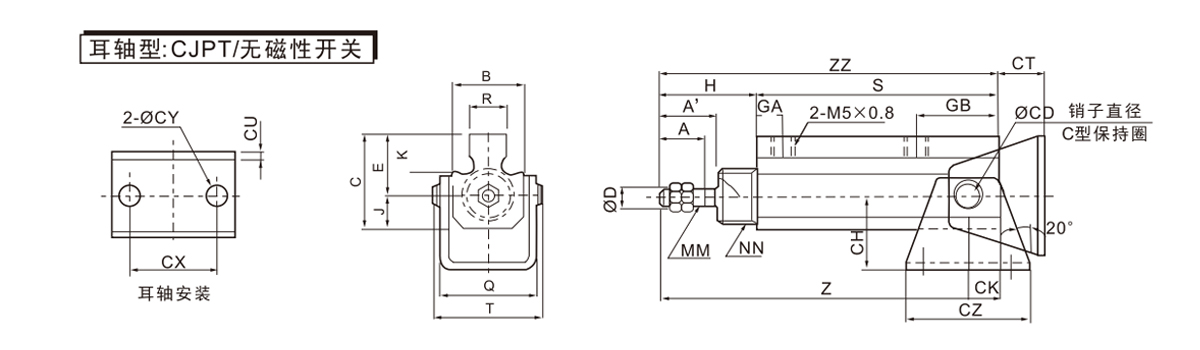

    (mm)     		A A′ B C D E GA GB H J K MM NN Q T CD CH* CK CT CU CX CY CZ
    6 7 9 14 16.5 3 10.5 6 11 17 6 8 M3×0.5 M10×1.0 18.5 20.4 3 16 4 12 1.6 18 3.4 26
    10 10 12 15 20 5 13 6 17 20 7 8 M4×0.7 M12×1.0 20.5 23.9 5 20 6.5 13.5 1.6 24 4.5 33
    15 12 14 20 24.5 6 15.5 6 18.5 24 9 8 M5×0.8 M14×1.0 28 31.7 6 25 8 17 2.9 29 5.5 42

    Diameter cylindricus

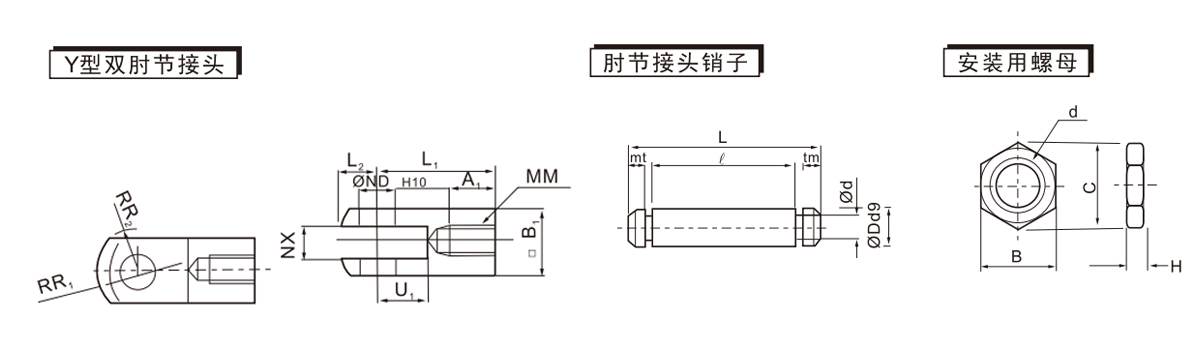

    (mm)     		Y-genus duplex iuncturam cubiti Articulatio cubiti pin Corpus nut cylindricum
    Pars numerus A1 B1 NDH10 L1 L2 MM U1 NX R1 R2 Pars numerus Dd9 L od ρ M t Pars numerus d H B C
    6 Y-P006 5 6 3 0.04 12 3.5 M3×0.5 5 3 5 4 IY-P006 3 -0.02 9 2.85 62 0.75 0.65 SNP-006 M10×1 3 14 16.2
    0 -0.045
    10 Y-P010 6.5 10 5 0.048 16 5.5 M4×0.7 7 5 8 6.3 IY-P010 5 -0.030 13.6 4.8 10.2 1 0.7 SNP-010 M12×1 3 17 19.6
    0 -0.060
    15 Y-P015 7 12 6 0.048 19 7 M5×0.8 9 6 10 7.8 IY-P015 6 -0.030 15.8 5.7 12.2 1 0.8 SNP-015 M14×1 4 19 21.9
    0 -0.060

    Diameter cylindricus

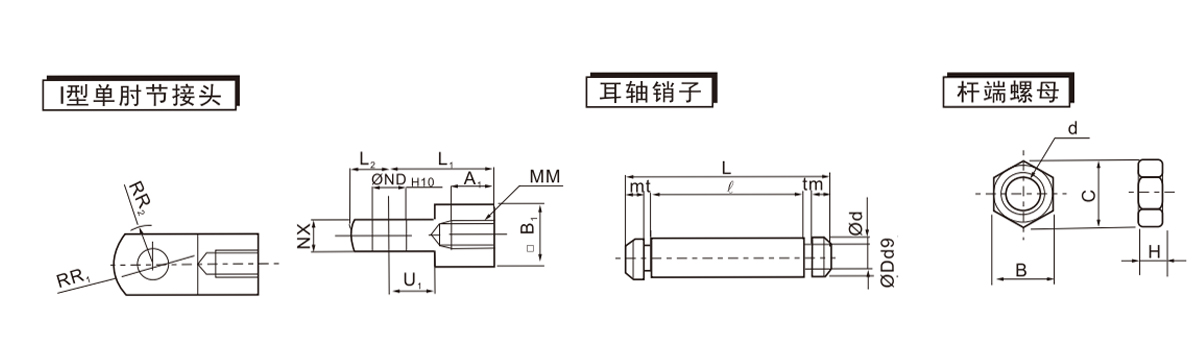

    (mm)     		Unius cubiti iuncturam Auris hastile pin Virga finis nucis
