KC Series Sui signantes unum tactum decet Fornitores

Home / Products / Accessorium pneumaticum / Unius Tactus Fitting / KC Series Sui signantes unum tactum decet

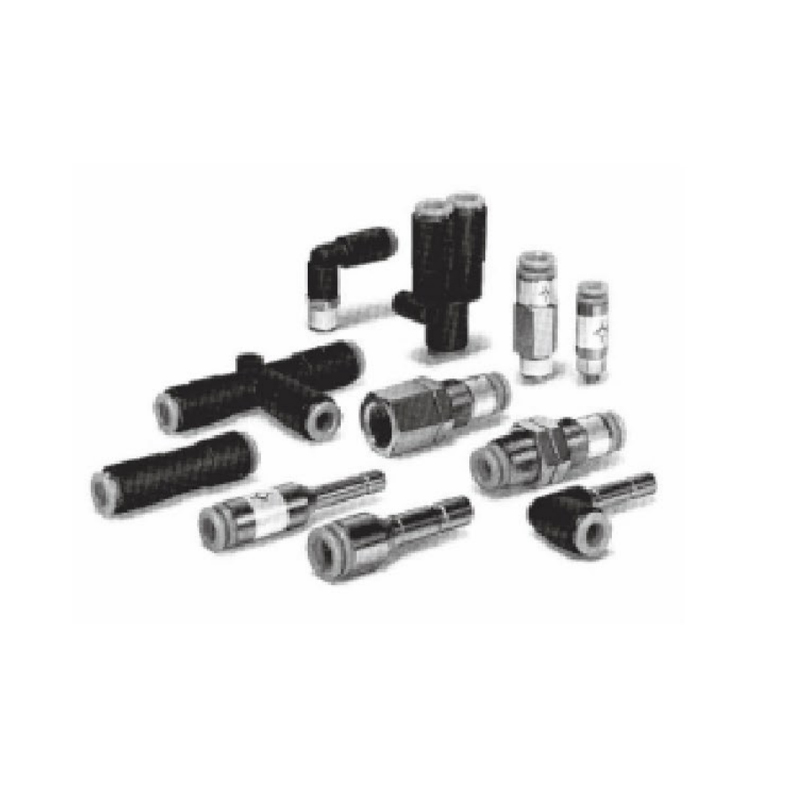

KC Series Sui signantes unum tactum decet
  • KC Series Sui signantes unum tactum decet
Unius Tactus Fitting

KC Series Sui signantes unum tactum decet

Proprium:
·Unus tactus conveniens mechanismum est ne aer exhauriat tubum removentem.
· Electroless nickel patella ad cooper-liberum applicationes.

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：MQR Series Low Torque Rotary One tactus conveniens
SUCCESSIVO：KQ2 Series One tactus conveniens
  • Liquor Aer /Aquae
    Materia Brass
    Max Operans Pressionem 1.OMPa
    Vacuum  Pressura -100KPa
    Probatur Pressura 3.OMPa
    Ambientem Et Fluidum Tempus Air:-5~60℃,aqua:0~40℃
    Tubing Materia Nylon、Polyurethane
    Tubingae O.D Ø4、Ø6、Ø8、Ø10、Ø12

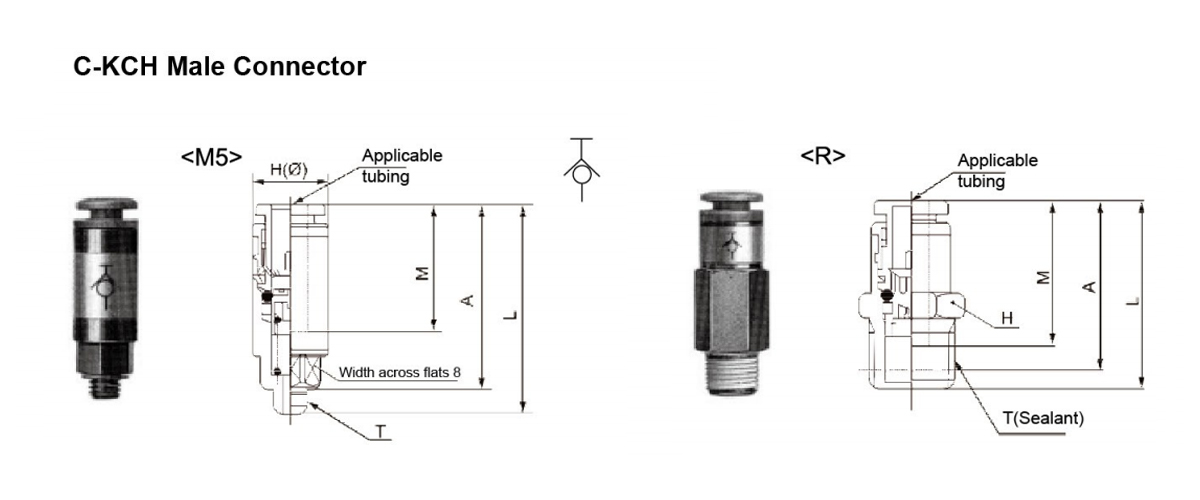

  • Locum Tubingae O.D
    (mm)     		Model Connexio sequelae T H
    Latitudo
    Per "
    Flats     		L A M Efficax Area
    (mm²)     		Pondus
    (g)
    Nylon Urethane
    4 C-KCH04-M5 M5×0.8 9.8 30.8 27.3 18 2.1 2.1 8
    C-KCH04-01S 1/8 10 26.1 22.1 2.6 2.6
    6 C-KCH06-M5 M5×0.8 11.8 32.4 28.9 19.5 2.4 2.4 10
    C-KCH06-01S 1/8 12 37.4 33.4 19 6.8 6.8 16
    C-KCH06-02S 1/4 14 28.9 22.9 14
    8 C-KCH08-01S 1/8 14 42.4 38.4 21.5 16.2 13.1 20
    C-KCH08-02S 1/4 45.7 39.7 27
    C-KCH08-03S 3/8 17 34 27.5 25
    10 C-KCH10-02S 1/4 17 50.5 44.5 24 25.6 20.4 34
    C-KCH10-03S 3/8 51.5 45 43
    12 C-KCH12-03S 3/8 19 54.2 47.7 25.5 35.4 30.4 48
    C-KCH12-04S 1/2 22 41.6 33.6 41

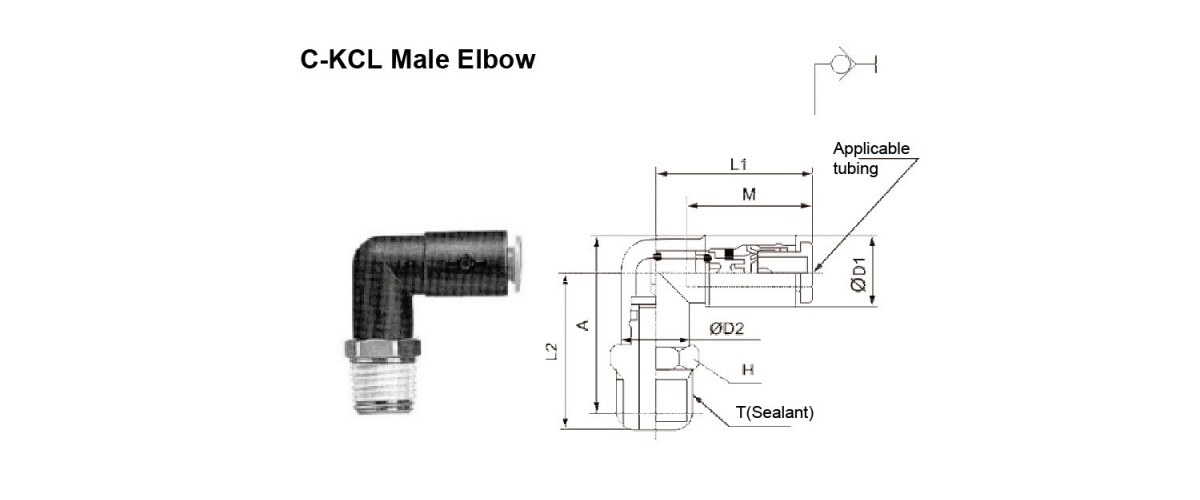

    Locum Tubingae O.D
    (mm)     		Model Connexio sequelae T H
    Latitudo
    Per "
    Flats     		OD1 D2 L1 L2 A M Efficax Area
    (mm²)     		Pondus
    (g)
    Nylon Urethane
    4 C-KCL04-M5 M5×0.8 8 10.4 8 25.3 16.7 18.4 18 1.9 1.9 6
    C-KCL04-01S 1/8 10 10 23 24.2 2.3 2.3 11
    6 C-KCL06-M5 M5×0.8 8 12.8 8 26.8 17.4 20.3 19.5 2.2 2.2 7
    C-KCL06-01S 1/8 12 12 28 25.1 27.5 19 6.2 6.2 13
    C-KCL06-02S 1/4 14 29.1 29.5 21
    8 C-KCL08-01S 1/8 14 15.2 14 34.1 27.1 30.7 21.5 13.0 10.5 16
    C-KCL08-02S 1/4 31.1 32.7 24
    C-KCL08-03S 3/8 17 34.2 37
    10 C-KCL10-02S 1/4 17 18.5 17 38 33.9 37.2 24 19.5 16.5 29
    C-KCL10-03S 3/8 35.9 38.7 38
    12 C-KCL12-03S 3/8 22 20.9 20.9 40.7 40.3 44.3 25.5 24.8 21.3 63
    C-KCL12-04S 1/2 43.2 45.7 81

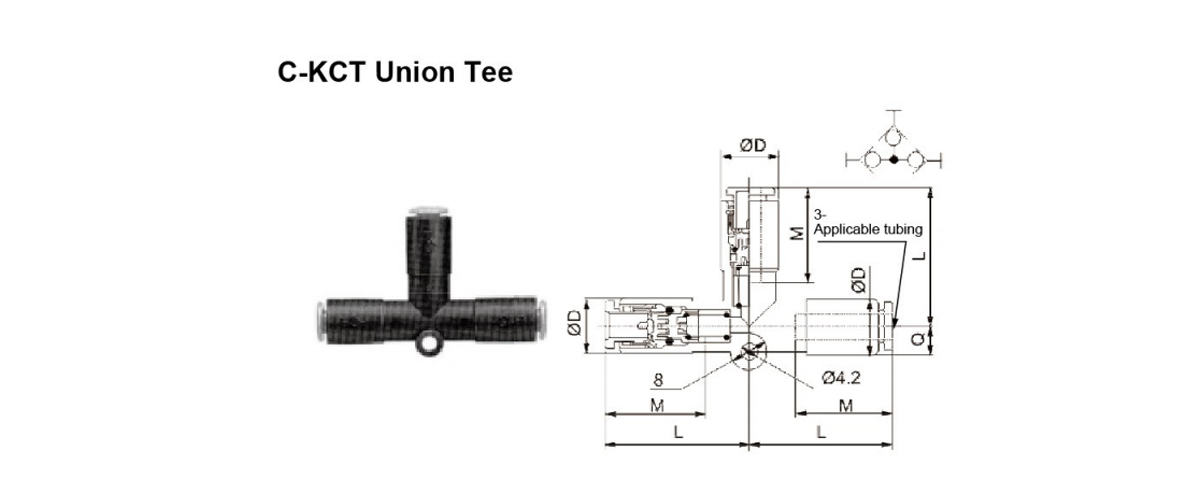

    Locum Tubingae O.D
    (mm)     		Model D L Q M Efficax Area
    (mm²)     		Pondus
    (g)
    Nylon Urethane
    4 C-KCT04-00 10.4 28.6 5.3 18 2.8 2.8 8
    6 C-KCT06-00 12.8 32.7 6.1 19 7.6 7.6 15
    8 C-KCT08-00 15.2 39.2 7.1 21.5 13.7 11.1 23
    10 C-KCT10-00 18.5 45.5 7.9 24 21.1 19.0 39
    12 C-KCT12-00 20.9 49.2 8.6 25.5 28.3 24.3 52

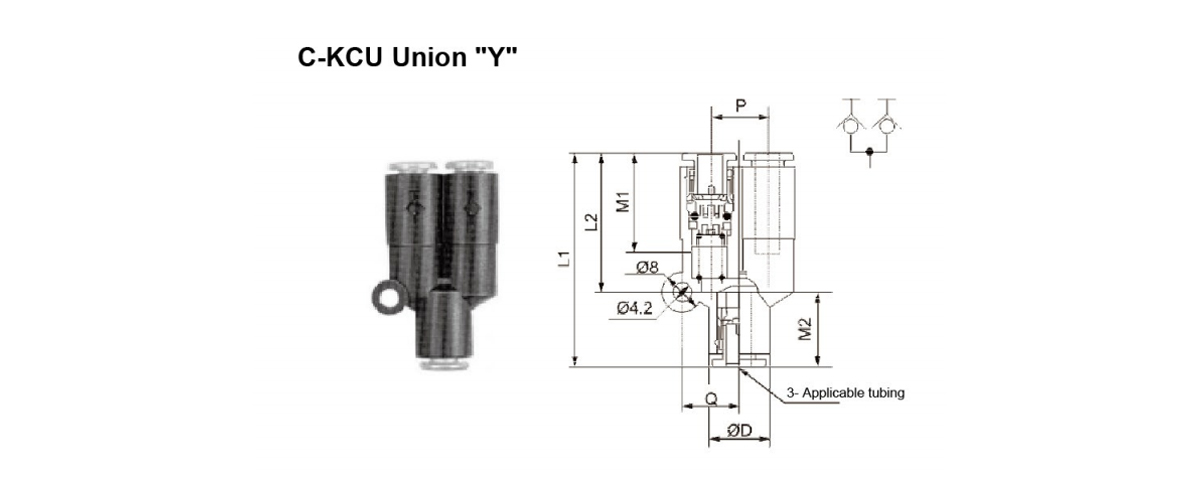

    Locum Tubingae O.D
    (mm)     		Model D L1 L2 P Q M1 M2 Efficax Area
    (mm²)     		Pondus
    (g)
    Nylon Urethane
    4 C-KCU04-00 10.4 43.1 27.3 10.4 10.6 18 16 3.7 3.7 8
    6 C-KCU06-00 12.8 48 31.2 12.8 12.5 19 17 10.0 10.0 14
    8 C-KCU08-00 15.2 57.6 38.9 15.2 14.7 21.5 18.5 21.7 15.1 22
    10 C-KCU10-00 18.5 65.2 44.9 18.5 17.1 24 21 33.3 25.6 37
    12 C-KCU12-00 20.9 70.1 48.8 20.9 19.1 25.5 22 48.9 38.7 49

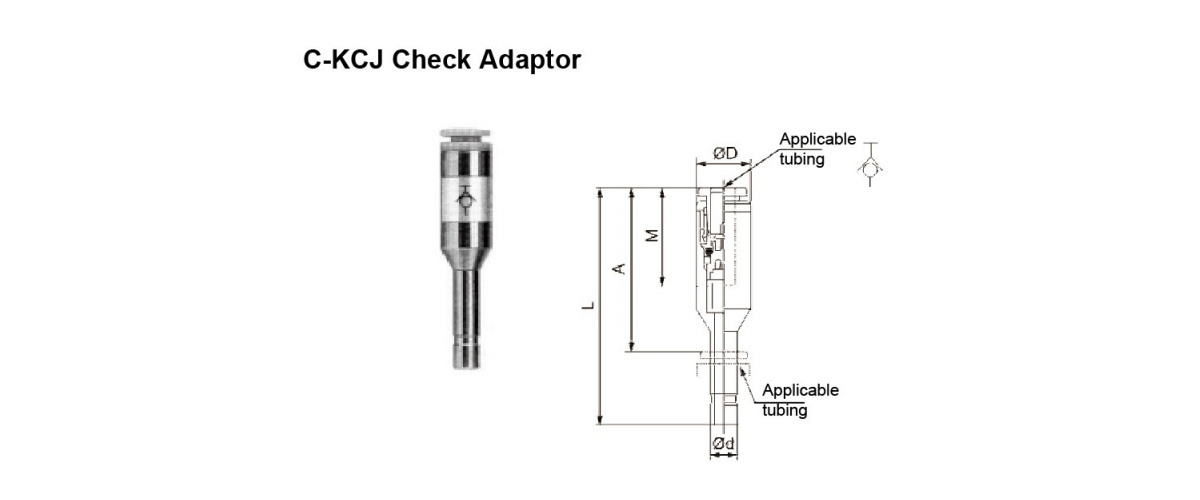

    Locum Tubingae O.D
    (mm)     		Model od D L A M Efficax Area
    (mm²)     		Pondus
    (g)
    Nylon Urethane
    4 C-KCJ04-99 4 9.8 49.5 33.5 18 2.6 2.6 9
    6 C-KCJ06-99 6 11.8 54 37 19 6.8 6.8 13
    8 C-KCJ08-99 8 14 61 42.5 21.5 16.2 13.1 20
    10 C-KCJ10-99 10 17 70.4 49.4 24 25.6 20.4 33
    12 C-KCJ12-99 12 19 74.4 52.4 25.5 35.4 30.4 43

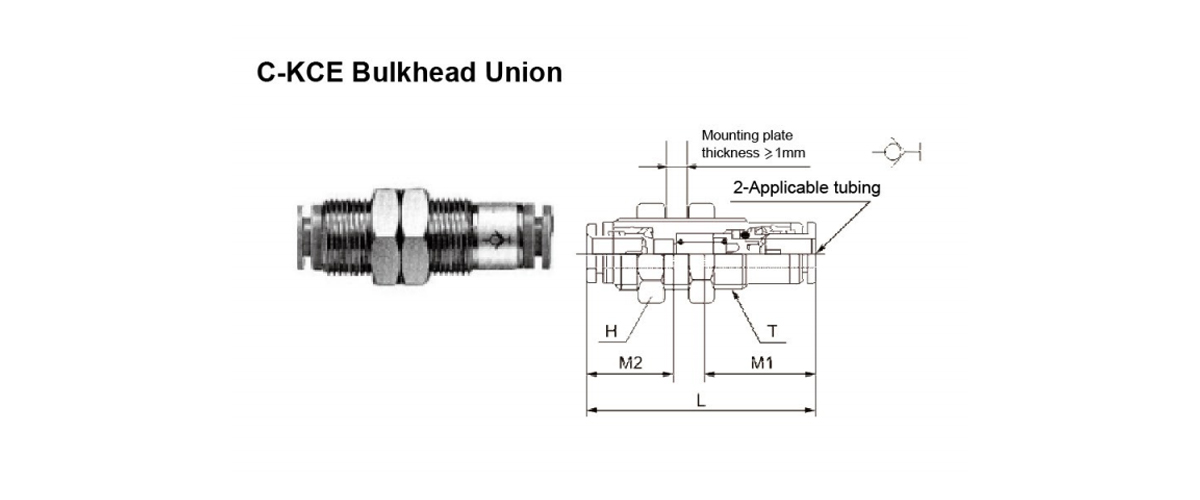

    Lorem
    Tubing O.D
    (mm)     		Model
    Connection
    Thread
    T     		H
    Latitudo
    Per "
    Flats     		L Adscendens Hole M1 M2 Efficax Area
    (mm²)     		Pondus
    (g)
    Nylon Urethane
    4 C-KCE04-00 M12×1 14 42 13 18 16 2.6 2.6 21
    6 C-KCE06-00 M14×1 17 45.5 15 19 17 6.8 6.8 30
    8 C-KCE08-00 M16×1 19 42.5 17 21.5 18.5 16.2 13.1 39
    10 C-KCE10-00 M20×1 24 59.5 21 24 21 25.6 20.4 84
    12 C-KCE12-00 M22×1 27 63.2 23 25.5 22 35.4 30.4 115

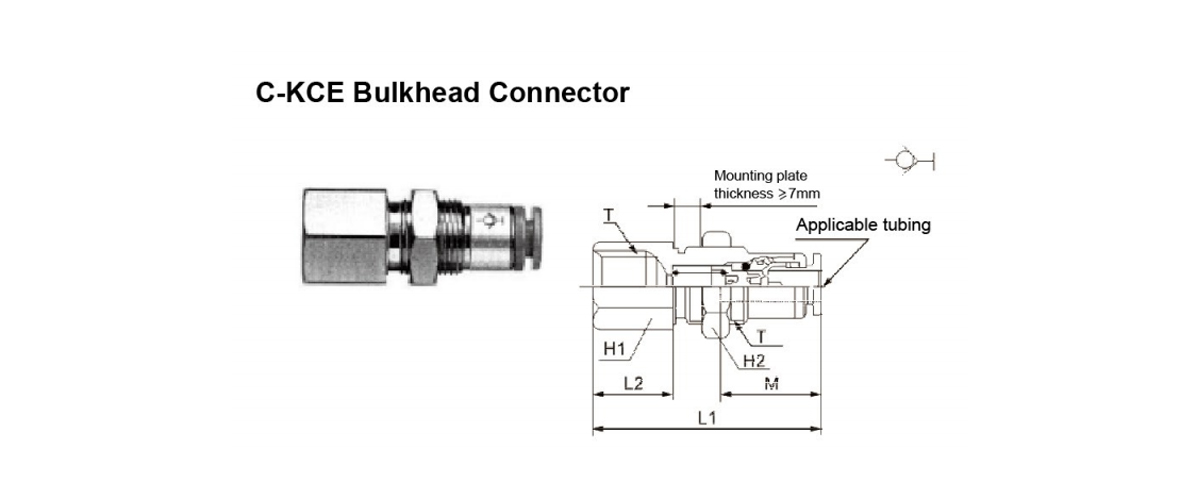

    Locum Tubingae O.D
    (mm)     		Model
    Connection
    Thread
    T
    Adscendens
    Thread
    T     		H1
    Latitudo
    Per "
    Flats     		H2
    Latitudo
    Per "
    Flats     		L1 L2 Adscendens Hole M Efficax Area
    (mm²)     		Pondus
    (g)
    Nylon Urethane
    4 C-KCE04-02 1/4 M12×1 17 14 40.5 14.7 3 18 2.6 2.6 32
    6 C-KCE06-02 114 M14×1 17 17 42.7 14.7 15 19 6.8 6.8 36
    8 C-KCE08-03 3/8 M16×1 19 19 49.4 15 17 21.5 16.2 13.1 42
    10 C-KCE10-03 3/8 M20×1 22 24 53.9 14.2 21 24 25.6 20.4 79
    12 C-KCE12-03 3/8 M22×1 24 27 56.1 13.7 23 25.5 35.4 30.4 105

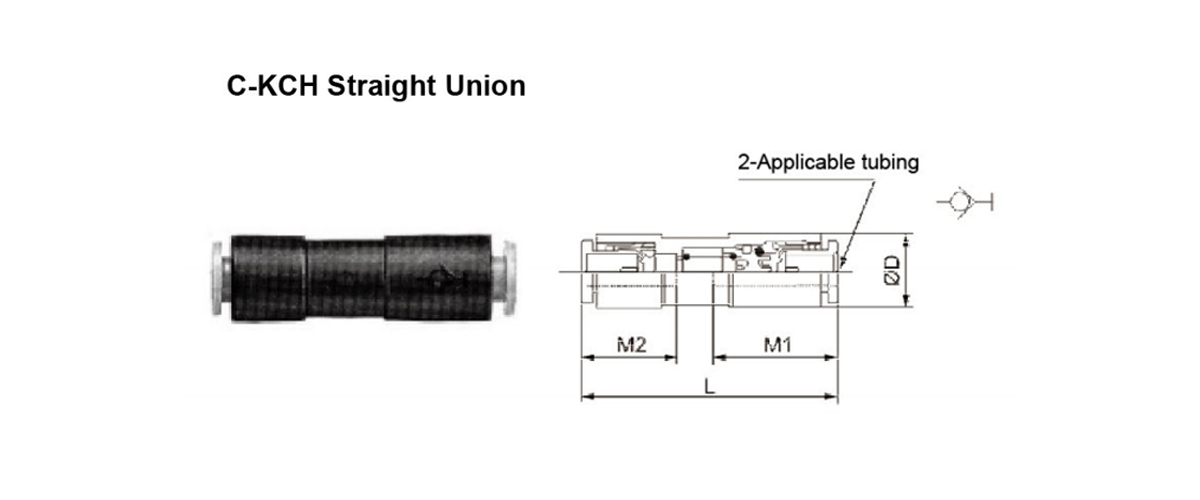

    Locum Tubingae O.D
    (mm)     		Model D L M1 M2 Efficax Area
    (mm²)     		Pondus
    (g)
    Nylon Urethane
    4 C-KCH04-00 10.4 42.1 18 16 2.6 2.6 5
    6 C-KCH06-00 12.8 45.8 19 17 6.8 6.8 7
    8 C-KCH08-00 15.2 52.8 21.5 18.5 16.2 13.1 10
    10 C-KCH10-00 18.5 59.8 24 21 25.6 20.4 18
    12 C-KCH12-00 20.9 63.5 25.5 22 35.4 30.4 24
