KS/KX Series One tactus decet Fornitores

Home / Products / Accessorium pneumaticum / Unius Tactus Fitting / KS/KX Series One tactus decet

KS/KX Series One tactus decet KS/KX Series One tactus decet KS/KX Series One tactus decet KS/KX Series One tactus decet KS/KX Series One tactus decet
  • KS/KX Series One tactus decet
  • KS/KX Series One tactus decet
  • KS/KX Series One tactus decet
  • KS/KX Series One tactus decet
  • KS/KX Series One tactus decet
Unius Tactus Fitting

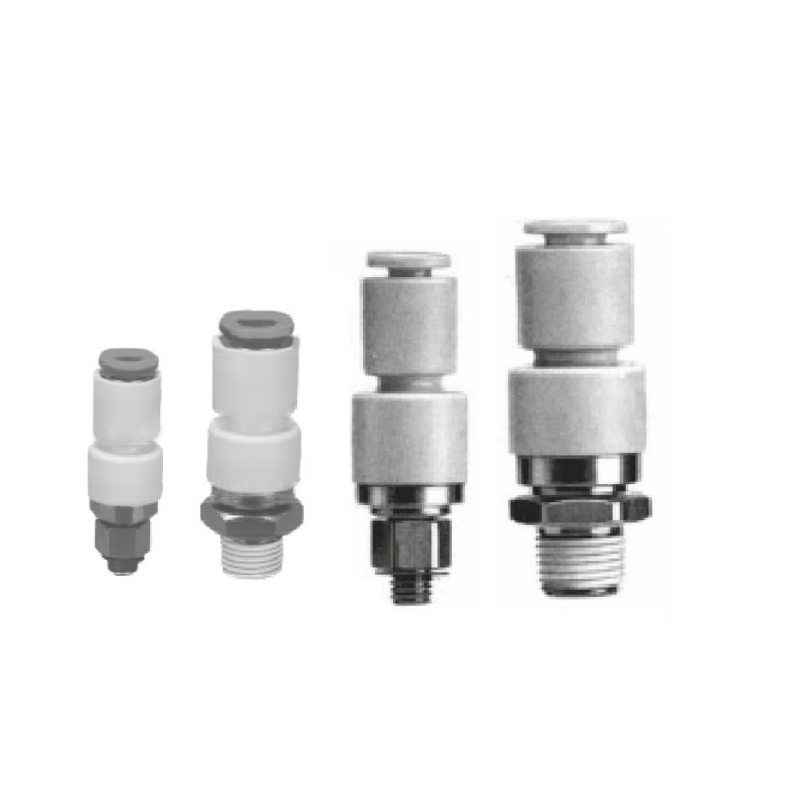

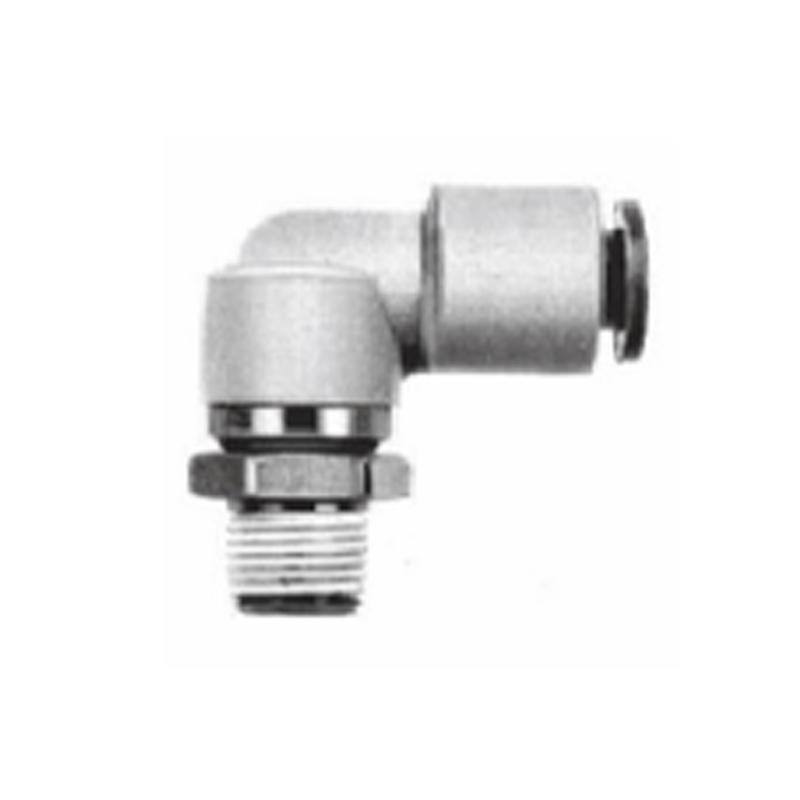

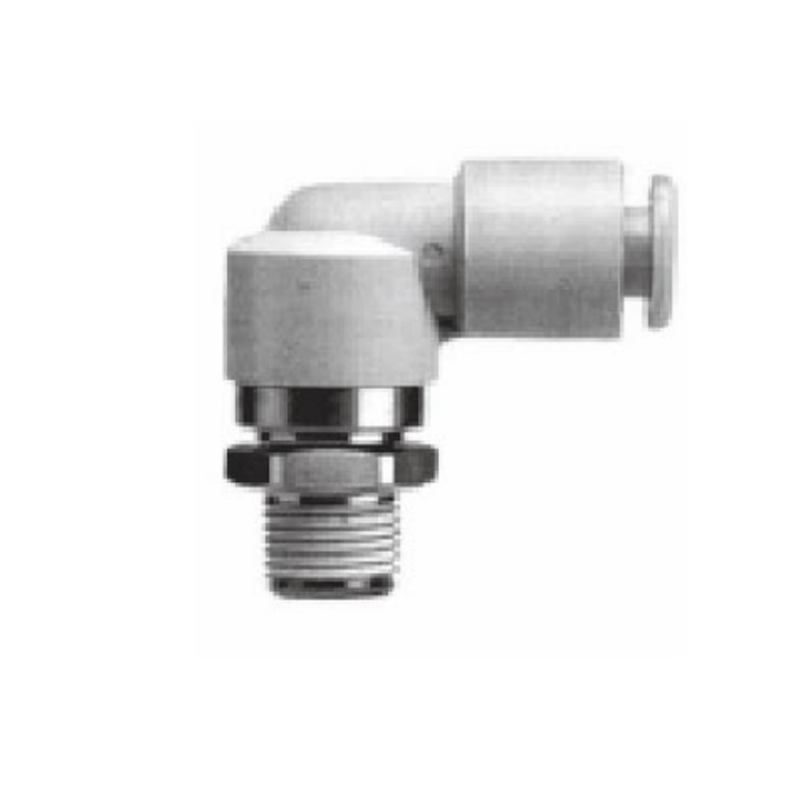

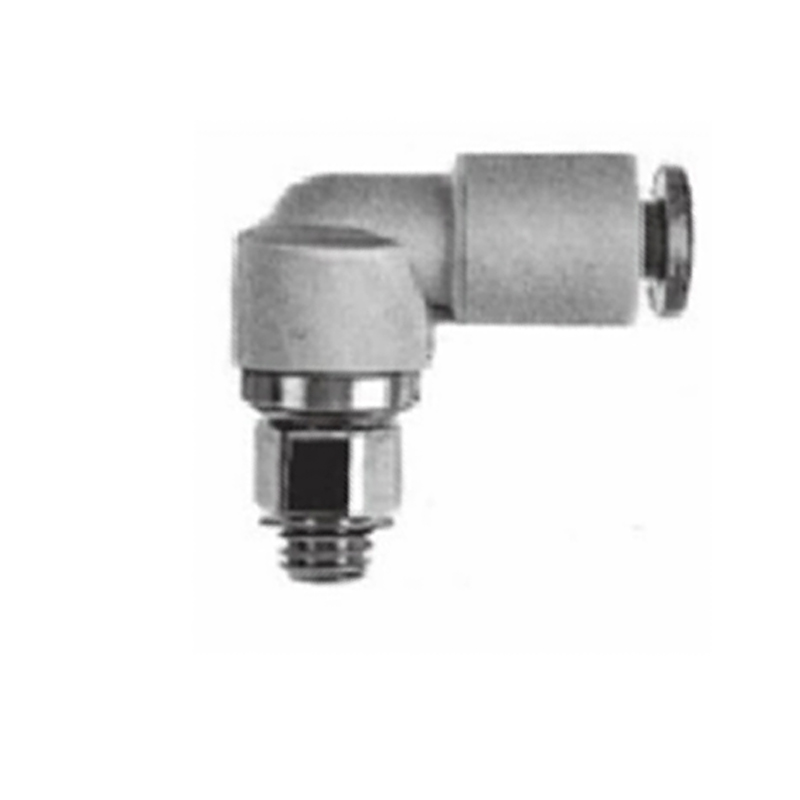

KS/KX Series One tactus decet

Features
· inaedificata adferentem
· Excelsa celeritate rotating
· Specificationes liberae aeris, partes aereae omnes electriles nickel patellae sunt.
· Ratio in vacuo adhiberi potest (gradum vacuum below100kPa)

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：AQ Series One tactus conveniens
SUCCESSIVO：MQR Series Low Torque Rotary One tactus conveniens
  • Liquor Air
    Max Operans Pressionem 1.0MPa
    Vacuum   Operire  Pressionem -100kPa
    Probatur Pressura 3.0MPa
    Ambientem Et Fluidum Tempus -5~60℃(Nec frigore)

    Rotating Torque / licita Number gyrationis
    Opreans Pressura: Infra 0.5MPa
    Locum Tubing O.D 4 6 8 10 12
    Rotating Torque 0.006 0.012 0.014 0.020 0.022
    Licitum Number
    De Rotationum     		C-KS Series 500 500 400 300 250
    C-KX Series 1500 1200 1200 1000 1000

  • Locum Tubing O.D
    (mm)     		Exemplar Connection Thread T II per blandit Latitudo D1 D2 L A M
    Min
    Port
    Magnitudo
    Efficax Area
    (mm²)
    Pondus
    (g)
    Nylon Urethane

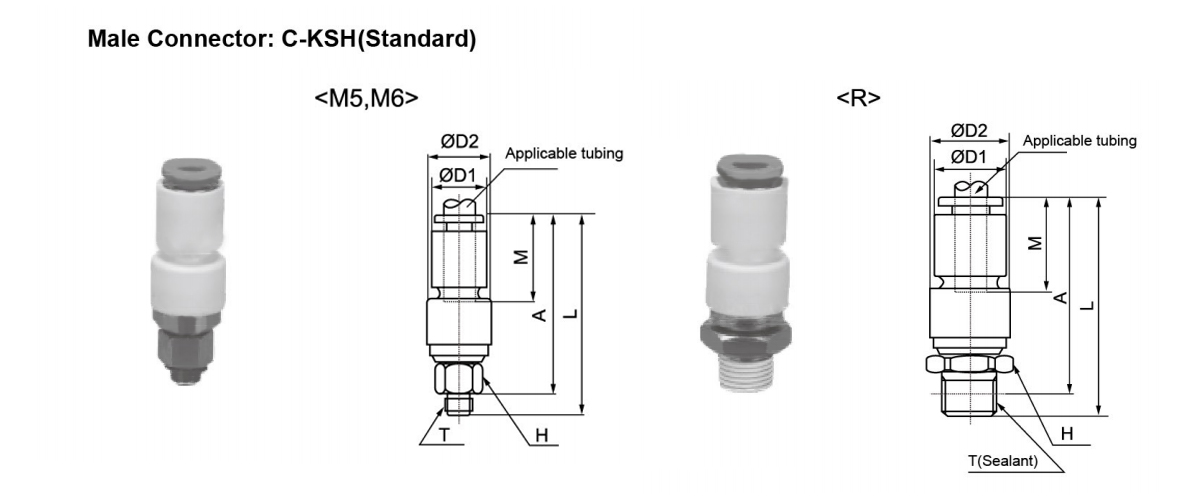

    4 C-KSH04-M5 M5×0.8 8 10.4 12 36.5 33 16 2.5 4.0 4.0 9
    C-KSH04-M6 M6×1 37
    C-KSH04-01S 1/8 12 38 34 14
    6 C-KSH06-M5 M5×0.8 8 12.8 14 37.5 33.5 7 2.5 4.0 4.0 12
    C-KSH06-M6 M6×1 38 34 3 5.6 5.6
    C-KSH06-01S 1/8 14 39.5 35.5 4 10.4 10.4 17
    C-KSH06-02S 1/4 42.5 36.5 23
    8 C-KSH08-01S 1/8 17 15.2 17 44 40 18.5 6 26.1 18.0 23
    C-KSH08-02S 1/4 47 41 29
    C-KSH08-03S 3/8 48 41.5 37
    10 C-KSH10-02S 1/4 22 18.5 22 54 48 21 7 36.3 29.5 55
    C-KSH10-03S 3/8 55 48.5 63
    C-KSH10-04S 1/2 57.5 49.5 81
    12 C-KSH12-03S 3/8 24 20.9 24 57 50.5 22 8 46.1 16.1 75
    C-KSH12-04S 1/2 60 52 92

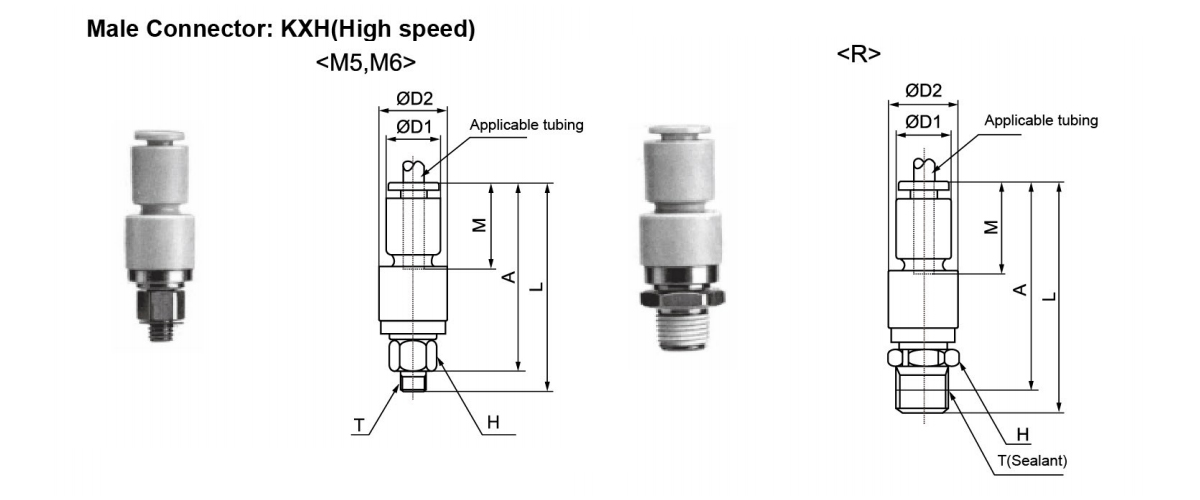

    Locum Tubing O.D
    (mm)     		Exemplar Connection Thread T II per blandit Latitudo D1 D2 L A M
    Min
    Port
    Magnitudo
    Efficax Area
    (mm²)
    Pondus
    (g)
    Nylon Urethane
    4 C-KXH04-M5 M5×0.8 8 10.4 13 38.5 35 16 2.5 4.0 4.0 11
    C-KXH04-M6 M6×1 39
    C-KXH04-02S 1/8 12 40 36 16
    6 C-KXH06-M5 M5×0.8 8 12.8 15 39.5 36 17 2.5 4.0 4.0 15
    C-KXH06-M6 M6×1 40 3 5.6 5.6
    C-KXH06-01S 1/8 14 42 38 4 10.4 10.4 20
    C-KXH06-02S 1/4 45 39 26
    8 C-KXH08-01S 1/8 17 15.2 18 46 42 18.5 6 26.1 18.0 28
    C-KXH08-02S 1/4 49 43 34
    C-KXH08-03S 3/8 50 44 42
    10 C-KXH10-02S 1/4 22 18.5 23.5 58 52 21 7 36.3 29.5 68
    C-KXH10-03S 3/8 59 76
    C-KXH10-04S 1/2 62 53 94
    12 C-KXH12-03S 3/8 24 20.9 26 60 54 22 8 46.1 46.1 88
    C-KXH12-04S 1/2 63 55 105

    Locum Tubing O.D
    (mm)     		Exemplar Connection Thread T H
    Latitudo
    Per "
    Flats     		D1 D2 L1 L2 A M
    Min
    Port
    Magnitudo
    Efficax Area
    (mm²)     		Pondus
    (g)
    Nylon Urethane

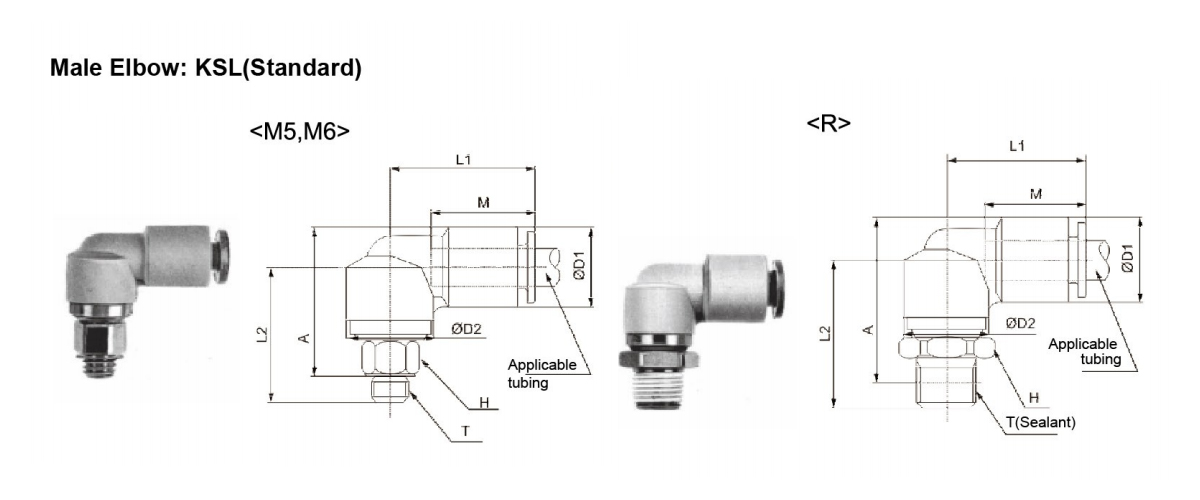

    4 C-KSL04-M5 M5×0.8 8 10.4 12 21 20.5 22 16 2.5 3.5 3.5 9
    C-KSL04-M6 M6×1 21
    C-KSL04-01S 1/8 12 22 23.5 14
    6 C-KSL06-M5 M5×0.8 8 12.8 14 23 21 23.5 17 2.5 3.5 3.5 12
    C-KSL06-M6 M6×1 21.5 24 3 5.0 5.0
    C-KSL06-01S 1/8 14 23 25.5 4 8.6 8.6 17
    C-KSL06-02S 1/4 26 26.5 23
    8 C-KSL08-01S 1/8 17 15.2 17 26 26.5 30 18.5 6 21.6 14.9 23
    C-KSL08-02S 1/4 29.5 31 29
    C-KSL08-03S 318 31 32 38
    10 C-KSL10-02S 1/4 22 18.5 22 21.5 34 37.5 21 7 30.5 25.0 56
    C-KSL10-03S 318 35 38 64
    C-KSL10-04S 1/2 38 39.5 82
    12 C-KSL12-03S 318 24 20.9 24 34 36.5 40.5 22 8 35.1 35.1 76
    C-KSL12-04S 1/2 39.5 42 93

    Locum Tubing O.D
    (mm)     		Exemplar Connection Thread T H
    Latitudo
    Per "
    Flats     		D1 D2 L1 L2 A M
    Min
    Port
    Magnitudo
    Efficax Area
    (mm²)
    Pondus
    (g)
    Nylon Urethane

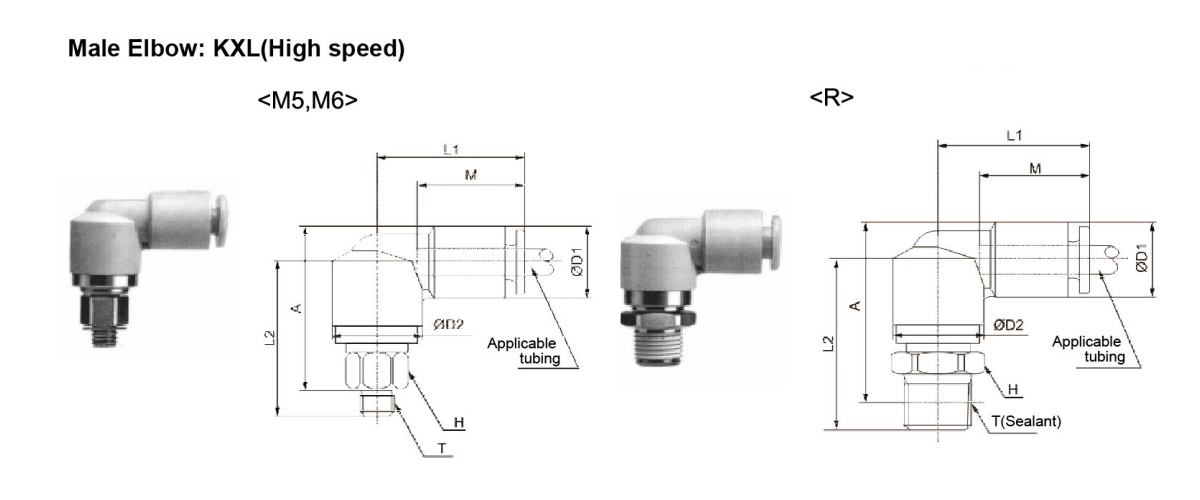

    4 C-KXL04-M5 M5×0.8 8 10.4 13 22 22.5 24 16 2.5 3.5 3.5 11
    C-KXL04-M6 M6×1 23
    C-KXL04-01S 1/8 12 24 25 16
    6 C-KXL06-M5 M5×0.8 8 12.8 15 24 23.5 26 17 2.5 2.5 3.5 15
    C-KXL06-M6 M6×1 24 3 5.0 5.0
    C-KXL06-01S 1/8 14 25 28 4 8.6 8.6 20
    C-KXL06-02S 1/4 28 29 26
    88 C-KXL08-01S 1/8 17 15.2 18 27 29 32 18.5 6 21.6 14.9 28
    C-KXL08-02S 1/4 32 33 34
    C-KXL08-03S 318 33 34 43
    10 C-KXL10-02S 1/4 22 18.5 23.5 32 38 42 21 7 30.5 25.0 39
    C-KXL10-03S 318 39 77
    C-KXL10-05S 1/2 42 43 95
    12 C-KXL12-03S 318 24 20.9 26 35 40 44 22 8 35.1 35.1 89
    C-KXL12-04S 1/2 43 45 105
