MHZ2 Series (Parallel Apertura et Clausula Type) Pneumatica Gripper Fornitores

Home / Products / Air Cylindri / Pneumatica Grippers / MHZ2 Series (Parallel Apertura et Clausula Type) Pneumatica Gripper

MHZ2 Series (Parallel Apertura et Clausula Type) Pneumatica Gripper MHZ2 Series (Parallel Apertura et Clausula Type) Pneumatica Gripper
  • MHZ2 Series (Parallel Apertura et Clausula Type) Pneumatica Gripper
  • MHZ2 Series (Parallel Apertura et Clausula Type) Pneumatica Gripper
Pneumatica Grippers

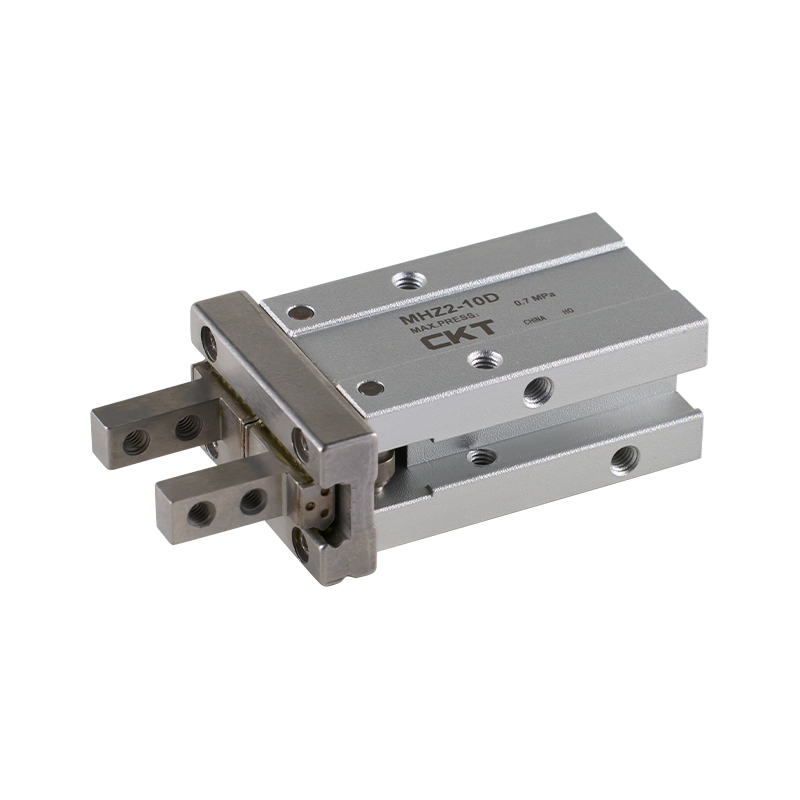

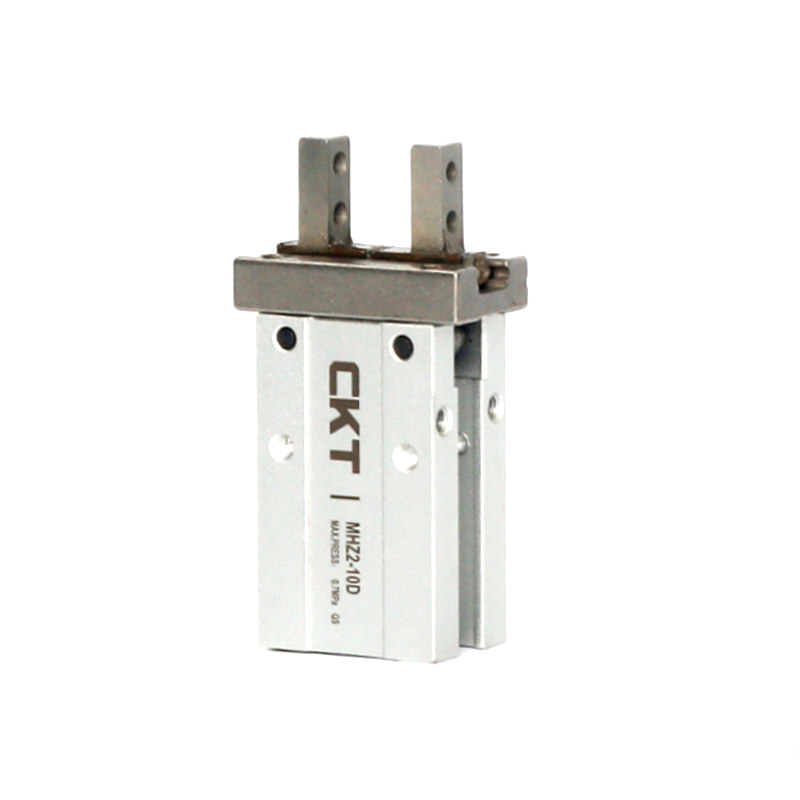

MHZ2 Series (Parallel Apertura et Clausula Type) Pneumatica Gripper

MHZ2 Series (Parallel Aperiens et Clausula Type) Pneumatica Gripper tendit ad stabilitatem et certas actiones parallelas comparandas. Conceptus eius est ad nucleum faciendum et aptabilitatem ad occurrendum postulatis praecisionis comprehensis in nexu automationis executionis.

Core lineamenta:

1. Integrated dux ratio: Mechanismus dux integratus efficit ut actuator sufficientem structuram rigiditatem et actionem accurate in operatione habeat.

2. Dux stabilitatis Consectetur; Auxiliaris positio structurae in fundo rectoris praebetur ad conservandum situm relativum inter clavem partium moventem et principalem structuram, ac fidem diuturnae operationis emendare.

3. Subtilitas positioning perficientur: Consilium sistens optimized sistens constantiam bonam affert, quae adiuvat ut accuratam iuncturam operis efficiat et certitudinem processus clamiationis augeat.

4. Flexibile institutionem et convenientiam: Variam institutionem normae praebet instrumenti ad faciliorem integrationem in variis instrumentorum curriculis seu spatiis circumscriptionibus constrictis.

5. Corporis subsidia moderatio integratur; Corpus preest magneticis partibus, quod praecipuam commoditatem praebet ad integrationem moduli positionem deprehendendi excogitavit.

6. Adaptability inductionis switch: Plures inductionis sunt commutandae institutionis foramina in superficie corporis cylindrici disposita, quae commensurationem spatii praebet ad extensionem deprehensionis artificii ad accommodandam ad diversa signa collectionis requisita.

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：MHC2 Series (Fulcrum Aperiens et Clausula Type) Pneumatica Gripper
SUCCESSIVO：Nessun articolo successivo
  • Diameter cylindricus
    mm     		6 10 16 20 25 32 40
    Utere fluida Air
    Operans pressura
    range (MPa)     		Duplex agens 0.15~0.7 0.2~0.7 0.1~0.7 0.1~0.7
    Unius agendi 0.3~0.7 0.35~0.7 0.25~0.7 0.25~0.7
    Liquor temperatus ad usum environmental -10~60℃
    Repetitio (mm) ±0.01 ±0.02
    Maximam frequentiam operating (c.p.m) 180 (series est MHZL2 120); 60
    Oleum copia Non requiratur
    Modus operating Duplex agens · Single-acting
    Magnetic switch (libitum) Transitus magneticus non-contactus (MHZA2, MHZAJ2 sine switch magnetica)
    Connection diameter M3×0.5 M5×0.8

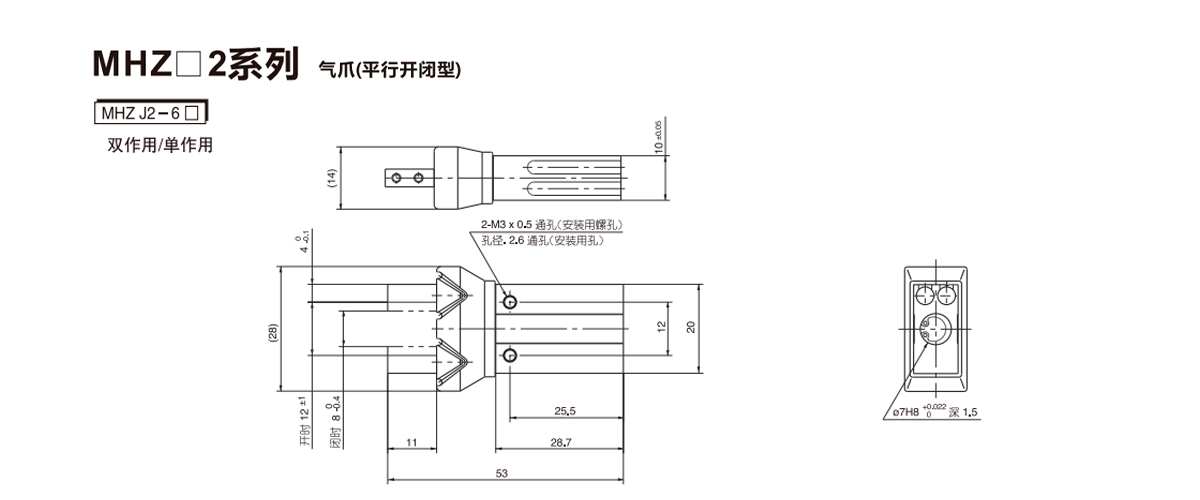

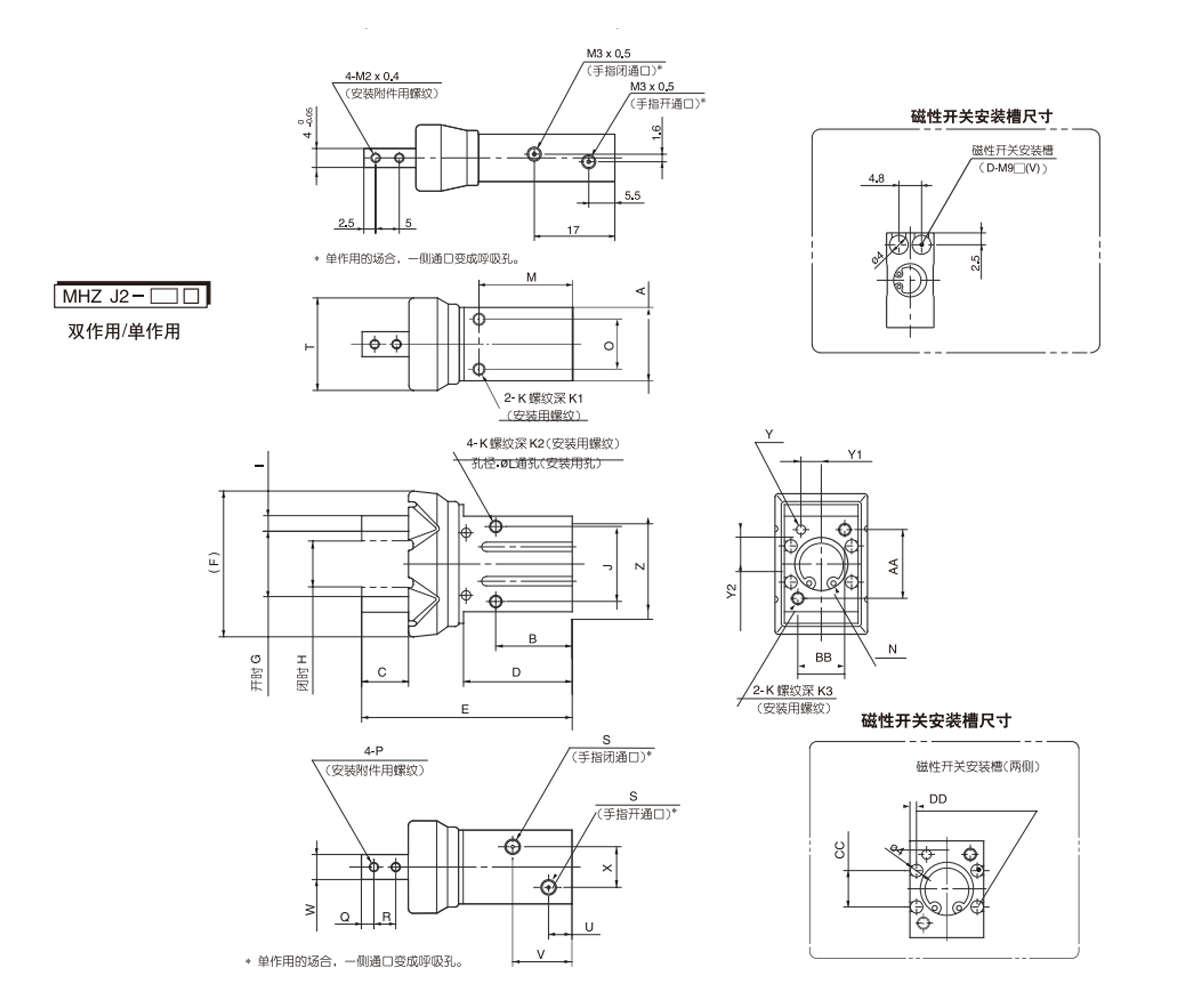

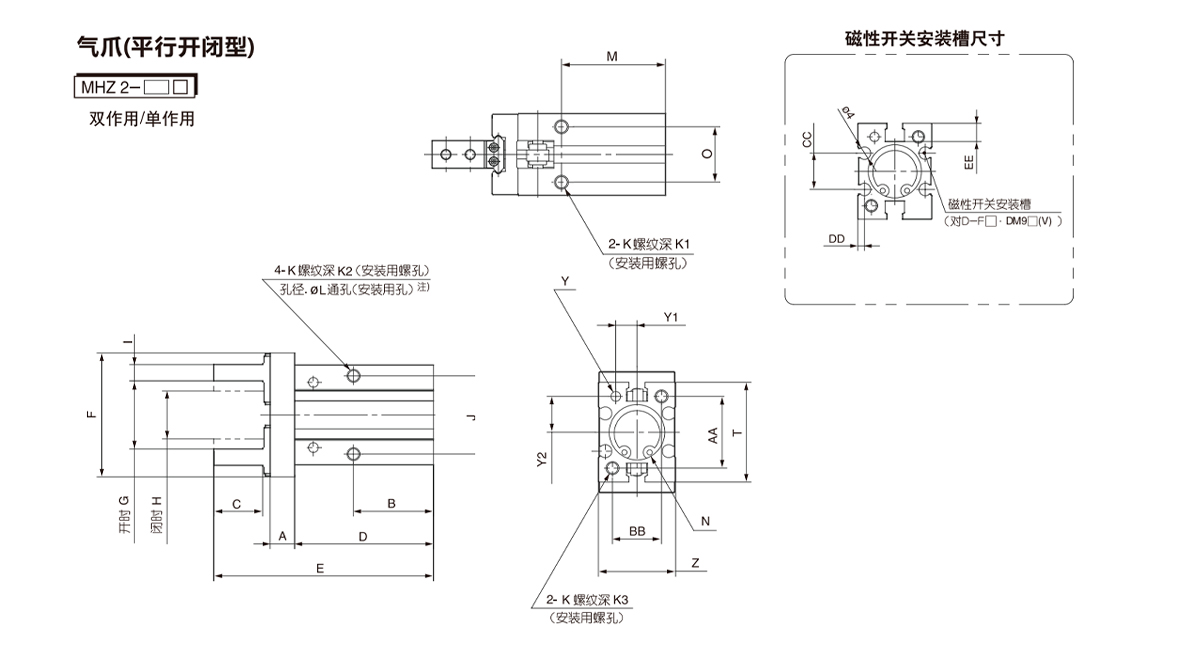

  • Model
    (mm)     		A B C D E F G H I J K K1 K2 K3 L M N 0 P Q R S
    10 6 23 12 37.8 57 29 15.2 11.2 4 16 M3×0.5 6 5.5 6 26 27 Ø11H9 Gurgite 2 11.4 M2.5×0.45 3 5.7 M3×0.5
    16 7.5 24.5 15 42.5 67.3 38 20.9 14.9 5 24 M4×0.7 4.5 8 8 3.4 30 17H9 Deep2 16 M3×0.5 4 7 M5×0.8
    20 9.5 29 20 52.8 84.8 50 26.3 16.3 8 30 M5×0.8 8 10 10 4.3 35 021H9 Deep3 18.6 M4×0.7 5 9 M5×0.8
    25 11 30 25 63.6 102.7 63 33.3 19.3 10 36 M6×1 10 12 12 5.1 36.5 026H9 Deep3.5 22 M5×0.8 6 12 M5×0.8
    32 12 40(49) 29 67(76) CXIII (122). 97 48 26 12 46 M6×1 10 13 13 5.1 48(57) 034H9 Deep4 26 M6×1 7 14 M5×0.8
    40 15 49(62) 36 83(96) 139 (152). 119 60 30 14 56 M8×1.25 13 16 17 6.6 58(71) 042H9 Deep4 32 M8×1.25 9 17 M5×0.8

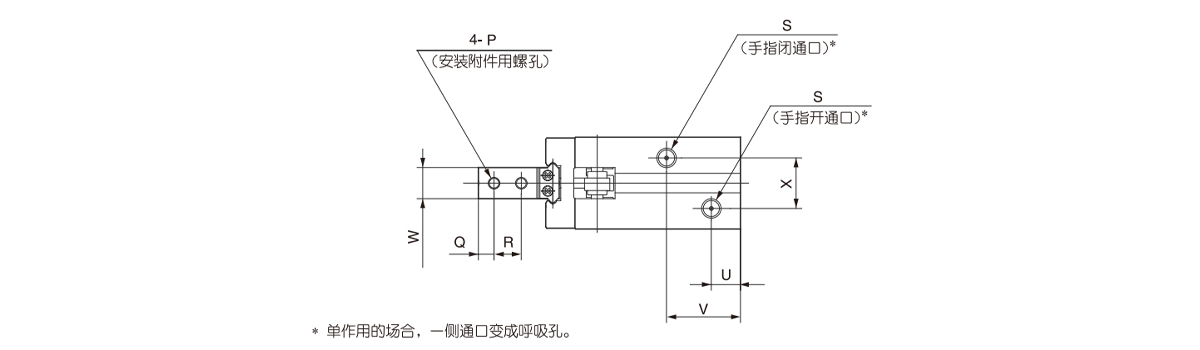

    Model
    (mm)     		T U V W X Y Z Y1 Y2 AA BB CC DD EE
    10 23 9 19 5 11 2H9 Deep3 16.4±0.05 5.2±0.02 7.6±0.02 18 12 5.4
    16 30.6 7.5 19 8 13 3H9 Deep3 23.6±0.05 6.5±0.02 11±0.02 22 15 11.6 2.1 5.8
    20 42 10 23 10 15 Ø4H9 Deep4 27.6±0.05 7.5±0.02 16.8±0.02 32 18 14 2.1 9
    25 52 10.7 23.5 12 20 Ø4H9 Deep4 33.6±0.05 10±0.02 21.8±0.02 40 22 19 3.5 11.5
    32 60 11 31(37) 15 24 5H9 Deep5 40±0.1 12±0.02 23±0.02 46 26 24 3.3 11.5
    40 72 12 38(45) 18 28 5H9 Deep5 48±0.1 14±0.02 29±0.02 56 32 29.4 3.7 13

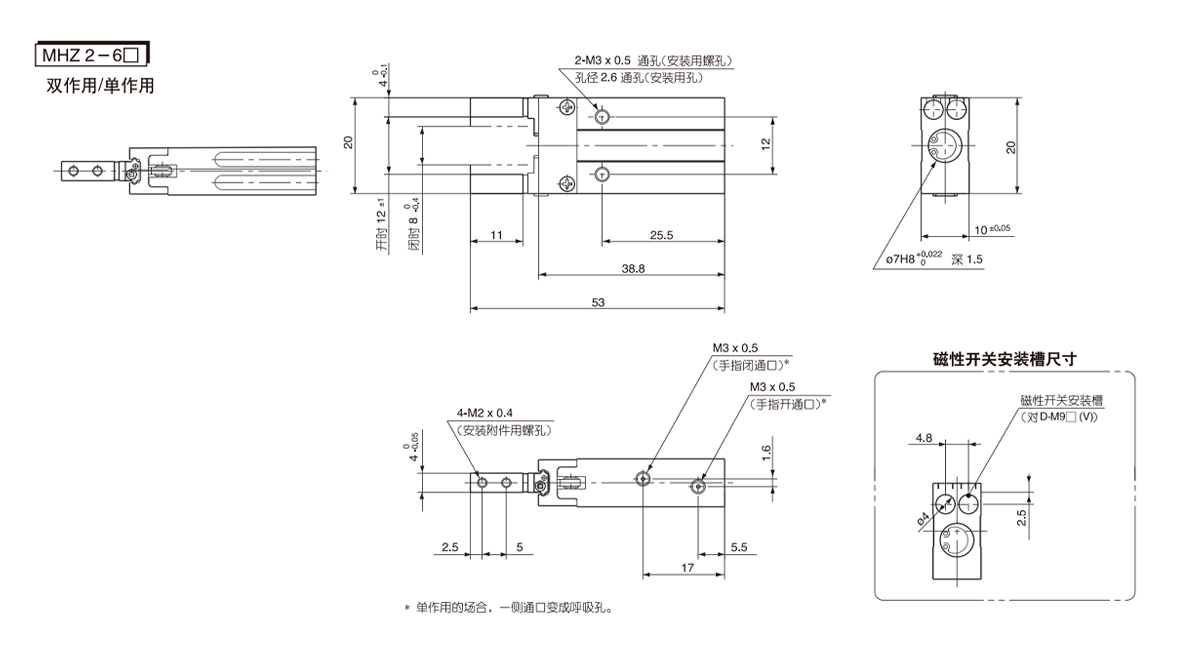

    Diameter cylindricus
    mm     		A B C D E F G H I J K K1 K2 K3 L M N 0 P Q R * S T U v W x Y Y1 Y2 Z AA BB CC DD
    10 16.4±0.05 23 2 31 57 34 15.2 11.2 4 16 M3×0.5 6 5.5 6: 2.6 27 11H9 Deep2 11.4 M2.5x4.5 3 5.7 M3×0.5 21 7 19 5 11 2H9 Deep3 5.2±0.02 7.6±0.02 23 18 12 - 2.5
    16 23.6±0.05 24.5 15 34.8 67.3 45 20.9 14.7 5 24 M4×0.7 4.5 8 8 3.4 30 17H9 Deep2 16 M3×0.5 4 7 M5×0.8 29.6 7.5 19 8 13 3H9 Deep3 6.5±0.02 11±0.02 30.6 22 15 11.6 2
    20 27.6±0.05 29 20 43.5 84.8 58 26.3 16.3 8 30 M5×0.8 8 10 10 4.3 35 Ø21H9 Deep3 18.6 M4×0.7 5 9 M5×0.8 34.5 8.5 23 10 15 Ø4H9 Deep4 7.5±0.02 16.8±0.02 42 32 18 14 2
    25 33.6±0.05 30 25 53 102.7 73 33.3 19.3 10 36 M6×1 10 12 2 5.1 36.5 Ø26H9 Deep3.5 22 M5×0.8 6 12 M5×0.8 42 9 24 12 20 Ø4H9 Deep4 10±0.02 21.8±0.02 52 40 22 19 3.5
