MK Series Gyratoris Clamp Cylindri
  • MK Series Gyratoris Clamp Cylindri
Gyratorius Cylindrus

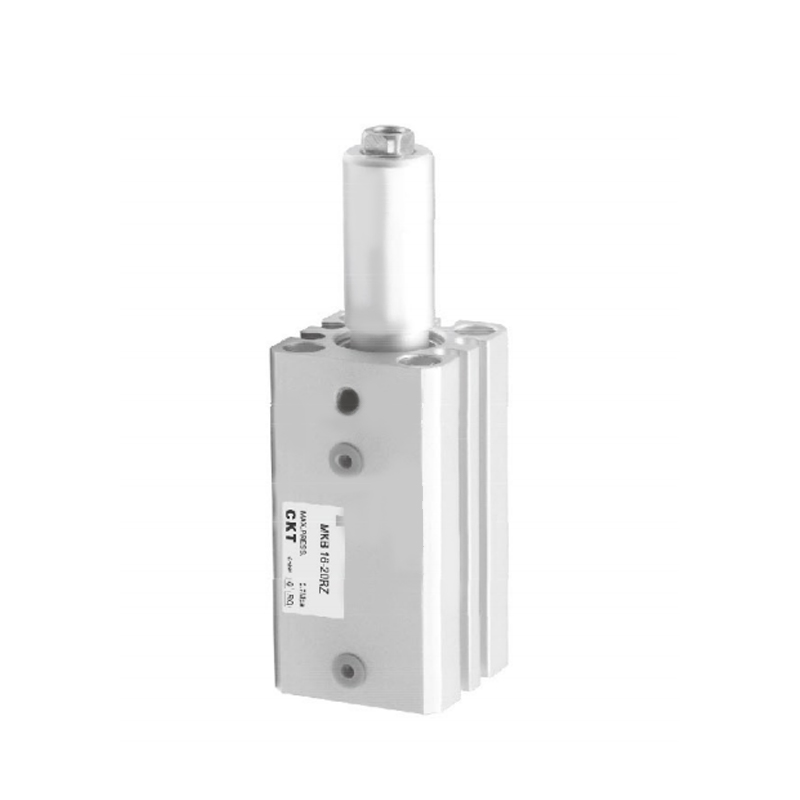

MK Series Gyratoris Clamp Cylindri

MK Series gyratorius Fibulae Cylindri est actus pneumaticus compositus cum gyratorio integrata et functiones clampinges radiales. Integratum consilium suum gyrationis fabricam obtinet positionis ac rigidi obfirmatis synchrone per unum cylindrum, signanter optimizing complexionem systematis mechanici.

Core lineamenta:
-Dual opus compositum compages

Timor nexus actionum rotationis et clammationis per ambitum aeris impletur, sine necessitate mechanismi transmissionis addito, removendo coordinationem errorum plurium actuatorum.

Space salutaris commodi

Gyratio axis et maxillae fibulationes coaxially dispositae sunt, reducendo spatium institutionis axialis plus quam 40% cum solutione scissurae comparatae.

High rigor densis

Vis expansionis mechanismi cuneata vim mechanicam sui ob- densis in fine positionis effectum producit, et vis clamping ambigua manet ab aere fonte ambigua.

Late-range adaptability

Instrumenti modularis compatitur cum ISO vexillo baseplatis escendentibus et sustinet nativus sonorum ictuum sonorum et rotationis angulum (90°/180°)

Long-terminus cione praesidio

Pars dux duplicem labrum lapsum resistentem anulum obsignatum assumit, et pulvis interior integratus rasurae structurae apta est ad incisionem olei caliginem ambitus .

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：Nessun articolo precedente
SUCCESSIVO：Nessun articolo successivo
  • Bore Size (mm) 12 16 20 25 32 40 50 63
    Liquor Air
    Actio Duplex agens
    Max Operating Pressura 1MPa
    Min Operating Pressura 0.1MPa
    Ambiens & Fluid Temperature Cum auto switch: -10 ~ 60℃ Sine auto switch: -10 ~ 70℃
    Piston Volo 50～200 mm/s
    Pulvinar Flexilis bumper
    Longitudo tolerantia plaga (mm) 0.6
    -0.4
    *Lubrication Non requiratur
    Gyratorius Anglus 90°±10°
    Gyratorius Directio Clockwise · Counterclockwise
    Gyratorius Stroke (mm) 7.5 9.5 15 19
    Plaga fibula (mm) 10 ·20 20 ·50
    Licet inclinatio Momentum (M · m) 1 3.8 7 13 27 47 107 182
    ** Theoretical Fibulae Force (N) 40 7.5 100 185 300 525 825 1400
    Non revolventis Sagaciter (fibulatis parte) ±14° ±1.2° ±0.9° ±0.7°
    Limbis Portus M5×0.8 Rc¹/8 Rc¹/4
    * Quaeso utere ISOVG32 si lubrica uti voles.
    * * In pressura 0.5MPa.

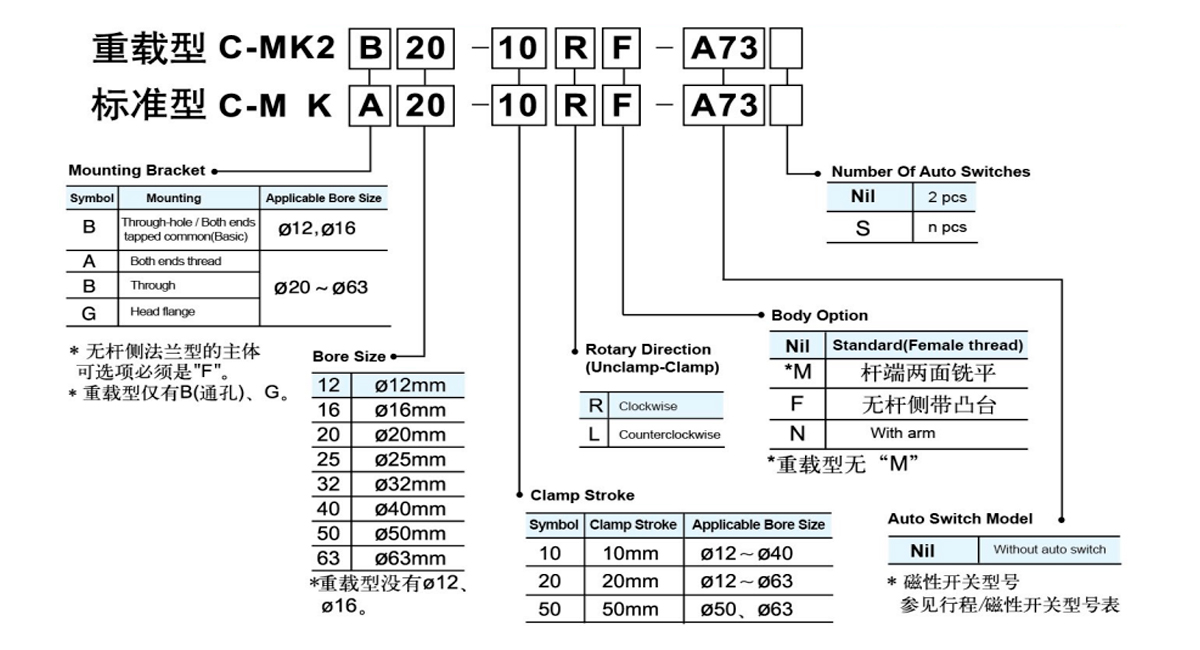

  • Ictum   /Auto                 Exemplar
    Lorem
    Bore Size
    (mm)     		* Auto Switch Model
    Basic Type
    In-linea 12,Ø16
    32~063     		M9NV M9NAV** A96V
    M9PV M9PAV** A93V
    M9BV M9BAV** A90V
    M9NWV
    M9PWV
    M9BWV
    Perpend-
    icular     		20~063 M9N M9NA** A96
    M9P M9PA** A93
    M9B M9BA** A90
    M9NW
    P3DW
    M9PW
    M9BW
    Filum longitudo signans: - 0,5 m, L - 3 m, Z - 5 m
    Exemplum: A73, A73L

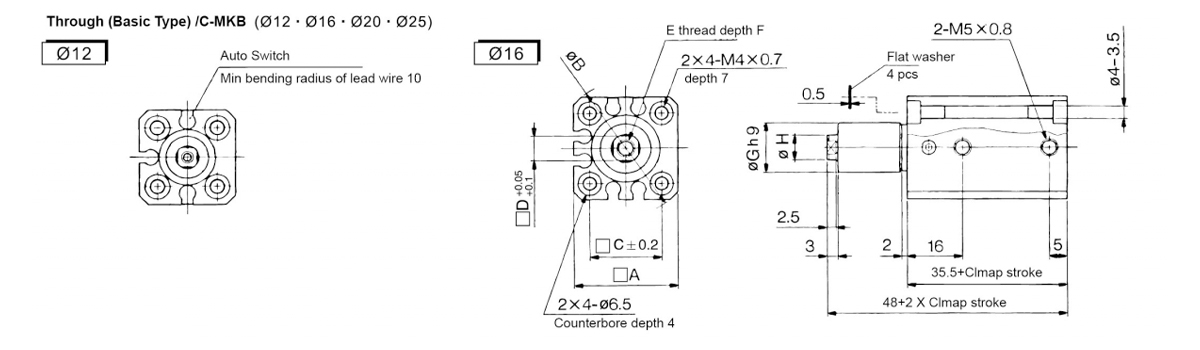

  • Basic
    Model A B C D E F Gh9 H
    C-MKB12 25 32 15.5 5 M3×0.5 5.5 11 6
    C-MKB16 29 38 20 7 M5×0.8 6.5 14 8

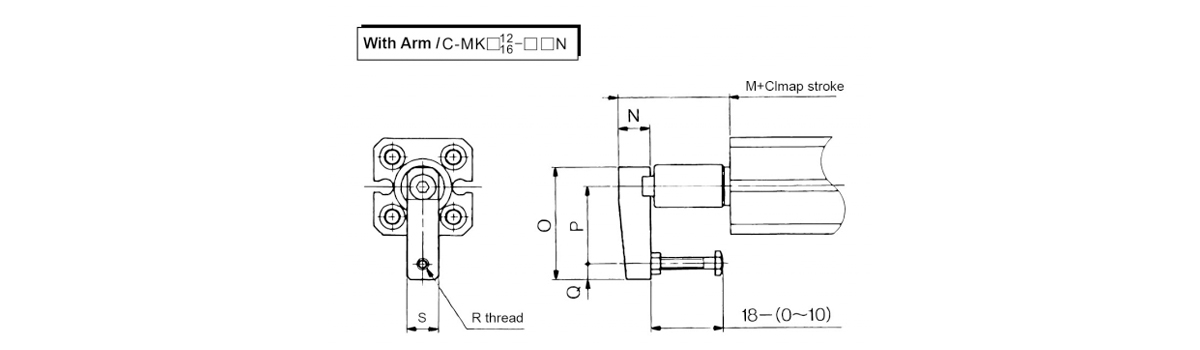

    cum Arm
    Model M N O P Q R S
    C-MKB12-□□N 18.5 8 29 20 4 M3×0.5 8
    C-MKB16-□□N 21.5 11 36 25 5 M4×0.7 11

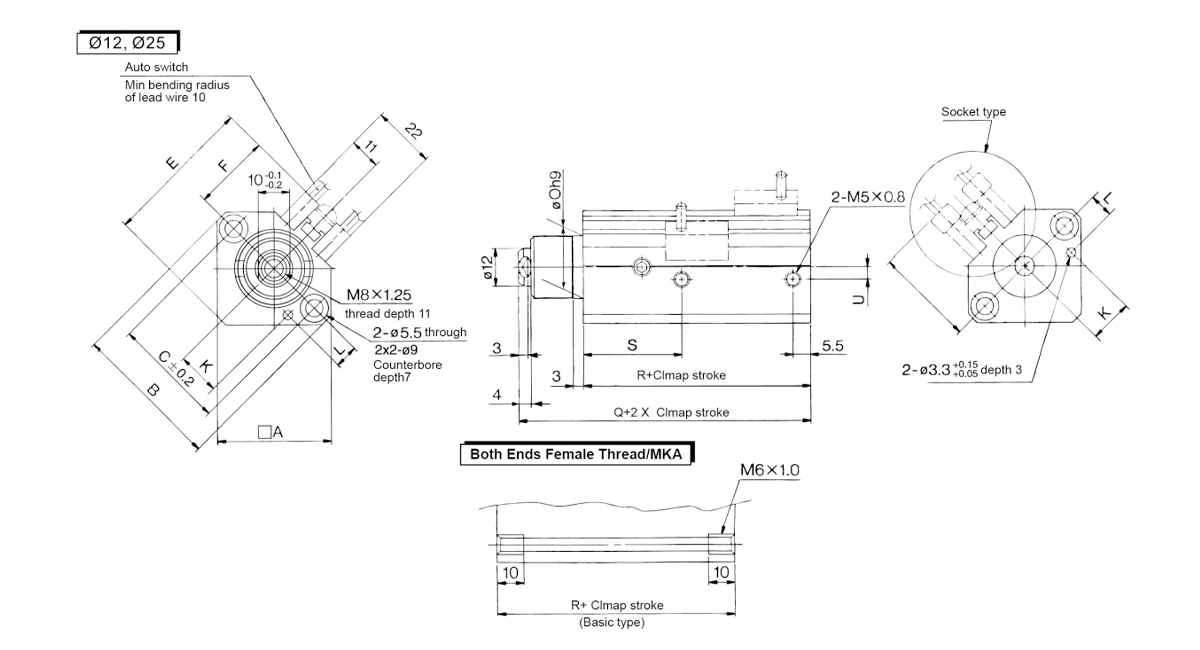

    Model A B C E F K L Oh9 Q R S U
    C-MKB20 36 46.8 36 48 24.5 13.5=0.15 7.5±0.15 20-8.052 72.5 62 31 4
    C-MKB25 40 52 40 53.8 27.5 16±0.15 8±0.15 238052 73.5 63 32 5
    Nota 1) dimensiones superiores in D-A73L transitum magneticum innituntur.
    Nota 2) Cum anconarius plene extenditur, ictum fibulationis adde et ictum ad debitas mensuras recurrit.

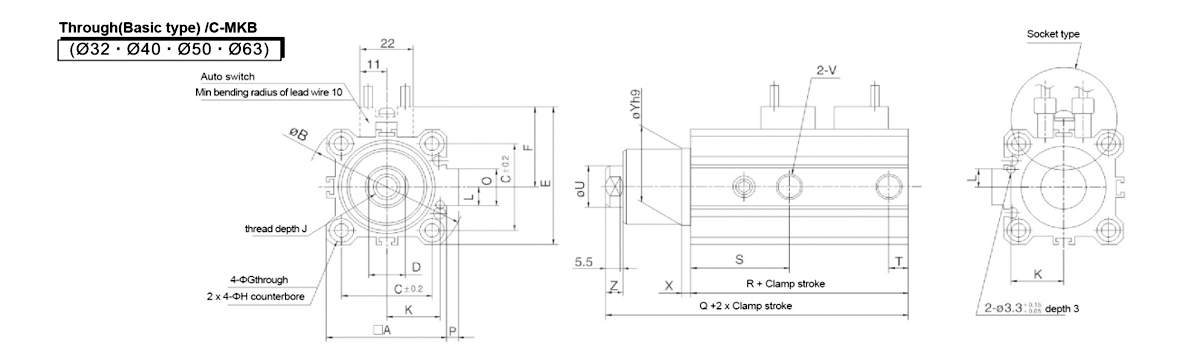

    Model A B C D E F G H I J K L O P Q R S T U V X Yh9 Z
    C-MKB32 45 60 34 14 -0.1 54 31.5 5.5 9 altum 7 M10×1.5 12 20±0.15 7±0.15 14 4.5 93.5 71.5 37 7.5 16 Rc1/8 3 30 0 6.5
    -0.2 -0.062
    C-MKB40 52 69 40 14 -0.1 61 35 5.5 9 altum 7 M10×1.5 12 24±0.15 7±0.15 14 5 94.5 65 29.5 8 16 Rc1/8 3 30 0 6.5
    -0.2 -0.062
    C-MKB50 64 86 50 17 -0.1 73 41 6.6 11 altum 8 M12×1.75 15 30±0.15 8±0.15 19 7 112 76.5 34 10.5 20 Rc1/4 3.5 37 0 7.5
    -0.2 -0.062
    C-MKB63 77 103 17 -0.1 86 47.5 9 14 altum 10.5l M12×1.75 15 35±0.15 9±0.15 19 7 115 80 35 10.5 20 Rc1/4 3.5 48 0 7.5
    60 -0.2 -0.062

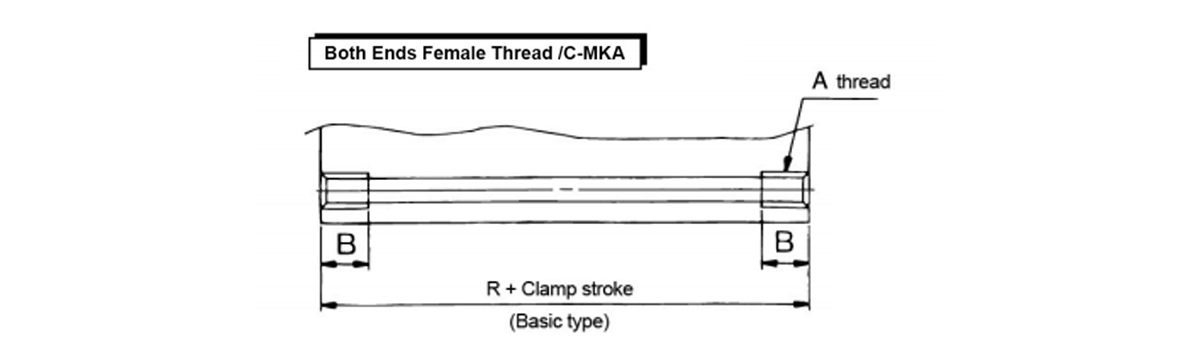

    Model A B
    C-MKA32 M6×1.0 10
    C-MKA40 M6×1.0 10
    C-MKA50 M8×1.25 14
    C-MKA63 M10×1.5 18

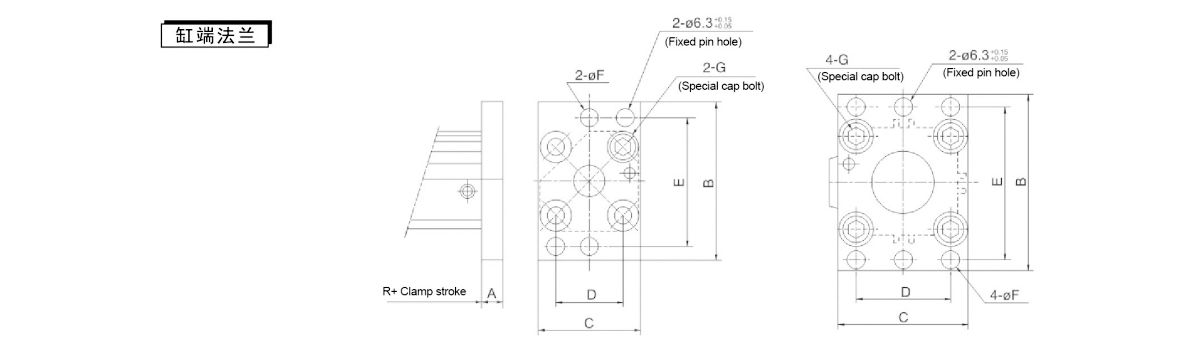

    Finis cylindrici LABIUM
    Components Lorem
    Bore Size     		A B C D E F G
    C-MK-F020 20 8 60 39 25.5 48 6.6 M6×1.0
    C-MK-F025 25 8 64 42 28 52 6.6 M6×1.0
    C-MK-F032 32 8 65 48 34 56 5.5 M6×1.0
    C-MK-F040 40 8 72 54 40 62 5.5 M6×1.0
    C-MK-F050 50 9 89 67 50 76 6.6 M8×1.25
    C-MK-F063 63 9 8 80 60 92 9 M10×1.5
    Nota: Cum LABIUM inaugurari, cave eligere cylindricum latus cylindricum velamentum institutionis speciei: C-MK□□-□□F.

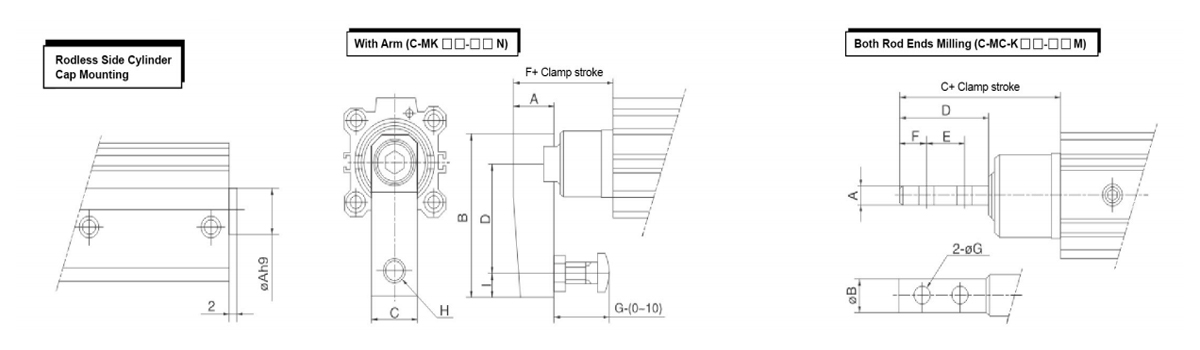

    Rodless Side Cylinder Cap Adscendens cum Arm Et Rod desinit Milling
    Model A B C D F G H I Model A B C D E F G
    Model Ah9 C-MKD20-□ON 14 51 16 35 22 22 M6×1.0 7 C-MKD20-□□M 4 10 42.5 34 17 8.5 5.2
    C-MK□20-□□F 13 C-MKD25-□ON 14 51 16 35 22 22 M6×1.0 7 C-MK□25-□□M 4 10 42.5 34 17 8.5 5.2
    C-MK□25-□□F 15 C-MKD32-□□N 18 67 20 45 35.5 25 M8×1.25 10 C-MK□32-□□M 6 14 53.5 36 18 9 6.2
    C-MK□32-□□F 21 C-MKD40-□□N 18 67 20 45 43 25 M8×1.25 10 C-MK□40-□□M 6 14 61 36 18 9 6.2
    C-MK□40-□□F 28 C-MK□50-□ON 22 88 22 65 53 40 M10×1.5 10 C-MK□50-□□M 8 18 77 46 23 11.5 8.2
    C-MK□9-□□F 35 C-MKD63-□□N 22 88 22 65 52.5 40 M10×1.5 10 C-MKD63-□□M 8 18 76.5 46 23 11.5 8.2
