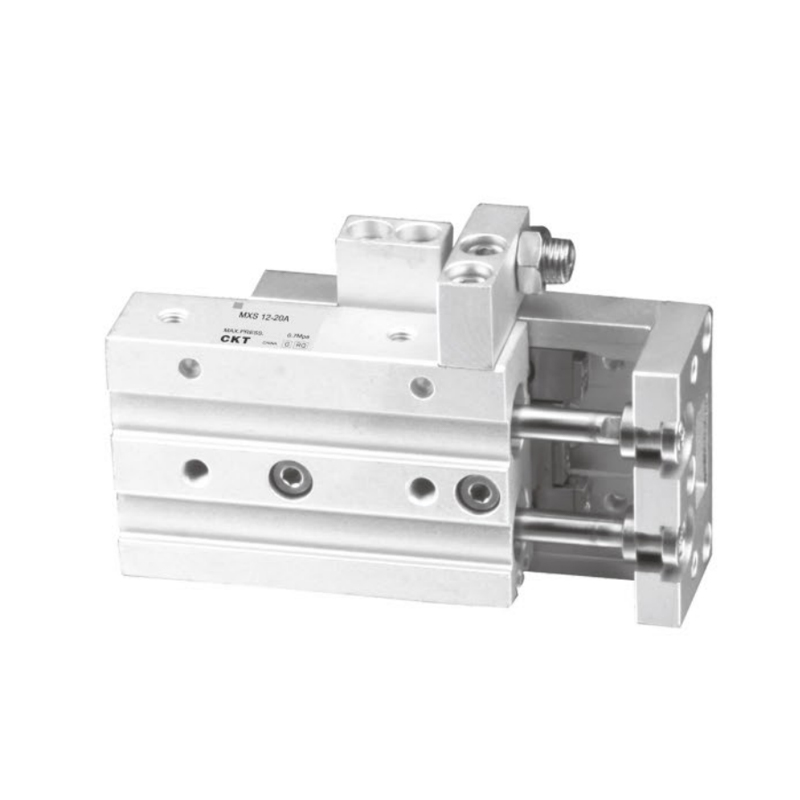

MXS Series Slide Cylinder (Cross Roller Guide) Dual Cylinder Type Fornitores

Home / Products / Air Cylindri / Slide Cylindrus / MXS Series Slide Cylinder (Cross Roller Guide) Dual Cylinder Type

MXS Series Slide Cylinder (Cross Roller Guide) Dual Cylinder Type MXS Series Slide Cylinder (Cross Roller Guide) Dual Cylinder Type
  • MXS Series Slide Cylinder (Cross Roller Guide) Dual Cylinder Type
  • MXS Series Slide Cylinder (Cross Roller Guide) Dual Cylinder Type
Slide Cylindrus

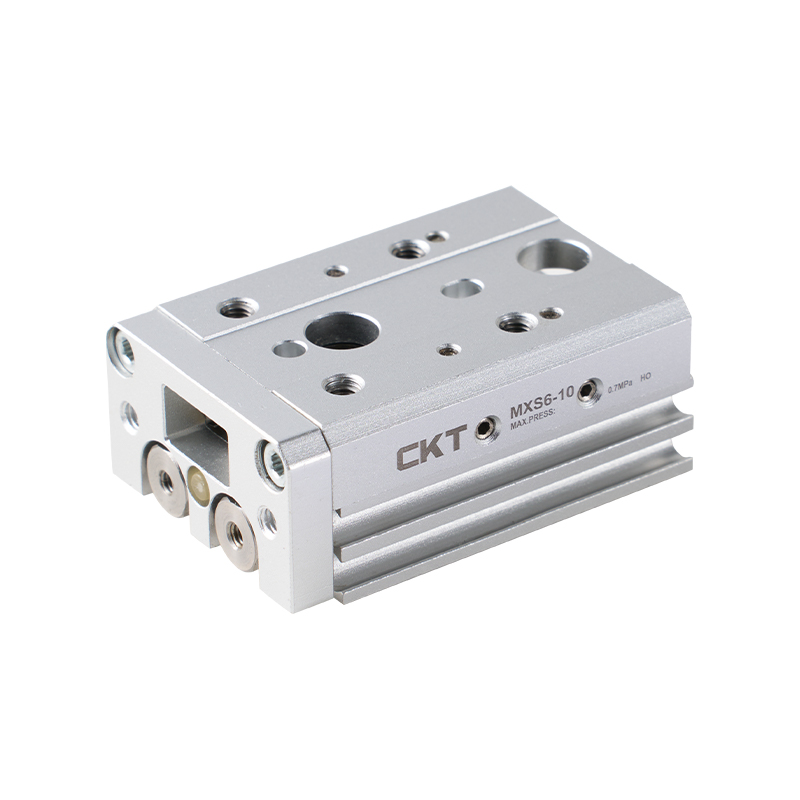

MXS Series Slide Cylinder (Cross Roller Guide) Dual Cylinder Type

1. Libitum cum apta plaga fabrica (0-5mm);
2. Cylindrus duplicatus designans, 2 vicibus vi output, volumen tenue;
3. Columpna et opificina coniunguntur ad magnitudinem altiorem reducendam;
4. Crux cylindro duce consilio adhibita est, attritio parva, non est rima inter cylindrum et opificinae, ad praecisionem conventus apta;
5. Ex tribus partibus constitui potest;
6. Inaedificata anuli magnetici generis, magnetica switch institui potest.

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：MXQ Series Slide Cylinder (Circulating Guide Linear) Double Cylinder Type (Ø6~Ø25)
SUCCESSIVO：Nessun articolo successivo
  • Specification
    Model C-MXS   6 C-MXS   8 C-MXS   12 C-MXS    16 C-MXS    20 C-MXS    25
    Bore Size mm) 6x2
    (Aequalis -8)     		8x2
    (Aequalis XI)     		12x2
    (Aequalis -17)     		Ø16x2
    (Aequalis -22)     		20x2
    (Aequalis -28)     		Ø25x2
    (Aequalis -35)
    Liquor Air
    Actio Duplex agens
    Max.Sorking Pressura 07MPa
    Min.Working Pressura 0.15MPa
    Temperature -10～ 60℃(Nulla congelatio)
    Piston Volo 50～500 mm/s
    Pulvinar Flexilis bumper (vexillum))
    Lubricatio Non requiratur
    Connection Diameter M3×0.5 M5×0.8 Rc 1/8
    * Quaeso, utere ISOVG32   si vis   utere   lubricatione.

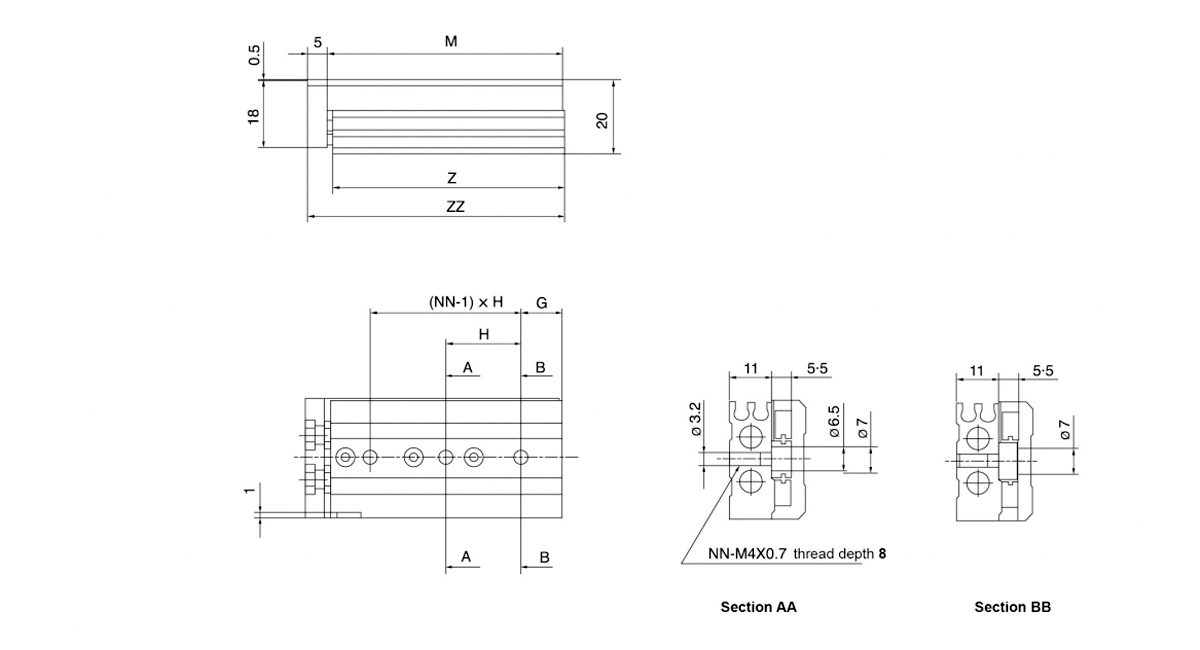

  • Model F N G H NN 1 J K M Z ZZ

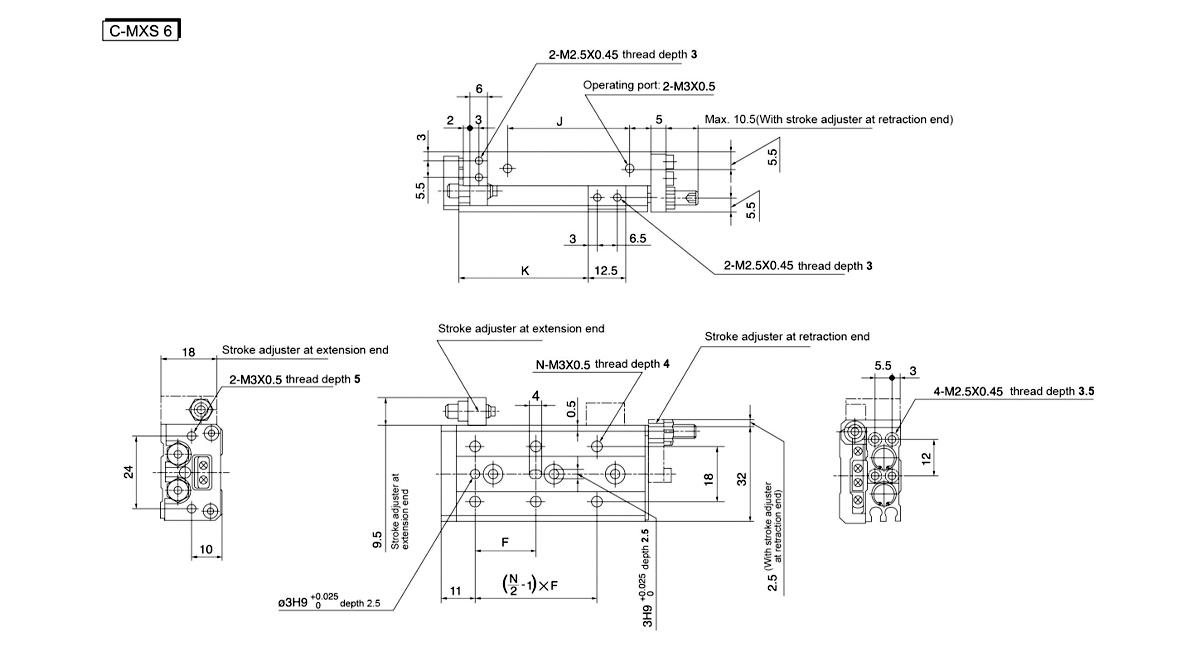

    C-MXS6-10 20 4 6 25 2 10 17 22.5 42 41.5 48
    C-MXS6-20 30 4 6 35 2 10 27 32.5 52 51.5 58
    C-MXS6-30 20 6 11 20 3 7 40 42.5 62 61.5 68
    C-MXS6-40 28 6 13 30 3 19 50 52.5 84 83.5 90
    C-MXS6-50 38 6 17 24 4 25 60 62.5 100 99.5 106

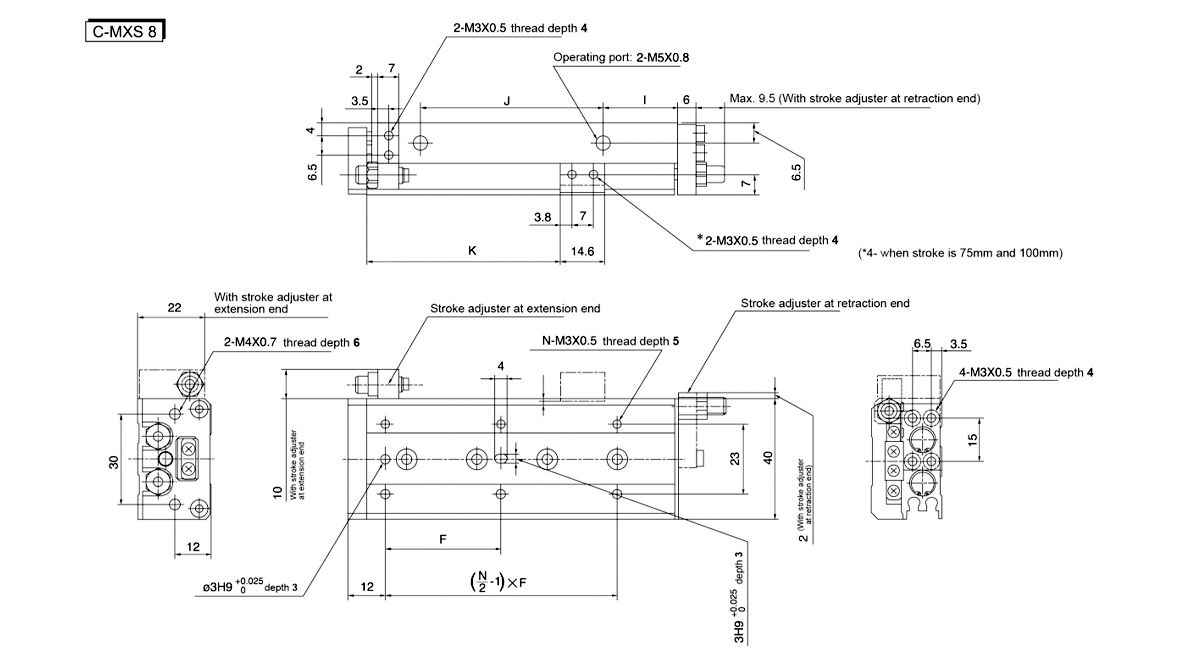

    Model F N G H NN I J K M Z ZZ

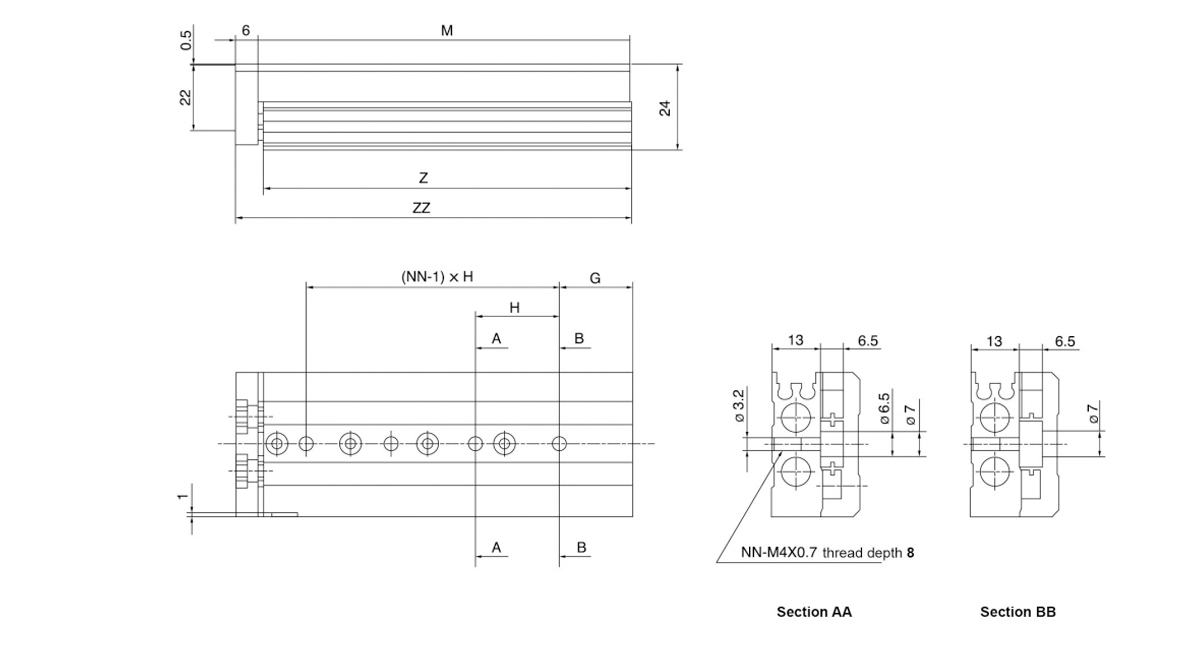

    C-MXS8-10 25 4 9 28 2 13 19.5 23.5 49 48.5 56
    C-MXS8-20 25 4 12 30 2 8.5 29 33.5 54 53.5 61
    C-MXS8-30 40 4 13 20 3 9.5 39 43.5 65 64.5 72
    C-MXS8-40 50 4 15 28 3 10.5 56 53.5 83 82.5 90
    C-MXS8-50 38 6 20 23 4 24.5 60 63.5 101 100.5 108
    C-MXS8-75 50 6 27 28 5 38.5 96 88.5 151 150.5 158

    Model F N G H NN 1 J K M Z ZZ

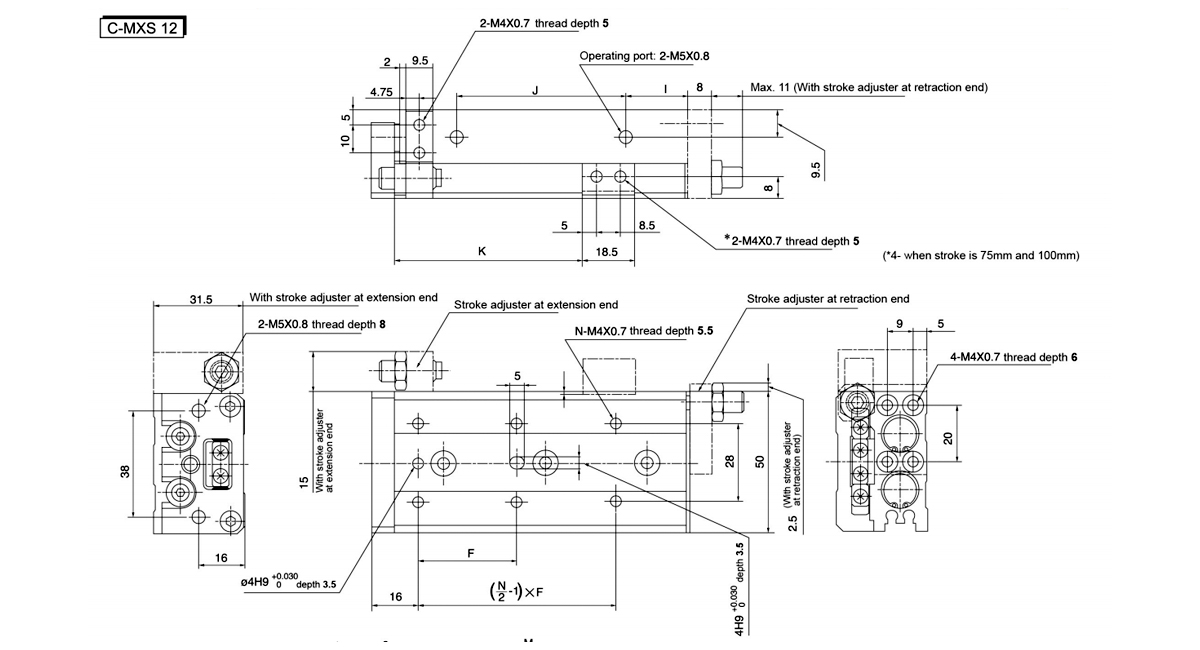

    C-MXS12-10 35 4 15 40 2 10 40 26.5 71 70 80
    C-MXS12-20 35 4 15 40 2 10 40 36.5 71 70 80
    C-MXS12-30 35 4 15 40 2 10 40 46.5 71 70 80
    C-MXS12-40 50 4 17 25 3 10 52 56.5 83 82 92
    C-MXS12-50 35 6 15 36 3 22 60 66.5 103 102 112
    C-MXS12-75 55 6 25 36 4 43 85 91.5 149 148 158
    C-MXS12-100 65 6 35 38 5 52 130 116.5 203 202 212

    Model F N G H NN 1 J K M Z ZZ

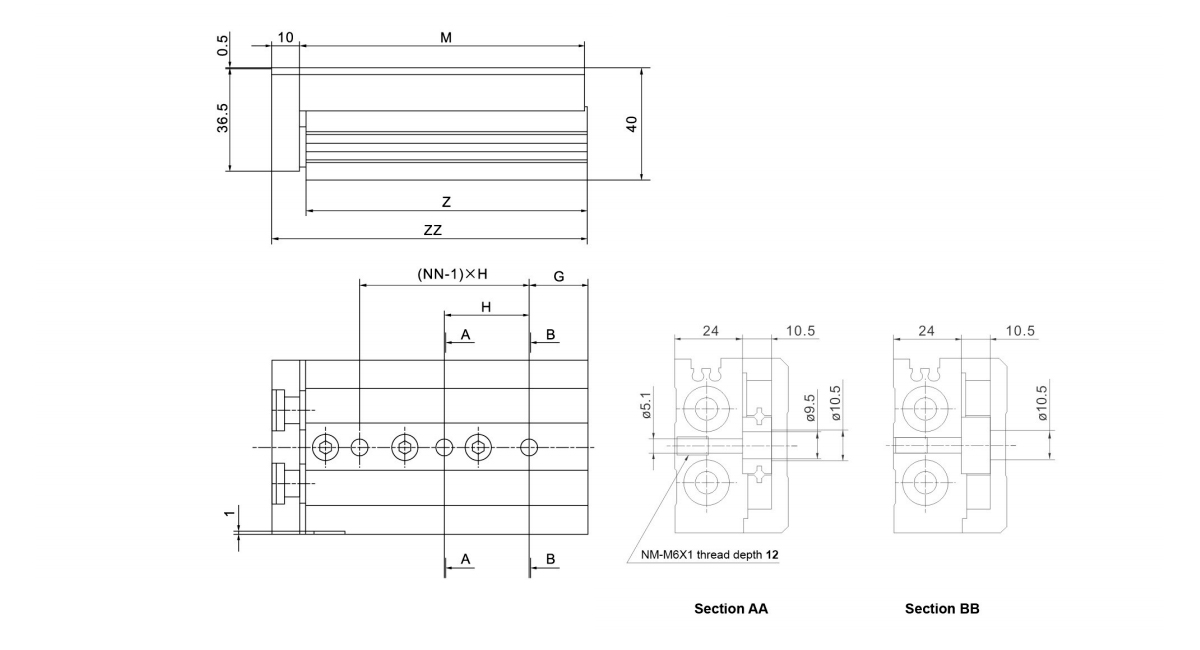

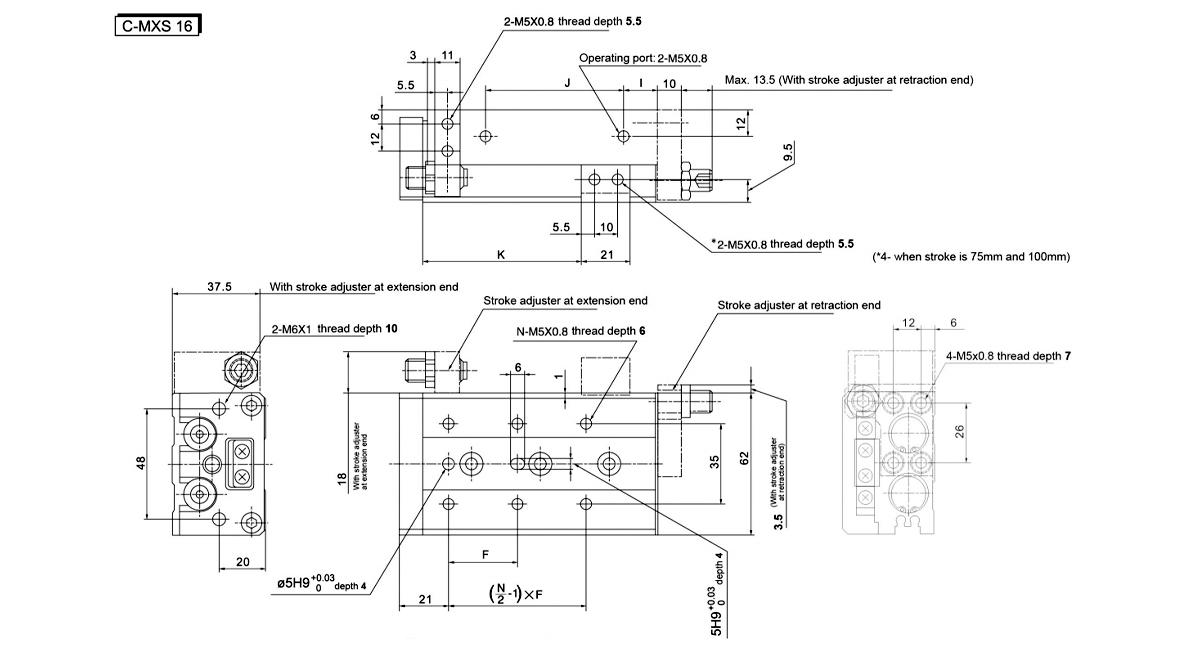

    C-MXS16-10 35 4 16 40 2 10 40 29 76 75 87
    C-MXS16-20 35 4 16 40 2 10 40 39 76 75 87
    C-MXS16-30 35 4 16 40 2 10 40 49 76 75 87
    C-MXS16-40 40 4 16 50 2 10 50 59 86 85 97
    C-MXS16-50 30 6 21 30 3 15 60 69 101 100 112
    C-MXS16-75 55 6 26 35 4 40 85 94 151 150 162
    C-MXS16-100 65 6 39 35 5 55 118 119 199 198 210
    C-MXS16-125 70 8 19 35 7 68 155 144 249 248 260

    Model F FF N G H NN - J K M Z ZZ

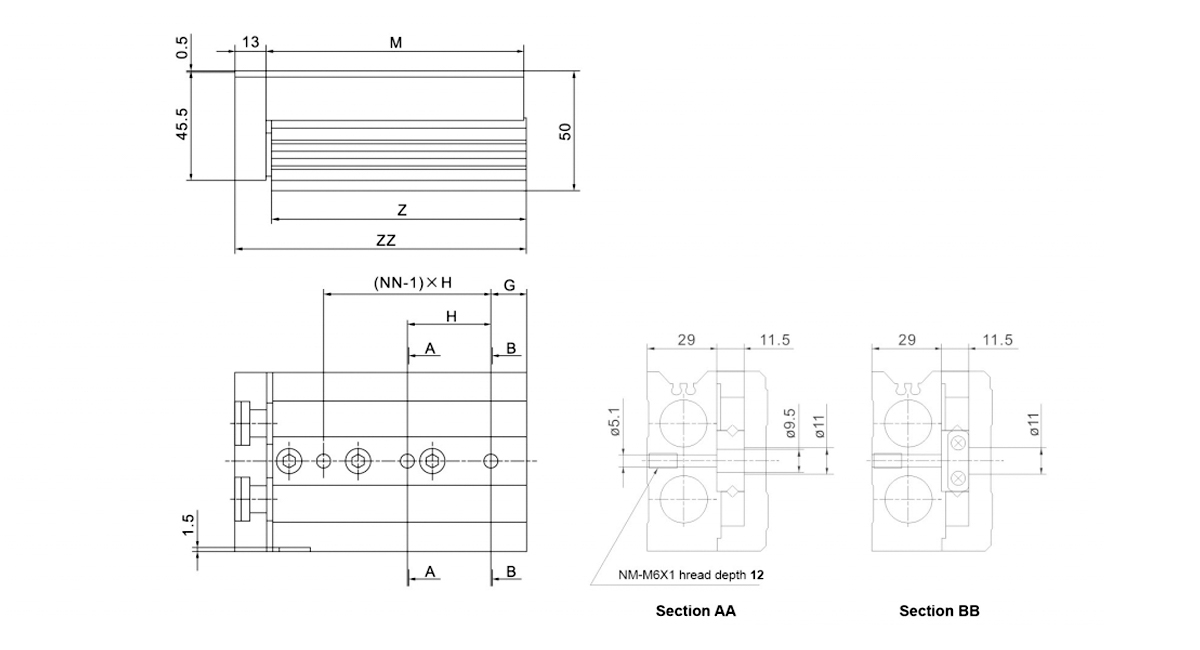

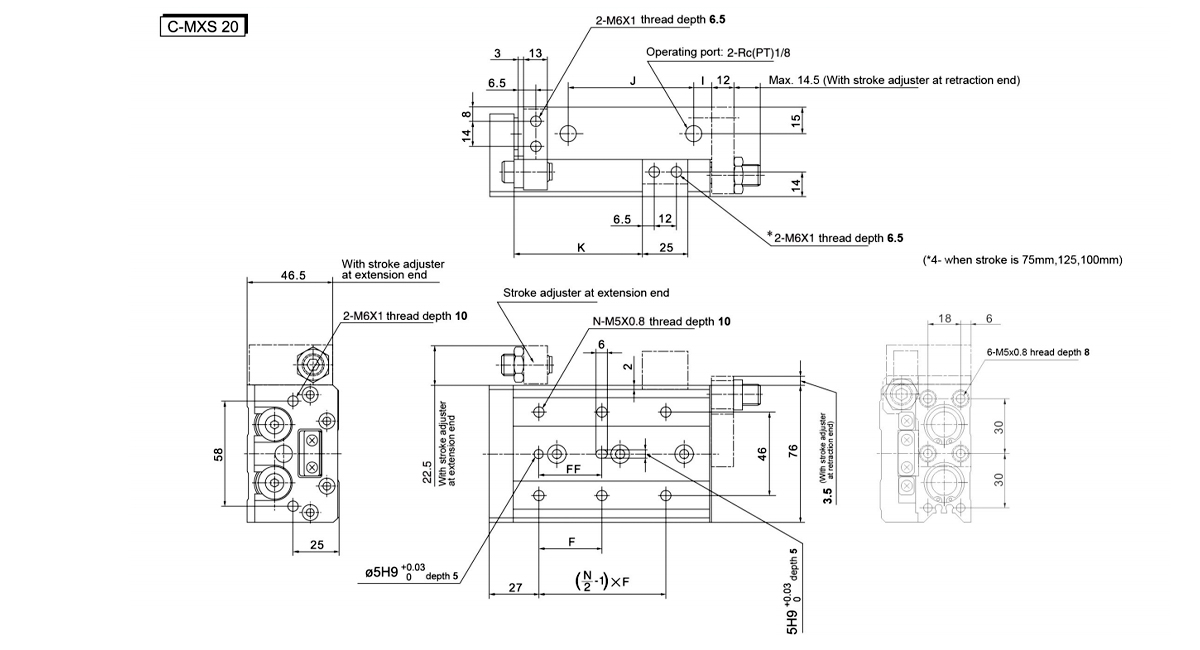

    C-MXS20-10 50 40 4 15 45 2 10 44 31 83 81.5 97
    C-MXS20-20 50 40 4 15 45 2 10 44 41 83 81.5 97
    C-MXS20-30 50 40 4 15 45 2 10 44 51 83 81.5 97
    C-MXS20-40 60 50 4 15 55 2 10 54 61 93 91.5 107
    C-MXS20-50 35 35 6 15 35 3 10 69 71 108 106.5 122
    C-MXS20-75 60 60 6 19 35 4 10 108 96 147 145.5 161
    C-MXS20-100 70 70 6 37 35 5 58 113 121 200 198.5 214
    C-MXS20-125 70 70 8 41 38 6 70 155 146 254 252.5 268
    C-MXS20-150 80 80 8 19 44 7 87 190 171 306 304.5 320

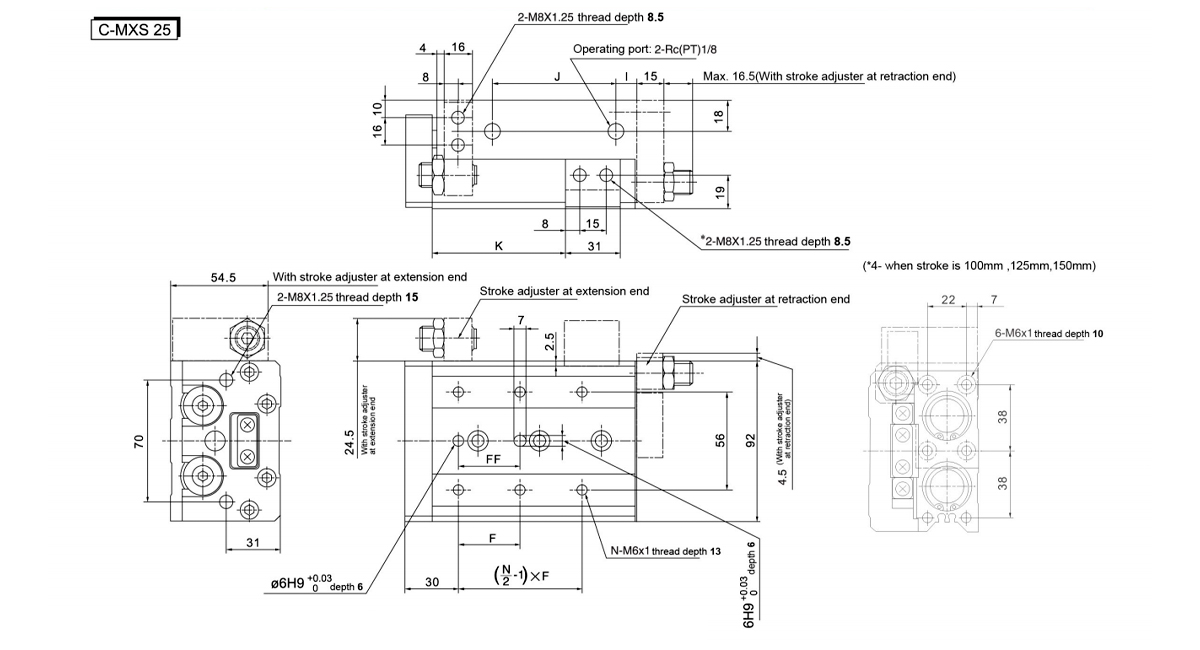

    Model F FF N G H NN I J K M Z ZZ
    C-MXS25-10 50 40 4 22 45 2 12 47 35 92 90.5 108
    C-MXS25-20 50 40 4 22 45 2 12 47 45 92 90.5 108
    C-MXS25-30 50 40 4 22 45 2 12 47 55 92 90.5 108
    C-MXS25-40 60 50 4 22 55 2 12 57 65 102 100.5 118
    C-MXS25-50 35 35 6 20 35 3 12 70 75 115 113.5 131
    C-MXS25-75 60 60 6 26 35 4 33 90 100 156 154.5 172
    C-MXS25-100 70 70 6 32 35 5 50 114 125 197 195.5 213
    C-MXS25-125 75 75 8 40 38 6 67 155 150 255 253.5 271
    C-MXS25-150 80 80 8 30 40 7 82 180 175 295 293.5 311

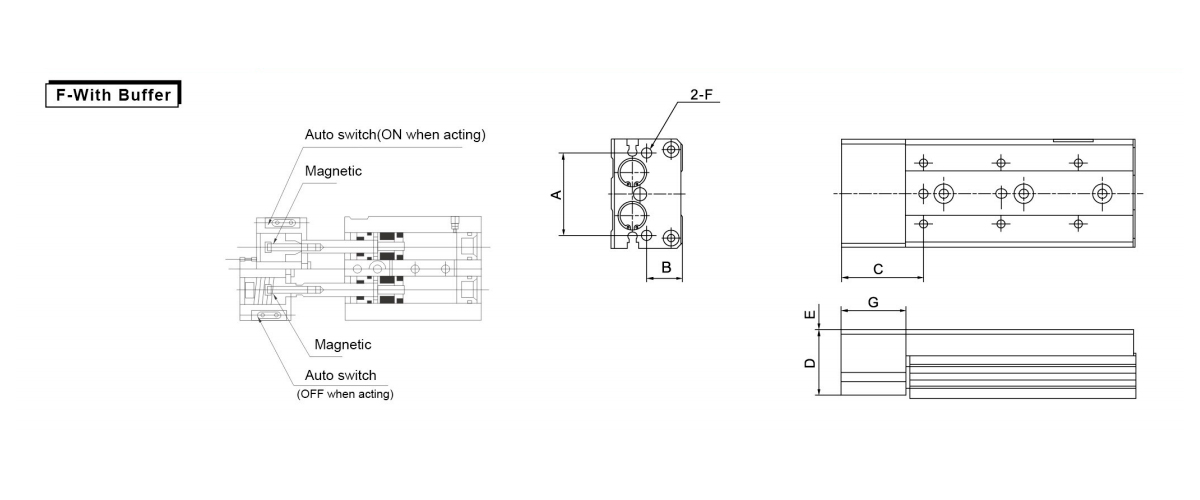

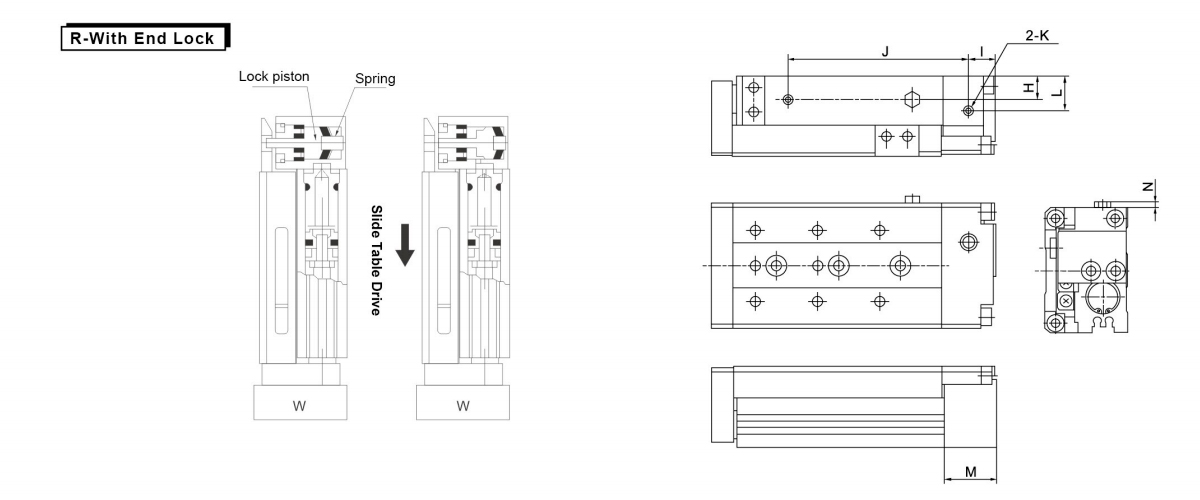

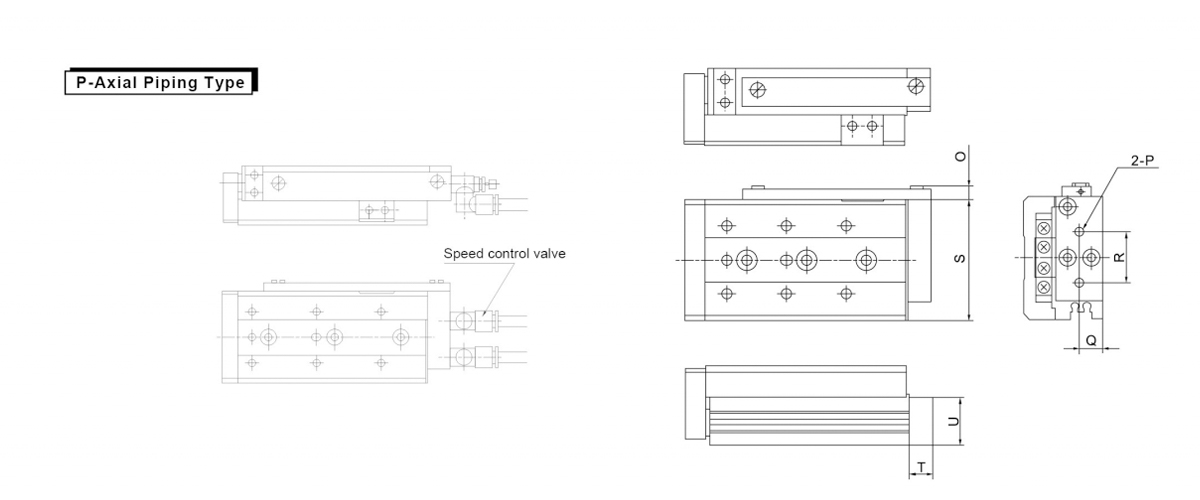

    Model A B C D E F G H I J K L M N O P Q R S T U
    10 20 30 40 50 75 100 125 150
    C-MXS6 24 10 28 19 0.5 M3×0.5 22 - - - - - - - - - - - - - - - 5.6 M3X0.5 5.5 12 32 8 11.5
    C-MXS8 30 12 28.5 22.5 0.5 M4×0.7 22.5 6.5 9 39 44 55 73 91 141 - - - M3X0.5 10 15.5 3 6.5 M5X0.8 6.5 15 40 12 13.5
    C-MXS12 38 16 37 30 0.5 M5×0.8 29 9.5 10.5 59.5 59.5 59.5 71.5 91.5 137.5 191.5 - - M5X0.8 14.5 20 3 6.5 M5X0.8 9.5 20 50 12 18.7
    C-MXS16 48 20 41 37.5 0.5 M6×1 30 12 13 62 62 62 72 87 137 185 235 - M5X0.8 18 25 3 6.5 M5X0.8 12 26 62 12 23.5
    C-MXS20 58 25 44.5 45.5 0.5 M6×1 30.5 15 15.5 68.5 68.5 68.5 78.5 93.5 132.5 185.5 239.5 291.5 Rc1/8 20 30 11.5 Rc1/8 15 32 76 20 29.5
    C-MXS25 70 31 50 55 0.5 M8×1.25 35 18 18 76 76 76 86 99 140 181 239 279 Rc1/8 25.5 35 11.5 Rc1/8 18 40 92 20 35.5
