CBF Series Vacuum Filter Fornitores

Home / Products / Vacuum Components / Vacuum Filter / CBF Series Vacuum Filter

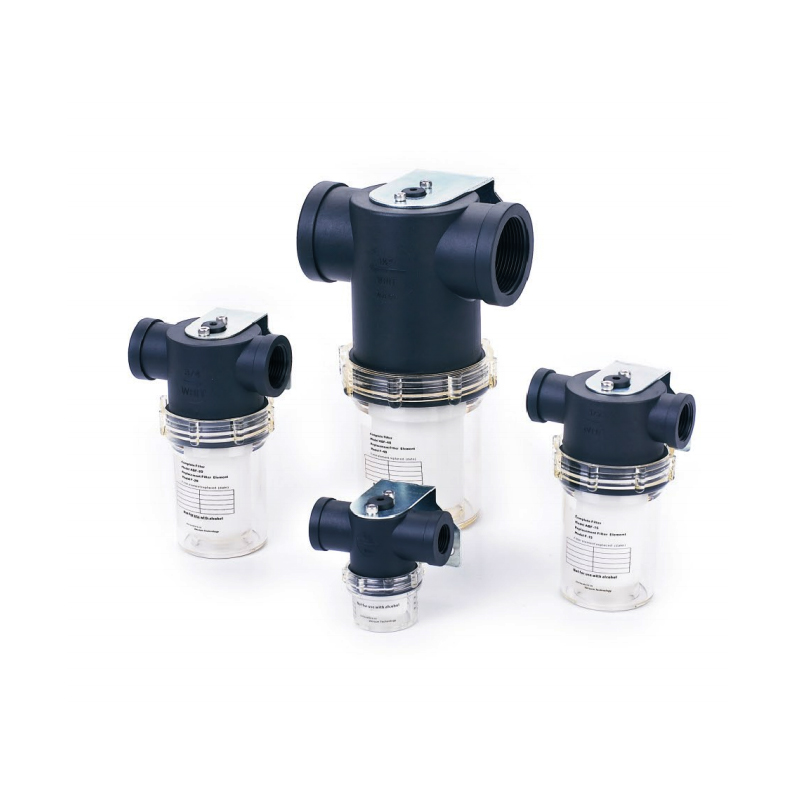

CBF Series Vacuum Filter
  • CBF Series Vacuum Filter
Vacuum Filter

CBF Series Vacuum Filter

1. Filter pulvis et alia immunditia ex aere limbo exsuguntur.
2. Testa perspicua permittit ut gradum contaminationis colum visibiliter videas.
3. Colum elementum cito reponi potest.
4. Reducere periculum interruptionis vel sistendi sentinam vacui et generantis vacuum.
5. Diversae sunt nomina fluxus specificationes pro clientibus eligendi.

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：CLF/VYF Series Linearum Vacuum Filter
SUCCESSIVO：Nessun articolo successivo
  • Model Applicabilis Pressura
    Range(kPa)     		Materia Temperature
    Range (℃)     		Filtration
    Sagacitas
    (μm)     		Nominale Flow
    (L/min)     		Internum Vacuum
    (cm³)     		Saccare Area
    (m²)     		Pondus (g)
    PE
    CBF10 -100~0 PE -20~80 10 150 45 0.003 70
    CBF15 -100~0 PE -20~80 10 900 195 0.010 168
    CBF20 -100~0 PE -20~80 10 900 205 0.010 170
    CBF25 -100~0 PE -20~80 10 2520 495 0.019 424
    CBF40 -100~0 PE -20~80 10 5100 675 0.023 550

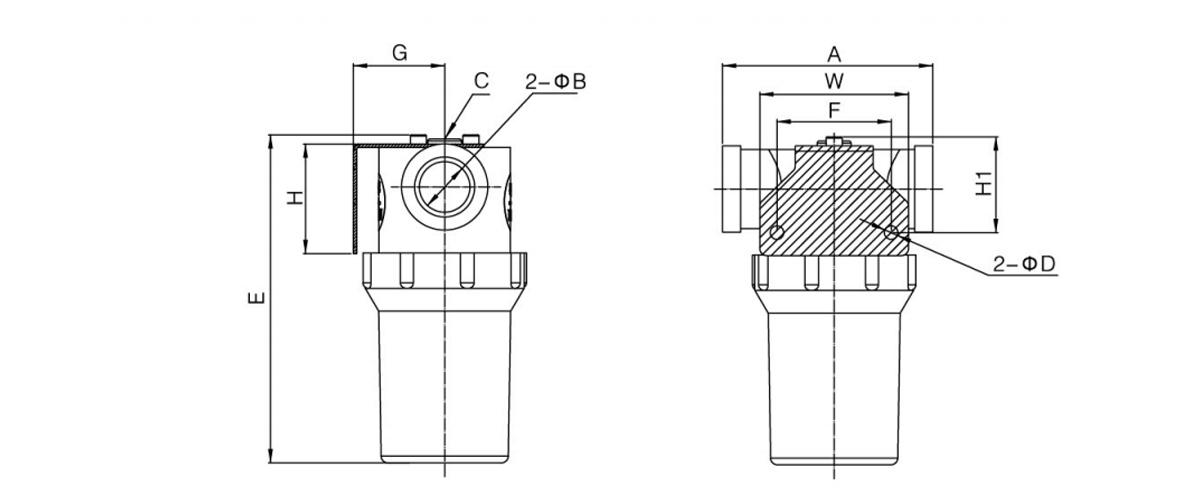

  • Exemplar / Size A B C D E F G H H1 W
    CBF10 76.5 2-G3/8 NPFS1/8 6 74.5 50 40 48 43.5 65
    CBF15 91.5 2-G1/2 NPFS1/8 6 134.5 50 40 48 43.5 65
    CBF20 92 2-G3/4 NPFS1/8 6 143.5 50 40 48 43.5 65
    CBF25 127 2-G1 NPFS1/8 6 169.5 70 56 52 48 85
    CBF40 127 2-G11/2 NPFS1/8 6 212.5 70 56 52 48 85

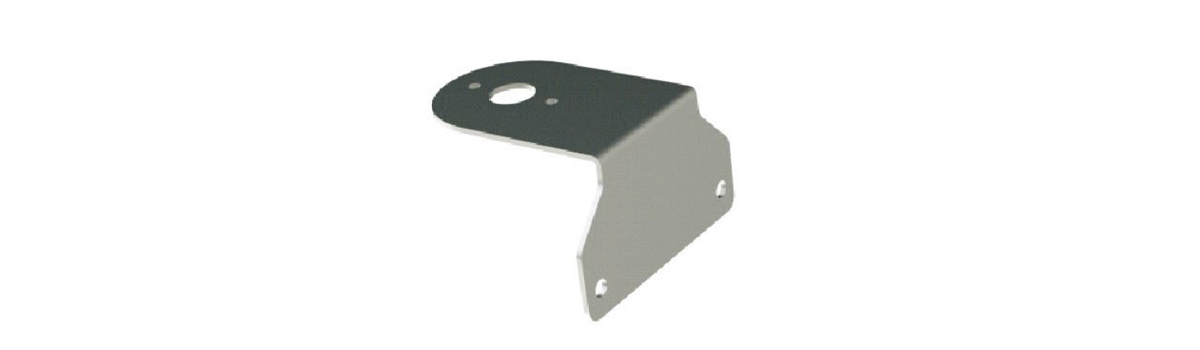

    Adscendens Bracket
    Exemplar Apta Filter
    CBF10-B CBF 10, CBF 15, CBF 20
    CBF25-B CBF 25, CBF 40

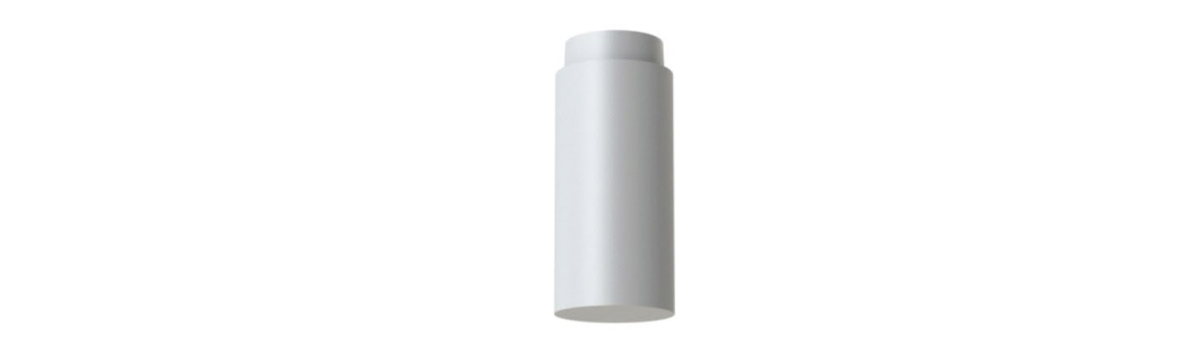

    Filtrum cartridge
    Exemplar
    PE     		Apta Filter
    CBF10-PE CBF 10
    CBF20-PE CBF 15, CBF 20
    CBF25-PE CBF 25
    CBF40-PE CBF 40
