ZP2 Series Gravis Officium Swing Vacuum Suction Cup (Ø32~Ø125) Fornitores

Home / Products / Vacuum Components / Vacuum suctus Cup / ZP2 Series Gravis Officium Swing Vacuum Suction Cup (Ø32~Ø125)

ZP2 Series Gravis Officium Swing Vacuum Suction Cup (Ø32~Ø125) ZP2 Series Gravis Officium Swing Vacuum Suction Cup (Ø32~Ø125) ZP2 Series Gravis Officium Swing Vacuum Suction Cup (Ø32~Ø125) ZP2 Series Gravis Officium Swing Vacuum Suction Cup (Ø32~Ø125)
  • ZP2 Series Gravis Officium Swing Vacuum Suction Cup (Ø32~Ø125)
  • ZP2 Series Gravis Officium Swing Vacuum Suction Cup (Ø32~Ø125)
  • ZP2 Series Gravis Officium Swing Vacuum Suction Cup (Ø32~Ø125)
  • ZP2 Series Gravis Officium Swing Vacuum Suction Cup (Ø32~Ø125)
Vacuum suctus Cup

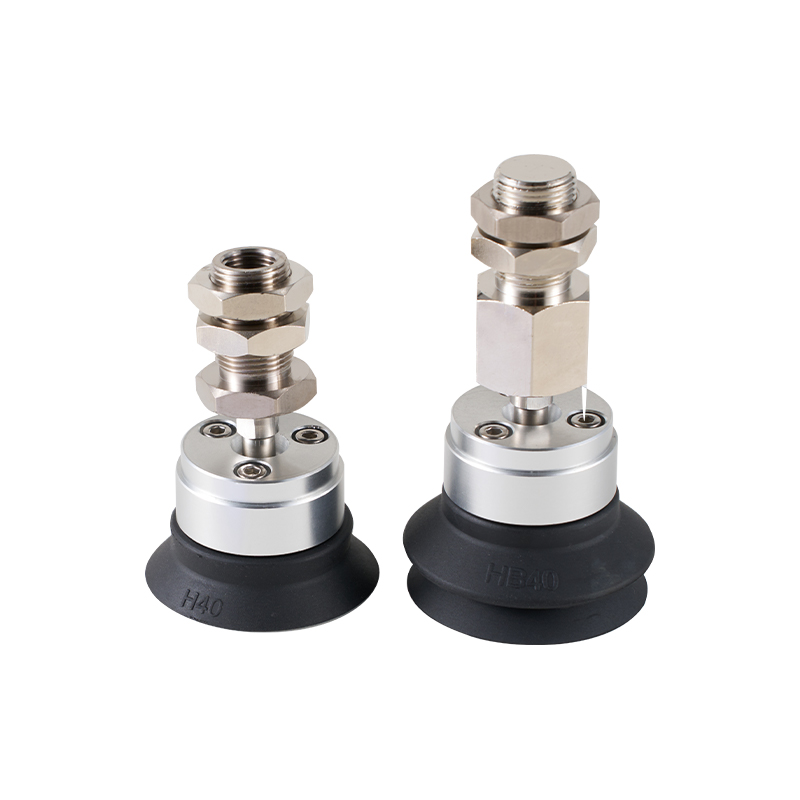

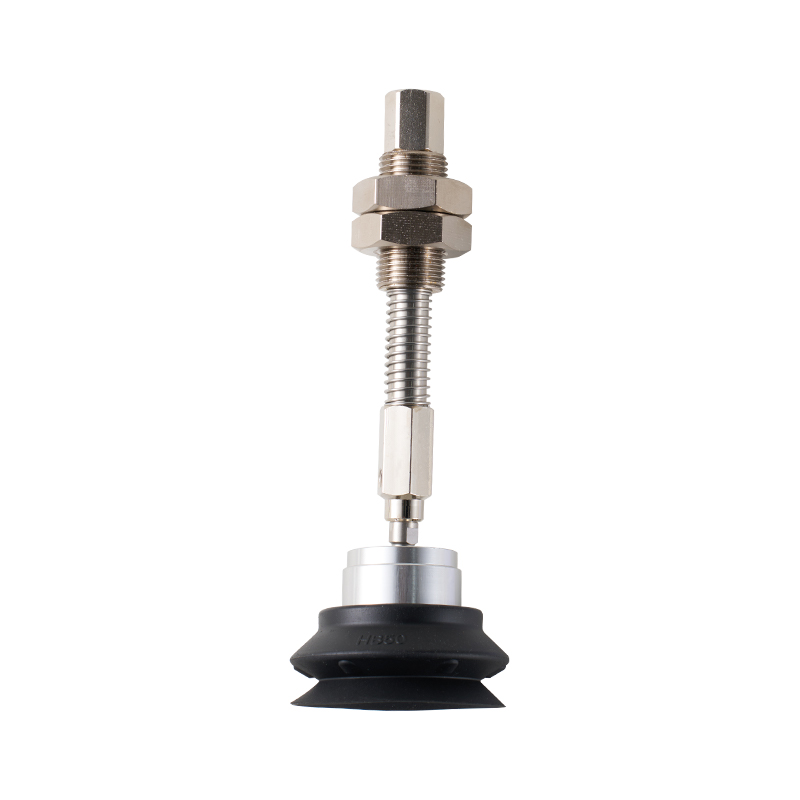

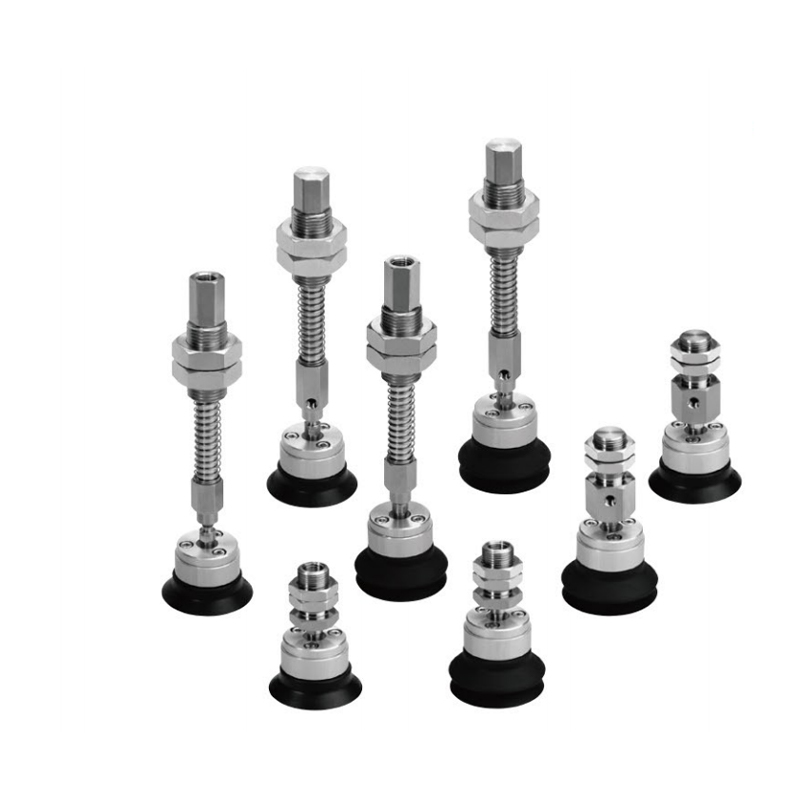

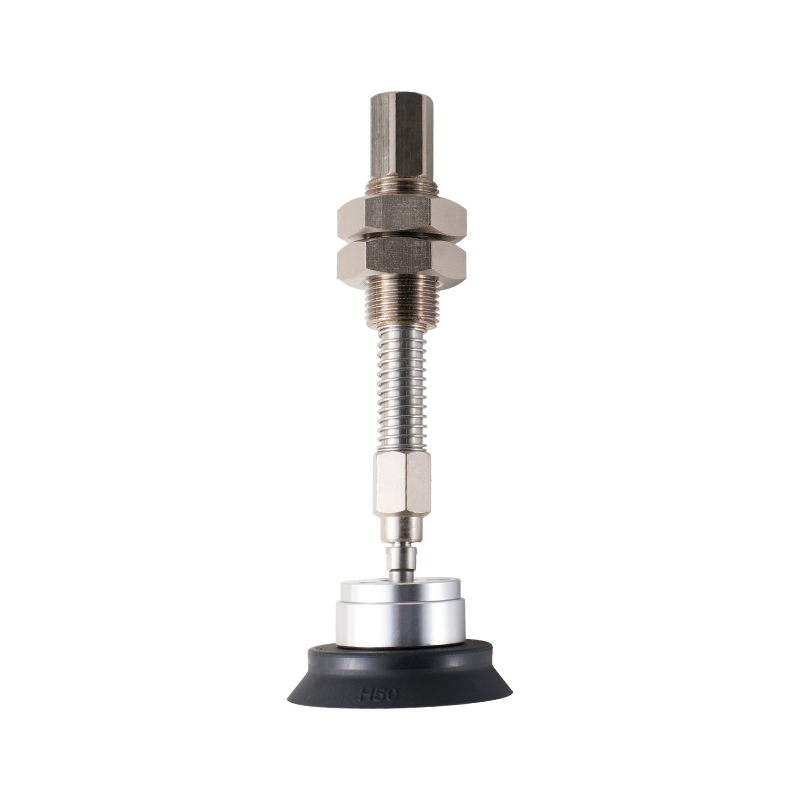

ZP2 Series Gravis Officium Swing Vacuum Suction Cup (Ø32~Ø125)

ZP2 series gravis-officii adductio scyphi vacuum suctionis (Ø32~-125) ordinatur ad magnum onus et magnae inclinationis condiciones in missionibus industrialibus. Apta aptata efficiunt superficiei fabricae per mechanismum suspensum et aptae sunt ad transferendum ac situm materiae rigidae, ut schedae metallicae et machinalis elementa.

Core lineamenta:
Dynamic structuram ultricies
Articulorum in multi-directionalibus adductionibus constructis permittunt poculum suctionis eius staturam autonomam intra inclinationem ± 15° aptare, periculum lacus vacui subtrahendo ex fabrica deformationis vel positionis deviationis.

Gravis officium consilio confirmatum
Multi-circuus sceletus confirmatus et globulus lacrimanti-repugnans substrati compositi formatur ad rigiditatem structuram emendandam et unum punctum ictum onus ferre potest, quod 300% cyathos suctionis conventionalis excedit.

Global signationem perficientur
Sulcus labii variabilis structurae cum labyrintho obsignatio coniungitur anulo ad gradum vacuum stabili (≥85% valorem initialis conservandum) in complexis superficiebus, sicut superficiebus asperis et superficiebus oleosis.

Velox responsio interface
Integrant gubernatorem alveum profluvium, suctio responsionis temporis ≤0.8s (condiciones normae operantes), in coetus valvae anti-siphonis constructae sunt ut defectum potentiae et guttae materiales prohibeant.

Modularis adaptator systematis
Multas specificationes institutionis interfacies praebet ut M6~M12 stamina/flanges velocis mutationis, et obturaculum-ac-forum integrationem cum robot finis effectoris seu truss systematis sustinet.

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：CTB Series Non Contact Suctionis Cup
SUCCESSIVO：ZHP Series Gravis Officium Vacuum Suctionis Cup Cum Vacuo Generatore

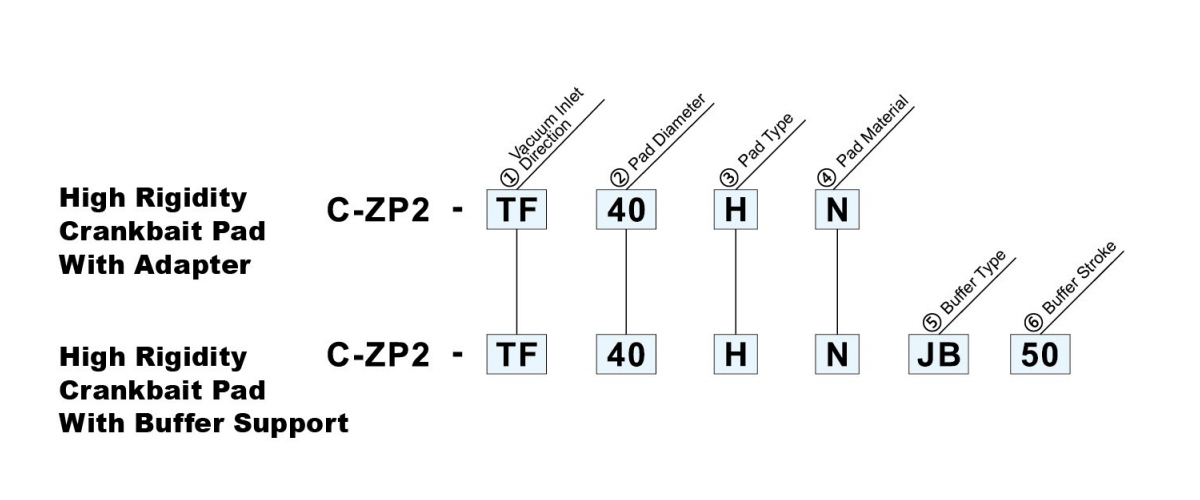

  • Vacuum Port
    Directio     		④Palum Materiae □
    TF Vertical N NBR
    XF lateralis S Silicone rubber
    ⑤Opus quiddam
    JB Vertical vaccum
    diverticulum

    ②Pad Diameter(mm) O/
    ③Pad Tape☆     		H* ego* J* K*
    32 40 50 63 80 100 125
    32 40 50 63 80 100 125
    H Plana cum costis ● ● ● ●
    HB 2 follis ● ● ● ●
    Quiddam                    25 25  mm ● ● ● ●
    50 50   mm ● ● ● ●
    75 75   mm ● ● ● ●
    100 100   mm - - ● ●

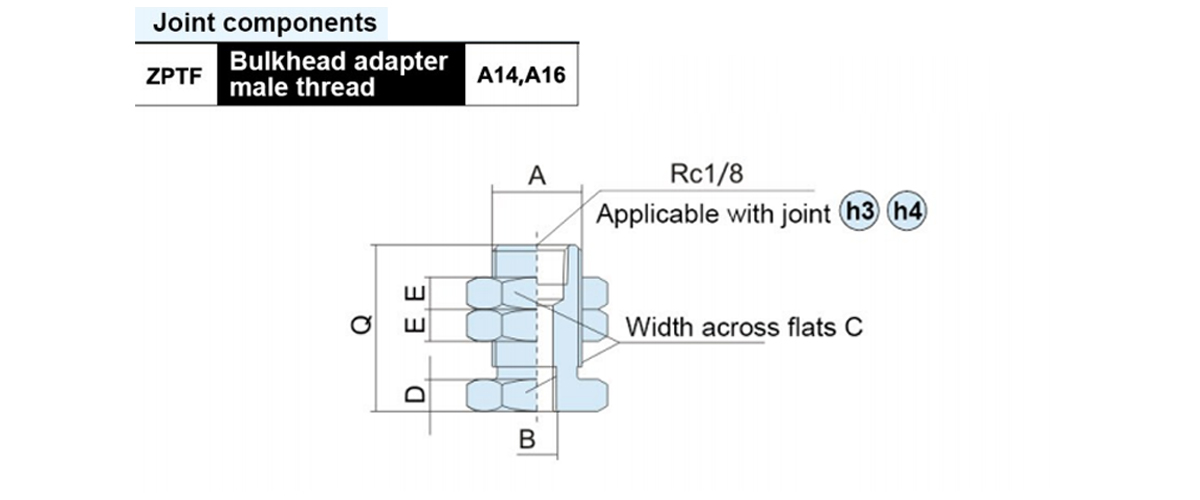

  • Modus A B C D E Q Pondus (g)
    ZPTF-A14 M14×1 M6×1 19 5 5 26 42.5
    ZPTF-A16 M16×1.5 M10×1.25 22 6 6 31 62.5

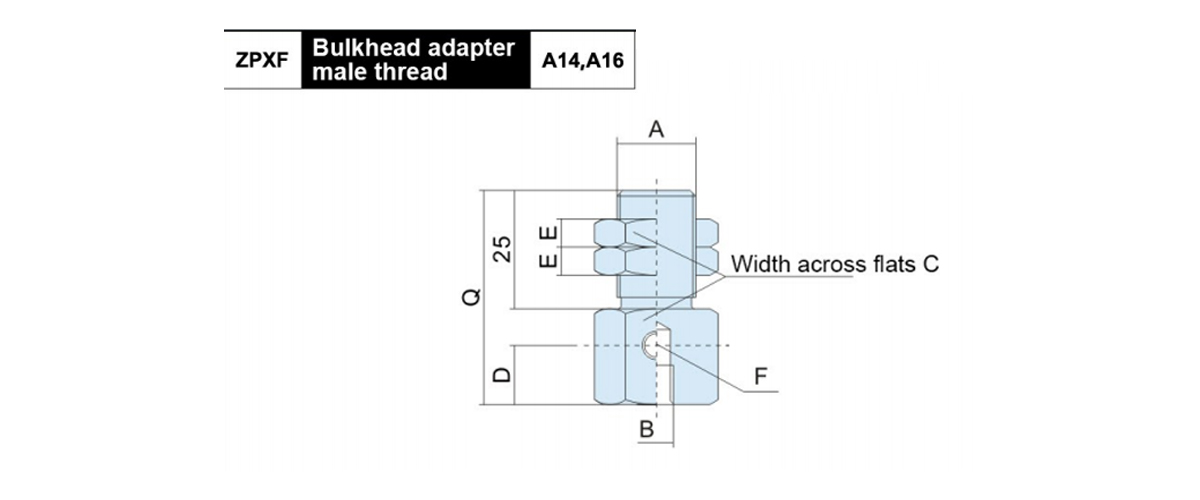

    Modus A B C D E F Q Pondus (g)
    ZPXF-A14 M14×1 M6×1 19 5 5 M5×0.8 26 78.5
    ZPXF-A16 M16×1.5 M10×1.25 22 6 6 Rc1/8 31 136.5

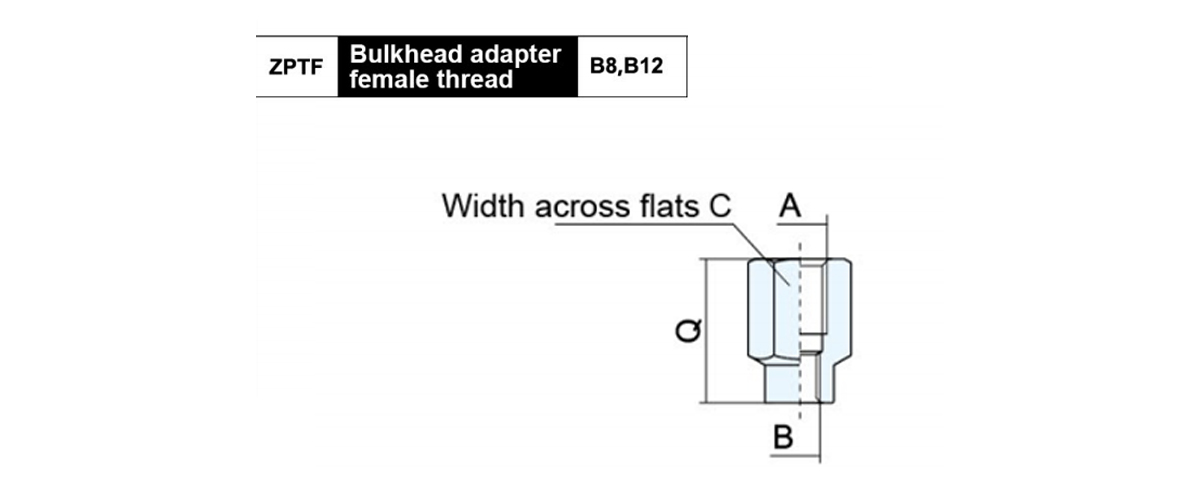

    Modus A B C Q Pondus (g)
    ZPTF-B8 M8×1.25 M6×1 13 21 16.5
    ZPTF-B12 M12×1.75 M10×1.25 17 26 32

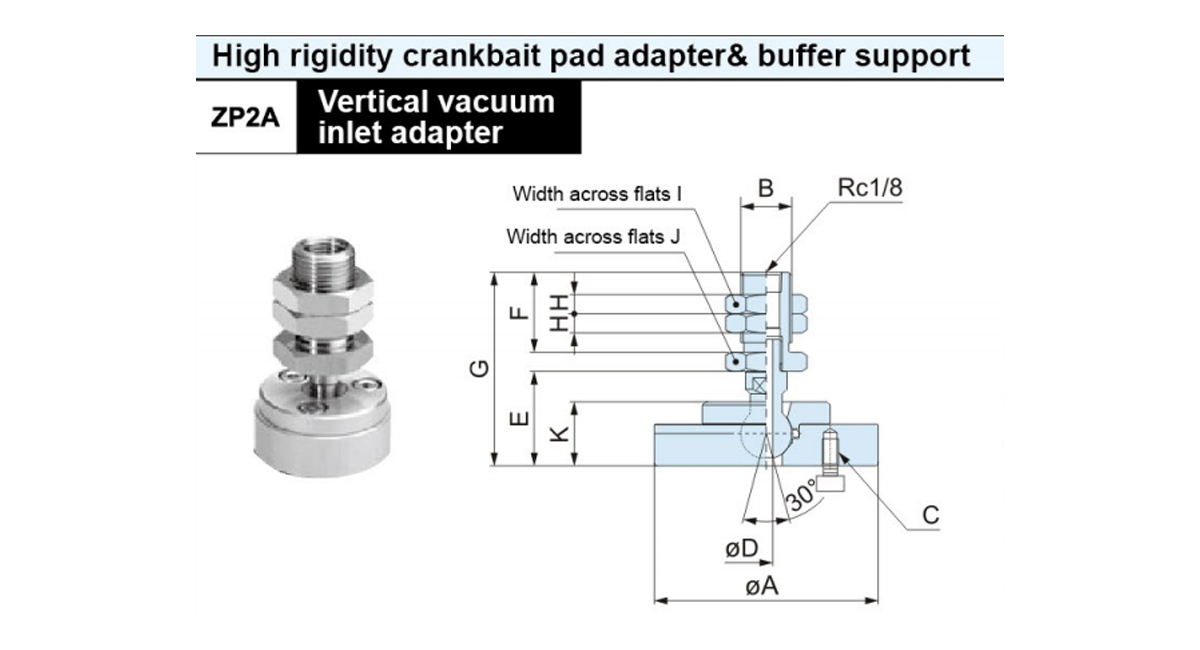

    Modus A B C D E F G H I J K Applicabilis Pad
    ZP2A-TF0 30 M14×1 3-M2.5×0.45 2 21.5 21 47.5 5 19 19 14.5 H1 H2
    ZP2A-TF1 3-M3×0.5 I1 I2
    ZP2A-TF2 50 M16×1.5 4-M4×0.7 4 28.5 25 59.5 6 22 22 19 J1 J2
    ZP2A-TF3 70 4-M5×0.8 29.5 60.5 20 K1 K2

    Modus A B C D E F G H I J K Applicabilis Pad
    ZP2A-TF0 30 M14×1 3-M2.5×0.45 2 21.5 21 47.5 5 19 19 14.5 H1 H2
    ZP2A-TF1 3-M3×0.5 I1 I2
    ZP2A-TF2 50 M16×1.5 4-M4×0.7 4 28.5 25 59.5 6 22 22 19 J1 J2
    ZP2A-TF3 70 4-M5×0.8 29.5 60.5 20 K1 K2

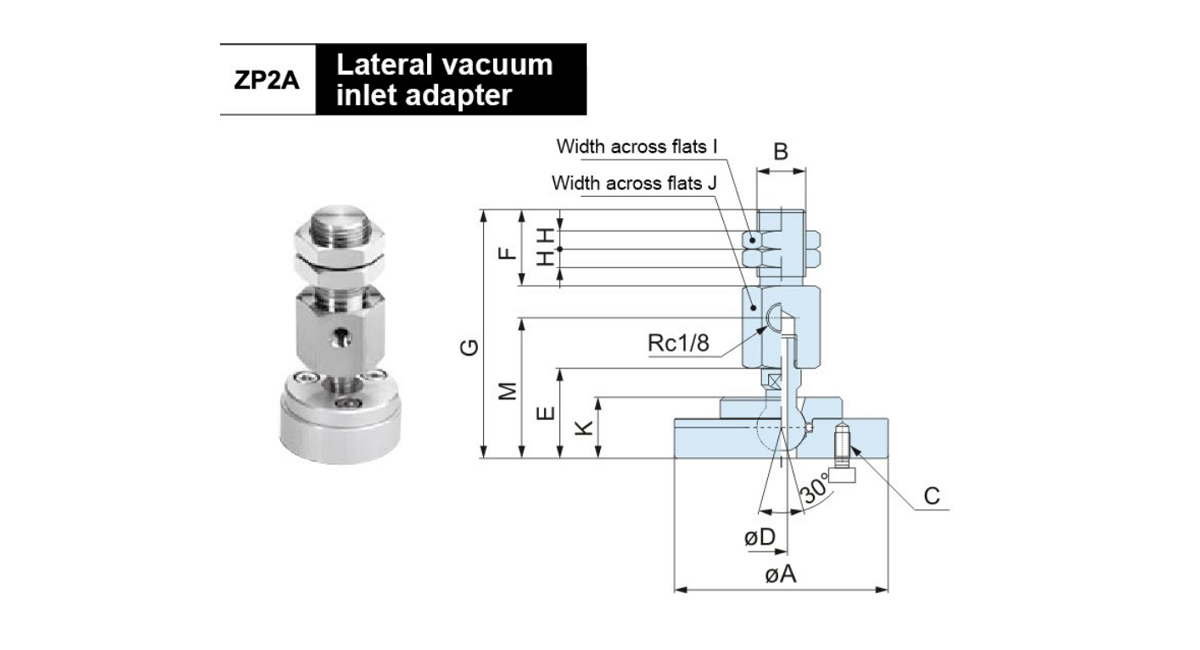

    Modus A B C D E F G H 1 J K M Applicabilis Pad
    ZP2A-XF0 30 M14×1 3-M2.5×0.45 2 21.5 21 59.5 5 19 19 14.5 32 H1 H2
    ZP2A-XF1 3-M3×0.5 I1 I2
    ZP2A-XF2 50 M16×1.5 4-M4×0.7 4 28.5 25 80.5 6 22 22 19 45 J1 J2
    ZP2A-XF3 70 4-M5×0.8 29.5 81.5 20 46 K1 K2

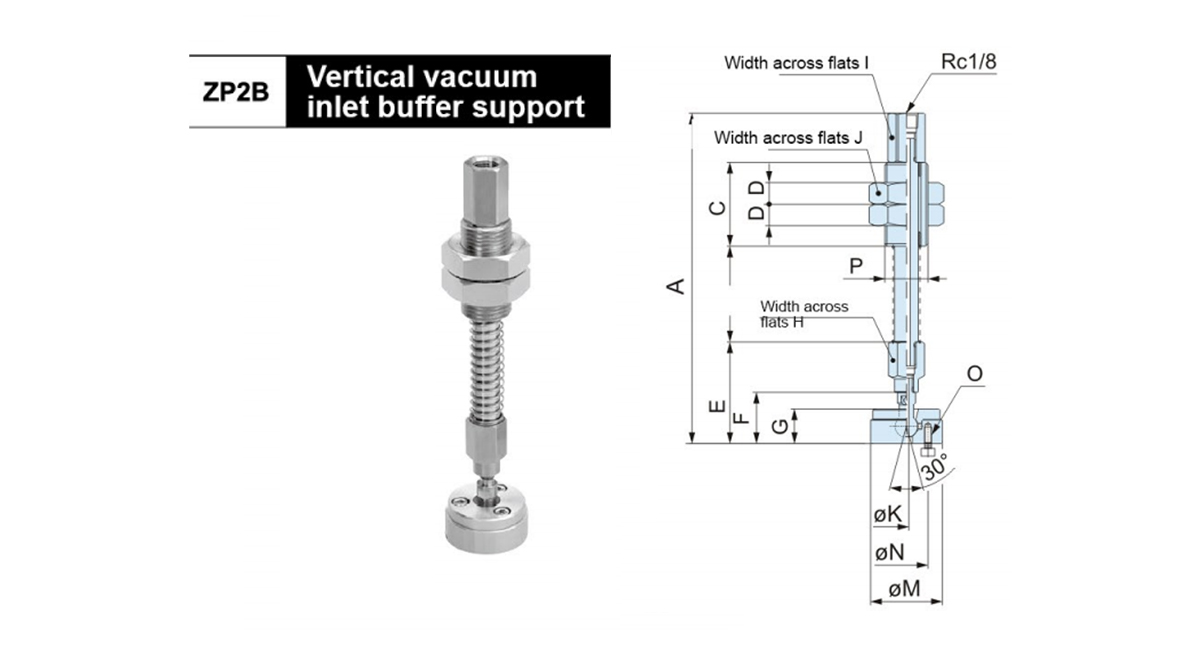

    Modus A B C D E F G H
    I     		J K M
    N
    0     		P Lorem
    Pad
    ZP2B-TF0JB25 138 40 35 9 42.5 21.5 14.5 13 14 27 2 30 14 3-M2.5×0.45 M18×1.5 H1 H2
    ZP2B-TF0JB50 173 75
    ZP2B-TFOJB75 209 111
    ZP2B-TF1JB25 138 40 18 3-M3×0.5 I1 I2
    ZP2B-TF1JB50 173 75
    ZP2B-TF1JB75 209 111
    ZP2B-TF2JB25 172.5 44 50 9.5 54.5 28.5 19 17 17 30 4 50 34 4-M4×0.7 M22×1.5 J1 J2
    ZP2B-TF2JB50 208.5 80
    ZP2B-TF2JB75 248.5 120
    ZP2B-TF2JB100 283.5 155
    ZP2B-TF3JB25 173.5 44 55.5 29.5 20 17 17 30 4 70 40 4-M5×0.8 K1 K2
    ZP2B-TF3JB50 209.5 80
    ZP2B-TF3JB75 249.5 120
    ZP2B-TF3JB100 284.5 155

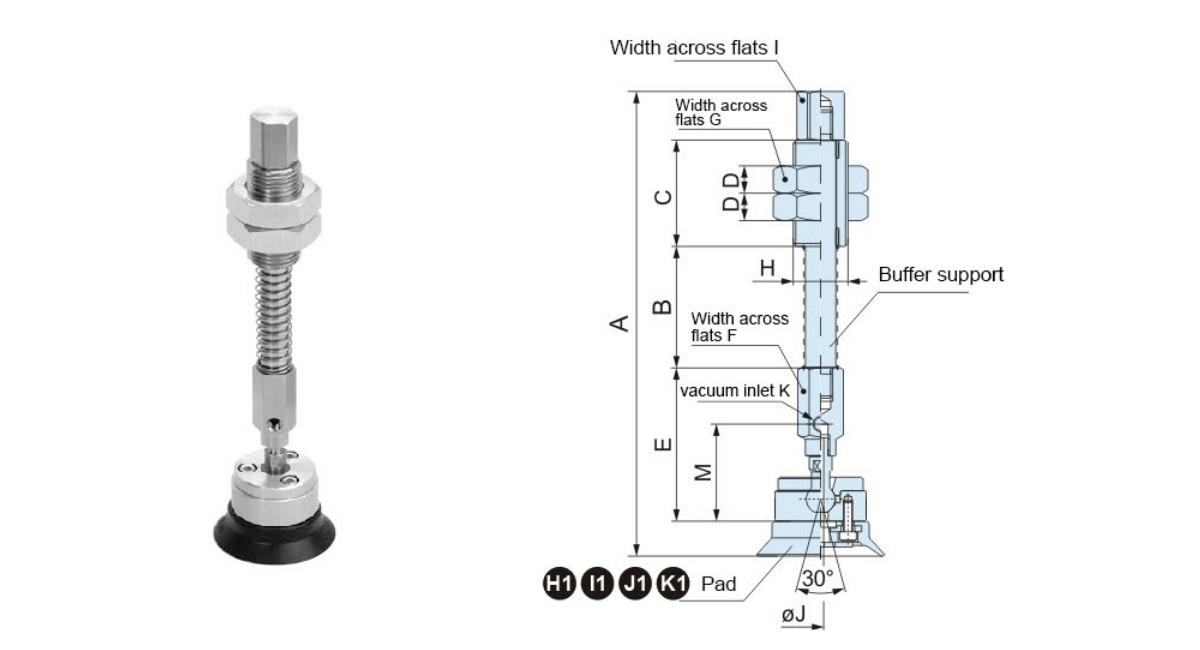

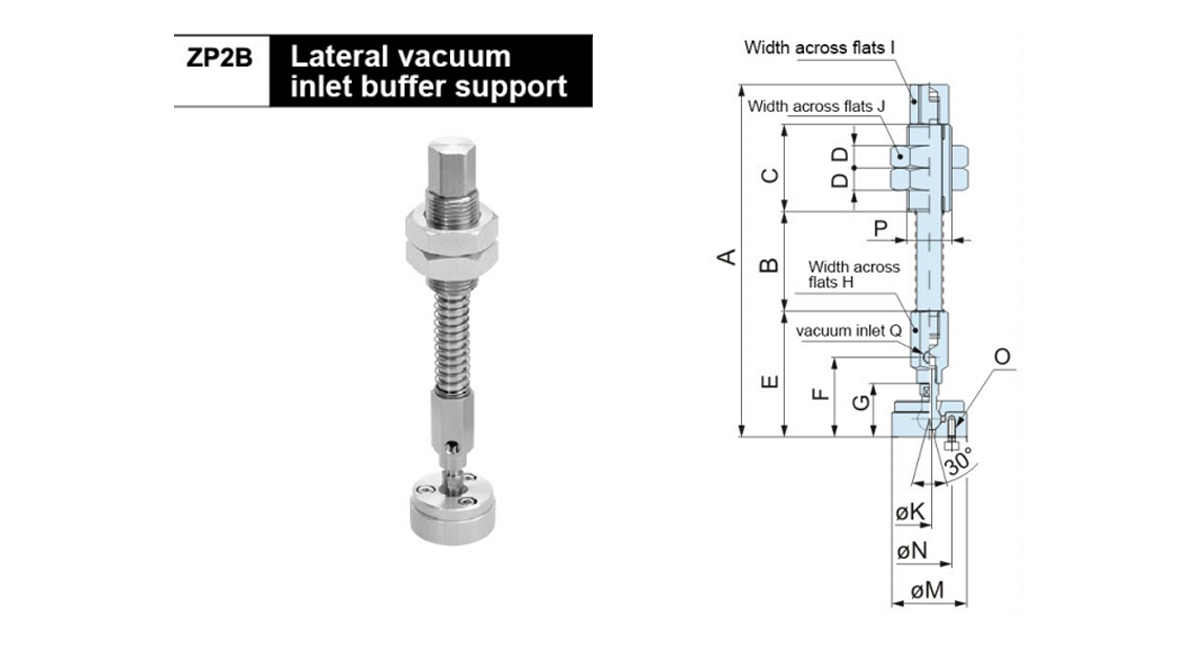

    Modus A B C D E F G H 1 J K M N 0 P Q Lorem
    Pad
    ZP2B-XF0JB25 141.5 40 35 9 50.5 32 21.5 13 14 27 2 30 14 3-M2.5×0.45 M18×1.5 M5×0.8 H1 H2
    ZP2B-XF0JB50 176.5 75
    ZP2B-XFOJB75 212.5 111
    ZP2B-XF1JB25 141.5 40 18 3-M3×0.5 I1 I2
    ZP2B-XF1JB50 176.5 75
    ZP2B-XF1JB75 212.5 111
    ZP2B-XF2JB25 182.5 44 50 9.5 67.5 45 28.5 22 17 30 4 50 34 4-M4×0.7 M22×1.5 Rc1/8 J1 J2
    ZP2B-XF2JB50 218.5 80
    ZP2B-XF2JB75 258.5 120
    ZP2B-XF2JB100 293.5 155
    ZP2B-XF3JB25 182.5 44 68.5 46 29.5 22 17 30 4 70 40 4-M5×0.8 K1 K2
    ZP2B-XF3JB50 218.5 80
    ZP2B-XF3JB75 258.5 120
    ZP2B-XF3JB100 293.5 155

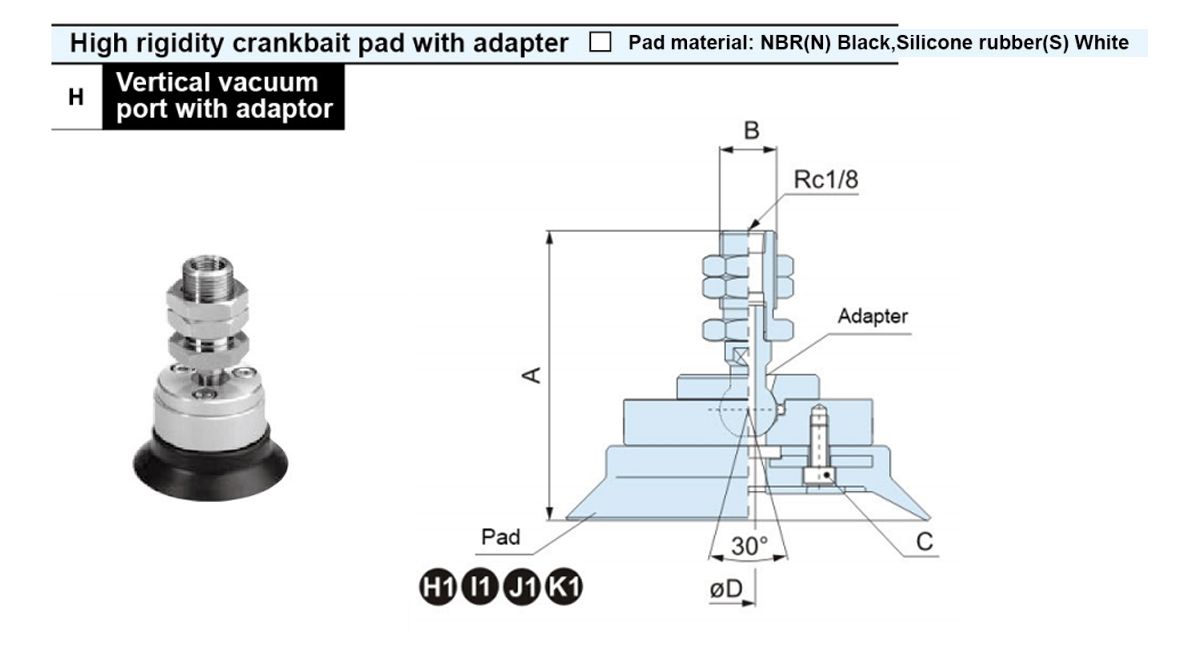

    Modus A B C D Adaptor Modusl
    C-ZP2-TF32H□ 55.5 M14×1 3-M2.5×0.45 2 ZP2A-TF0
    C-ZP2-TF40H□ 59 3-M3×0.5 ZP2A-TF1
    C-ZP2-TF50H□
    C-ZP2-TF63H□ 74 M16×1.5 4-M4×0.7 4 ZP2A-TF2
    C-ZP2-TF80H□ 76
    C-ZP2-TF100H□ 81.5 4-M5×0.8 ZP2A-TF3

    C-ZP2-TF125H□

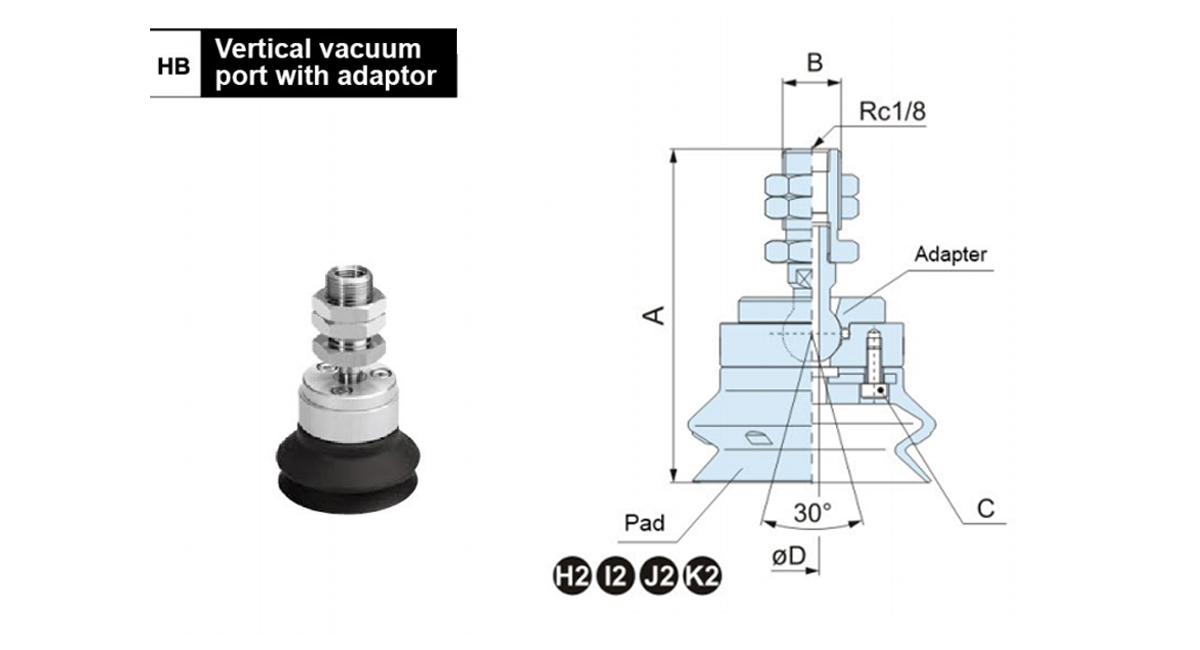

    Modus A B C D Adaptor Modusl
    C-ZP2-TF32HB□ 66 M14×1 3-M2.5×0.45 2 ZP2A-TF0
    C-ZP2-TF40HB□ 68 3-M3×0.5 ZP2A-TF1
    C-ZP2-TF50HB□ 71.5
    C-ZP2-TF63HB□ 91 M16×1.5 4-M4×0.7 4 ZP2A-TF2
    C-ZP2-TF80HB□ 96.5
    C-ZP2-TF100HB□ 108 4-M5×0.8 ZP2A-TF3
    C-ZP2-TF125HB 116.5

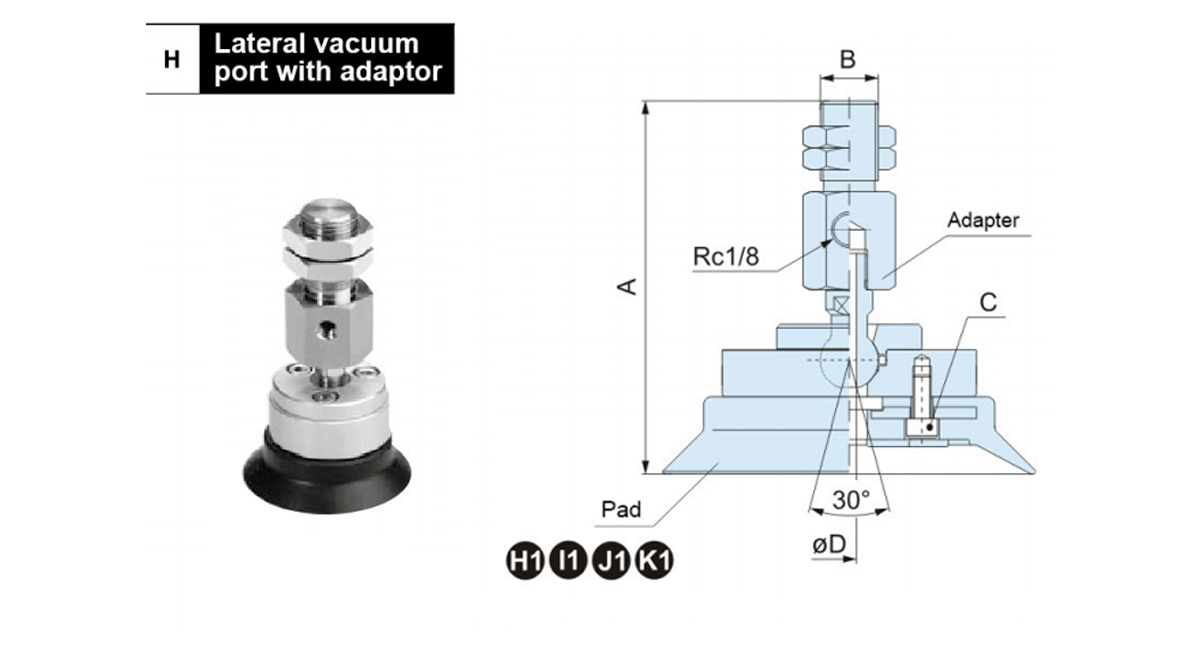

    Modus A B C D Adaptor Modusl
    C-ZP2-XF32H□ 67.5 M14×1 3-M2.5×0.45 2 ZP2A-XF0
    C-ZP2-XF40H□ 71 3-M3×0.5 ZP2A-XF1
    C-ZP2-XF50H□
    C-ZP2-XF63H□ 95 M16×1.5 4-M4×0.7 4 ZP2A-XF2
    C-ZP2-XF80H□ 97
    C-ZP2-XF100H□ 102.5 4-M5×0.8 ZP2A-XF3
    C-ZP2-XF125H□

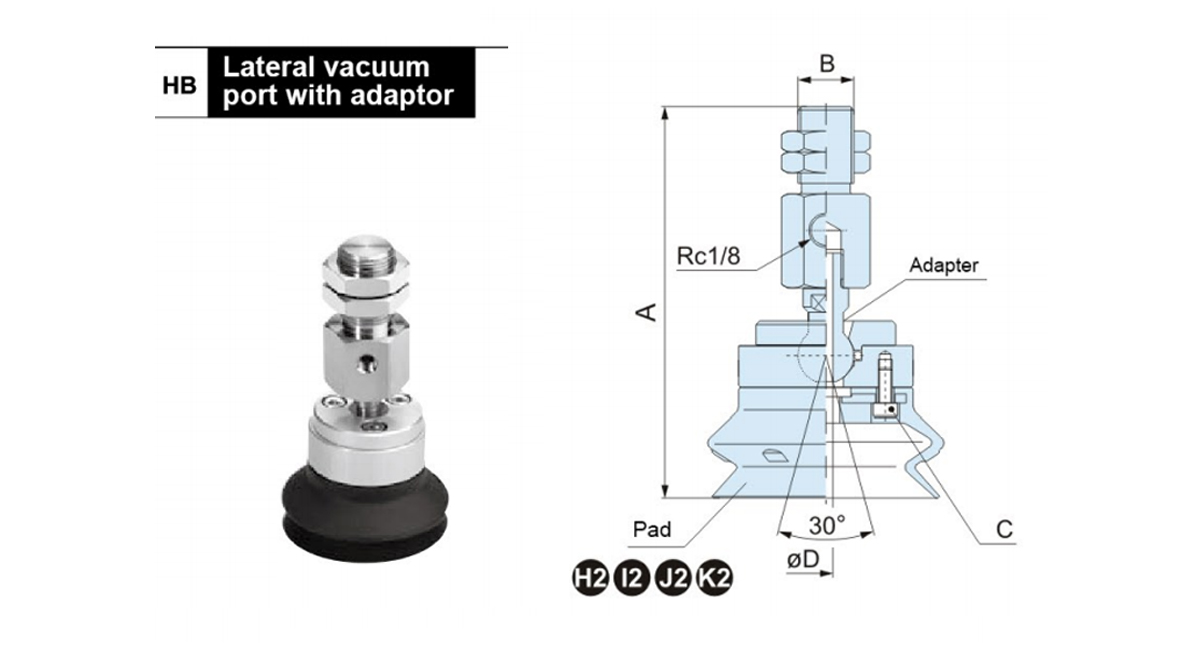

    Modus A B C D Adaptor Modusl
    C-ZP2-XF32HB□ 78 M14×1 3-M2.5×0.45 2 ZP2A-XF0
    C-ZP2-XF40HB□ 80 3-M3×0.5 ZP2A-XF1
    C-ZP2-XF50HB□ 83.5
    C-ZP2-XF63HB□ 112 M16×1.5 4-M4×0.7 4 ZP2A-XF2
    C-ZP2-XF80HB□ 117.5
    C-ZP2-XF100HB□ 129 4-M5×0.8 ZP2A-XF3
    C-ZP2-XF125HB□ 137.5

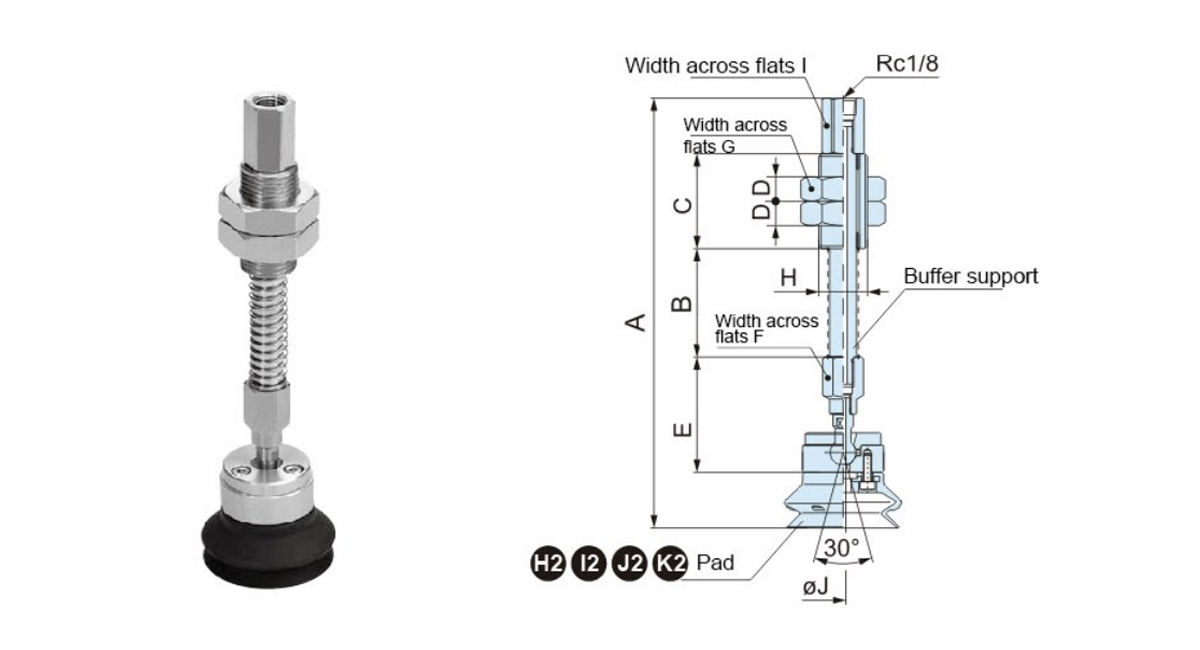

    Modus A B C D E F G H I J Quiddam Supplendum Model
    C-ZP2-TF32H□JB25 146 40 35 9 42.5 13 27 M18×1.5 14 2 ZP2B-TFOJB25
    C-ZP2-TF32H□ JB50 181 75 ZP2B-TFOJB50
    C-ZP2-TF32H□JB75 217 111 ZP2B-TFOJB75
    C-ZP2-TF40H□JB25 149.5 40 ZP2B-TF1JB25
    C-ZP2-TF40H□JB50 184.5 75 ZP2B-TF1JB50
    C-ZP2-TF40H□JB75 220.5 111 ZP2B-TF1JB75
    C-ZP2-TF50H□JB25 149.5 40 ZP2B-TF1JB25
    C-ZP2-TF50H□JB50 184.5 75 ZP2B-TF1JB50
    C-ZP2-TF50H□JB75 220.5 111 ZP2B-TF1JB75
    C-ZP2-TF63H□JB25 187 44 50 9.5 54.5 17 30 M22×1.5 17 4 ZP2B-TF2JB25
    C-ZP2-TF63H□JB50 223 80 ZP2B-TF2JB50
    C-ZP2-TF63H□JB75 263 120 ZP2B-TF2JB75
    C-ZP2-TF63H□JB100 298 155 ZP2B-TF2JB100
    C-ZP2-TF80H□JB25 189 44 ZP2B-TF2JB25
    C-ZP2-TF80H□JB50 225 80 ZP2B-TF2JB50
    C-ZP2-TF80H□JB75 265 120 ZP2B-TF2JB75
    C-ZP2-TF80H□JB100 300 155 ZP2B-TF2JB100
    C-ZP2-TF100H□JB25 194.5 44 55.5 ZP2B-TF3JB25
    C-ZP2-TF100H□JB50 230.5 80 ZP2B-TF3JB50
    C-ZP2-TF100H□JB75 270.5 120 ZP2B-TF3JB75
    C-ZP2-TF100H□JB100 305.5 155 ZP2B-TF3JB100
    C-ZP2-TF125H□JB25 194.5 44 ZP2B-TF3JB25
    C-ZP2-TF125H□JB50 230.5 80 ZP2B-TF3JB50
    C-ZP2-TF125H□JB75 270.5 120 ZP2B-TF3JB75
    C-ZP2-TF125H□JB100 305.5 155 ZP2B-TF3JB100

    Modus A B C D E F G H I J Quiddam Supplendum Model
    C-ZP2-TF32HB□ JB25 156.5 40 35 9 42.5 13 27 M18×1.5 14 ZP2B-TFOJB25
    C-ZP2-TF32HB□ JB50 191.5 75 ZP2B-TFOJB50
    C-ZP2-TF32HB□ JB75 227.5 111 ZP2B-TFOJB75
    C-ZP2-TF40HB□ JB25 158.5 40 ZP2B-TF1JB25
    C-ZP2-TF40HB□ JB50 193.5 75 2 ZP2B-TF1JB50
    C-ZP2-TF40HB□JB75 229.5 111 ZP2B-TF1JB75
    C-ZP2-TF50HB□ JB25 158.5 40 ZP2B-TF1JB25
    C-ZP2-TF50HB□ JB50 193.5 75 ZP2B-TF1JB50
    C-ZP2-TF50HB□ JB75 229.5 111 ZP2B-TF1JB75
    C-ZP2-TF63HB□ JB25 204 44 50 9.5 54.5 30 M22×1.5 17 4 ZP2B-TF2JB25
    C-ZP2-TF63HB□ JB50 240 80 ZP2B-TF2JB50
    C-ZP2-TF63HB□ JB75 280 120 17 ZP2B-TF2JB75
    C-ZP2-TF63HB□ JB100 315 155 ZP2B-TF2JB100
    C-ZP2-TF80HB□ JB25 209.5 44 ZP2B-TF2JB25
    C-ZP2-TF80HB□ JB50 245.5 80 ZP2B-TF2JB50
    C-ZP2-TF80HB□ JB75 285.5 120 ZP2B-TF2JB75
    C-ZP2-TF80HB□JB100 320.5 155 ZP2B-TF2JB100
    C-ZP2-TF100HB□ JB25 221 44 55.5 ZP2B-TF3JB25
    C-ZP2-TF100HB□ JB50 257 80 ZP2B-TF3JB50
    C-ZP2-TF100HB□ JB75 297 120 ZP2B-TF3JB75
    C-ZP2-TF100HB□ JB100 332 155 ZP2B-TF3JB100
    C-ZP2-TF125HB□ JB25 229.5 44 ZP2B-TF3JB25
    C-ZP2-TF125HB□ JB50 265.5 80 ZP2B-TF3JB50
    C-ZP2-TF125HB□ JB75 305.5 120 ZP2B-TF3JB75
    C-ZP2-TF125HB□ JB100 340.5 155

    ZP2B-TF3JB100

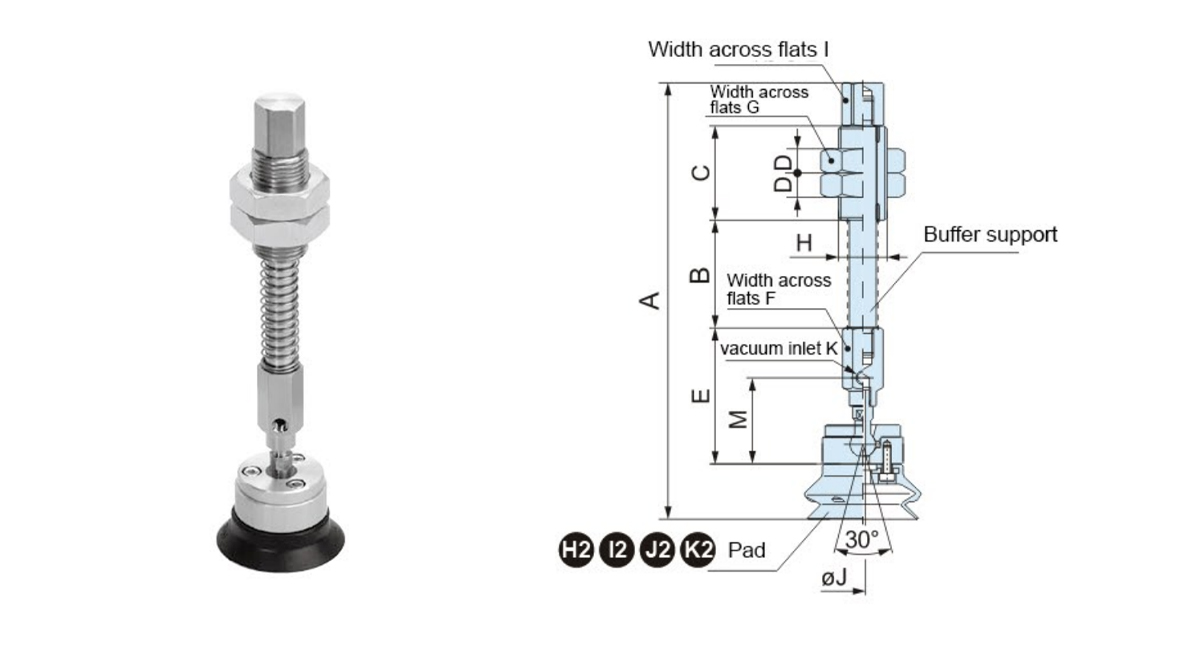

    Modus A B C D E F G H 1 J K M Quiddam Supplendum Model
    C-ZP2-XF32H□JB25 149.5 40 35 9 50.5 13 27 M18×1.5 14 2 M5×0.8 32 ZP2B-XFOJB25
    C-ZP2-XF32H□JB50 184.5 75 ZP2B-XFOJB50
    C-ZP2-XF32H□JB75 220.5 111 ZP2B-XFOJB75
    C-ZP2-XF40H□JB25 153 40 ZP2B-XF1JB25
    C-ZP2-XF40H□JB50 188 75 ZP2B-XF1JB50
    C-ZP2-XF40H□JB75 224 111 ZP2B-XF1JB75
    C-ZP2-XF50H□JB25 153 40 ZP2B-XF1JB25
    C-ZP2-XF50H□JB50 188 75 ZP2B-XF1JB50
    C-ZP2-XF50H□JB75 224 111 ZP2B-XF1JB75
    C-ZP2-XF63H□JB25 197 44 50 9.5- 67.5 22 30 M22×1.5 17 4 Rc1/8 45 ZP2B-XF2JB25
    C-ZP2-XF63H□JB50 233 80 ZP2B-XF2JB50
    C-ZP2-XF63H□JB75 273 120 ZP2B-XF2JB75
    C-ZP2-XF63H□JB100 308 155 ZP2B-XF2JB100
    C-ZP2-XF80H□JB25 199 44 ZP2B-XF2JB25
    C-ZP2-XF80H□JB50 235 80 ZP2B-XF2JB50
    C-ZP2-XF80H□JB75 275 120 ZP2B-XF2JB75
    C-ZP2-XF80H□JB100 310 155 ZP2B-XF2JB100
    C-ZP2-XF100H□JB25 204.5 44 68.5 46 ZP2B-XF3JB25
    C-ZP2-XF100H□JB50 240.5 80 ZP2B-XF3JB50
    C-ZP2-XF100H□ JB75 280.5 120 ZP2B-XF3JB75
    C-ZP2-XF100H□ JB100 315.5 155 ZP2B-XF3JB100
    C-ZP2-XF125H□ JB25 204.5 44 ZP2B-XF3JB25
    C-ZP2-XF125H□ JB50 240.5 80 ZP2B-XF3JB50
    C-ZP2-XF125H□ JB75 280.5 120 ZP2B-XF3JB75
    C-ZP2-XF125H□ JB100 315.5 155 ZP2B-XF3JB100

    Modusl A B C D E F G H 1 J K M Quiddam Supplendum Model
    C-ZP2-XF32HB□JB25 160 40 35 9 50.5 13 27 M18×1.5 14 2 M5×0.8 32 ZP2B-XFOJB25
    C-ZP2-XF32HB□JB50 195 75 ZP2B-XFOJB50
    C-ZP2-XF32HB□JB75 231 111 ZP2B-XFOJB75
    C-ZP2-XF40HB□JB25 162 40 ZP2B-XF1JB25
    C-ZP2-XF40HB□JB50 197 75 ZP2B-XF1JB50
    C-ZP2-XF40HB□JB75 233 111 ZP2B-XF1JB75
    C-ZP2-XF50HB□JB25 165.5 40 ZP2B-XF1JB25
    C-ZP2-XF50HB□JB50 200.5 75 ZP2B-XF1JB50
    C-ZP2-XF50HB□JB75 236.5 111 ZP2B-XF1JB75
    C-ZP2-XF63HB□JB25 214 44 50 9.5 67.5 22 30 M22×1.5 17 4 Rc1/8 45- ZP2B-XF2JB25
    C-ZP2-XF63HB□JB50 250 80 ZP2B-XF2JB50
    C-ZP2-XF63HB□JB75 290 120 ZP2B-XF2JB75
    C-ZP2-XF63HB□JB100 325 155 ZP2B-XF2JB100
    C-ZP2-XF80HB□JB25 219.5 44 ZP2B-XF2JB25
    C-ZP2-XF80HB□JB50 255.5 80 ZP2B-XF2JB50
    C-ZP2-XF80HB□JB75 295.5 120 ZP2B-XF2JB75
    C-ZP2-XF80HB□JB100 330.5 155 ZP2B-XF2JB100
    C-ZP2-XF100HB□ JB25 231 44 68.5 46 ZP2B-XF3JB25
    C-ZP2-XF100HB□ JB50 267 80 ZP2B-XF3JB50
    C-ZP2-XF100HB□ JB75 307 120 ZP2B-XF3JB75
    C-ZP2-XF100HB□ JB100 342 155 ZP2B-XF3JB100
    C-ZP2-XF125HB□ JB25 239.5 44 ZP2B-XF3JB25
    C-ZP2-XF125HB□ JB50 275.5 80 ZP2B-XF3JB50
    C-ZP2-XF125HB□ JB75 315.5 120 ZP2B-XF3JB75
    C-ZP2-XF125HB□JB100 350.5 155 ZP2B-XF3JB100
