ZP Series Gravis Officium Vacuum Suctionis Cup, Adapter & Buffer Bracket

ZP Series Gravis Officium Vacuum Suctionis Cup Cum Adapter & Buffer Bracket (Ø32~ Ø340)

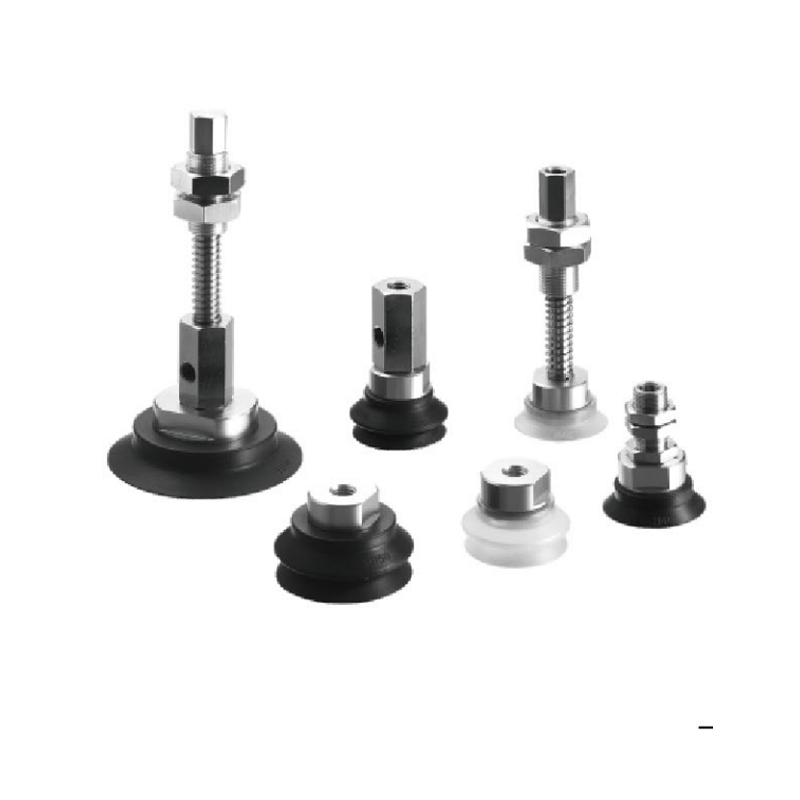

ZP Series Gravis Officii Vacuum Suctionis Calicem Cum Adapter & Buffer Bracket (Ø32~Ø340) repraesentat solutionem vacui integratam tractandi designatam ad necessitates tenacis industriae exigendas. Integrat nucleum grave-officium poculi suctionis, clavis interfaciei adaptor et quiddam bracket in unum requirens, amplis magnitudinum amplitudines obtegens, ac destinatur ad certum et aptabile vacuum basi unitatis tenacissimae ad tractandas officinas graves, irregulares vel leves.

Core Features:
Adaptabilitatem conditionibus summus onus: Corvus conceptus conceptus circa modum superioris oneris sustinendi capacitatem vacui systematis elevandi ad gravem fabricam tractandi necessitatem eget ultra capacitatem cucurbitulae ordinariae suctionis et ad vires provocationes situum industrialium occurrendum.

Lata amplitudo spectri coverage: Poculum suctionis varias praebet optiones corporis amplitudines a minoribus ad areas ultra-magnas (contegendo latitudinem -32 ad -340), quae mollius aequare possunt diversae magnitudinum workpiece, Venustates et pondus distributio requisita.

Integrated adaptor interface: Vexillum adaptans dedito translationis centrum inter calicem suctionis corporis et systematis vacuum amni (ut generator, distributor) vel actuator (qualis est finis brachii roboti), efficiens iter nexum et compatibilitatem corporis efficiens.

Mechanismum quiddam embedded: Constructum in quiddam bracket elementum est essentia consilii. Core eius valor in motu impulsum motuum energiae absorbentis in momento contactuum et humilium frequentiae vibrationis in operatione, signanter reducens vim mechanicam in fabrica superficie, poculum suctionis structuram et apparatum fluminis.

Ratio integrationis matching: Consilium solutionis altioris prioritatem praebet commoditatem integrationis cum suggestis automationibus amet (ut fines brachii roboti et rector rail labitur), reducendo implicationem adaptationis machinationis ad agri instruere.

Firmitas et firmitas; Delectu componentium et consiliorum structurarum augendo diuturnum ministerium exercendum in cyclis gravibus oneris continuis, concursus potentiae et ambitus industriae typicae, stabilis operandi cycli procurandi.

Vacuum sigillum perficiendi cautum est; Calix suctus structurae labii et formula materialis optimized ad applicationes graves, conantes assequi et conservare statum vacuum in complexibus superficiebus efficacem (permittentes quodam inaequalitatis gradu).

Universalis applicationis missionum; Consilium notionis huius seriei naturaliter idoneus facit ad varias missiones industriales quae pertinent ad schedas metallicas, magnas compositas materias, graves sarcinas unitates, formas, etc., quae vehementem et levem comprehensionem et remissionem requirunt..

E-mail: manager@cktworld.com

Scarica

PRECEDENTE：Nessun articolo precedente
SUCCESSIVO：ZP Series Gravis Officium Vacuum Suctionis Cup (Ø32~Ø340)

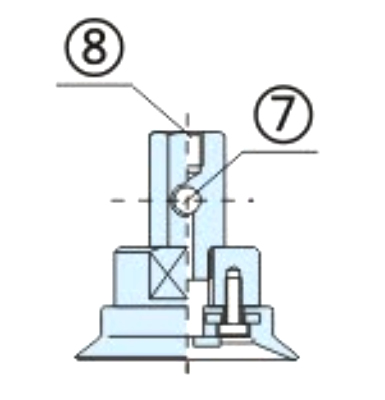

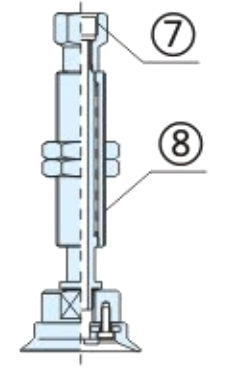

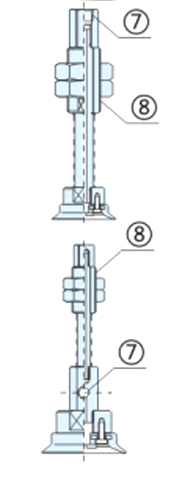

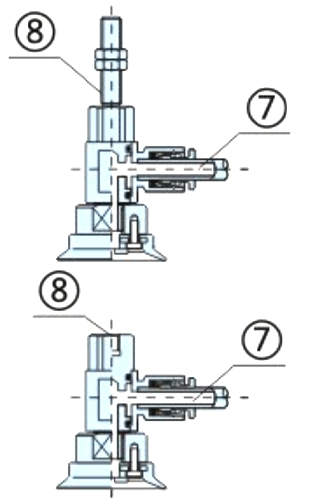

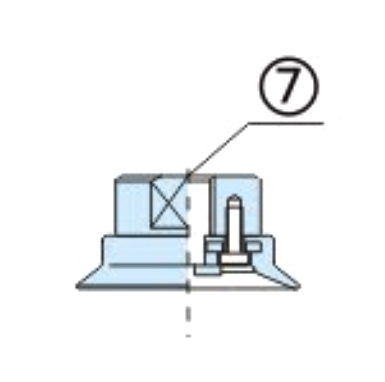

Struttura Interna
Dimensioni Principali (mm)
Contattaci

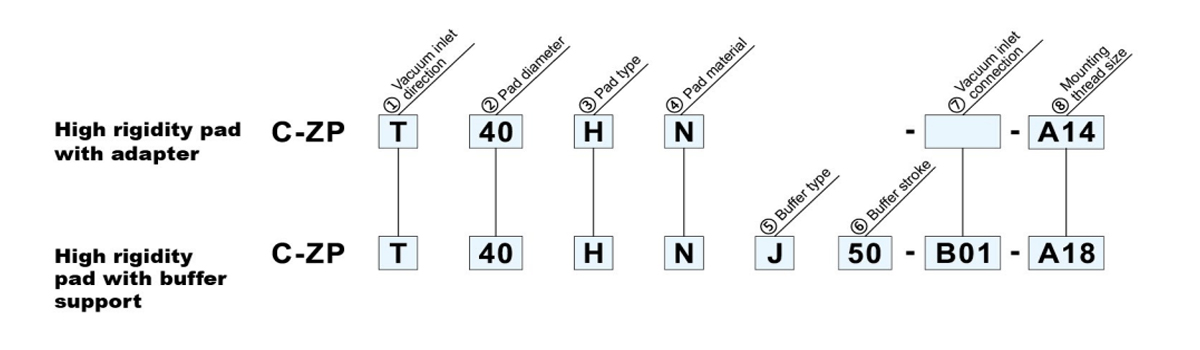

④Palum materialem□

② Pax diam(mm)/Pax type☆

H*

ego*

J*

K*

M*

N1

O1

N

NBR

32

40

50

63

80

100

125

150

200

250

300

340

S

Siicone rubber

32

40

50

63

80

100

125

Ø150

200

Ø250

300

340

Plana costas

●

①

Vacuum inlet
directionem HB

2 follis

●

Cum nibh

T

Vertical

Vacuum innexum nexu

B5

M5×0.8

●

B8

M8×1.25

●

B10

M10×1.5

●

B12

M12×1.75

●

B16

M16×1.5

●

B18

M18×1.5

●

B04

Rp1/2

●

Ascendens thread

A14*

M14×1.5

●

A16

M16×1.5

●

X

lateralis

B8

M8×1.25

●

B10

M10×1.5

●

B12

M12×1.75

●

vacuum inlet

B01

Rc1/8

●

R

04

4

●

06

6

●

08

8

●

Ascendens thread

A6

M6×1.0

●

A8

M8×1.0

●

B6

M6×1.0

●

B8

M8×1.25

●

Cum aliquid Customised

⑤
●

J

Rotative

●

K

Nequaquam ad
rotate

●

T

Vertical

Buffer ciconia

10

10 mm

●

20

20 mm

●

30

30 mm

●

50

50 mm

●

vacuum inlet connection◇

B5

M5×0.8

●

B01

Rc1/8

●

R

lateralis

04

4

●

06

6

●

08

8

●

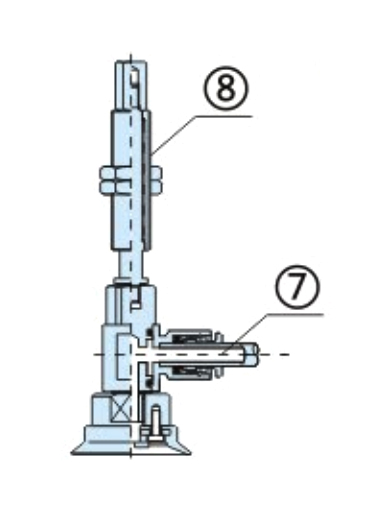

⑧

A14

M14×1.0

●

Cum quiddam

⑤
●

J

●

JB

●

JF

●

T

Vertical

Buffer ciconia

20

20 mm

●

25

25 mm

●

50

50 mm

●

75

75 mm

●

X

lateralis

100

100 mm

●

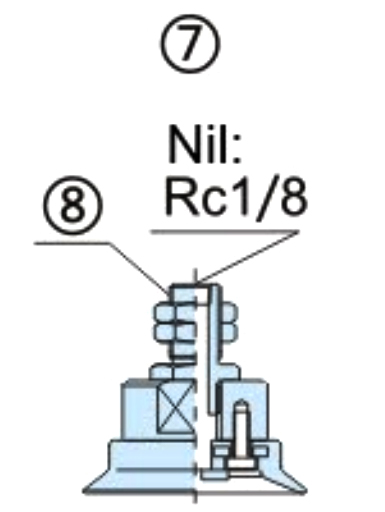

⑦

B01

Rc1/8

●

B02

Rc1/4

Ascendens thread size

A18

M18×1.5

●

A22

M22×1.5

●

A30

M30×1.5

* A14-3, customized cochlea genus institutionem extensa

Model	A	ØB	Adaptor Model

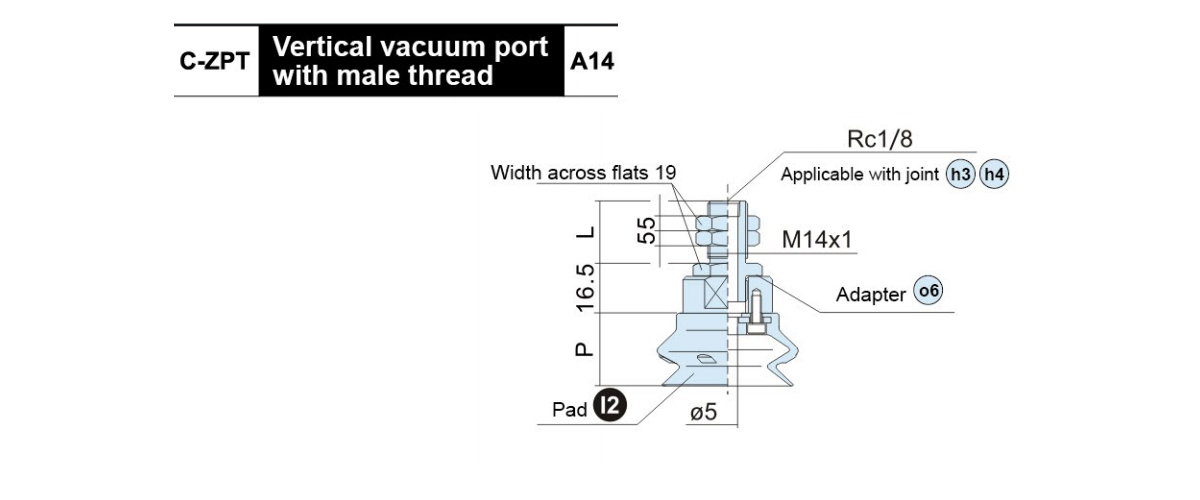

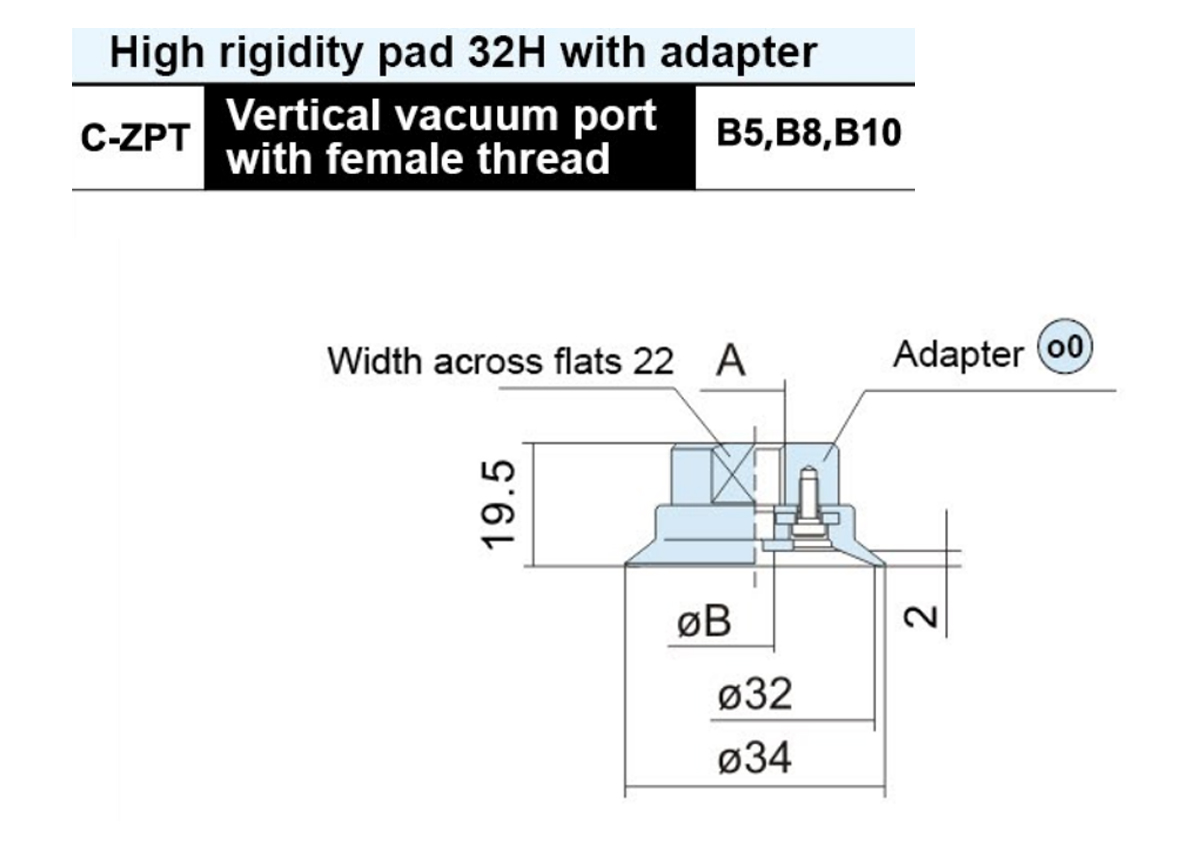

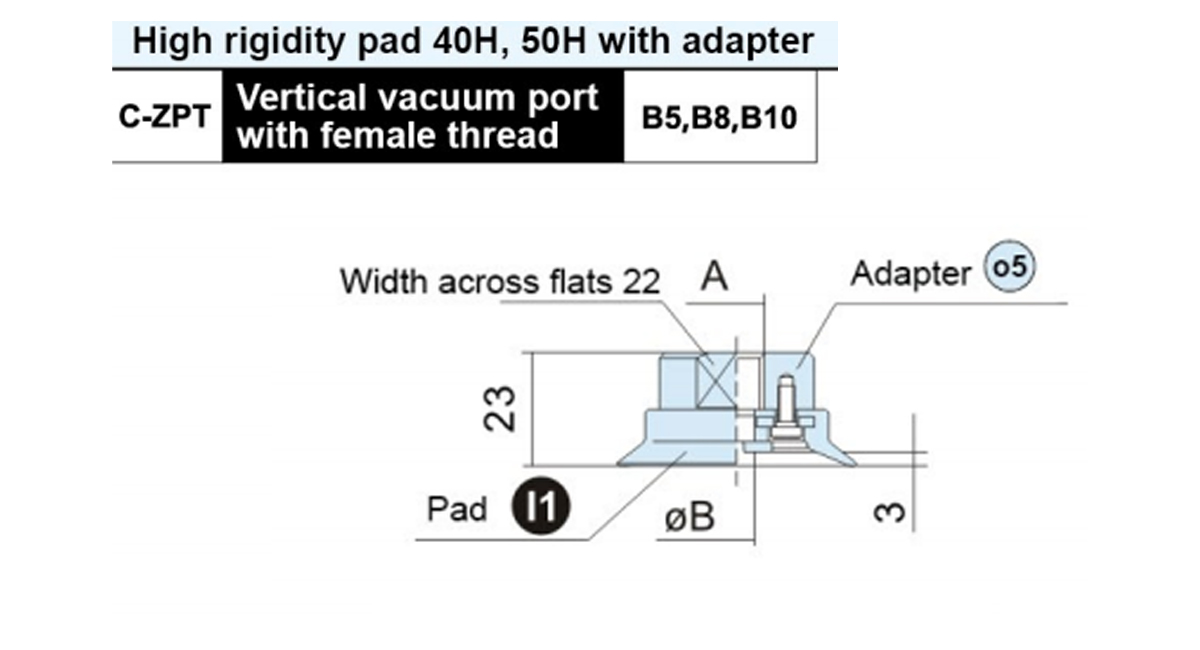

C-ZPT32H □ -B5	M5×0.8	4.2	ZPT0-B5
C-ZPT32H □ -B8	M8×1.25	5	ZPT0-B8
C-ZPT32H □ -B10	M10×1.5	5	ZPT0-B10
□ Pad material:NBR(N)S,Silicone(S)

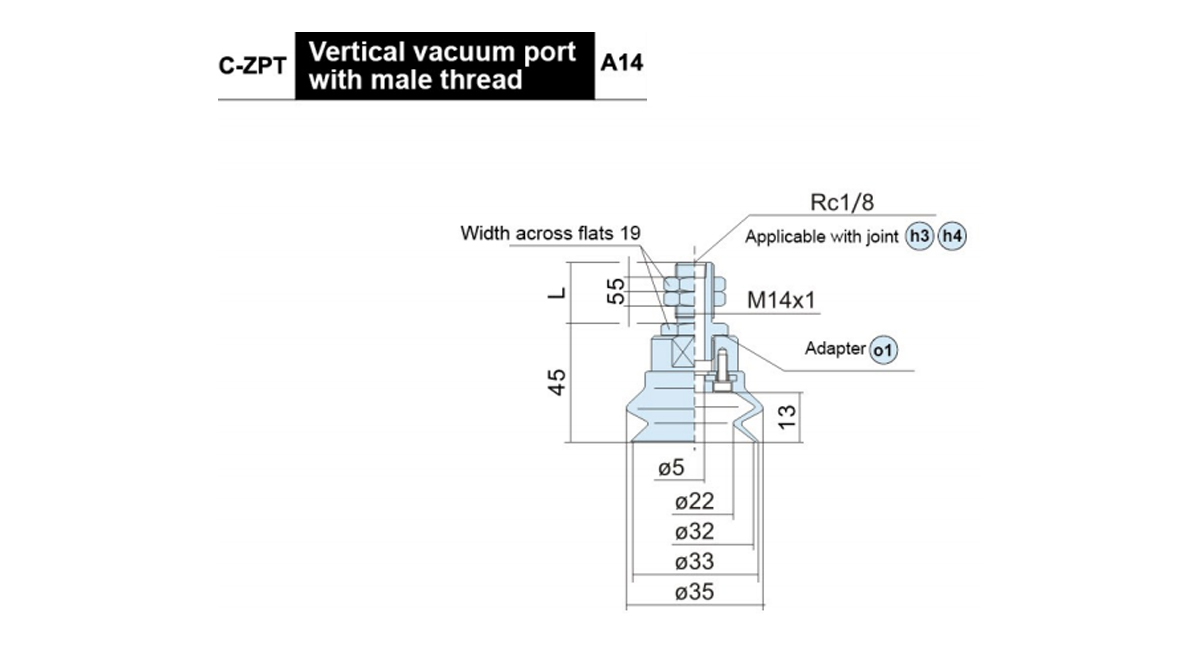

Model	L	Adaptor Model

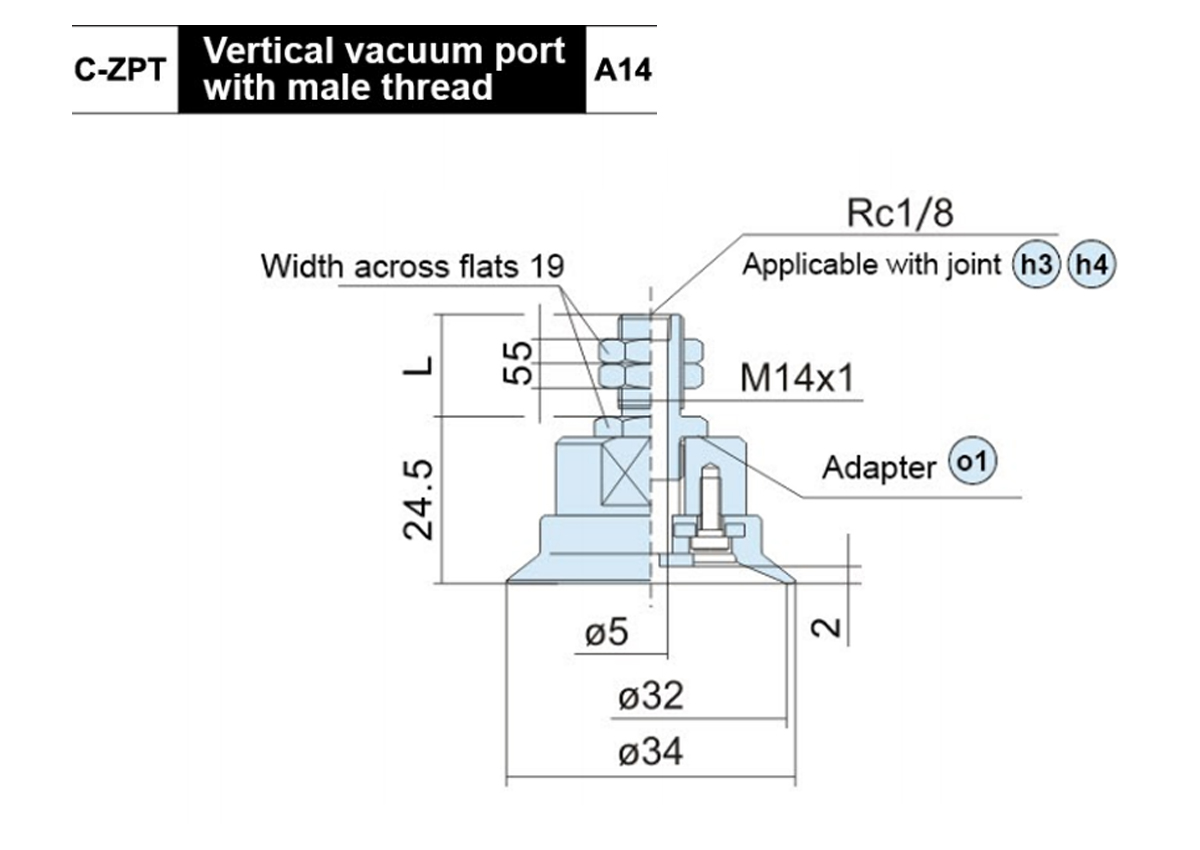

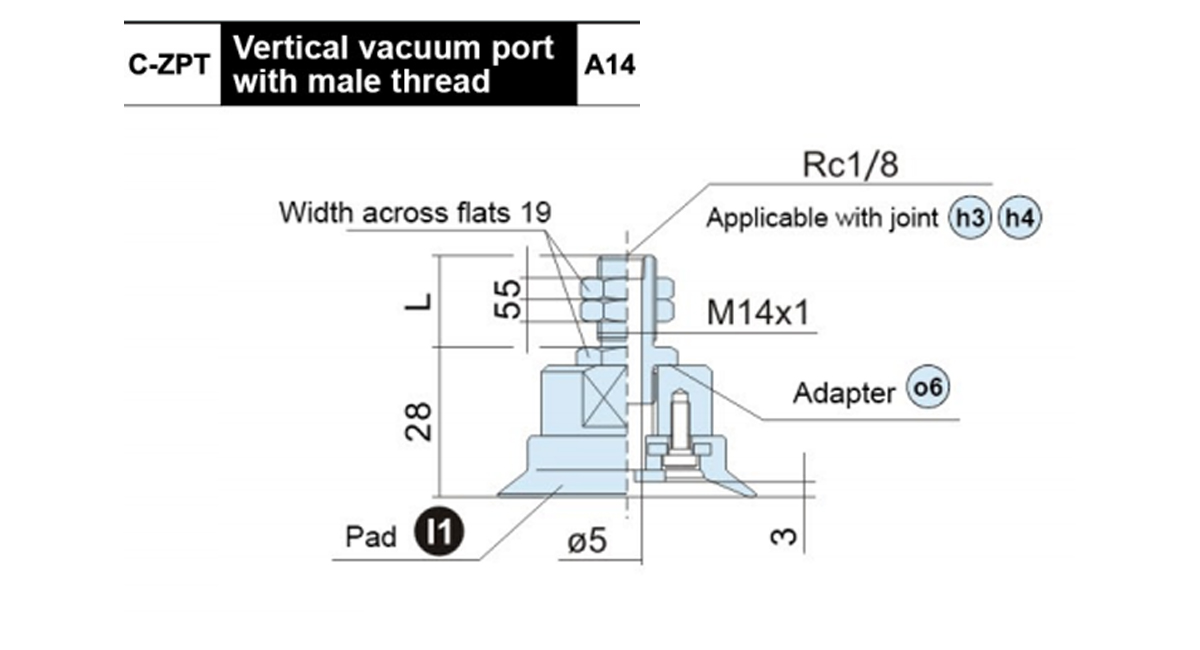

C-ZPT32H □- A14	25	ZPT0-A14
C-ZPT32H □- A14-3	40	ZPT0-A14-3
□ Pad material:NBR(N)S.Silicone(S)

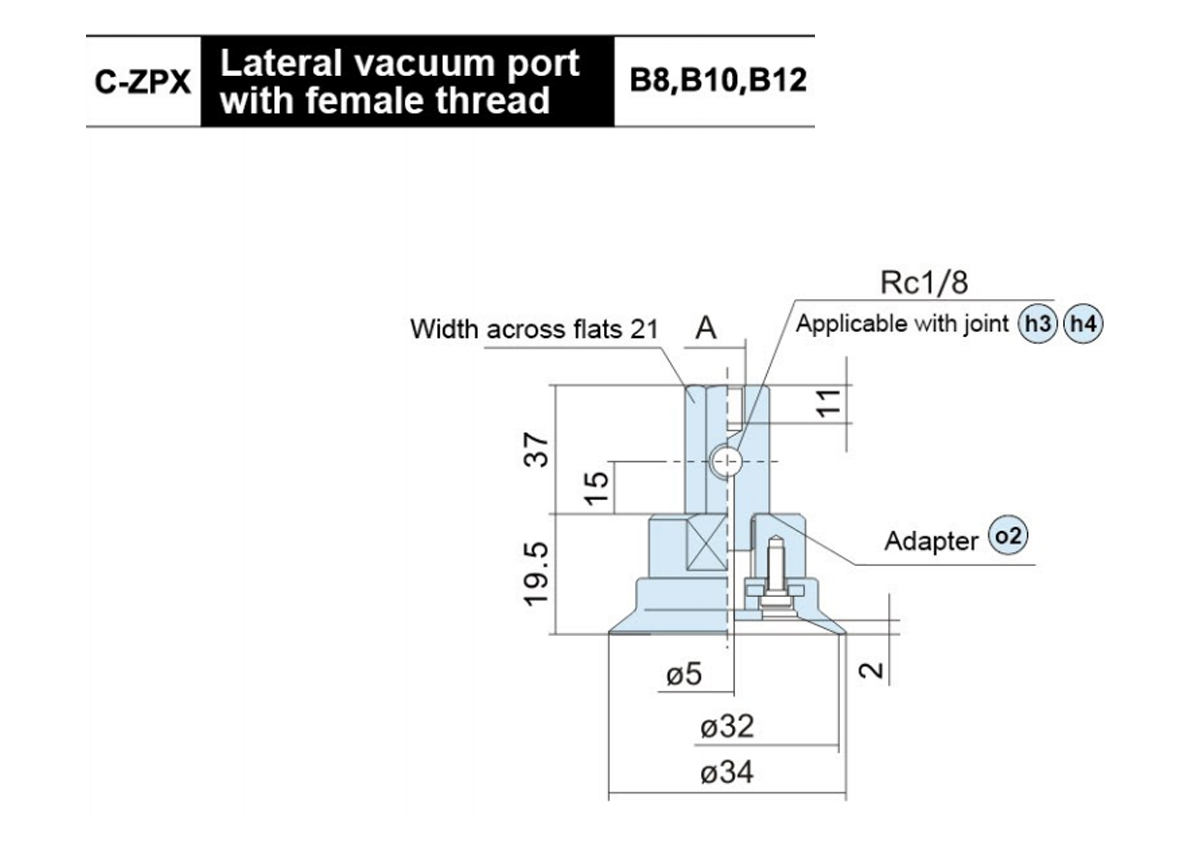

Model	A	Adaptor Model

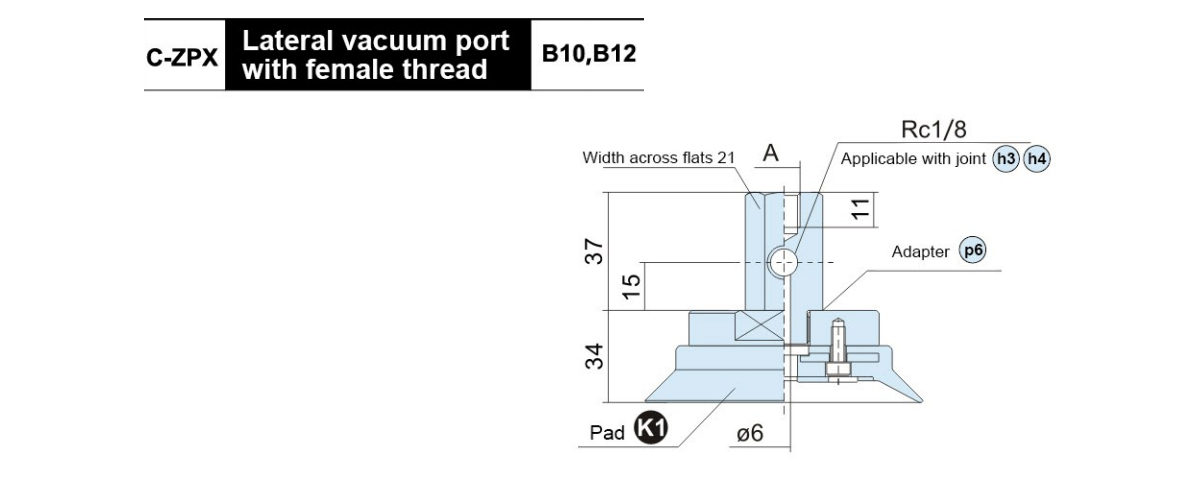

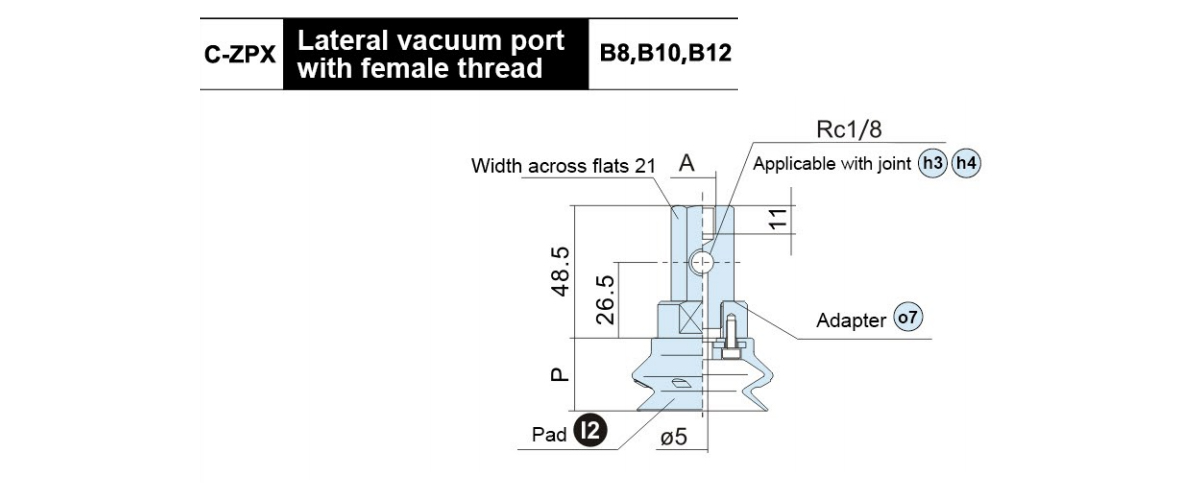

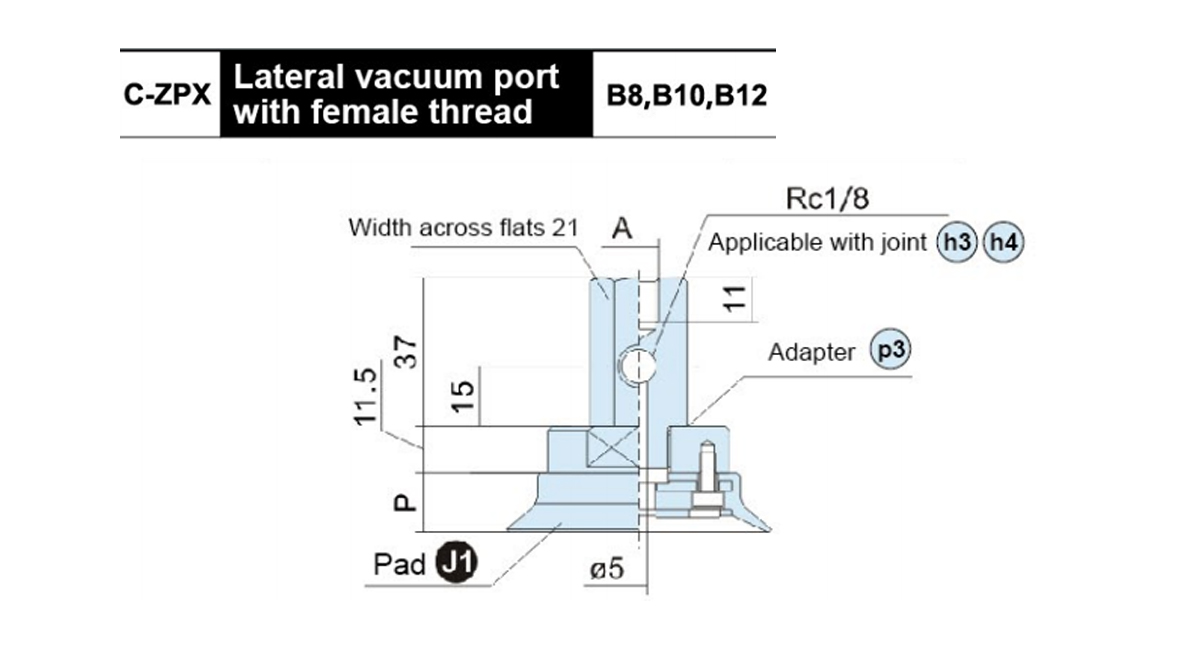

C-ZPX32H □- B8	M8×1.25	ZPX0-B01-B8
C-ZPX32H □- B10	M10×1.5	ZPX0-B01-B10
C-ZPX32H □- B12	M12×1.75	ZPX0-B01-B12
□Pad material:NBR(N)S,Silicone(S)

Model	A	E	L	Adaptor Model

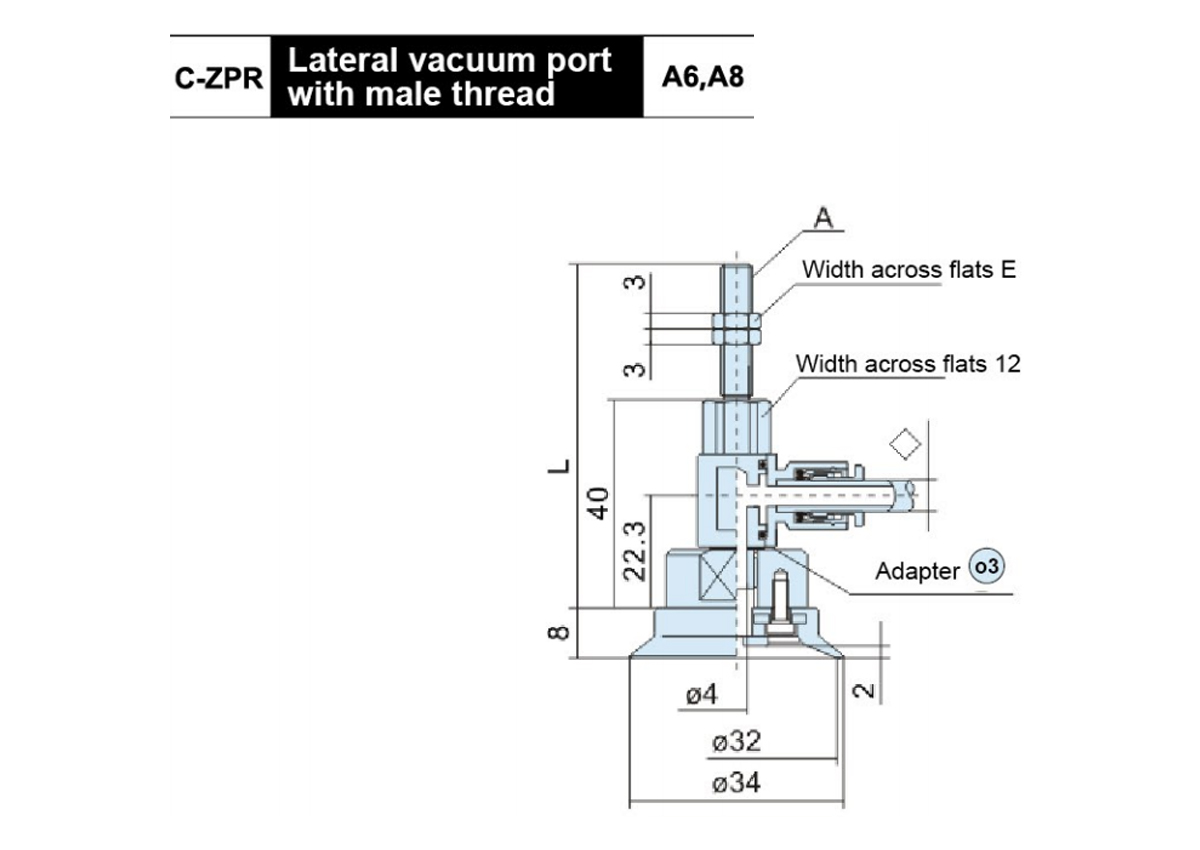

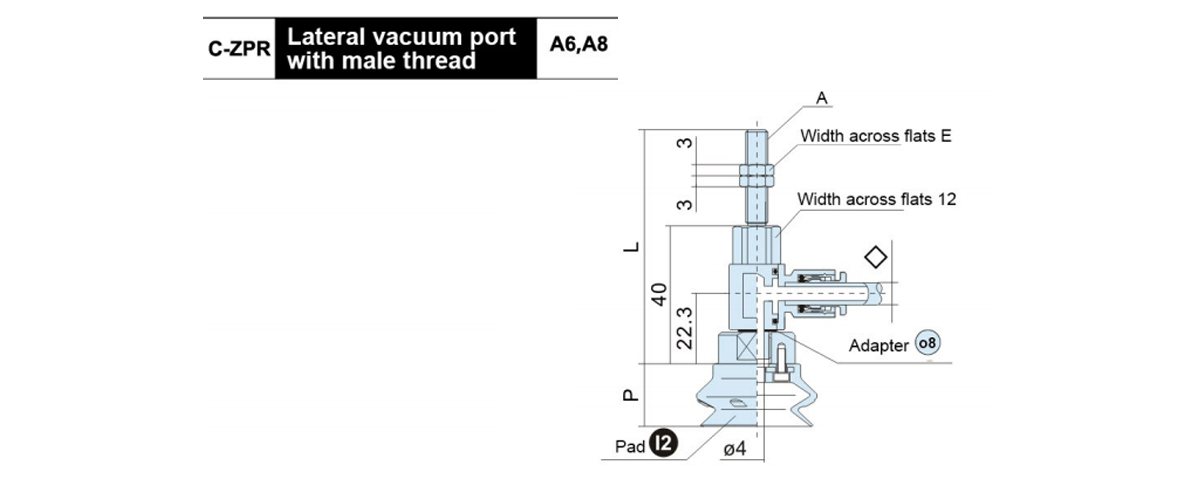

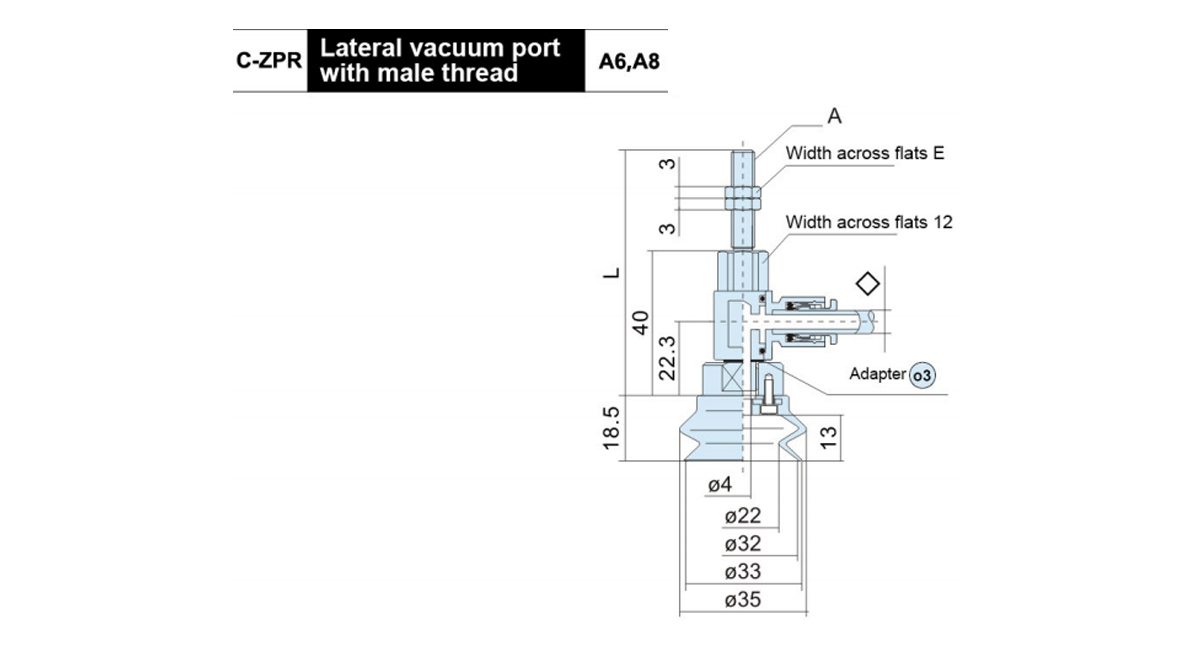

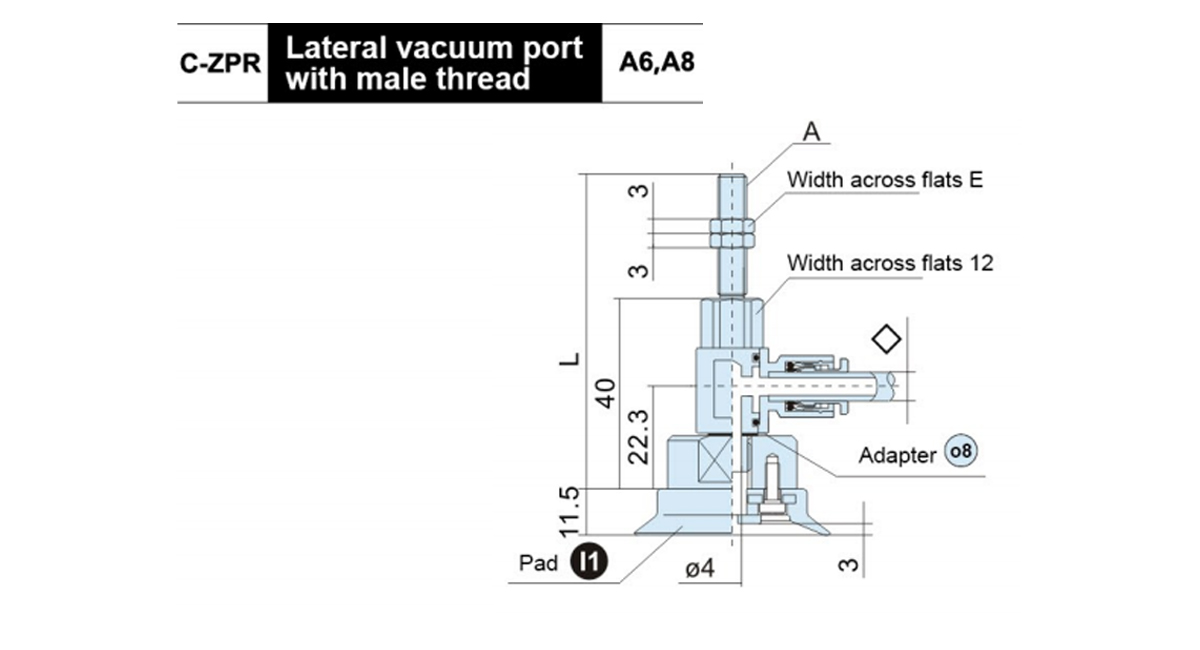

C-ZPR32H □-◇ -A6	M6×1.0	8	66	ZPROH-◇-A6
C-ZPR32H □-◇- A8	M8×1.0	12	56	ZPROH-◇-A8
□Pad material:NBR(N)S,Silicone(S) ◇Vacuum inlet connection:04,06,08

Model	A	D	Adaptor Model

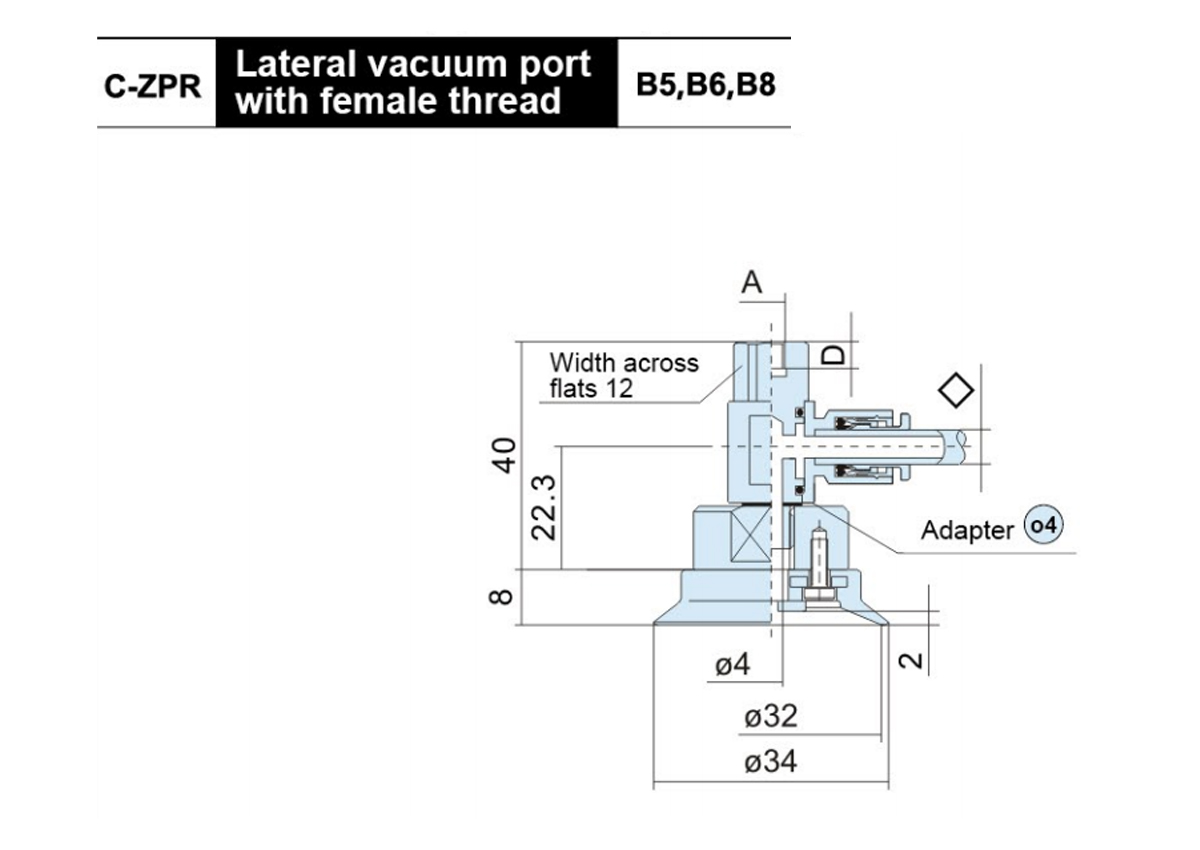

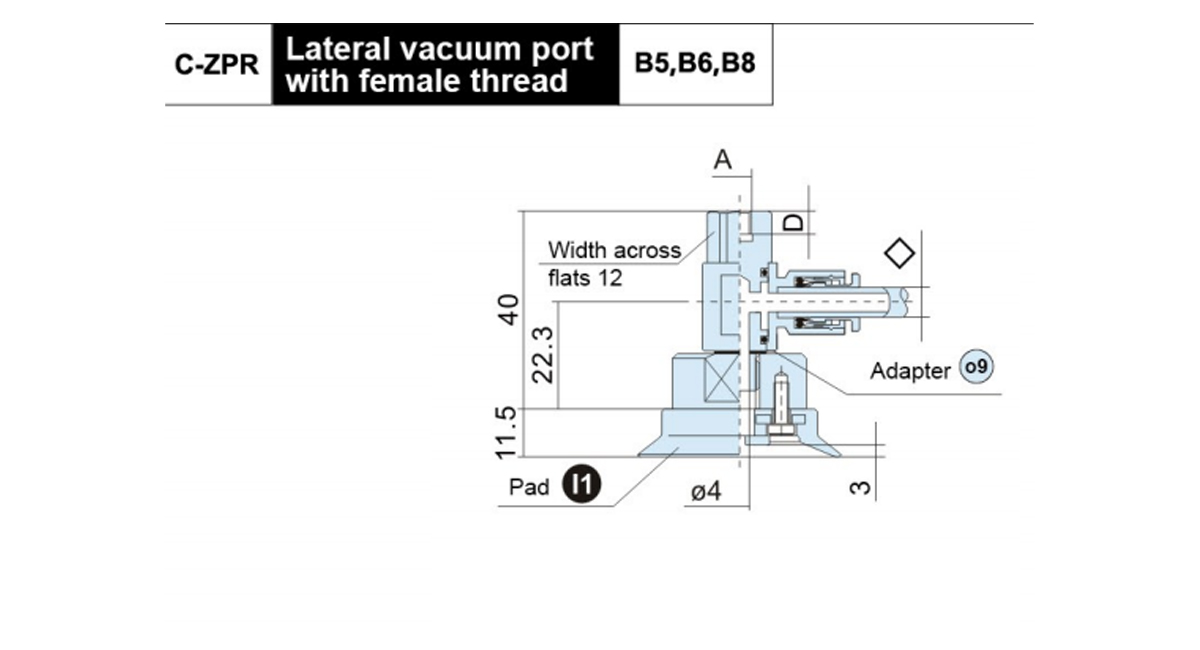

C-ZPR32H □-◇- B5	M5×0.8	5	ZPROH-◇-B5
C-ZPR32H □-◇- B6	M6×1.0	6	ZPROH-◇-B6
C-ZPR32H □-◇- B8	M8×1.25	8	ZPROH-◇-B8
□Pad material:NBR(N)S,Silicone(S) ◇Vacuum inlet connection:04,06,08

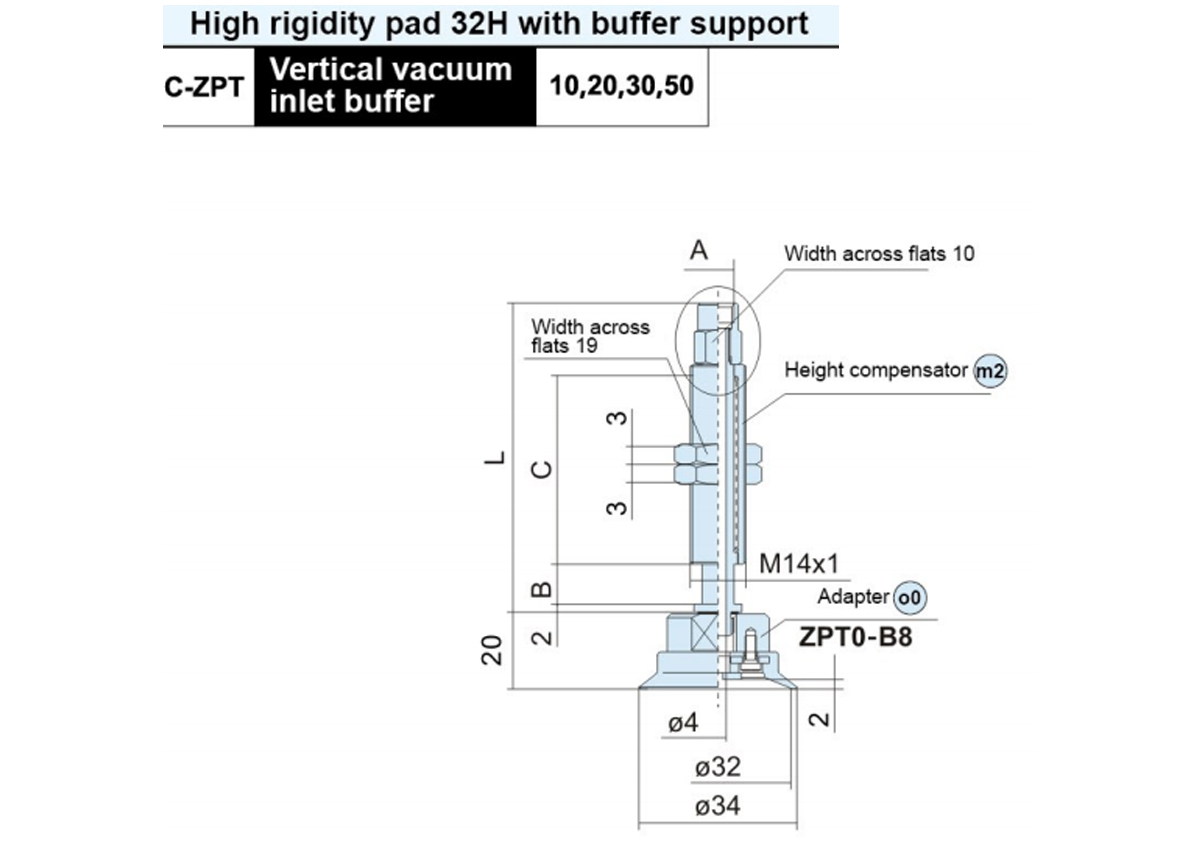

Model	A	B	C	L	m2 O0 Buffer Support Model
C-ZPT32H □● 10-B5-A14	M5×0.8	10	50	77	ZPT0-●10-B5-A14
C-ZPT32H □● 20-B5-A14		20		81	ZPT0-●20-B5-A14
C-ZPT32H □● 30-B5-A14		30		91	ZPT0-●30-B5-A14
C-ZPT32H □● 50-B5-A14		50	75	136	ZPT0-●50-B5-A14
C-ZPT32H □● 10-B01-A14	Rc1/8	10	50	78.5	ZPT0-●10-B01-A14
C-ZPT32H □● 20-B01-A14		20		84	ZPT0-●20-B01-A14
C-ZPT32H □● 30-B01-A14		30		94	ZPT0-●30-B01-A14
C-ZPT32H □● 50-B01-A14		50	75	139	ZPT0-●50-B01-A14
□Pad material:NBR(N)S,Silicone(S) ● Height compensator type:Rotative(J) Unable to rotate(K)

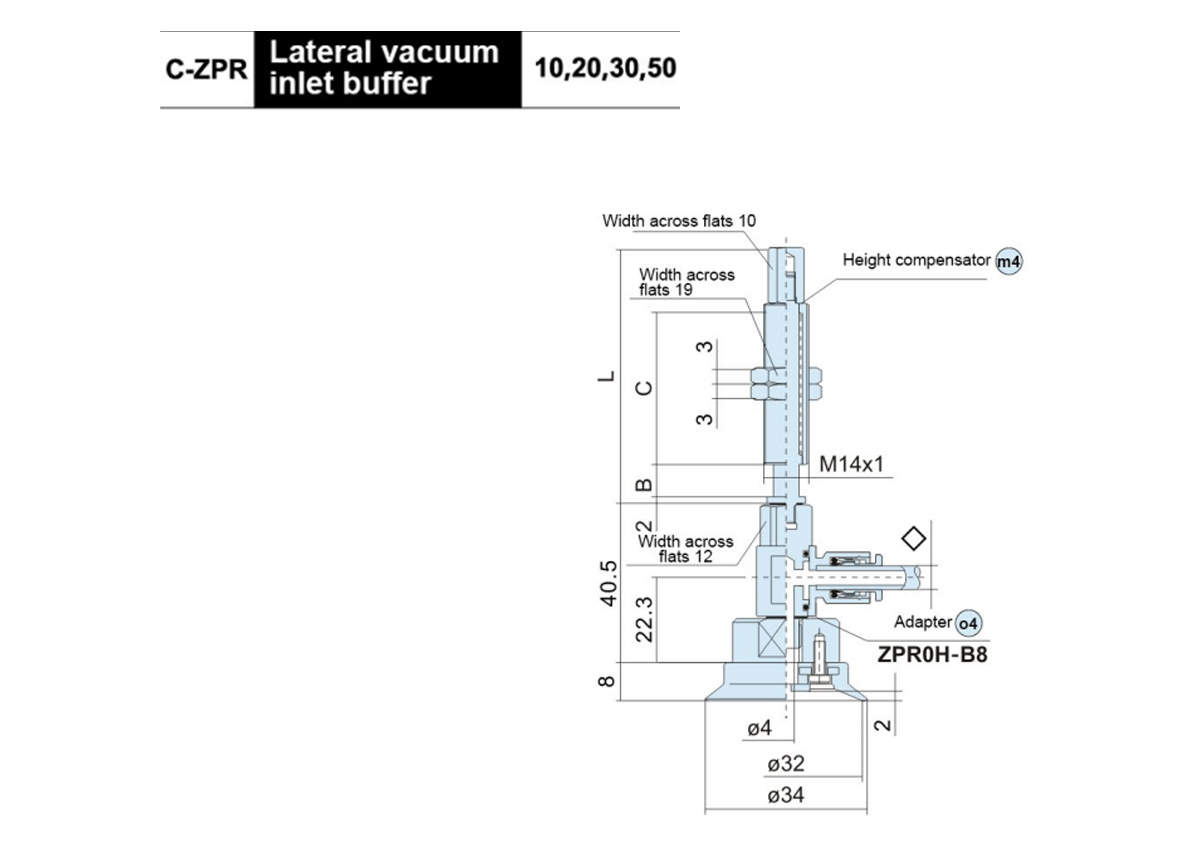

Model	B	C	L	m4 O4 Buffer Support Model

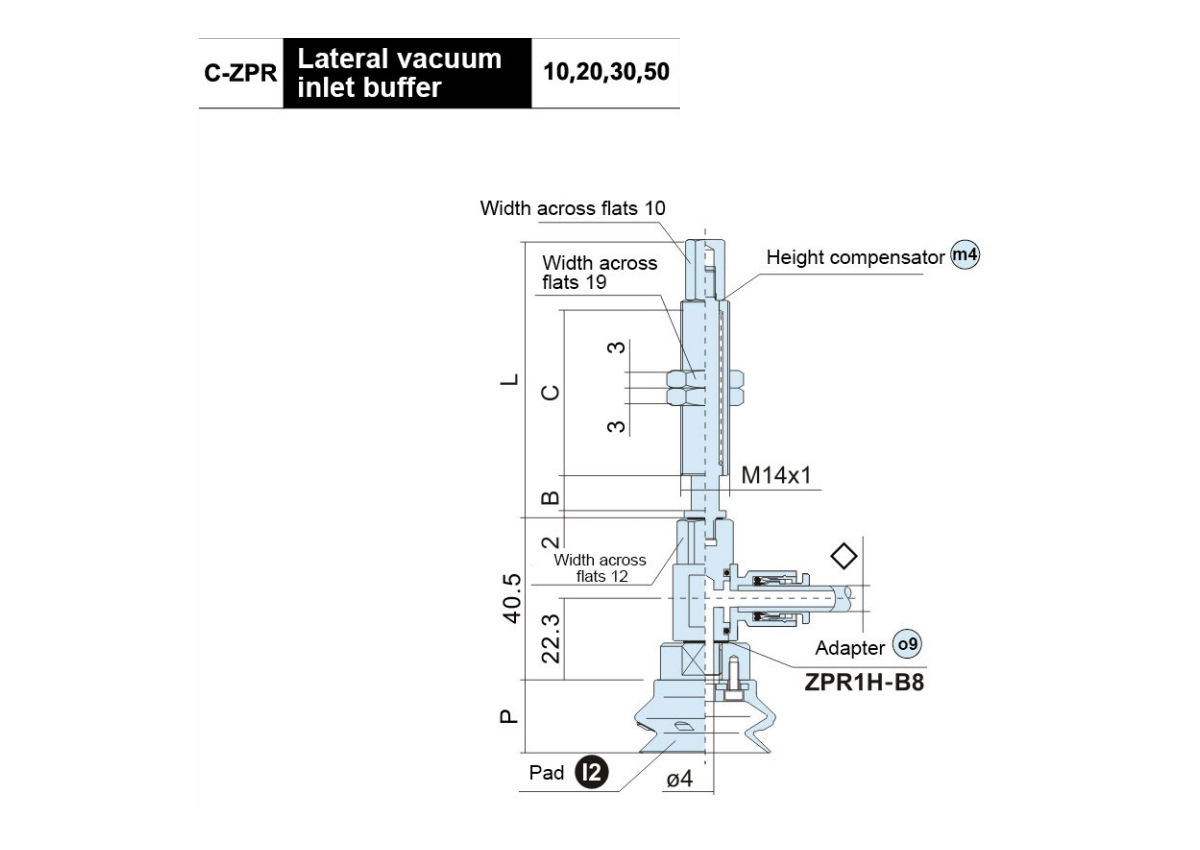

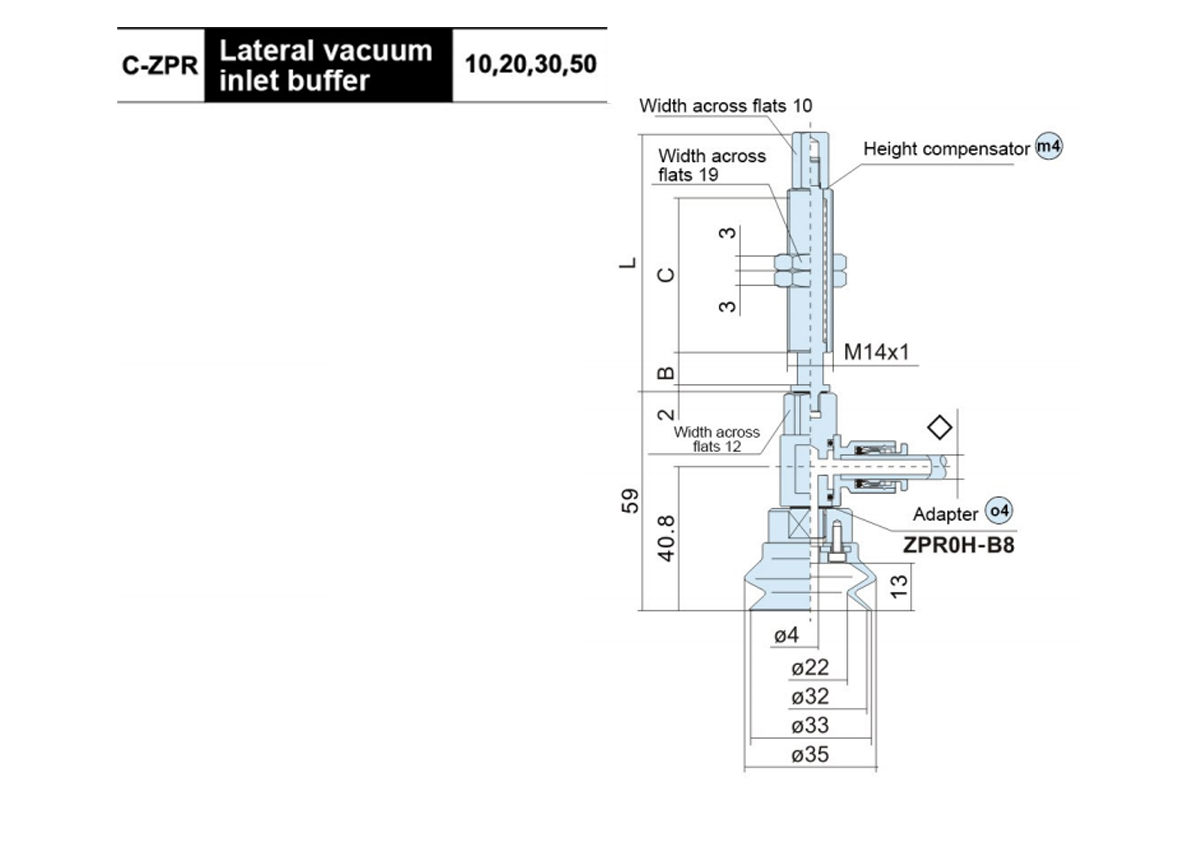

C-ZPR32H □● 10 -◇ -A14	10	50	80	ZPR0 -●10-◇-A14
C-ZPR32H □● 20 -◇- A14	20		77	ZPRO-●20-◇-A14
C-ZPR32H □● 30 -◇ -A14	30		87	ZPRO-●30-◇-A14
C-ZPR32H □● 50 -◇- A14	50	75	132	ZPR0- ●50-◇-A14
□ Pad material:NBR(N)S,Silicone(S) ◇ Vacuum inlet connection:04,06,08 ● Height compensator type:Rotative(J) Unable to rotate(K)

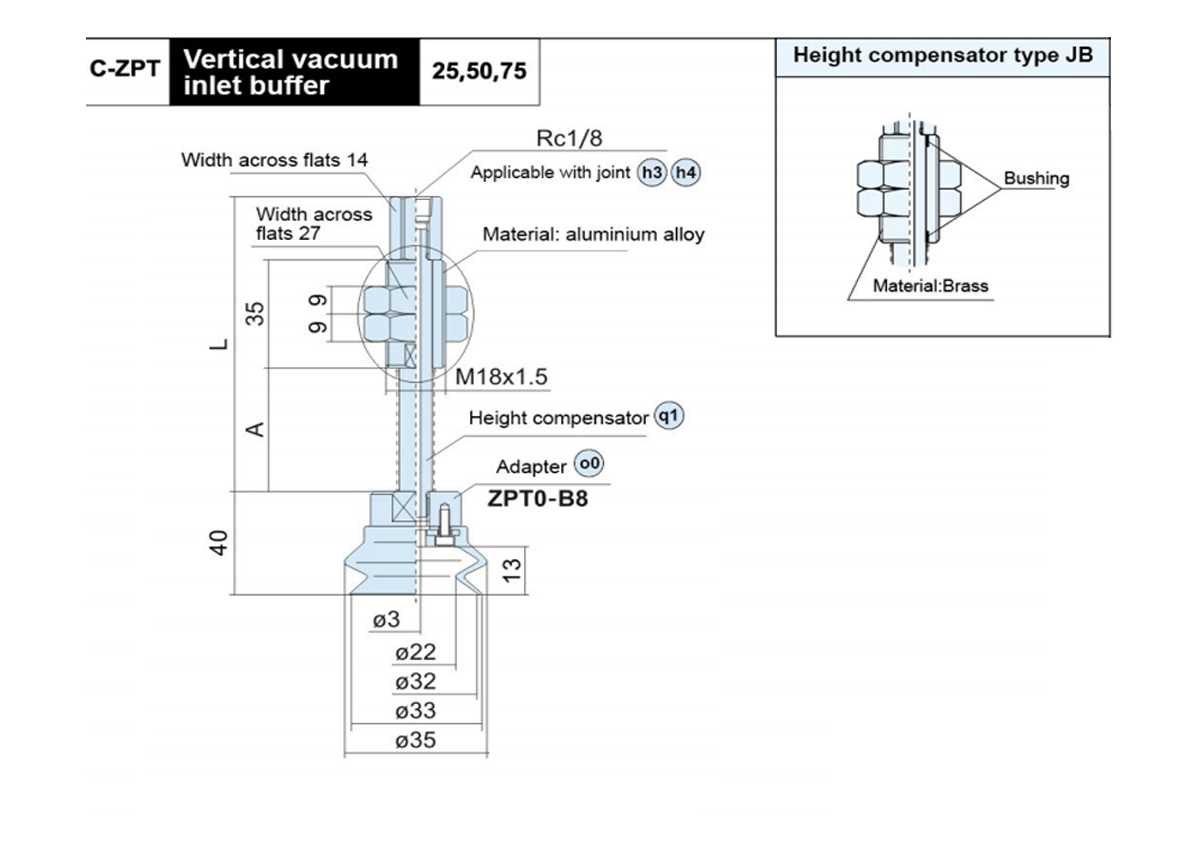

Model	A	L	q1 O0 Buffer Support Model

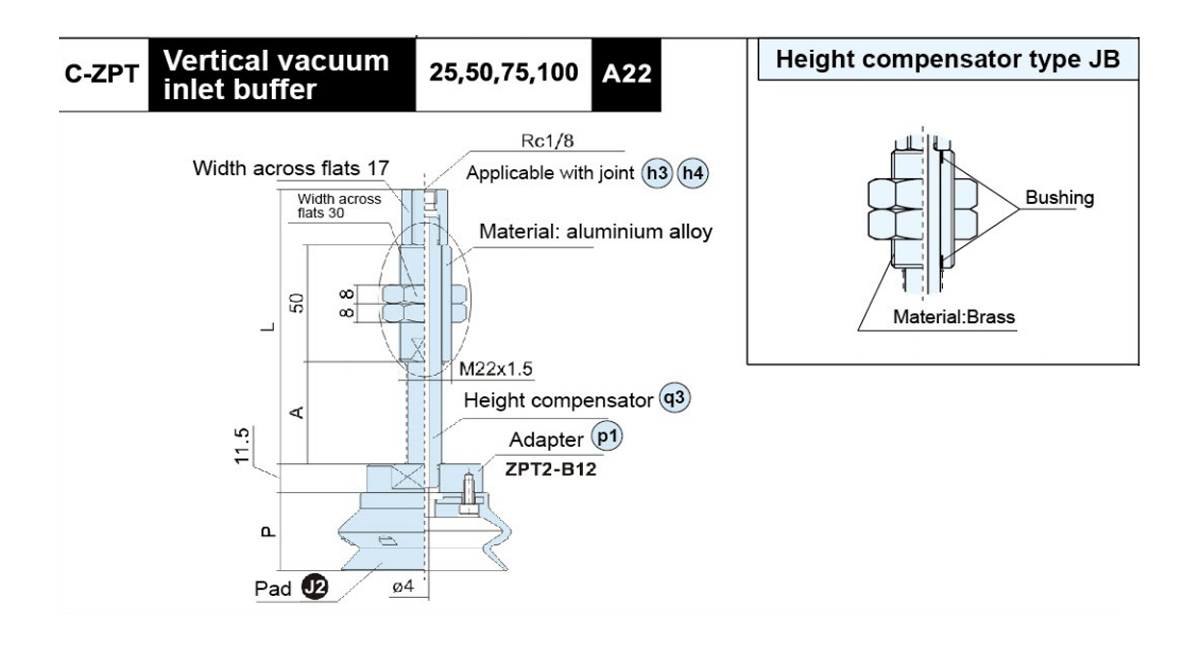

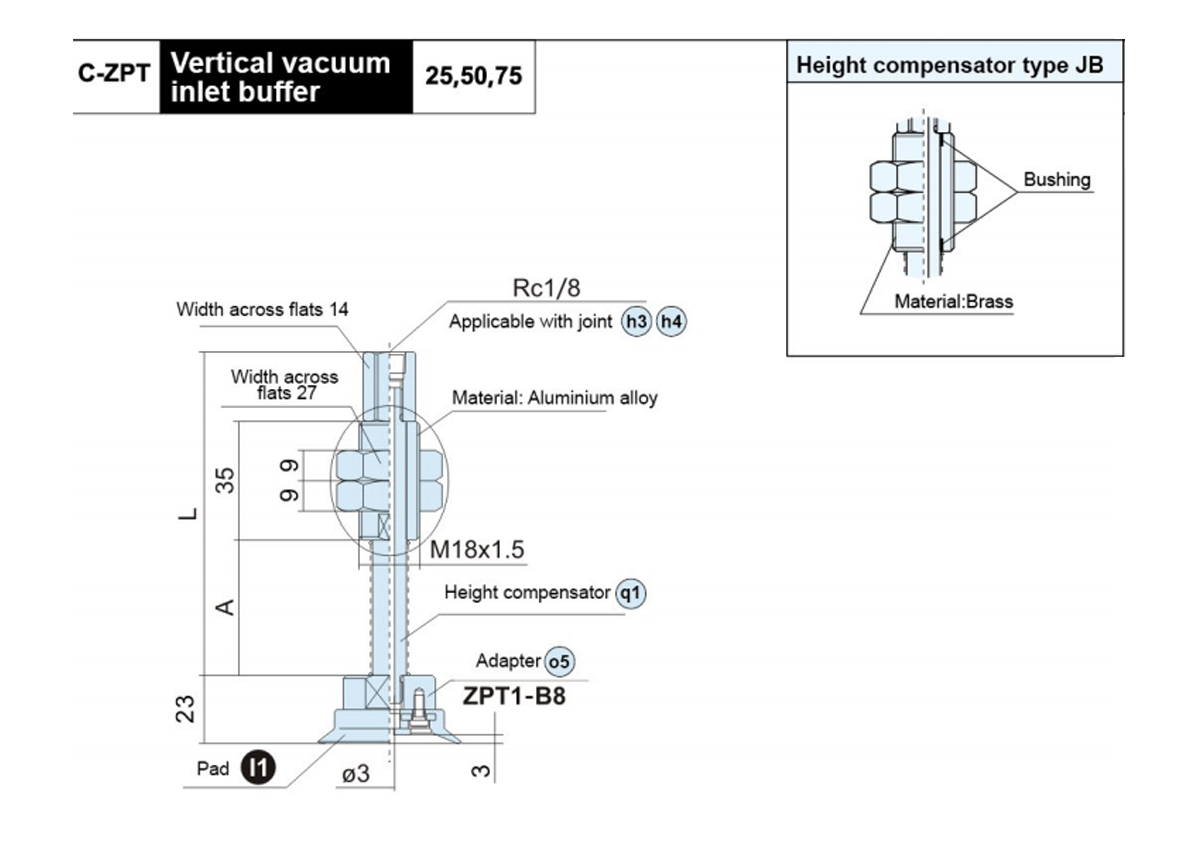

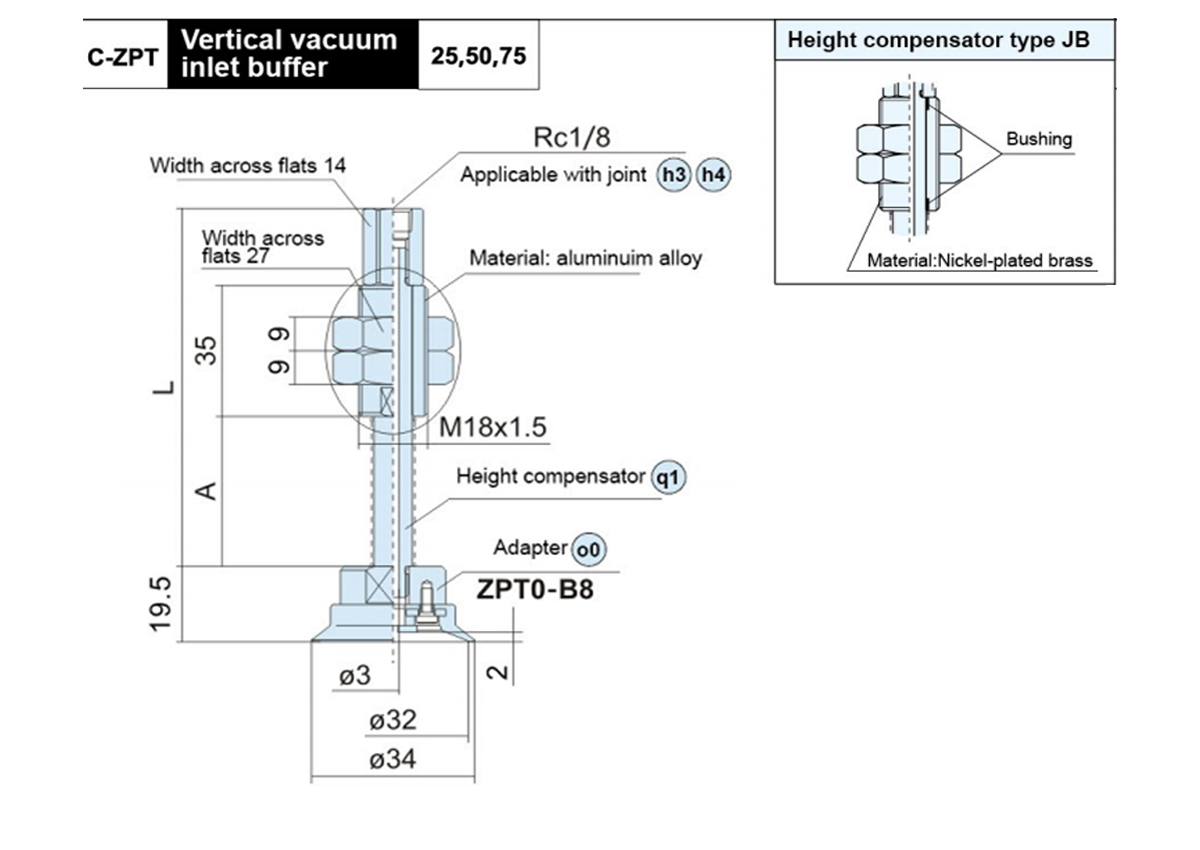

C-ZPT32H □● 25-B01-A18	40	95.5	ZPB0 ●25-B01-A18
C-ZPT32H □● 50-B01-A18	75	130.5	ZPBO ●50-B01-A18
C-ZPT32H □● 75-B01-A18	111	166.5	ZPB0 ●75-B01-A18

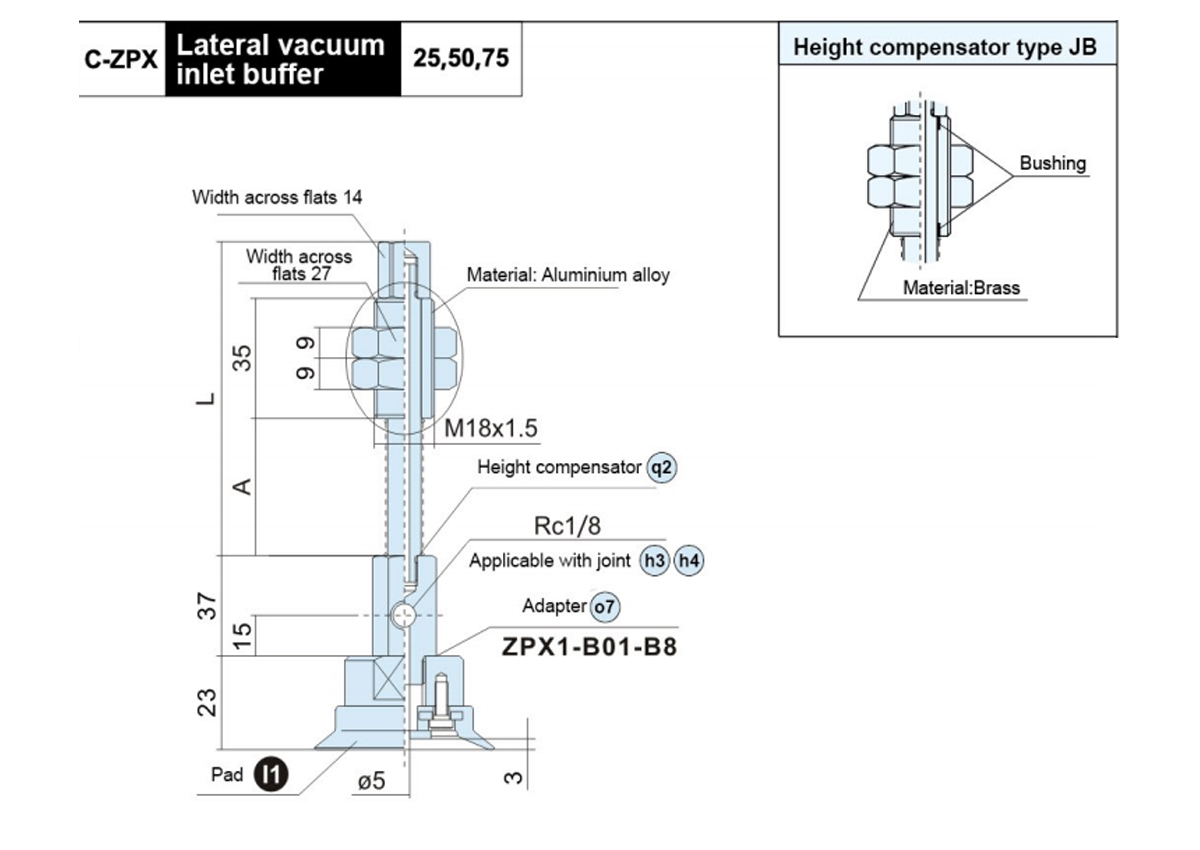

□ Pad material:NBR(N)S,Silicone(S) ● Height compensator type:Aluminium alloy(J) Brass(JB)

Model	A	L	q2 O2 Buffer Support Model

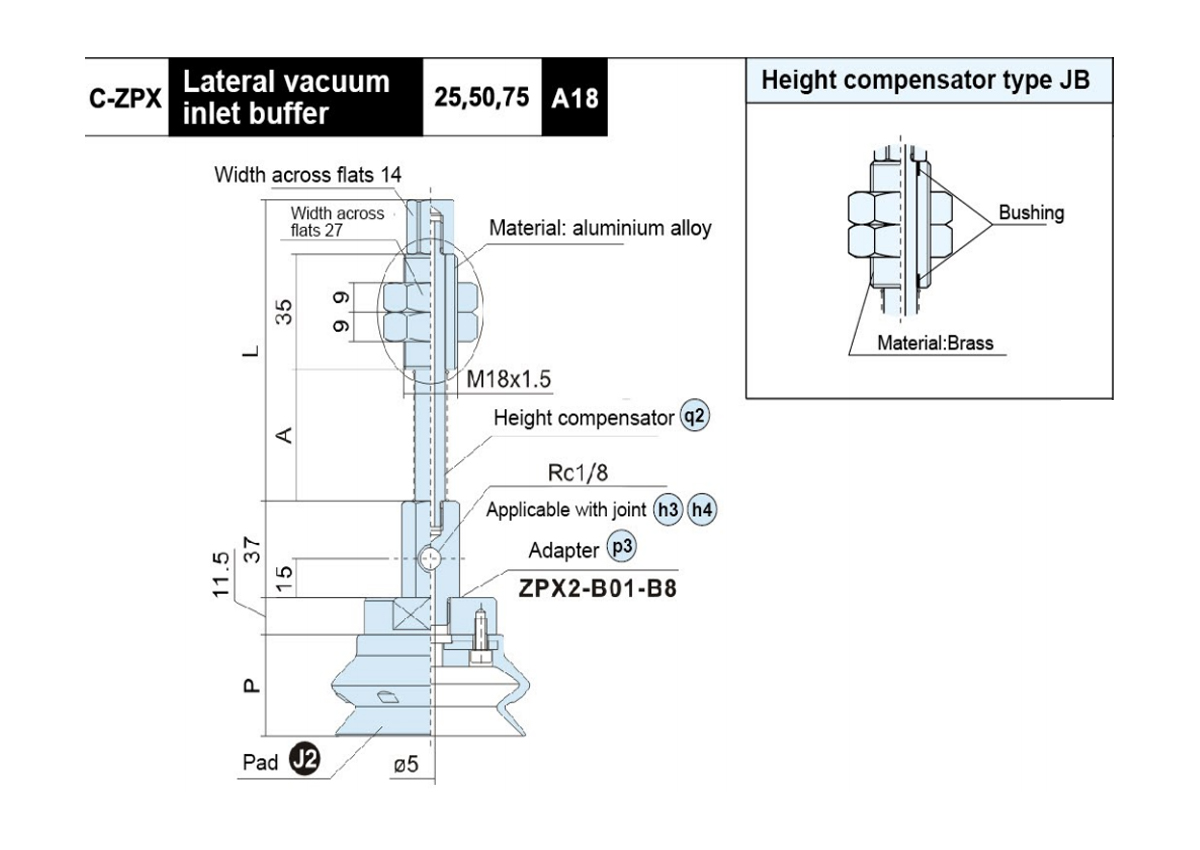

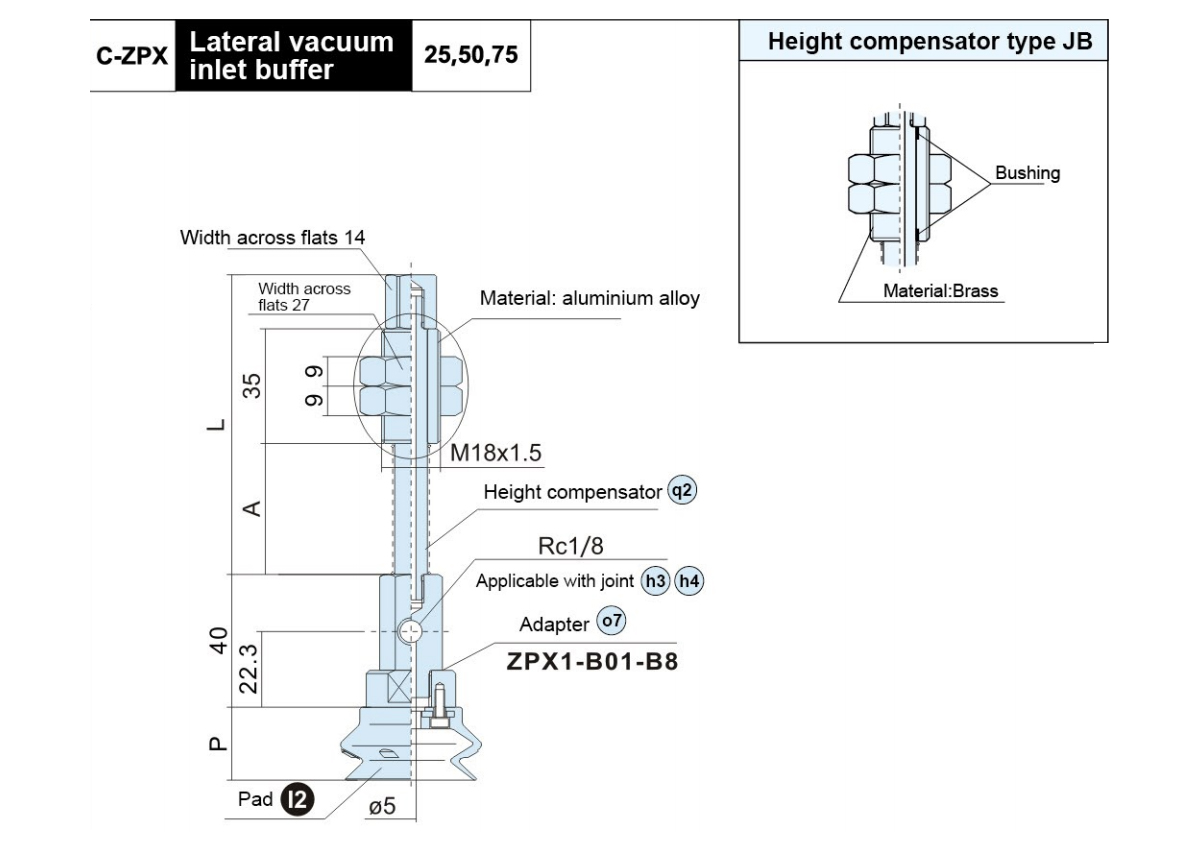

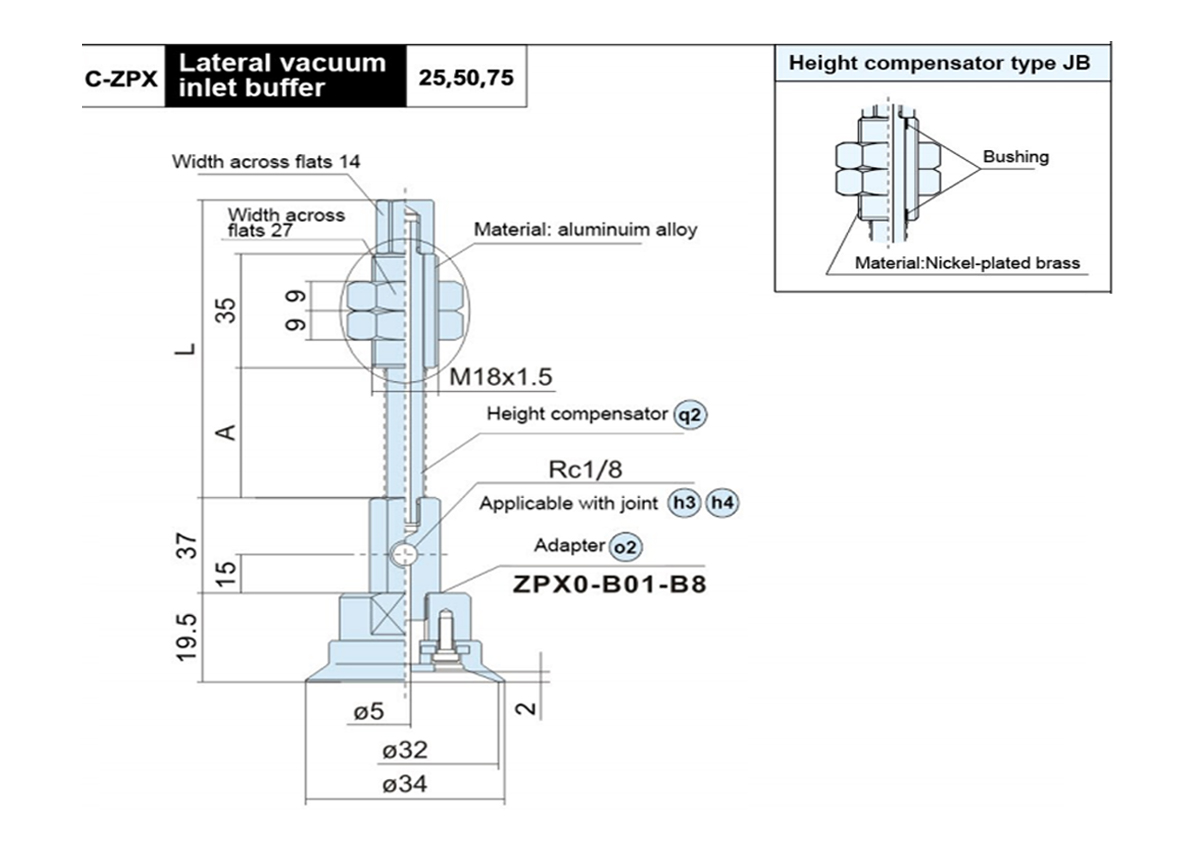

C-ZPX32H □● 25-B01-A18	40	91	ZPX0 ●25-B01-A18
C-ZPX32H □● 50-B01-A18	75	126	ZPX0 ●50-B01-A18
C-ZPX32H □● 75-B01-A18	111	162	ZPX0 ●75-B01-A18
□ Pad material:NBR(N)S,Silicone(S) ●Height compensator type:Aluminium alloy(J) Brass(JB)

Model	A	ØB	Adaptor Model
C-ZPT ○ H□- B5	M5×0.8	4.2	ZPT1-B5
C-ZPT ○ H□- B8	M8×1.25	5	ZPT1-B8
C-ZPT ○ H□- B10	M10×1.5	5	ZPT1-B10
○ Pad diameter symbol:40,50 □ Pad material:NBR(N)Silicone rubber(S)

Model	L	Adaptor Model
C-ZPT ○ H□ -A14	25	ZPT1-A14
C-ZPT ○ H□- A14-3	40	ZPT1-A14-3
○ Pad diameter symbol:40,50 □ Pad material:NBR(N)Silicone rubber(S)

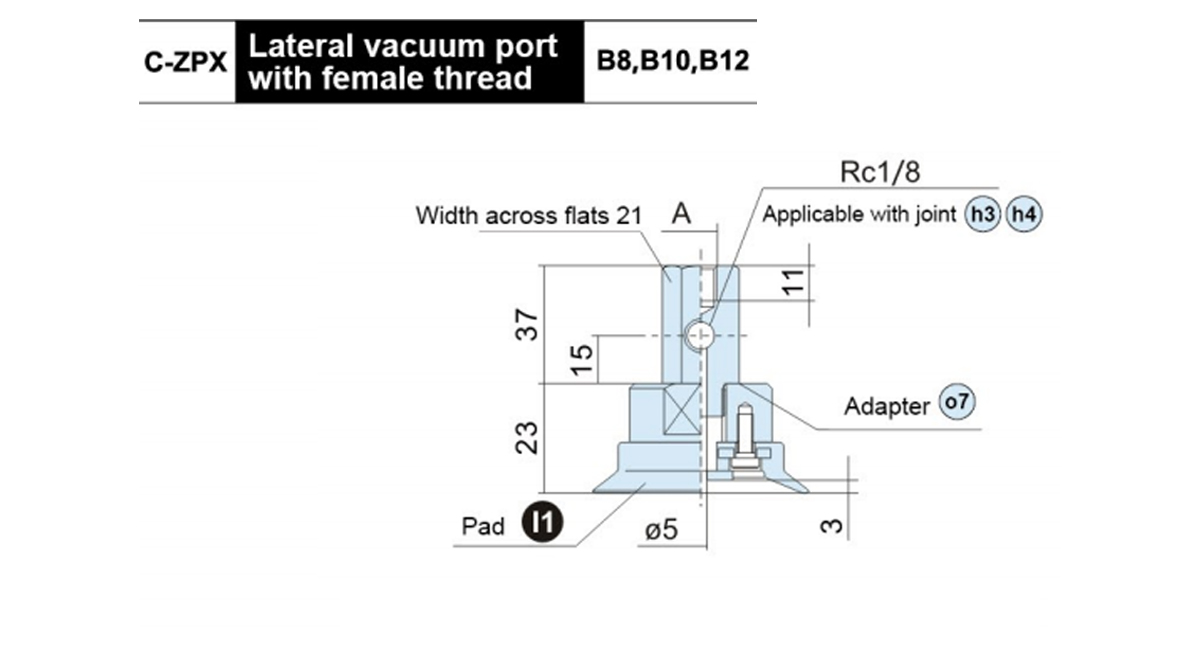

Model	A	Adaptor Model
C-ZPX ○ H □- B8	M8×1.25	ZPX1-B01-B8
C-ZPX ○ H □- B10	M10×1.5	ZPX1-B01-B10
C-ZPXH □- B12	M12×1.75	ZPX1-B01-B12
○Pad diameter symbol:40,50 □ Pad material:NBR(N)Silicone rubber(S)

Model	A	E	L	Adaptor Model
C-ZPR ○ H □-◇ -A6	M6×1.0	8	66	ZPR1H -◇-A6
C-ZPR ○ H □-◇ -A8	M8×1.0	12	56	ZPR1H -◇-A8
○Pad diameter symbol:40,50 □ Pad material:NBR(N)Silicone rubber(S) Vacuum inlet connection:06,08

Model	A	D	Adaptor Model
C-ZPR ○ H□-◇- B6	M6×1.0	6	ZPR1H -◇-B6
C-ZPR ○ H□-◇ -B8	M8×1.25	8	ZPR1H -◇-B8
○Pad diameter symbol:40,50 □ Pad material:NBR(N)Silicone rubber(S) ◇Vacuum inlet connection:06,08

Model	A	B	C	L	m2 O5 Buffer Support Model

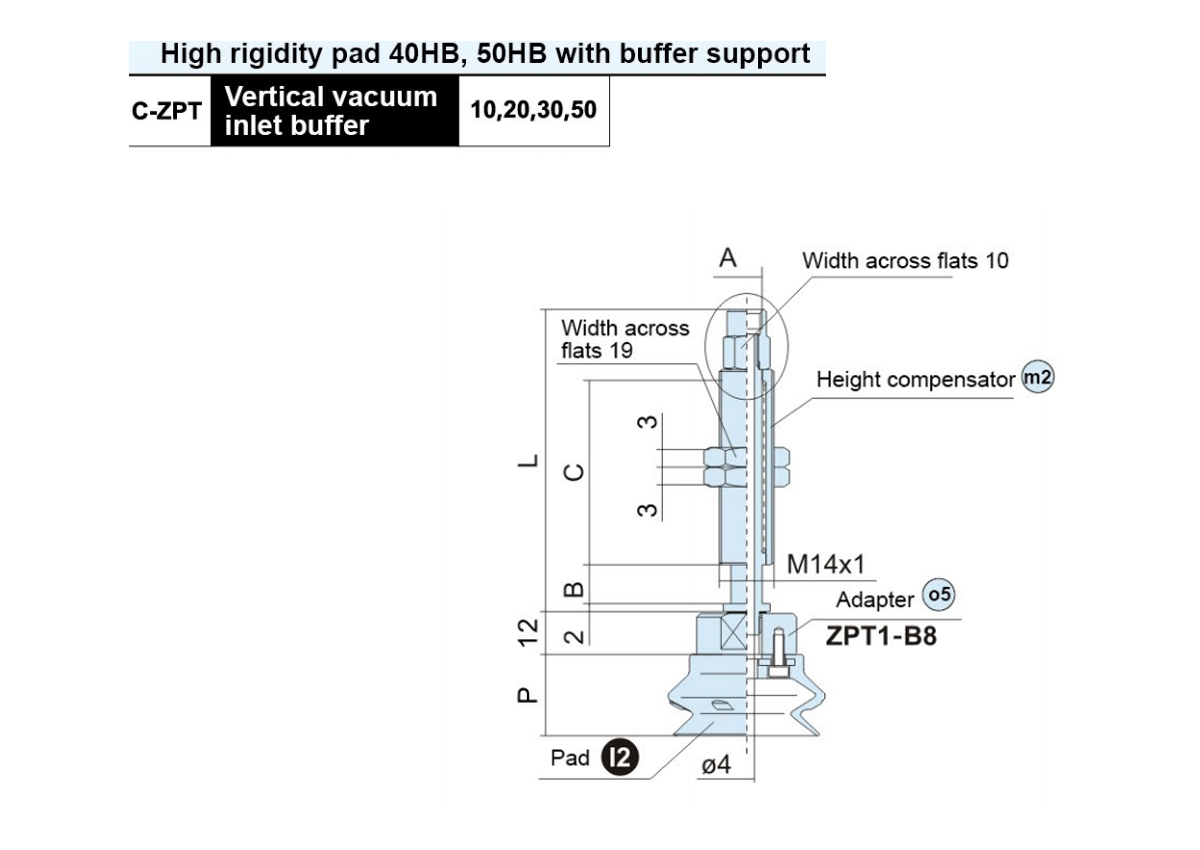

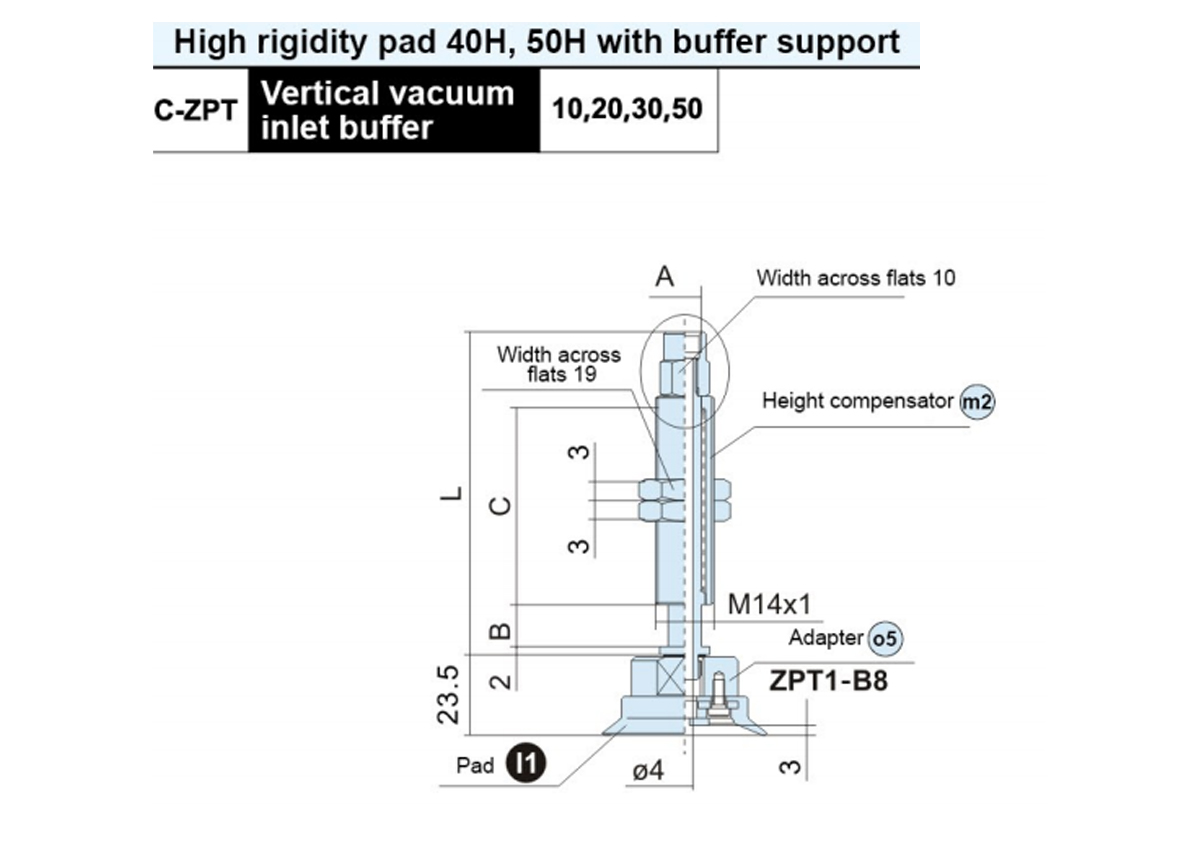

C-ZPT ○ H□● 10-B5-A14	M5×0.8	10	50	77	ZPT1-●10-B5-A14
C-ZPT ○ H□● 20-B5-A14		20		81	ZPT1-●20-B5-A14
C-ZPT ○ H□● 30-B5-A14		30		91	ZPT1-●30-B5-A14
C-ZPT ○ H□● 50-B5-A14		50	75	136	ZPT1-●50-B5-A14
C-ZPT ○ H□● 10-B01-A14	Rc1/8	10	50	78.5	ZPT1-●10-B01-A14
C-ZPT ○ H□● 20-B01-A14		20		84	ZPT1-●20-B01-A14
C-ZPT ○H□● 30-B01-A14		30		94	ZPT1-●30-B01-A14
C-ZPT ○ H □● 50-B01-A14		50	75	139	ZPT1-●50-B01-A14
○Pad diameter symbol:40,50 □Pad material:NBR(N)S,Silicone rubber(S) ● Height compensator type:Rotative(J),Unable to rotate(K)

Model	B	C	L	m4 O9 Buffer Support Model
C-ZPR ○ H□● 10 -◇- A14	10	50	80	ZPR1 -●10-◇ -A14
C-ZPR ○ H□● 20 -◇ -A14	20		77	ZPR1-●20-◇-A14
C-ZPR ○ H□● 30- ◇ -A14	30		87	ZPR1-●30-◇-A14
C-ZPR ○ H □● 50 -◇ -A14	50	75	132	ZPR1-●50-◇-A14
○Pad diameter symbol:40,50 □ Pad material:NBR(N)S,Silicone rubber(S) ◇ Vacuum inlet connection:06,08 ●Height compensator type:Rotative(J),Unable to rotate(K)

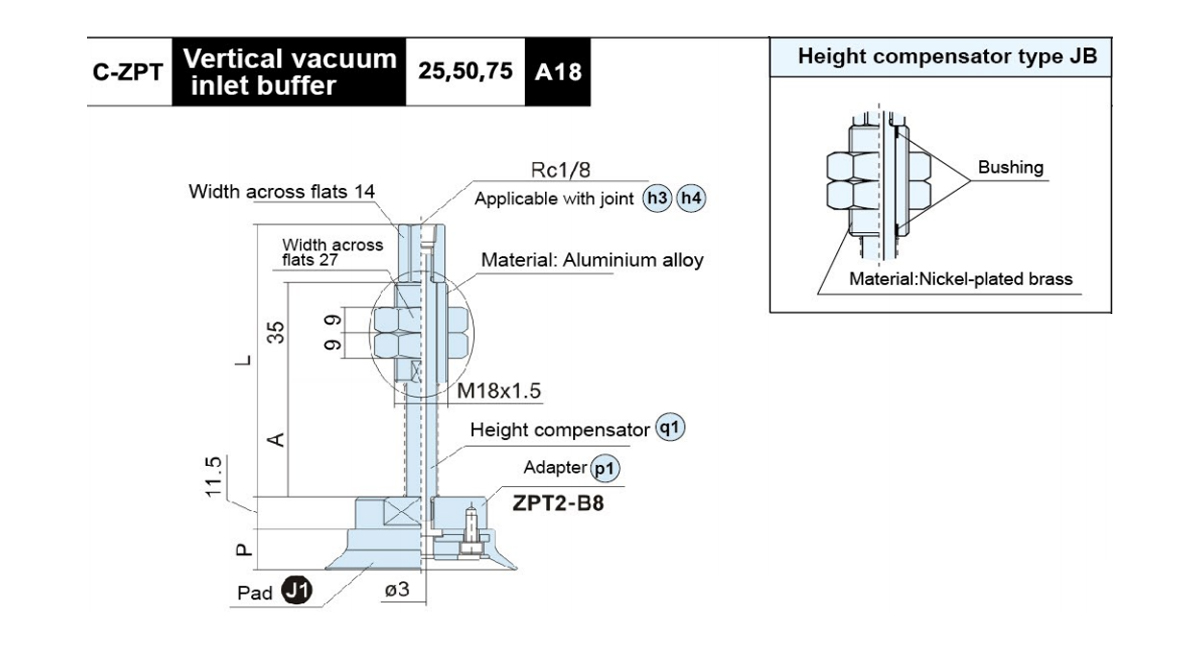

Model	A	L	q1 O5 Buffer Support Model
C-ZPT ○ H□● 25-B01-A18	40	95.5	ZPB1 ●25-B01-A18
C-ZPT ○ H□● 50-B01-A18	75	130.5	ZPB1 ●50-B01-A18
C-ZPT ○ H□● 75-B01-A18	111	166.5	ZPB1 ●75-B01-A18
○Pad diameter symbol:40,50 □ Pad material:NBR(N)S,Silicone rubber(S) Height compensator type:Aluminium alloy(J) Brass(JB)

Model	A	L	q2 O7 Buffer Support Model
C-ZPX ○ H□● 25-B01-A18	40	91	ZPX1 ●25-B01-A18
C-ZPX ○ H□● 50-B01-A18	75	126	ZPX1 ●50-B01-A18
C-ZPX ○ H □● 75-B01-A18	111	162	ZPX1 ●75-B01-A18
○Pad diameter symbol:40,50 □ Pad material:NBR(N)S,Silicone rubber(S) ● Height compensator type:Aluminium alloy(J) Brass(JB)

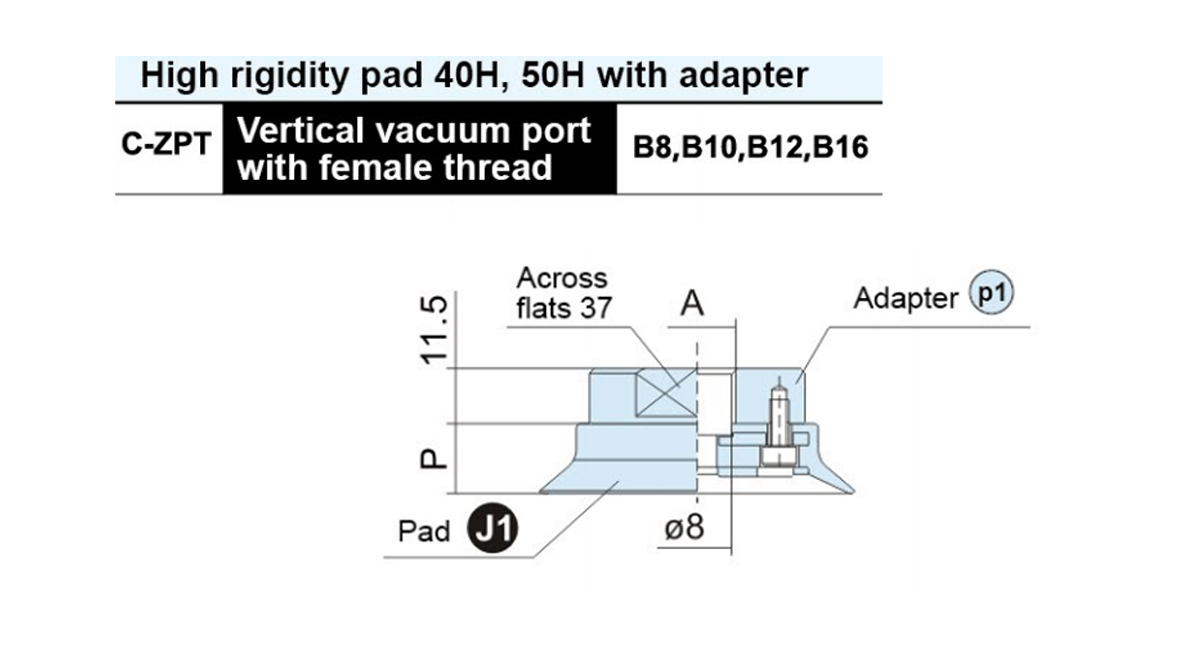

Model	A	Pad Diameter		P	Adaptor Model
		63	80
C-ZPT ○ H□-B8	M8×1.25	14.5	16.5		ZPT2-B8
C-ZPT ○ H□-B10	M10×1.5				ZPT2-B10
C-ZPT○H□-B12	M12×1.75				ZPT2-B12

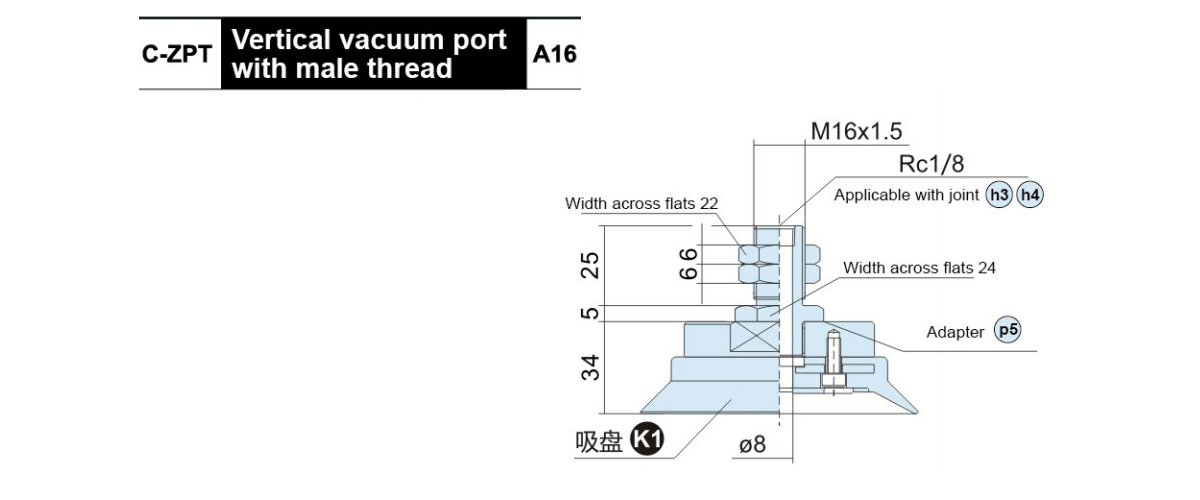

C-ZPT ○ H□-B16	M16×1.5				ZPT2-B16
○ Pad diameter symbol:63,80 □Pad material:NBR(N),Silicone rubber(S)

Model	P	Adaptor Model

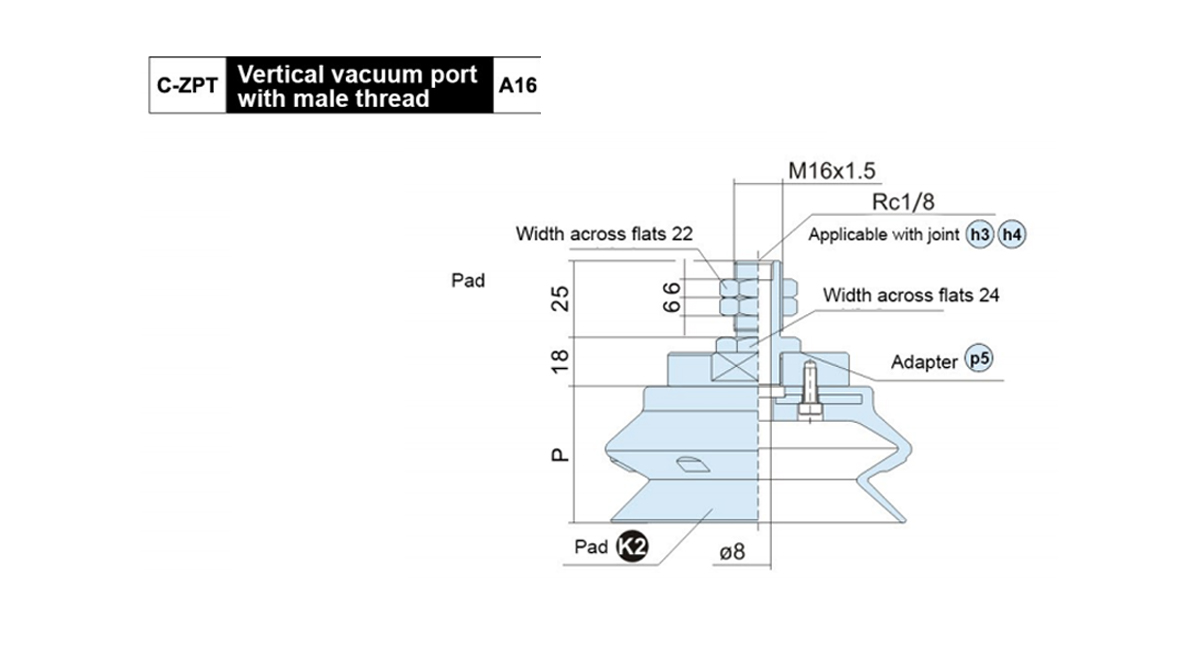

C-ZPT63H □- A16	14.5	ZPT2-A16
C-ZPT80H □-A16	16.5	ZPT2-A16
□ Pad material:NBR(N),Silicone rubber(S)

Model	A	Pad Diameter P
		63	80
C-ZPX ○ H□- B01-B8	M8×1.25	14.5	16.5
C-ZPX ○ H□- B01-B10	M10×1.5
C-ZPX ○ H □- B01-B12	M12×1.75
○ Pad diameter symbol:63,80 □ Pad material:NBR(N),Silicone rubber(S)

Model	A	L	Pad Diameter		P	q1 P1 Buffer Support Model
			63	80
C-ZPT ○ H□● 25-B01-A18	40	95.5	14.5	16.5		ZPB2 ● 25-B01-A18
C-ZPT ○ H□● 50-B01-A18	75	130.5				ZPB2 ●50-B01-A18
C-ZPT ○ H□● 75-B01-A18	111	166.5				ZPB2 ● 75-B01-A18
○ Pad diameter symbol:63,80 □ Pad material:NBR(N),Silicone rubber(S) ● Height compensator type:Aluminium alloy(J),Brass(JB)

Model	A	L	Pad Diameter		P	q3 p1 Buffer Support Model
			63	80
C-ZPT ○ H□● 25-B01-A22	44	118	14.5	16.5		ZPB2 ●25-B01-A22
C-ZPT ○ H□● 50-B01-A22	80	154				ZPB2●50-B01-A22
C-ZPT ○ H□● 75-B01-A22	120	194				ZPB2●75-B01-A22
C-ZPT ○ H□● 100-B01-A22	155	229				ZPB2 ●100-B01-A22
○ Pad diameter symbol:63,80 □ Pad material:NBR(N),Silicone rubber(S) ● Height compensator type:Aluminium alloy(J),Brass(JB)

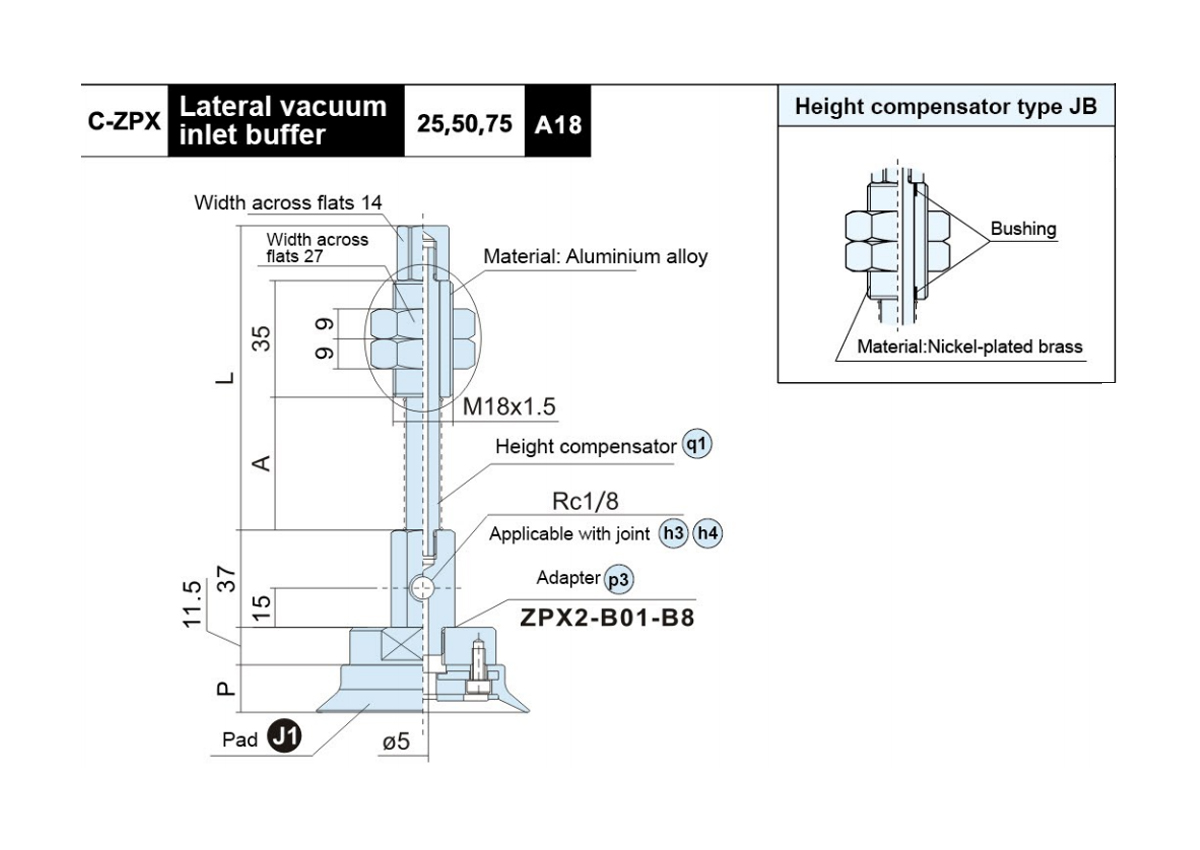

Model	A	L	Pad Diameter		P	q2 p3 Buffer Support Model
			63	80
C-ZPX ○ H □● 25-B01-A18	40	95.5	14.5	16.5		ZPX2 ●25-B01-A18
C-ZPX ○ H □● 50-B01-A18	75	130.5				ZPX2 ●50-B01-A18
C-ZPX ○ H □● 75-B01-A18	111	166.5				ZPX2 ●75-B01-A18
○ Pad diameter symbol:63,80 □ Pad material:NBR(N),Silicone rubber(S) ●Height compensator type:Aluminium alloy(J),Brass(JB)

Model	A	L	Pad Diameter P		q4 p3 Buffer Support Model
			63	80
C-ZPX ○ H □● 25-B01-A22	44	118	14.5	16.5	ZPX2●25-B01-A22
C-ZPX ○ H □● 50-B01-A22	80	154			ZPX2●50-B01-A22
C-ZPX ○ H □● 75-B01-A22	120	194			ZPX2●75-B01-A22
C-ZPX ○ H □● 100-B01-A22	155	229			ZPX2●100-B01-A22
○ Pad diameter symbol:63,80 □ Pad material:NBR(N),Silicone rubber(S) ● Height compensator type:Aluminium alloy(J),Brass(JB)

Model	A	Adaptor Model
C-ZPT ○ H□- B12	M12×1.75	ZPT3-B12
C-ZPT ○ H □- B16	M16×1.5	ZPT3-B16

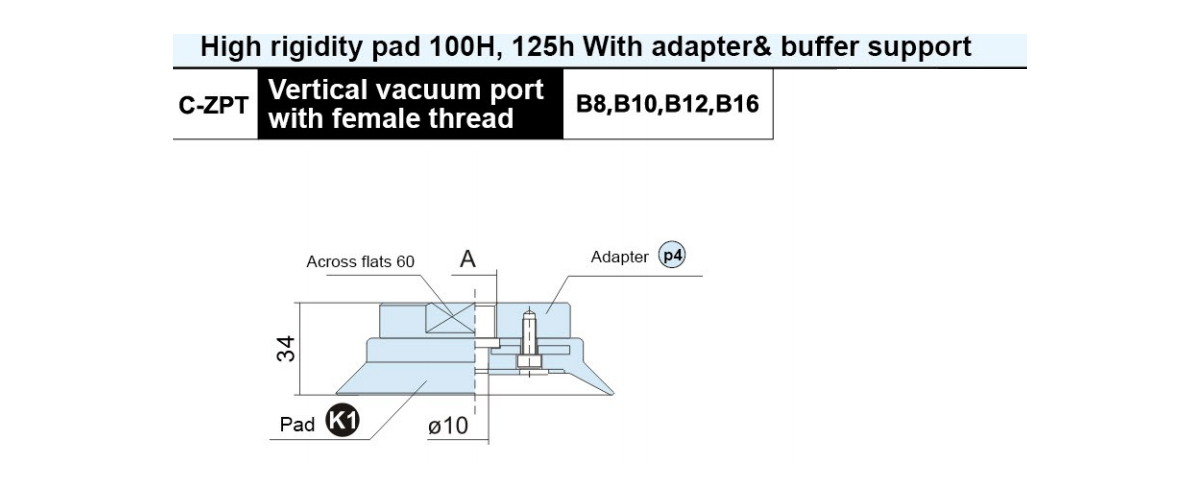

○ Pad diameter symbol:100,125 □ Pad material:NBR(N),Silicone rubber(S)

Model	Adaptor Model
C-ZPT100H □-A16	ZPT3-A16
C-ZPT125H □-A16
□ Pad material:NBR(N),Silicone rubber(S)

Model	A	Adaptor Model
C-ZPX ○ H□- B01-B10	M10×1.5	ZPX3-B01-B10
C-ZPX ○ H□- B01-B12	M12×1.75	ZPX3-B01-B12
○ Pad diameter symbol:100,125 □ Pad material:NBR(N),Silicone rubber(S)

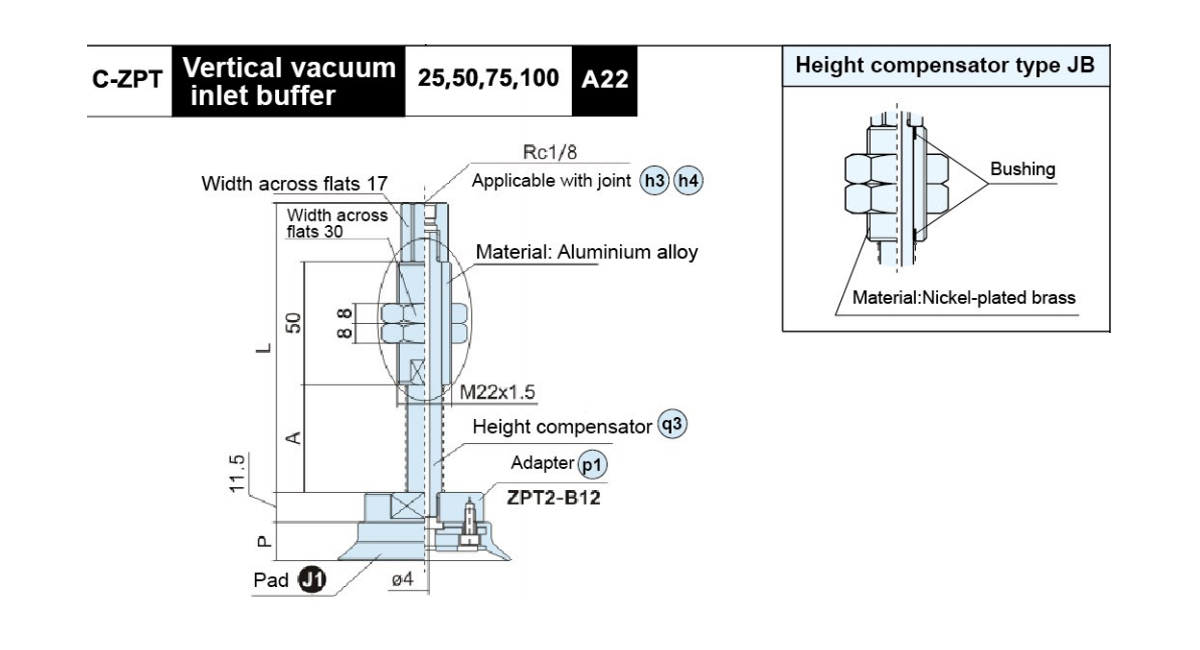

Model	A	L	q3 p4 Adaptor Model
C-ZPT ○ H □● 25-B01-A22	44	118	ZPB3 ●25-B01-A22
C-ZPT ○ H □● 50-B01-A22	80	154	ZPB3 ●50-B01-A22
C-ZPT ○ H □● 75-B01-A22	120	194	ZPB3●75-B01-A22
C-ZPT ○ H □● 100-B01-A22	155	229	ZPB3●100-B01-A22
○ Pad diameter symbol:100,125 □ Pad material:NBR(N),Silicone rubber(S) ● Height compensator type:Aluminium alloy(J) Brass(JB)

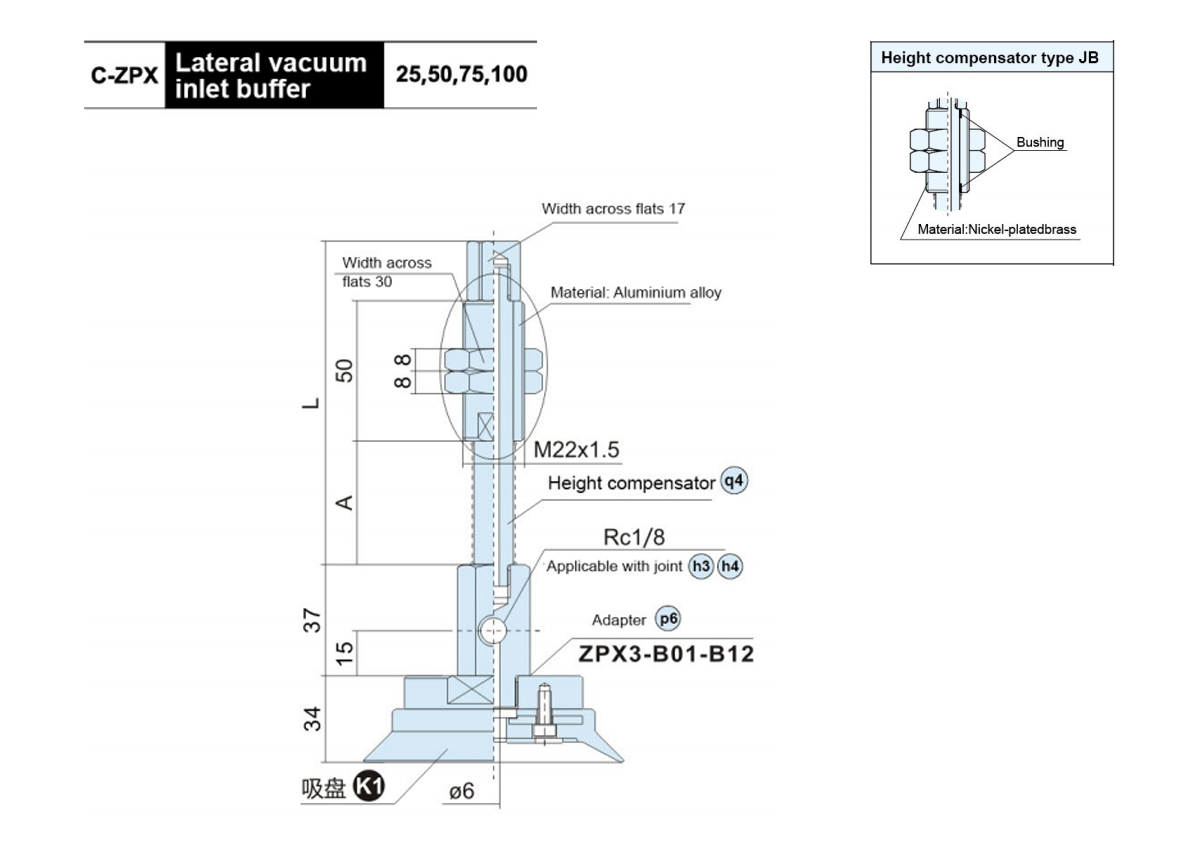

Model	A	L	q4 p6 Adaptor Model

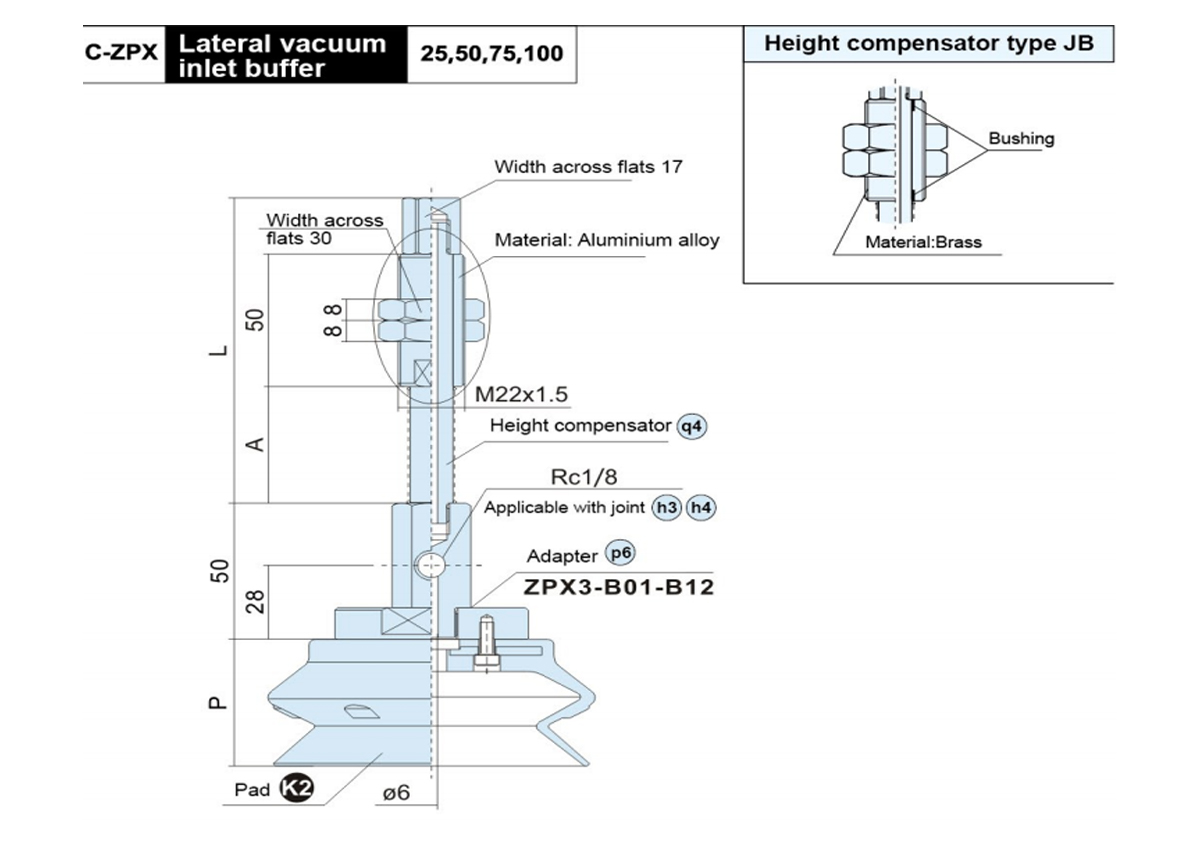

C-ZPX ○ H□● 25-B01-A22	44	118	ZPX3 ●25-B01-A22
C-ZPX ○ H□● 50-B01-A22	80	154	ZPX3 ●50-B01-A22
C-ZPX ○H□● 75-B01-A22	120	194	ZPX3 ●75-B01-A22
C-ZPX ○H□● 100-B01-A22	155	229	ZPX3 ●100-B01-A22
○ Pad diameter symbol:100,125 □ Pad material:NBR(N),Silicone rubber(S) ● Height compensator type:Aluminium alloy(J) Brass(JB)

Model	A	Pad Diameter P		Adaptor Model
		150	200

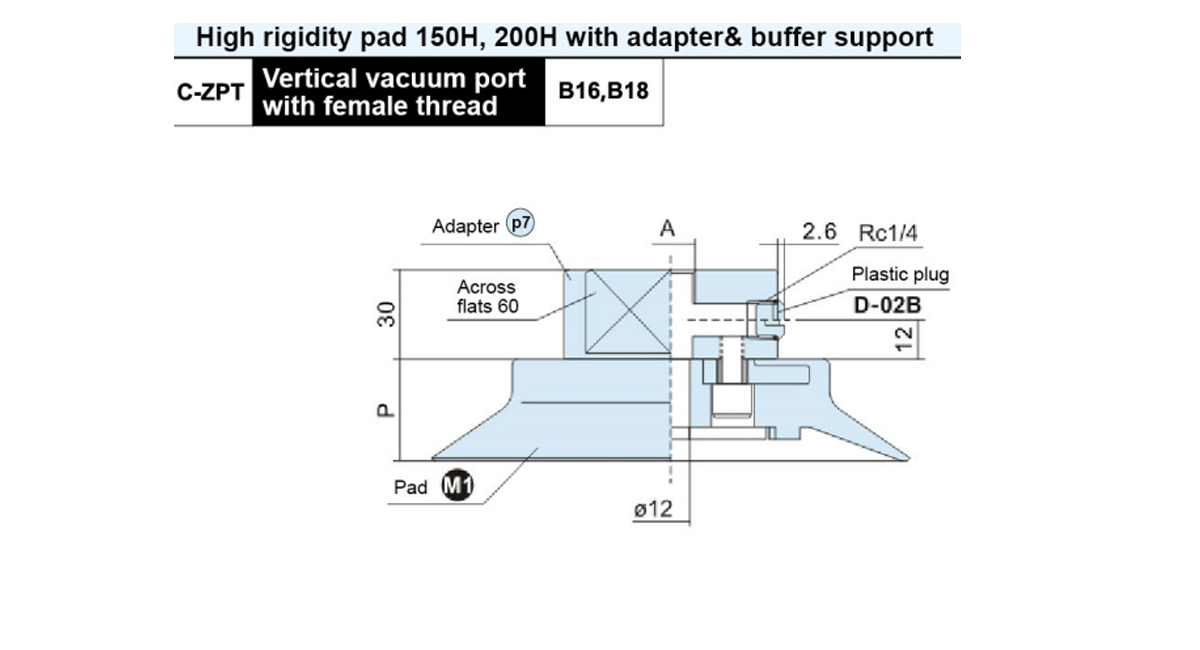

C-ZPT ○ H□-B16	M16×1.5	33	36	ZPT4-B16
C-ZPT ○ H□-B18	M18×1.5			ZPT4-B18
○ Pad diameter symbol:150,200 □ Pad material:NBR(N),Silicone rubber(S)

Model	A	L	Pad Diameter P		q5 p7 Buffer Support Model
			150	200

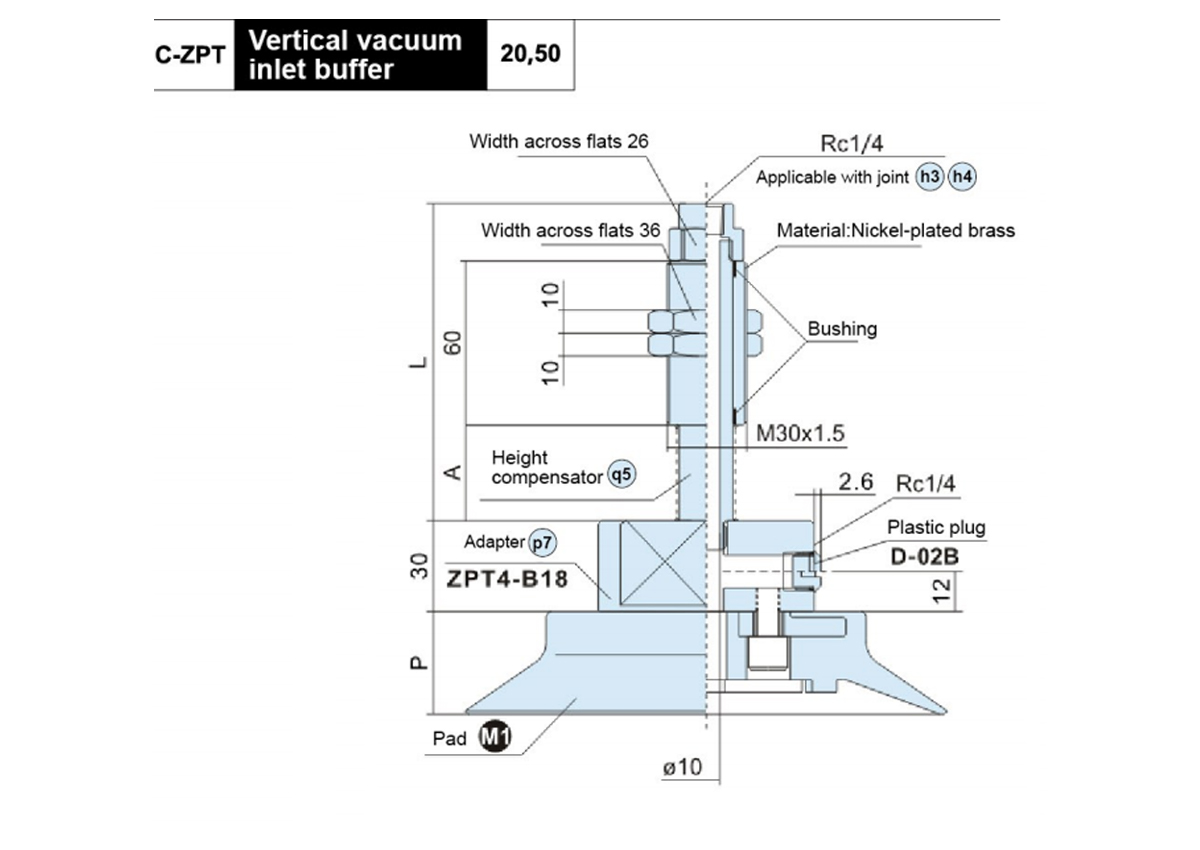

C-ZPT ○ H □ JF20-B02-A30	35	118	33	36	ZPB4JF20-B02-A30
C-ZPT ○ H □ JF50-B02-A30	75	154			ZPB4JF50-B02-A30
○ Pad diameter symbol:150,200 □ Pad material:NBR(N),Silicone rubber(S)

Model	Adaptor Model

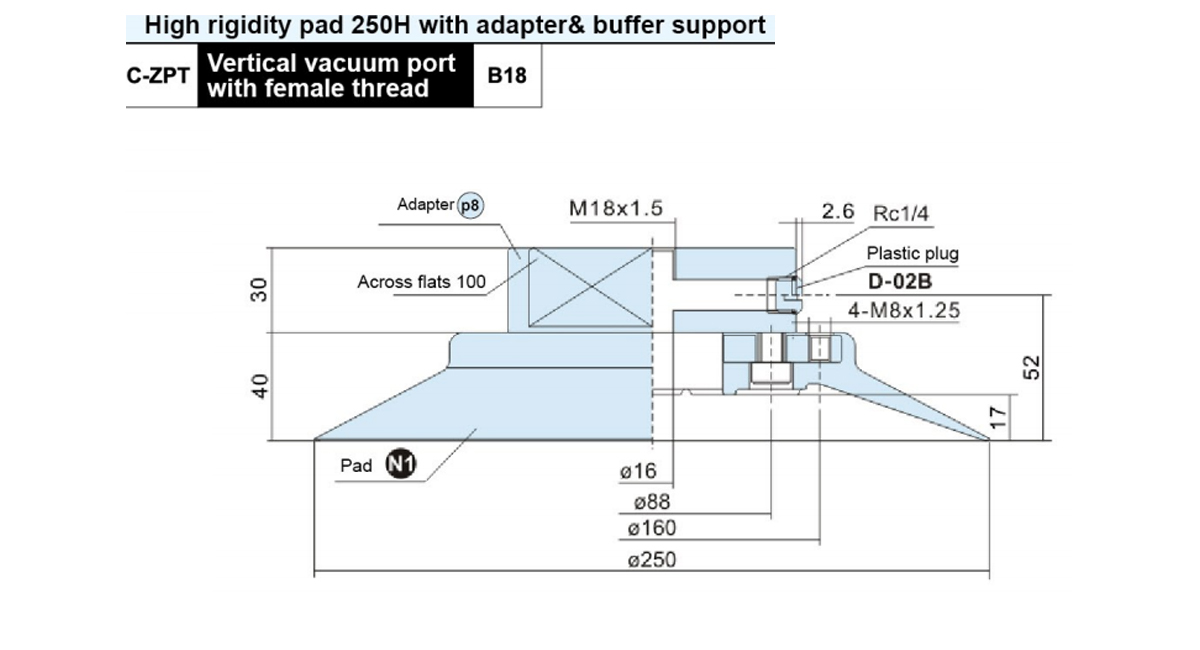

C-ZPT250H□-B18	ZPT5-B18
□ Pad material:NBR(N),Silicone rubber(S)

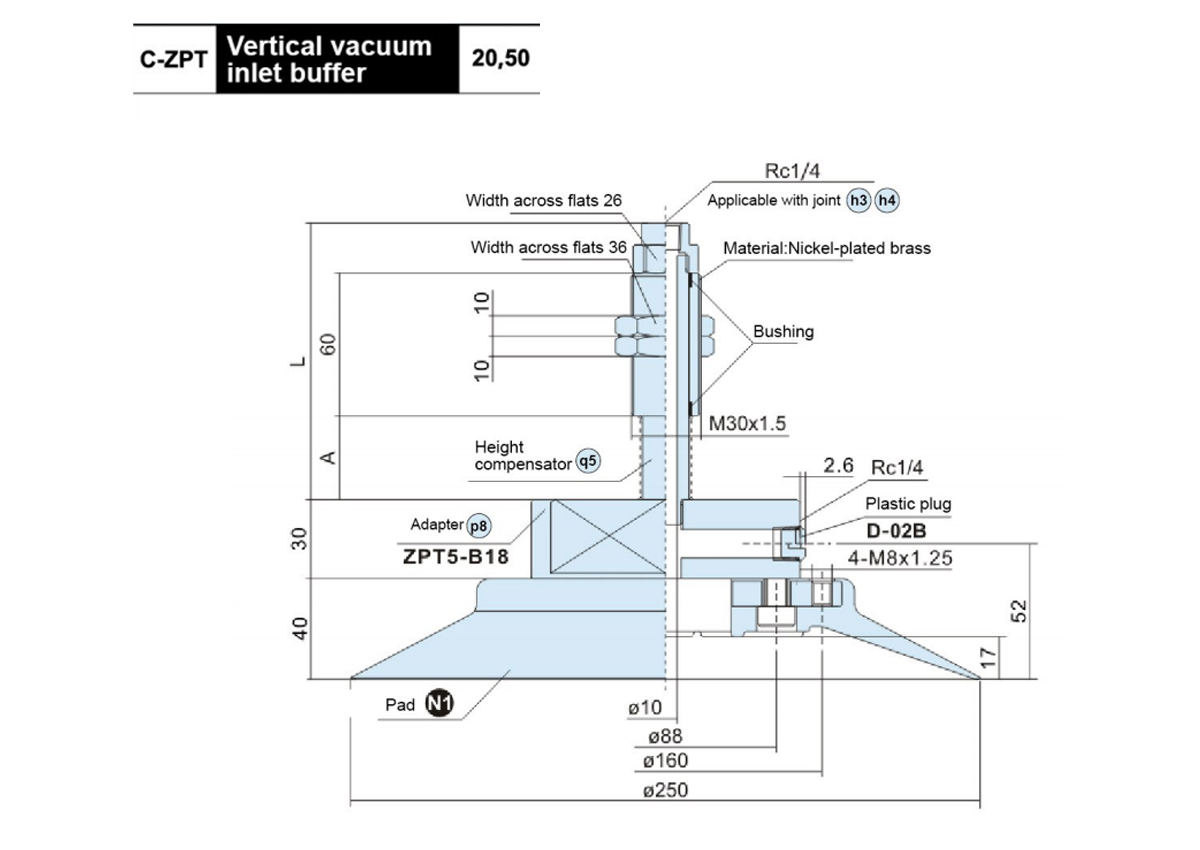

Model	A	L	q5 p8 Buffer Support Model
C-ZPT250H□JF20-B02-A30	35	118	ZPB5JF20-B02-A30
C-ZPT250H□JF50-B02-A30	75	154	ZPB5JF50-B02-A30
□ Pad material:NBR(N),Silicone rubber(S)

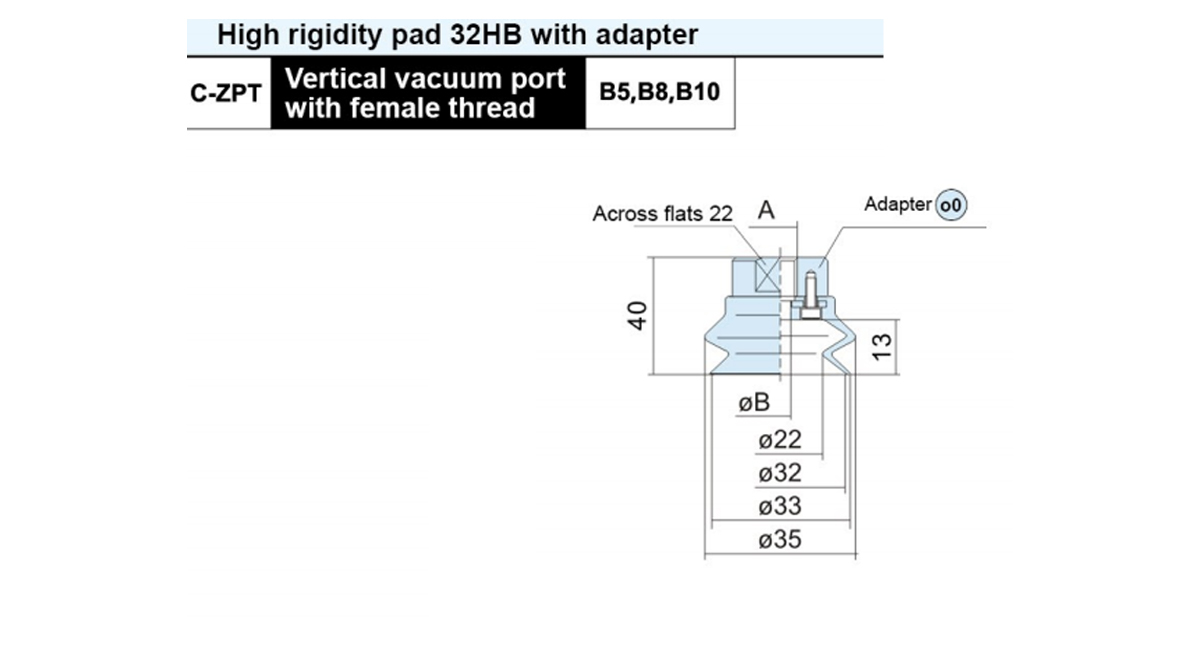

Model	A	ØB	Adaptor Model

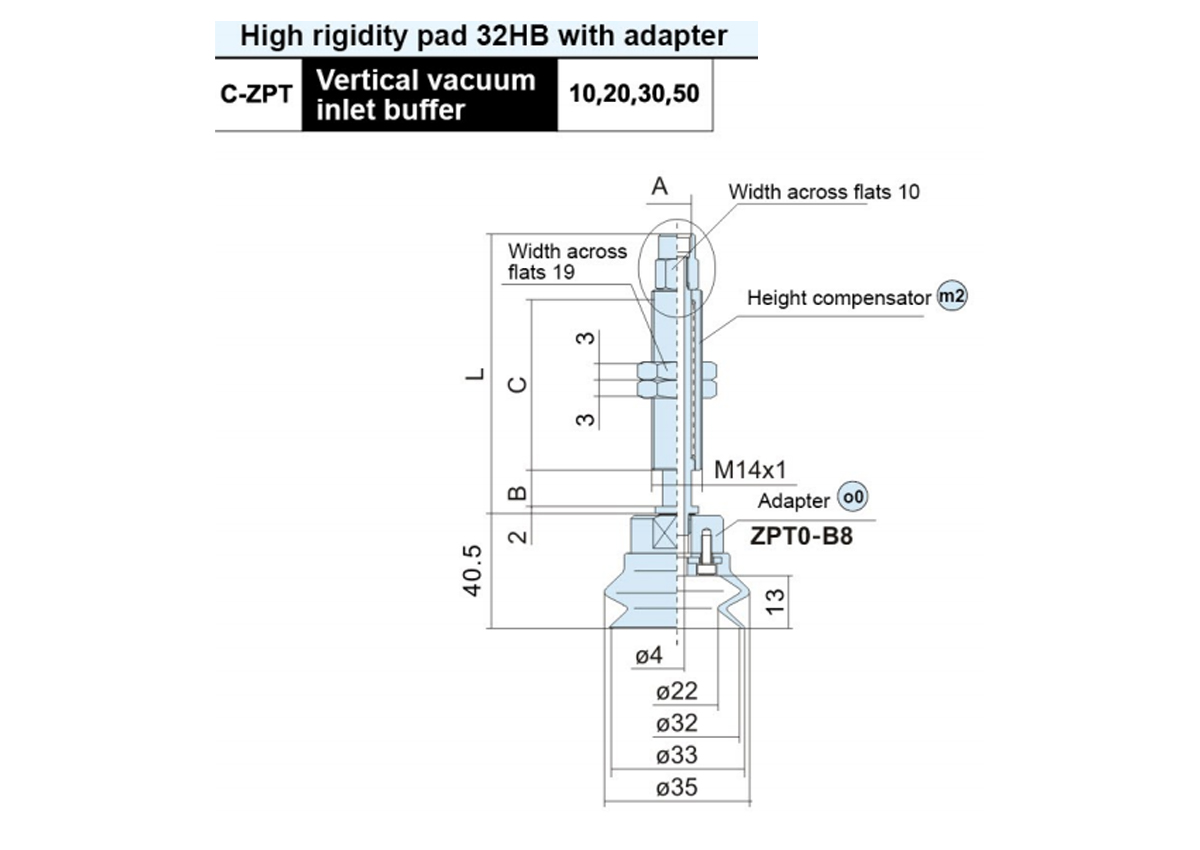

C-ZPT32HB □ -B5	M5×0.8	4.2	ZPT0-B5
C-ZPT32HB □ -B8	M8×1.25	5	ZPT0-B8
C-ZPT32HB □- B10	M10×1.5	5	ZPT0-B10
□ Pad material:NBR(N),Silicone rubber(S)

Model	L	Adaptor Model
C-ZPT32HB □ -A14	25	ZPT0-A14
C-ZPT32HB □-A14-3	40	ZPT0-A14-3
□ Pad material:NBR(N),Silicone rubber(S)

Model	A	Adaptor Model
C-ZPX32HB □- B8	M8×1.25	ZPX0-B01-B8
C-ZPX32HB □-B10	M10×1.5	ZPX0-B01-B10
C-ZPX32HB □- B12	M12×1.75	ZPX0-B01-B12
□Pad material:NBR(N),Silicone rubber(S)

Model	A	E	L	Adaptor Model
C-ZPR32HB □-◇ -A6	M6×1.0	8	66	ZPROH-◇-A6
C-ZPR32HB □-◇- A8	M8×1.0	12	56	ZPROH-◇-A8
□Pad material:NBR(N),Silicone rubber(S) ◇ Vacuum inlet connection:04,06,08

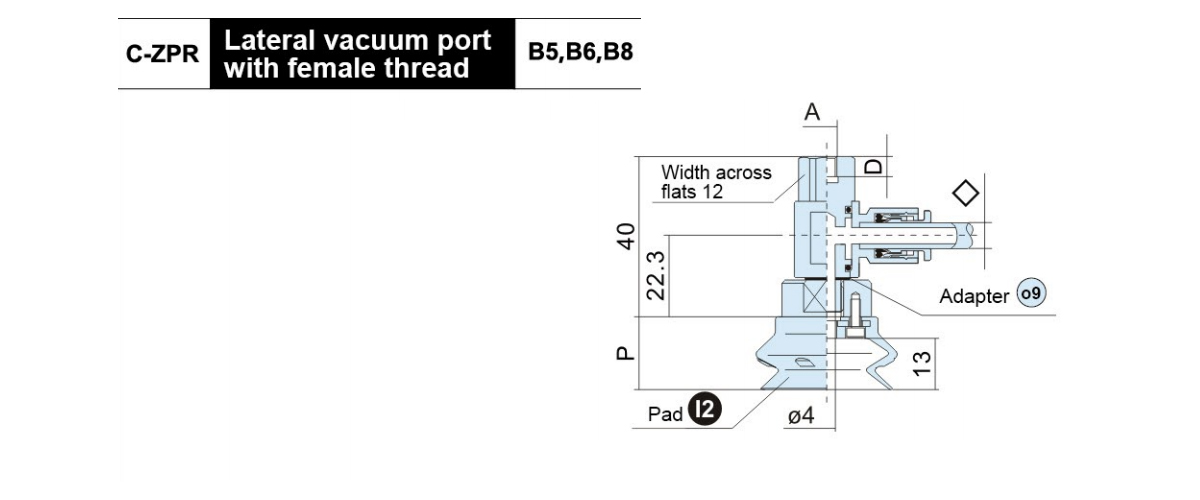

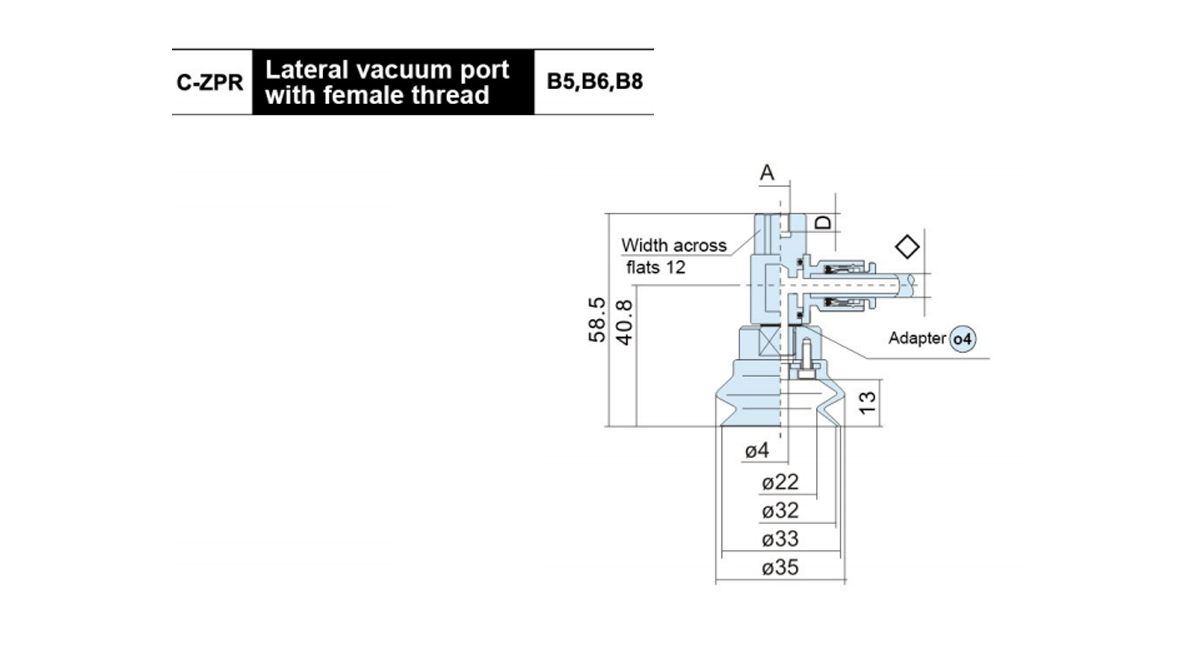

Model	A	D	Adaptor Model
C-ZPR32HB □-◇- B5	M5×0.8	5	ZPROH-◇-B5
C-ZPR32HB □-◇- B6	M6×1.0	6	ZPROH-◇-B6
C-ZPR32HB □-◇ -B8	M8×1.25	8	ZPROH-◇-B8
□Pad material:NBR(N),Silicone rubber(S) ◇ Vacuum inlet connection:04,06,08

Model	A	B	C	L	m2 O0 Buffer Support Model
C-ZPT32HB □● 10-B5-A14	M5×0.8	10	50	77	ZPTO-●10-B5-A14
C-ZPT32HB □● 20-B5-A14		20		81	ZPT0-●20-B5-A14
C-ZPT32HB □● 30-B5-A14		30		91	ZPT0-●30-B5-A14
C-ZPT32HB □● 50-B5-A14		50	75	136	ZPT0-●50-B5-A14
C-ZPT32HB □● 10-B01-A14	Rc1/8	10	50	78.5	ZPT0-●10-B01-A14
C-ZPT32HB □● 20-B01-A14		20		84	ZPT0-●20-B01-A14
C-ZPT32HB □● 30-B01-A14		30		94	ZPT0-●30-B01-A14
C-ZPT32HB □● 50-B01-A14		50	75	139	ZPT0-●50-B01-A14
●Height compensator type:Rotative(J) □Pad material:NBR(N),Silicone rubber(S) Unable to rotate(K)

Model	B	C	L	m4 O4 Buffer Support Model

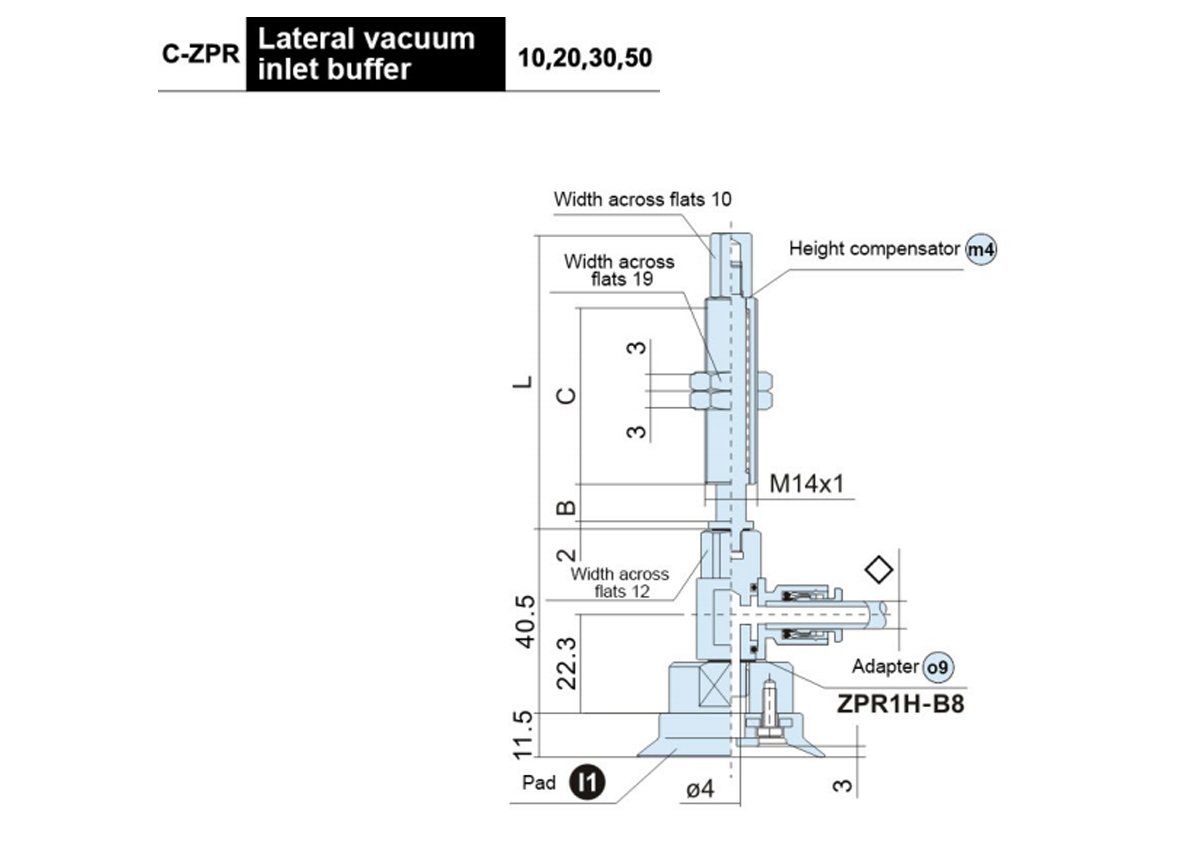

C-ZPR32HB □● 10 -◇- A14	10	50	80	ZPR0-●10-◇ -A14
C-ZPR32HB □● 20 -◇ -A14	20		77	ZPRO-●20-◇-A14
C-ZPR32HB □● 30 -◇- A14	30		87	ZPR0-●30-◇-A14
C-ZPR32HB □● 50 -◇ -A14	50	75	132	ZPR0-●50-◇-A14
□Pad material:NBR(N),Silicone rubber( ) ●Height compensator type:Rotative(J) ◇Vacuum inlet connection:04,06,08 Unable to rotate(K)

Model	A	L	q1 O0 Buffer Support Model
C-ZPT32HB □● 25-B01-A18	40	95.5	ZPB0 ● 25-B01-A18
C-ZPT32HB □● 50-B01-A18	75	130.5	ZPB0 ● 50-B01-A18
C-ZPT32HB □● 75-B01-A18	111	166.5	ZPB0 ● 75-B01-A18
□Pad material:NBR(N),Silicone rubber(S) ●Height compensator type:Aluminium alloy(J),Brass(JB)

Model	A	L	q2 O2 Buffer Support Model

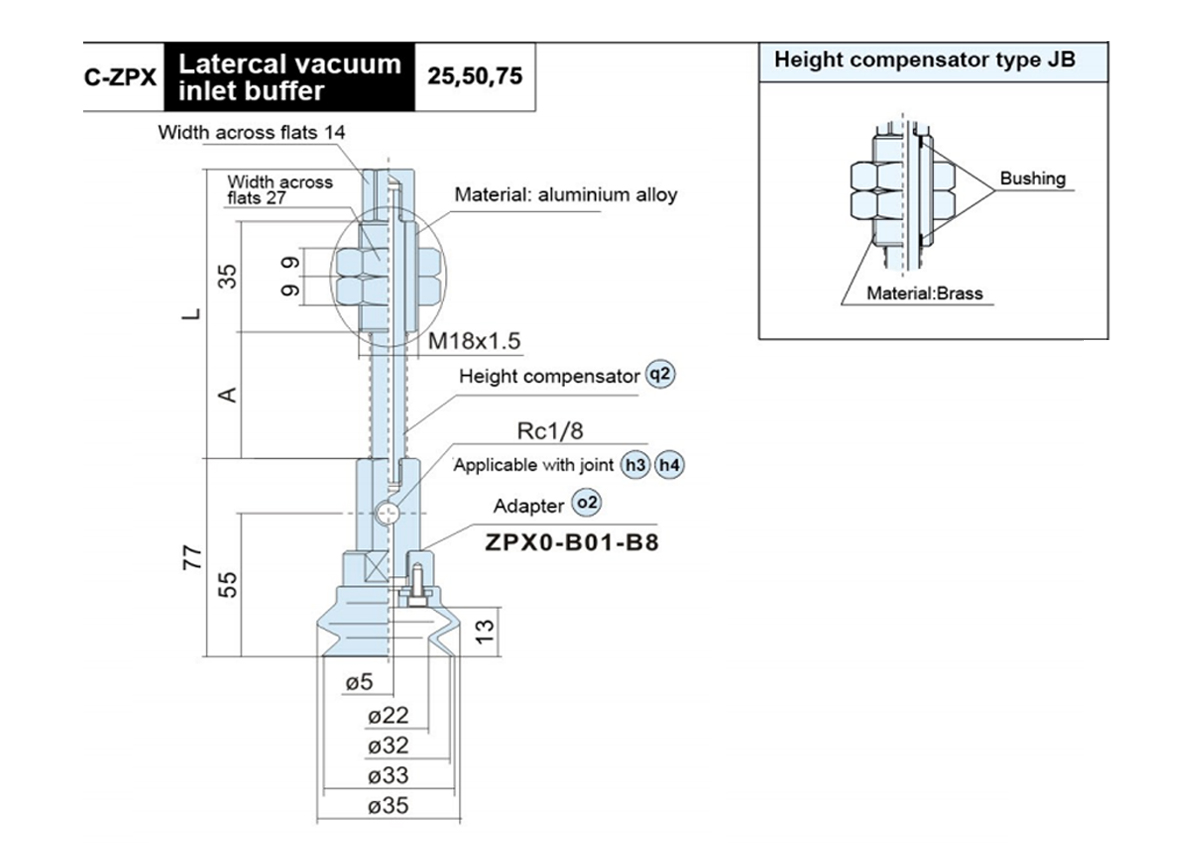

C-ZPX32HB □● 25-B01-A18	40	91	ZPX0 ● 25-B01-A18
C-ZPX32HB □● 50-B01-A18	75	126	ZPX0 ● 50-B01-A18
C-ZPX32HB □● 75-B01-A18	111	162	ZPX0 ● 75-B01-A18
□Pad material:NBR(N),Silicone rubber(S) ●Height compensator type:Aluminium alloy(J),Brass(JB)

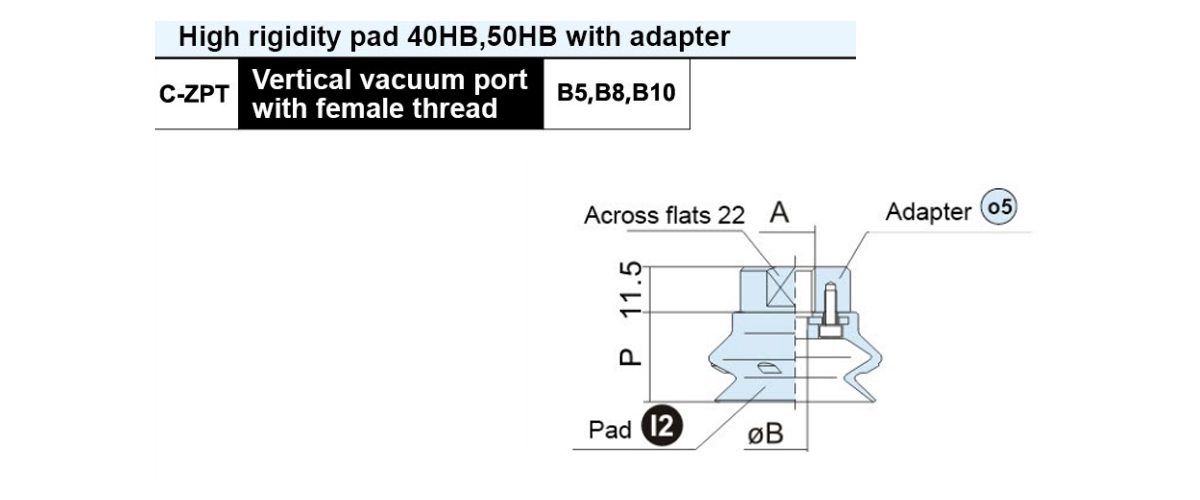

Model	A	B	Pad Diameter P		Adaptor Model
			40	50
C-ZPT ○ HB □ -B5	M5×0.8	4.2	20.5	24	ZPT1-B5
C-ZPT ○ HB □- B8	M8×1.25	5			ZPT1-B8
C-ZPT ○ HB □- B10	M10×1.5				ZPT1-B10
○ Pad diameter symbol:40,50 □ Pad material:NBR(N),Silicone rubber(S)

Model	L	○Pad Diameter		P	Adaptor Model
		40	50
C-ZPT ○ HB □ -A14	25	20.5	24		ZPT1-A14
C-ZPT ○ HB □ -A14-3	40				ZPT1-A14-3
○ Pad diameter symbol:40,50 □ Pad material:NBR(N),Silicone rubber(S)

Model	A	○Pad Diameter P		Adaptor Model
		40	50
C-ZPX ○ HB □- B8	M8×1.25	20.5	24	ZPX1-B01-B8
C-ZPX ○ HB □- B10	M10×1.5			ZPX1-B01-B10
C-ZPX ○ HB □ -B12	M12×1.75			ZPX1-B01-B12
○ Pad diameter symbol:40,50 □ Pad material:NBR(N),Silicone rubber(S)

Model	A	E	L	○Pad Diameter		P	Adaptor Model
				40	50
C-ZPR ○ HB □-◇ -A6	M6×1.0	8	66	20.5	24		ZPR1H-◇-A6
C-ZPR ○ HB □-◇ -A8	M8×1.0	12	56				ZPR1H-◇-A8
○ Pad diameter symbol:40,50 □ Pad material:NBR(N),Silicone rubber(S) ◇Vacuum inlet connection:06,08

Model	A	D	○Pad Diameter P		Adaptor Model
			40	50
C-ZPR ○ HB □-◇- B6	M6×1.0	6	20.5	24	ZPR1H-◇-B6
C-ZPR ○ HB □-◇- B8	M8×1.25	8			ZPR1H-◇-B8
○ Pad diameter symbol:40,50 □ Pad material:NBR(N),Silicone rubber(S) ◇ Vacuum inlet connection:06,08

Model	A	B	C	L	○ Pad Diameter P		m2 O5 Buffer Support Model
Model	A	B	C	L	40	50	m2 O5 Buffer Support Model
C-ZPT ○ HB □● 10-B5-A14	M5×0.8	10	50	77	20.5	24	ZPT1-●10-B5-A14
C-ZPT ○ HB□● 20-B5-A14		20		81			ZPT1-●20-B5-A14
C-ZPT ○ HB □● 30-B5-A14		30		91			ZPT1-●30-B5-A14
C-ZPT ○ HB□● 50-B5-A14		50	75	136			ZPT1-●50-B5-A14
C-ZPT ○ HB□● 10-B01-A14	Rc1/8	10	50	78.5			ZPT1-●10-B01-A14
C-ZPT ○ HB□● 20-B01-A14		20		84			ZPT1-●20-B01-A14
C-ZPT ○ HB □● 30-B01-A14		30		94			ZPT1-●30-B01-A14
C-ZPT ○ HB □● 50-B01-A14		50	75	139			ZPT1-●50-B01-A14
○ Pad diameter symbol:40,50 □ Pad material:NBR(N),Silicone rubber(S) ● Height compensator type:Rotative(J),Unable to rotate(K)

Model	B	C	L	○ Pad Diameter P		m4 O9 Buffer Support Model
				40	50
C-ZPT ○ HB□● 10 -◇ -A14	10	50	80	20.5	24	ZPR1-●10-◇-A14
C-ZPT ○ HB □● 20 -◇ -A14	20		77			ZPR1-●20-◇-A14
C-ZPT ○ HB □● 30 -◇ -A14	30		87			ZPR1-●30-◇-A14
C-ZPT ○ HB □● 50 -◇- A14	50	75	132			ZPR1-●50-◇-A14
○Pad diameter symbol:40,50 □ Pad material:NBR(N),Silicone rubber(S) ● Height compensator type:Rotative(J),Unable to rotate(K) Vacuum inlet connection:06,08

Model	A	L	○ Pad Diameter P		q1 O 5 Buffer Support Model
			40	50

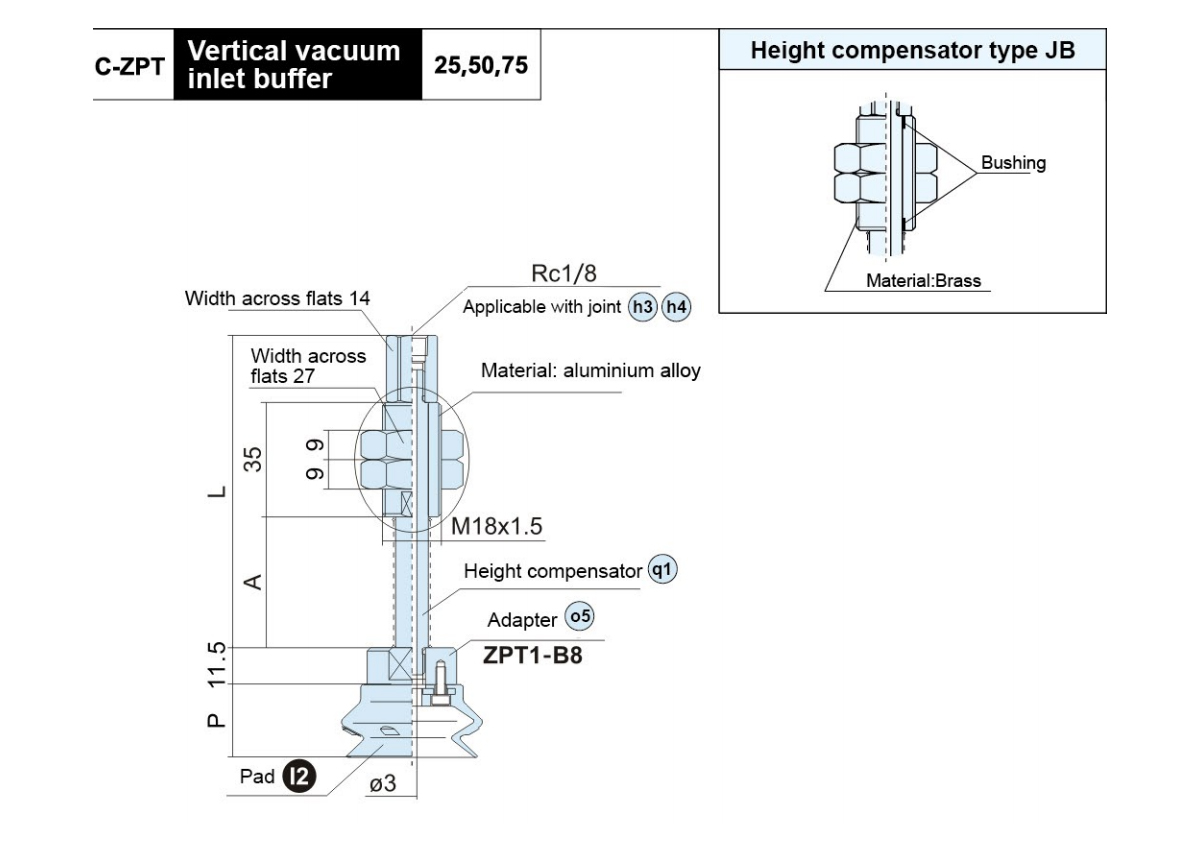

C-ZPT ○ HB □● 25-B01-A18	40	95.5	20.5	24	ZPB1 ●25-B01-A18
C-ZPT ○ HB □● 50-B01-A18	75	130.5			ZPB1 ●50-B01-A18
C-ZPT ○ HB □● 75-B01-A18	111	166.5			ZPB1 ●75-B01-A18
○ Pad diameter symbol:40,50 □ Pad material:NBR(N),Silicone rubber(S) ● Height compensator type:Aluminium alloy(J),Brass(JB)

Model	A	L	○ Pad Diameter P		q2 O7 Buffer Support Model
			40	50
C-ZPX ○ HB □● 25-B01-A18	40	95.5	20.5	24	ZPX1 ●25-B01-A18
C-ZPX ○ HB □● 50-B01-A18	75	130.5			ZPX1 ●50-B01-A18
C-ZPX ○ HB □● 75-B01-A18	111	166.5			ZPX1 ●75-B01-A18
○ Pad diameter symbol:40,50 □ Pad materal:NBR(N),Silicone rubber(S) ● Height compensator type:Aluminium alloy(J),Brass(JB)

Model	A	○ Pad Diameter		P	Adaptor Model
		63	80

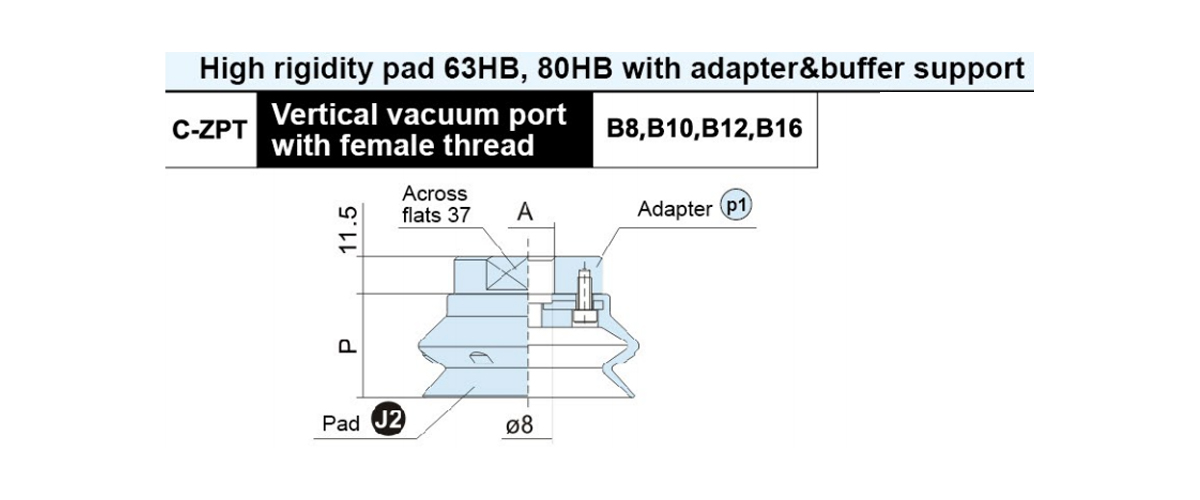

C-ZPT ○ HB□- B8	M8×1.25	31.5	37		ZPT2-B8
C-ZPT ○ HB□-B10	M10×1.5				ZPT2-B10
C-ZPT ○ HB□-B12	M12×1.75				ZPT2-B12
C-ZPT ○ HB □- B16	M16×1.5				ZPT2-B16
○ Pad diameter symbol:63,80 □ Pad material:NBR(N),Silicone rubber(S)

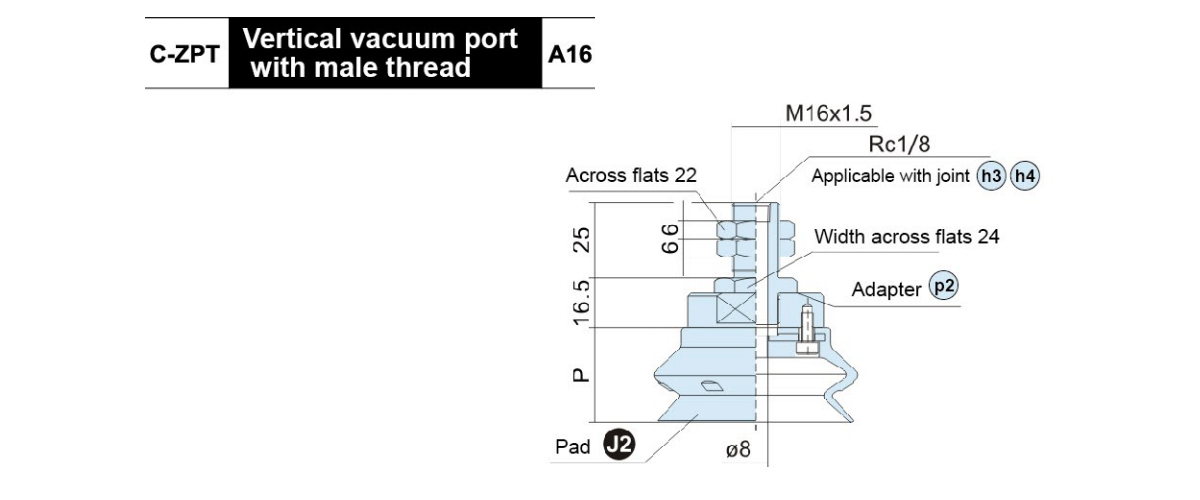

Model	P	Adaptor Model

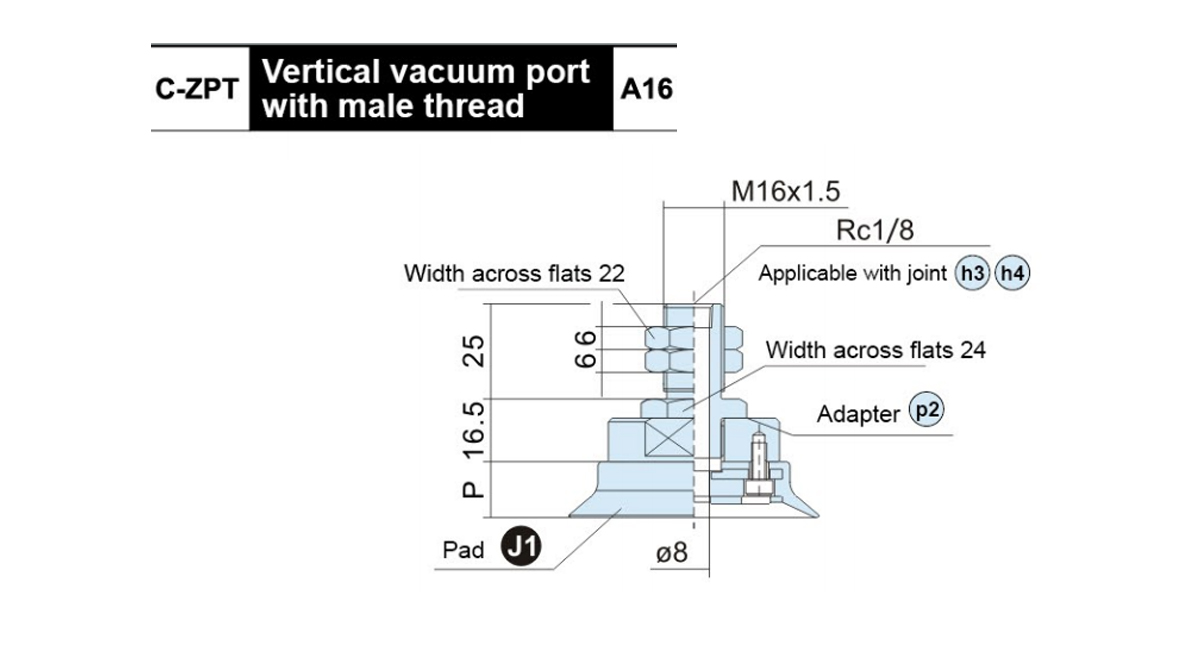

C-ZPT63HB □- A16	31.5	ZPT2-A16
C-ZPT80HB □-A16	37	ZPT2-A16
□ Pad material:NBR(N),Silicone rubber(S)

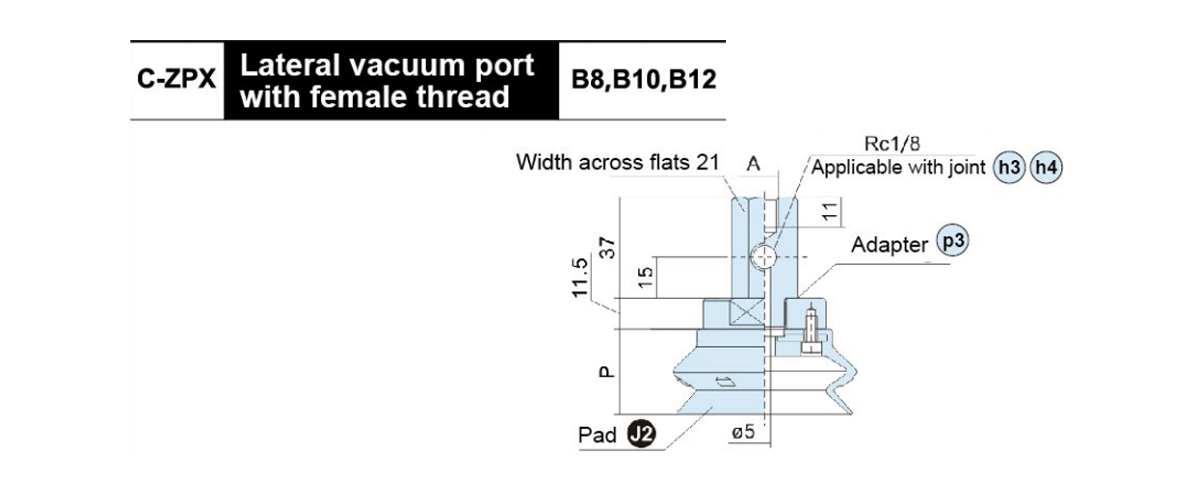

Model	A	○ Pad Diameter P
		63	80

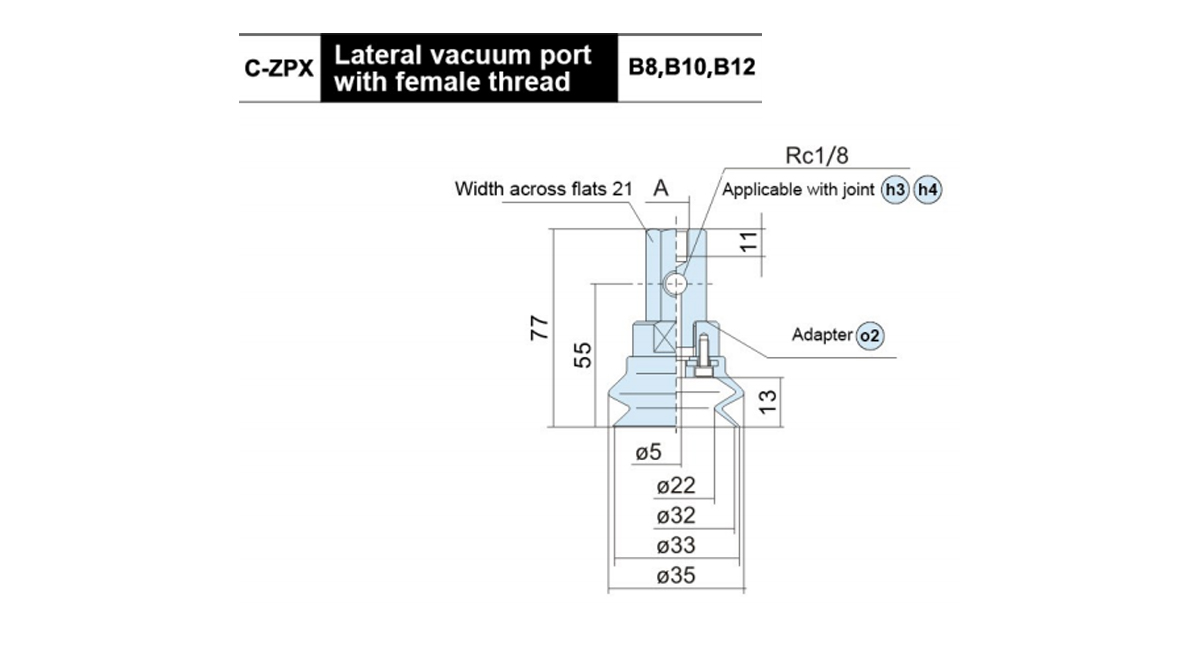

C-ZPX ○ HB□- B01-B8	M8×1.25	31.5	37
C-ZPX ○ HB□- B01-B10	M10×1.5
C-ZPX ○ HB□- B01-B12	M12×1.75
○ Pad diameter symbol:63,80 □ Pad material:NBR(N),Silicone rubber(S)

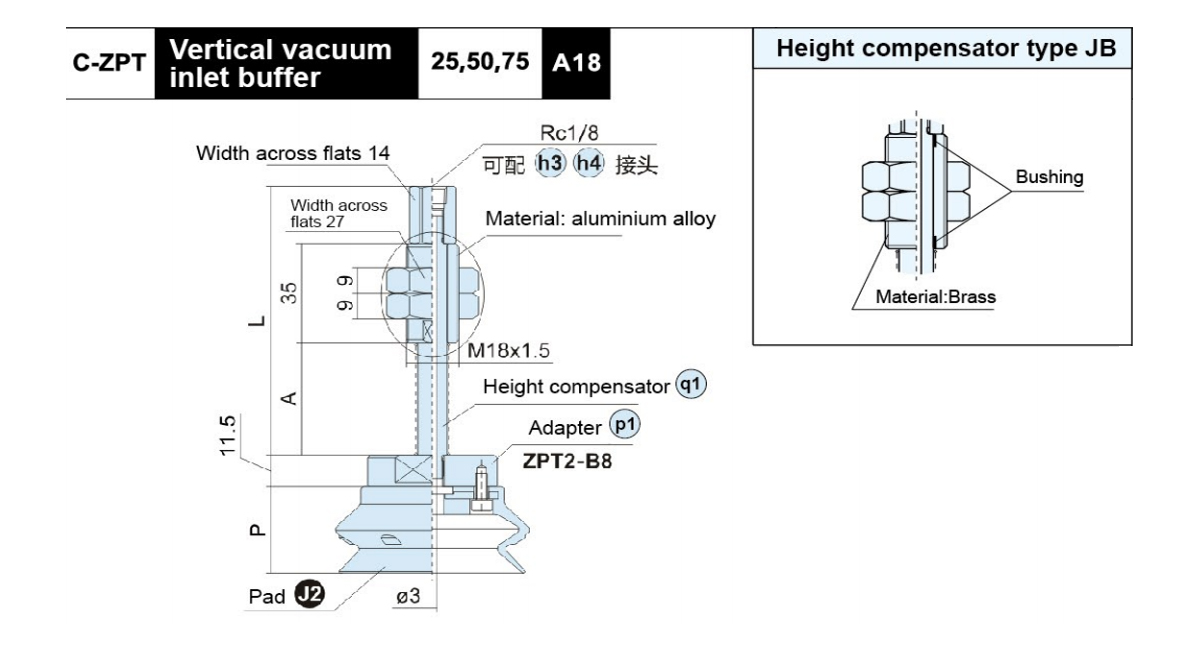

Model	A	L	○ Pad Diameter P		q1 p1 Buffer Support Model
			63	80
C-ZPT ○ HB □● 25-B01-A18	40	95.5	31.5	37	ZPB2 ●25-B01-A18
C-ZPT ○ HB □● 50-B01-A18	75	130.5			ZPB2 ●50-B01-A18
C-ZPT ○ HB □● 75-B01-A18	111	166.5			ZPB2 ●75-B01-A18
○ Pad diameter symbol:63,80 ● Height compensator type:Aluminium alloy(J) □ Pad material:NBR(N),Silicone rubber(S) Brass(JB)

Model	A	L	○ Pad Diameter		P	q3 P Buffer Support Model
			63	80
C-ZPT ○ HB□● 25-B01-A22	44	118	31.5	37		ZPB2 ●25-B01-A22
C-ZPT ○ HB□● 50-B01-A22	80	154				ZPB2●50-B01-A22
C-ZPT ○ HB □● 75-B01-A22	120	194				ZPB2●75-B01-A22
C-ZPT ○ HB □● 100-B01-A22	155	229				ZPB2 ●100-B01-A22
○ Pad diameter symbol:63,80 ● Height compensator type:Aluminium alloy(J) Brass(JB) □ Pad material:NBR(N),Silicone rubber(S)

Model	A	L	○ Pad Diameter P		q2 p3 Buffer Support Model
			63	80
C-ZPX ○ HB □● 25-B01-A18	40	95.5	31.5	37	ZPX2 ●25-B01-A18
C-ZPX ○ HB □● 50-B01-A18	75	130.5			ZPX2 ●50-B01-A18
C-ZPX ○ HB □● 75-B01-A18	111	166.5			ZPX2 ●75-B01-A18
○ Pad diameter symbol:63,80 ● Height compensator type:Aluminium alloy(J) □ Pad material:NBR(N),Silicone rubber(S) Brass(JB)

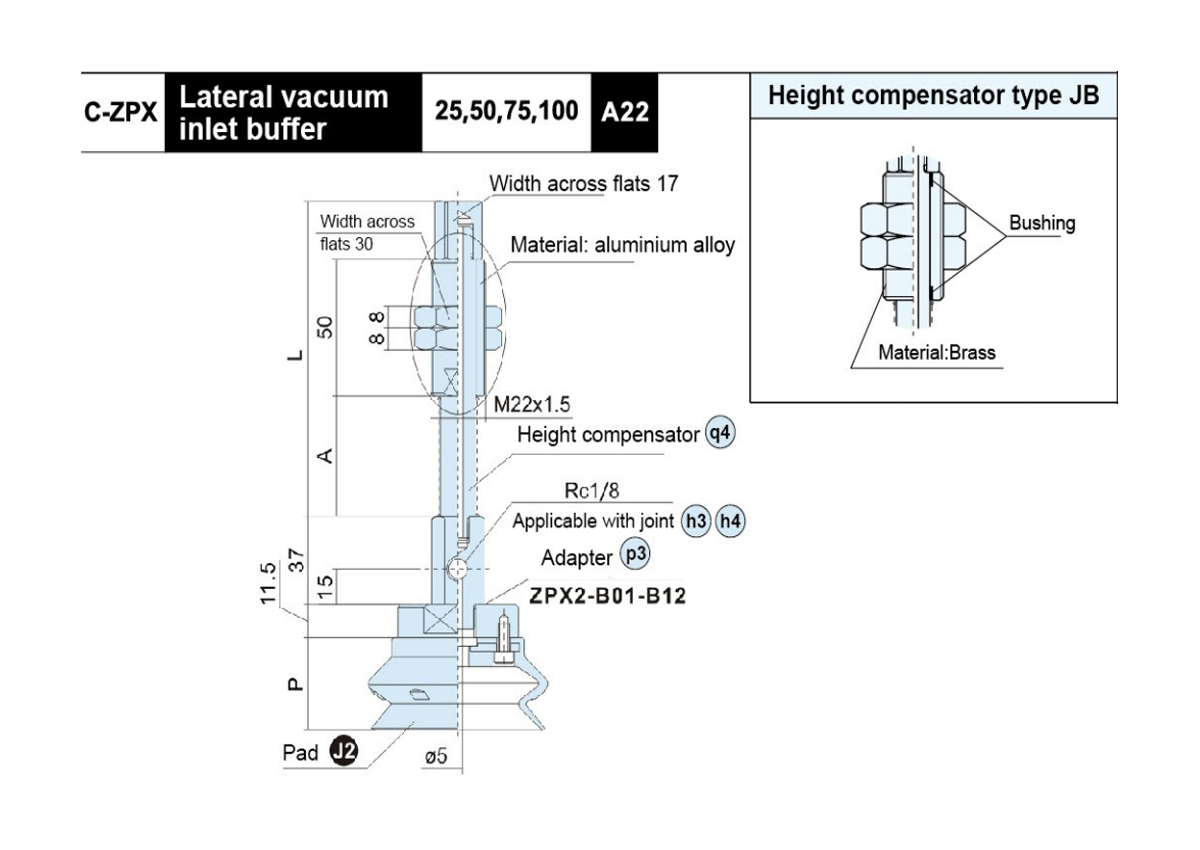

Model	A	L	○ Pad Diameter P		q4 p3 Buffer Support Model
			63	80

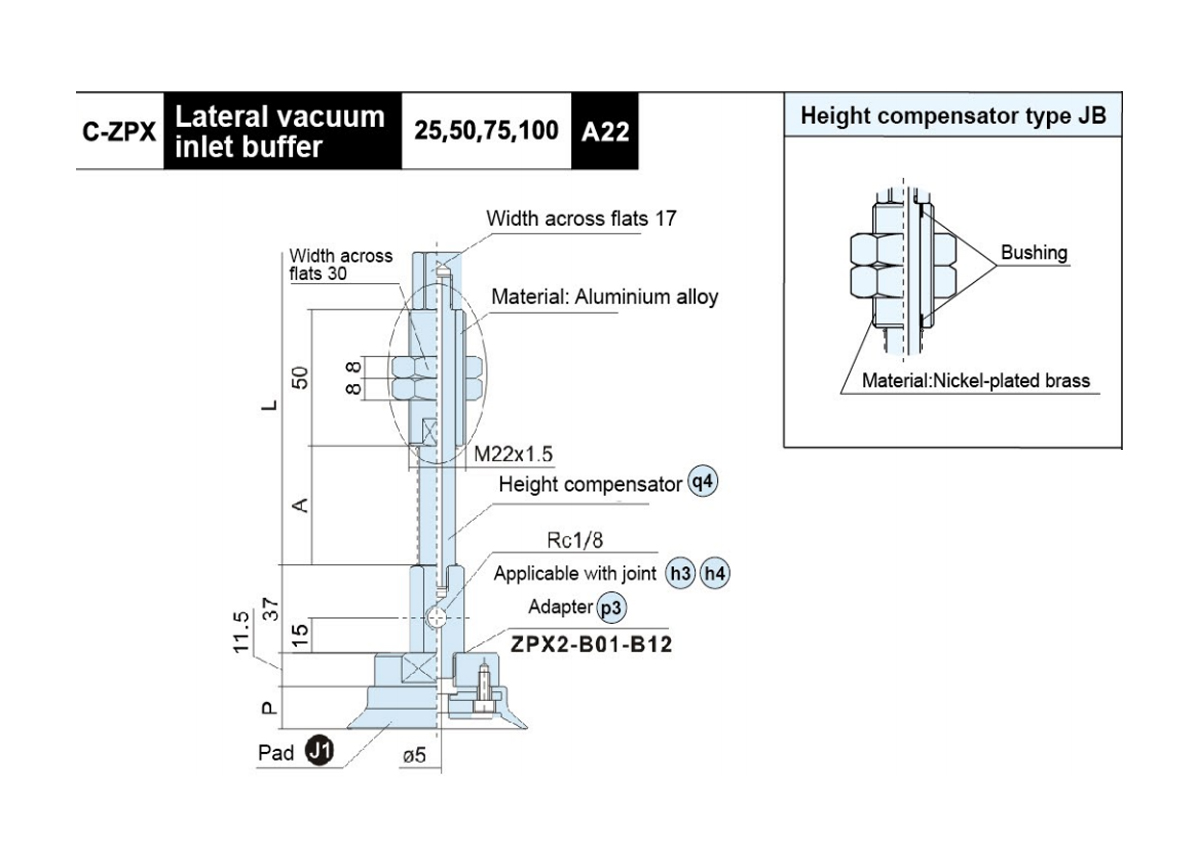

C-ZPX ○ HB□● 25-B01-A22	44	118	31.5	37	ZPX2 ●25-B01-A22
C-ZPX ○ HB □● 50-B01-A22	80	154			ZPX2 ●50-B01-A22
C-ZPX ○ HB □● 75-B01-A22	120	194			ZPX2 ●75-B01-A22
C-ZPX ○ HB □● 100-B01-A22	155	229			ZPX2 ●100-B01-A22
○ Pad diameter symbol:63,80 ● Height compensator type:Aluminium alloy(J) Brass(JB) □ Pad material:NBR(N),Silicone rubber(S)

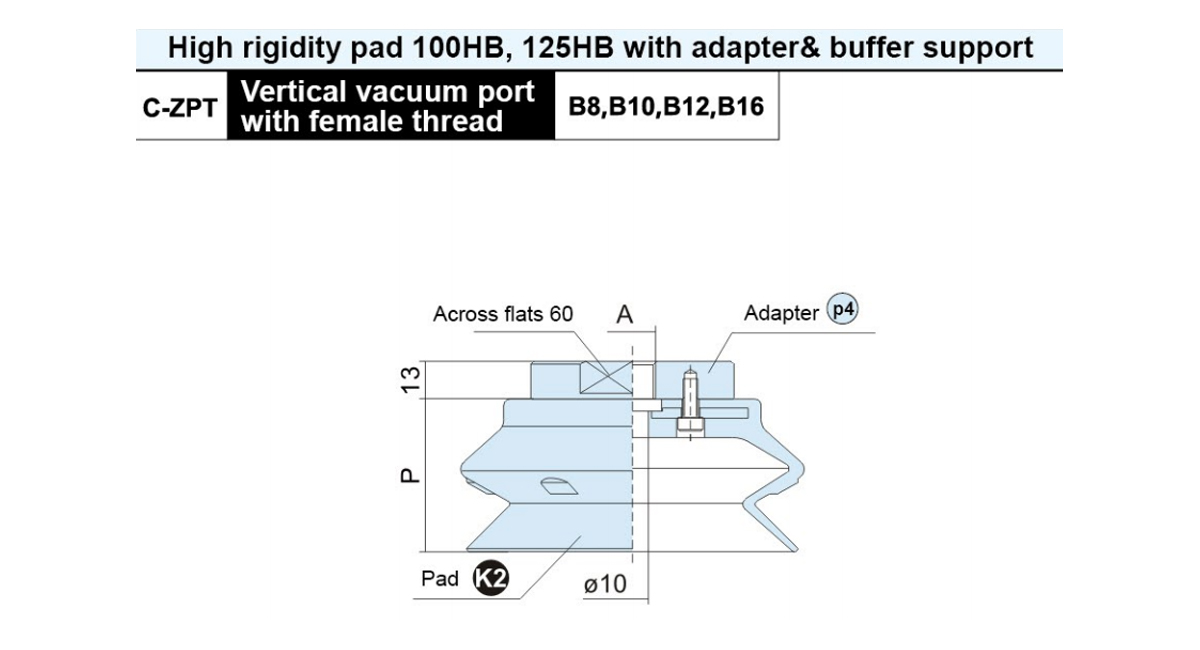

Model	A	○ Pad Diameter	P	Adaptor Model
		100	125
C-ZPT ○ HB □ -B12	M12×1.75	47.5	56	ZPT3-B12 ZPT3-B16
C-ZPT ○ HB □- B16	M16×1.5
○ Pad diameter symbol:100,125 □ Pad material:NBR(N),Silicone rubber(S)

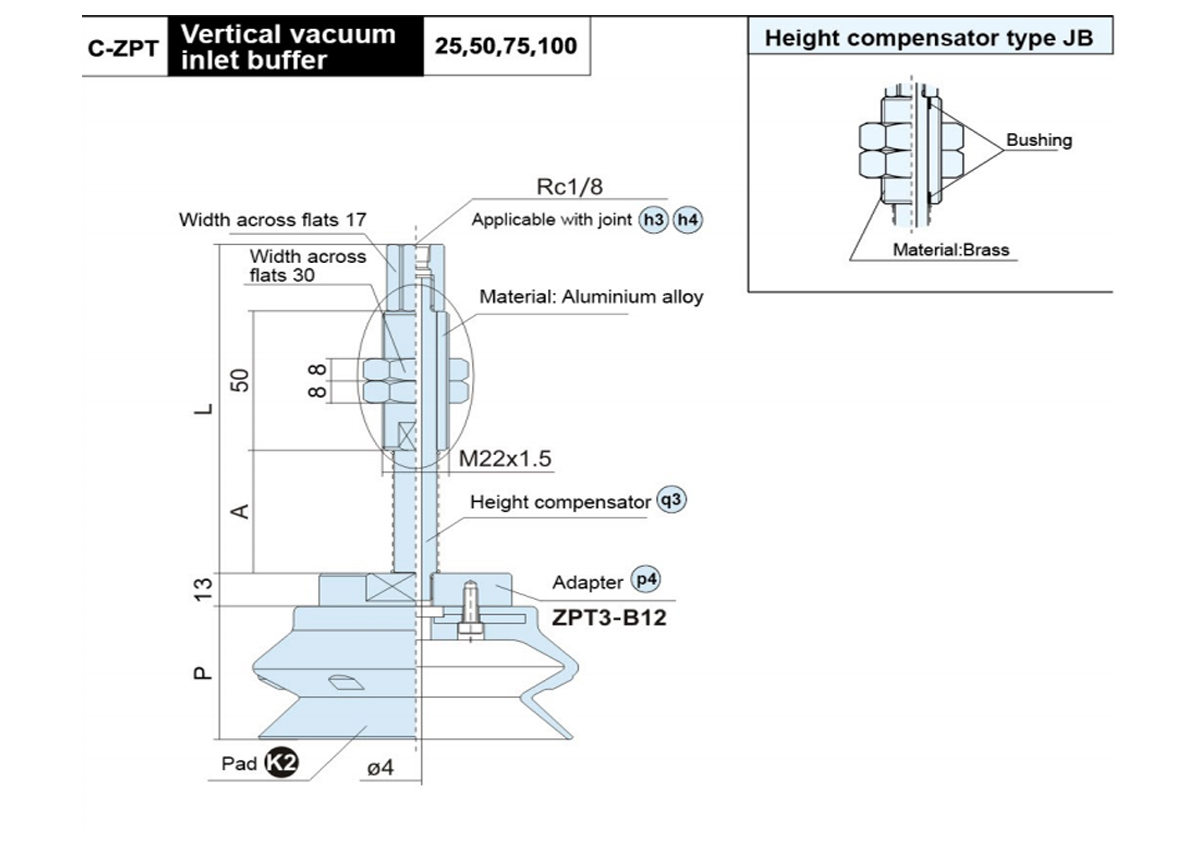

Model	A	L	. Pad Diameter		P	q3 p4 Bumper Support Model
			100	125

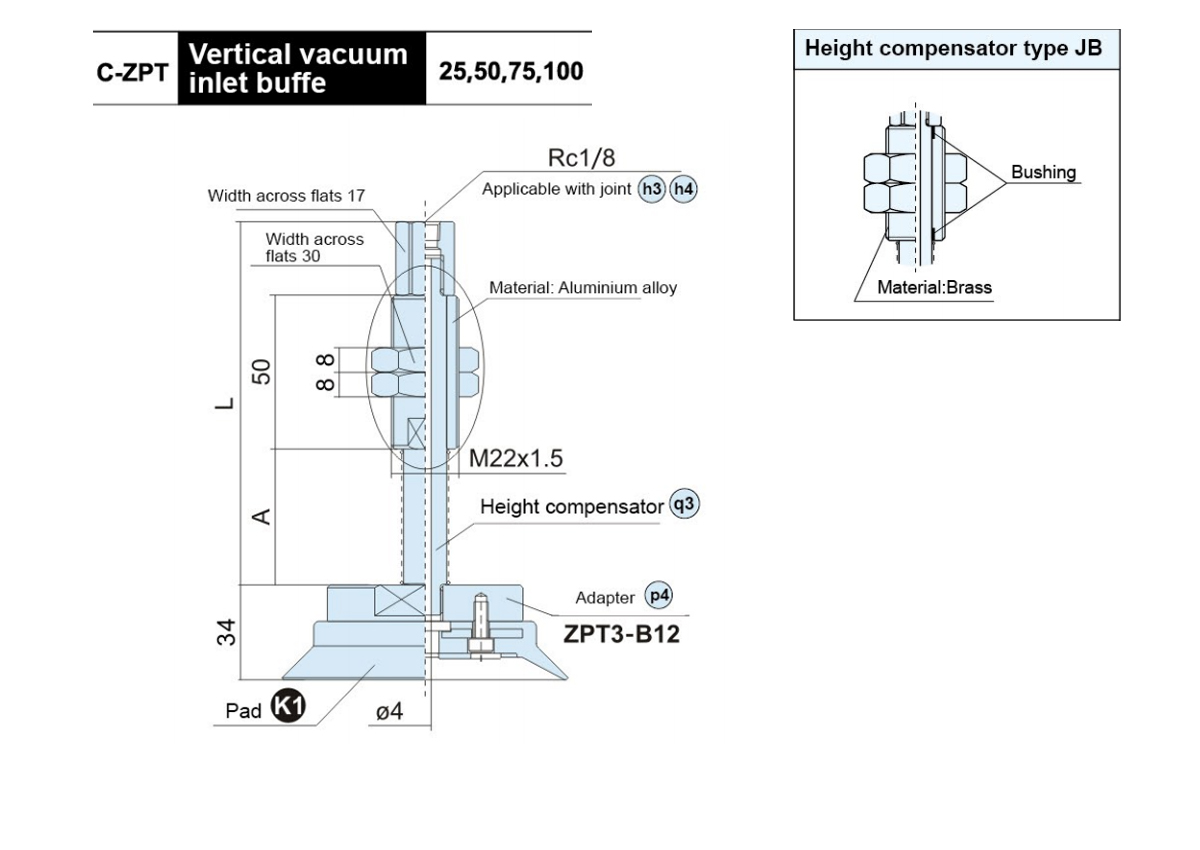

C-ZPT O HB □● 25-B01-A22	44	118	47.5	56		ZPB3 ●25-B01-A22
C-ZPT O HB □● 50-B01-A22	80	154				ZPB3●50-B01-A22
C-ZPT O HB □● 75-B01-A22	120	194				ZPB3 ●75-B01-A22
C-ZPT O HB □● 100-B01-A22	155	229				ZPB3 ●100-B01-A22
○ Pad diameter symbol:100,125 □ Pad material:NBR(N),Silicone rubber(S) ● Height compensator type:Aluminium alloy(J),Brass(JB)

Model	P	Adaptor Model
C-ZPT100HB □ -A16	47.5	ZPT3-A16
C-ZPT125HB □ -A16	56	ZPT3-A16
□ Pad material:NBR(N),Silicone rubber(S)

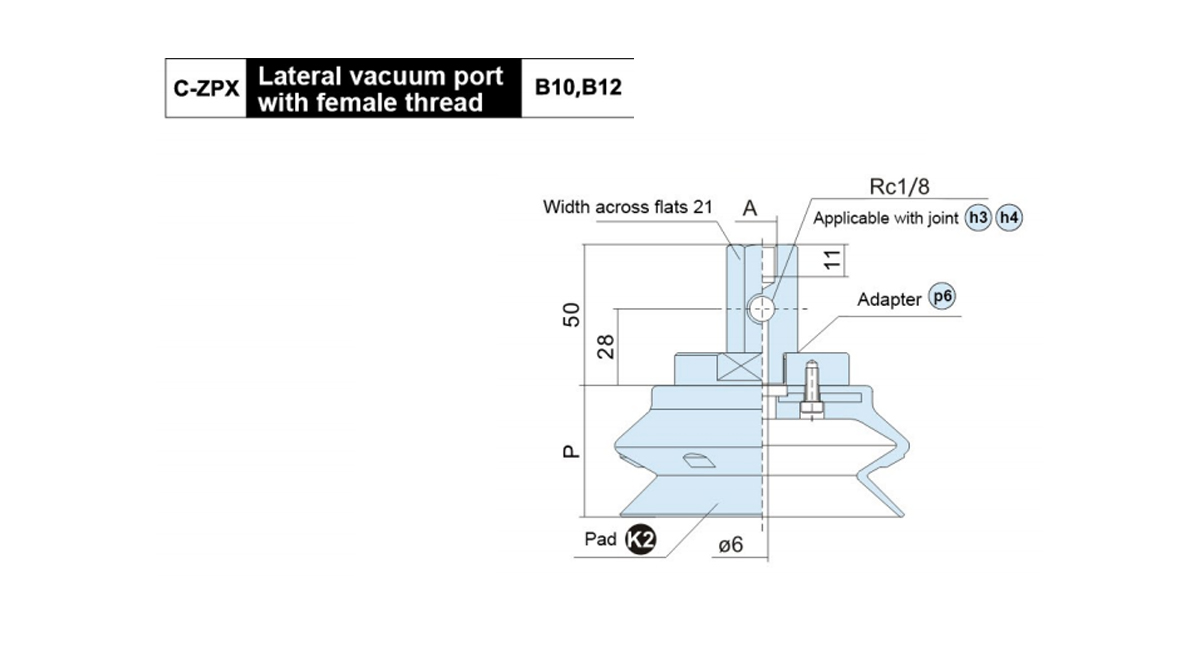

Model	A	○Pad Diameter P		Adaptor Model
		100	125
C-ZPX ○ HB□-B01-B10	M10×1.5	47.5	56	ZPX3-B01-B10
C-ZPX ○ HB□-B01-B12	M12×1.75			ZPX3-B01-B12
○ Pad diameter symbol:100,125 □ Pad material:NBR(N),Silicone rubber(S)

Model	A	L	○ Pad Diameter P		q4 p6 Bumper Support Model
			100	125
C-ZPX ○ HB □● 25-B01-A22	44	118	47.5	56	ZPX3 ●25-B01-A22
C-ZPX ○ HB □● 50-B01-A22	80	154			ZPX3 ●50-B01-A22
C-ZPX ○ HB □● 75-B01-A22	120	194			ZPX3 ●75-B01-A22
C-ZPX ○ HB □● 100-B01-A22	155	229			ZPX3 ●100-B01-A22
○ Pad diameter symbol:100,125 □ Pad material:NBR(N),Silicone rubber(S) ● Height compensator type:Aluminium alloy(J),Brass(JB)

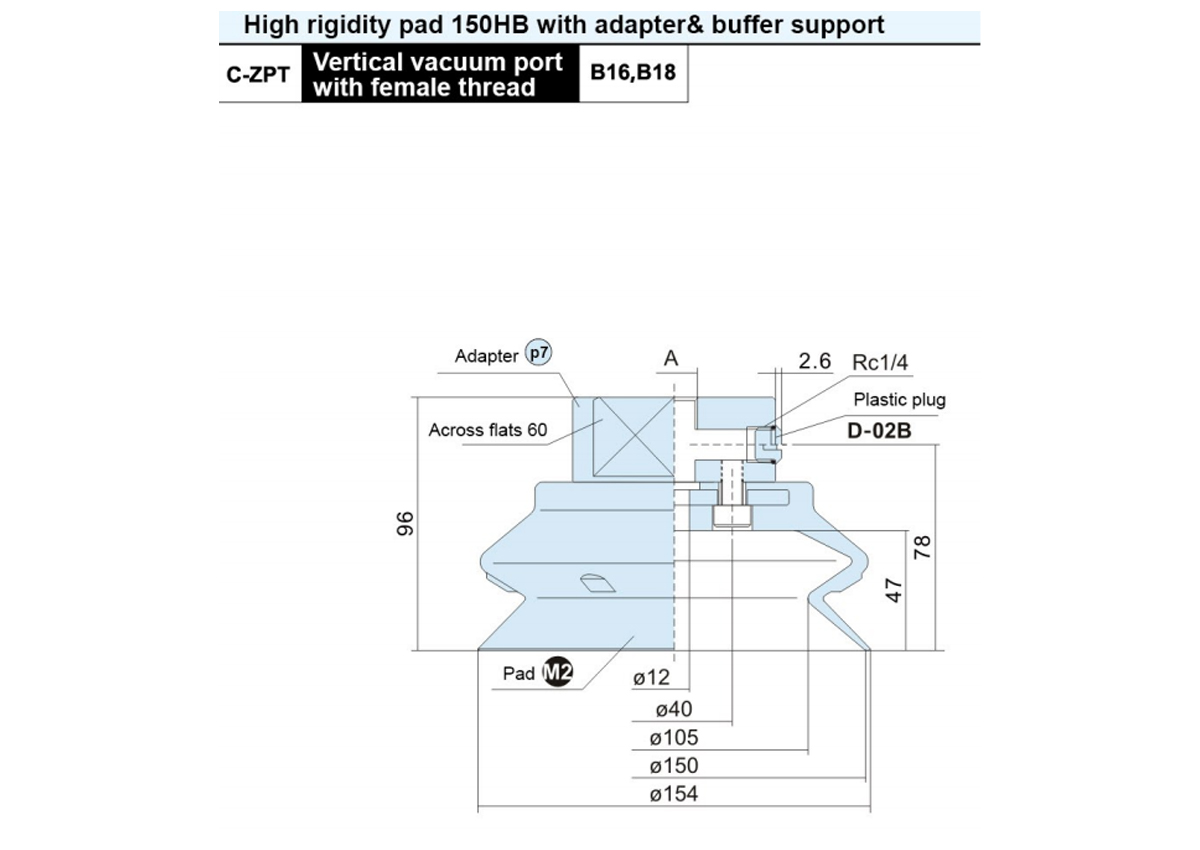

Model	A	Adaptor Model
C-ZPT150HB □ -B16	M16×1.5	ZPT4-B16
C-ZPT150HB □- B18	M18×1.5	ZPT4-B18
□ Pad material:NBR(N),Silicone rubber(S)

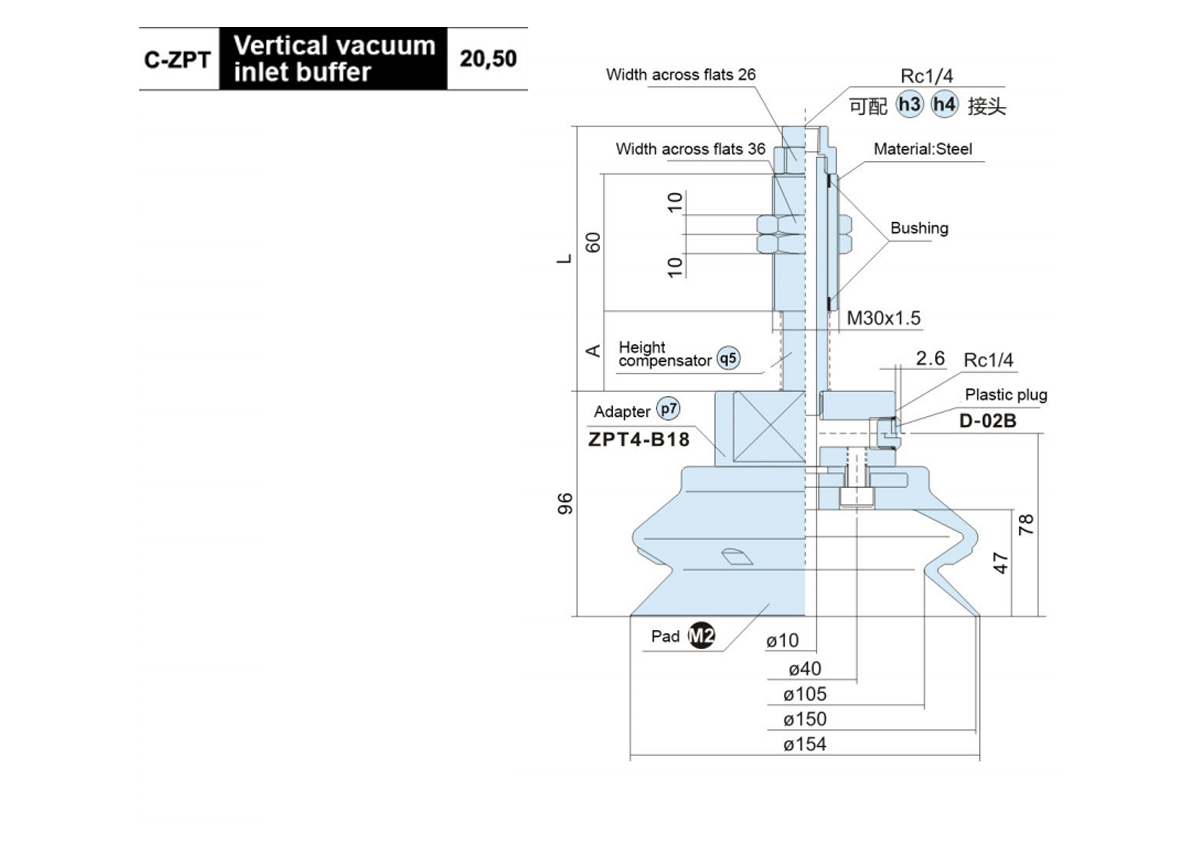

Model	A	L	q5 p7 Bumper Support Model
C-ZPT150HB □ JF20-B02-A30	35	118	ZPB4JF20-B02-A30
C-ZPT150HB □ JF50-B02-A30	75	154	ZPB4JF50-B02-A30
□ Pad material:NBR(N),Silicone rubber(S)

Qualità Autentica e Affidabile che si Distingue Naturalmente.

La scelta nasce dalla fiducia, e la cooperazione dall'onestà.

D: Quam mox responsum accipere possumus postquam inquisitionem tibi mittimus?

Respondebimus tibi intra XXIV horas post inquisitionem in diebus ferialibus.
D: Esne directus fabrica vel societas mercaturae?

Fabrica sumus, et venditiones internationales proprias habemus. Ita nosmetipsos omnia producere et vendere possumus.
D: Lorem products facere potes?

Ita, nos evolvere et producere fructus secundum delineationes vel exempla a clientibus provisum possumus
D: Quomodo societas tua praestat productum qualitas?

Primum inspectionem post singulos processum faciemus. Pro effectibus perfectis, inspectionem C% secundum exigentias clientium et vexillum internationale faciemus..
D: Ubi sunt vestra producta maxime emitur?

Producta nostra maxime in Germaniam, Civitates Americae Unitas, Daniam et plusquam duodecim nationes in Europa et America Septentrionali . exportantur

Language

About

News
