ZP Series Small & Short Vacuum Suctionis Cup Fornitores

Home / Products / Vacuum Components / Vacuum suctus Cup / ZP Series Small & Short Vacuum Suction Cup, Cum Adapter & Buffer Bracket / ZP Series Small & Short Vacuum Suctionis Cup

ZP Series Small & Short Vacuum Suctionis Cup ZP Series Small & Short Vacuum Suctionis Cup ZP Series Small & Short Vacuum Suctionis Cup ZP Series Small & Short Vacuum Suctionis Cup

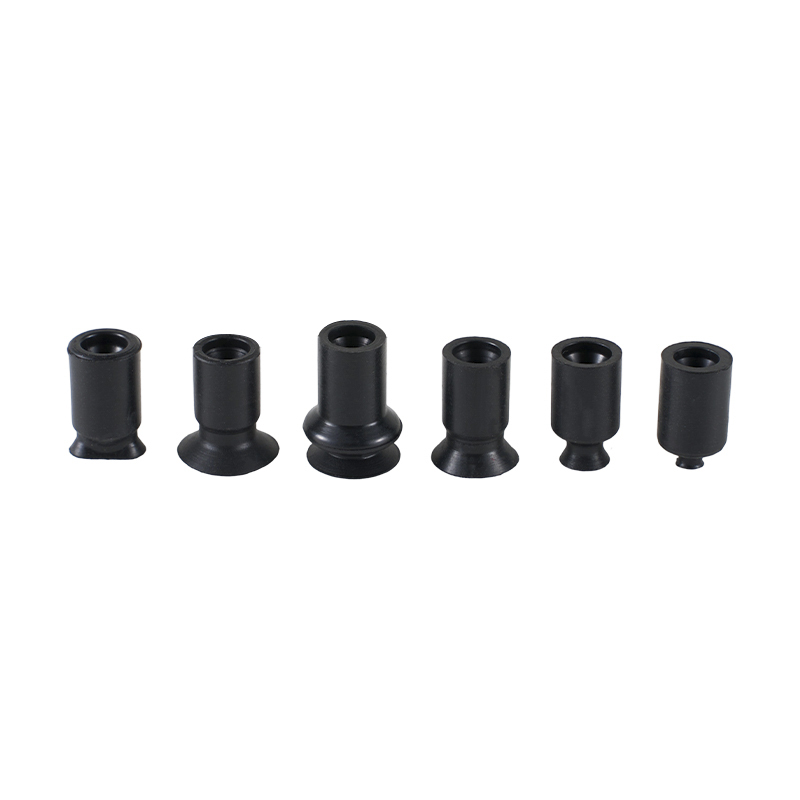

  • ZP Series Small & Short Vacuum Suctionis Cup
  • ZP Series Small & Short Vacuum Suctionis Cup
  • ZP Series Small & Short Vacuum Suctionis Cup
  • ZP Series Small & Short Vacuum Suctionis Cup

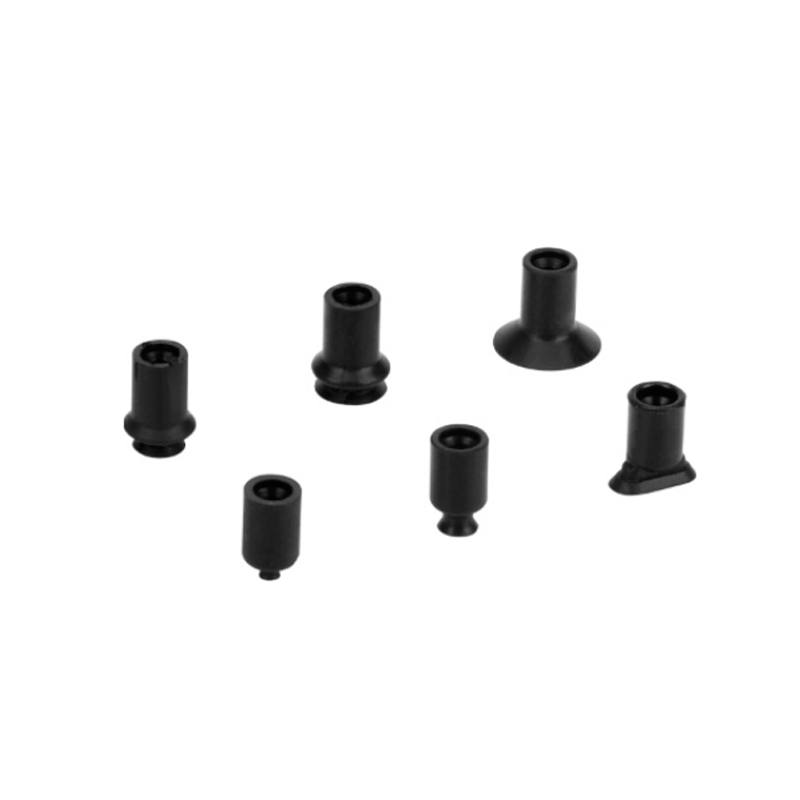

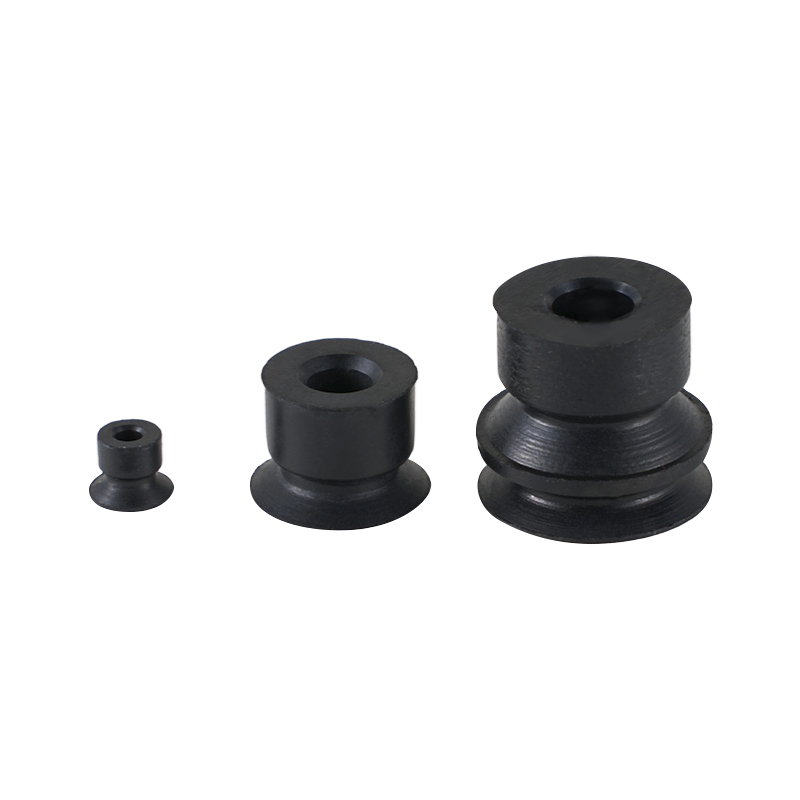

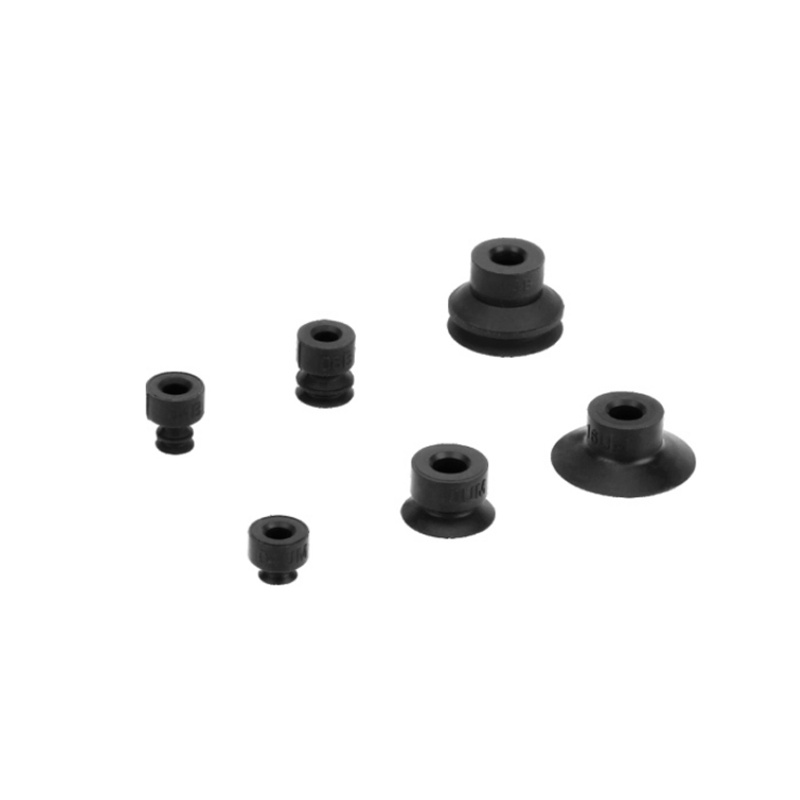

ZP Series Small & Short Vacuum Suction Cup, Cum Adapter & Buffer Bracket

ZP Series Small & Short Vacuum Suctionis Cup

ZP Series Small & Short Vacuum Suctionis Cup est summus perficientur suctionis elementum ad missiones spatio constrictas destinatum. Cum eius compacta structura, diversa specie et accommodatione universali, in campis industrialibus late adhibetur sicut praecisio conventus et parva materialia tractatio.

Product Features
1. Foedus et brevis consilio; Series C-ZP structuram ultra-brevis assumit, quae signanter spatium institutionis servat et maxime apta est ad suctu vacuum necessitates roboti finis effectorum vel parvarum regionum laborantium.

2. Diversa lectio: Figura et structura: varia consilia praebet ut rotundi tenues, costatae CT), ovales (U), planae (UA), sulcatae et multi- folles scaenae (III scaena follis).

3. Location coverage: Specificationes diametri tegunt 02, 04, 06, 08, 10, 13, 16mm, etc., ut suctionis e rebus microformibus ad materias parvas et medias amplitudines occurrat.

4. aptabilitas universalis; Sustinet institutionem universalem adaptatorum per diametros, pressionem accessionum inventarii minuit, et apparatum sustentationem et gratuita administratione minuit.

5. Materia aptabilitas: Duae optiones materiales praesto sunt: purgamentum nitrile (NBR) et Flexilis siliconis, quae aptae sunt ad ambitus industriales et missionem cum requisitis ad munditiem vel caliditatem resistentiae.

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：ZP Series: Parvus Vacuum Suctionis Cup Cum Adapter & Buffer Bracket
SUCCESSIVO：Nessun articolo successivo

  • 6types graciles UT et tenues cum costis CT (10,13,16) adduntur
    3 genera ovalis typeU (2*4,3.5*7,4*10) adduntur

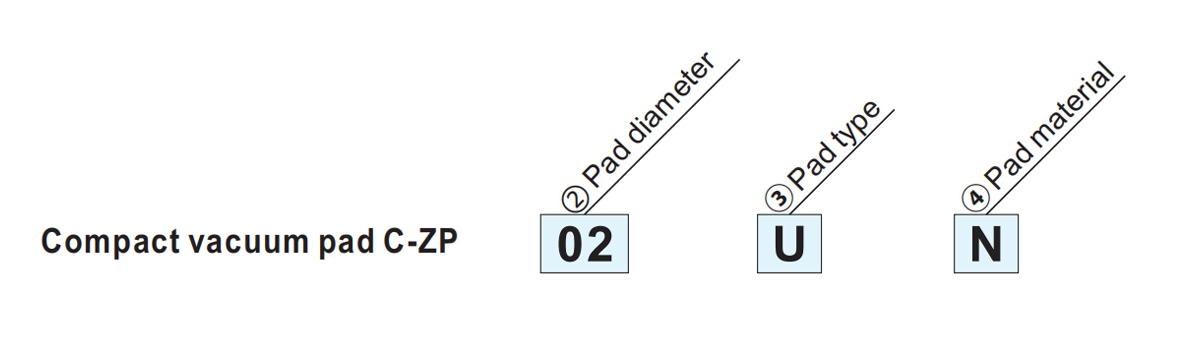

    Lorem nibh magnitudine

    Codex diam
    Pad diametri / Pad type☆ 02 04 06 08 10 13 16 2004 3507 4010 ④Materia*  □
    2 4 6 8 10 13 16 2×4 3.5×7 4×10 N NBR
    Oval plana generis S Silicone Flexilis.

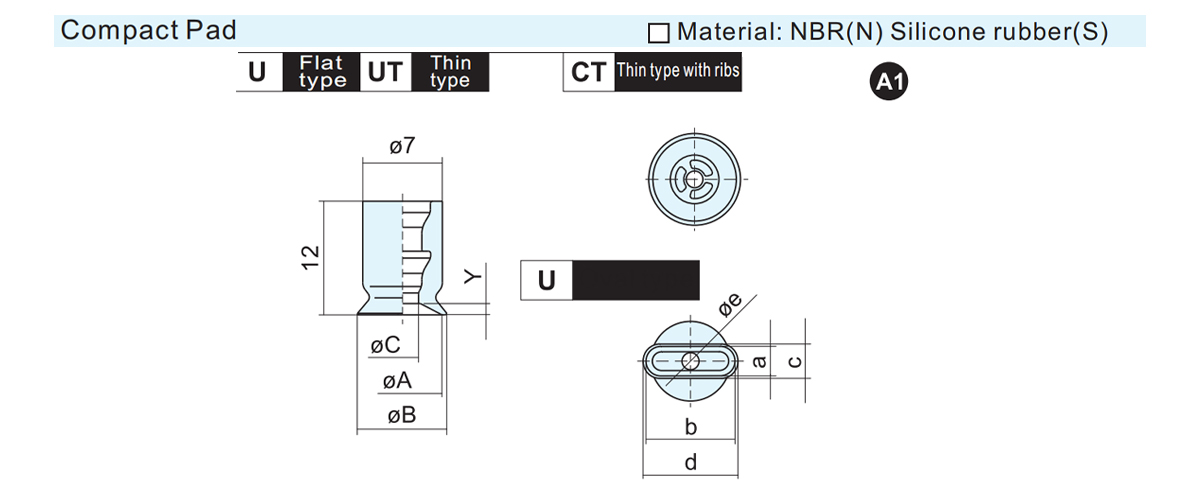

    A1 U Flat ● ● ● ● - - - ● ● ● *Refer to page 4 for
    caudex  materia
    UT graciles - - - - ● ● ● - - -
    CT graciles with ribs - - - - ● ● ● - - -
    A2 B Follis - - ● ● - - - - - -
    A3 J III scaena follis - - ● - - - - - - -

    Oval genus model a b C d e Y Pondus
    C-ZP2004U□ 2 4 2.6 4.6 1.2 0.3 0.4
    C-ZP3507U□ 3.5 7 4.3 7.8 1.8 0.5
    C-ZP4010U□ 4 10 5 11 2 0.8

    Model A B C Y Pondus
    C-ZP02U□ 2 2.6 1.2 0.8 0.4
    C-ZP04U□ 4 4.8 1.6
    C-ZP06U□ 6 7 2.5
    C-ZP08U□ 8 9 1
    C-ZP10UT□ 10 11
    C-ZP13UT□ 13 14 1.5 0.5
    C-ZP16UT□ 16 17 0.6
    C-ZP10CT□ 10 11 0.8 0.4
    C-ZP13CT□ 13 14 1 0.5
    C-ZP16CT口 16 17 0.6

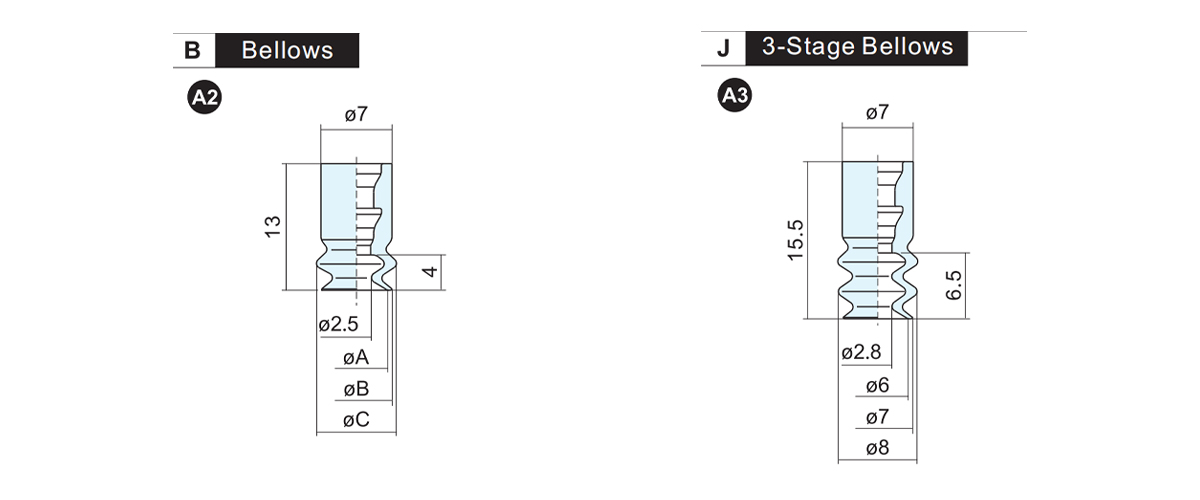

    Follis III scaena follis
    Model A B C Pondus Model Pondus
    C-ZP06B□ 6 7 9.1 0.4 C-ZP06J□ -
    C-ZP08B□ 8 9 10.1

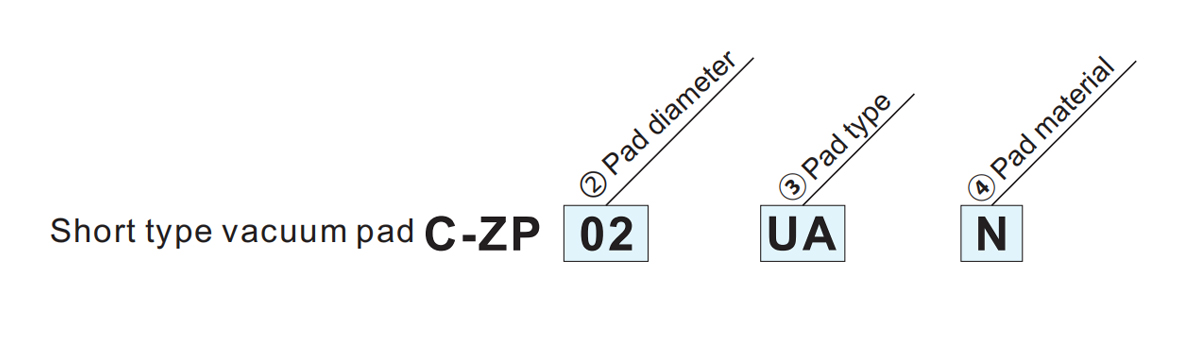

    ②Pad diam ○/
    ③Pax genus☆     		B1 C* D* ④) Materiam*         □
    015 02 035 04 06 08 10 13 16 N NBR
    1.5 2 3.5 4 6 8 10 13 16 S Silicone rubber
    UA Genus plana ● ● ● - - - - - - *Refer to page 4 for
    codex materia
    UM Grove genus ad costas - - - ● ● ● ● ● ●
    BA Follis - - - ● ● ● ● ● ●

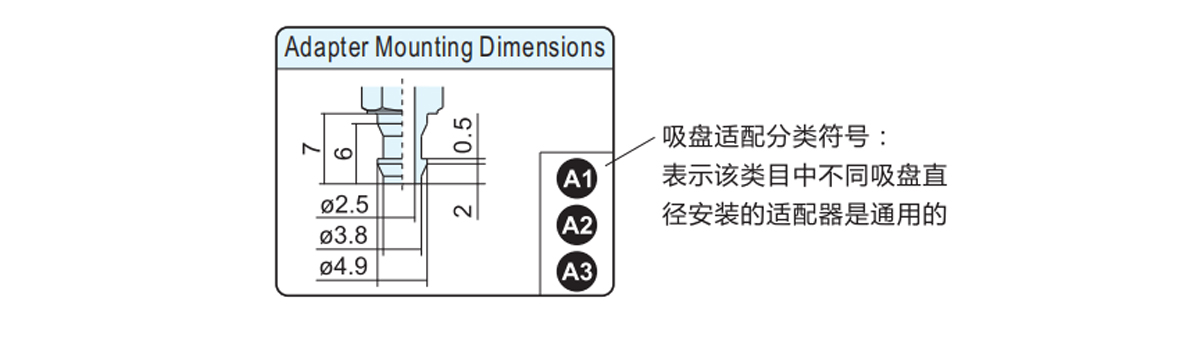

    * Eaedem litterae in principio indicant universalem adaptatorem.

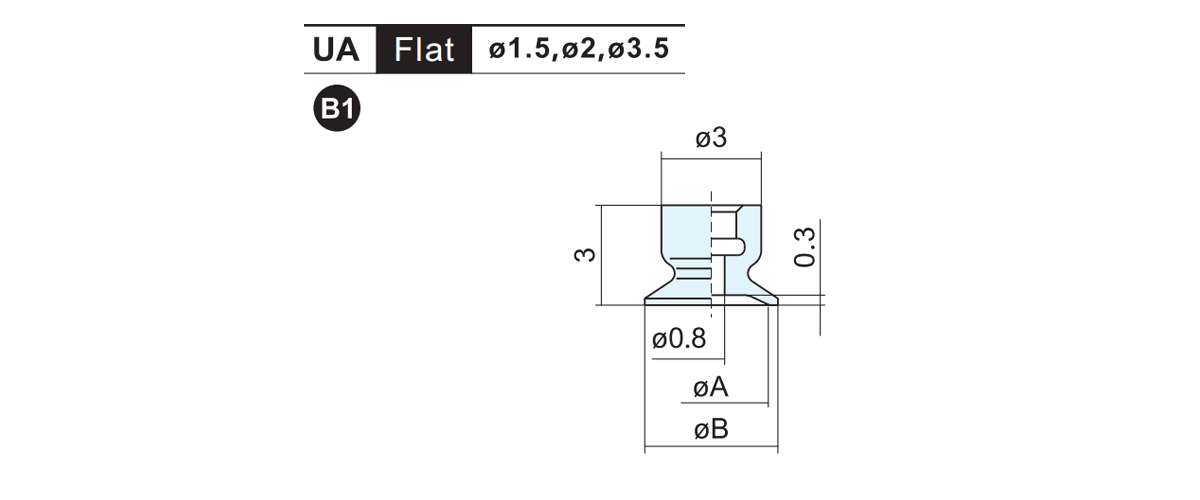

    3 genera Flat generis UA (1.5,2,3.5) addita sunt
    ● 6 genera Grovve type cum costis UM(4016) additae sunt
    ● 6 species follium BA (4-16) additae sunt

  • Parte nulla. A B Pondus
    C-ZP015UA□ 1.5 2 0.1
    C-ZP02UA□ 2 2.5
    C-ZP035UA□ 3.5 4

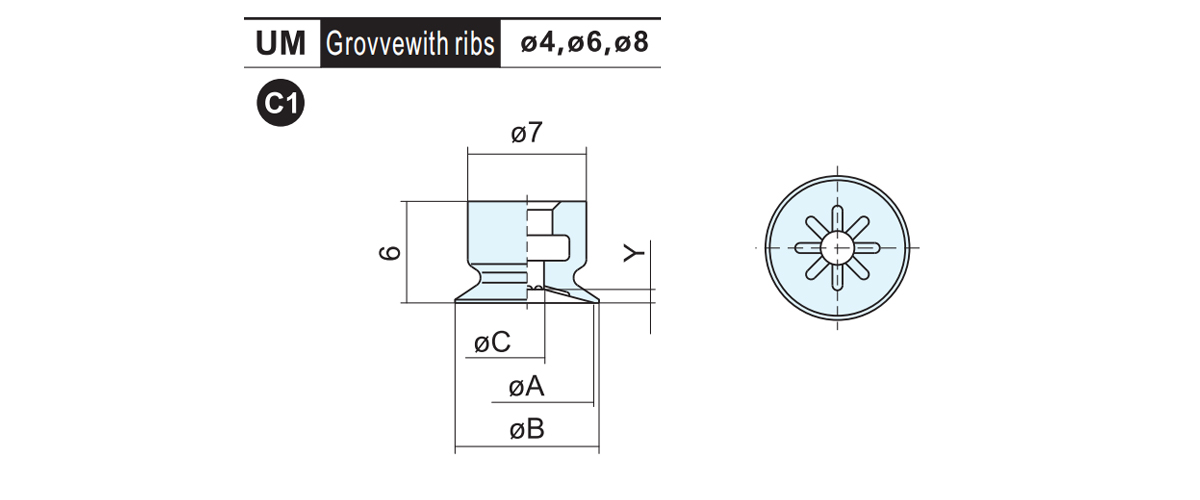

    Parte nulla. A B C Y Pondus
    C-ZP04UM□ 4 4.5 1.2 0.5 0.3
    C-ZP06UM□ 6 6.5 2 0.8
    C-ZP08UM□ 8 8.5

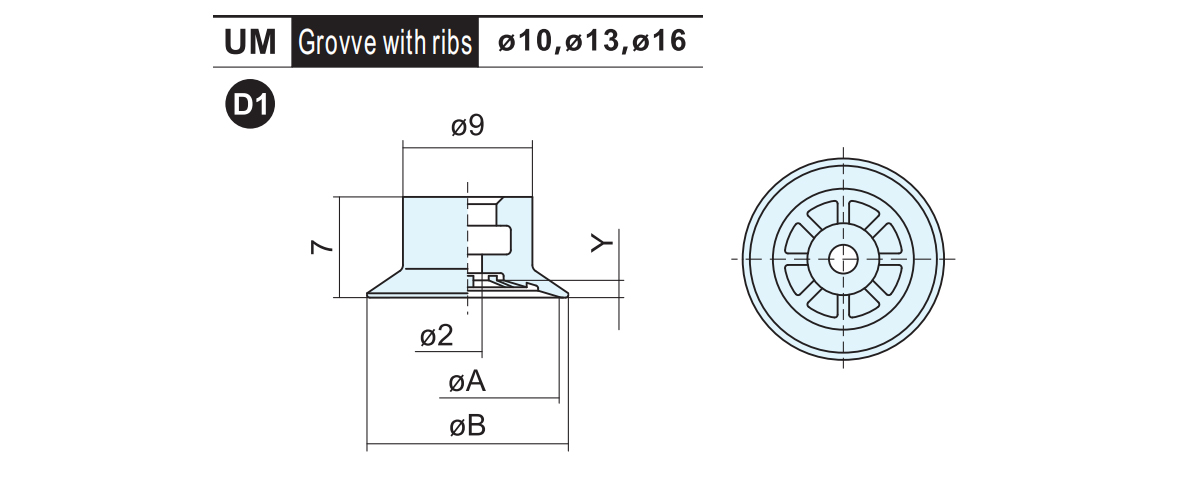

    Parte nulla. A B Y Pondus
    C-ZP10UM□ 10 11 1 0.6
    C-ZP13UM□ 13 14 1.2 0.7
    C-ZP16UM□ 16 17 0.8

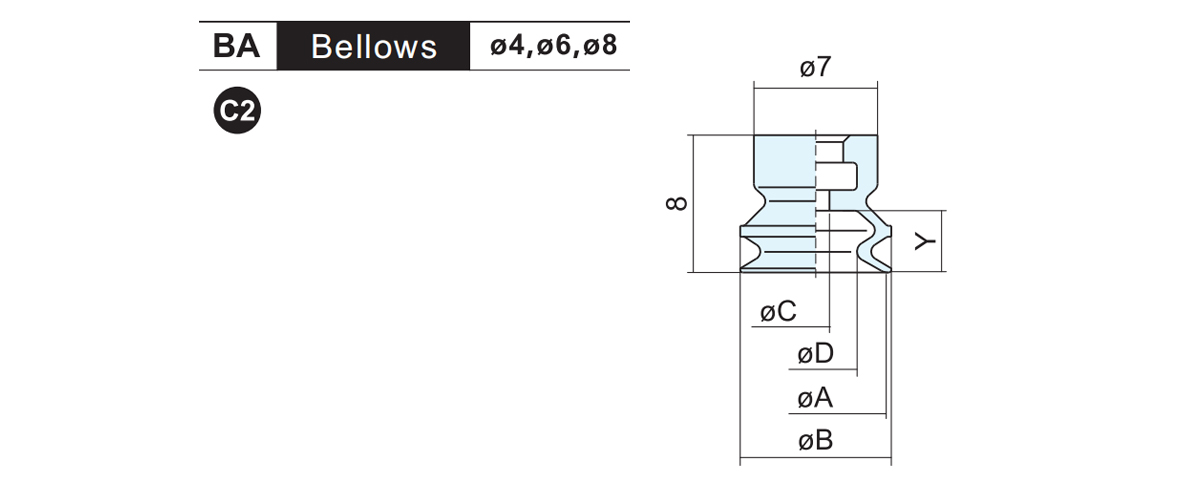

    Parte nulla. A B C D Y Pondus
    C-ZP04BA□ 4 4.5 1.8 1.8 2.2 0.3
    C-ZP06BA□ 6 7 2 3.4 3
    C-ZP08BA□ 8 9 5.2 0.4

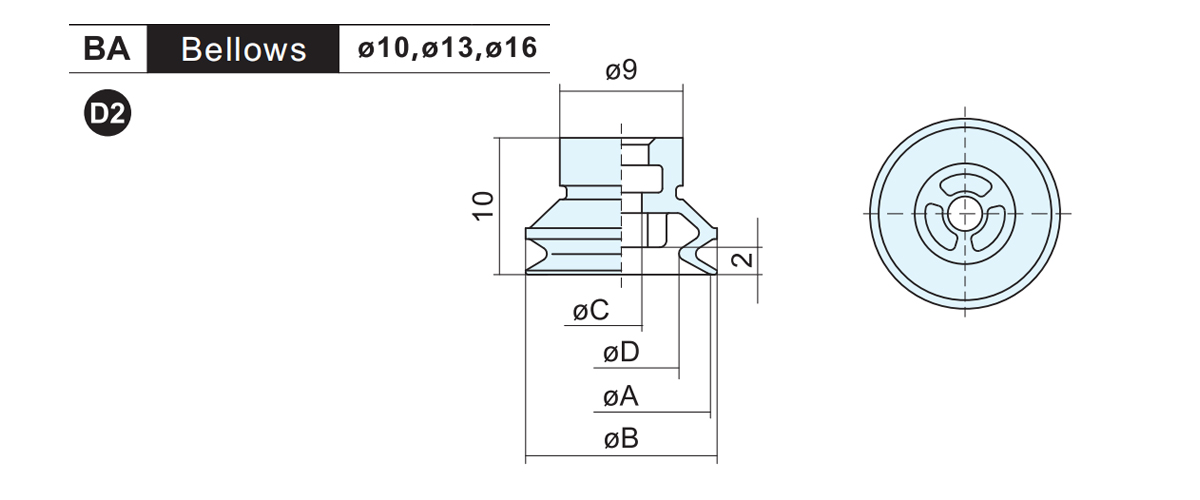

    Parte nulla. A B C D Pondus
    C-ZP10BA□ 10 11 2 6 0.8
    C-ZP13BA□ 13 14 3 8.4 1.0
    C-ZP16BA□ 16 17 11.4 1.1

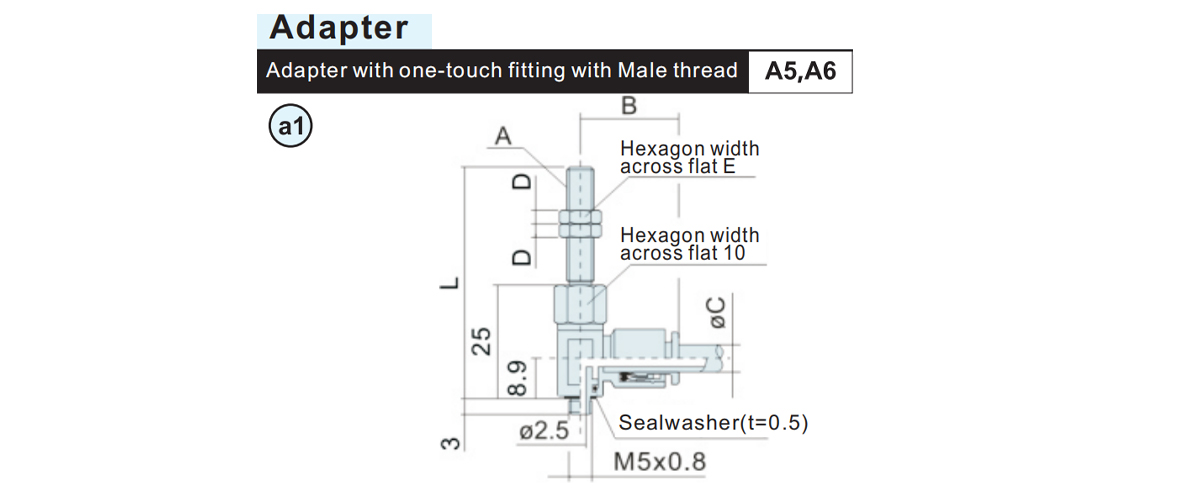

    Parte nulla. A B C D E L Pondus
    ZPRS-04-A5 M5×0.8 20.6 4 4 7 46 17.8
    ZPRS-06-A5 21.6 6 18.3
    ZPRS-04-A6 M6×1.0 20.6 4 3 8 51 18.5
    ZPRS-06-A6 21.6 6 19.2

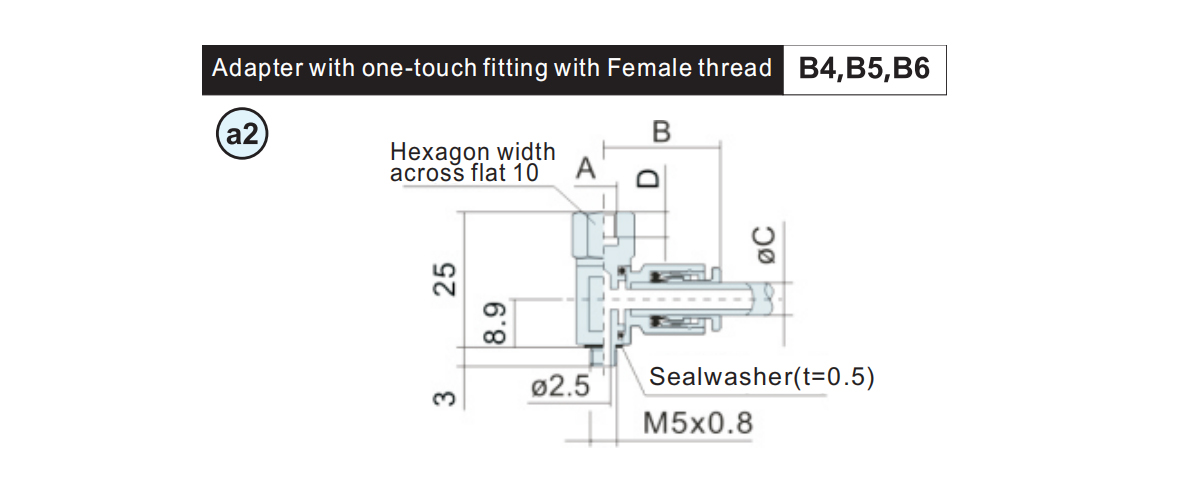

    Parte nulla. A B C D Pondus
    ZPRS-04-B4 M4×0.7 20.6 4 4 12.2
    ZPRS-06-B4 21.6 6 12.7
    ZPRS-04-B5 M5×0.8 20.6 4 5 11.6
    ZPRS-06-B5 21.6 6 12.5
    ZPRS-04-B6 M6×1.0 20.6 4 6 11
    ZPRS-06-B6 21.6 6 12

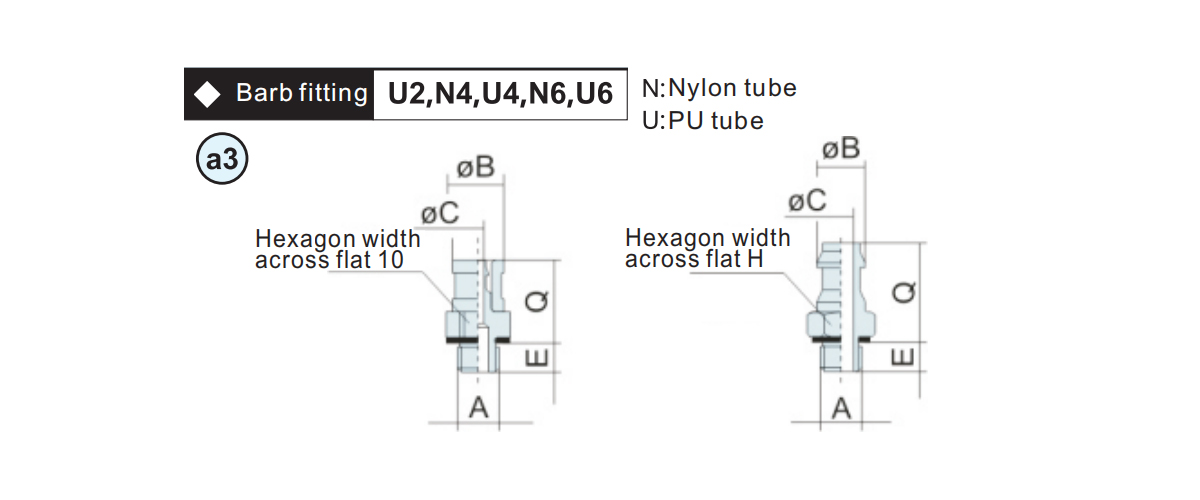

    Parte nulla. A B C E H Q Pondus
    M-3AU2 M3×0.5 4 0.9 2.5 4.5 6.5 0.7
    M-5AU2 M5×0.8 3 7 1.5
    M-3AU4 M3×0.5 3.4 1.2 2.5 5 7.5 0.7
    M-5AN4 M5×0.8 2.8 1.8 3 7 5 1.6
    M-5AU4 3.4
    M-5AN6 4.5 2.5 7 1.7
    M-5AU6 4.95 1.8

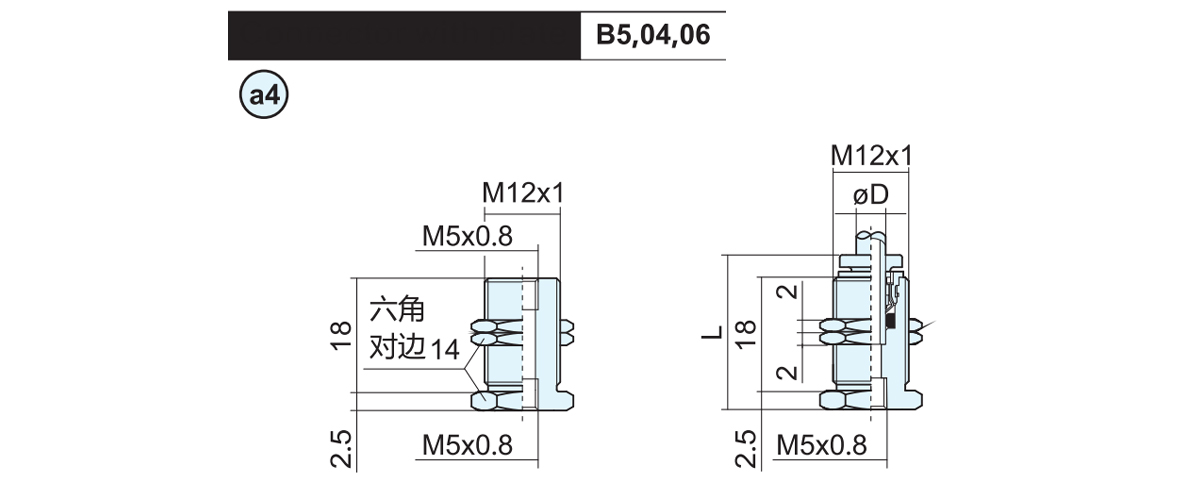

    Parte nulla. D L Pondus
    ZPEA-B5-A12 - 20.5 15
    ZPEA-04-A12 4 23.5 17
    ZPEA-06-A12 6 23.7 15

    D Parte nulla. A B E H Q Pondus
    3 KJH03-M3-B M3×0.5 1.5 2.5 7 13.7 2.2
    KJH03-M5-B M5×0.8 2.5 3 2
    3.2 KJH23-M3-B M3×0.5 1.5 2.5 1.8
    KJH23-M5-B M5×0.8 2.5 3 1.6
    4 KJH04-M3-B M3×0.5 1.5 2.5 8 2
    KJH04-M5-B M5×0.8 2.5 3 2.4
    6 KJH06-M5-B 10 14.7 3.4

    D Parte nulla. A B C E H Q Pondus
    3 KJS03-M3-B M3×0.5 1.5 7 2.5 1.5 13.7 1.4
    KJS03-M5-B M5×0.8 2 3 2 16.6 2
    3.2 KJS23-M3-B M3×0.5 1.5 2.5 1.5 13.7 1.4
    KJS23-M5-B M5×0.8 2 3 2 16.6 2.2
    4 KJS04-M3-B M3×05 1.5 8 2.5 1.5 13.7 1.6
    KJS04-M5-B M5×0.8 2.5 3 2.5 15.6 2.6
    6 KJS06-M5-B 10 16.4 3.2

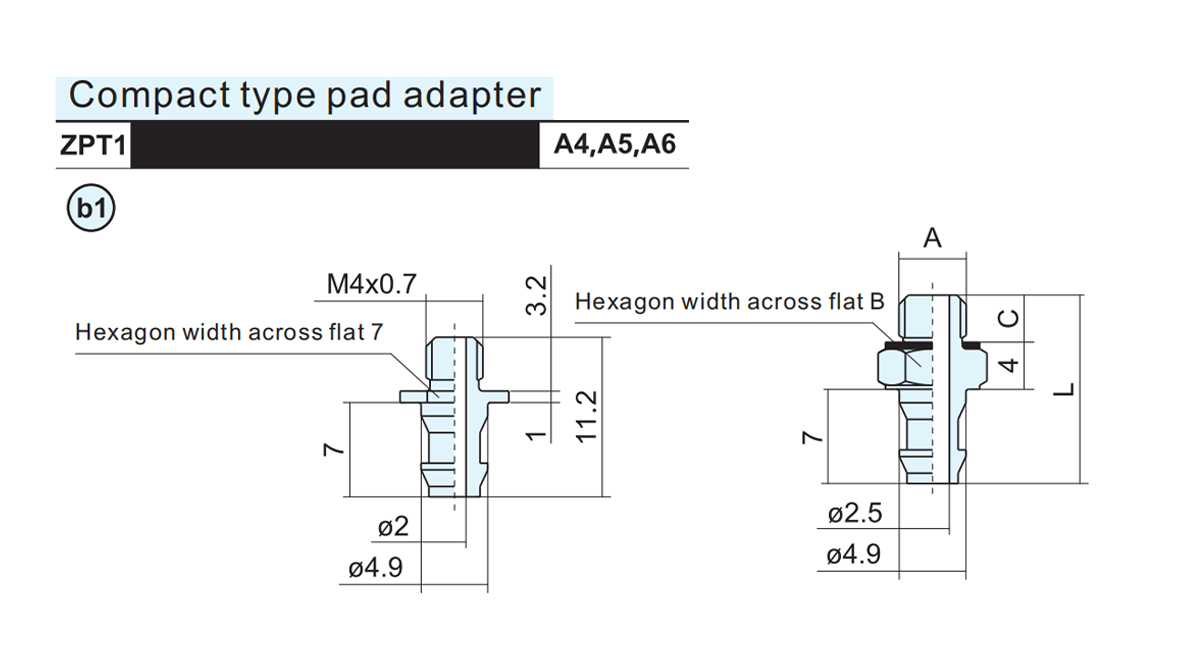

    Accommodare partem no A B C L Pondus Applicabilis Pad
    ZPT1-A4 - - - - 1.1 A1 A2 A3
    ZPT1-A5 M5×0.8 7 3 14 2.3
    ZPT1-A6 M6×1.0 8 4 15 3

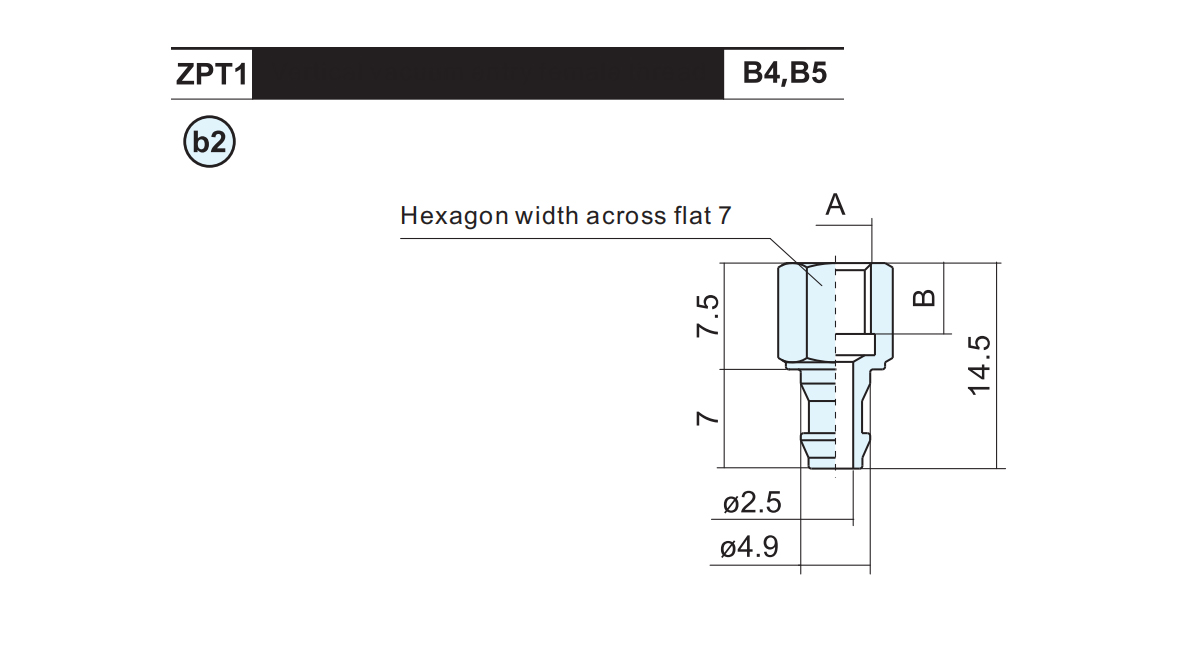

    Accommodare partem no. A B Pondus Applicabilis Pad
    ZPT1-B4 M4×0.7 4 2.9 A1 A2 A3
    ZPT1-B5 M5×0.8 5 2.7

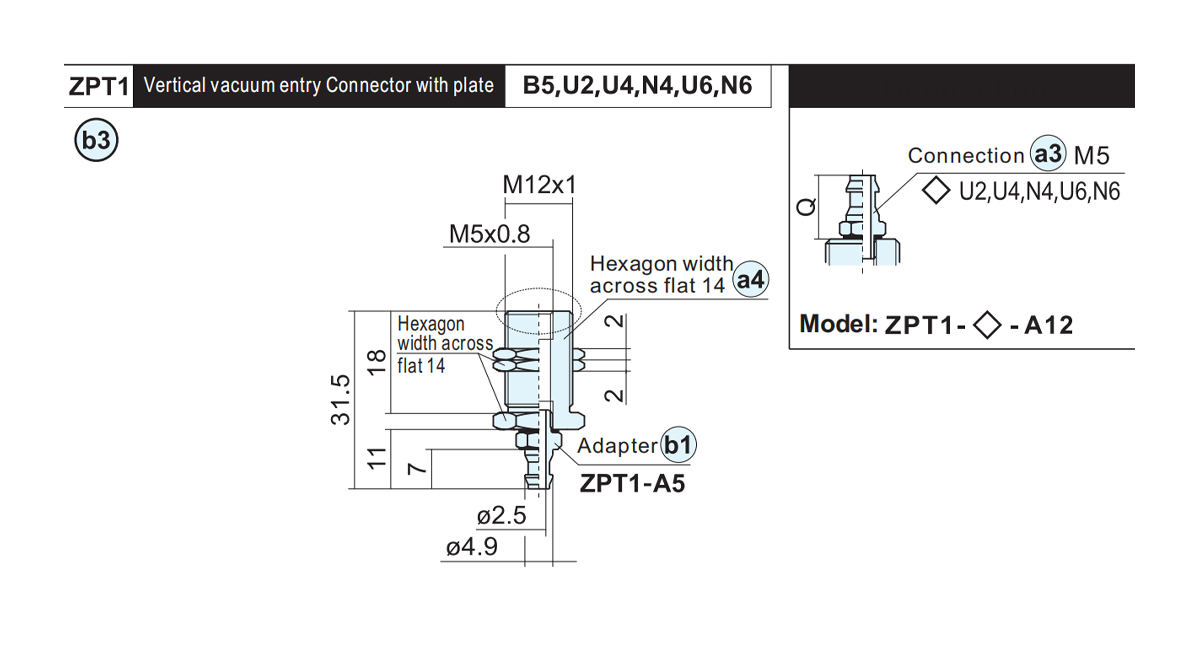

    Accommodare partem no Pondus Coniunctio partem no Lorem Pad
    ZPT1-B5-A12 17 ZPEA-B5-A12 A1 A2 A3

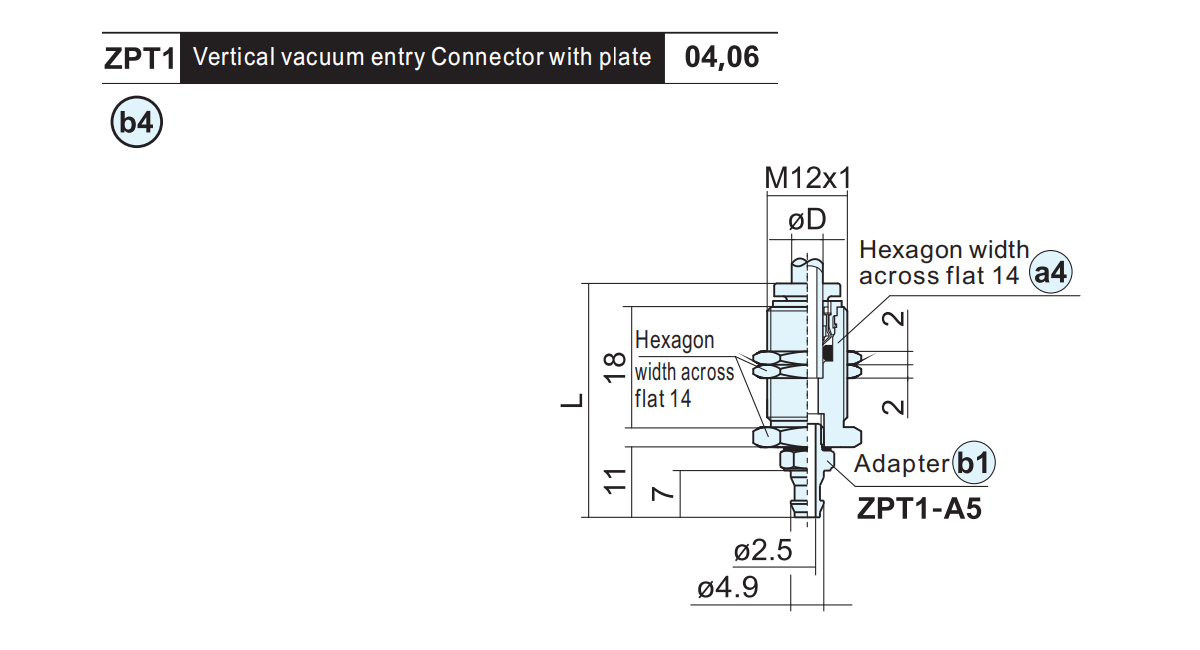

    Accommodare partem no. D L Pondus Coniunctio partem no Applicabilis Pad
    ZPT1-04-A12 4 34.5 19 ZPEA-04-A12 A1 A2 A3
    ZPT1-06-A12 6 34.7 17 ZPEA-06-A12

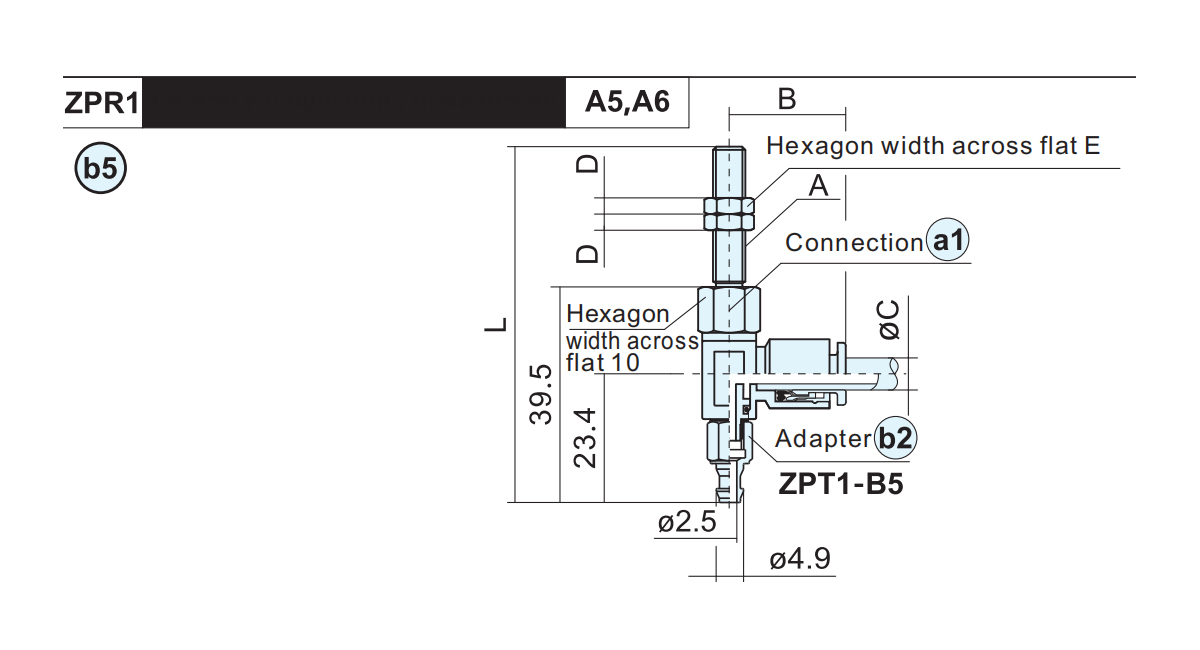

    Accommodare partem no. A B C D E L Pondus Coniunctio partem no Applicabilis Pad
    ZPR1-04-A5 M5×0.8 20.6 4 4 7 60.5 20.5 ZPRS-04-A5 A1 A2 A3
    ZPR1-06-A5 21.6 6 21 ZPRS-06-A5
    ZPR1-04-A6 M6×1.0 20.6 4 3 8 65.5 21.2 ZPRS-04-A6
    ZPR1-06-A6 21.6 6 21.9 ZPRS-06-A6

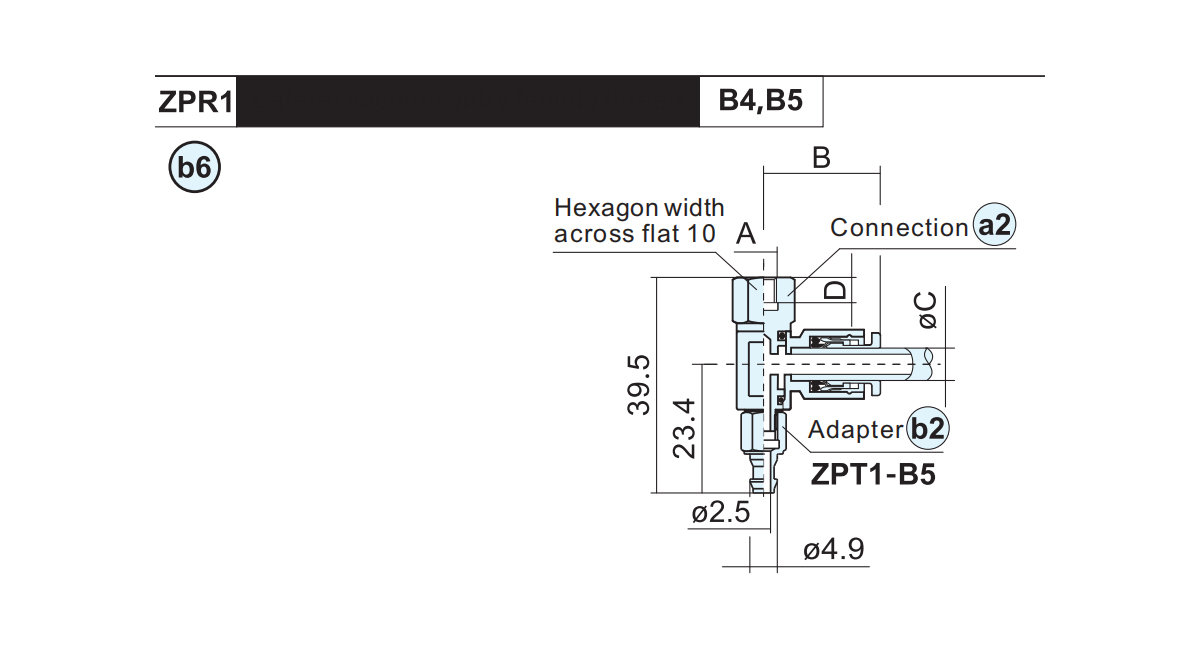

    Accommodare partem no. A B C D Pondus Coniunctio partem no Applicabilis Pad
    ZPR1-04-B4 M4×0.7 20.6 4 4 14.9 ZPRS-04-B4 A1 A2 A3
    ZPR1-06-B4 21.6 6 15.4 ZPRS-06-B4
    ZPR1-04-B5 M5×0.8 20.6 4 5 14.3 ZPRS-04-B5
    ZPR1-06-B5 21.6 6 15.2 ZPRS-06-B5

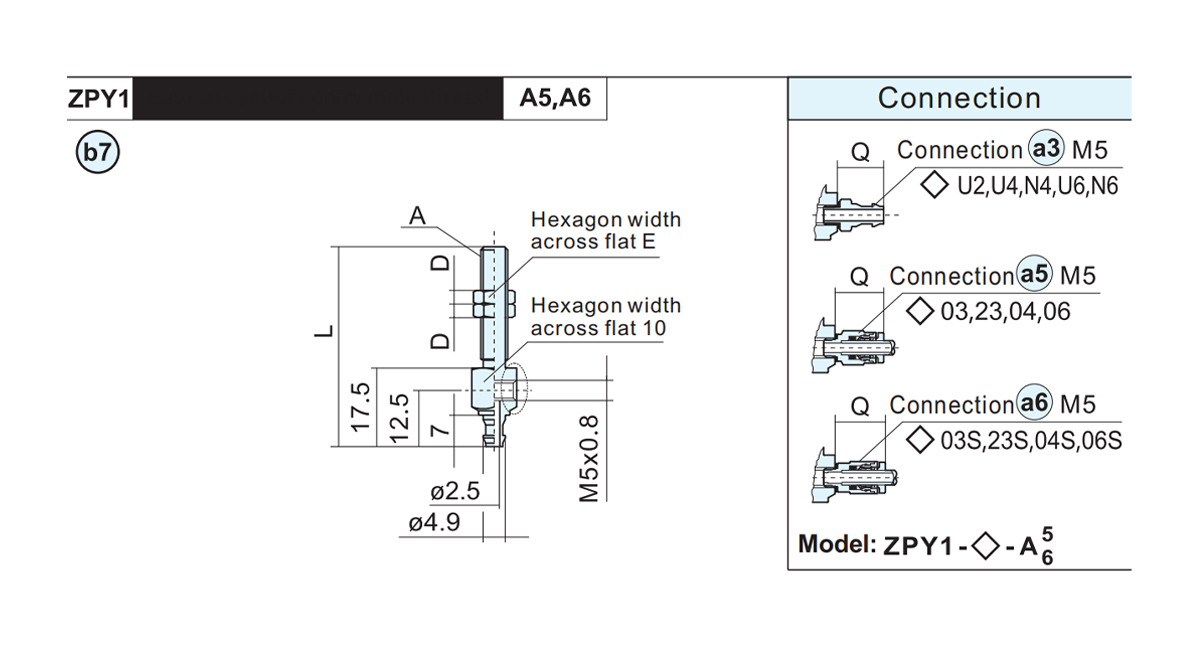

    Accommodare partem no. A D E L Pondus Applicabilis Pad
    ZPY1-B5-A5 M5×0.8 4 7 45 14.5 A1 A2 A3
    ZPY1-B5-A6 M6×1.0 3 8 50 15.1

    Accommodare partem no. A B Pondus Applicabilis Pad
    ZPY1-B5-B4 M4×0.7 4 8.8 A1 A2 A3
    ZPY1-B5-B5 M5×0.8 5 8.3

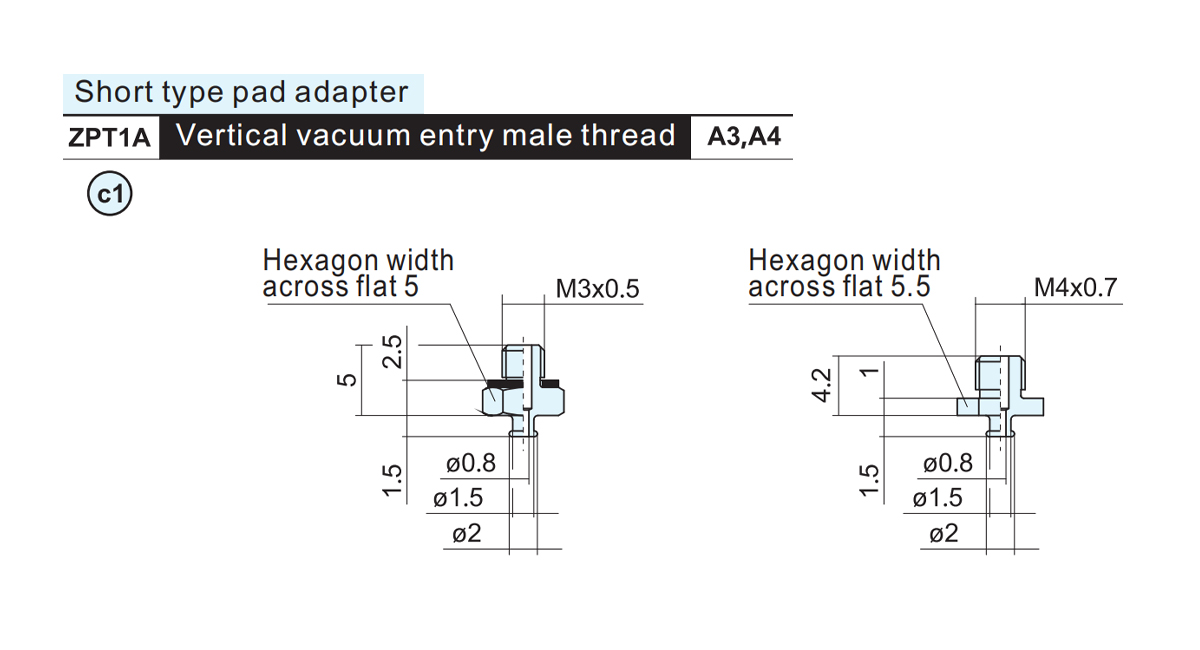

    Accommodare partem no Pondus Applicata codex
    ZPT1A-A3 0.4 B1
    ZPT1A-A4 0.4

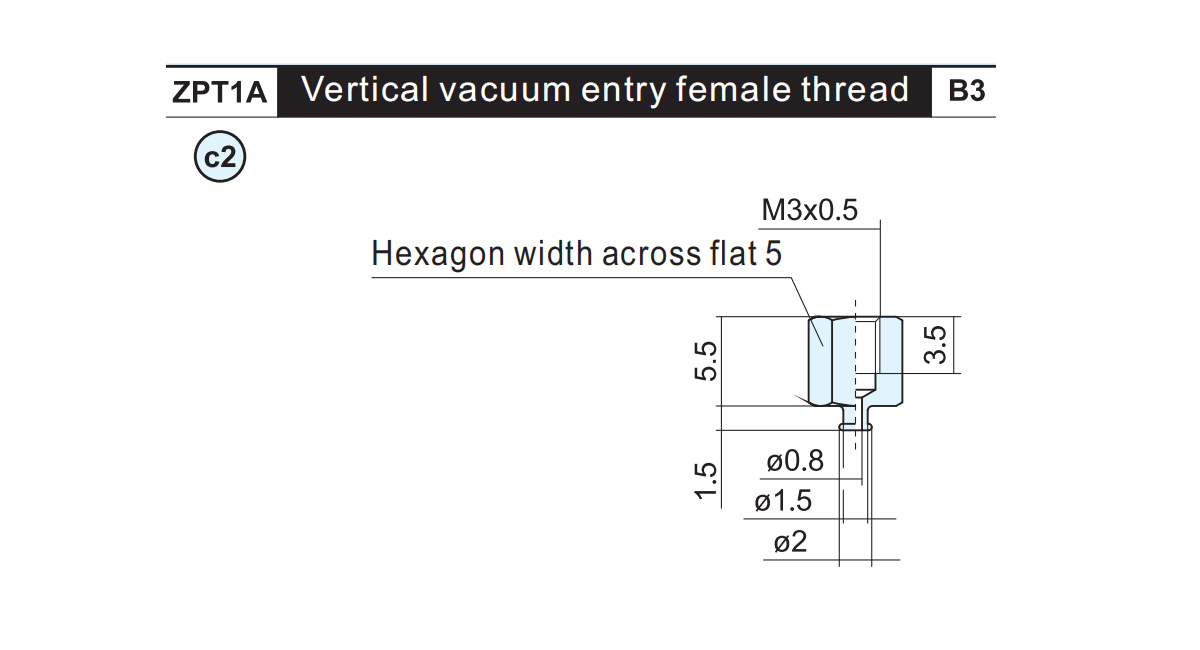

    Accommodare partem no Pondus Applicata codex
    ZPT1A-B3 0.8 B1

    Accommodare partem no. Pondus Applicata codex
    ZPT1A-B3-A6 2.4 B1

    Accommodare partem no. Pondus Locum codex
    ZPY1A-B3-B3 1.6 B1
    ZPY1A-B3-B4 1.4

    Accommodare partem no Pondus Locum codex
    ZPT2A-A4 0.7 C1 C2
    ZPT2A-A5 1.5

    Adaptor partno A B L Pondus Applicata codex
    ZPT2A-B4 M4×0.7 4 9.5 2 C1 C2
    ZPT2A-B5 M5×0.8 5 11 2.1

    Accommodare partem no Pondus Applicata codex
    ZPT2A-B5-A10 11 C1 C2

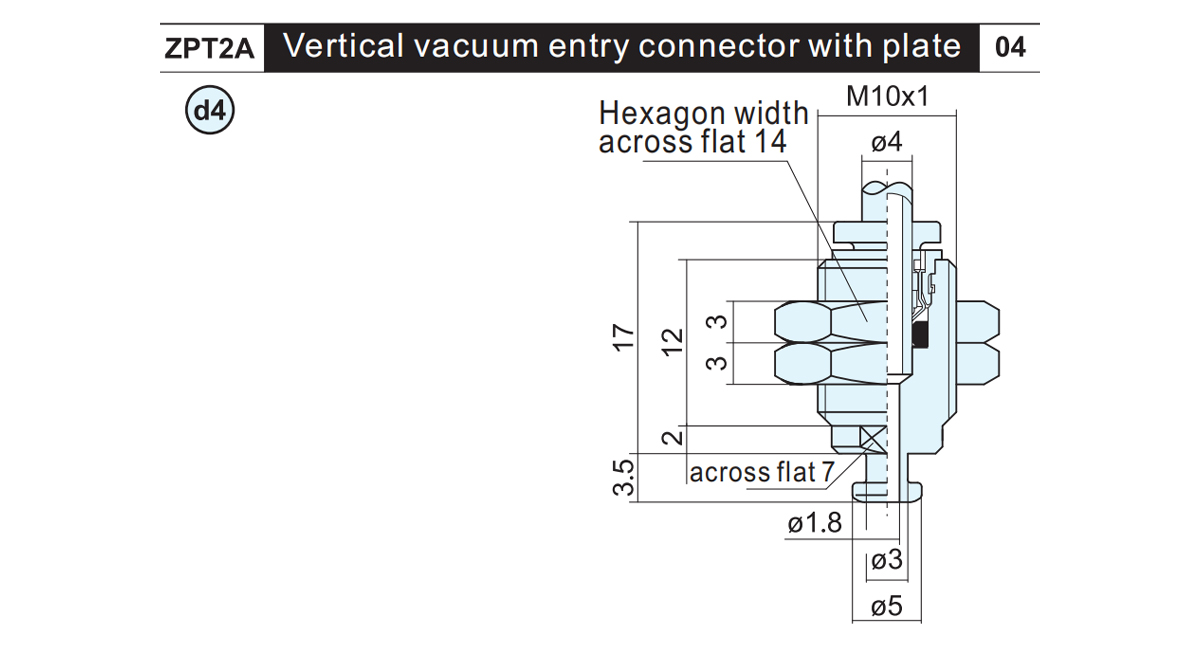

    Accommodare partem no Pondus Pondus Applicable pad
    ZPT2A-04-A10 9.8 C1 C2

    Accommodare partem no Pondus Lorem Pad
    ZPY2A-B5-B4 5.2 C1 C2
    ZPY2A-B5-B5 6.6

    Accommodare partem no Pondus Lorem Pad
    ZPY2B-B5-B4 4.9 C1 C2
    ZPY2B-B5-B5 6.2

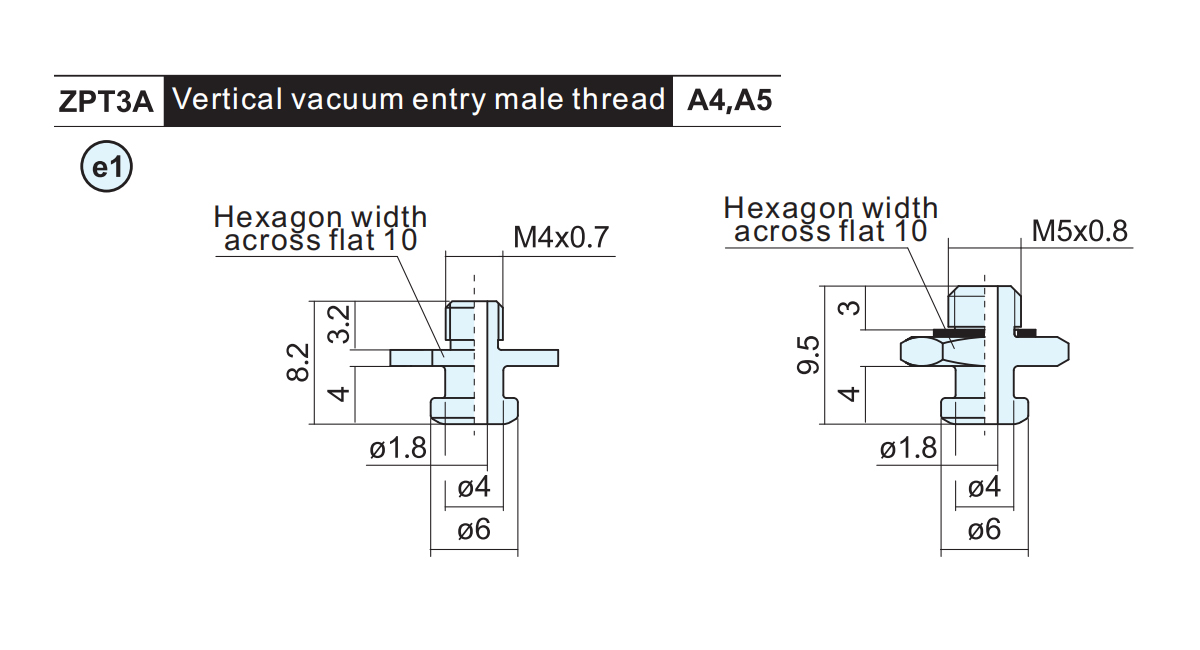

    Accommodare partem no Pondus Lorem Pad
    ZPT3A-A4 1.4 D1 D2
    ZPT3A-A5 2.4

    Accommodare partem no A B L Pondus Applicabilis Pad
    ZPT3A-B4 M4×0.7 4 10 4.4 D1 D2
    ZPT3A-B5 M5×0.8 5 11.5 5.2

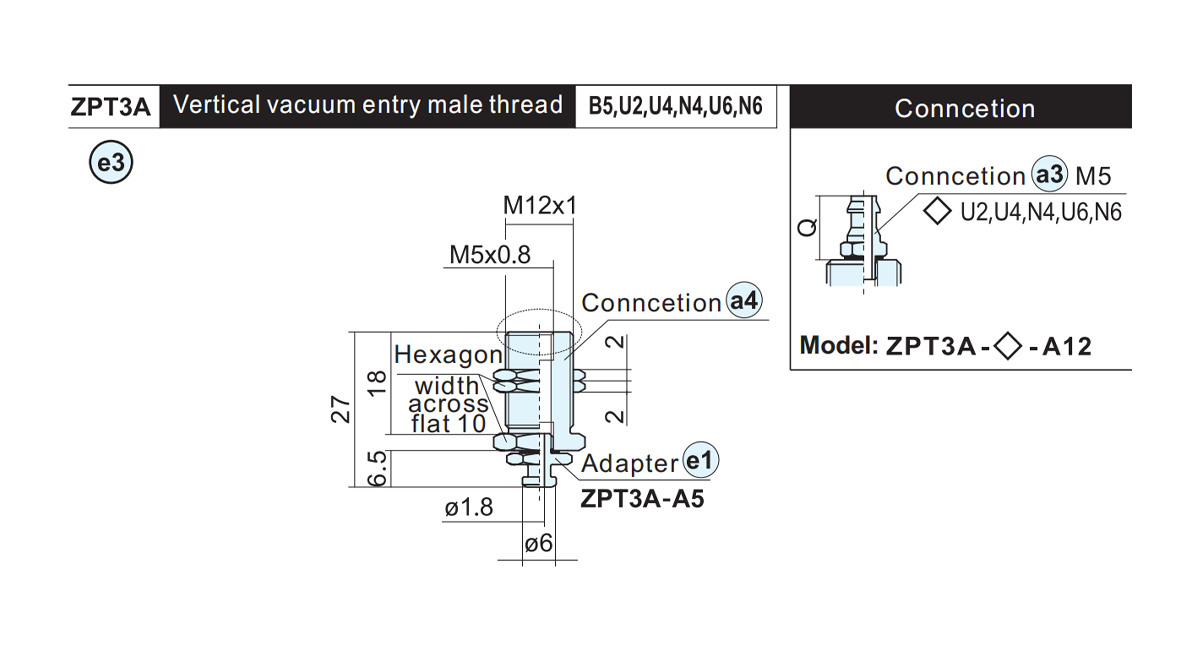

    Accommodare partem no Pondus Conncetion Applicabilis Pad
    ZPT3A-B5-A12 20.3 ZPEA-B5-A12 D1 D2

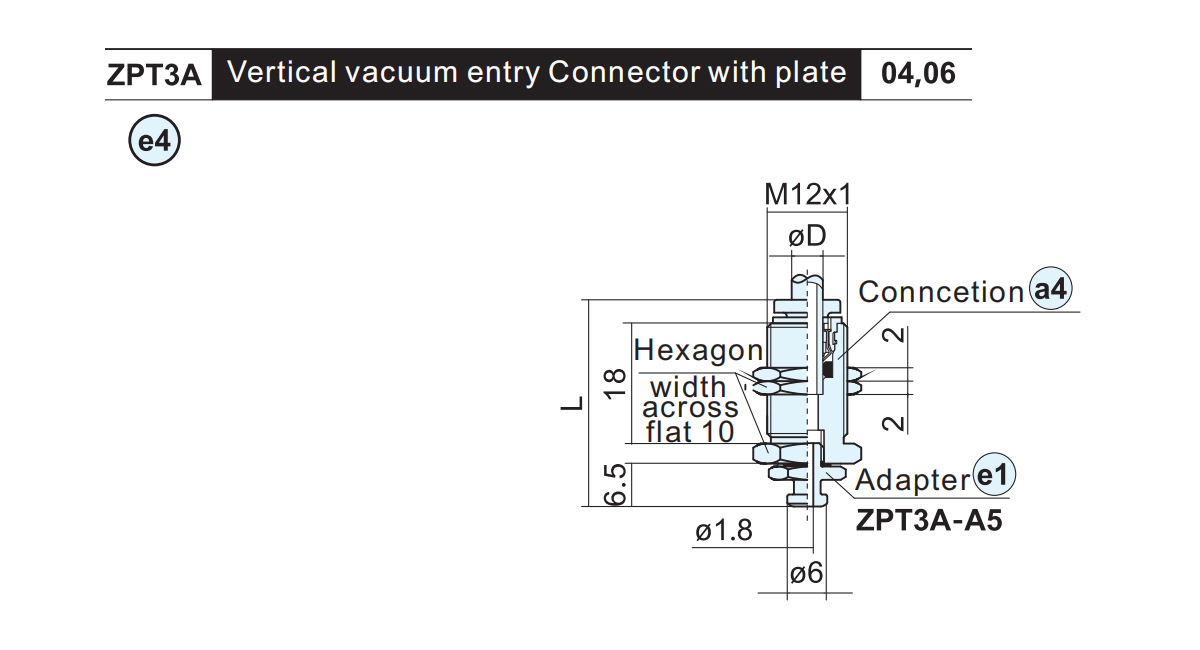

    Accommodare partem no. D L Pondus Conncetion Lorem Pad
    ZPT3A-04-A12 4 30 19.2 ZPEA-04-A12 D1 D2
    ZPT3A-06-A12 6 30.2 17.2 ZPEA-06-A12

    Accommodare partem no Pondus Lorem Pad
    ZPY3A-B5-B4 5.6 D1 D2
    ZPY3A-B5-B5 7.1

    Accommodare partem no Pondus Lorem Pad
    ZPY3B-B5-B4 5.2 D1 D2
    ZPY3B-B5-B5 6.8

    Model A B C Pondus
    J K
    ZPB1-●6 34 6 15 22.8 22.3
    ZPB1-●10 66 10 43 29.7 28.6
    ZPB1-●15 71 15 30.8 30.2
    ZPB1-●25 81 25 32.1 31.9

    Height compensator type: Rotating (J), Non rotating (K)

    ■ Plaga quiddam (mm): 6,10,15,25

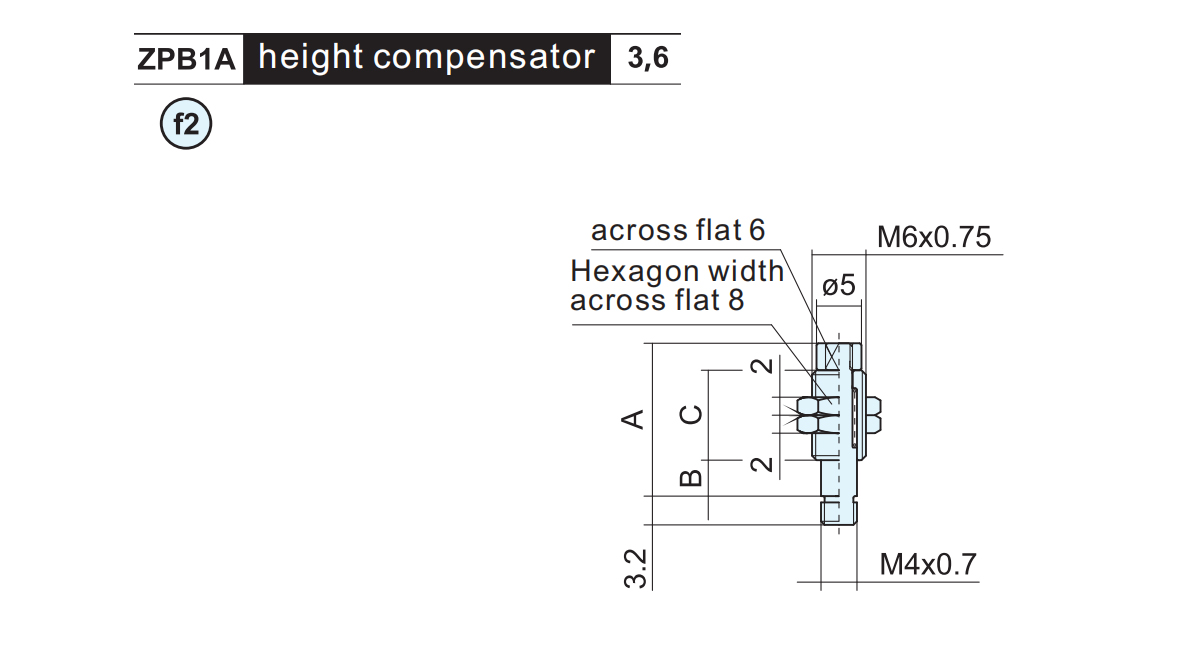

    Model A B C Pondus
    ZPB1A-J3 17 4 10 3.5
    ZPB1A-J6 24 7 14 4.4

    Model A B C Pondus
    J K
    ZPB2A-●3 21.5 4 11 7.2 7.2
    ZPB2A-●6 28 7 14.5 8.8 8.5
    ZPB2A-●10 38 11 20.5 11.2 9.3

    Height compensator type: Rotating (J), Non rotating (K)

    ■ Buffer ictum: 3,6,10

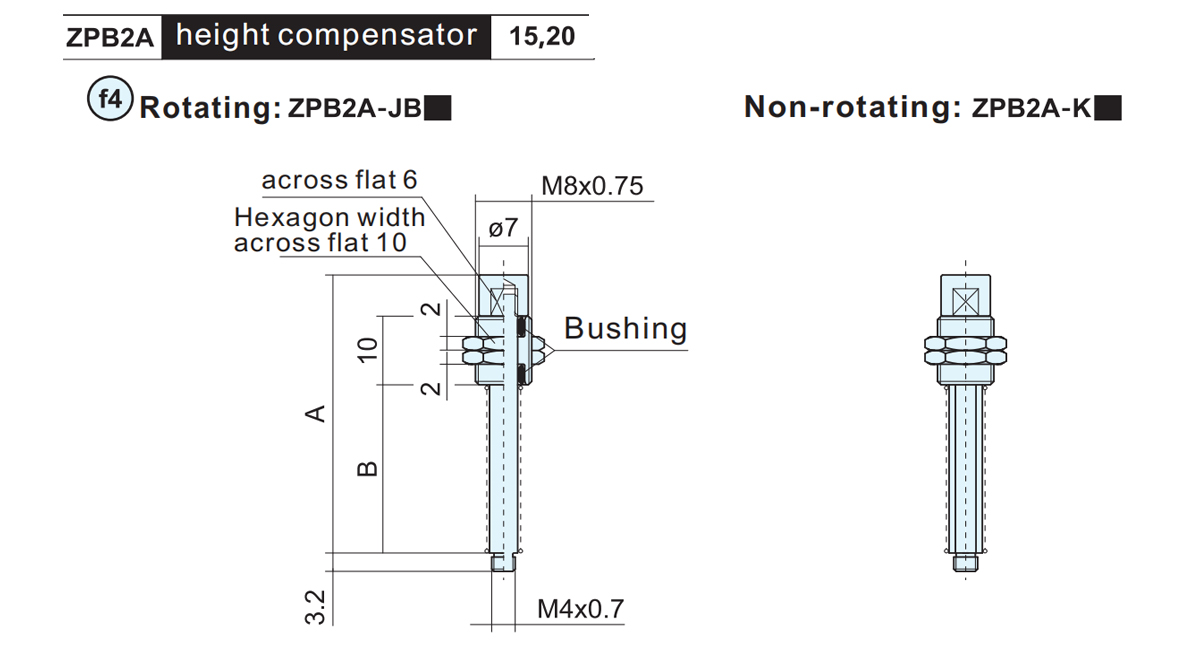

    Model A B Pondus
    JB K
    ZPB2A-●15 41 24.5 8 10
    ZPB2A-●20 48.5 32 8.7 11.1

    Height compensator type: Rotating (J), Non rotating (K)

    ■ Buffer ictum: 15,20

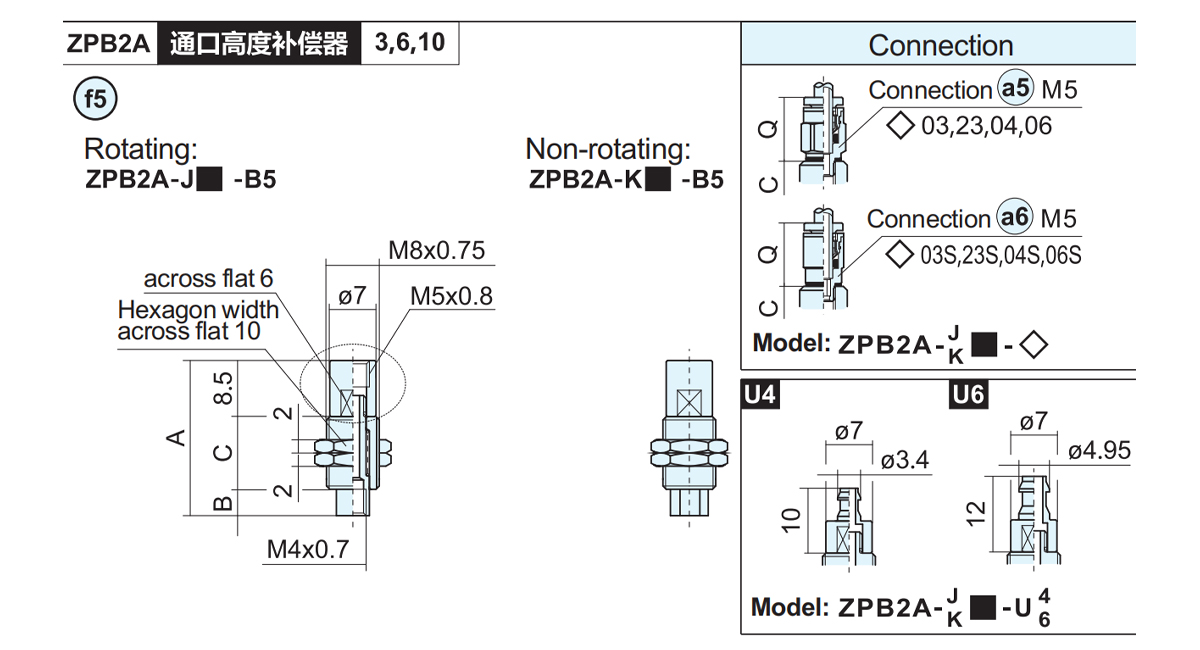

    Model A B C Pondus
    J K
    ZPB2A-●3-B5 23.5 4 11 6.4 6.2
    ZPB2A-●6-B5 30 7 14.5 7.7 7.4
    ZPB2A-●10-B5 40 11 20.5 9.9 9.3

    Height compensator type: Rotating (J), Non rotating (K)

    ■ Buffer ictum: 3,6,10

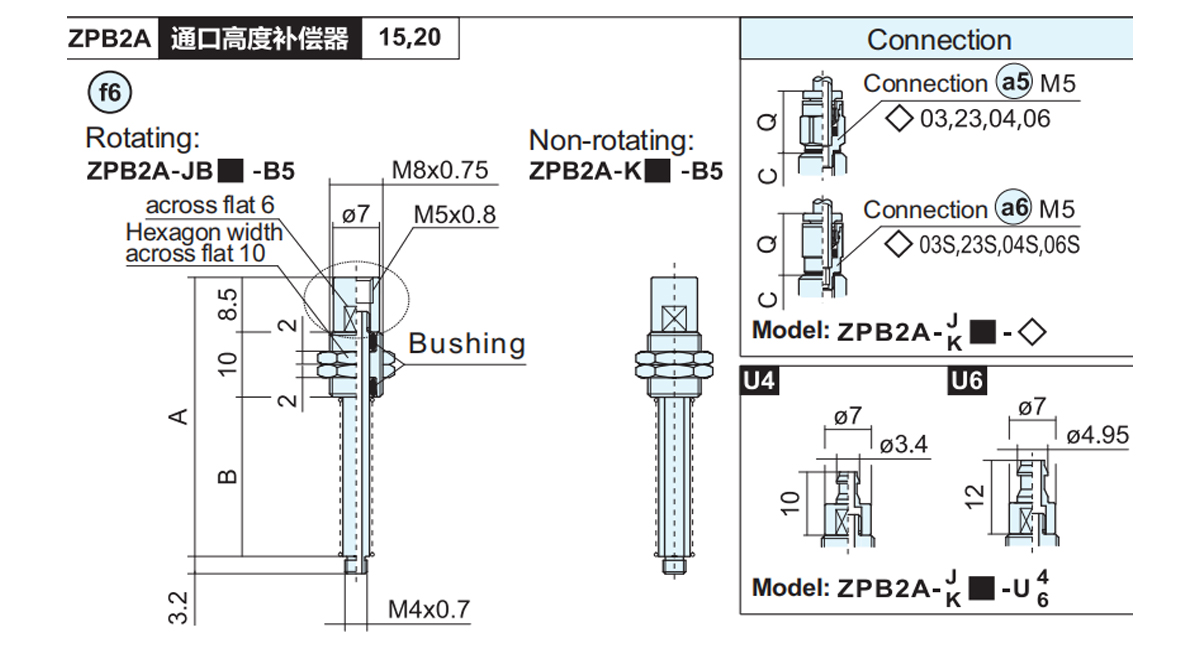

    Model A B  Pondus
    JB K
    ZPB2A-●15-B5 43 24.5 8.1 10.1
    ZPB2A-●20-B5 50.5 32 8.7 11.3
    ● Altitudo compensatoris genus: Rotating (J), Nonrotating (K) □ Plaga quiddam: 15,20

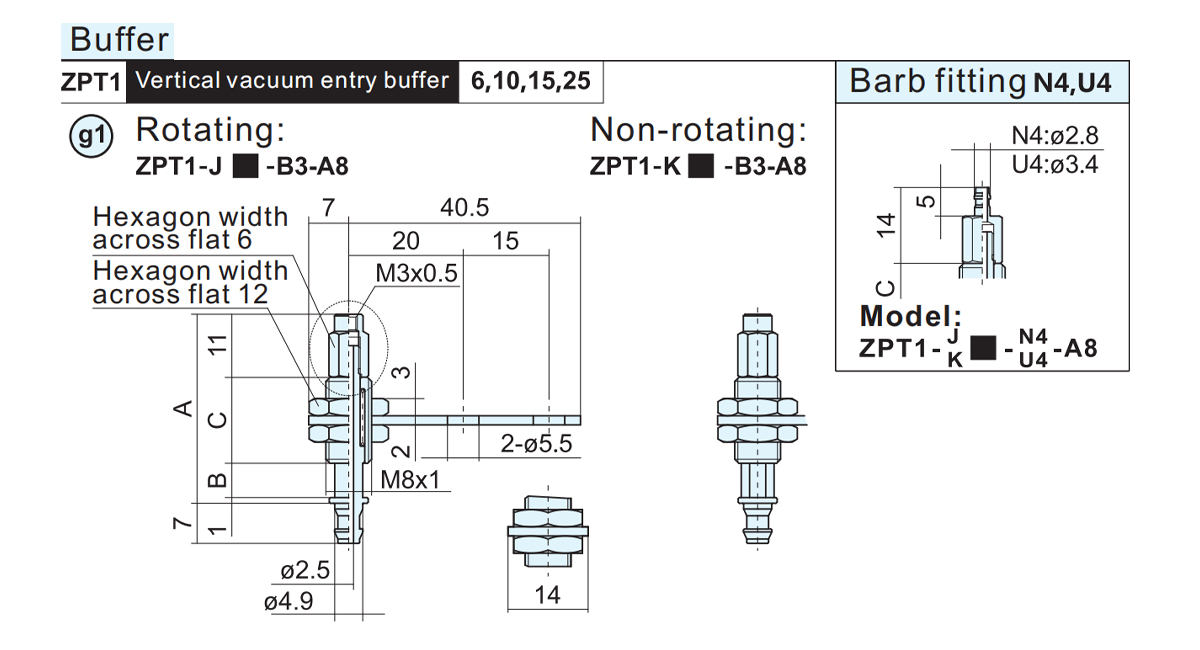

    Model A B C Pondus Applicabilis Pad
    J K
    ZPT1-●6-B3-A8 32 6 15 20.3 20.2 A1 A2 A3 A4
    ZPT1-●10-B3-A8 65 10 43 26.7 25.1
    ZPT1-●15-B3-A8 70 15 27 28.7
    ZPT1-●25-B3-A8 80 25 28.2 28.9
    ●Height compensator type:Rotating(J),Non rotating(K)■Buffer ictum(mm): 6,10,15,25

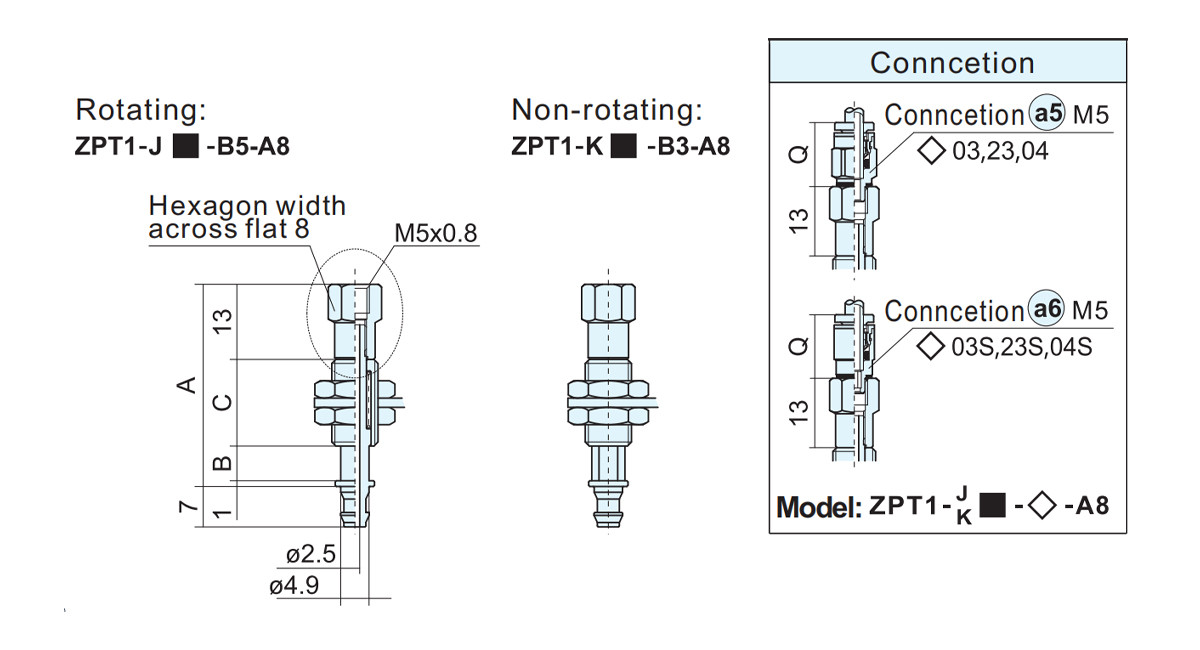

    Model A B C Pondus Applicabilis Pad
    J K
    ZPT1-●6-B5-A8 34 6 15 22.2 20.2 A1 A2 A3
    ZPT1-●10-B5-A8 67 10 43 28.6 28.9
    ZPT1-●15-B5-A8 72 15 28.9 29.1
    ZPT1-●25-B5-A8 82 25 30.4 30.6

    Model A B C Pondus Applicabilis Pad
    ZPT1A-J3-B3 21 4 10 4.6 B1
    ZPT1A-J6-B3 28 7 14 5.5
    ■ Buffer ictum: 3,6

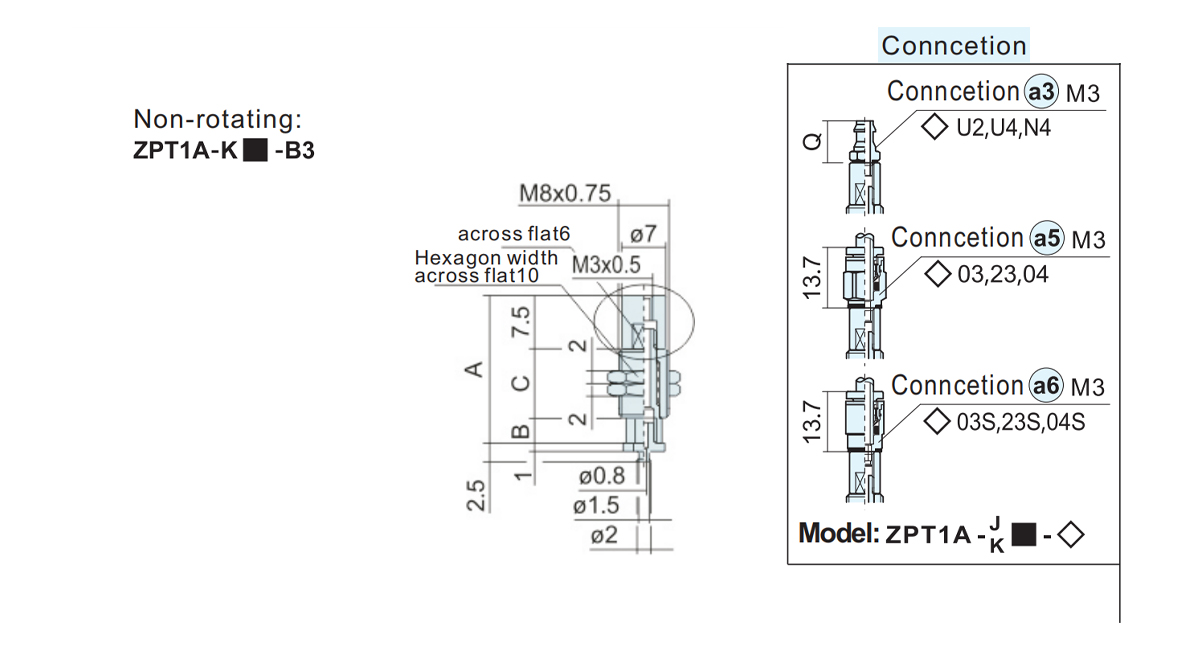

    Model A B C Pondus Applicabilis Pad
    ZPT1A-K3-B3 22.5 4 11 6.6 B1
    ZPT1A-K6-B3 29 7 14.5 7.8
