ZP Series Vacuum Suctionis Cup cum Obfirmo Ringo (Ø9~Ø50) Fornitores

Home / Products / Vacuum Components / Vacuum suctus Cup / ZP Series Vacuum Suctionis Cup Obstructio Annuli, Adapter & Buffer Bracket / ZP Series Vacuum Suctionis Cup cum Obfirmo Ringo (Ø9~Ø50)

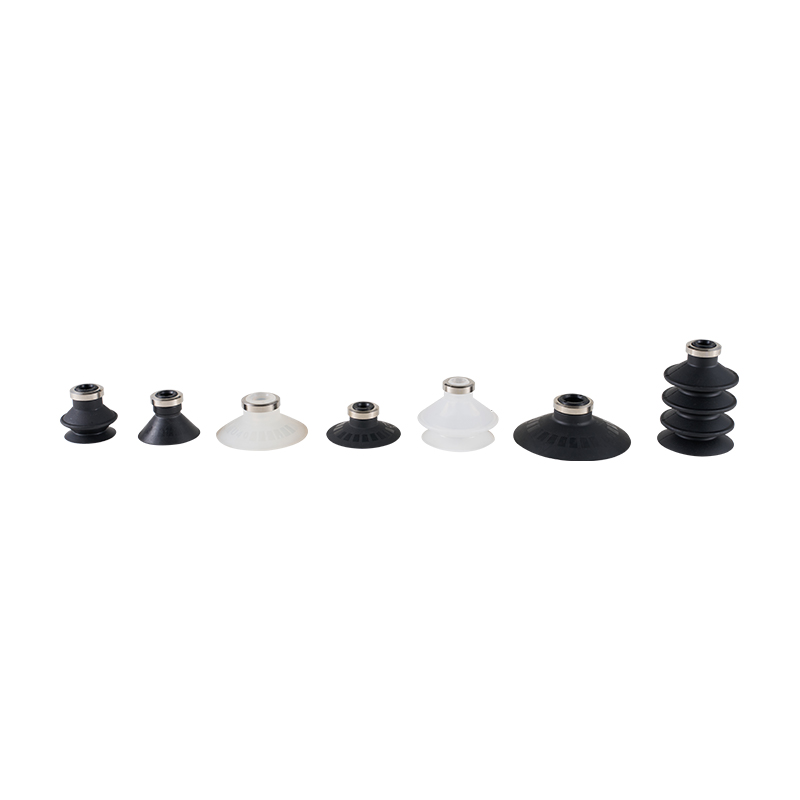

ZP Series Vacuum Suctionis Cup cum Obfirmo Ringo (Ø9~Ø50) ZP Series Vacuum Suctionis Cup cum Obfirmo Ringo (Ø9~Ø50)
  • ZP Series Vacuum Suctionis Cup cum Obfirmo Ringo (Ø9~Ø50)
  • ZP Series Vacuum Suctionis Cup cum Obfirmo Ringo (Ø9~Ø50)
ZP Series Vacuum Suctionis Cup Obstructio Annuli, Adapter & Buffer Bracket

ZP Series Vacuum Suctionis Cup cum Obfirmo Ringo (Ø9~Ø50)

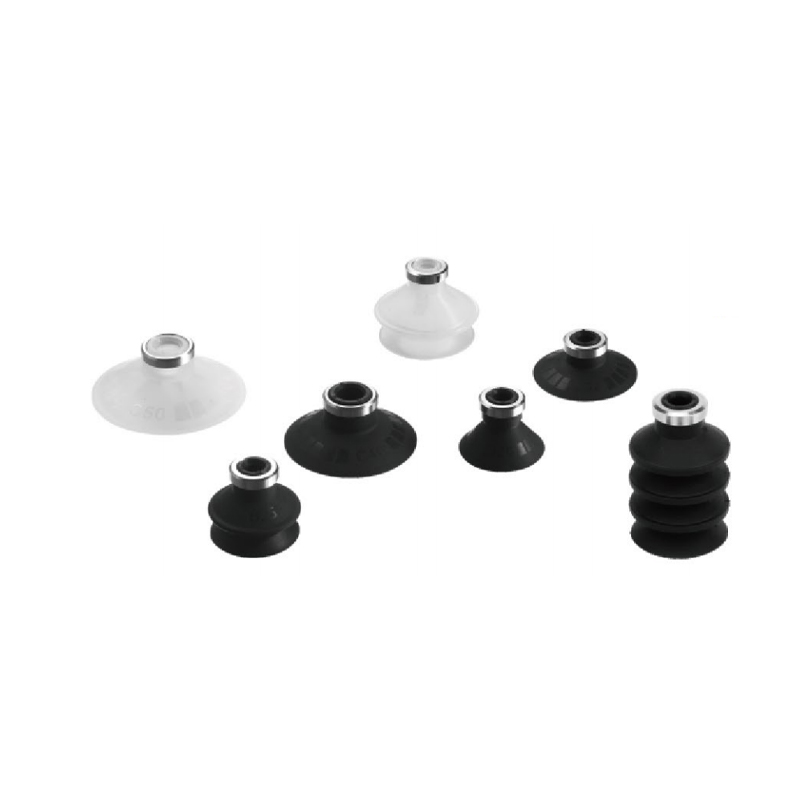

ZP Series Vacuum Suctionis Cup Cum Obfirmo Ringo (Ø9~Ø50) est nucleus componentis destinatus ad stabiliendam vacui tenacitatem emendandam. Unius eius compages cincinnorum annularis, libertatem operis operis in processu adsorptionis efficaciter coarctare potest, firmum adsorptionis tutelam praebens variis missionibus automated pertractandis et accuratis positis.

Core lineamenta:

Obstructio adsorptionis mechanismi: Unicum anuli annularis designatio corporis coactionem in statu operante format, significanter declinationem seu rotationem tendentiam operis operis cum vi subiecta est, stabilitatem directionis processus comprehensionis ampliat.

Consectetur adsorptionis commendatio; Clausula anuli structura cum pressione vacuo negativa cooperatur ad mechanismum tutelae duplicem formandam, efficaciter resistentibus perturbationibus externis (qualis est acceleratio, vibratio et collisiones leves) et reducere periculum potentiale ad privationem accidentalem.

Flexibile contactum et signationem: Cucurbitula suctio ex materiis elasticis fieri solet ut aptae cum superficie fabricae aptatae efficiantur, sigillum vacuum efficax formans, et levibus superficiei ambigua accommodans.

Optimized for tenues / res parvas: Haec series amplitudinis amplitudinis (Ø9~Ø50) aptissima est ad comprehendendas materias laminas, partes parvas vel leves officinas cum superficiebus levibus. Obstructio anuli structura imprimis critica est pro talibus operibus quae facile ab airflu vel afficiuntur.

Ipsum applicationem universalitatis: In missionibus late adhibetur fixationi directionalis vel anti-gyrationis pertractatio, vulgo in electronic componente conventu adhibita, parva iniectio partium formarum voluptua, materia scheda tenuissima (metal/non-metallum) importans, automationem et alios nexus processuum pacandi.

Specificationes communes necessitates tegunt: Diameter range provisum est parva communia parva ad medium amplitudinis fabricam capiens signa magnitudinis in automationis agro, quae apta est ad operandum delectu et adaptando.

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：ZP Series Vacuum Suctionis Cup Cum Snap Ringo, Adapter & Buffer Bracket (Ø9~Ø50)
SUCCESSIVO：Nessun articolo successivo

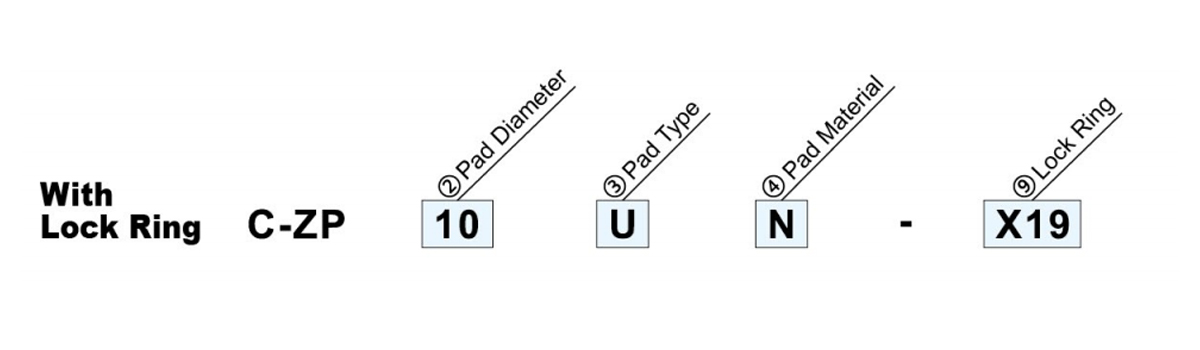

  • ②Pad dia. (mm)/③Pad Type☆ E* F* G* ④ Materiam     □
    09 10 13 14 16 20 25 30 32 40 50 N NBR
    9 10 13 14 16 Ø20 25 30 32 40 50 S Silicone rubbe
    U Typus plani - ● ● - ● ● ● - ● ● ● *Refer ad paginam4 pro materia.
    C Typus plani With Ribs - ● ● - ● ● ● - ● ● ●
    D Profundus - ● - - ● - ● - - ● - Material

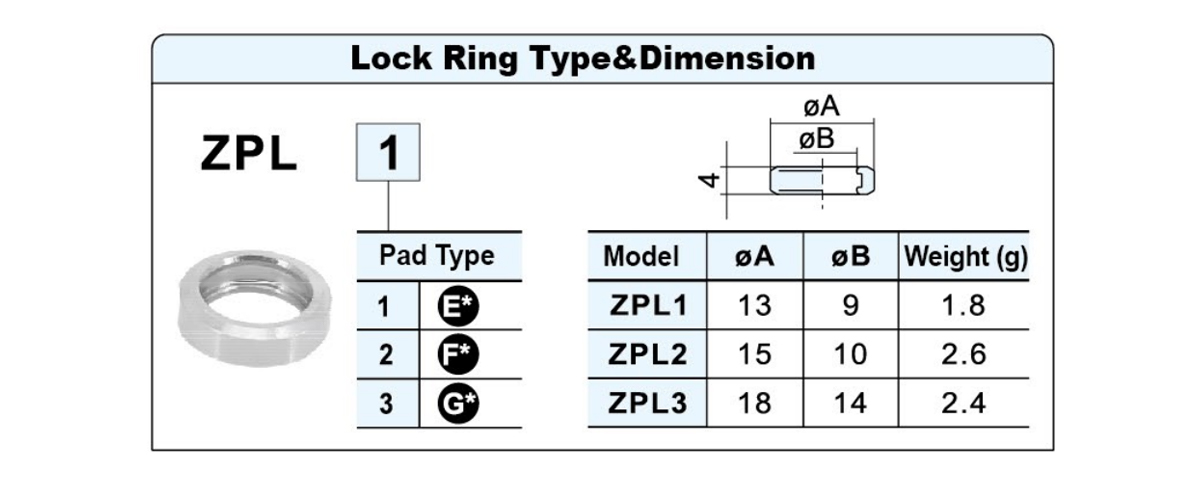

    B 2-stagebellows - ● ● - ● ● ● - ● ● ● Nil Cum cincinno anulum
    J 34 scaena follis ● - - ● ● - ● ● - - - X19 Sine cincinno anulum
    -Iidem litterae initiales indicant seram anulum et nibh convertibilia sunt.

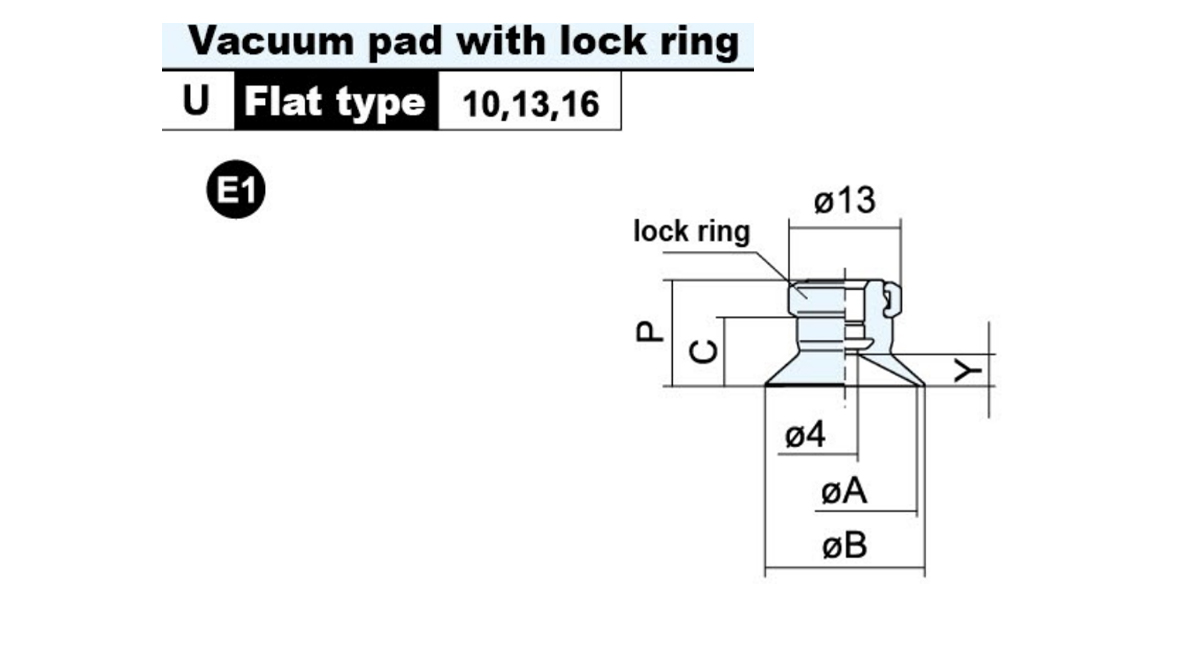

  • Model A B C P Y Pondus (g)
    C-ZP10U□ 10 12 7.7 12 3 2.6
    C-ZP13U□ 13 15 2.8
    C-ZP16U□ 16 18 8.2 12.5 3.5

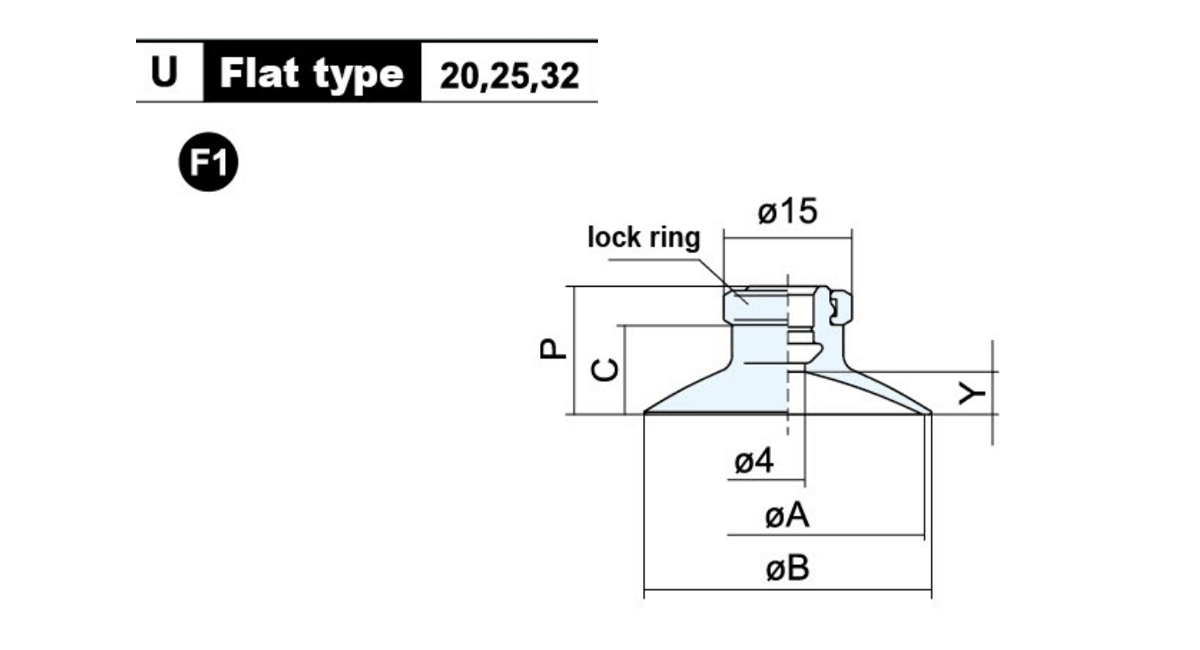

    Model A B C P Y Pondus (g)
    C-ZP20U□ 20 23 9.5 14 4 4.1
    C-ZP25U□ 25 28 4.5
    C-ZP32U□ 32 35 10 14.5 4.5 5.5

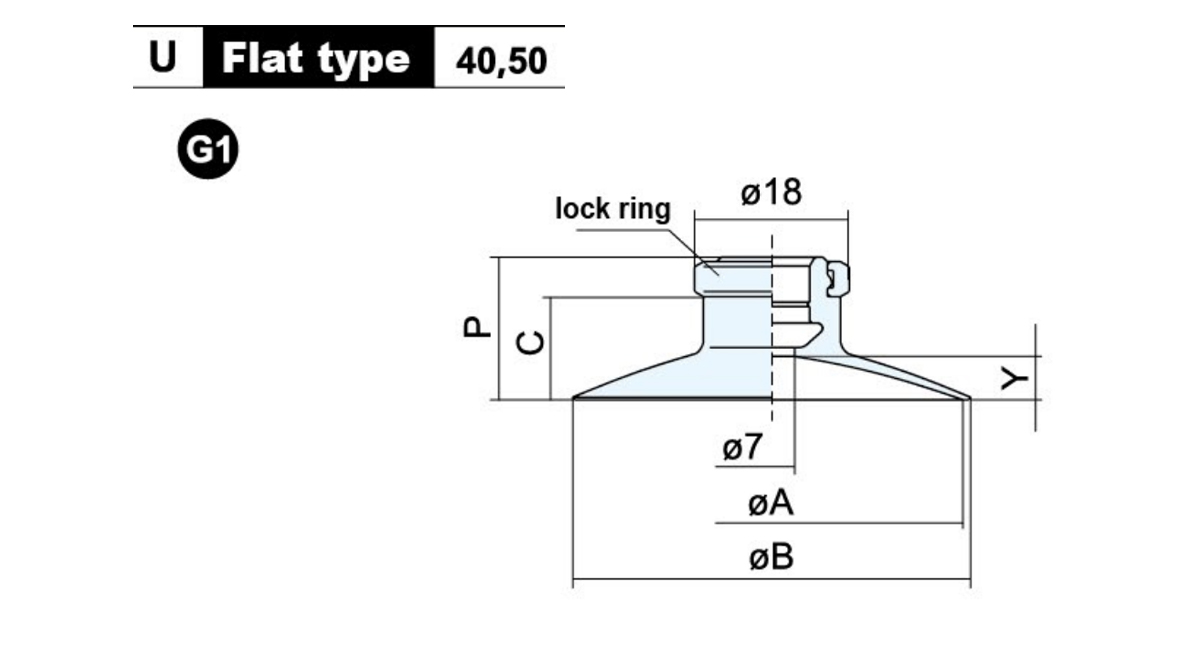

    Model A B C P Y Pondus (g)
    C-ZP40U□ 40 43 13.7 18.5 6.5 8.1
    C-ZP50U□ 50 53 14.7 19.5 7.5 11

    Model A B C P Y Pondus (g)

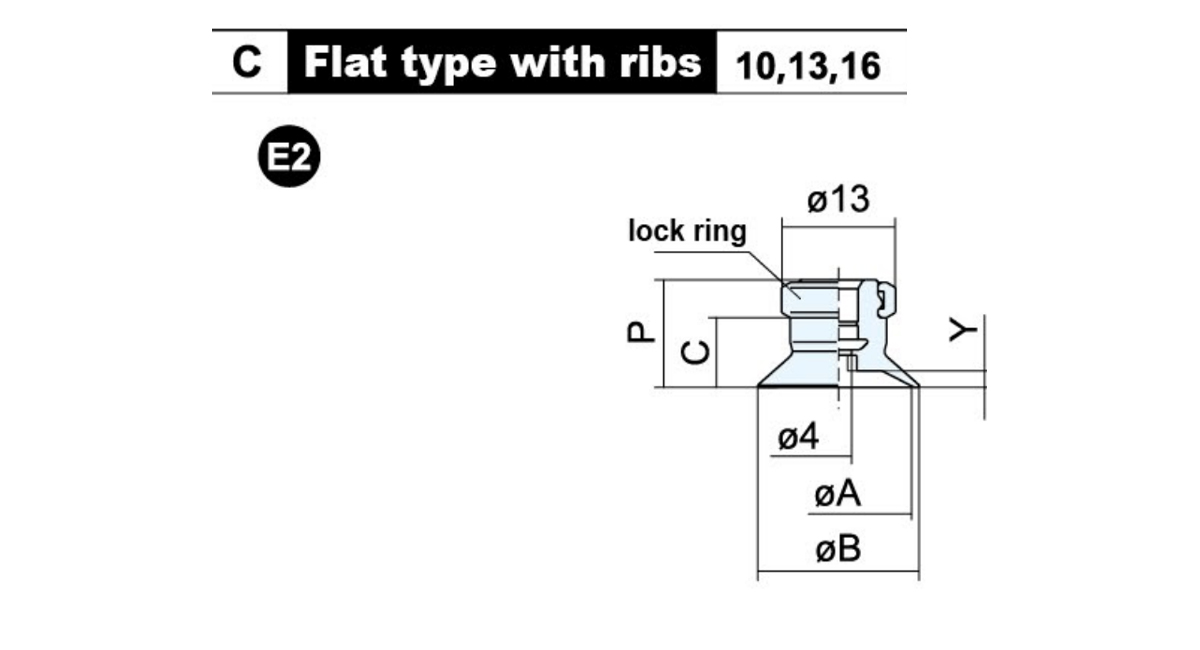

    C-ZP10C□ 10 12 7.7 12 1.7 2.8
    C-ZP13C□ 13 15 1.8
    C-ZP16C□ 16 18 8.2 12.5 1.2

    Model A B C P Y Pondus (g)

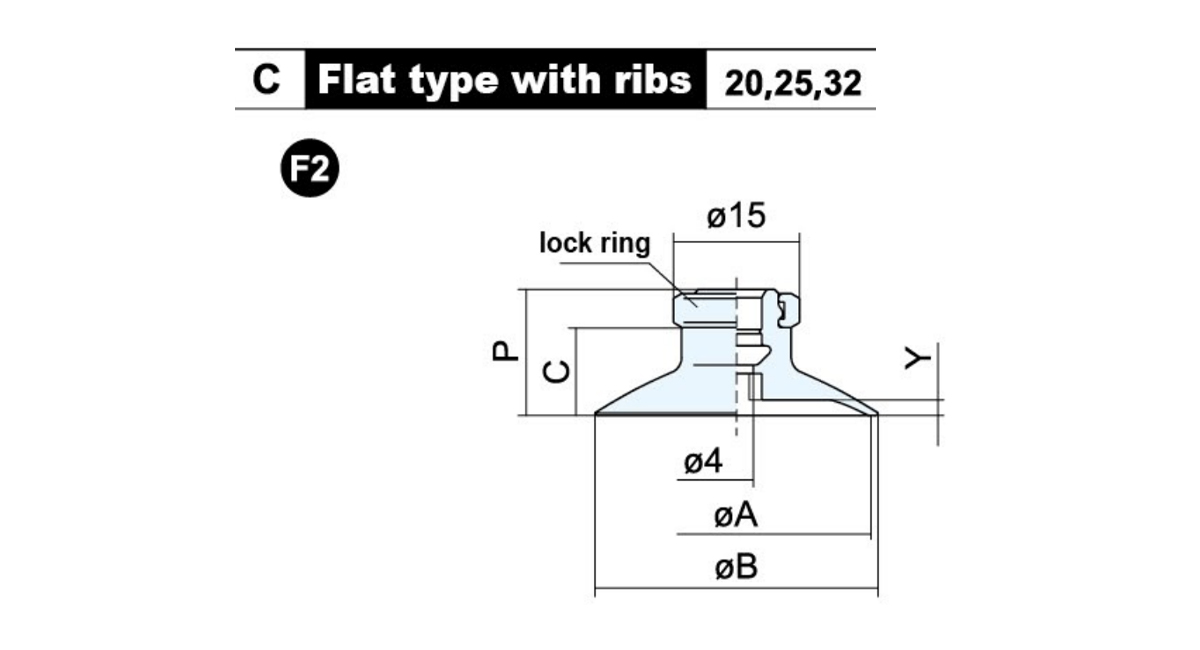

    C-ZP20C□ 20 23 9.5 14 1.7 4.2
    C-ZP25C□ 25 28 1.8 4.7
    C-ZP32C□ 32 35 10 14.5 2.3 5

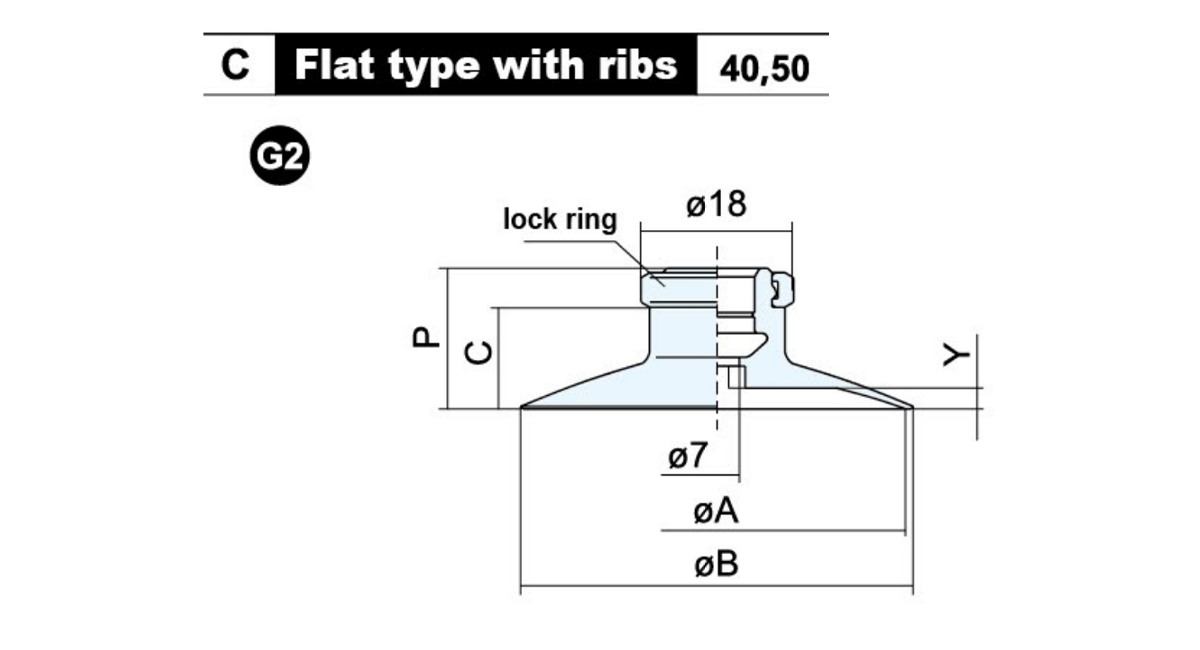

    Model A B C P Y Pondus (g)
    C-ZP40C□ 40 43 13.7 18.5 3.3 8.1
    C-ZP50C□ 50 53 14.7 19.5 3.8 10.7

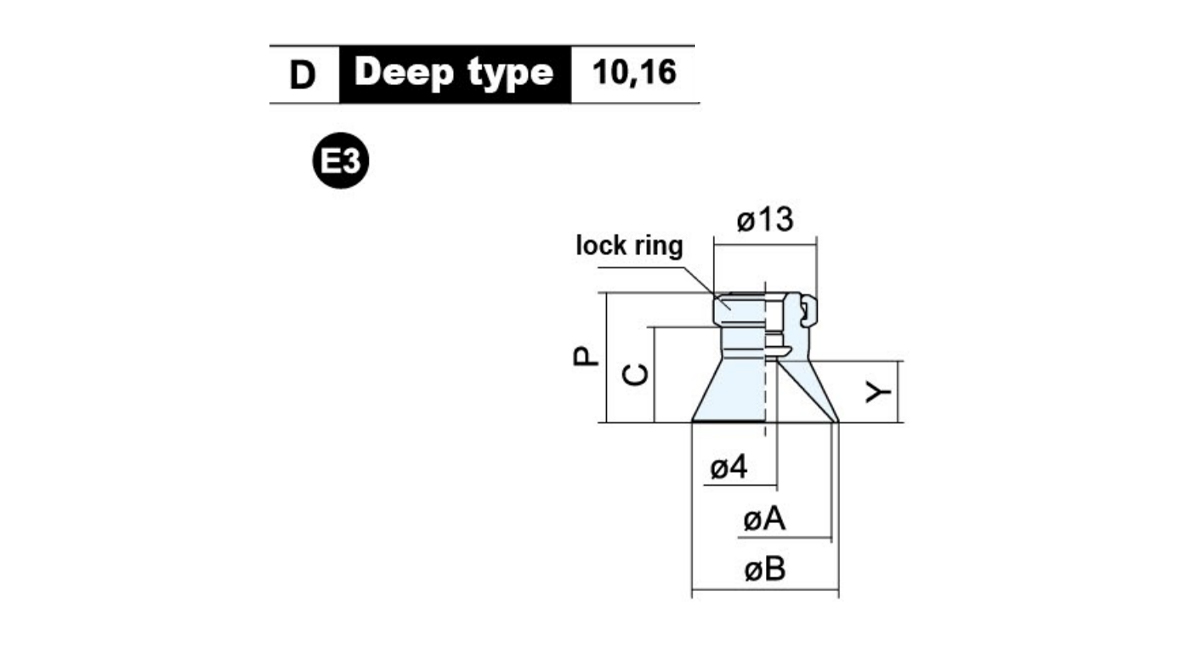

    Model A B C P Y Pondus (g)
    C-ZP10D□ 10 12 10.7 15 6 2.8
    C-ZP16D□ 16 18 11.7 16 7 3.1

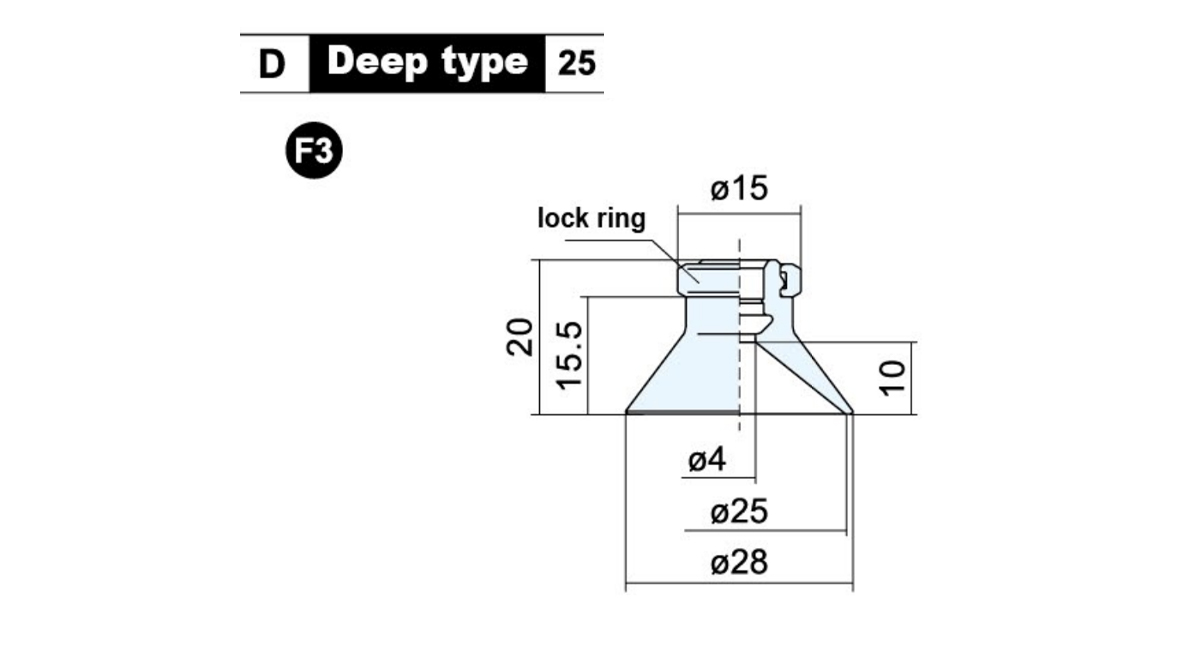

    Model Pondus (g)
    C-ZP25D□ 4.9

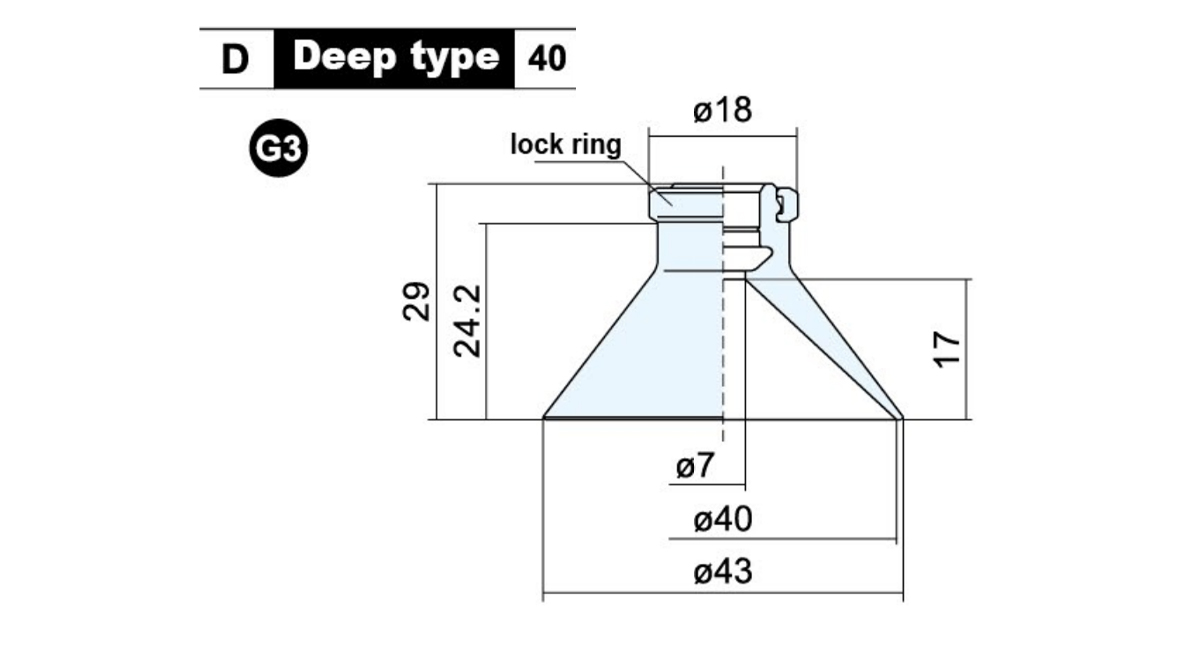

    Model Pondus (g)
    C-ZP40D□ 9.3

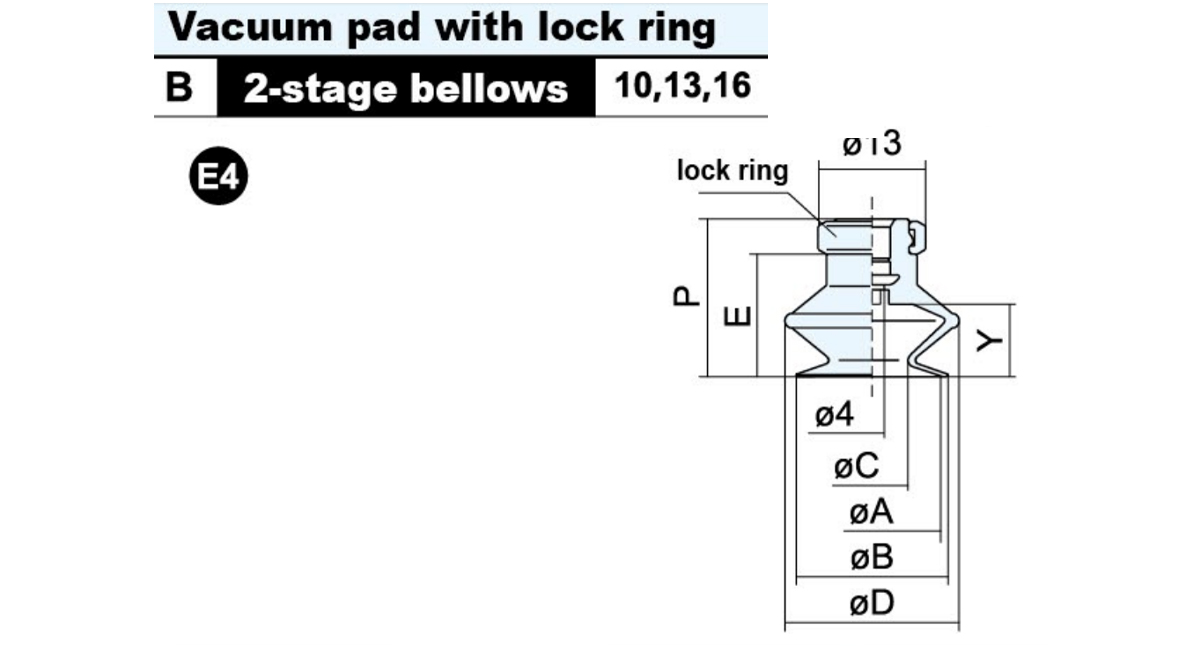

    Model A B C D E P Y Pondus (g)
    C-ZP10B□ 10 12 6 14 11.7 16 5.5 2.8
    C-ZP13B□ 13 15 9 19 14.2 18.5 7.5 4.4
    C-ZP16B□ 16 18 10 21 15.7 20 8.5 4.7

    Model A B C D E P Y Pondus (g)
    C-ZP20B□ 20 22 12 25 19 23.5 10.5 5.4
    C-ZP25B□ 25 27 16 28 19.5 24 6.4
    C-ZP32B□ 32 34 19 37 24.5 29 14 8.8

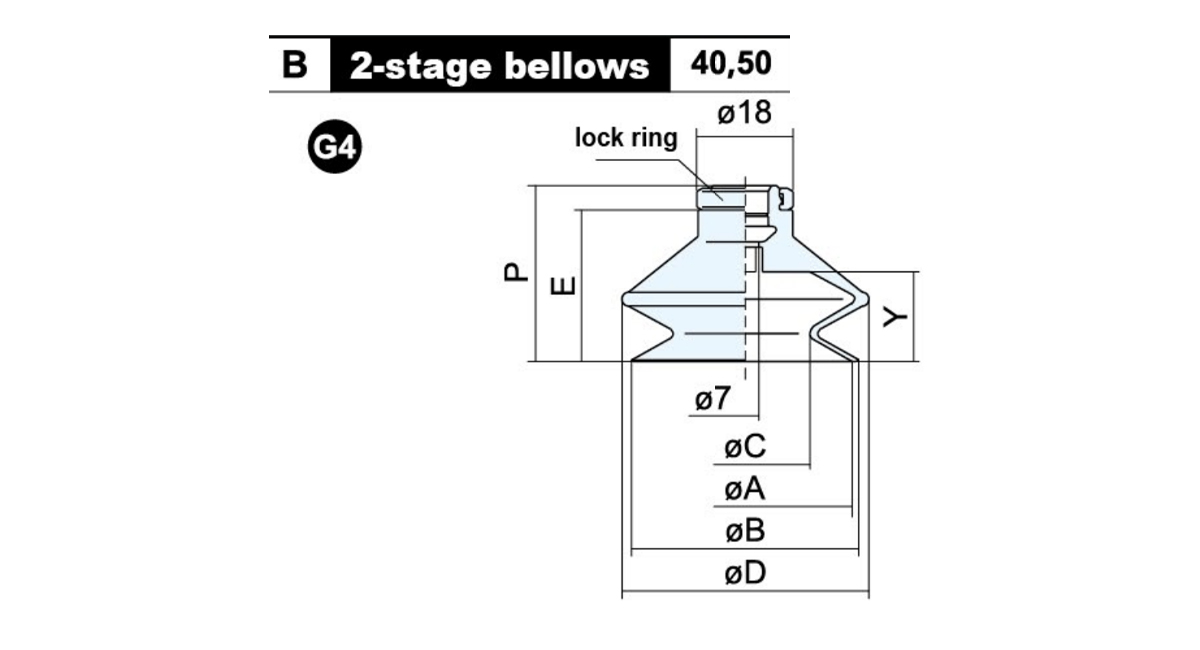

    Model A B C D E P Y Pondus (g)
    C-ZP40B□ 40 43 24 48 29.2 34 16 16.3
    C-ZP50B□ 50 53 32 57 33.2 38 19 21.5

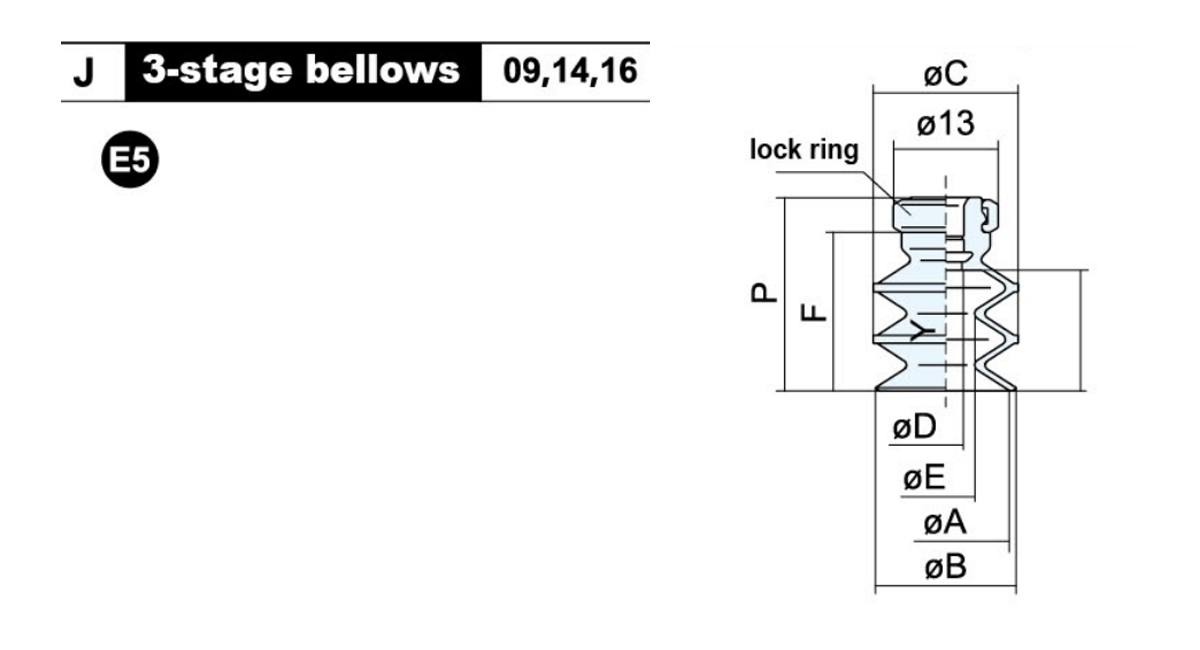

    Model A B C D E F P Y Pondus (g)
    C-ZP09J□ 9 10 10 3 3 13.7 18 7.7 2.8
    C-ZP14J□ 14 15 15 5.2 19.7 24 15 3.3
    C-ZP16J □ 16 17.5 18 4 7.2

    Model A B C E F P Y Pondus (g)
    C-ZP25J□ 25 26 27 10.2 38 42.5 32.5 9.1
    C-ZP30J□ 30 33 32 13.8 19.7 44.5 38 12.3

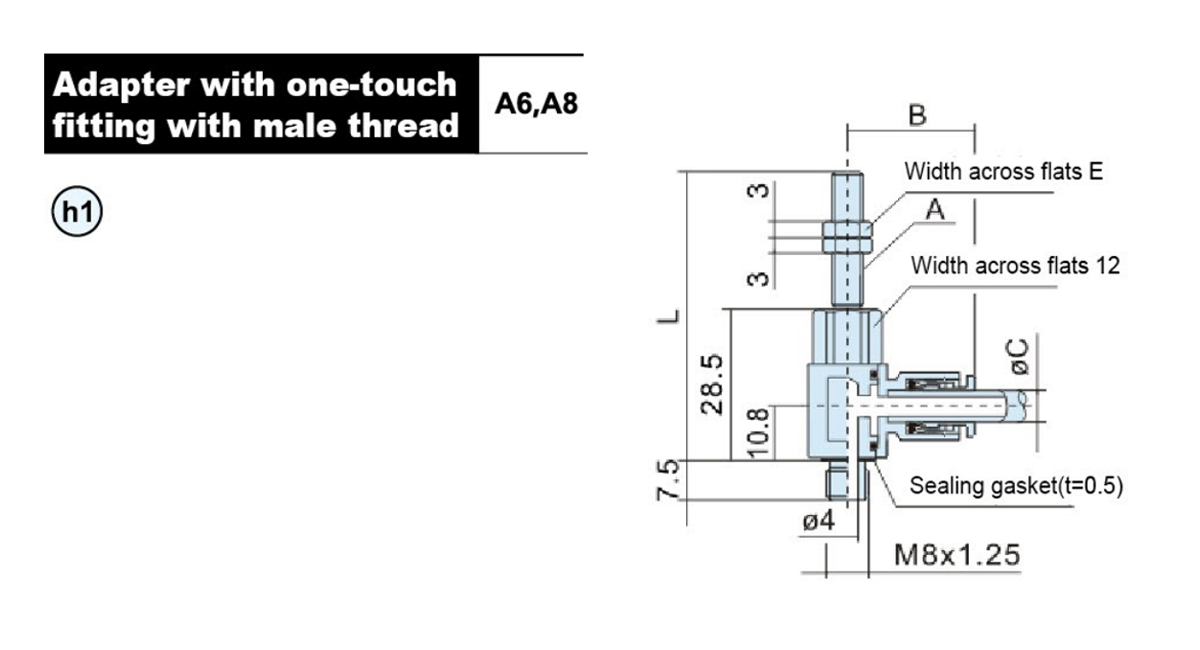

    Model A B C E L Pondus (g)
    ZPRL-04-A6 M6×1.0 23.3 4 8 54.5 31.1
    ZPRL-06-A6 24.3 6 31.9
    ZPRL-08-A6 26.2 8 32.7
    ZPRL-04-A8 M8×1.0 23.3 4 12 44.5 33.7
    ZPRL-06-A8 24.3 6 34.1
    ZPRL-08-A8 26.2 8 35

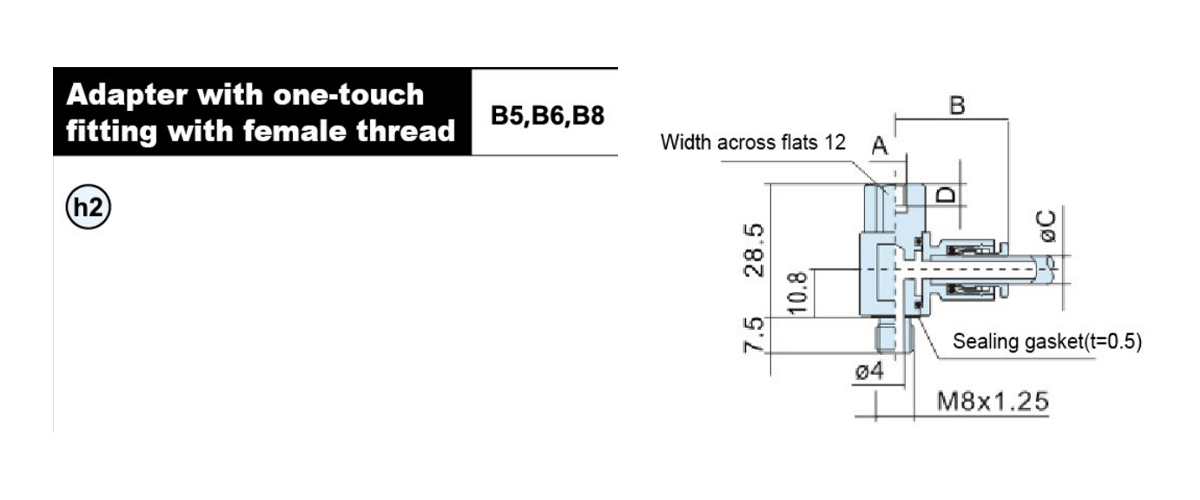

    Model A B C D Pondus (g)
    ZPRL-04-B5 M5×0.8 23.3 4 5 24
    ZPRL-06-B5 24.3 6 24.7
    ZPRL-08-B5 26.3 8 25.3
    ZPRL-04-B6 M6×1.0 23.3 4 6 23
    ZPRL-06-B6
    ZPRL-08-B6     		24.3 6 24
    26.2 8 25
    ZPRL-04-B8
    M8×1.25     		23.3 4 8 21.8
    ZPRL-06-B8 24.3 6 22.6
    ZPRL-08-B8 26.2 8 23.4

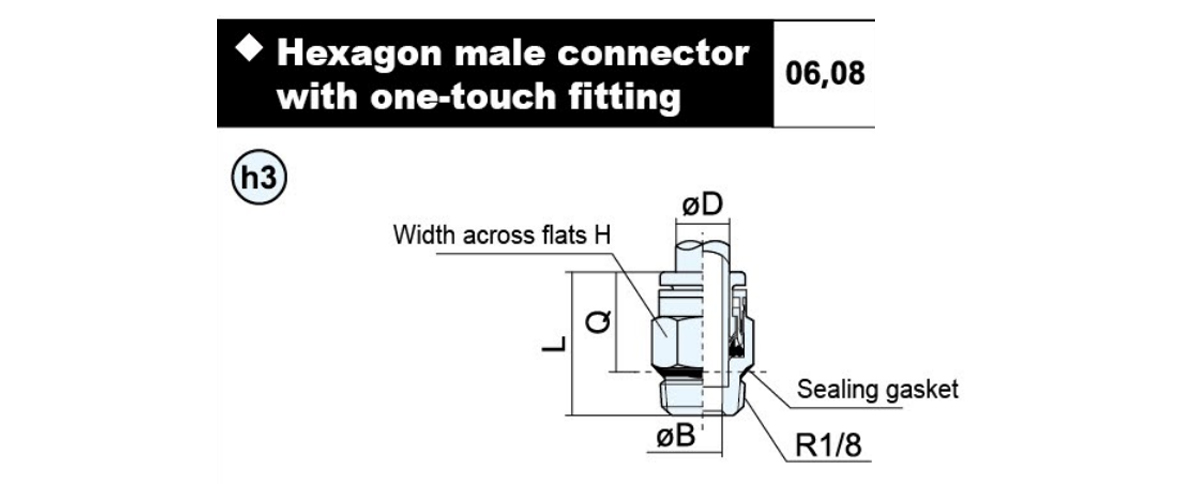

    D Model B H L Q Pondus (g)
    6 KQ2H06-U01-B 5 12 19.5 14.5 6.2
    8 KQ2H08-U01-B 5.8 14 25 20.5 12.1

    D Model B C H L Q Pondus (g)
    6 KQ2S06-U01-B 3.8 12 4 24 19 8
    8 KQ2S08-U01-B 4.8 14 5 27.5 22.5 11

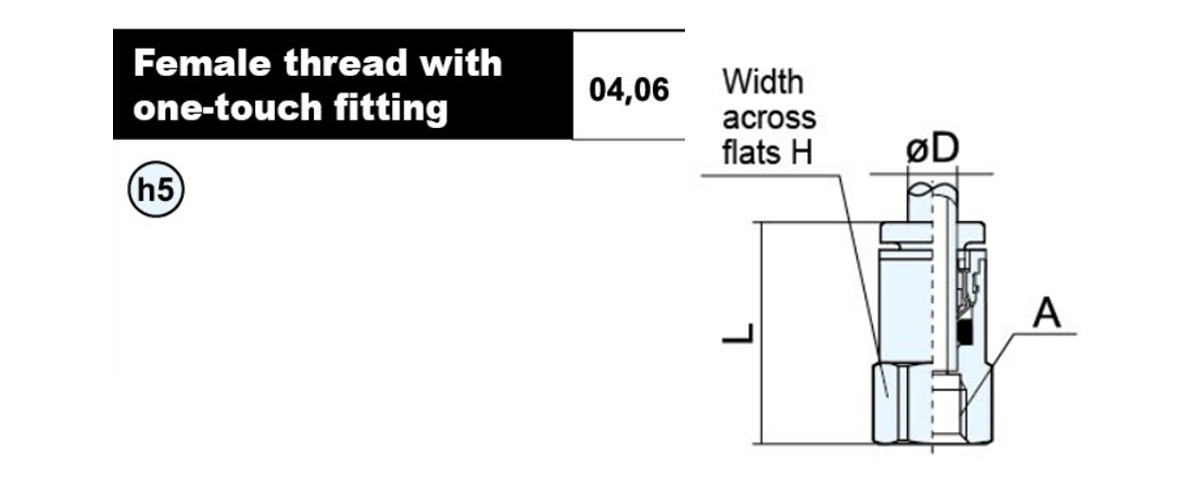

    D Model A H L Pondus (g)
    4 KJF04-M5-B M5×0.8 8 18.8 3.8
    KJF04-M6-B M6×1.0 19.3 3.2
    6 KJF06-M5-B M5×0.8 10 18 5.2
    KJF06-M6-B M6×1.0 20 6.6
    KJF06-M8-B M8×1.0 12 21 9.6

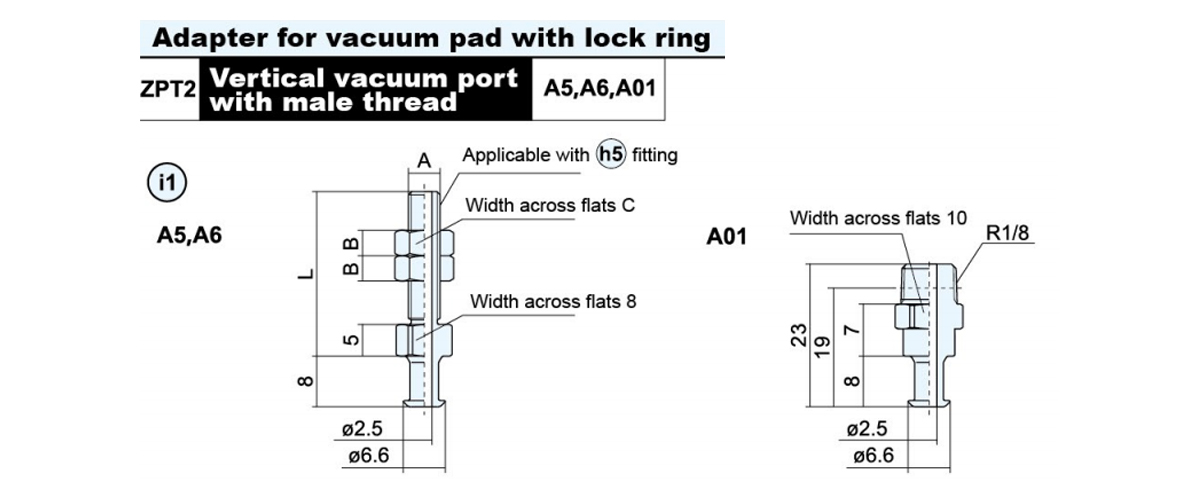

    Adaptor Model A B C L Pondus (g) Applicabilis Pad
    ZPT2-A5 M5×0.8 7 4 26 4.5 E1 E2 E3 E4 E5
    ZPT2-A6 M6×1.0 8 3 31 5.9
    ZPT2-A01 - - - - 8.5

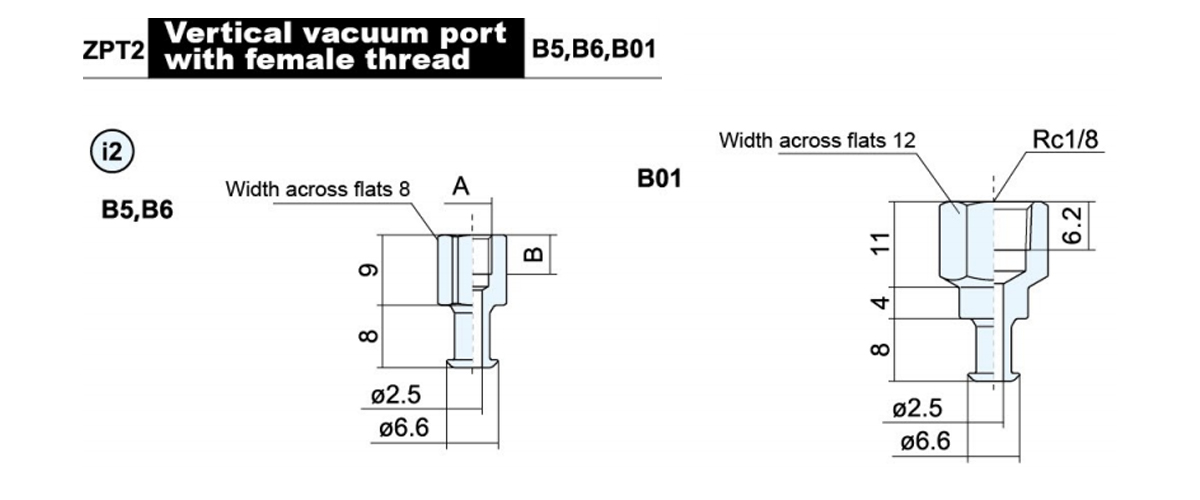

    Adaptor Model A B Pondus (g) Applicabilis Pad
    ZPT2-B5 M5×0.8 5 4 E1 E2 E3 E4 E5
    ZPT2-B6 M6×1.0 6 3.7
    ZPT2-B01 - - 9

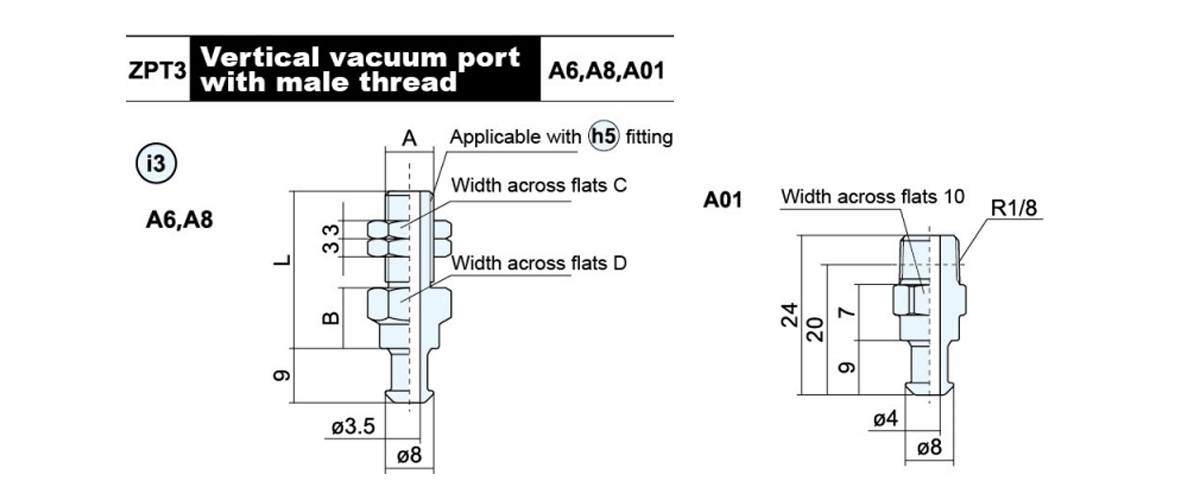

    Adaptor Model A B C D L Pondus (g) Applicabilis Pad
    ZPT3-A6 M6×1.0 5 8 8 31 6 F1 F2 F3 F4 F5
    ZPT3-A8 M8×1.0 10 12 12 26 13.7
    ZPT3-A01 - - - - - 8.2

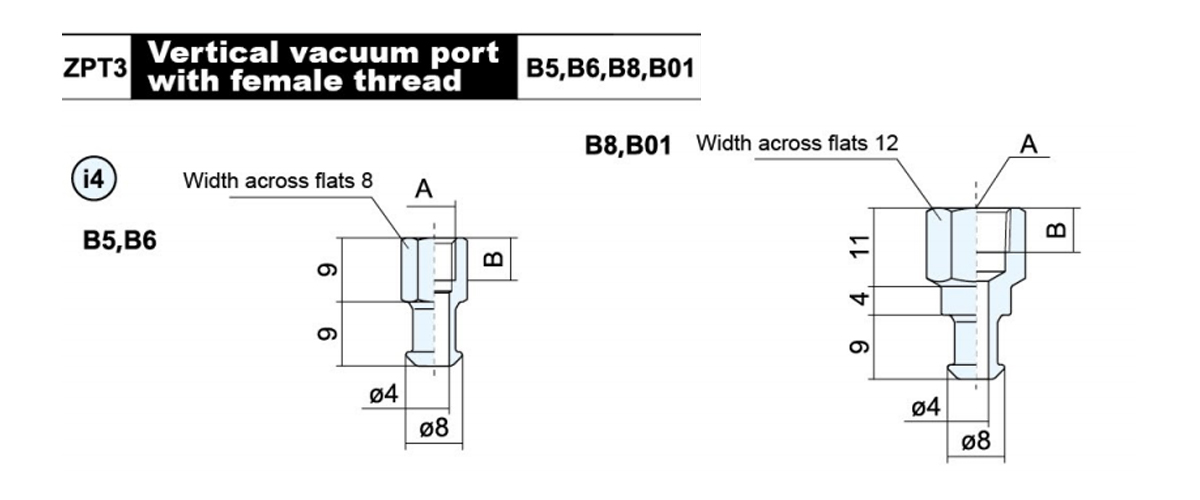

    Adaptor Model A B Pondus (g) Applicabilis Pad
    ZPT3-B5 M5×0.8 5 4.6 F1 F2 F3 F4 F5
    ZPT3-B6 M6×1.0 6 4.3
    ZPT3-B8 M8×1.25 8 11.4
    ZPT3-B01 Rc1/8 6.2 9.6

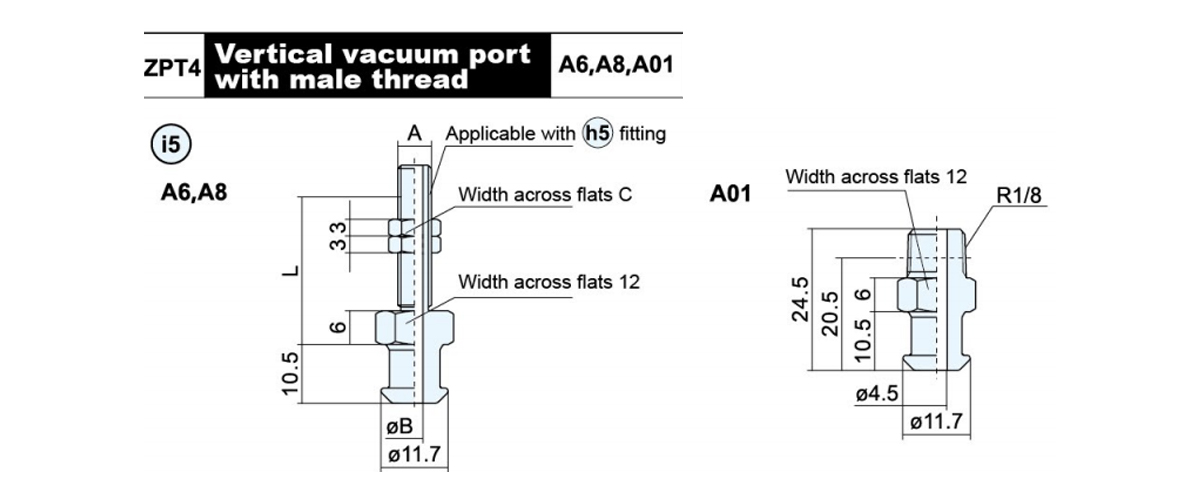

    Adaptor Model A B C L Pondus (g) Applicabilis Pad
    ZPT4-A6 M6×1.0 3.5 8 32 13.4 G1 G2 G3 G4
    ZPT4-A8 M8×1.0 4.5 12 22 13.2
    ZPT4-A01 - - - - 13.1

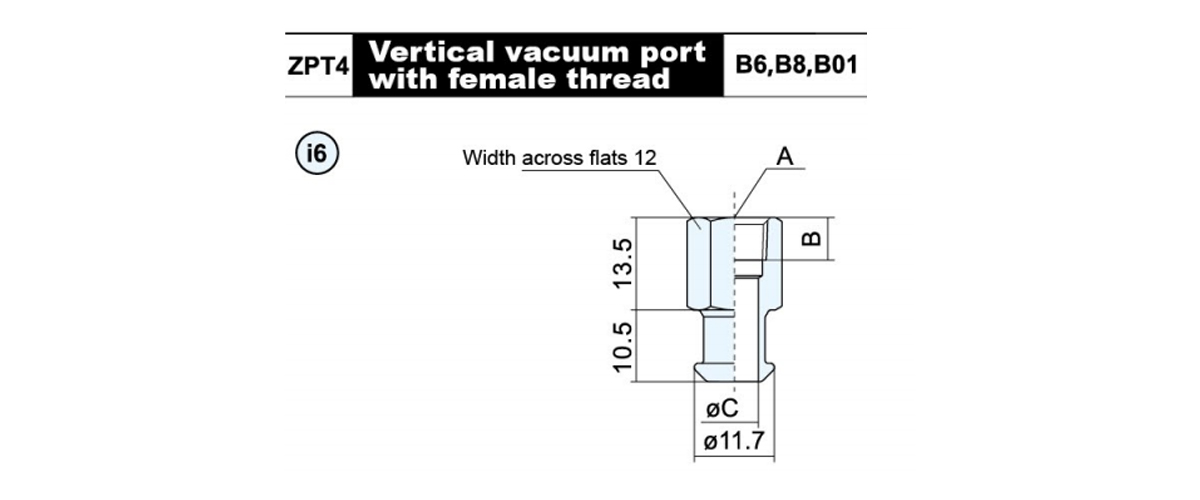

    Adaptor Model A B C Pondus (g) Applicabilis Pad
    ZPT4-B6 M6×1.0 6 4.5 17.4 G1 G2 G3 G4
    ZPT4-B8 M8×1.25 8 6.8 14.9
    ZPT4-B01 Rc1/8 6.2 10.7

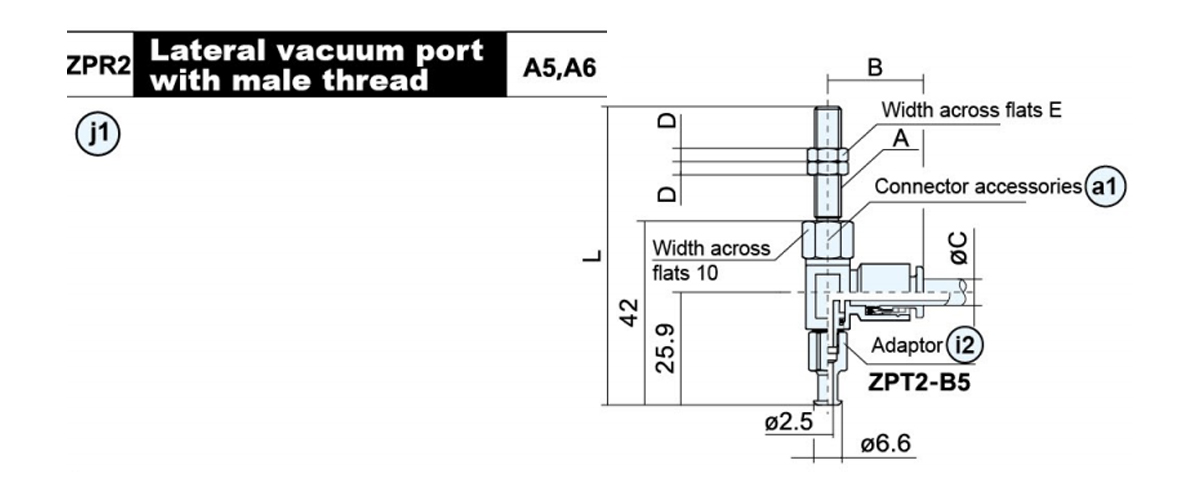

    Adaptor Model A B C D E L Pondus (g) Exemplar de iungo
    accessiones     		Applicabilis Pad
    ZPR2-04-A5 M5×0.8 20.6 4 4 7 63 21.5 ZPRS-04-A5 E1 E2 E3 E4 E5
    ZPR2-06-A5 21.6 6 22.3 ZPRS-06-A5
    ZPR2-04-A6 M6×1.0 20.6 4 3 8 68 22.7 ZPRS-04-A6
    ZPR2-06-A6 21.6 6 23.5 ZPRS-06-A6

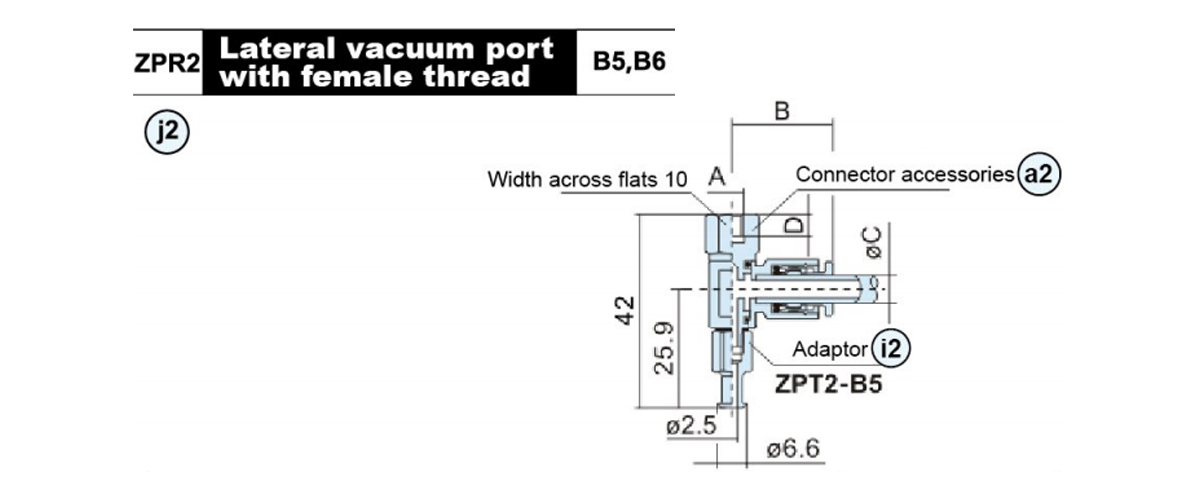

    Adaptor Model A B C D Pondus (g) Exemplar de iungo
    accessiones     		Applicabilis Pad
    ZPR2-04-B5 M5×0.8 20.6 4 4 15.6 ZPRS-04-B4 E1 E2 E3 E4 E5
    ZPR2-06-B5 21.6 6 16.3 ZPRS-06-B4
    ZPR2-04-B6 M6×1.0 20.6 4 5 15.7 ZPRS-04-B5
    ZPR2-06-B6 21.6 6 16.4 ZPRS-06-B5

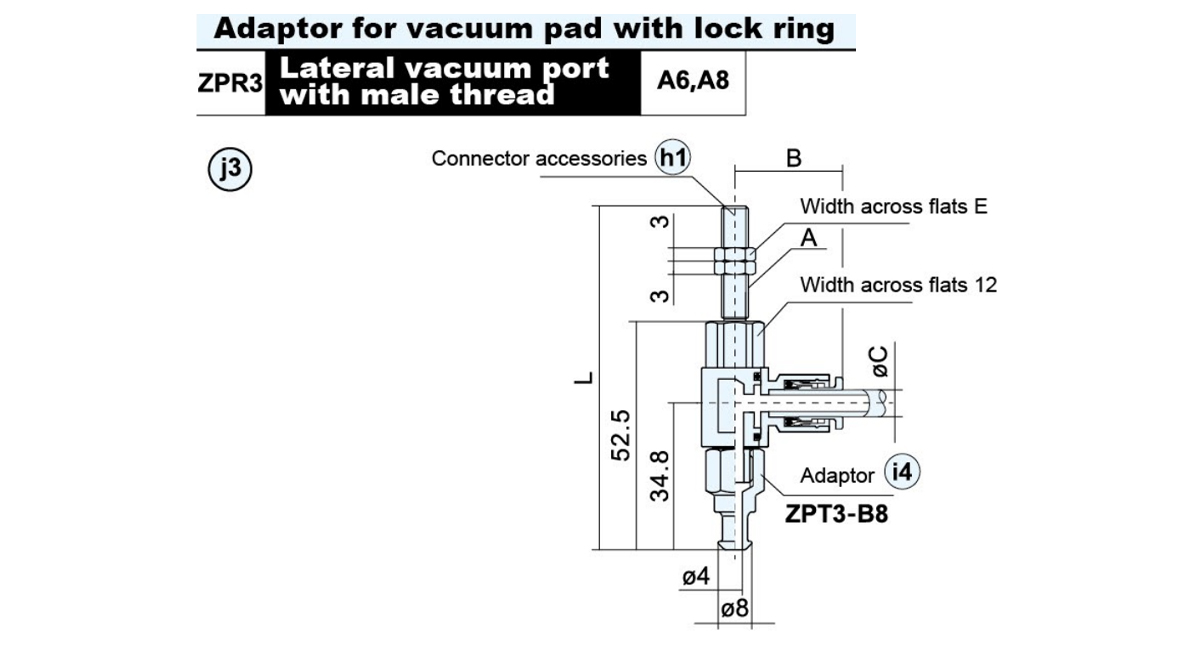

    Model A B C E L Pondus (g) Applicabilis Pad
    ZPR3-04-A6 M6×1.0 23.3 4 8 78.5 42.4 F1 F2 F3 F4 F5
    ZPR3-06-A6 24.3 6 43.2
    ZPR3-08-A6 26.2 8 44.1
    ZPR3-04-A8 M8×1.0 23.3 4 12 68.5 45
    ZPR3-06-A8 24.3 6 45.5
    ZPR3-08-A8 26.2 8 46.7

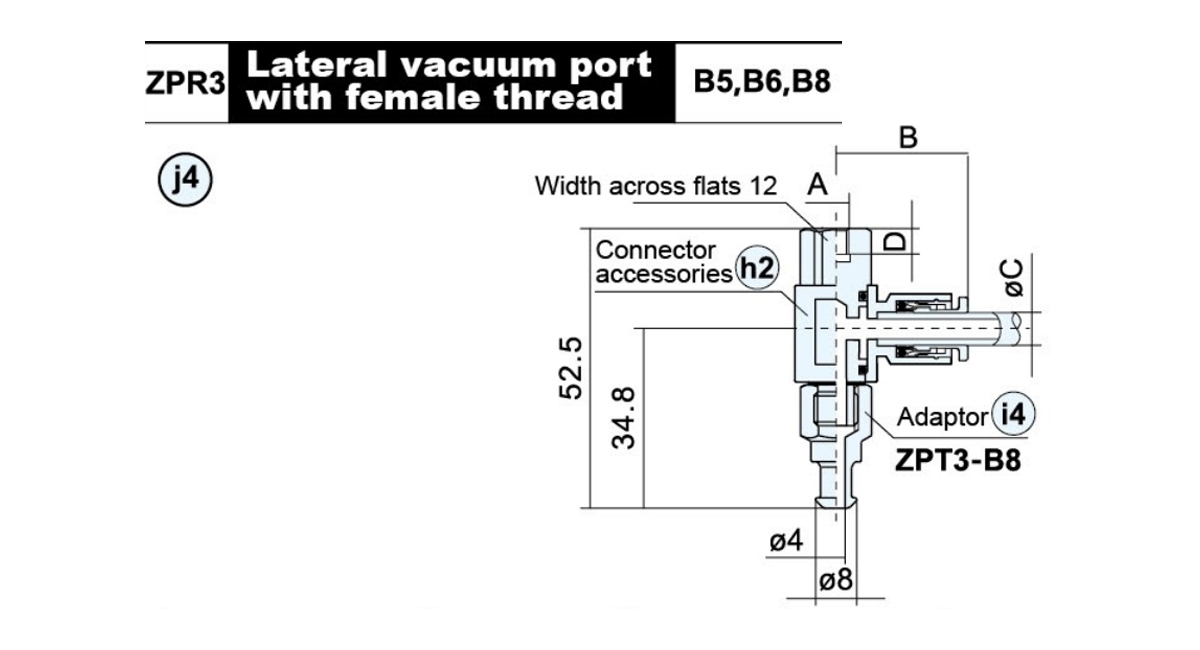

    Model A B C D Pondus (g) Applicabilis Pad
    ZPR3-04-B5 M5×0.8 23.3 4 5 35.5 F1 F2 F3 F4 F5
    ZPR3-06-B5 24.3 6 36.1
    ZPR3-08-B5 26.3 8 36.7
    ZPR3-04-B6 M6×1.0 23.3 4 6 34.4
    ZPR3-06-B6 24.3 6 35.1
    ZPR3-08-B6 26.2 8 36.1
    ZPR3-04-B8 M8×1.25 23.3 4 8 33.1
    ZPR3-06-B8 24.3 6 33.9
    ZPR3-08-B8 26.2 8 34.5

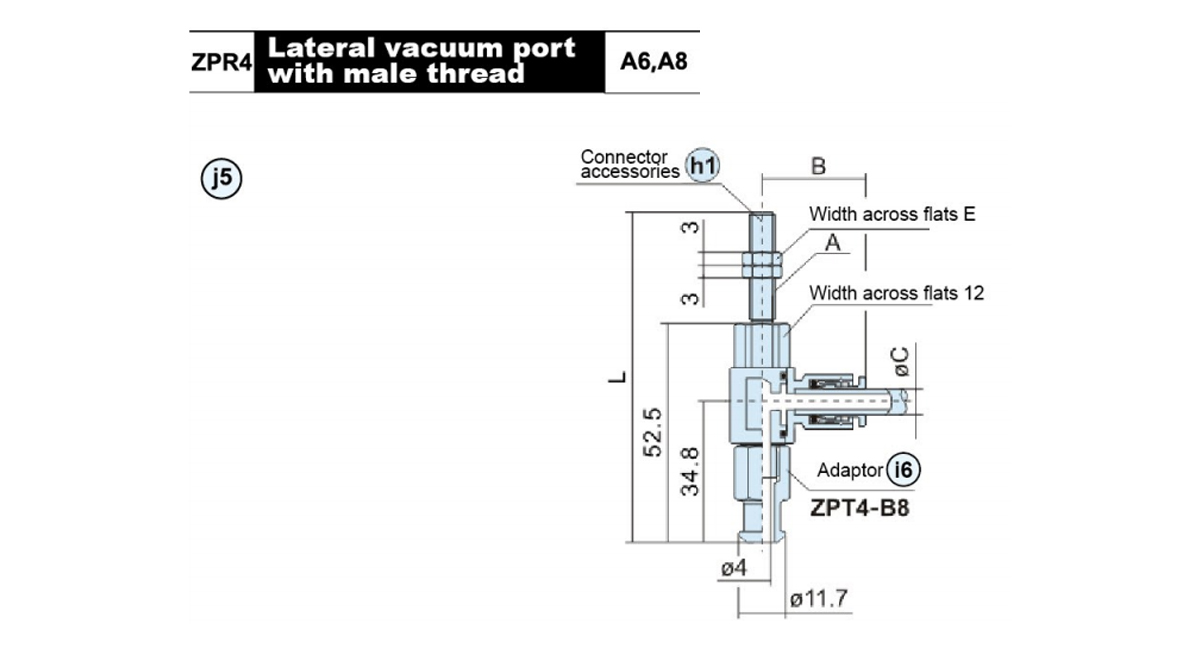

    Model A B C E L Pondus (g) Applicabilis Pad
    ZPR4-06-A6 M6×1.0 24.3 6 8 78.5 46.4 G1 G2 G3 G4
    ZPR4-08-A6 26.2 8 47.3
    ZPR4-06-A8 M8×1.0 24.3 6 12 68.5 48.8
    ZPR4-08-A8 26.2 8 50

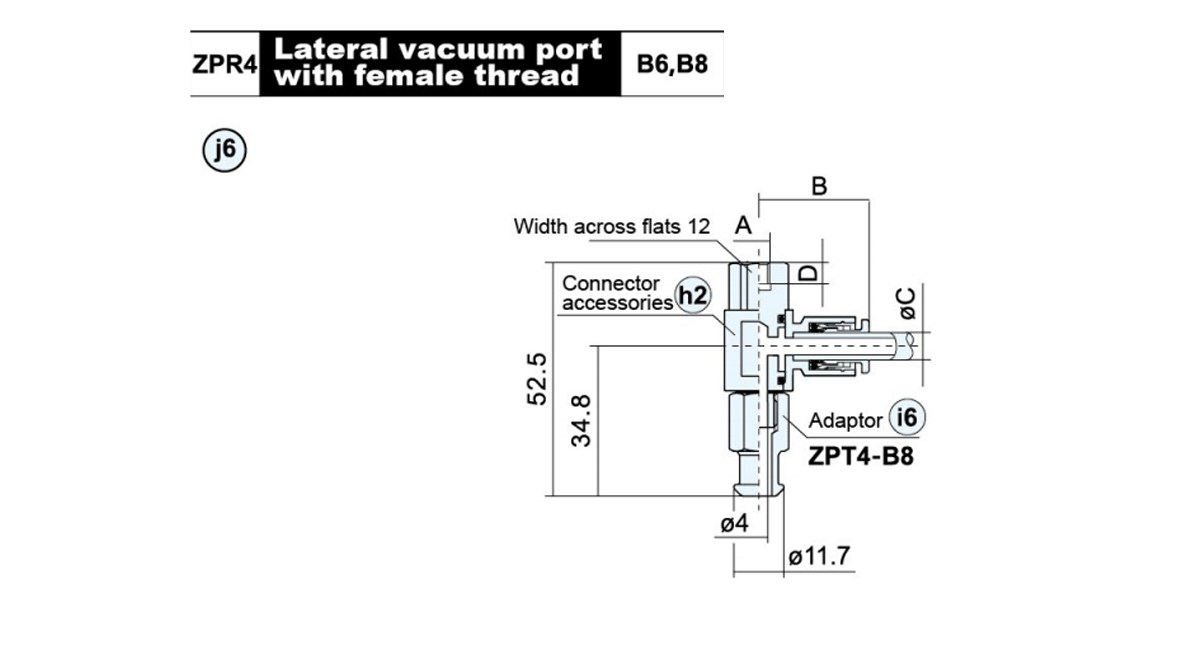

    Model A B C D Pondus (g) Applicabilis Pad
    ZPR4-06-B6 M6×1.0 24.3 6 6 39.6 G1 G2 G3 G4
    ZPR4-08-B6 26.2 8 39.5
    ZPR4-06-B8 M8×1.25 24.3 6 8 37.2
    ZPR4-08-B8 26.2 8 37.8

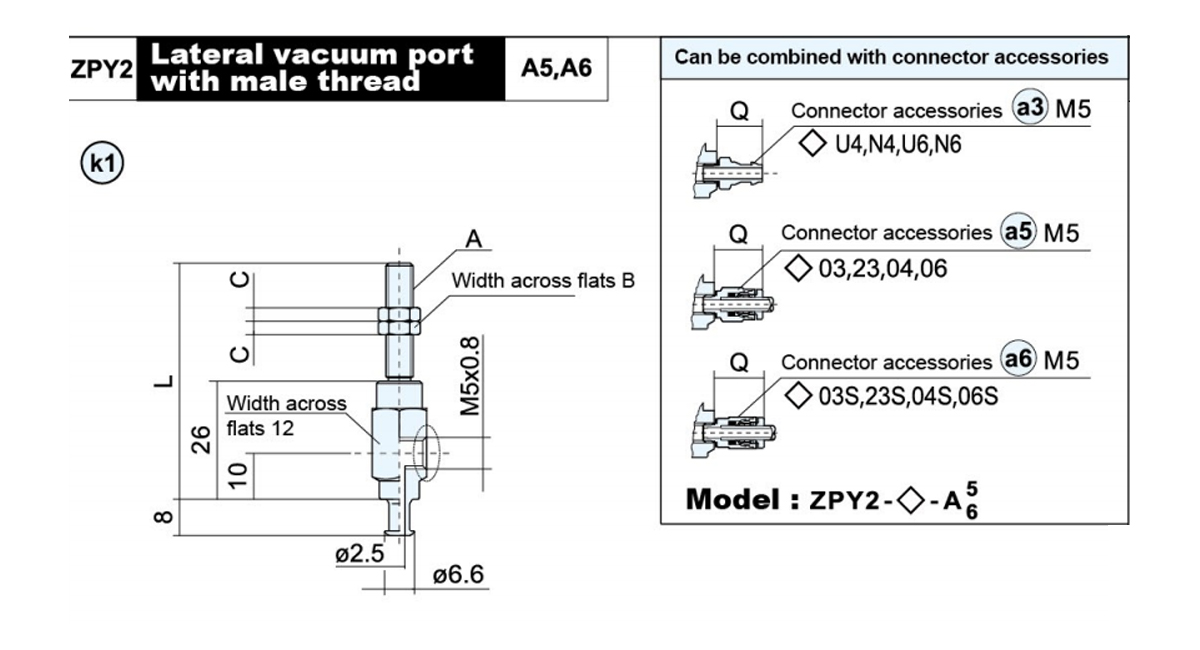

    Model A B C L Pondus (g) Applicabilis Pad
    ZPY2-B5-A5 M5×0.8 7 4 47 27.3 E1 E2 E3 E4 E5
    ZPY2-B5-A6 M6×1.0 8 3 52 28.4

    Model A B Pondus (g) Applicabilis Pad
    ZPY2-B5-B5 M5×0.8 5 21 E1 E2 E3 E4 E5
    ZPY2-B5-B6 M6×1.0 6 20.6

    Adaptor Model A B L Pondus (g) Applicabilis Pad

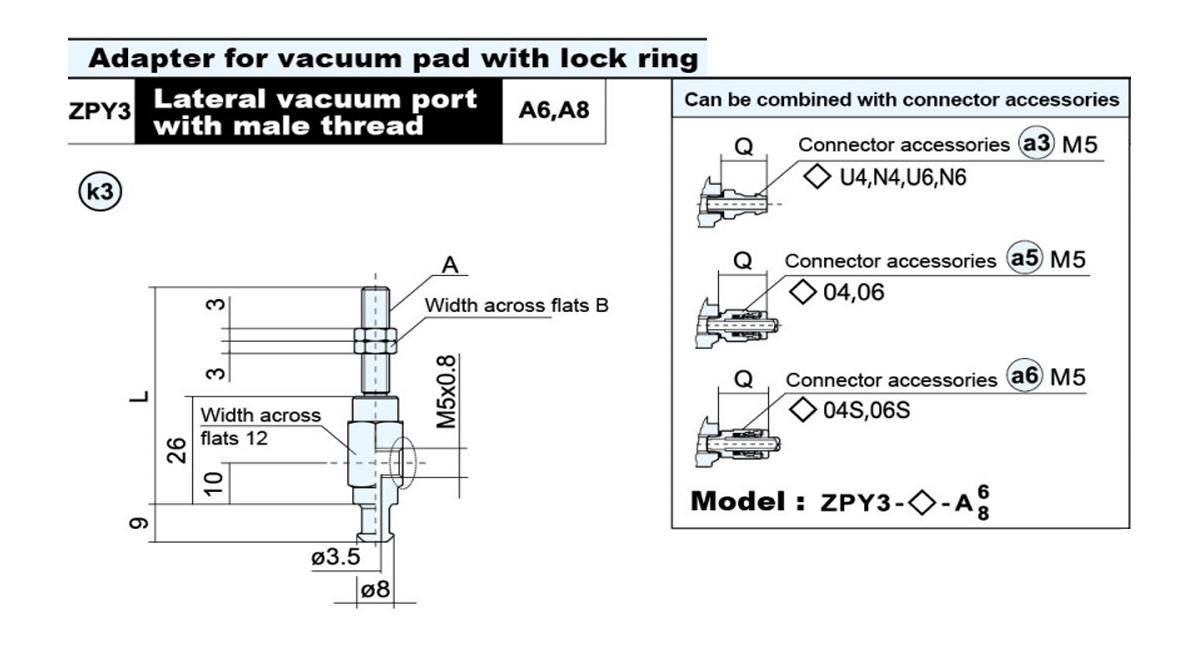

    ZPY3-B5-A6 M6×1.0 8 54 31.4 F1 F2 F3 F4 F5
    ZPY3-B5-A8 M8×1.0 12 44 34.4

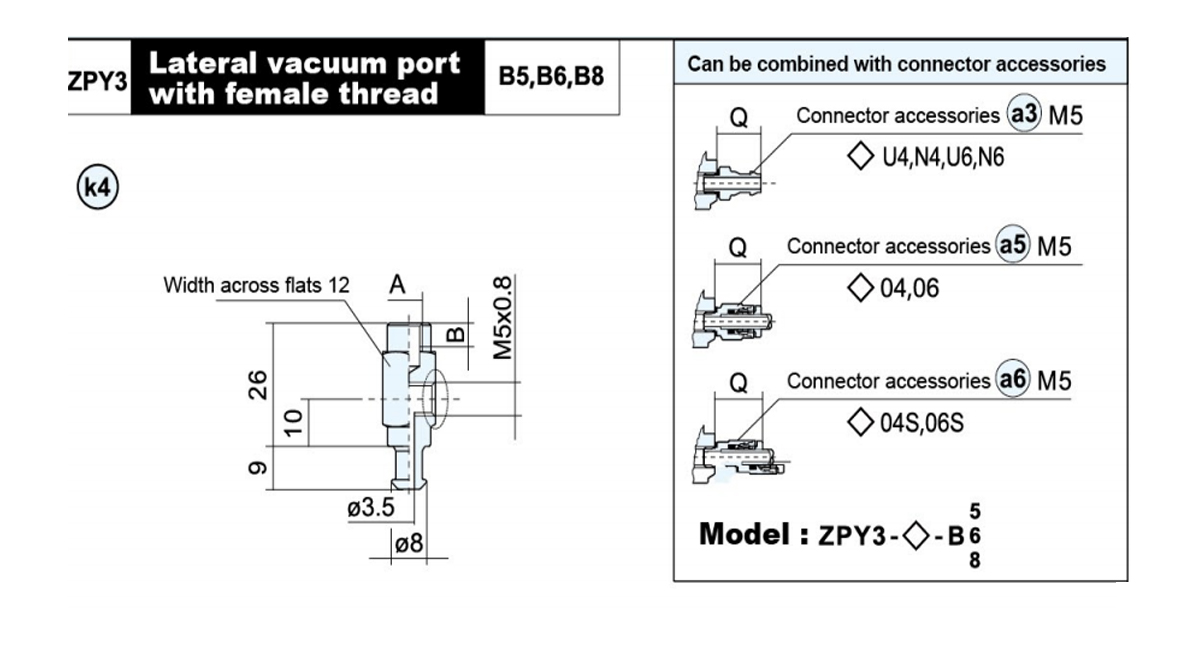

    Adaptor Model A B Pondus (g) Applicabilis Pad
    ZPY3-B5-B5 M5×0.8 5 23.5 F1 F2 F3 F4 F5
    ZPY3-B5-B6 M6×1.0 6 23.8
    ZPY3-B5-B8 M8×1.25 8 21.7

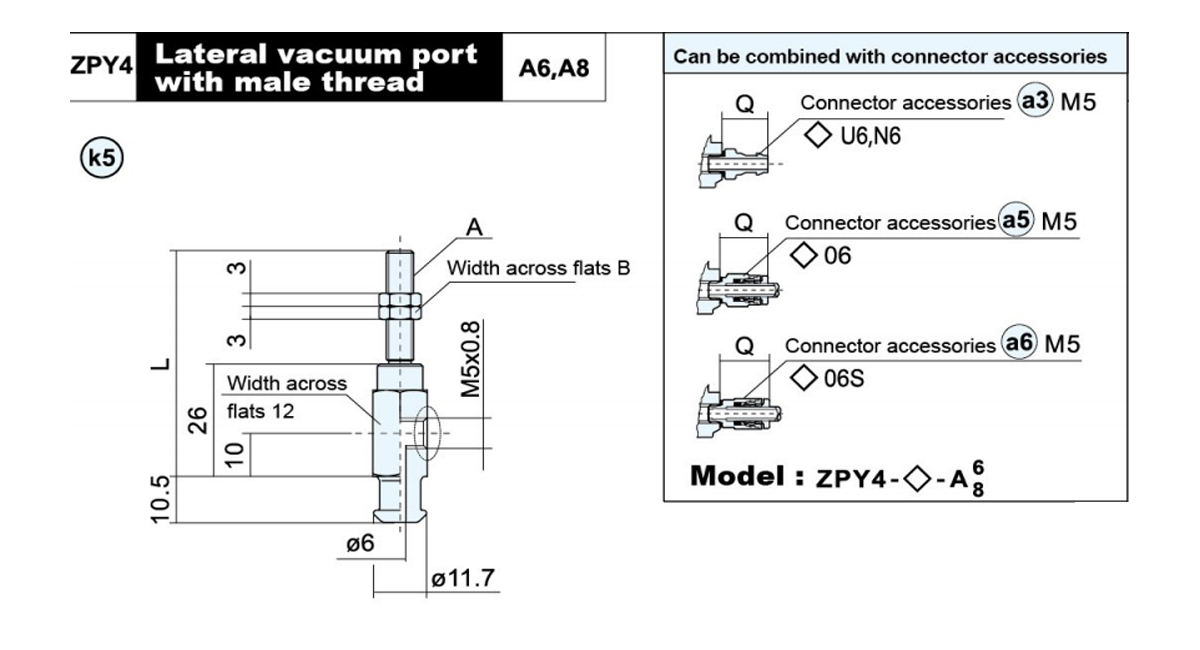

    Adaptor Model A B L Pondus (g) Applicabilis Pad
    ZPY4-B5-A6 M6×1.0 8 54 35.9 G1 G2 G3 G4
    ZPY4-B5-A8 M8×1.0 12 44 38.9

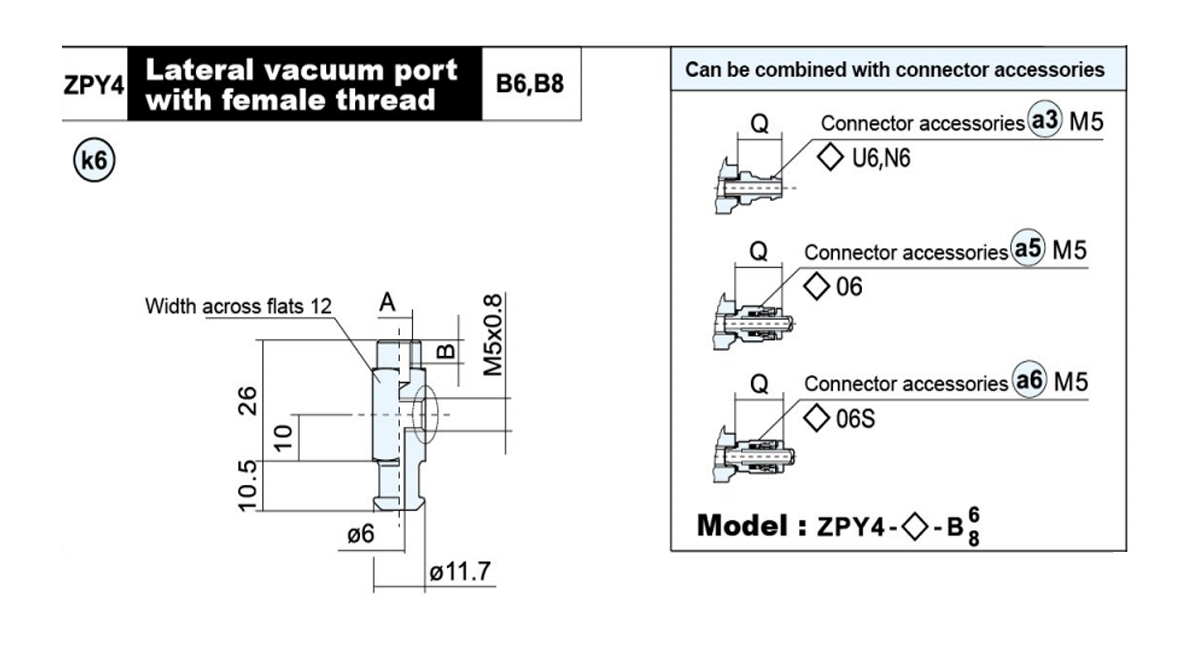

    Adaptor Model A B Pondus (g) Applicabilis Pad
    ZPY4-B5-B6 M6×1.0 6 28.1 G1 G2 G3 G4
    ZPY4-B5-B8 M8×1.25 8 26.1

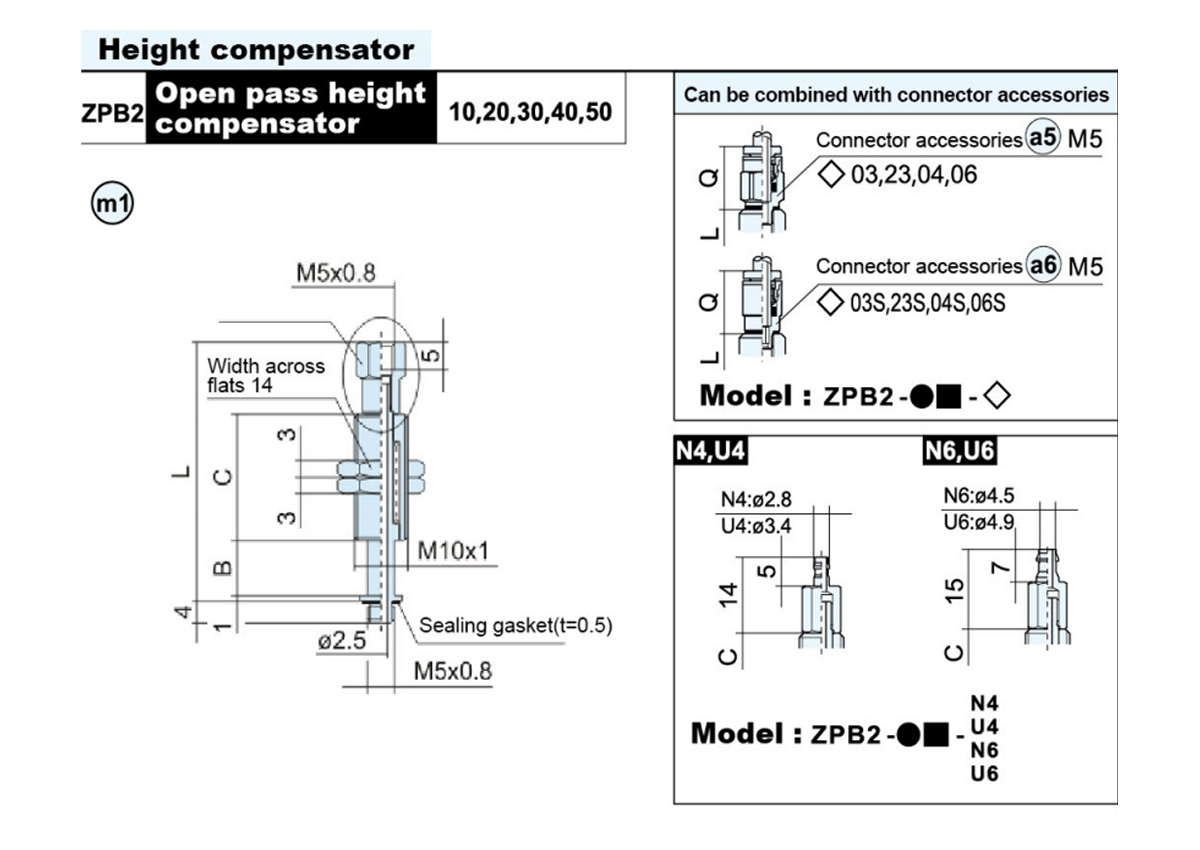

    Model B C L ● pondus (g)
    J K
    ZPB2-●10-B5 10 23 47 19.6 19.2
    ZPB2-●20-B5 20 51 85 29 27.8
    ZPB2-●30-B5 30 95 30.8 29.6
    ZPB2-●40-B5 40 77 131 41.4 41.6
    ZPB1-●50-B5 50 141 42 43

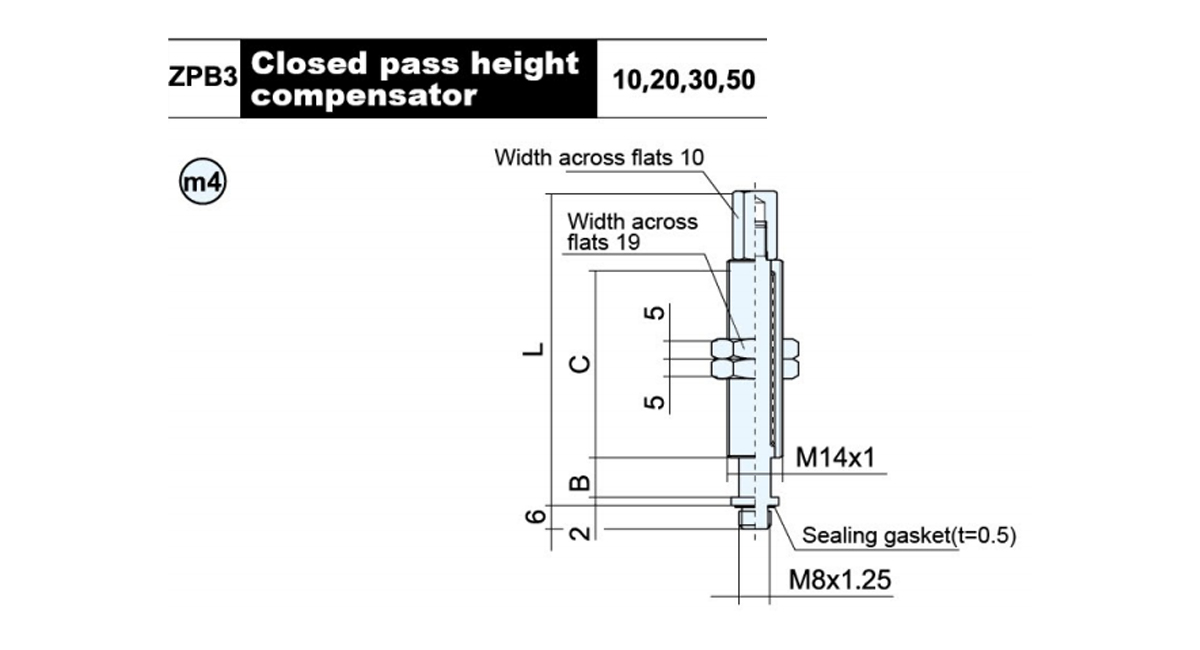

    Model

    A

    		B C D L weight (g)
    J K
    ZPB3-●10-B5 M5×0.8 10 50 10 77 68 64.2
    ZPB3-●20-B5 20 81 68.8 67
    ZPB3-●30-B5 30 91 71.6 71.4
    ZPB3-●50-B5 50 75 136 97.5 97.6
    ZPB3-●10-B01 Rc1/8 10 50 12 78.5 70.4 66.6
    ZPB3-●20-B01 20 84 69.8 67
    ZPB3-●30-B01 30 94 72.6 71
    ZPB3-●50-B01 50 75 139 97.2 95
    ● Altitudo compensatoris generis: Rotativa (J), rotari non potest (K)   ■  Plaga quiddam (mm): 10,20,30,50

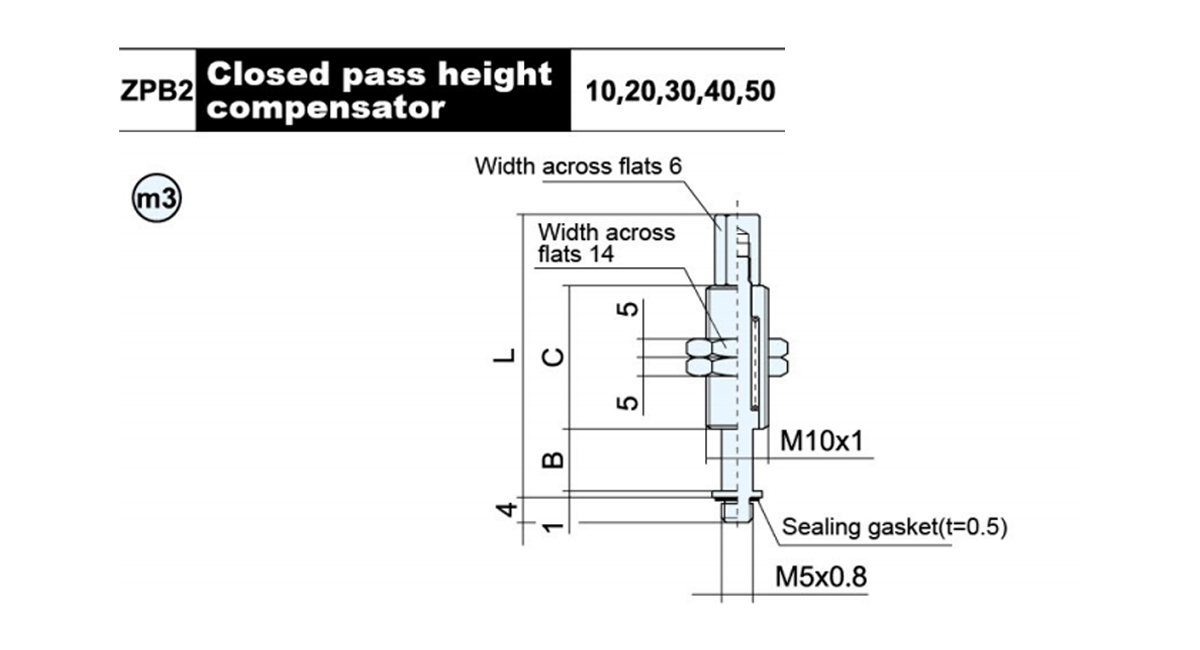

    Model B C L ● pondus (g)
    J K
    ZPB2-●10 10 23 45 19.7 20
    ZPB2-●20 20 51 83 33.8 30
    ZPB2-●30 30 93 32.3 31.7
    ZPB2-● 40 40 77 129 44.3 44.3
    ZPB2-●50 50 139 45.6 41.6

    ● Altitudo compensatoris genus: rotativa(J),  rotari nequitur(K)
    ■Proplaga quiddam (mm): 10,20,30,40,50

    Model B C L weight (g)
    J K
    ZPB3-●10 10 50 80 80.2 74.4
    ZPB3-●20 20 77 69.9 71.2
    ZPB3-●30 30 87 77.8 77
    ZPB3-●50 50 75 132 103.8 105.8
    ● Altitudo compensatoris genus: rotativa(J),  rotari nequitur(K)■Buffer stroke(mm):10,20,30,50
