3A Series 3 Via Air Control Valve Fornitores

Home / Products / Imperium pneumaticum components / Air Control Valve / 3A Series 3 Via Air Control Valve

3A Series 3 Via Air Control Valve 3A Series 3 Via Air Control Valve 3A Series 3 Via Air Control Valve
  • 3A Series 3 Via Air Control Valve
  • 3A Series 3 Via Air Control Valve
  • 3A Series 3 Via Air Control Valve
Air Control Valve

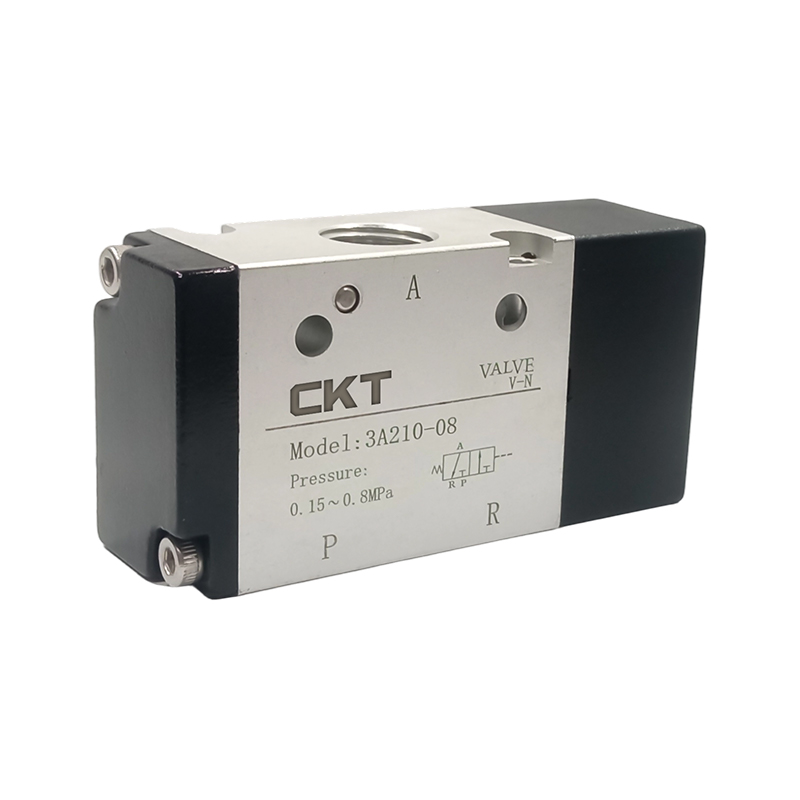

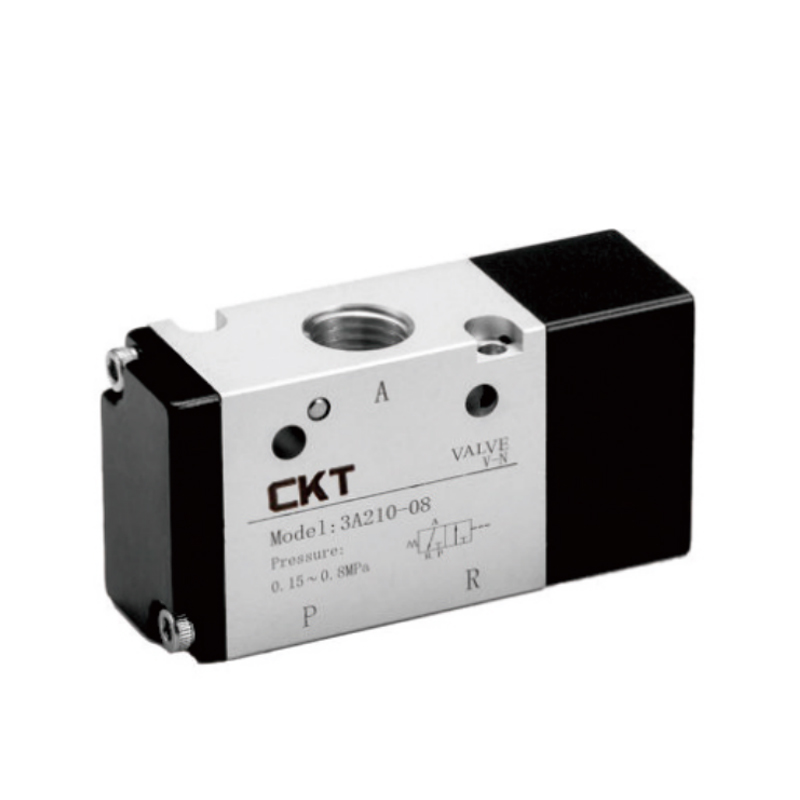

3A Series 3 Via Air Control Valve

3A Series 3 Via Aeris Imperium Valvae unum est e nucleo actuatorum in campo automationis fluidi industrialis imperium, in commutatione ac fluxu locorum aerem compressorum positus.

Overview of core features
Valvae nuclei specificae figuratio et responsio dynamica: valvae nucleus delapsus designatio nucleus assumitur, et efficientia interna signatio significantia est, quae plectrum excellentem responsionem sensibilitatem praebet et celeritatem et certam mutandi statum efficit.

State retentionis mechanismum: Modus dualis potestates habet plumam retentionis status (munus memoriae). Post signum initus revocato, valvae exitus status non mutatus est donec signum contra imperium Urguet.

Praecisionis processus et longae vitae: Core fluunt alvei praecisione machinationis technologiae, quae efficaciter minuit frictionem resistentiae partium moventium, praemolestiam pressionis aeris incommodis requisitis affert, ac vitam servitutem valvae magnopere amplificat.

Aptabilitas olei liberae operationis: Suprema structura et materialis intentio requisitis condicionibus lubricationis olei liberae, et directe coniungi potest cum conventionali oleo-libero lubricationis aeris fonte systematis operandi.

Integratio opportuna notae: Consilium structuralis optimizet processum institutionis, compatitur cum signis interfaciendi amet industrialis, et cognoscit celeri instruere (paratum ad usum).

Formae iuncturae modularis: Integrationem valvularum multiplicium per normas factas sustinet ut valvae globi compactae formentur, valde optimizing instrumenti spatii utendo (spatii-intensive designationis).

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：4A Series 5 Via Aeris Control Valve
SUCCESSIVO：Nessun articolo successivo
  • Licet humores Air
    Operans pressura range 0.15~0.8MPa
    Pressura resistentia 1.2MPa
    Ambiens et fluidum temperatus 5~60°C
    Lubricatio Non requiratur
    Maximum operating frequency 5Hz

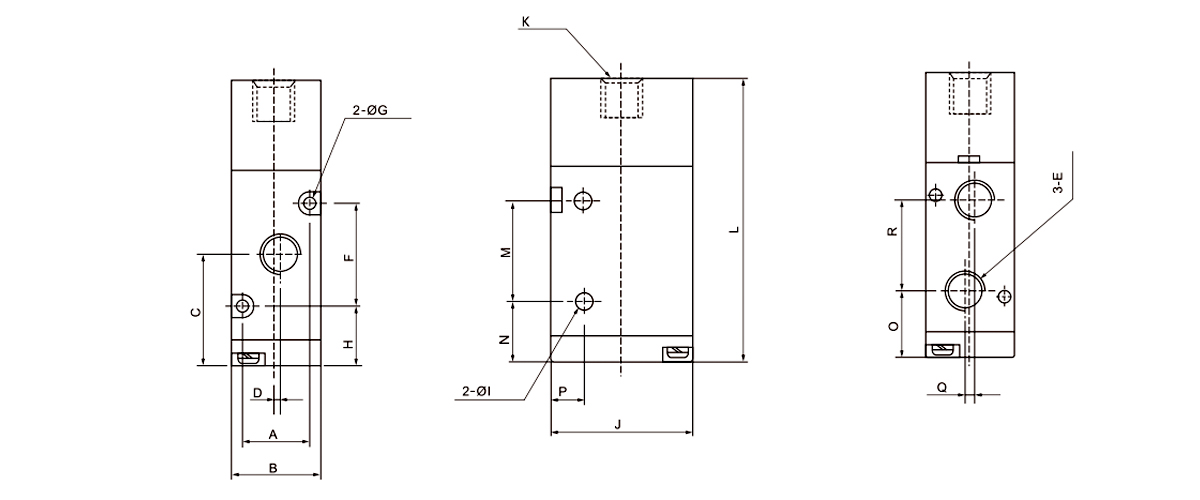

  • Model A B C D E F G H I J K L M N O P Q R
    3A110-M5 13 18 22.7 0 M5×0.8 19 3.3 13.2 3.1 27 Rc1/8 56.5 21 12.2 14.7 7.7 0 14.2
    3A110-06 13 18 23.7 1 Rc1/8 19 3.3 13.2 3.1 27 Rc1/8 56.5 21 12.2 14.7 7.7 2 16
    3A210-06 17 22 27.7 0 Rc1/8 30 3.2 12.7 4.2 35 Rc1/8 70 25 15.2 16.7 8.2 0 22
    3A210-08 17 22 28.7 1.5 Rc1/4 30 3.2 12.7 4.2 35 Rc1/8 70 25 15.2 16.7 8.2 0 22.5
    3A310-08 20 27 32.5 0 Rc1/4 35 4.3 15 4.3 40 Rc1/8 80.5 30 17.5 20.5 10.5 0 24
    3A310-10 20 27 32.5 2 Rc3/8 35 4.3 15 4.3 40 Rc1/8 80.5 30 17.5 20.5 10.5 0 24
    3A410-15 27 34 42 3 Rc1/2 48 4.5 17.5 4.5 50 Rc1/8 100 48 17.5 25 13 0 35

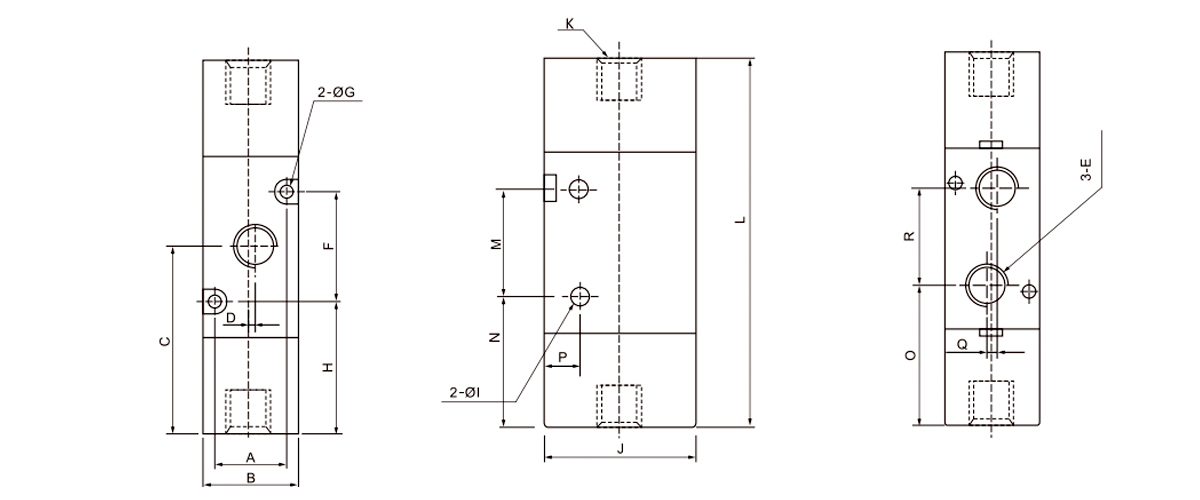

    Model A B C D E F G H 1 J K L M N O P Q R
    3A120-M5 13 18 34.5 0 M5×0.8 19 3.3 25 3.1 27 Rc1/8 69 21 24 26.5 7.7 0 14.2
    3A120-06 13 18 34.5 1 Rc1/8 19 3.3 25 3.1 27 Rc1/8 69 21 24 26.5 7.7 2 16
    3A220-06 17 22 42 0 Rc1/8 30 3.2 27 4.2 35 Rc1/8 84 25 29.5 30.75 8.2 0 22
    3A220-08 17 22 42 1.5 Rc1/4 30 3.2 27 4.2 35 Rc1/8 84 25 29.5 30.75 8.2 0 22.5
    3A320-08 20 27 48 0 Rc1/4 35 4.3 30.5 4.3 40 Rc1/8 96 30 33 36 10.5 0 24
    3A320-10 20 27 48 2 Rc3/8 35 4.3 30.5 4.3 40 Rc1/8 96 30 33 36 10.5 0 24
    3A420-15 27 34 34.5 3 Rc1/2 48 4.5 4.5 50 Rc1/8 117 48 34.5 41 13 0 35
