4A Series 5 Via Aeris Control Valve Fornitores

Home / Products / Imperium pneumaticum components / Air Control Valve / 4A Series 5 Via Aeris Control Valve

4A Series 5 Via Aeris Control Valve 4A Series 5 Via Aeris Control Valve 4A Series 5 Via Aeris Control Valve
  • 4A Series 5 Via Aeris Control Valve
  • 4A Series 5 Via Aeris Control Valve
  • 4A Series 5 Via Aeris Control Valve
Air Control Valve

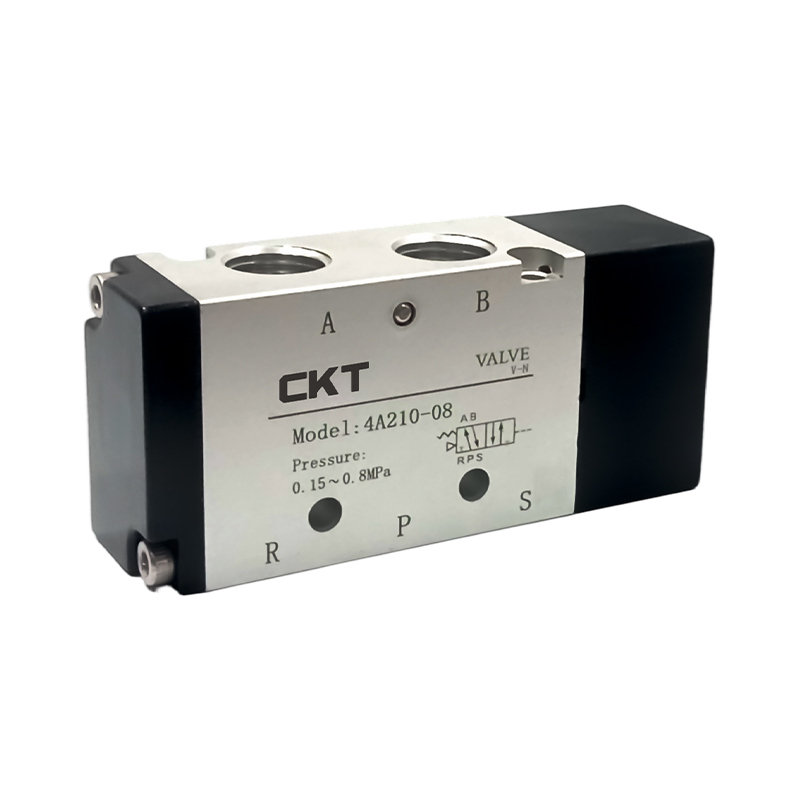

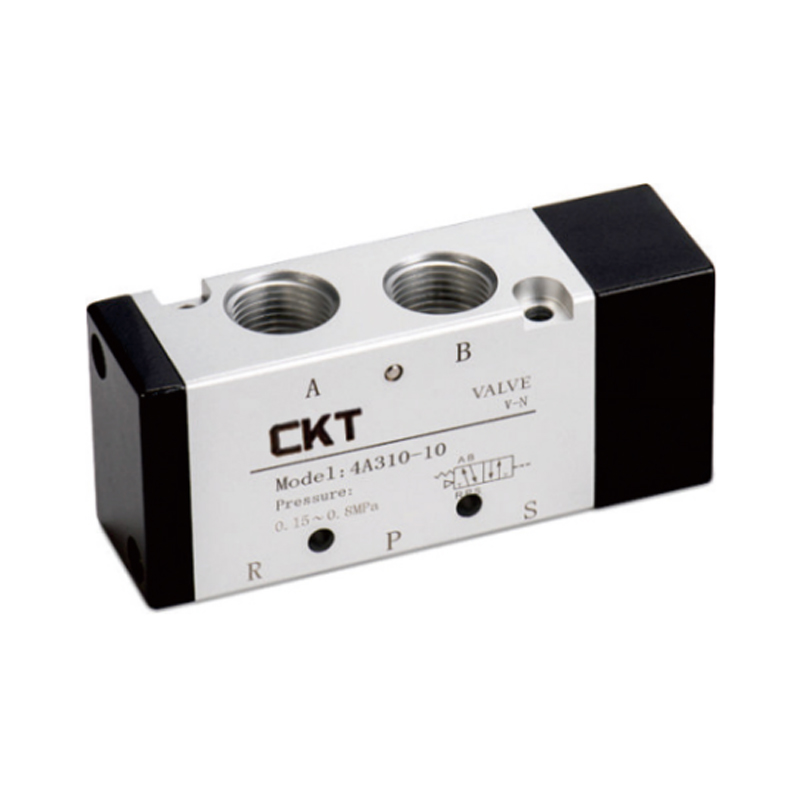

4A Series 5 Via Aeris Control Valve

4A Series 5 Via Aeris Imperium Valve est valvula directionalis universalis cum designatione columnae illapso, specialiter evoluta pro certa potestate actus motus in systematis pneumaticis. Core eius est transitum internum per aerem imperium commutare signum ad efficiens administrationem directionis aeris compressi fluens consequi.

Unique valvae nuclei figuratio: Principium structurae illapsae columnae adoptatur ad efficiendam solitudinem efficientis et mutandi iter interni aeris, efficaciter ad signandum firmitatem et altam alacritatem actionis sub diuturno operatione.

Flexibile centrum positionis configurationis: Haec series trium generum valvae positionis varias optiones status centralis (sicut sigillum centrum, centrum lacus, centrum pressionis) occurrit in peculiaribus condicionibus conservationis status actuatoris sub diversis condicionibus operatis cum imperium signo evanescit.

Status retentionis characteres: Duo positio valvae generis acti bicipitis aeris potestate memoriam muneris habet. Post imperium signum remotum, certo servare potest positionem nuclei valvae ante mutationem ad stabilitatem loci actus in tuto collocari.

Oleum liberum auto-lubricantis consilium: Interna structura et signandi elementa valvae optimized sunt ad stabiliter operandum sub norma qualitatis aeris compressae sine necessitate additi lubricationis oleum, systematis simplicis sustentationis.

Foedus compositionis institutionem: stricta integrationem valvularum multiplicium per basim communem adiuvat ut valvae modularis coetus formant, quae insigniter servat instrumentum spatii institutionis et iter gas optimizes layout.

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：Nessun articolo precedente
SUCCESSIVO：3A Series 3 Via Air Control Valve
  • Licet humores Air
    Operans pressura range 0.15~0.8MPa
    Pressura resistentia 1.2MPa
    Operans temperatus range 5~60°C
    Lubricatio Non requiratur
    Maxime operating frequency 5Hz

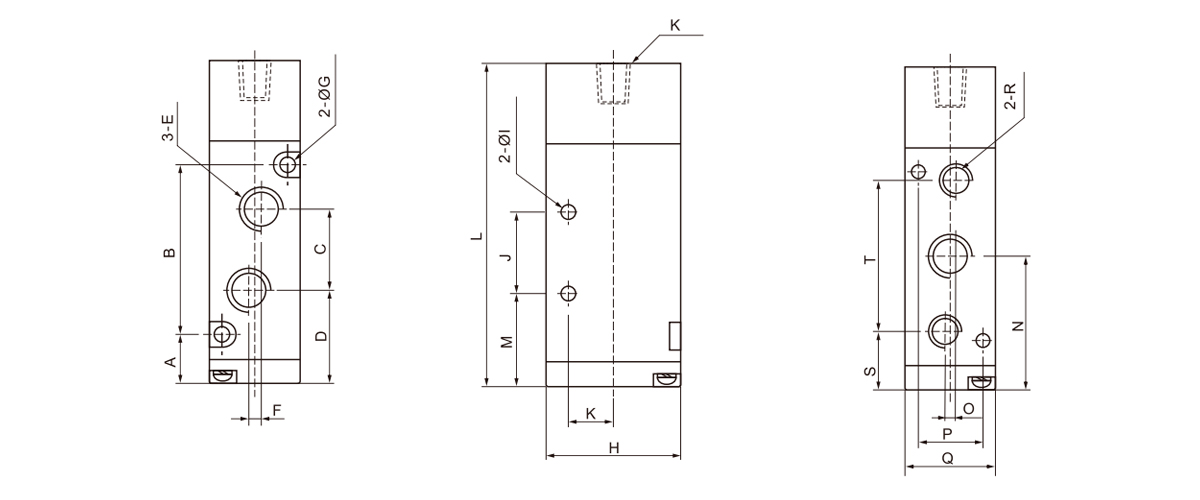

  • Exemplar A B C D E F G H I J K L M N O P Q R S T
    4A110-M5 13.2 30 14 21.2 M5×0.8 0 3.3 27 3.3 14 Rc1/8 68.7 21.2 28.2 0 13 18 M5×0.8 14.7 27
    4A110-06 13.2 30 16 20.2 Rc1/8 3 3.3 27 3.3 14 Rc1/8 68.7 21.2 28.2 1 13 18 Rc1/8 14.2 28
    4A210-06 12.7 38 18 22.7 Rc1/8 0 3.2 35 4.3 20 Rc1/8 92 21.7 31.7 0 17 22 Rc1/8 13.7 36
    4A210-08 12.7 38 21 21.2 Rc1/4 3 3.2 35 4.3 20 Rc1/8 92 21.7 31.7 0 17 22 Rc1/8 13.7 36
    4A310-08 15 50 22 29 Rc1/4 0 4.3 40 4.3 24 Rc1/8 95.5 28 40 0 20 27 Rc1/4 17.5 45
    4A310-10 15 50 24 28 Rc3/8 4 4.3 40 4.3 24 Rc1/8 95.5 28 40 0 20 27 Rc1/4 17.5 45
    4A410-15 21 72 36 39 Rc1/2 4 4.3 50 5.5 28 Rc1/8 128 43 57 0 27 34 Rc1/2 25.5 63

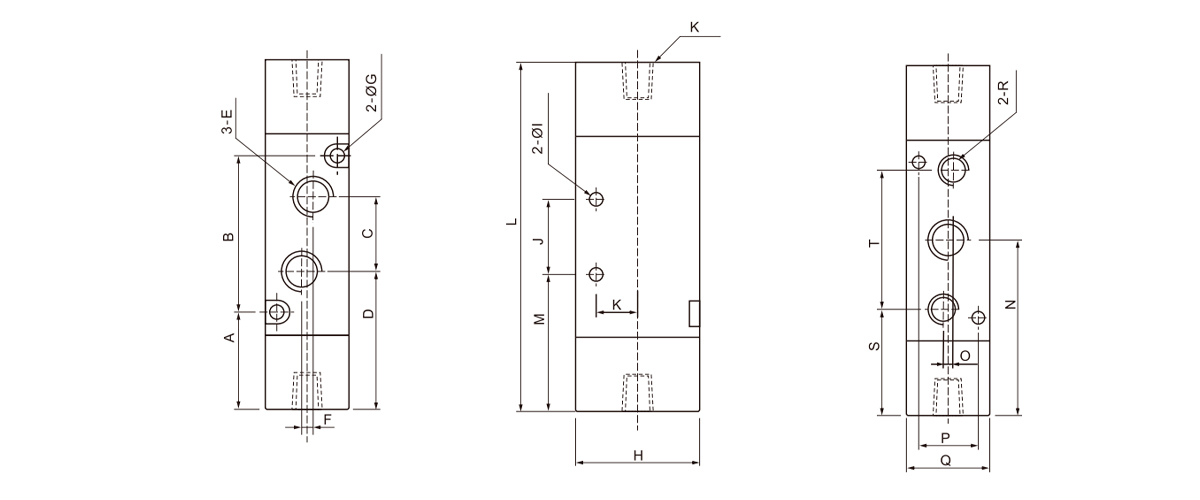

    Exemplar A B C D E F G H I J K L M N O P Q R S T
    4A120-M5 25.5 30 14 33.5 M5×0.8 0 3.3 27 3.3 14 Rc1/8 81 33.5 40.5 0 13 18 M5×0.8 27 27
    4A120-06 25.5 30 16 32.5 Rc1/8 3 3.3 27 3.3 14 Rc1/8 81 33.5 40.5 1 13 18 Rc1/8 26.5 28
    4A220-06 27 38 18 37 Rc1/8 0 3.2 35 4.3 20 Rc1/8 92 36 46 0 17 22 Rc1/8 28 36
    4A220-08 27 38 21 35.5 Rc1/4 3 3.2 35 4.3 20 Rc1/8 92 36 46 0 17 22 Rc1/8 28 36
    4A320-08 30.5 50 22 44.5 Rc1/4 0 4.3 40 4.3 24 Rc1/8 111 43.5 55.5 0 20 27 Rc1/4 33 45
    4A320-10 30.5 50 24 43.5 Rc3/8 4 4.3 40 4.3 24 Rc1/8 111 43.5 55.5 0 20 27 Rc1/4 33 45
    4A420-15 35 72 36 53 Rc1/2 4 4.3 50 5.5 28 Rc1/8 142 57 71 0 27 34 Rc1/2 39.5 63
