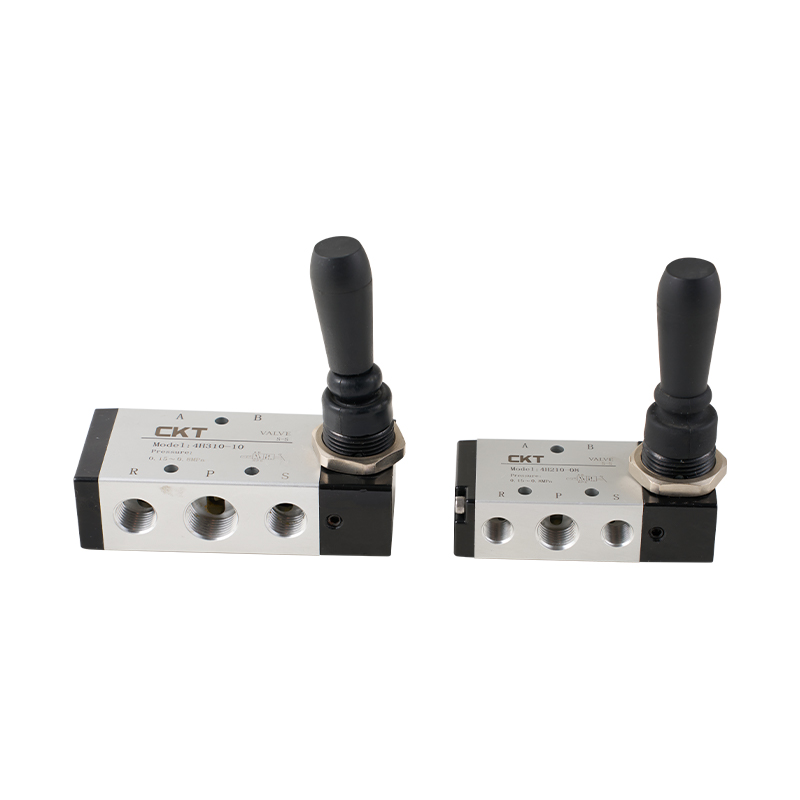

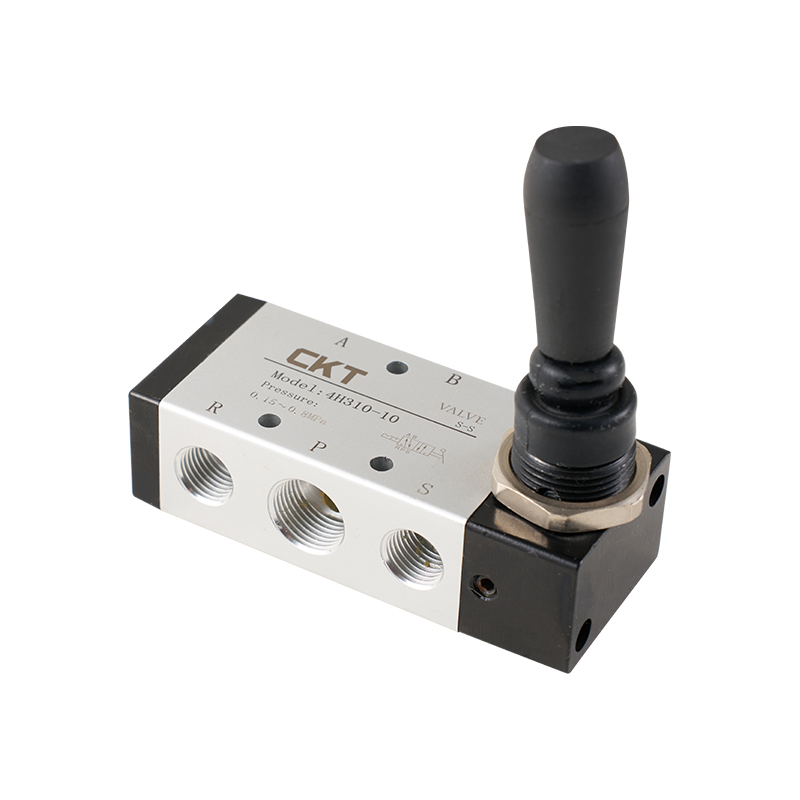

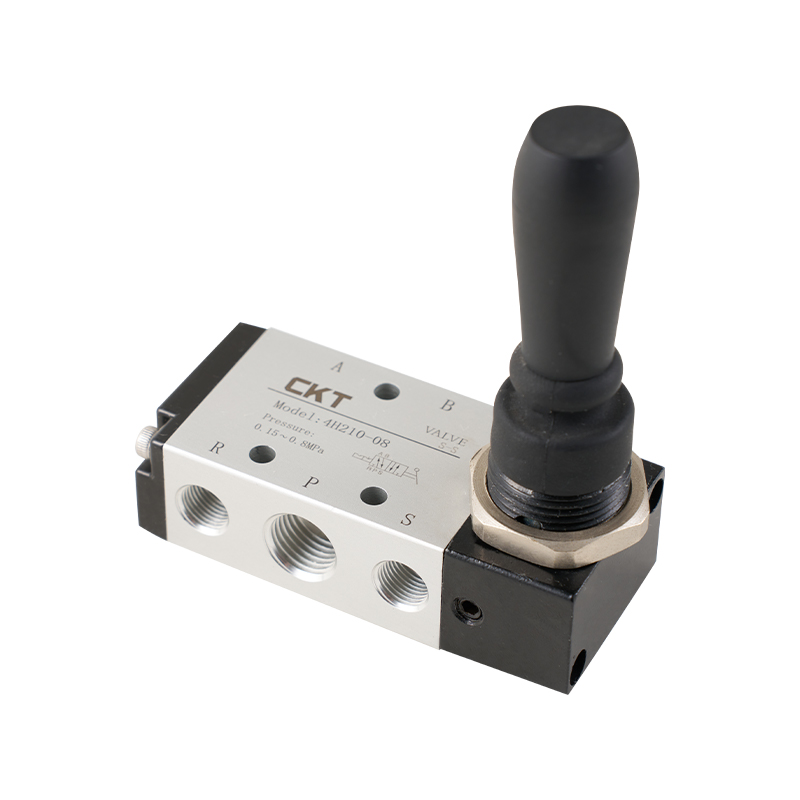

4H Series 5 Via Valve Manual

4H Series 5 Viam Valvae manualis est elementum principale manuale praepostera moderatio destinata praecise permutationis copiae et exhauriendi vias duplices operandi cylindrorum vel aliorum actuatorum in systematibus industrialibus pneumaticis.

Praecipua lineamenta:
Operatio certa et accurata: Methodus coegi manualis intuitivus assumitur, processus actus valvae plectrum levis est, et positio clara et clara est, ut accuratam actionem mutandi et sensus fiduciae in operatione prospiciat.

Foedus signandi structuram: Core devolvens columna valvae nucleum designans, coniunctum cum solutione sophisticata obsignatione, efficaciter lacus internas segregans, altiore structurae curriculo exquisita est, pondus leve, et quotidiana sustentatio et disconventus commoda sunt.

Diu terminus operationis humilis resistentiae: Clavis canalis interioris foraminis tractatur cum certa superficiei curationis methodo, quae signanter remittit frictionem resistentiae partium moventium internarum et adiuvat ad altiorem vitam plectrum servitutis extendere.

Tutela liberorum lubricationis: Consilium oleum lubricationis externum non requirit pro lubricatione, quae usum processus simplificat et requisita ad sustentationem subsequentem minuit.

Apta institutionis et accommodationis: Tabulae munus institutionis ad simpliciorem processum integrationis systematis praebetur, et institutio simplex ac stabilis est, quae applicabilitatem valvae auget in diversis missionibus applicationis.

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：4HV Series 2/3 4 Viam Valvae
SUCCESSIVO：Nessun articolo successivo
  • Model 210-06 230-06 210-08 230-08 310-08 330-08 310-10 330-10
    medium opus Aer (percolatur per 40μm vel plures)
    Operatio modus Manu-operandum directum agendi
    Diameter Gaudium Inlet = Outlet
    = Air Exhaust=PT1/8     		Inlet = Outlet = PT1/4;
    Exhaus=PT1/8     		Inlet = Outlet
    = Air Exhaust=PT1/4     		Inlet = Outlet = PT3/8;
    Exhaus = PT1/4
    Effective cross-sectional area [Note 3] 4H210-08:17.0mm²(Cv=1.0)
    4H230C-08:13.6mm²(Cv=0.8)     		4H310-10:28.0mm²(Cv=1.65)
    4H330C-10:21.3mm(Cv=1.25)
    Numerus positionum 5-Portus 2-positio V-Portus III-positio 5-Portus 2-positio V-Portus III-positio 5-Portus 2-positio V-Portus III-positio 5-Portus 2-positio V-Portus III-positio
    Lubricatio. No
    Operans pressura range 0~1.0MPa(0~145psi)
    Guaranteed pressura resistentia 1.5MPa(215psi)
    operating temperatus -20~70℃
    Corpus materiale aluminium
    Operating angulus adductius ±15° ±8.5° ±15° ±8.5° ±18° ±10° ±18° ±10°
    G dentes accipienti dentes NPT sunt.
    Si oleum lubricum est , in medio sistendum non est , commendaturque ducatus ISO VG32 vel eodem modo olei .
    Effectiva crucis sectionis area et Cv valores computantur in test fluxus notitia.

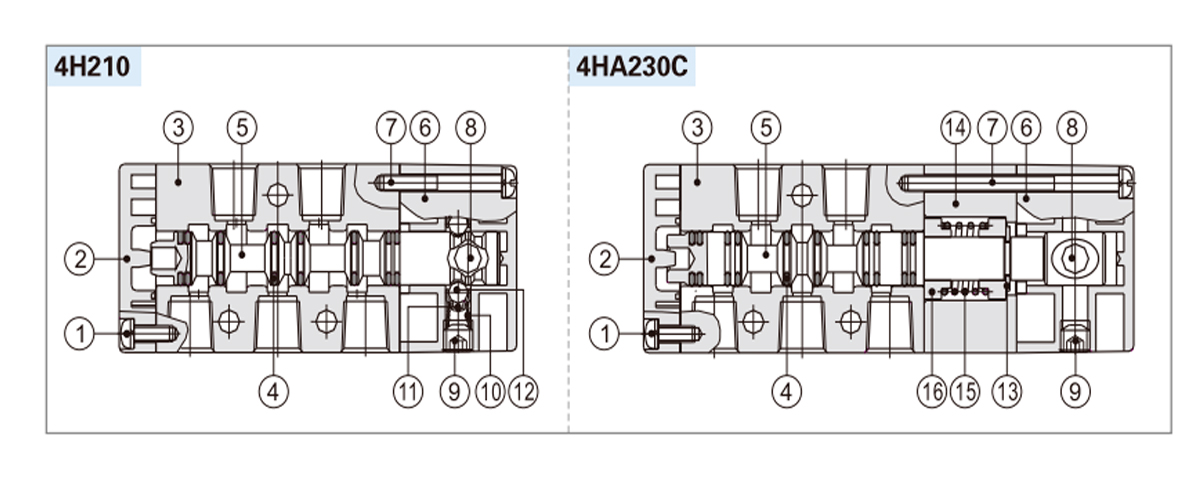

  • NO. Nomen NO. Nomen
    1 Phillips per caput ANISOCYCLUM 9 Hexagon nervum caput stop stupra
    2 Solum operimentum 10 Ver
    3 Corpus 11 Ball custodia
    4 O anulum 12 Ball
    5 Spool 13 E-ring
    6 Manually operated valvae top cover 14 Parte cover
    7 Phillips per caput ANISOCYCLUM 15 Ver
    8 hastile caput 16 Redi possessor

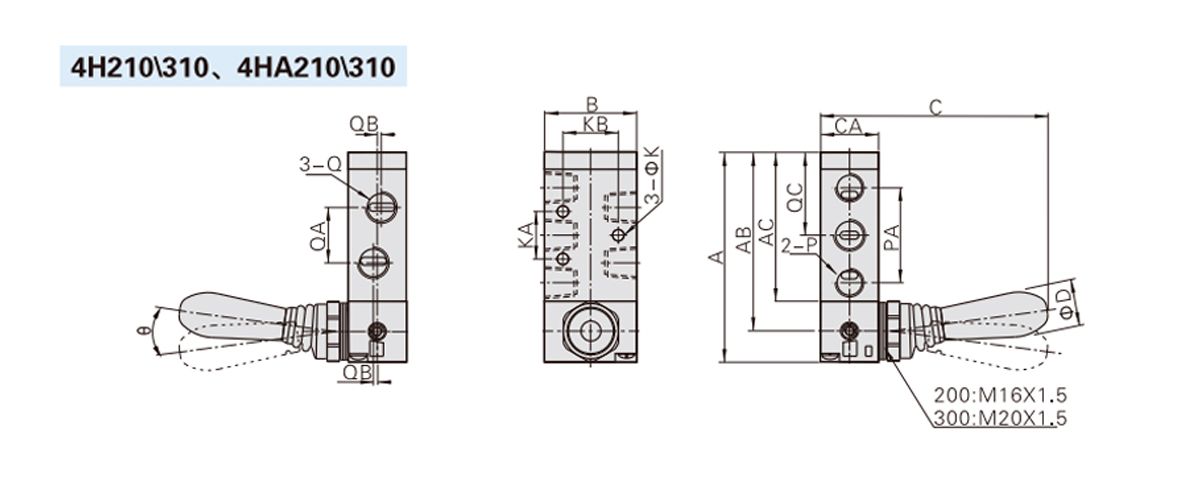

    Exemplar/Symbolum A AB*** AC B C CA D K KA KB P PA Q QA QB QC Θ
    4H210-06
    4HA210-06     		81.5 69.5 57.5 35 90 22 18 4.3 20 23.5 PT1/8 36 PT1/8 18 - 32.5 15
    4H210-08
    4HA210-08     		81.5 69.5 57.5 35 90 22 18 4.3 20 23.5 PT1/8 36 PT1/4 21 1.5 32.5 15
    4H310-08
    4HA310-08     		101 87 73 40 93.5 27 18 4.3 24 27.5 PT1/4 45 PT1/4 22 - 40.5 18
    4H310-10
    4HA310-10     		101 87 73 40 93.5 27 18 4.3 24 27.5 PT1/4 45 PT3/8 24 2 40.5 18

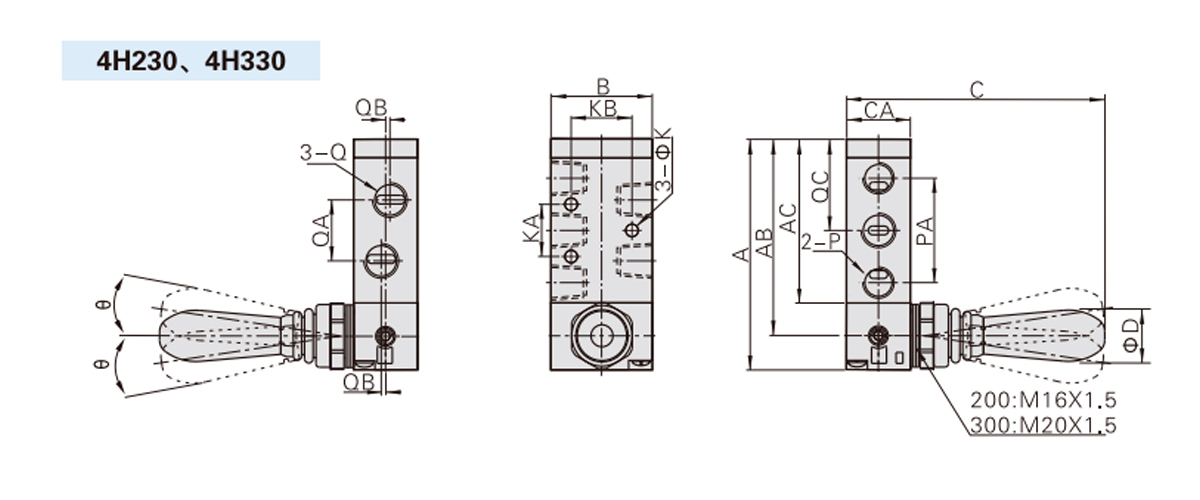

    Exemplar/Symbolum A AB*** AC B C CA D K KA KB P PA Q QA QB QC Θ
    4H230C-06
    4H230E-06     		81.5 69.5 57.5 35 90.5 22 18 4.3 20 23.5 PT1/8 36 PT1/8 18 - 32.5 8.5
    4H230C-08
    4H230E-08'     		81.5 69.5 57.5 35 90.5 22 18 4.3 20 23.5 PT1/8 36 PT1/4 21 1.5 32.5 8.5
    4H330C-08
    4H330E-08     		101 87 73 40 94 27 18 4.3 24 27.5 PT1/4 45 PT1/4 22 - 40.5 10
    4H330C-10
    4H330E-10     		101 87 73 40 94 27 18 4.3 24 27.5 PT1/4 45 PT3/8 24 2 40.5 10

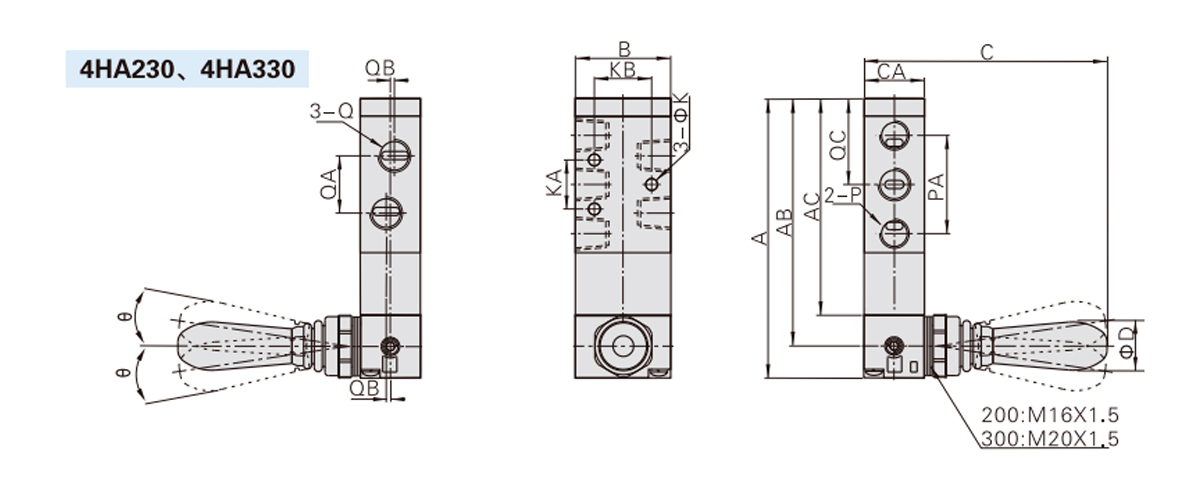

    Exemplar/Symbolum A AB*** AC B C CA D K KA KB P PA Q QA QB QC Θ
    4HA230C-06
    4HA230E-06     		100.5 88.5 76.5 35 90.5 22 18 4.3 20 23.5 PT1/8 36 PT1/8 18 - 32.5 8.5
    4HA230C-08
    4HA230E-08     		100.5 88.5 76.5 35 90.5 22 18 4.3 20 23.5 PT1/8 36 PT1/4 21 1.5 32.5 8.5
    4HA330C-08
    4HA330E-08     		120 106 92 40 94 27 18 4.3 24 27.5 PT1/4 45 PT1/4 22 - 40.5 10
    4HA330C-10
    4HA330E-10     		120 106 92 40 94 27 18 4.3 24 27.5 PT1/4 45 PT3/8 24 2 40.5 10
