1. Lux muta rotationis, Manus bona sentis, Positio accurata;
Magnae efficax fluunt area, parva pressura damnum;
3. Duo genera institutionum in promptu sunt: tabula et ima, tabula institutionis cum nucibus ascendendis.
| Vexillum Specification | ||||||
| Exemplar | 4HV2□□ -06(L) | 4HV2□□ -08(L) | 4HV3□□ -08(L) | 4HV3□□ -10(L) | 4HV4□□ -15(L) | 4HV4□□ -20(L) |
| Liquor | Aer (percolari per 40μm elementum colum) | |||||
| Actio | Manual imperium recta agendi genus | |||||
| Portus Location | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT1/2 | PT3/4 |
| Effective Sectionis Area | 14.0mm² (Cv=0.78) | 16.0mm² (Cv=0.89) | 30.0mm² (Cv=1.67) | 33.0mm² (Cv=1.83) | 88.0mm² (Cv=4.89) | 95.0mm² (Cv=5.27) |
| Position | 4 port 2 position、4 port 3 position | |||||
| Lubricatio | Non requiratur | |||||
| Operans Impetus dolor | 0~1.0MPa(0~145psi) | |||||
| Probatur Pressura | 1.5MPa(215psi) | |||||
| Operating Temperature | -20~70℃ | |||||
| Operans Anglus | 90°(45° si 4 port 3 position) | |||||

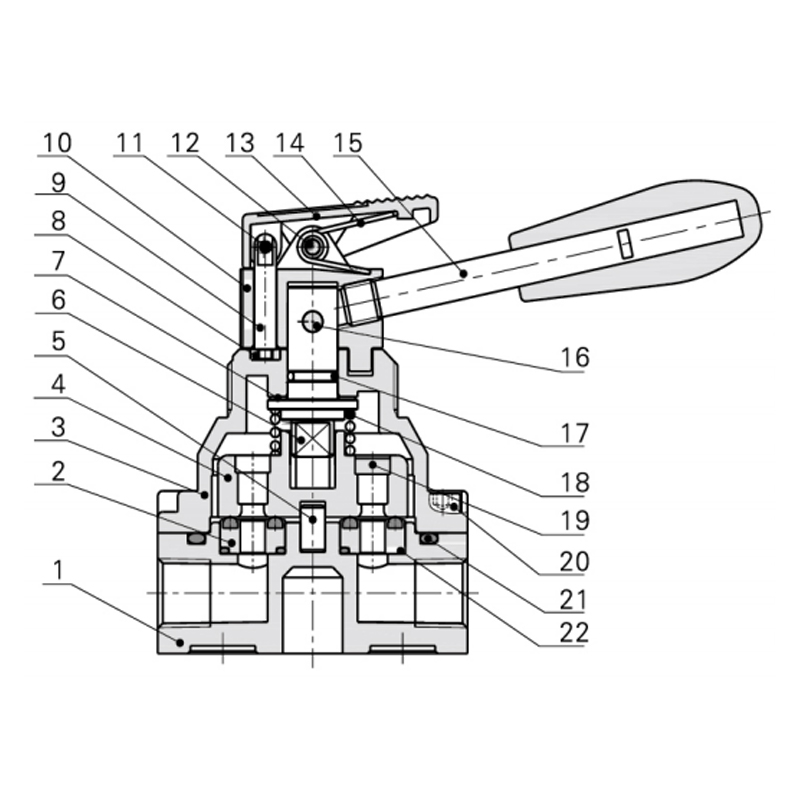

| Item | Model | Item | Model |
| 1 | Pelagus Corpus | 12 | Pin-1 |
| 2 | sigillum Base | 13 | Front Cover |
| 3 | Valvae Cover | 14 | Ver |
| 4 | Valvae Plug | 15 | Palpate |
| 5 | Columna Pin | 16 | Pin-2 |
| 6 | Shaft | 17 | Anulus hastile |
| 7 | elementum | 18 | Ver |
| 8 | Fixing Plate | 19 | Ferrum Plate |
| 9 | Cincinno Pin | 20 | Fixing Screw |
| 10 | Valvae Cap | 21 | Pelagus Corpus O-ring |
| 11 | Ver Pin | 22 | sigillum Base O-ring |

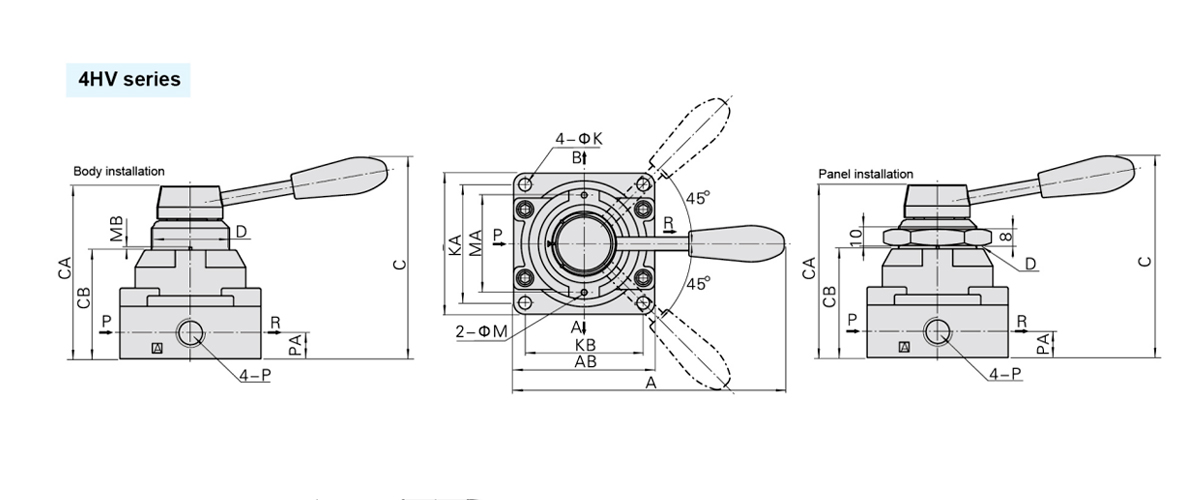

| Exemplar /Symbolum | A | AB** | B | C | CA | CB | D | K | KA | KB | M | MA | MB | P | PA |
| 4HV2□□-06 | 120 | 62 | 62 | 92.5 | 73 | 45 | M34×1.5 | 5.5 | 49 | 49 | 3 | 40 | 1.5 | PT1/8 | 11.5 |
| 4HV2□□-08 | 120 | 62 | 62 | 92.5 | 73 | 45 | M34×1.5 | 5.5 | 49 | 49 | 3 | 40 | 1.5 | PT1/4 | 11.5 |
| 4HV3□□-08 | 140 | 74 | 74 | 104 | 88.5 | 56 | M40×1.5 | 6.5 | 62 | 62 | 3 | 51 | 1.5 | PT1/4 | 13.5 |
| 4HV3□□-10 | 140 | 74 | 74 | 104 | 88.5 | 56 | M40×1.5 | 6.5 | 62 | 62 | 3 | 51 | 1.5 | PT3/8 | 13.5 |
| 4HV4□□-15 | 160 | 94 | 102 | 128 | 110 | 72 | M52×1.5 | 6.5 | 89 | 81 | 3 | 64 | 2 | PT1/2 | 18 |
| 4HV4□□-20 | 160 | 94 | 102 | 128 | 110 | 72 | M52×1.5 | 6.5 | 89 | 81 | 3 | 64 | 2 | PT3/4 | 18 |

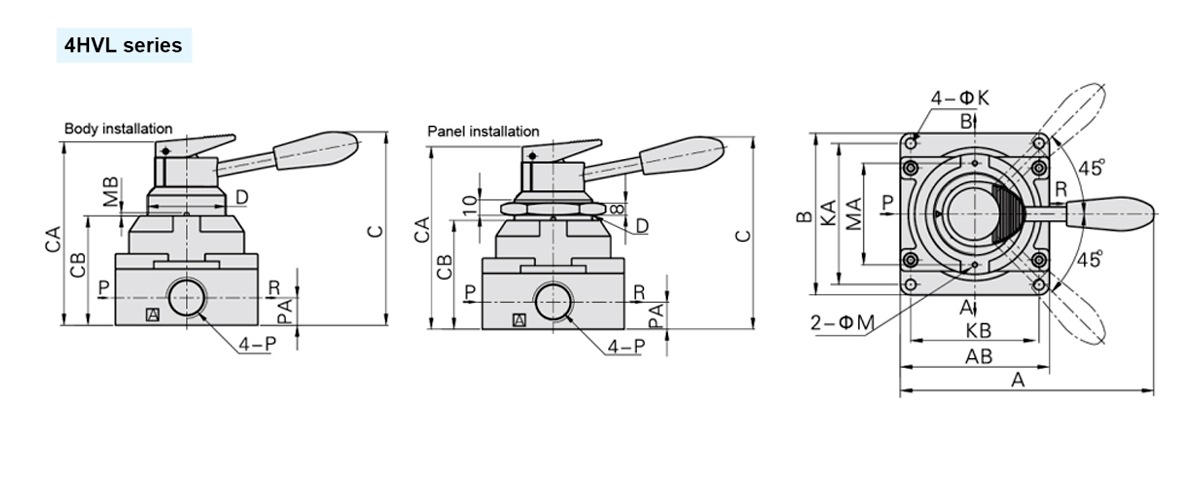

| Exemplar/Symbolum | A | AB** | B | C | CA | CB | D | K | KA | KB | M | MA | MB | P | PA |
| 4HV2□□-06L | 120 | 62 | 62 | 92.5 | 84 | 45 | M34×1.5 | 5.5 | 49 | 49 | 3 | 40 | 1.5 | PT1/8 | 11.5 |
| 4HV2□□-08L | 120 | 62 | 62 | 92.5 | 84 | 45 | M34×1.5 | 5.5 | 49 | 49 | 3 | 40 | 1.5 | PT1/4 | 11.5 |
| 4HV3□□-08L | 140 | 74 | 74 | 104 | 99 | 56 | M40×1.5 | 6.5 | 62 | 62 | 3 | 51 | 1.5 | PT1/4 | 13.5 |
| 4HV3□□-10L | 140 | 74 | 74 | 104 | 99 | 56 | M40×1.5 | 6.5 | 62 | 62 | 3 | 51 | 1.5 | PT3/8 | 13.5 |
| 4HV4□□-15L | 160 | 94 | 102 | 128 | 121 | 72 | M52×1.5 | 6.5 | 89 | 81 | 3 | 64 | 2 | PT1/2 | 18 |
| 4HV4□□-20L | 160 | 94 | 102 | 128 | 121 | 72 | M52×1.5 | 6.5 | 89 | 81 | 3 | 64 | 2 | PT3/4 | 18 |
