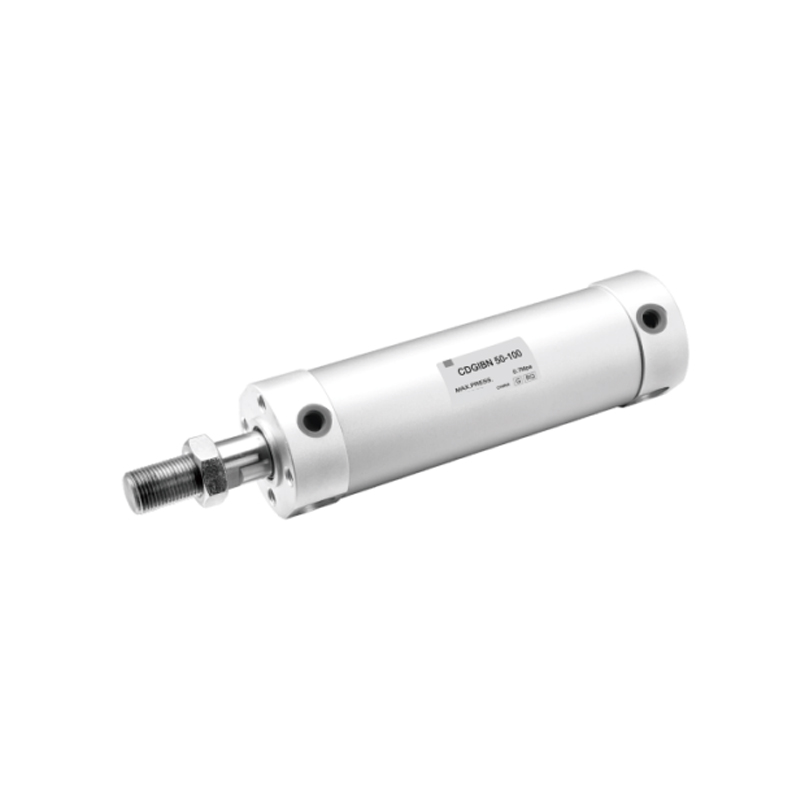

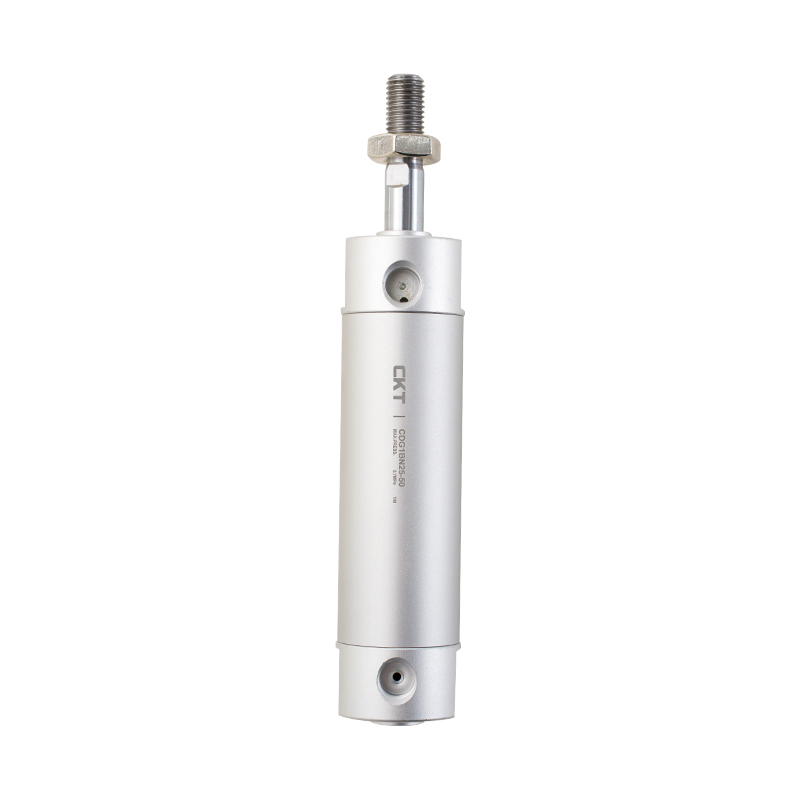

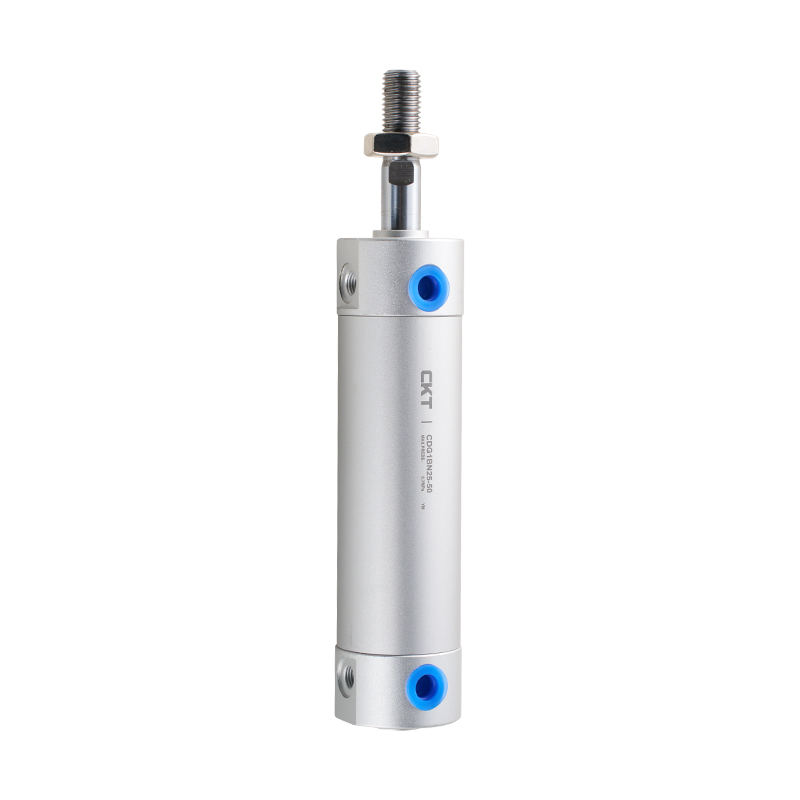

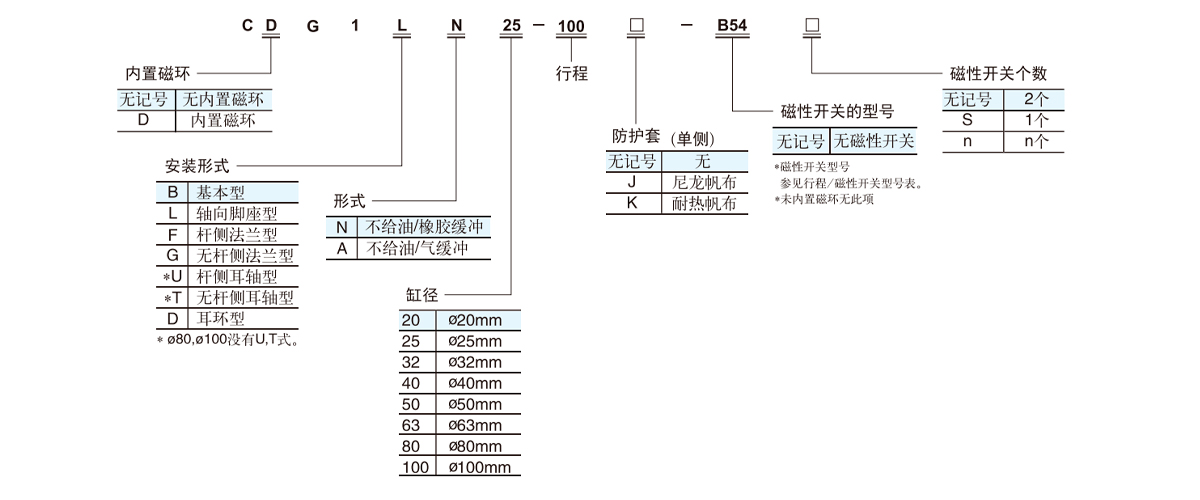

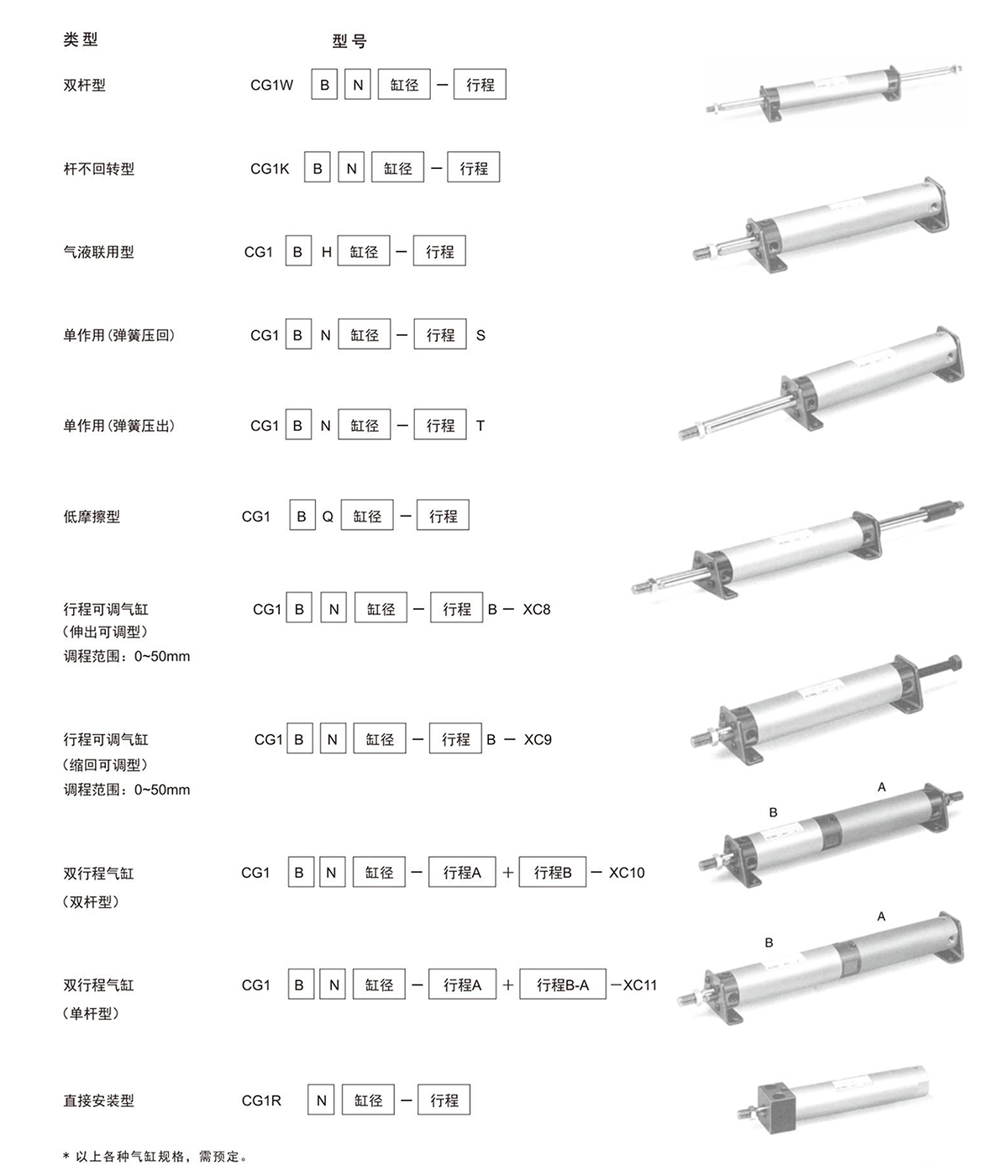

CG1 Series Single Rod Double Acting Light Cylinder

1. Opercula anteriora et posteriora instructa sunt pads anti- collisione fixa ad ictum cylindricum reducendum;
2. Cylindrus dolium et opercula antica et posteriora connexa sunt fila subtilitate ad signandum et firmitatem obtinendam;
3. Tegumentum anticum instructum est per se lubricantibus, nec additur lubricatio requiritur;
4. Varii formae institutionis praesto sunt clientibus eligendis, qui usui opportunus est;
5. Foramina institutionis utrinque sunt opercula anterior et posterior;
6. Aeris et Flexilis quiddam genera ad libitum.

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：Nessun articolo precedente
SUCCESSIVO：MI Series Steel Mini Cylinder
  • Diameter cylindricus (mm) 20 25 32 40 50 63 80 100
    Liquor usus est Air
    Modus operating Duplex agens
    Maximum operating pressura 1.0MPa
    Minimum operating pressura 0.05MPa
    Ambiens et fluidum temperatus Magnetic switch: -10°C ad 60°C
    Non magnetica switch: -10° C ad 70° C
    Celeritas Piston 50~1000mm/s 50~700mm/s
    Buffering Flexilis cushioning / cushioning caeli
    Longitudo patientia mm plaga ~1000:(0~ 1.4)
    ~1200:(0~ 1.8)     		~1000:(0~ 1.4)
    ~1500:(0~ 1.8)
    *Lubrication Non requiratur
    Nexus diameter Rc 1/8 1/8 1/8 1/8 1/4 1/4 3/8 1/2
    *Si unctionem exigitur, utere oleum Turbininum No. 1 ISOVG32.

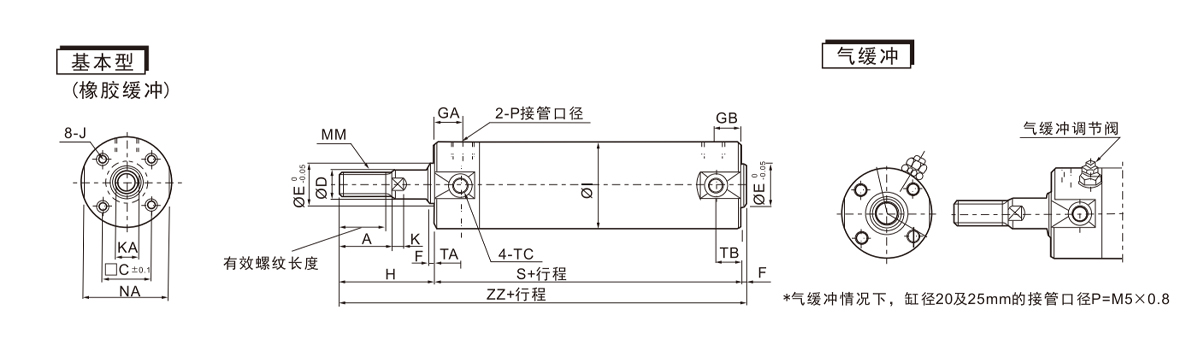

  • Diameter cylindricus (mm) Travel range (mm) Efficax longitudinem filum A C OD E F GA GB I J K KA MM NA P S TA TB TC H ZZ
    20 ~200 15.5 18 14 8 12 2 12 10 26 M4×0.7  Deep7 4 6 M8×1.25 24 *1/8 69 11 11 M5×0.8 35 106
    25 ~300 19.5 22 16.5 10 14 2 12 10 31 M5×0.8  Deep7.5 5.5 8 M10×1.25 29 *1/8 69 11 11 M6×0.75 40 111
    32 ~300 19.5 22 20 12 18 2 12 10 38 M5×0.8   Deep8 5.5 10 M10×1.25 35.5 1/8 71 11 10 M8×1.0 40 113
    40 ~300 27 30 26 16 25 2 13 10 47 M6×1  Deep12 6 14 M14×1.5 44 1/8 78 12 10 M10×1.25 50 130
    50 ~300 32 35 32 20 30 2 14 12 58 M8×1.25   Deep16 7 18 M18×1.5 55 1/4 90 13 12 M12×1.25 58 150
    63 ~300 32 35 38 20 32 2 14 12 72 M10×1.5   Deep16 7 18 M18×1.5 69 1/4 90 13 12 M14×1.5 58 150
    80 ~300 37 40 50 25 40 3 20 16 89 M10×1.5   Deep22 10 22 M22×1.5 80 3/8 108 - - 71 182
    100 ~300 37 40 60 30 50 3 20 16 110 M12×1.75   Deep22 10 26 M26×1.5 100 1/2 108 - - 71 182

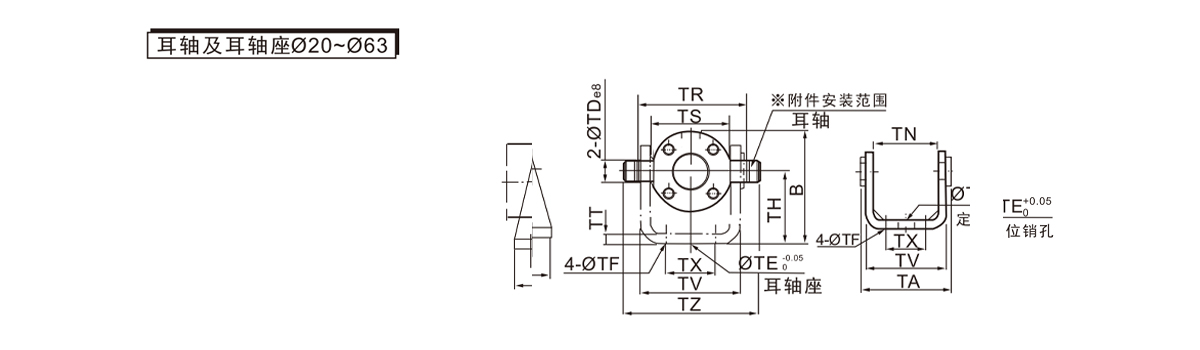

    Diameter cylindricus (mm) Auris axis Auris hastile sedem
    Pars numerus TDeB Pars numerus B TB TE TF TH TR TS TT TV TW TX TY TZ
    20 CG-T020 8 -0.025
    -0.047     		CG-020-24A 38 11 10 5.5 25 39 28 3.2 35.8 42 16 28 47.6
    25 CG-T025 10 -0.025
    -0.047     		CG-025-24A 45.5 11 10 5.5 30 43 33 3.2 39.8 42 20 28 53
    32 CG-T032 12 -0.032
    -0.059     		CG-032-24A 54 10 10 6.6 35 54.5 40 4.5 49.4 48 22 28 67.7
    40 CG-T040 14 -0.032
    -0.059     		CG-040-24A 63.5 10 10 6.6 40 65.5 49 4.5 58.4 56 30 30 78.7
    50 CG-T050 16 -0.032
    -0.059     		CG-050-24A 79 12 20 9 50 80 60 6 72.4 64 36 36 98.6
    63 CG-T063 18 -0.032
    -0.059     		CG-063-24A 96 12 20 11 60 98 74 8 90.4 74 46 46 119.2

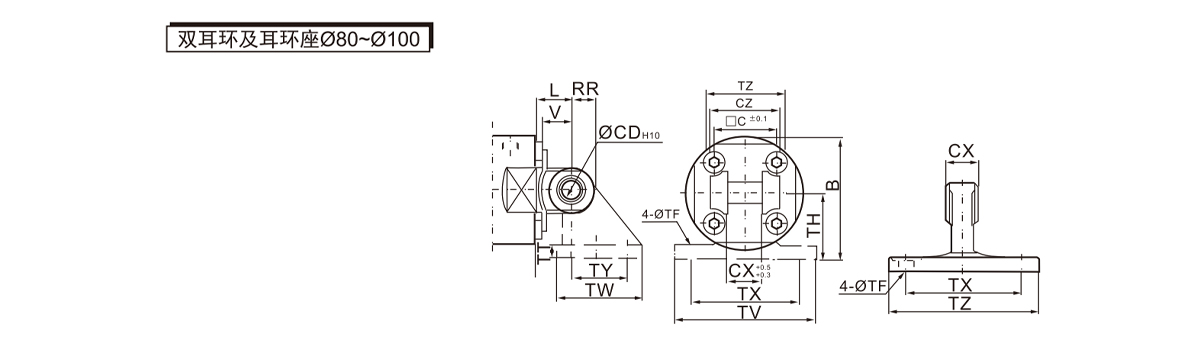

    Diameter cylindricus (mm) Duplex inaures inaures possessor
    Pars numerus ØCD H10 CX CZ L RR V Pars numerus TF TH TT TV TW TX TY TZ
    80 CG-D080 18 0.070
    0     		28 56 35 18 25 CG-080-24A 11 55 11 110 72 85 45 64
    100 CG-D100 22 0.084
    0     		32 64 43 20 31 CG-100-24A 13.5 65 12 130 93 100 60 72

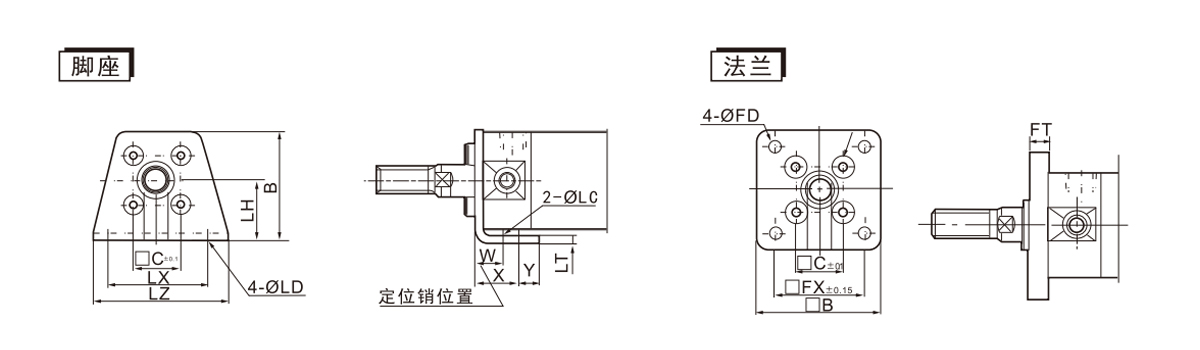

    Diameter cylindricus (mm) Footrest Flange
    Pars numerus LC LD LH LT LX LZ B W X Y Pars numerus B FX FD FT
    20 CG-L020 4 5.5 20 3 32 44 34 10 15 7 CG-F020 40 28 5.5 6
    25 CG-L025 4 5.5 22 3 36 49 38.5 10 15 7 CG-F025 44 32 5.5 7
    32 CG-L032 4 6.6 25 3 44 58 45 10 16 8 CG-F032 53 38 6.6 7
    40 CG-L040 4 6.6 30 3 54 71 54.5 10 16.5 9 CG-F040 61 46 6.6 8
    50 CG-L050 5 9 40 4.5 66 86 70.5 17.5 22 11 CG-F050 76 58 9 9
    63 CG-L063 5 11 45 4.5 82 106 82.5 17.5 22 13 CG-F063 92 70 11 9
    80 CG-L080 6 11 55 4.5 100 125 101 20 28.5 14 CG-F080 104 82 11 11
    100 CG-L100 6 14 65 6 120 150 121 20 30 16 CG-F100 128 100 14 14

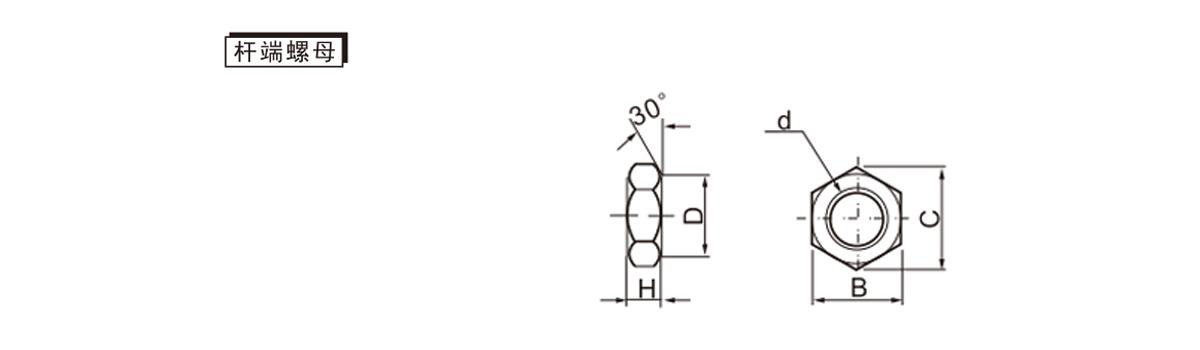

    Diameter cylindricus (mm) Virga finis nut
    Pars numerus d H B C D
    20 NT-02 M8×1.25 5 13 15 12.5
    2,532 NT-03 M10×1.25 6 17 19.6 16.5
    40 NT-G04 M14×1.5 8 19 (21.9) 18
    5,063 NT-G05 M18×1.5 11 24 (27.7) 23
    80 NT-08 M22×1.5 13 32 (37.0) 31
    100 NT-10 M26×1.5 16 41 (47.3) 39

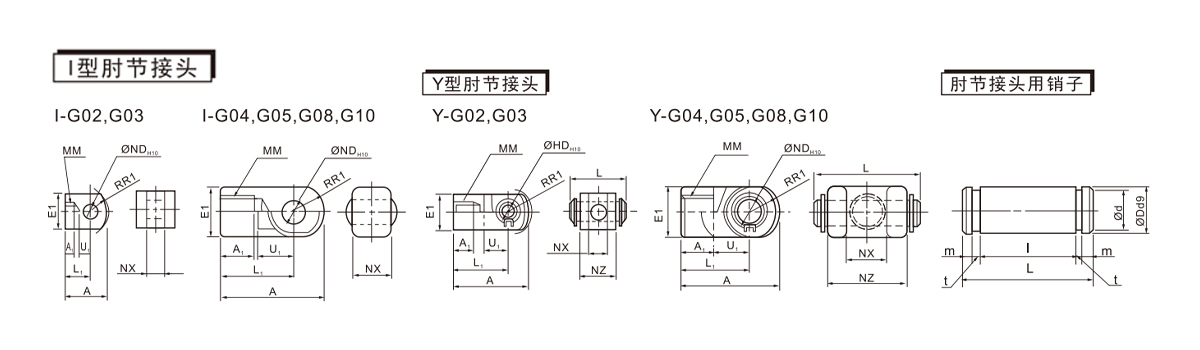

    Diameter cylindricus (mm) Typus I Cubitus felis Y-genus iuncturam cubiti iungo Articulatio cubiti pin
    Pars numerus A A1 E1 L1 MM RR1 U1 ND H10 NX Pars numerus A A1 E1 L1 MM RR1 U1 ND H10 NX NL L Pars numerus Dd9 L od I m t
    20 I-G02 34 8.5 16 25 M8×125 10.3 11.5 8 0.058
    0     		8 -0.2
    -0.4     		Y-G02 34 8.5 16 25 M8×125 10.3 11.5 8 0.058
    0     		8 0.4
    0.2     		16 21 IY-G02 8 0.040
    0.076     		21 7.6 16.2 1.5 0.9
    25,32 I-G03 41 10.5 □20 30 M10×125 12.8 14 10 0.058
    0     		10 -0.2
    -0.4     		Y-G03 41 10.5 20 30 M10×125 12.8 14 10 0.058
    0     		10 0.4
    0.2     		20 25.6 IY-G03 10 0.040
    0.076     		25.6 9.6 20.2 1.55 1.15
    40 I-G04 42 14 Ø20 30 M14×1.5 12 14 10 0.058
    0     		18 -0.3
    -0.5     		Y-G04 42 16 φ20 30 M14×1.5 12 14 10 0.058
    0     		18 0.5
    0.3     		36 41.6 Y-G04 10 0.040
    0.076     		41.6 9.6 36.2 1.55 1.15
    50,53 I-G05 56 18 28 40 M18×1.5 16 20 14 0.070
    0     		22 -0.3
    -0.5     		Y-G05 56 20 φ28 40 M18×1.5 16 20 14 0.070
    0     		22 0.5
    0.3     		44 50.6 IY-G05 14 0.050
    0.093     		50.6 13.4 44.2 2.05 1.15
    80 I-G08 71 21 38 50 M22×1.5 21 27 18 0.070
    0     		28 -0.3
    -0.5     		Y-G08 71 23 φ38 50 M22×1.5 21 27 18 0.070
    0     		28 0.5
    0.3     		56 64 IY-G08 18 0.050
    0.093     		64 17 56.2 2.55 1.35
    100 I-G10 79 21 44 55 M26×1.5 24 31 22 0.084
    0     		32 -0.3
    -0.5     		Y-G10 79 24 φ44 55 M26×1.5 24 31 22 0.084
    0     		32 0.5
    0.3     		64 72 IY-G10 22 0.055
    0.177     		72 21 64.2 2.55 1.35
    * Fibulae ad iuncturas cubiti Ø80 et Ø100 cylindrorum adhibitae eadem sunt quae anulis aureis duplicibus adhibitae.
