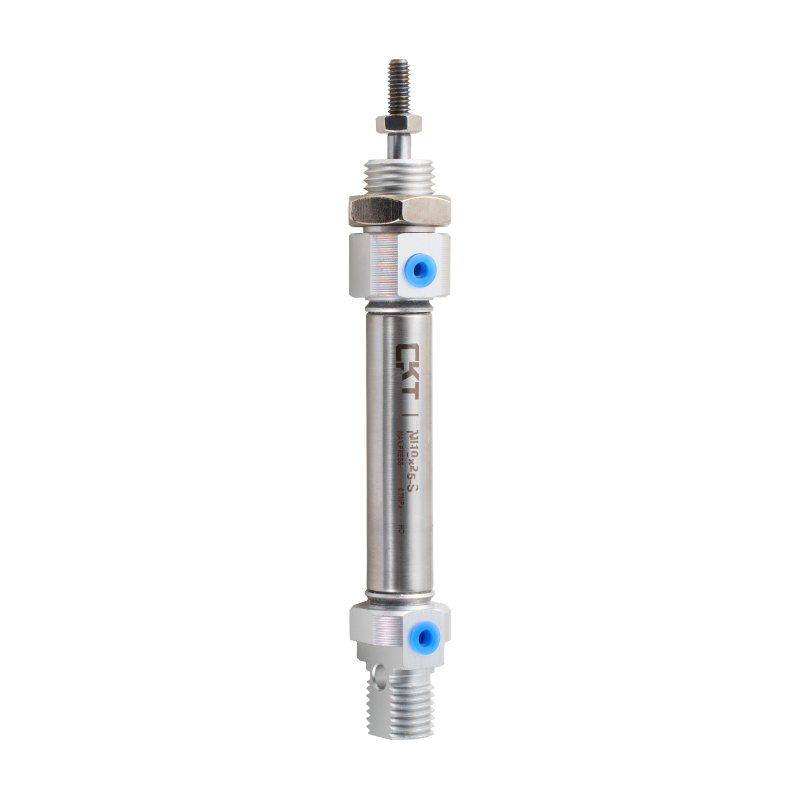

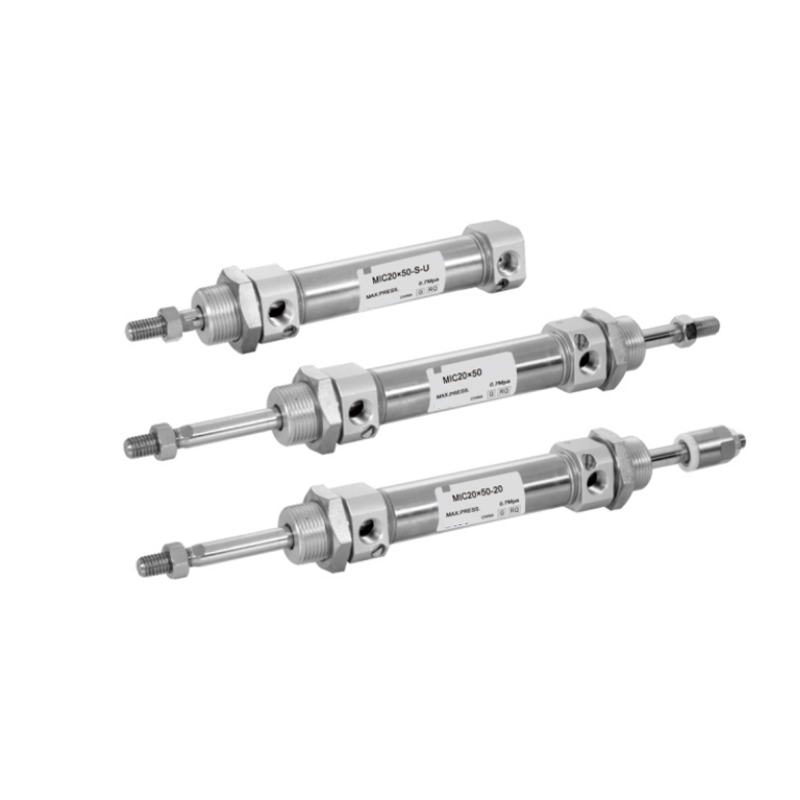

MI Series Steel Mini Cylinder

1. Opercula anteriora et posteriora instructa sunt pads anti- collisione fixa ad ictum cylindricum reducendum;
2. Variae tegumentis posterioris typi cylindrici institutionem commodiorem faciunt;
3. A fronte et a tergo tegit et intemerata ferro corpus amplectitur, adfixa volvens compages, quae certa est in nexu;
4. Cylindrus corpus ex ferro immaculatum, ita ut cylindrus ad ambitus mordax generatim operando accommodare possit;
5. Cylindri variarum specierum et cylindrici institutionis accessiones praesto sunt pro clientibus ad eligendum e.

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：CG1 Series Single Rod Double Acting Light Cylinder
SUCCESSIVO：MAL Series Aluminium Alloy Mini Cylinder

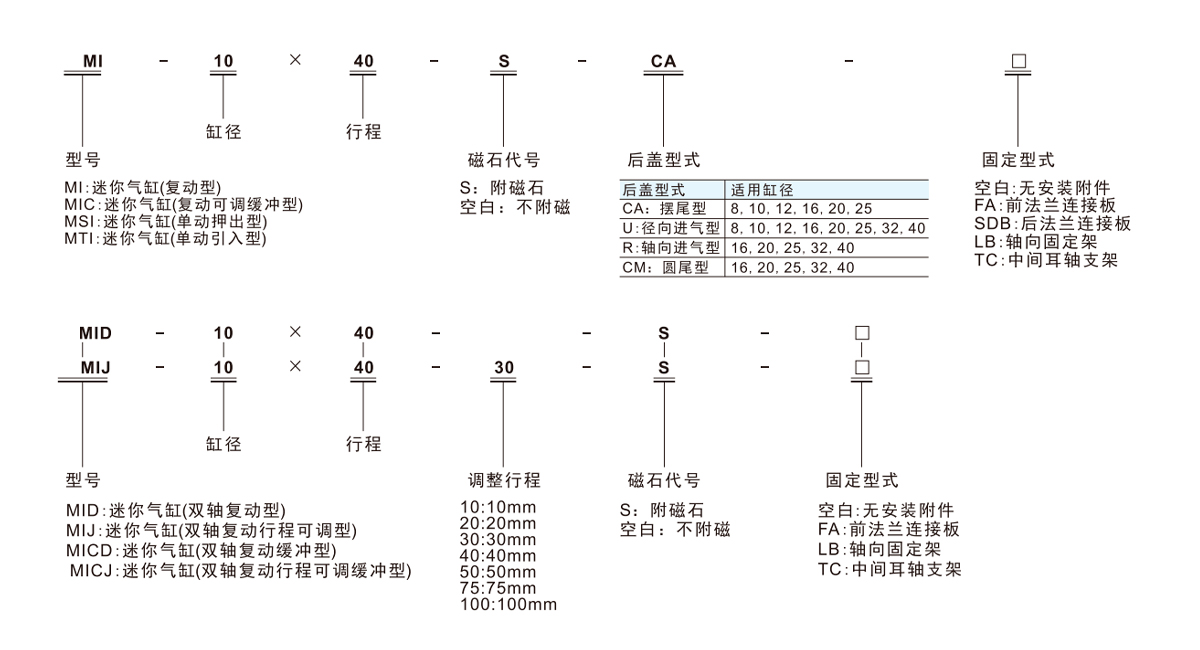

  • Diameter interior (mm) 8 10 12 16 20 25 32 40
    Genus actio Duplex agens genus, unum agens extrusionem generis, unius agendi genus introductio
    - Duplex agendi genus cushioning
    medium opus Air
    Operans pressura range Duplex agendi genus 0.1~1.0MPa(14~145Psi)
    Una agendi genus 0.2~1.0MPa(28~145Psi)
    Guaranteed pressura resistentia 1.5MPa (215Psi)
    Operans temperatus range °C -20~70
    Celeritas range operating Duplex agendi genus: 30–800
    Una agendi genus: 50–800
    Iter tolerantia range 0~ 150(0~ 1.0)    >150 14(0~ 1.0)
    Genus quiddam mic series: Adjustable cushioning;
    Alia series: pads anti-concursus
    Donec diam M5×0.8 PT1/8 PT1/4

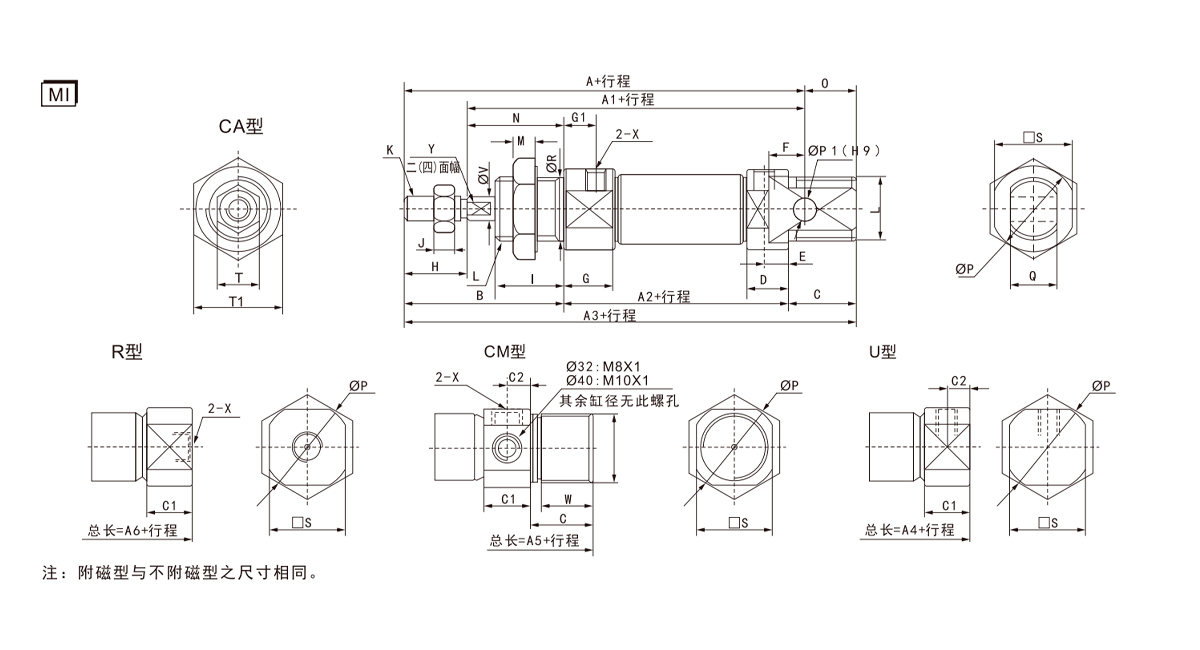

  • Diameter Cylindrus/Symbolumumum A A1 A2 A3 A4 A5 A6 B C C1 C2 D E F G G1 H I
    8 76 64 46 86 74 - - 28 12 9.5 5 9.5 5 6 11.5 7 12 12
    10 76 64 46 86 74 - - 28 12 9.5 5 9.5 5 6 11.5 7 12 12
    12 91 75 50 105 88 - - 38 17 10.5 6 10.5 6 9 12.5 8 16 17
    16 98 82 56 111 94 111 94 38 17 10.5 6 10.5 6 9 12.5 8 16 17
    20 115 95 62 126 106 126 106 44 20 14.5 7.5 14.5 7.5 12 14.5 7.5 20 20
    25 1256 104 65 137 114.5 137 115 50 22 16 8 16 8 12 16 8 22 22
    32 - - - - 125 140 126 58 14 16.5 9 - - - 16.5 9 20 30
    40 - - - - 158 174 158 69 16 22 12 - - - 22 12 24 35

    Diameter Cylindrus/Symbolumumum J K L M N 0 P P1 Q R S T T1 X V W Y
    8 2.2 M4×0.7 M12×1.25 6 16 10 17 4 8 12 15 7 17 M5×0.8 4 - -
    10 2.2 M4×0.7 M12×1.25 6 16 10 17 4 8 12 15 7 17 M5×0.8 4 - -
    12 5 M6×1.0 M16×1.5 6 22 14 20 6 12 16 18 10 22 M5×0.8 6 - 5
    16 5 M6×1.0 M16×1.5 6 22 13 22 6 12 16 20 10 22 M5×0.8 6 13.5 5
    20 6 M8×1.25 M22×1.5 7 24 11 29 8 16 22 25 12 29 PT1/8 8 16.5 6
    25 6 M10×1.25 M22×1.5 7 28 11 33.5 8 16 22 30 17 29 PT1/8 10 18.5 8
    32 6 M10×1.25 M30×1.5 7 38 - 37.5 - - 30 34.5 17 36 PT1/8 12 10.5 10
    40 7 M12×1.25 M38×1.5 8 45 - 46.5 - - 38 42.5 17 46 PT1/4 16 12.5 14

    Diameter Cylindrus/Symbolumumum A A1 A2 A3 A4 A5 B C D D1 D2 D3 E F G G1 G2
    16 98 82 56 111 94 111 38 17 12.1 7 9 12.1 6 9 12.5 7.5 9.5
    20 115 95 62 126 106 126 44 20 14.5 7.5 10.5 14.5 8 12 14.5 7.5 10.5
    25 126 104 65 137 113.5 137 50 22 16 8 10.5 14.5 8 12 16 8 12

    Diameter Cylindrus/Symbolumumum H
    I     		J K L M N 0 P Q R S T T1 V W X
    16 16 17 5 M6×1.0 M16×1.5 6 22 13 22 12 5 20 10 22 6 13.5 M5×0.8
    20 20 20 6 M8×1.25 M22×1.5 7 24 11 29 16 6 25 12 29 8 16.5 PT1/8
    25 22 22 6 M10×1.25 M22×1.5 7 28 11 33.5 16 8 30 17 29 10 18.5 PT1/8

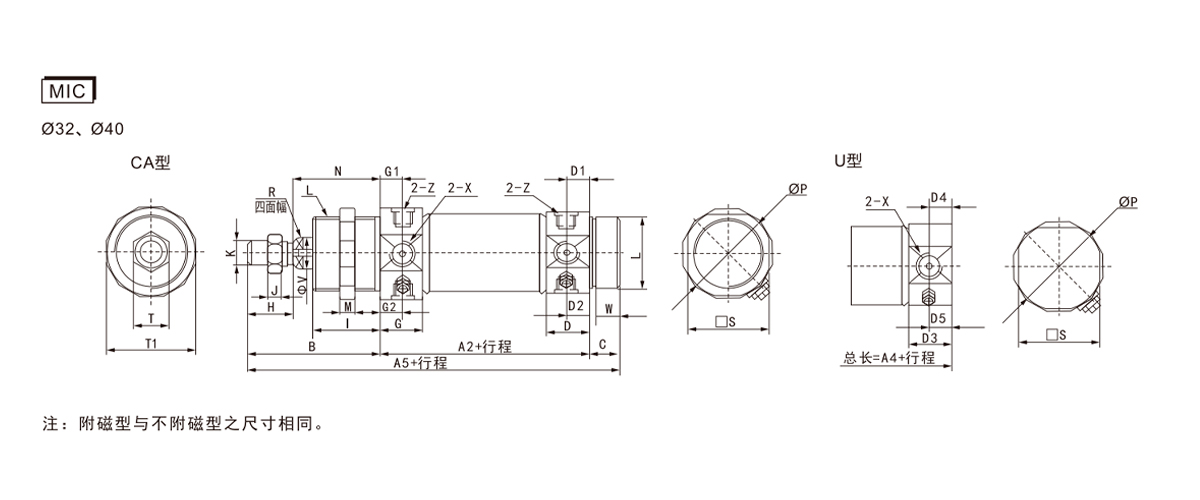

    Diameter Cylindrus/Symbolumumum A2 A4 A5 B C D D1 D2 D3 D4 D5 G G1 G2 H I J K
    32 68 124 140 58 14 16.5 9 11.5 14.5 7.5 11 16.5 9 11.8 20 30 6 M10×1.25
    40 89 157.5 174 69 16 22 12 12 21.5 11.5 14 22 12 12 24 35 7 M12×1.25

    Diameter Cylindrus/Symbolumumum L M N P S T T1 V W X
    32 M30×1.5 7 38 17.5 34.5 17 36 12 10.5 PT1/8
    40 M38×1.5 8 45 46.5 42.5 17 46 16 12.5 PT1/4

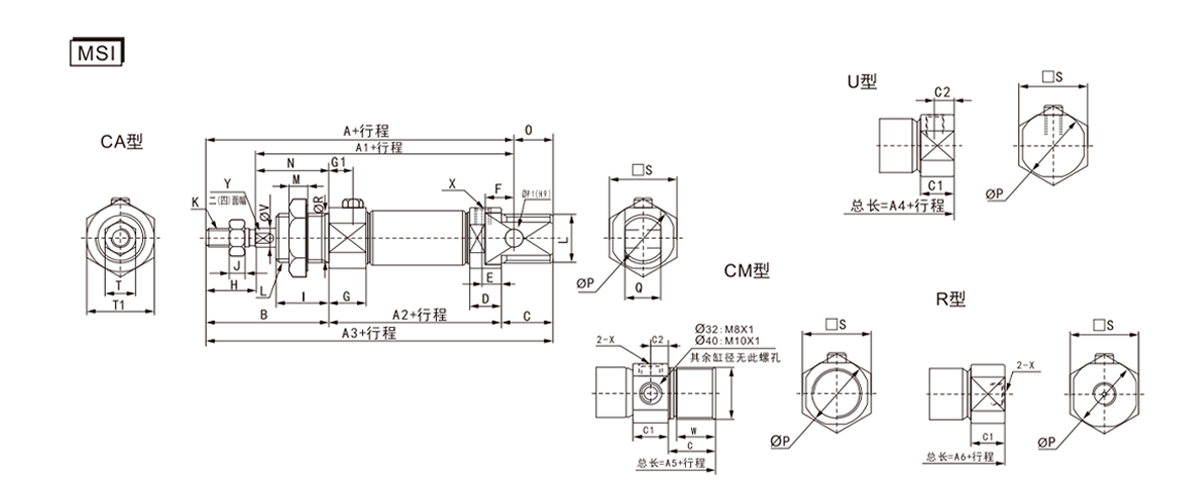

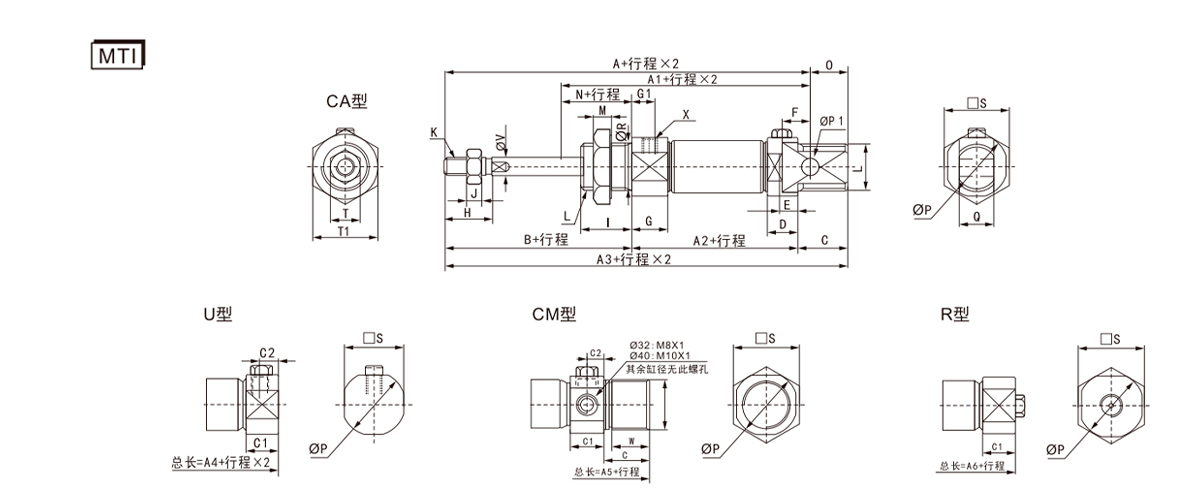

    Symbol A A1 A2 A3 A4
    Diameter Cylindrus / Stroke 0~50 51~100 101~150 0~50 51~100 101~150 0~50 51~100 101~150 0~50 51~100 101~150 0~50 51~100 101~150
    8 101 - 89 - - 71 - - 111 - - 99 - -
    10 101 - - 89 - - 71 - - 111 - - 99 - -
    12 116 - - 100 - - 75 - - 130 - - 113 - -
    16 123 148 - 107 132 - 81 106 - 136 161 - 119 144 -
    20 140 165 190 120 145 170 87 112 137 151 176 201 131 156 181
    25 151 176 201 129 154 179 90 115 140 162 187 212 139.5 164.5 189.5
    32 - - - - - - - - - - - 150 175 200
    40 - - - - - - - - - - - 183 208 233

    Symbol A5 A6 B C C1 C2 D E F G G1 H I J
    Diameter Cylindrus / Stroke 0~50 51~100 101~150 0~50 51~100 101~150
    8 - - - - - - 28 12 9.5 5 9.5 5 6 11.5 7 12 12 2.2
    10 - - - - 28 12 9.5 5 9.5 5 6 11.5 7 12 12 2.2
    12 - - - - - 38 17 10.5 6 10.5 6 9 12.5 8 16 17 5
    16 136 161 - 119 144 - 38 17 10.5 6 10.5 6 9 12.5 8 16 17 5
    20 151 176 201 131 156 181 44 20 14.5 7.5 14.5 7.5 12 14.5 7.5 20 20 6
    25 162 187 212 140 165 190 50 22 16 8 16 8 12 16 8 22 22 6
    32 165 190 215 151 176 201 58 14 16.5 9 - - - 16.5 9 20 30 6
    40 199 224 249 183 208 233 69 16 22 12 - - - 22 12 24 35 7

    Diameter Cylindrus/Symbolumumum K L M N O P P1 Q R S T T1 X V W Y
    8 M4×0.7 M12×1.25 6 16 10 17 4 8 12 15 7 17 M5×0.8 4 -
    10 M4×0.7 M12×1.25 6 16 10 17 4 8 12 15 7 17 M5×0.8 4 - -
    12 M6×1.0 M16×1.5 6 22 14 20 6 12 16 18 10 22 M5×0.8 6 - 5
    16 M6×1.0 M16×1.5 6 22 13 20 6 12 16 20 10 22 M5×0.8 6 13.5 5
    20 M8×1.25 M22×1.5 7 24 11 29 8 16 22 25 12 29 PT1/8 8 16.5 6
    25 M10×1.25 M22×1.5 7 28 11 33.5 8 16 22 30 17 29 PT1/8 10 18.5 8
    32 M10×1.25 M30×1.5 7 38 - 37.5 - - 30 34.5 17 36 PT1/8 12 10.5 10
    40 M10×1.25 M38×1.5 8 45 - 46.5 - - 38 42.5 17 46 PT1/4 16 12.5 14

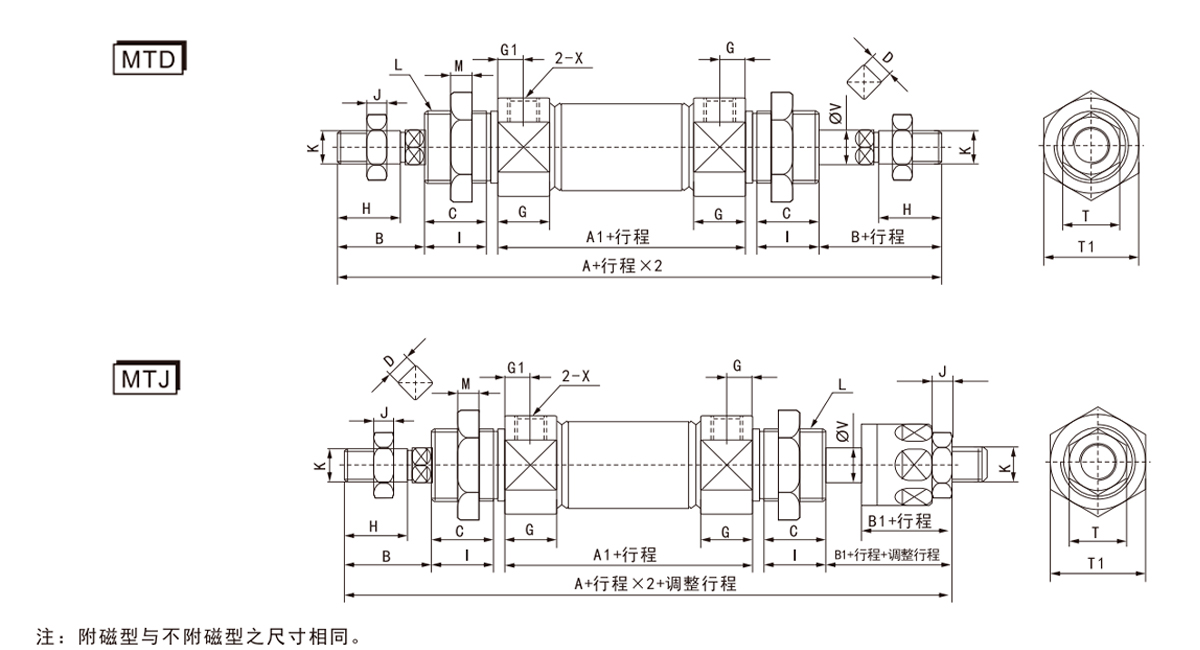

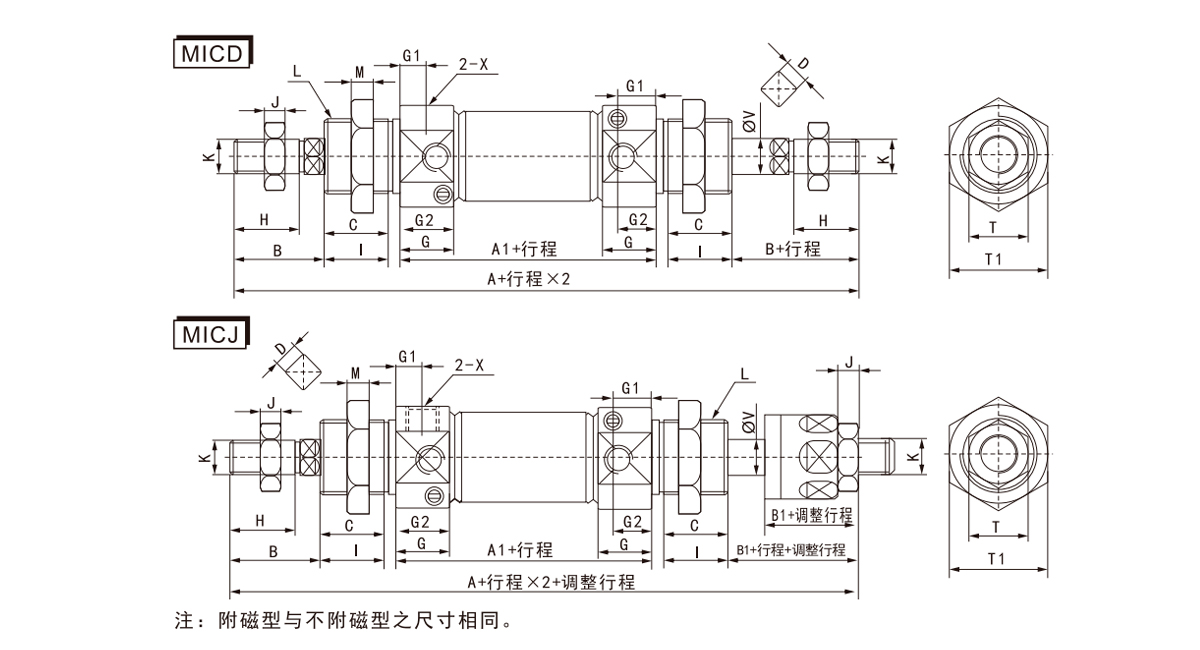

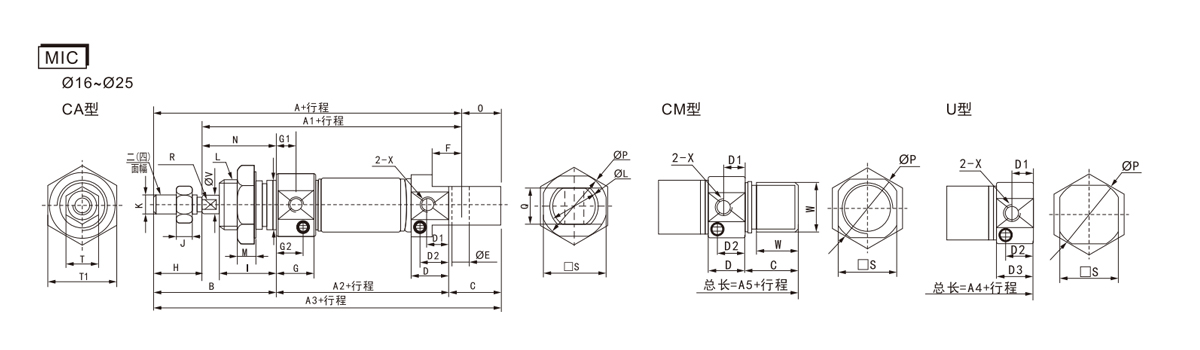

    Diameter Cylindrus/Symbolumumum A A1 A2 B B1 C D G G1 H 1 J K L M T T1 V X
    8 104 48 102.7 16 14.7 9.5 - 11.5 7 10.5 12 2.2 M4×0.7 M12×1.25 6 7 17 4 M5×0.8
    10 104 48 102.7 16 14.7 9.5 - 11.5 7 10.5 12 2.2 M4×0.7 M12×1.25 6 7 17 4 M5×0.8
    12 128 52 128 21 21 14.5 5 12.5 8 14 17 5 M6×1.0 M16×1.5 6 10 22 6 M5×0.8
    16 134 58 134 21 21 13.5 5 12.5 8 14.5 17 5 M6×1.0 M16×1.5 6 10 22 6 M5×0.8
    20 150 62 151 24 25 16.5 6 (duae partes) 14.5 7.5 18 20 6 M8×1.25 M22×1.5 7 12 29 8 PT1/8
    25 165 65 164 28 27 18.5 VIII (quadringenta) 16 8 20.5 22 6 M10×1.25 M22×1.5 7 17 29 10 PT1/8
    32 184 68 183 28 27 26.5 X (quadringenta) 16.5 9 17.5 30 6 M10×1.25 M30×1.5 7 17 36 12 PT1/8
    40 227 89 221 34 28 31.5 XIV (quadringenta) 22 12 21 35 7 M10×1.25 M38×1.5 8 17 46 16 PT1/4

    Symbolum/Cylindri diameter 16 20 25 32 40
    A 132.4 150 165 184 227
    A1 56.4 62 65 68 89
    A2 132.4 151 164 183 221
    B 21 24 28 28 34
    B1 21 25 27 27 28
    C 13.5 16.5 18.5 26.5 31.5
    D 5 6 (duae partes) VIII (quadringenta) X (quadringenta) XIV (quadringenta)
    G 12.5 14.5 16 16.5 22
    G1 7.5 7.5 8 9 12
    G2 9.5 10.5 12 11.8 12
    H 14.5 18 20.5 17.5 21
    I 17 20 22 30 35
    J 5 6 6 9 7
    K M6×1 M8×1.25 M10×1.25 M10×1.25 M12×1.25
    L M16×1.5 M22×1.5 M22×1.5 M30×1.5 M38×1.5
    M 6 7 7 7 8
    T 10 12 17 17 17
    T1 22 29 29 36 46
    V 6 8 10 12 16
    X M5×0.8 PT1/8 PT1/8 PT1/8 PT1/8

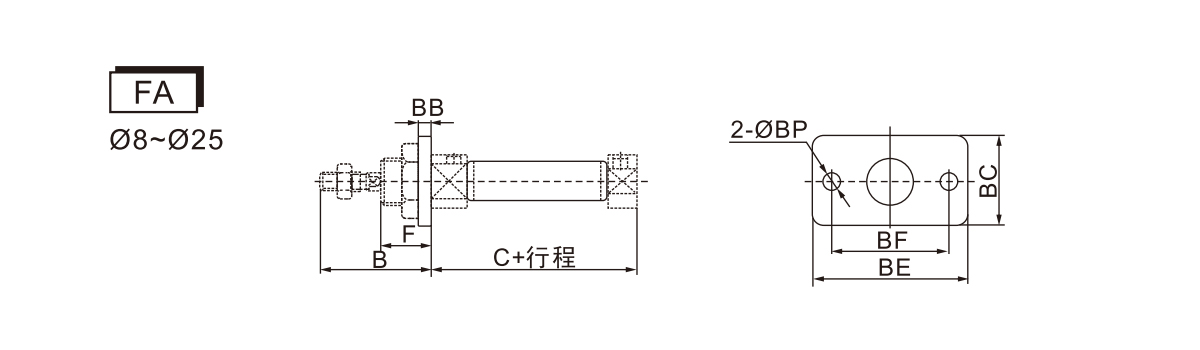

    Symbolum/Cylindri diameter 8 10 12 16 20 25
    B 28 28 38 38 44 50
    C 46 46 50 56 62 65
    BB 3 3 4 4 5 5
    BC 22 22 30 30 40 40
    BE 40 40 52 52 66 66
    BF 30 30 40 40 50 50
    BP 4.5 4.5 5.5 5.5 6.6 6.6
    F 12 12 17 17 20 22

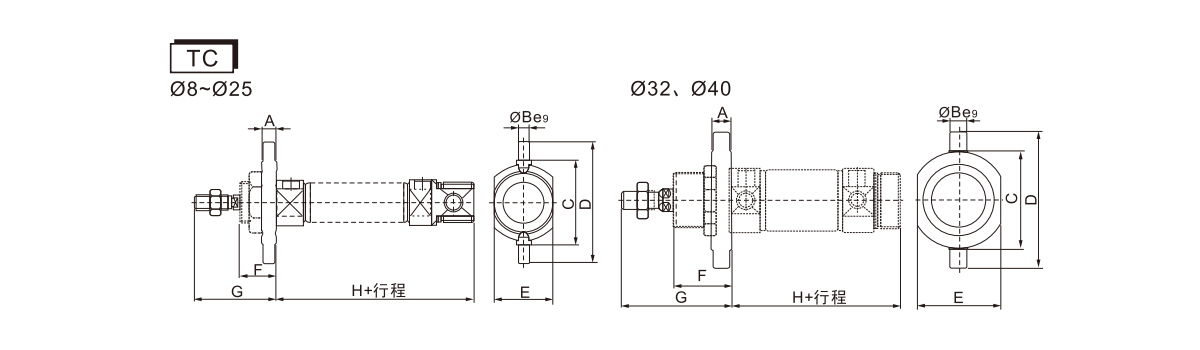

    Symbolum/Cylindri diameter 8 10 12 16 20 25 32 40
    A 6 6 8 8 8 8 11 12
    B 4 4 6 6 6 6 9 10
    C 26 26 38 38 46 46 54 64
    D 38 38 58 58 66 66 74 84
    E 20 20 25 25 32 32 45 55
    F 12 12 17 17 20 22 30 35
    G 28 28 38 38 44 50 58 69
    H 58 58 67 73 82 87 82 101

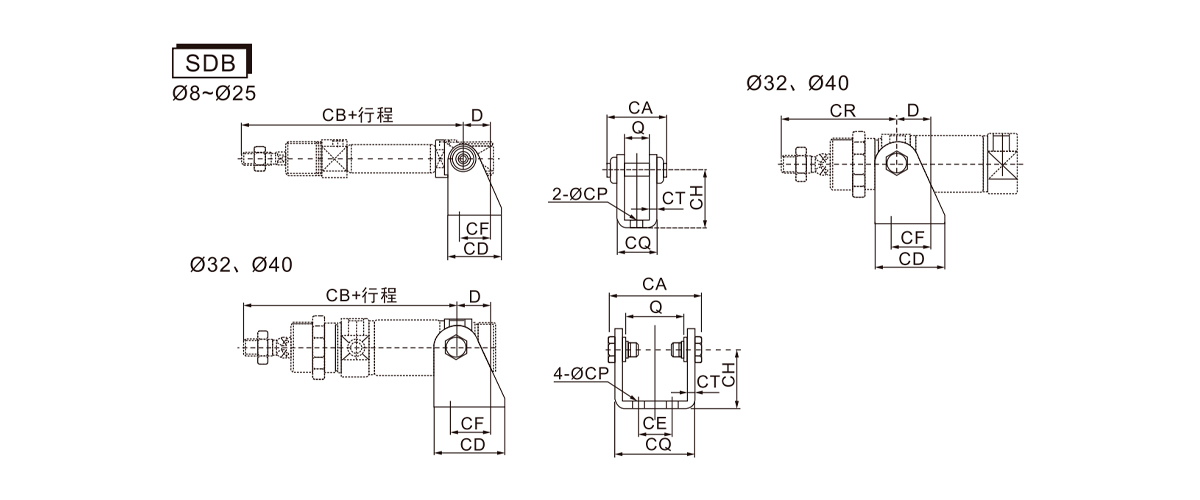

    Symbolum/Cylindri diameter 8 10 12 16 20 25 32 40
    D 11 11 13 13 16 16 20 27
    Q 8.1 8.1 12.1 12.1 16.1 16.1 34.6 42.6
    CA 18.4 18.4 28 28 38 38 55.6 69.6
    CB 76 76 91 98 115 126 117 146
    CD 20 20 25 25 32 32 41 52
    CE - - - - - - 20 28
    CF 12.5 12.5 15 15 20 20 24 30
    CH* 24 24 27 27 30 30 35 40
    CP 4.5 4.5 5.5 5.5 6.6 6.6 7 9
    CQ* 13.1 13.1 18.1 18.1 24.1 24.1 46.6 58.6
    CT 2.5 2.5 3 3 4 4 4 5
    CR - - - - - - 67 81

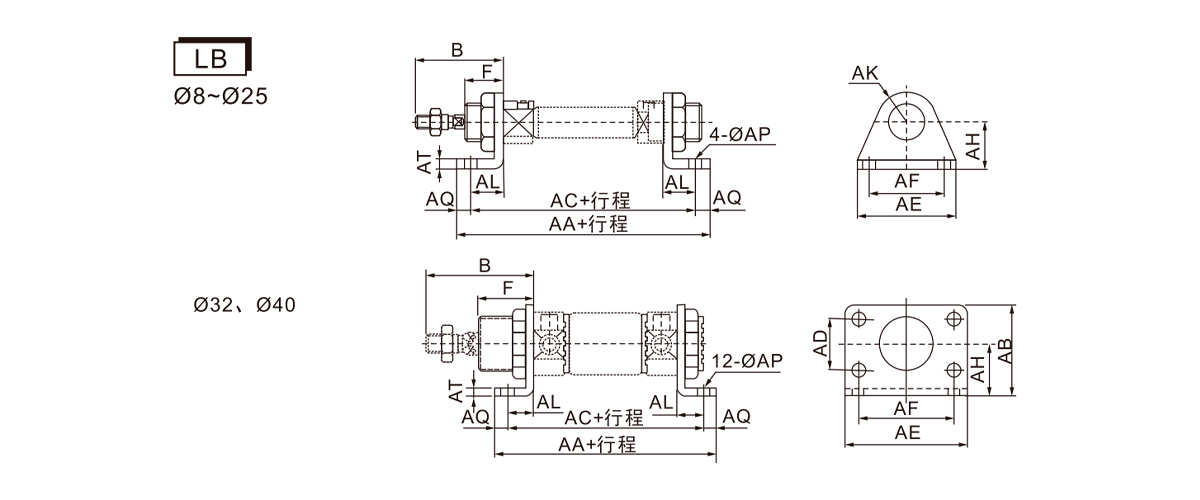

    Symbolum/Cylindri diameter 8 10 12 16 20 25 32 40
    B 28 28 38 38 44 50 58 69
    F 12 12 17 17 20 22 30 35
    AA 78 78 90 96 112 115 110 149
    AB* - - - - - - 49 58
    AC 68 68 78 84 96 99 96 129
    AD - - - - - - 28 30
    AE* 35 35 42 42 54 54 66 80
    AF* 25 25 32 32 40 40 52 60
    AH 16 16 20 20 25 25 28 33
    AK 10 10 13 13 20 20 - -
    AL* 11 11 14 14 17 17 14 20
    AP 4.5 4.5 5.5 5.5 6.6 6.6 7 9
    AQ^ 5 5 6 6 8 8 7 10
    AT 3 3 4 4 5 5 4 5
