CM2 Series Steel Mini Cylinder (Double Acting) Fornitores

Home / Products / Air Cylindri / Mini Cylinder / CM2 Series Steel Mini Cylinder (Double Acting)

CM2 Series Steel Mini Cylinder (Double Acting) CM2 Series Steel Mini Cylinder (Double Acting)
  • CM2 Series Steel Mini Cylinder (Double Acting)
  • CM2 Series Steel Mini Cylinder (Double Acting)
Mini Cylinder

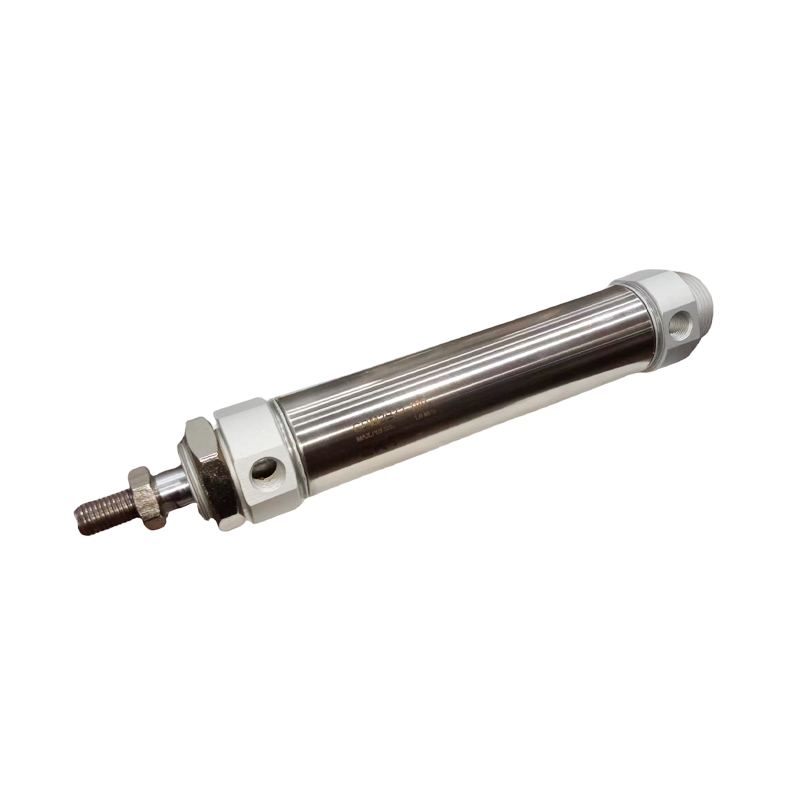

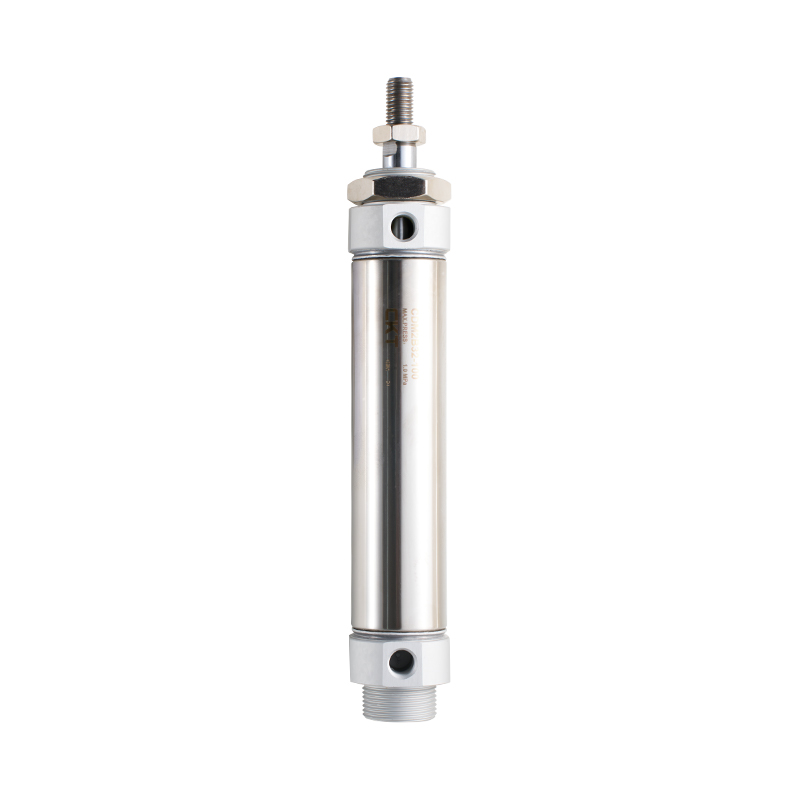

CM2 Series Steel Mini Cylinder (Double Acting)

CM2 Series Stainless Steel Mini Cylindri (Double Acting) est pactum immaculatum ferro actus designatus ad condiciones operandi spatio-constrictas. Vim agitantem duplicem habet, ratione corrosionis resistentiae et roboris structurae, et ad missiones automatandas apta est cum maximis requisitis ad resistentiam et constantiam environmental.

Core lineamenta:
· Dual quiddam aptabilitas: quiddam aeris ac Flexilis caudex quiddam in dualibus conformationibus praesto sunt ad finem braking postulata diversarum condicionum oneris.
· Levis corrosio structurae repugnans: Aluminium ante et posticum finis opercula altiore pondus minuunt, et chalybs immaculata cylindricum fundamentalem anti-rubrum et corrosionem obice praebet.
· Basic corrosio environment tolerantiae: Pone operationem stabilem in ambitibus quibus acidum/alcali caligo, humiditas vel lenis chemicae media detectio.
· Modularis institutionis interfacies: accessiones institutionis normae varias sustinet (sicut trunniones, pedes, flanges, etc.), quae mollius componi possunt secundum apparatum spatii extensionis..

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：CM2 Series Steel Mini Cylinder (Single Acting)
SUCCESSIVO：CJ2 Series Steel Mini Cylinder (Single Acting)
  • Diameter cylindricus (mm) 20 25 32 40
    Liquor usus est Aer (nullum oleum*)
    Modus operating Duplex agens
    Maximum operating pressura 1.0MPa
    Minimum operating pressura 0.05MPa
    Ambiens et fluidum temperatus Commutatio non magnetica: -10°C ad 70°C, magnetica switch: -10°C ad 60°C
    Celeritas Piston 50~750 mm/s
    Buffering Flexilis cushioning / cushioning caeli
    Longitudo patientiae plaga (mm) 1.40
    *Lubrication Non requiratur
    Diameter nexus (Rc) 1/8 1/8 1/8 1/4
    *Si unctionem exigitur, utere oleum Turbininum No. 1 ISOVG32.

  • Travel / Magnetic Switch Model Tabula
    Diameter cylindricus
    (mm)     		Vexillum plaga
    (mm) Nota 1     		Magneticum switch Model Nota 2) Institutionem partem Exemplar  Nota 3 Anulus balteus Model
    20 25,50,75,100;
    125,150,200;
    250,300     		M9B
    M9P
    M9N     		BJ3-1 BM2-020
    25 BM2-025
    32 BM2-032
    40 BM2-040
    Nota 1) Optiones peregrinationes non vexillum praesto sunt.
    Nota 2) Ad specificationes et proprietates virgarum magneticarum, ad magneticam seriem transitum referendum.
    Filum longitudo notae: - 0,5 m, L - 3 m, Z - 5 m. Exemplum: M9N, M9NL.
    Nota 3) Partes ascendentes et anulum cingulum exemplaribus simul ordinandis ad usum debent.

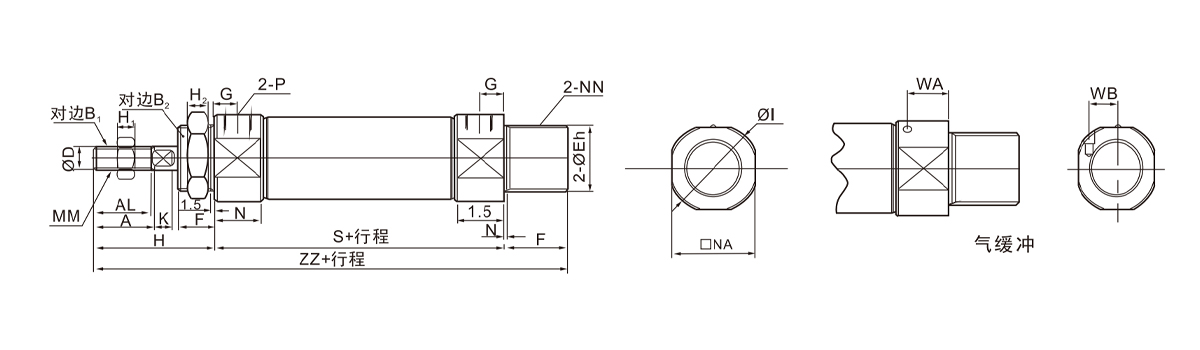

  • Diameter cylindricus Iter itinerarium A AL** B1 B2 D E F G H H1 H2 I K MM N NA NN P S ZZ WA WB
    20 ~300 18 15.5 13 26 8 20 0 13 8 41 5 8 28 5 M8×1.25 15 24 M20×1.5 1/8 62 116 13 8.5
    -0.033
    25 ~300 22 19.5 17 32 10 26 0 13 8 45 6 8 33.5 5.5 M10×1.25 15 30 M26×1.5 1/8 62 120 13 10.5
    0
    32 ~300 22 19.5 17 32 12 26 0 13 8 45 6 8 37.5 5.5 M10×1.25 15 34.5 M26×1.5 1/8 64 122 13 11.5
    -0.033
    40 ~300 24 21 22 41 14 32 0 16 11 50 6 10 46.5 7 M14×1.5 21.5 42.5 M32×2 1/4 88 154 16 15
    -0.039

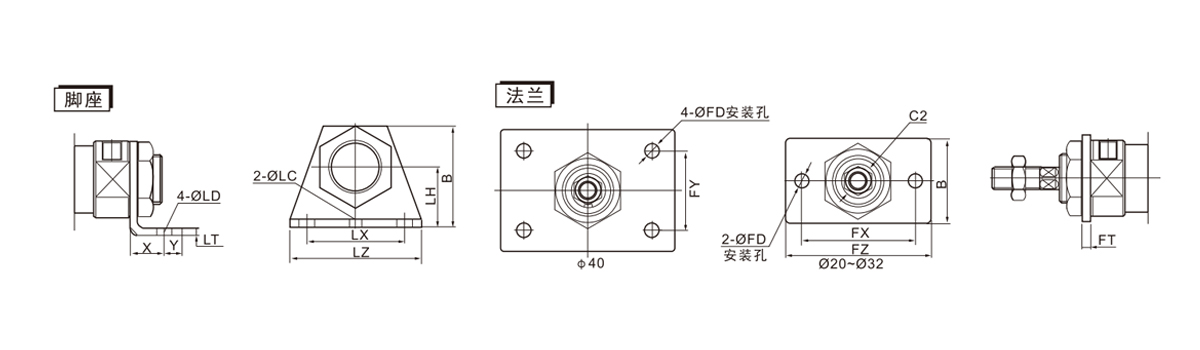

    Locus cylindrici diameter
    (mm)     		Footrest Flange
    Pars numerus X Y LD LC LX LZ LH LT B Pars numerus FD FY* FX FZ C2 B FT
    20 CM-L020B 20 8 6.8 4 40 55 25 3.2 40 CM-F020B 7 - 60 75 30 34 4
    25 CM-L025B 20 8 6.8 4 40 55 28 3.2 47 CM-F025B 7 - 60 75 37 40 4
    32 CM-L032B 20 8 6.8 4 40 55 28 3.2 47 CM-F032B 7 - 60 75 37 40 4
    40 CM-L040B 23 10 7 4 55 75 30 3.2 54 CM-F040B 7 36 66 82 47.3 52 5

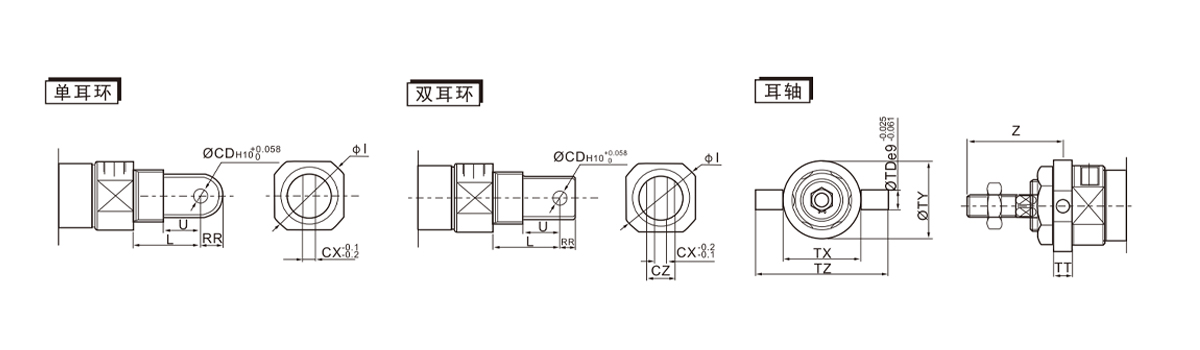

    Locus cylindrici diameter
    (mm)     		unum inaures Duplex inaures Axem auris genus
    Pars numerus L U RR l CD CX Pars numerus L U RR CD CX CZ l Pars numerus TX TZ TD TY Z TT
    20 CM-C020B 30 14 9 28 9 10 CM-D020B 30 14 9 9 10 19 28 CM-T020B 32 52 8 32 36 10
    25 CM-C025B 30 14 9 33.5 9 10 CM-D025B 30 14 9 9 10 19 33.5 CM-T025B 40 60 9 40 40 10
    32 CM-C032B 30 14 9 37.5 9 10 CM-D032B 30 14 9 9 10 19 37.5 CM-T032B 40 60 9 40 40 10
    40 CM-C040B 39 18 11 46.5 10 15 CM-D040B 39 18 11 10 15 30 46.5 CM-T040B 53 77 10 53 44.5 11

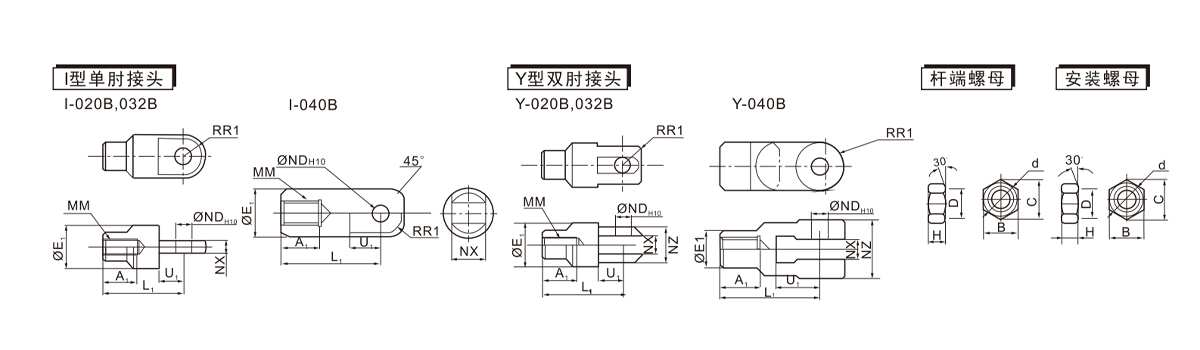

    Locus cylindrici diameter
    (mm)     		Typus I singula cubiti iuncturam Y-genus duplex iuncturam cubiti Virga finis nut Instrue nucem.
    Pars numerus A1 E1 L1 MM ND H10 NX R1 U Pars numerus A1 E1 L1 MM ND NX NZ R1 U1 Pars numerus B C d H Pars numerus B C d H D
    20 1-020B 16 20 36 M8×1.25 9 0.058 9 -0.1 10 14 Y-020B 16 20 36 M8×1.25 9 9 -0.1 18 5 14 NT-02 13 15 M8×1.25 5 SN-020B 26 30 M20×15 8 25.5
    0 -0.2 -0.2
    25·30 I-032B 18 20 38 M10×1.25 9 0.058 9 -0.1 10 14 Y-032B 18 20 38 M10×1.25 9 0:0:0 -0.1 18 5 14 NT-03 17 19.6 M10×1.25 6 SN-032B 32 37 M26×15 8 31.5
    0 -0.2 -0.2
    40 I-040B 22 24 55 M14×15 12 0.070 16 -0.1 15.5 20 Y-040B 22 24 55 M14×15 12 16 0.3 38 13 25 NT-04 22 25.4 M14×1.5 8 SN-040B 41 47.3 M32×20 10 40.5
    0 -0.3 0.1

    Locus cylindrici diameter
    (mm)     		Iter itinerarium A AL** B1 CD CX D E F G H H1 I K L MM N NA NN P RR S U Z ZZ
    20 ~300 18 15.5 13 8 12 8 20 0 13 8 41 5 28 5 12 M8×1.25 15 24 M20×1.5 1/8 9 62 11.5 115 124
    -0.033
    25 ~300 22 19.5 17 8 12 10 26 0 13 8 45 6 33.5 5.5 12 M10×1.25 15 30 M26×1.5 1/8 9 62 11.5 119 128
    -0.033
    32 ~300 22 19.5 17 10 20 12 26 0 13 8 45 6 37.5 5.5 15 M10×1.25 15 34.5 M26×1.5 1/8 12 64 14.5 124 136
    -0.033
    40 ~300 24 21 22 10 20 14 32 0 16 11 50 8 46.5 7 15 M14×1.5 21.5 42.5 M32×2 1/4 12 88 14.5 153 165
    -0.039

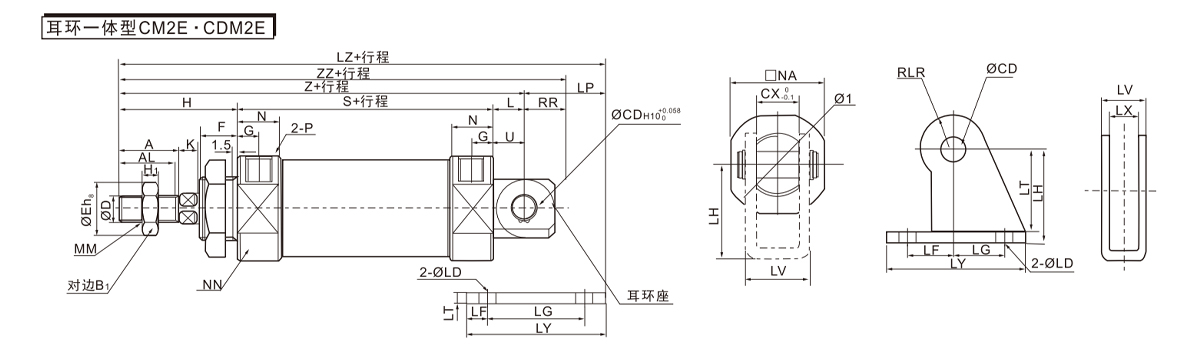

    inaures possessor
    Locus cylindrici diameter
    (mm)     		Pars numerus LD LF LG LH LP LT LV LY LZ
    20 CM-E020B 6.8 15 30 30 37 3.2 18.4 59 152
    25 6.8 15 30 30 37 3.2 18.4 59 156
    32 CM-E032B 9 15 40 40 50 4 28 75 174
    40 9 15 40 40 50 4 28 75 203
