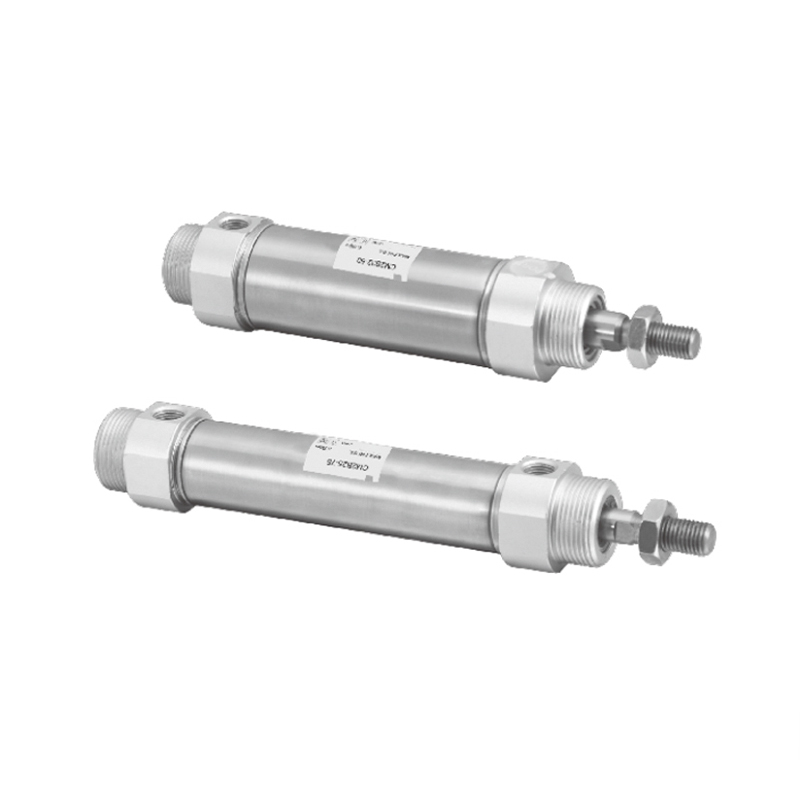

CM2 Series Steel Mini Cylinder (Single Acting)
  • CM2 Series Steel Mini Cylinder (Single Acting)
Mini Cylinder

CM2 Series Steel Mini Cylinder (Single Acting)

CM2 Series Stainless Steel Mini Cylinder (Agens Single) est cylindricum minium immaculatum cum consilio sophistico. Principium unum agens agenti assumit et aptissimum est ad ambitus ambitus constrictos et mundos corrosioni-resistentes. Core eius innititur in off-medio pulsionis et aedificato-vere ad motus directionalis et automatic reseti pistonis.

·Piston dum agitantem extendit, et ver remoto pressione reponit: Cum incessus medium agit in cylindrum, vi vere constructum superat et anconem exterius ad operandum impellit; semel in medio incessus remoto vel intermisso, fons compressus statim energiam repositam emittit, anconem ad retractandum stabiliter ac fideliter ad priorem locum cogens.
Piston contrahit cum impellit, et ver pressione removetur: Cum medium agit in cylindrum, vere constructum comprimit et piston intus simul trahit; Post medium pulsis sublatis vel interruptis, vis resetis dominatur vernae, anconem foras strenue propellente et ad statum pristinum extensum revertitur..

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：MA Series Steel Mini cylindrici
SUCCESSIVO：CM2 Series Steel Mini Cylinder (Double Acting)
  • Diameter cylindricus (mm) 20 25 32 40
    Liquor usus est Air
    Modus operating Unius agendi
    Maximum operating pressura 1.0 MPa
    Minimum operating pressura 0.18 MPa (compression vere), 0.23 MPa (extensio ver)
    Ambiens et fluidum temperatus Commutatio non magnetica: -10°C ad 70°C, magnetica switch: -10°C ad 60°C
    Celeritas Piston 50~ 750mm/s
    Buffering Purgamentum cushioning
    Patientia plaga (mm) 1.4
    0
    *Lubrication Non requiratur
    Nexus diameter Rc 1/8 1/8 1/8 1/4
    *Si unctionem exigitur, utere oleum Turbininum No. 1 ISOVG32.

  • Travel / Magnetic Switch Model Tabula
    Diameter cylindricus (mm) Vexillum plaga (mm) Magneticum exemplar                                                                                  } Institutionem partem Exemplar                           Anulus balteus Model
    20 25,50,75,100,125,150 M9B
    M9P
    M9N     		BJ3-1 BM2-020
    25 BM2-025
    32 25,50,75,100,125,150,200 BM2-032
    40 25,50,75,100,125,150,200,250 BM2-040
    Nota 1) Specificationes et proprietates virgarum magneticarum, ad magneticam seriem transitum referendum.
    Filum longitudo indicatio: Nulla significatio - 0,5 m, L - 3 m, Z - 5 m
    Exemplum: M9N, M9NL.
    Nota 2) Ascendere partes et anulus vincula ordinari et in compositione uti debent

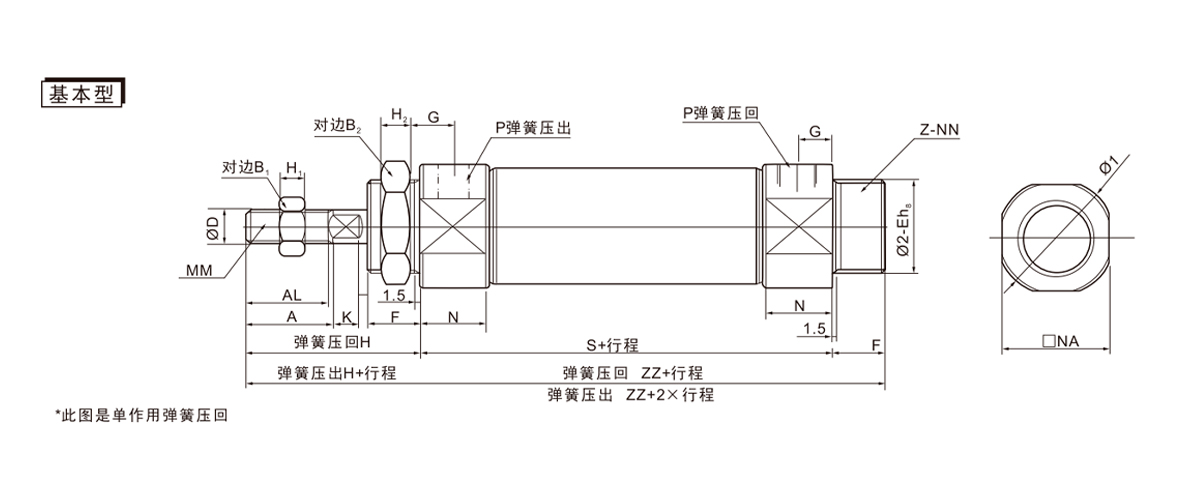

  • Diameter cylindricus (mm) A AL** B1 B2 D E F G H H1 H2 I K MM N NA NN P
    20 18 15.5 13 26 8 20 0 13 8 41 5 8 28 5 M8×1.25 15 24 M20×1.5 1/8
    -0.033
    25 22 19.5 17 32 10 26 0 13 8 45 6 8 33.5 5.5 M10×1.25 15 30 M26×1.5 1/8
    -0.033
    32 22 19.5 17 32 12 26 0 13 8 45 6 8 37.5 5.5 M10×1.25 15 34.5 M26×1.5 1/8
    -0.033
    40 24 21 22 41 14 32 0 16 11 50 8 10 46.5 7 M14×1.5 21.5 42.5 M32×2 1/4
    -0.039

    Itinerarium 1~50 51~100 101~150 151~200 201~250
    Diameter cylindricus S ZZ S ZZ S ZZ S ZZ S ZZ
    20 87 141 112 166 137 191 - - - -
    25 87 145 112 170 137 195 - - - -
    32 89 147 114 172 139 197 164 222 - -
    40 113 179 138 204 163 229 188 254 213 279

    Diameter cylindricus (mm) A AL** B1 CD CX D E F G H H1 I K L MM N NA NN P PR U
    20 18 15.5 13 8 12 8 20 0 13 8 41 5 28 5 12 M8×1.25 15 24 M20×1.5 1/8 9 11.5
    -0.033
    25 22 19.5 17 8 12 10 26 0 13 8 45 6 33.5 5.5 12 M10×1.25 15 30 M26×1.5 1/8 9 11.5
    -0.033
    32 22 19.5 17 10 20 12 26 0 13 8 45 6 37.5 5.5 15 M10×1.25 15 34.5 M26×1.5 1/8 12 14.5
    -0.033
    40 24 21 22 10 20 14 32 0 16 11 50 8 46.5 7 15 M14×1.5 21.5 42.5 M32×2 1/4 12 14.5
    -0.039

    Itinerarium 1~50 51~100 101~150 151~200 201~250
    Diameter cylindricus S Z ZZ S Z ZZ S Z ZZ S Z ZZ S Z ZZ
    20 87 140 149 112 165 174 137 190 199 - - - - - -
    25 87 144 153 112 169 178 137 194 203 - - - - - -
    32 89 149 161 114 174 186 139 199 211 164 224 236 - - -
    40 113 178 190 138 203 215 163 228 240 188 253 265 213 278 290

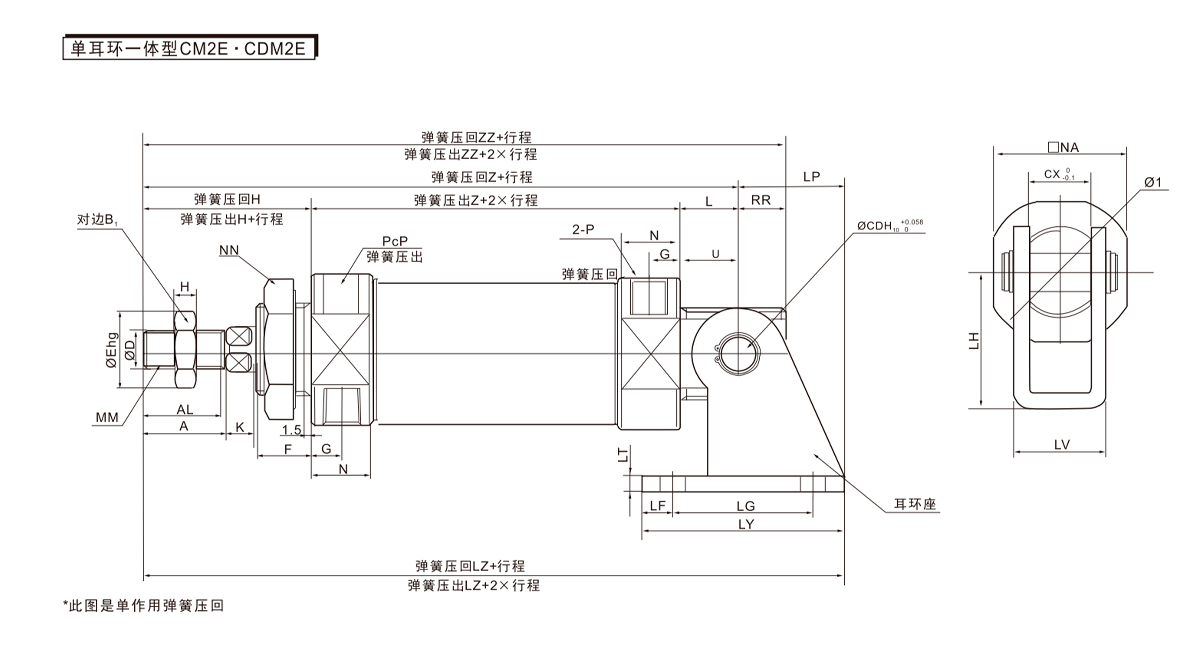

    Pars numerus Diameter cylindricus (mm) LD LF LG LH LP LT LV LY 1~50 51~100 101~150 151~200 201~250
    LZ LZ LZ LZ LZ
    CM-E020B 20 6.8 15 30 30 37 3.2 18.4 59 177 202 227 - -
    25 6.8 15 30 30 37 3.2 18.4 59 181 206 231 - -
    CM-E032B 32 9 15 40 40 50 4 28 75 199 224 249 274 -
    40 9 15 40 40 50 4 28 75 228 253 278 303 328
