GC Series Air Filter Compositum Fornitores

Home / Products / Pneumatica Pressura Control Components / F.R.L modularis. G Series / GC Series Air Filter Compositum

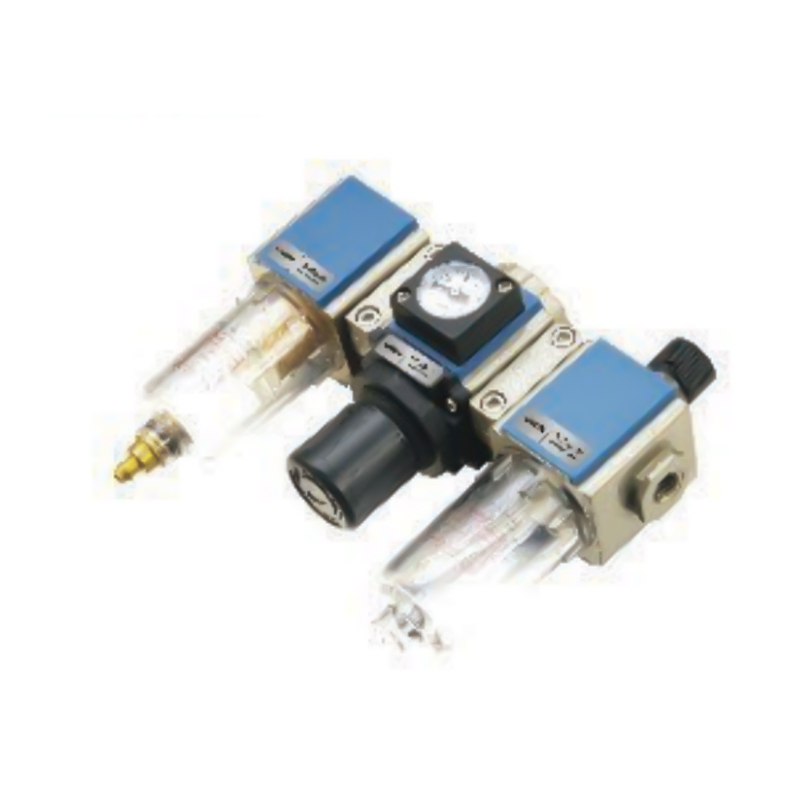

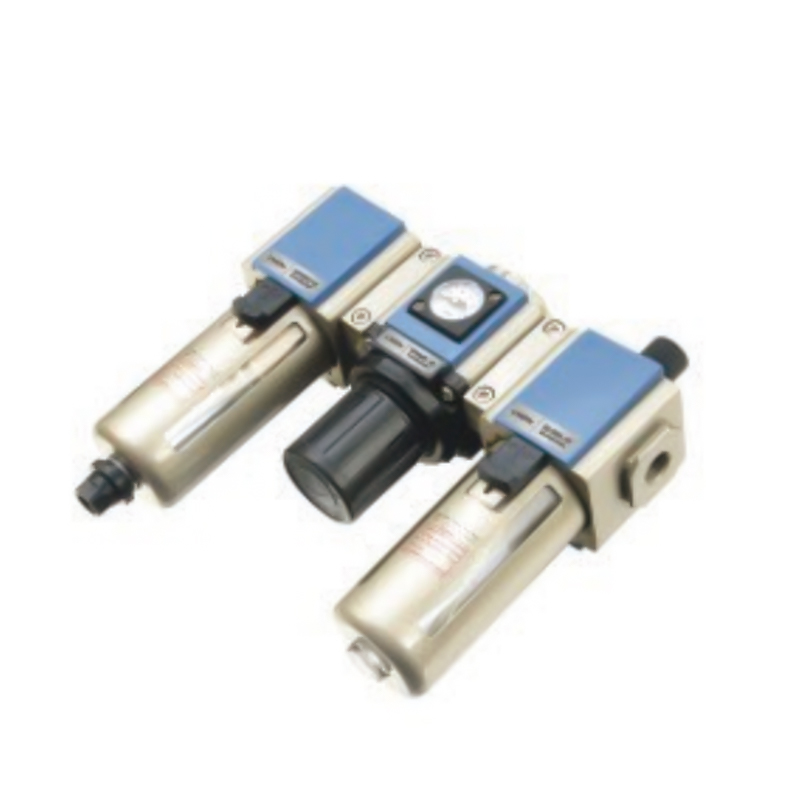

GC Series Air Filter Compositum GC Series Air Filter Compositum
  • GC Series Air Filter Compositum
  • GC Series Air Filter Compositum
F.R.L modularis. G Series

GC Series Air Filter Compositum

1. Oleum madens compages adhibet obsignationis formam hiatus. Copia olei firmior temperatio est et certior;
2. Olei copia commensurationem anuli tantum in unum circulum circumagatur, et copia olei quantitatem lineari modo basically distribuatur. Copia olei quantitatem pro positione librae annuli dure computari potest;
3. Refueling fieri potest sine vapore intermissione;
4. Praecipua destillatio colli structurae negativam pressionem olei destillatione creat, et caligo humilis est;
5. Stabilis pressionis ordinatio et alte repetitio accuratio;
6. Ieiunium et certum nexum, altae institutionis accurationem;
7. Sunt tres formae INCILE promptae, inclusae manualis, pressionis differentialis et INCILE automatic;
8. Summus efficientia aquae et particulae solidae remotionis functionem.

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：Nessun articolo precedente
SUCCESSIVO：GFC Series Air Filter Compositum
  • Model GC200-06 GC200-08 GC300-08 GC300-10 GC300-15 GC400-10 GC400-15 GC600-20 GC600-25
    medium opus Air
    Connection diameter PT1/8 PT1/4 PT1/4 PT3/8 PT1/2 PT3/8 PT1/2 PT3/4 PT1
    Filtrum elementum accurate 40μm vel 5μm
    Operans pressura range Genus pressio automatic et differentialis INCILE: 0.15-0.9 MPa (20-130 psi) INCILE Manual genus: 0.05-0.9 MPa (7-130 psi)
    Guaranteed pressura resistentia 1.5Mpa (215Psi)
    Operans temperatus range -20~70℃
    Aqua sparguntur poculum capacitatis 10CC 40CC 80CC 230CC
    Capacitas oleum poculum 25CC 75CC 160CC 380CC
    Commendatur lubricating oleum ISO VG 32 vel equivalentis olei
    Pondus 580g 1300g 2360g 5550g
    Constitutio elementorum Filtrum GF200-06 GF200-08 GF300-08 GF300-10 GF300-15 GF400-10 GF400-15 GF600-20 GF600-25
    Pressura moderatoris GL200-06 GL200-08 GL300-08 GL300-10 GL300-15 GL400-10 GL400-15 GL600-20 GL600-25
    Caligo olei lubricator GR200-06 GR200-08 GR300-08 GR300-10 GR300-15 GR400-10 GR400-15 GR600-20 GR600-25

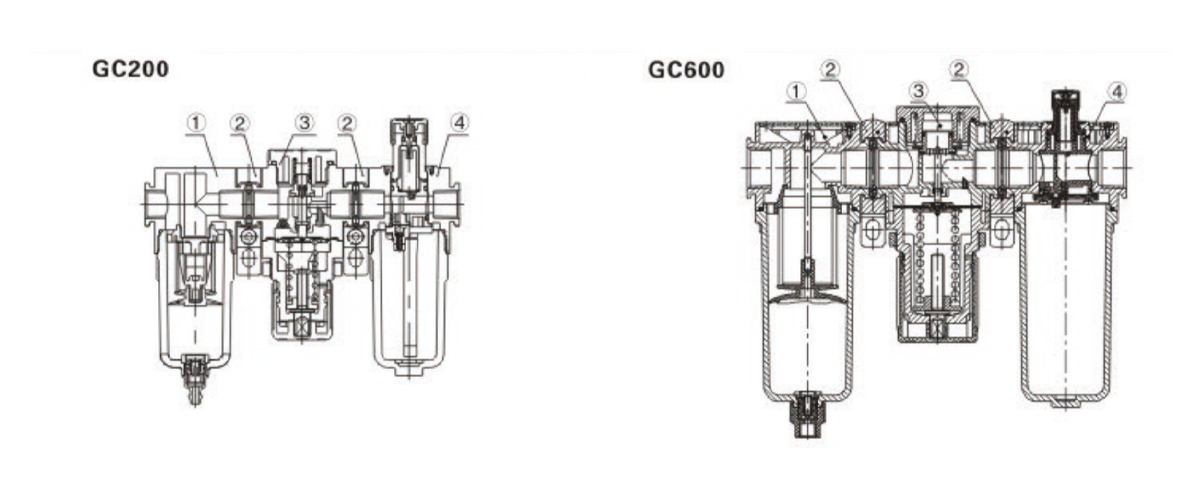

  • Numerus Nomen Numerus Nomen
    ① G Series Filter ③ G Series Pressura regulans Valvae
    ② Connection Bracket ④ G Series Oil Nubila Lubricator

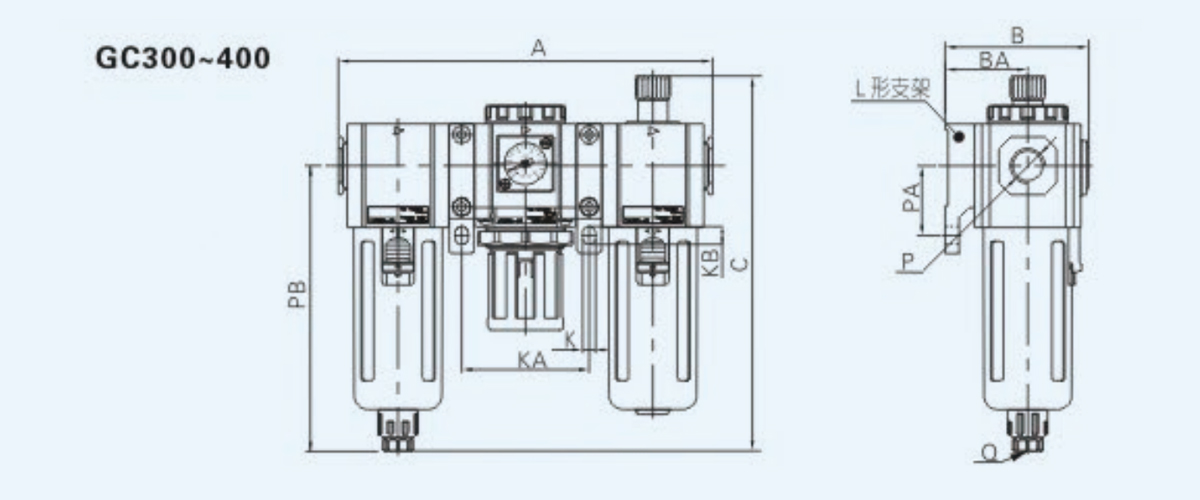

    Exemplar/Symbolum A B BA C K KA KB P PA PB* E
    GC300-08 188 72 41.5 188 6.5 64 9 PT1/4 35 143 G1/8
    GC300-10 188 72 41.5 188 6.5 64 9 PT3/8 35 143 G1/8
    GC300-15 188 72 41.5 188 6.5 64 9 PT1/2 35 143 G1/8
    GC400-10 248 89 50 216 8.6 84 12 PT3/8 40 166.5 G1/4
    GC400-15 248 89 50 216 8.6 84 12 PT1/2 40 166.5 G1/4
