GFC Series Air Filter Compositum Fornitores

Home / Products / Pneumatica Pressura Control Components / F.R.L modularis. G Series / GFC Series Air Filter Compositum

GFC Series Air Filter Compositum GFC Series Air Filter Compositum GFC Series Air Filter Compositum
  • GFC Series Air Filter Compositum
  • GFC Series Air Filter Compositum
  • GFC Series Air Filter Compositum
F.R.L modularis. G Series

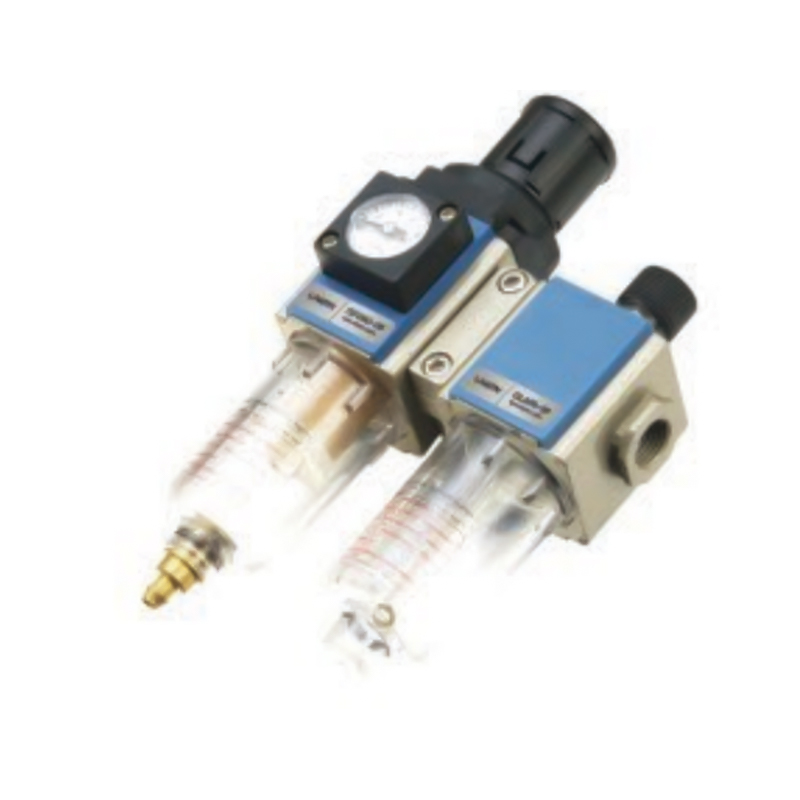

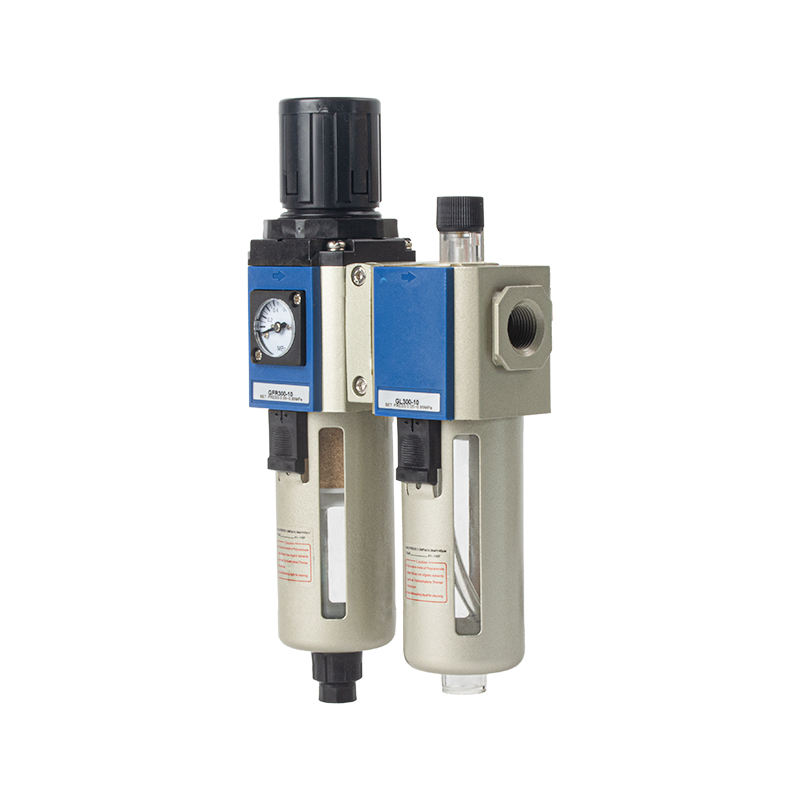

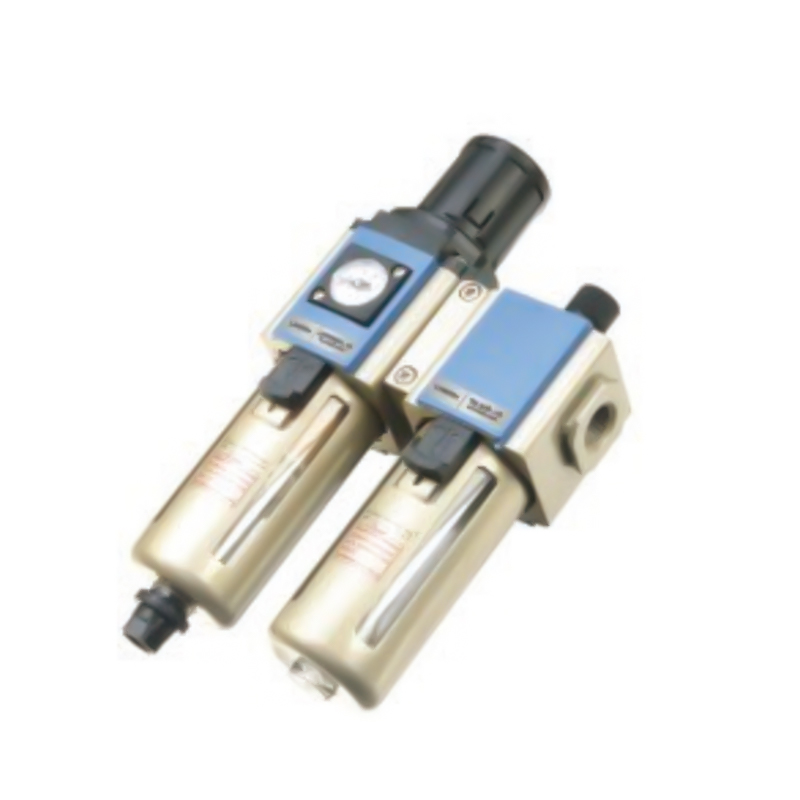

GFC Series Air Filter Compositum

1. Ieiunium et certum nexum certum, facile instituere et utere;
2. Stabilis pressionis ordinatio et alte repeatability;
3. Efficiens aqua et solida functionis particula remotionis;
4. Tres modi INCILE praesto sunt: ​​manuale, differentiale pressionis et INCILE automatic.

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：GC Series Air Filter Compositum
SUCCESSIVO：GPR Series Pressure Regulans Valvae
  • Exemplar GFC200-06 GFC200-08 GFC300-08 GFC300-10 GFC300-15 GFC400-10 GFC400-15 GFC600-20 GFC600-25
    medium opus Air
    Connection diameter PT1/8 PT1/4 PT1/4 PT3/8 PT1/2 PT3/8 PT1/2 PT3/4 PT1
    Filtrum elementum accurate 40μm vel 5μm
    Operans pressura range Genus pressio automatic et differentialis INCILE: 0.15-0.9 MPa (20-130 psi) INCILE Manual genus: 0.05-0.9 MPa (7-130 psi)
    Guaranteed pressura resistentia 1.5Mpa (215Psi)
    Operans temperatus range -20~70℃
    Aqua sparguntur poculum capacitatis 10CC 40CC 80CC 230CC
    Capacitas oleum poculum 25CC 75CC 160CC 380CC
    Commendatur lubricating oleum ISO VG 32 vel equivalentis olei
    Pondus 430g 980g 1950g 4320g
    Constitutio elementorum Pressura regulans filter GFR200-06 GFR200-08 GFR300-08 GFR300-10 GFR300-15 GFR400-10 GFR400-15 GFR600-20 GFR600-25
    Caligo olei lubricator GL200-06 GL200-08 GL300-08 GL300-10 GL300-15 GL400-10 GL400-15 GL600-20 GL600-25

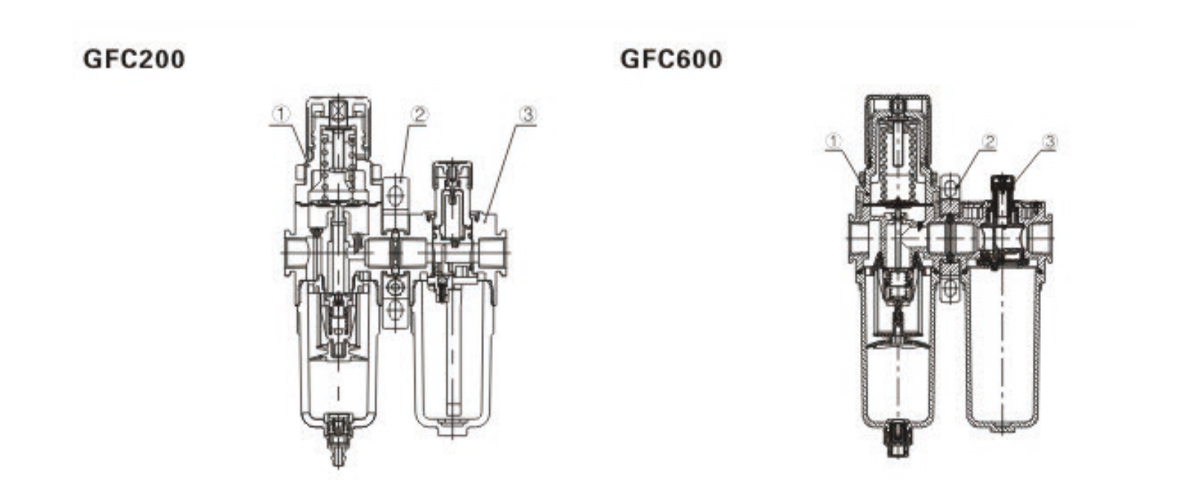

  • Numerus Nomen
    ① G Series Pressura Regulae Filter
    ② Connection Bracket
    ③ G Series Oil Nubila Lubricator

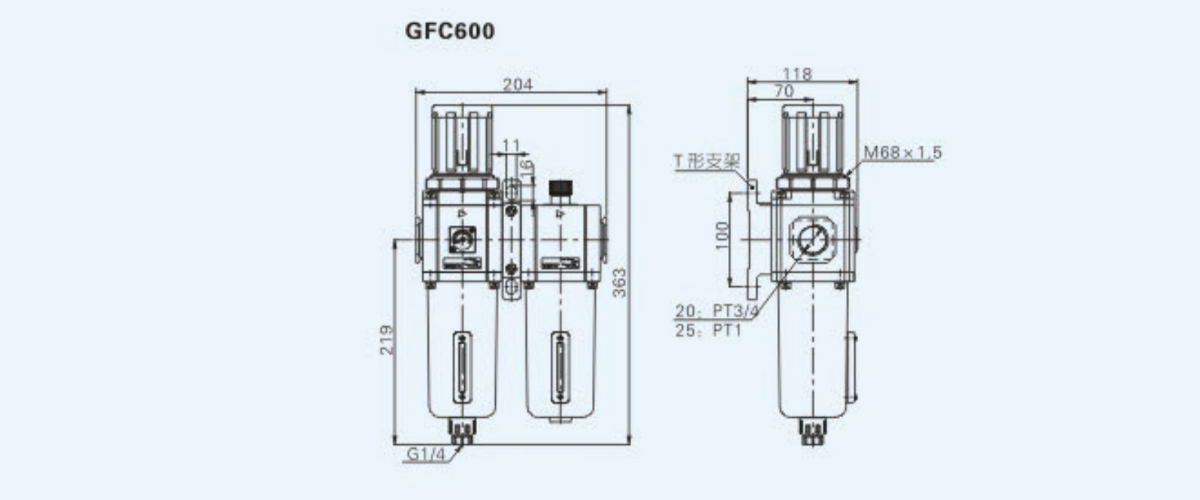

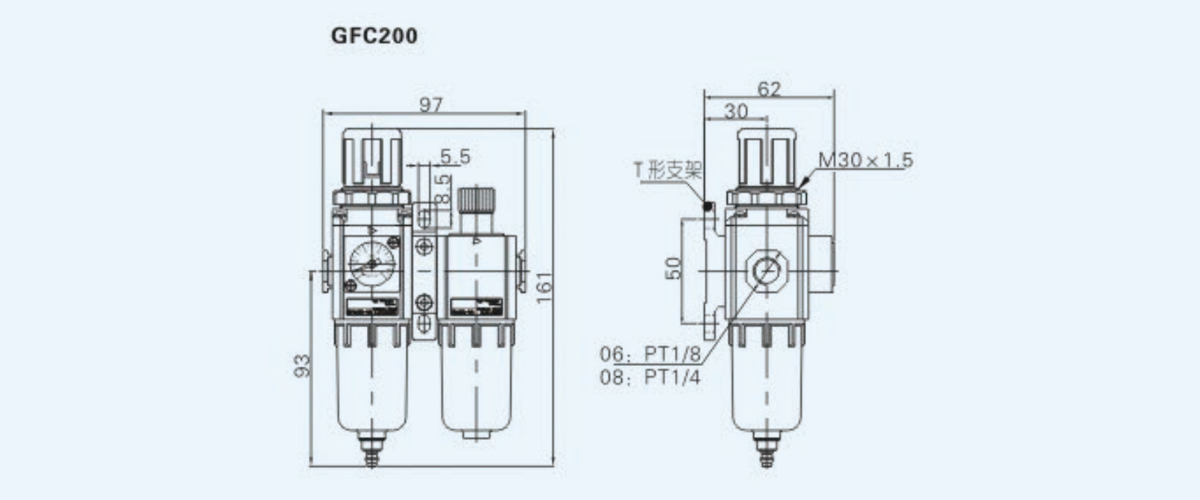

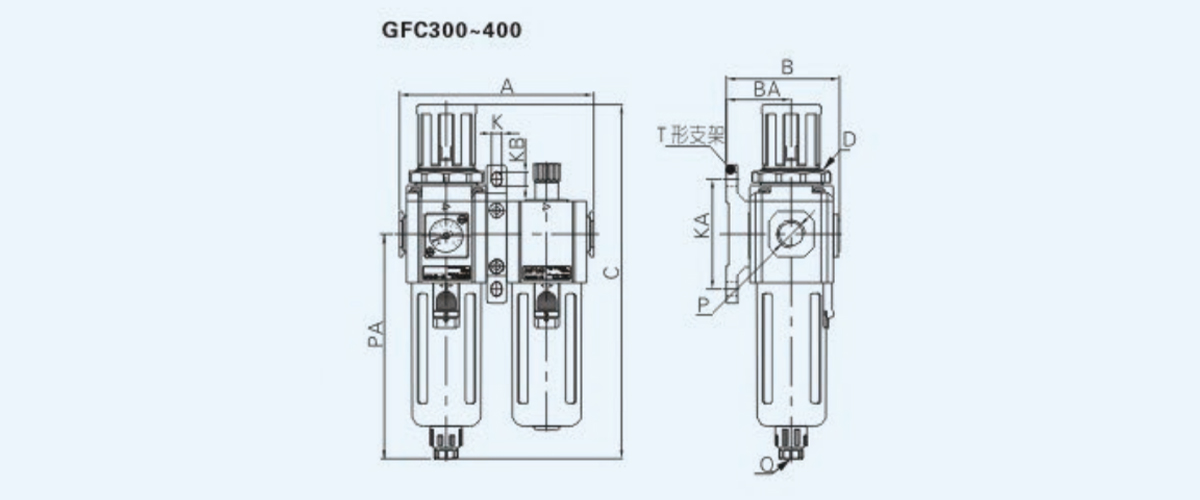

    Exemplar/Symbolum A B BA C D K KA KB P PA Q
    GFC300-08 124 72 41.5 225.5 M40×1.5 6.5 70 9 PT1/4 143 G1/8
    GFC300-10 124 72 41.5 225.5 M40×1.5 6.5 70 9 PT3/8 143 G1/8
    GFC300-15 124 72 41.5 225.5 M40×1.5 6.5 70 9 PT1/2 143 G1/8
    GFC400-10 164 89 50 270.5 M55×2.0 8.6 80 12 PT3/8 166.5 G1/4
    GFC400-15 164 89 50 270.5 M55×2.0 8.6 80 12 PT1/2 166.5 G1/4
