MGP Series Cylindri tenuis cum Guide Rod Fornitores

Home / Products / Air Cylindri / Multi-axis cylindrici / MGP Series Cylindri tenuis cum Guide Rod

MGP Series Cylindri tenuis cum Guide Rod MGP Series Cylindri tenuis cum Guide Rod
  • MGP Series Cylindri tenuis cum Guide Rod
  • MGP Series Cylindri tenuis cum Guide Rod
Multi-axis cylindrici

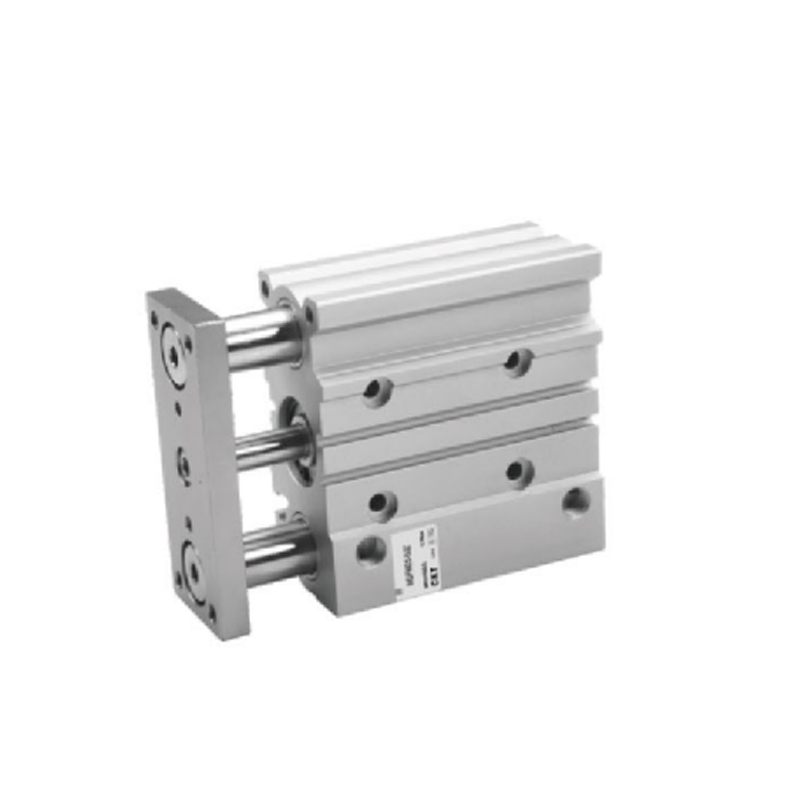

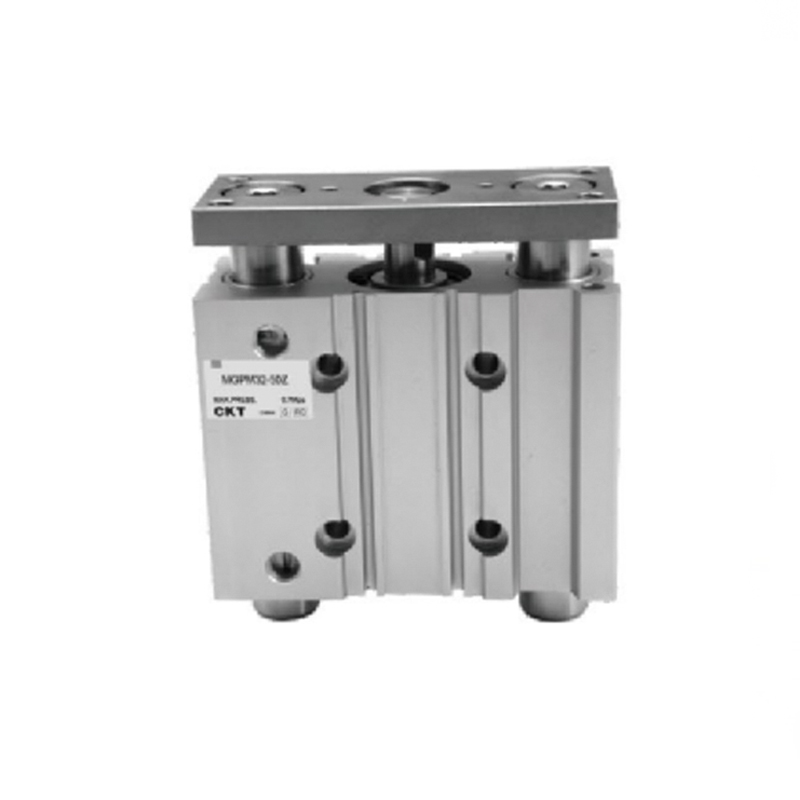

MGP Series Cylindri tenuis cum Guide Rod

1. parva magnitudine et levi pondere
2. Fortis onus lateralis resistentia
Fortis 3. Aureus resistentia
4. High non- gyrationis praecisione
5. Dux virga portans potest esse illapsum ferre vel pilam gestantem
6. Securus install
RA7 Ad septimum dicendum quod duae partes organi positio seligi potest

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：MGJ Series Miniature Cylinder Cum Guide Rod
SUCCESSIVO：CXSW Series Per Rod Double Rod Cylinder
  • Standard Specification
    Bore Size (mm) 12 16 20 25 32 40 50 63 80 100
    Liquor Air
    Actio Duplex agens
    Max Operating Pressura (MPa) 1.0
    Min Operating Pressura (MPa) 0.12 0.1
    Ambiens & Fluid Temperature -10~ 60℃(Nec frigore)
    Piston Volo 50~500mm/s 50~400mms
    Pulvinar Tum fines rubber bumper
    Longitudo plaga tolerantia 1.5mm
    *Lubrication Non requiratur
    Ferens Slide afferentem / Ball bushing / praecise ballbusing
    Non rotating
    Sagacitas
    (Clamp part)     		Slide supportantes ±0.08° ±0.07° ±0.06° ±0.05° ±0.04°
    Ball Bushing ±0.10° ±0.09° ±0.08° ±0.06° ±0.05°
    Altae Precision
    Ball Bushing
    Limbis Portus M5×0.8 1/8 1/4 3/8
    * Quaeso, utere ISOVG32  si vis  ad  usum  lubricationi.

    Portare Magnitudinem (mm) 16 20,25,32,40,50,63,80,100
    Max Operans Pretium(MPa) 1.0
    Min Operans Pretium(MPa) 0.15 0.12
    Pulvinar Pulvinar utrobique caeli

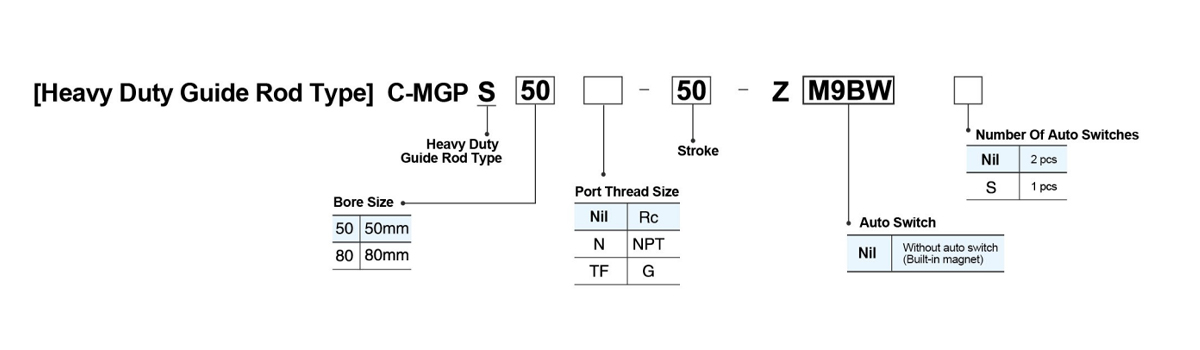

    Specification
    Portare Magnitudinem (mm) 50 80
    Pressura operans (MPa) 0.1~1.0
    Piston celeritate (mm/s)  operandi 50~400
    Pulvinar Flexilis adfixum in utramque partem
    Vexillum Stroke 25,50,75,100,125,150,175,200
    Finem Platæ Non-revolvendi cura ±0.05° ±0.04°

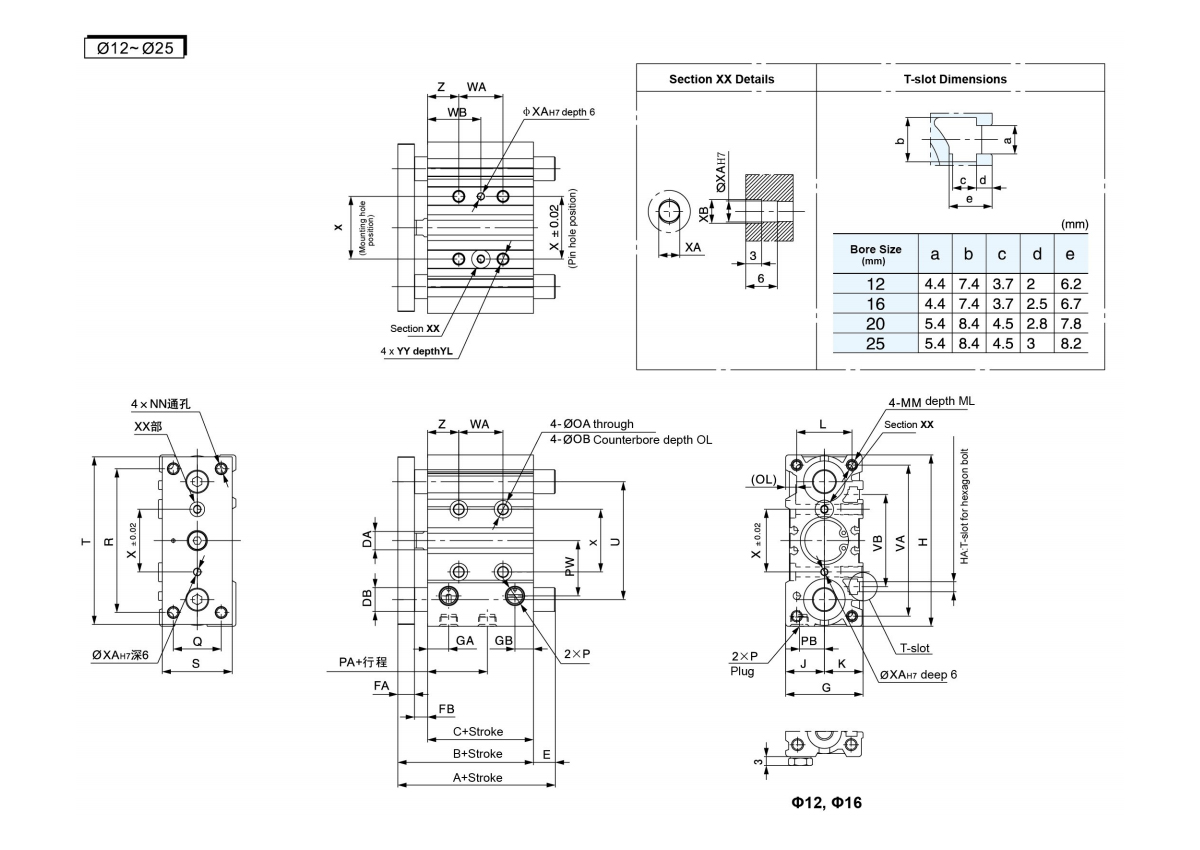

  • C-MGPM,C-MGPL,C-MGPA Communia Dimensiones                                                                                                                                                        (mm)
    Bore
    Magnitudo
    (mm)     		Plaga (mm) B C DA FA FB*** G GA GB H HA J K L MM ML NN OA OB OL''' P
    Nil TN TF
    12 10,20,30,40,50,75,100;
    125, 150, 175,200;250     		42 29 6 7 6 26 11.5 8 58 M4 13 13 18 M4×0.7 10 M4×0.7 4.3 8 4.5 M5×0.8 - -
    16 46 33 8 7 6 30 11.5 8.5 64 M4 15 15 22 M5×0.8 12 M5×0.8 4.3 8 4.5 M5×0.8 - -
    20 20,30,40,50,75,100,125,150;
    175,200,250;300,350,400     		53 37 10 8 8 36 11.5 9 83 M5 18 18 24 M5×0.8 13 M5×0.8 5.4 9.5 5.5 Rc1/8 NPT1/8 G1/8
    25 53 37.5 10 9 7 42 11.5 9.5 93 M5 21 21 30 M6×1.0 15 M6×1.0 5.4 9.5 5.5 Rc1/8 NPT1/8 G1/8

    Bore
    Magnitudo
    (mm)     		PA PB*** PW*** Q R S T U VA VB WA WB X XA XB YY YL Z
    30st or * *
    Minus     		9sr3oS
    Minus     		Plus 100 200st aut minus Super 200st 300st aut minus Plus 300st 30st or * *
    Minus     		Per 30st 100 aut minus Plus 100 200st aut minus Over200st 300st aut minus Plus 300st
    12 13 8 18 14 48 22 56 41 50 37 20 40 110 200 - 15 25 60 105 - 23 3 3.5 M5×0.8 10 5
    16 14.5 10 19 16 54 25 62 46 56 38 24 44 110 200 - 17 27 60 105 - 24 3 3.5 M5×0.8 10 5
    20 13.5 10.5 25 18 70 30 81 54 72 44 24 44 120 200 300 29 39 77 117 167 28 3 3.5 M6×1.0 12 17
    25 12.5 13.5 30 26 78 38 91 64 82 50 24 44 120 200 300 29 39 77 117 167 34 4 4.5 M6×1.0 12 17

    C-MGPM Labi ferendi IA,DB, E Dimensione
    Bore
    Magnitudo
    (mm)     		A DB E
    50st vel minus Per 50st 100 aut minus Plus 100 200st aut minus Plus 200st 50st vel minus Per 50st 100 aut minus Plus 100 200st aut minus Plus 200st
    12 42 60.5 82.5 82.5 8 0 18.5 40.5 40.5
    16 46 64.5 92.5 92.5 10 0 18.5 46.5 46.5
    20 53 77.5 77.5 110 12 0 24.5 24.5 57
    25 53.5 77.5 77.5 109.5 16 0 24 24 56



    C-MGPL (Ball bushing)
    C-MGPA (Hlgh pila fruticantium subtilitas)/A, DB, E Dimension   (mm)
    BoreMagnitudo (mm) A DB E
    30st aut minus Per 30st 100 aut minus Plus 100 200st aut minus Plus 200st 30st aut minus Per 30st 100 aut minus Plus 100 200st aut minus Plus 200st
    12 43 55 84.5 84.5 6 1 13 42.5 42.5
    16 49 65 94.5 94.5 8 3 19 48.5 48.5
    20 59 76 100 117.5 10 6 23 47 64.5
    25 65.5 81.5 100.5 117.5 13 12 28 47 64

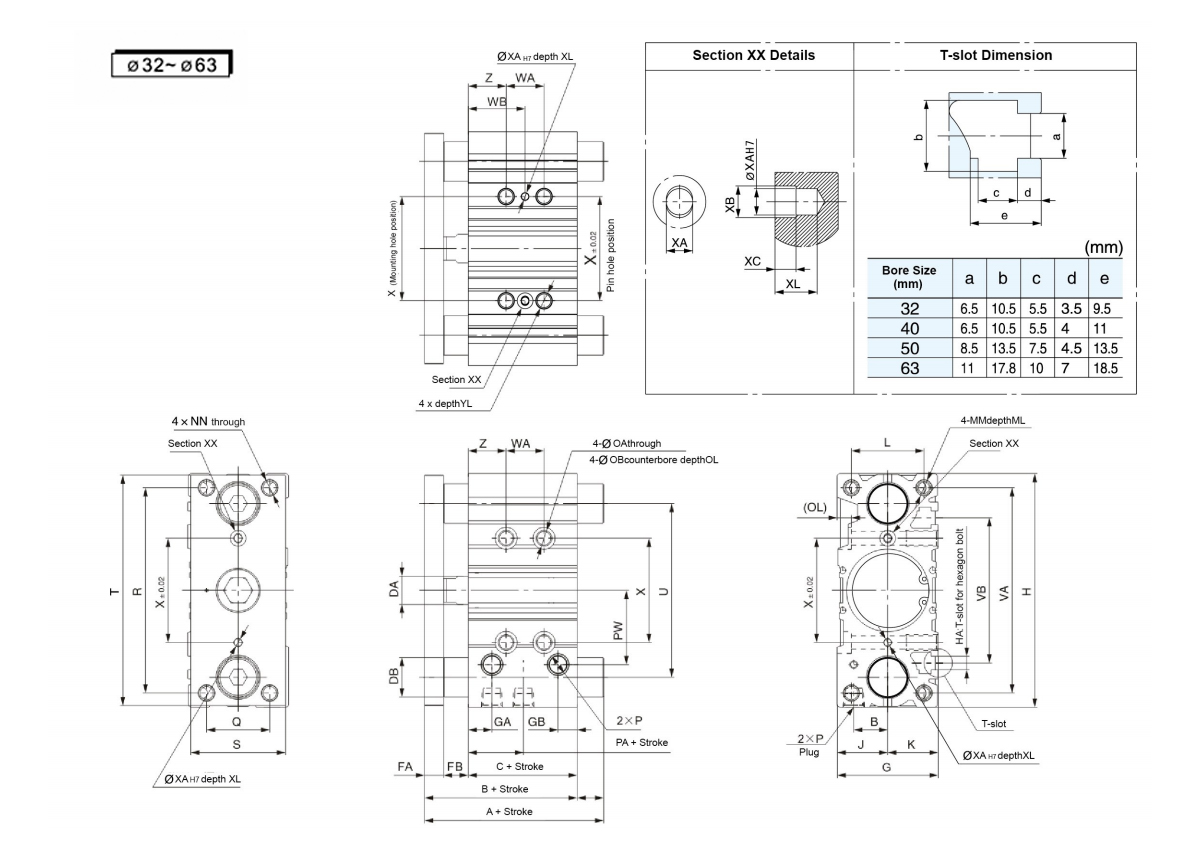

    C-MGPM,C-MGPL,C-MGPA Communia Dimensiones                                                                                                                                                        (mm)
    Bore
    Magnitudo
    (mm)     		Plaga (mm) B C DA FA FB*** G GA GB H HA J K L MM ML NN OA OB OL''' P
    Nil TN TF
    32 25,50,75;
    100,125,150;
    175,200,250,
    300,350,400.     		59.5 37.5 14 10 12 48 12 9.5 112 M6 24 24 34 M8×1.25 20 M8×1.25 6.7 11 7.5 Rc1/8 NPT1/8 G1/8
    40 66 44 14 10 12 54 15 12 120 M6 27 27 40 M8×1.25 20 M8×1.25 6.7 11 7.5 Rc1/8 NPT1/8 G1/8
    50 72 44 18 12 16 64 14.5 12 148 M8 32 32 46 M10×1.5 22 M10×1.5 8.6 14 9 Rc1/4 NPT1/4 G1/4
    63 77 49 18 12 16 78 15.5 14 162 M10 39 39 58 M10×1.5 22 M10×1.5 8.6 - 9 Rc1/4 NPT1/4 G1/4

    Bore
    Magnitudo
    (mm)     		PA PB*** PW*** Q R S T U VA VB WA WB X XA XB XC XL YY YL Z
    25st aut minus Plus 25st 100  aut minus Plus 100 200st aut minus Super 200st 300st aut minus Plus 300st 25st aut minus Plus 25st 100  aut minus Plus 100 200st aut minus Super 200st 300st aut minus Plus 300st
    32 6.5 16 35.5 30 96 44 110 78 98 63 24 48 124 200 300 33 45 83 121 171 42 4 4.5 3 6 M8×1.25 16 21
    40 13 18 39.5 30 104 44 118 86 106 72 24 48 124 200 300 34 46 84 122 172 50 4 4.5 3 6 M8×1.25 16 22
    50 9 21.5 47 40 130 60 146 110 130 92 24 48 124 200 300 36 48 86 124 174 66 5 6 4 8 M10×1.5 20 24
    63 13 28 58 50 130 70 158 124 142 110 28 52 128 200 300 38 50 88 124 174 80 5 6 4 8 M10×1.5 20 24

    C-MGPM Labi ferendi IA,DB, E Dimensione
    Bore
    Magnitudo
    (mm)     		A DB E
    50st aut minus Super 50st 200st aut minus Plus 200st 50st aut minus Super 50st 200st aut minus Plus 200st
    32 75 93.5 129.5 20 15.5 34 70
    40 75 93.5 129.5 20 9 27.5 63.5
    50 88.5 109.5 150.5 25 16.5 37.5 78.5
    63 88.5 109.5 150.5 25 11.5 32.5 73.5

    C-MGPL (Ball bushing)
    C-MGPA (Hlgh praecisio pila bushing)/A,DB,E Dimensio (mm)
    Bore
    Magnitudo
    (mm)     		A DB E
    50st aut minus Per 50st 100 aut minus Plus 100 200st aut minus Plus 200st 50st aut minus Per 50st 100 aut minus Plus 100 200st aut minus Plus 200st
    32 79.5 96.5 116.5 138.5 16 20 37 57 79
    40 79.5 96.5 116.5 138.5 16 13.5 30.5 50.5 72.5
    50 91.5 112.5 132.5 159.5 20 19.5 40.5 60.5 87.5
    63 91.5 112.5 132.5 159.5 20 14.5 35.5 55.5 82.5

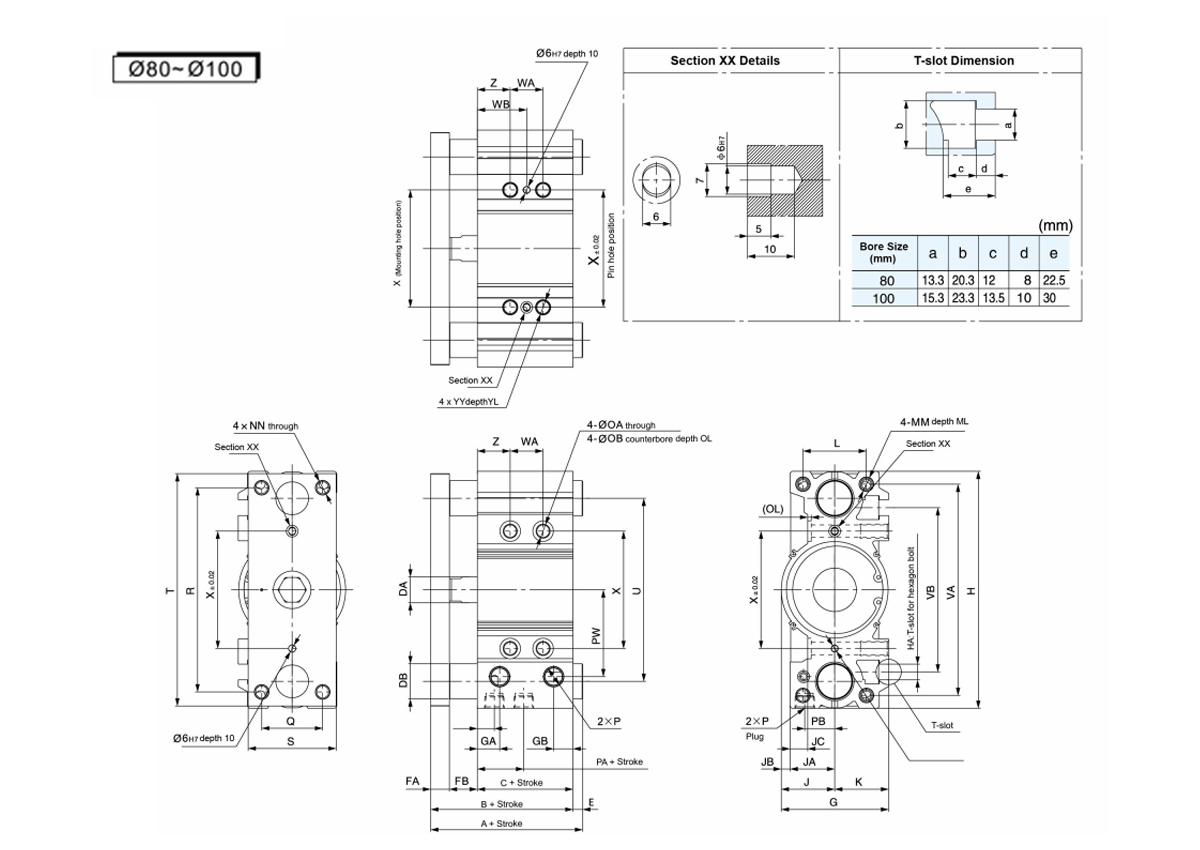

    C-MGPM, C-MGPL, C-MGPA  Dimensiones Communes
    Bore
    Magnitudo
    (mm)
    Plaga
    (mm)     		B C DA FA FB*** G GA GB GC H HA J JA JB JC K L MM ML NN OA OB OL''' P
    Nil TN TF
    80 25,50,75;100,
    125,150,175,200,
    250,300,350,400     		96.5 56.5 22 16 24 91.5 19 16.5 14.5 202 M12 45.5 38 7.5 15 46 54 M12×1.75 25 M12×1.75 10.6 17.5 3 Rc3/8 NPT3/8 G3/8
    100 16 66 26 19 31 111.5 22.5 20.5 18 240 M14 55.5 45 10.5 10 56 62 M14x2.0 31 M14x2.0 12.5 20 8 Rc3/8 NPT3/8 G3/8

    Bore
    Magnitudo
    (mm)     		PA PB*** PW*** Q R S T U VA VB WA WB X YY YL Z
    25st aut minus Plus 25st 100 aut minus Plus 100 200st aut minus Super 200st 300st aut minus Plus 300st 25st aut minus Plus 25st 100 aut minus Plus 100 200st aut minus Plus 200st
    300st aut minus     		Plus 300st
    80 14.5 25.5 74 52 174 75 198 156 180 140 28 52 128 200 300 42 54 92 128 178 100 M12×1.75 24 28
    100 17.5 32.5 89 64 210 90 236 188 210 166 48 72 148 220 320 35 47 85 121 171 124 M14×2.0 28 11

    C-MGPM Slide ferens IA, DB, E Dimension .
    (mm)
    Bore
    Magnitudo
    (mm)     		A DB E
    50st aut minus Plus 50st
    200st aut minus     		Plus 200st 50st aut minus Plus 50st
    200st aut minus     		Plus 200st
    80 104.5 131.5 180.5 30 8 35 84
    100 126.5 151.5 190.5 36 10.5 35.5 74.5

    C-MGPL (Ball bushing)
    C-MGPA
    (mm)
    Bore
    Magnitudo
    (mm)     		A DB E
    25st aut minus Plus 25st 50st aut Minus Super 50st 200st aut minus Plus 200st 25st aut minus Plus 25st 50st aut Minus Super 50st 200st aut minus Plus 200st
    80 104.5 128.5 158.5 191.5 25 8 32 62 95
    100 119.5 145.5 178.5 201.5 30 3.5 29.5 62.5 85.5
