CXSW Series Per Rod Double Rod Cylinder Fornitores

Home / Products / Air Cylindri / Multi-axis cylindrici / CXSW Series Per Rod Double Rod Cylinder

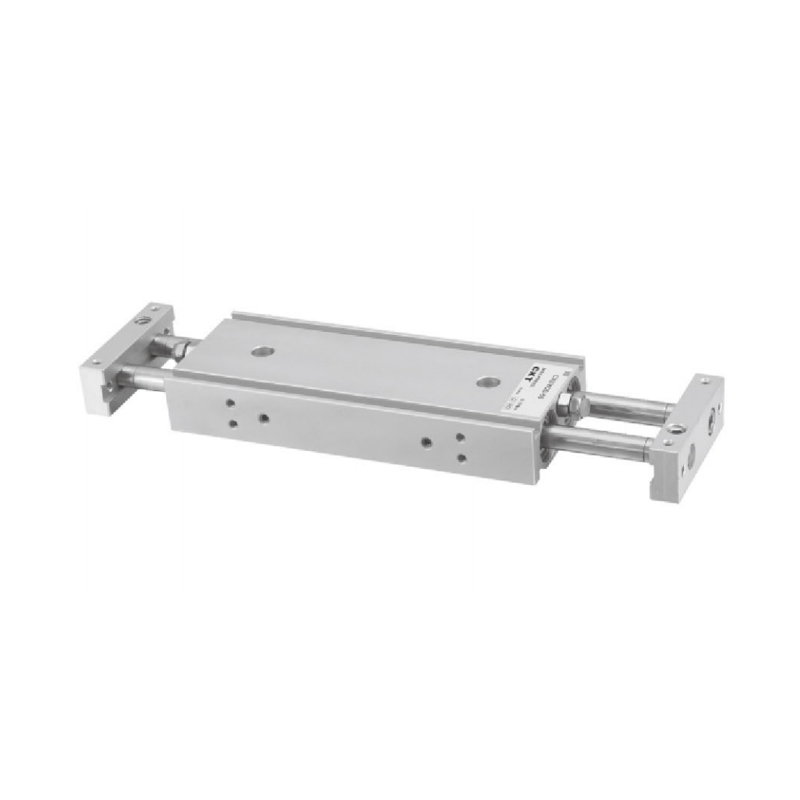

CXSW Series Per Rod Double Rod Cylinder
  • CXSW Series Per Rod Double Rod Cylinder
Multi-axis cylindrici

CXSW Series Per Rod Double Rod Cylinder

1. Maximum licitum onus est 2-3 temporibus major quam series CXS
2. Dual cylindrici designa, 2 temporibus vis output
3. High non- gyrationis accuracy
4. Fortis latus onus resistentia
5. Standard cum plaga temperatio fabrica: 0-10mm.

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：MGP Series Cylindri tenuis cum Guide Rod
SUCCESSIVO：CXS Series Double Cylinder (Basic Type)
  • Specification
    Portare Magnitudinem (mm) 6 10 15 20 25 32
    Liquor Air
    Actio Duplex agens
    Max.Operating Pressura
    (Mpa)     		0.7
    Min.Operating  Pressura
    (Mpa)     		0.15 0.1
    Ambientium & Fluidum Temperature -10~ 60℃(Nec frigore)
    Pulvinar Tum fines rubber bumper
    Piston celeritate operans
    (mm/s)     		50~500
    Structure Geminae virgae (bis output vis)
    *Lubrication Non requiratur
    Productum Novifacta Range 0~-10mm
    Ferens Slide afferentem / Ball bushing adferentem
    Limbus Port M5×0.8 Rc1/8
    * Quaeso uti ISOVG32 si uti vis lubricationis.

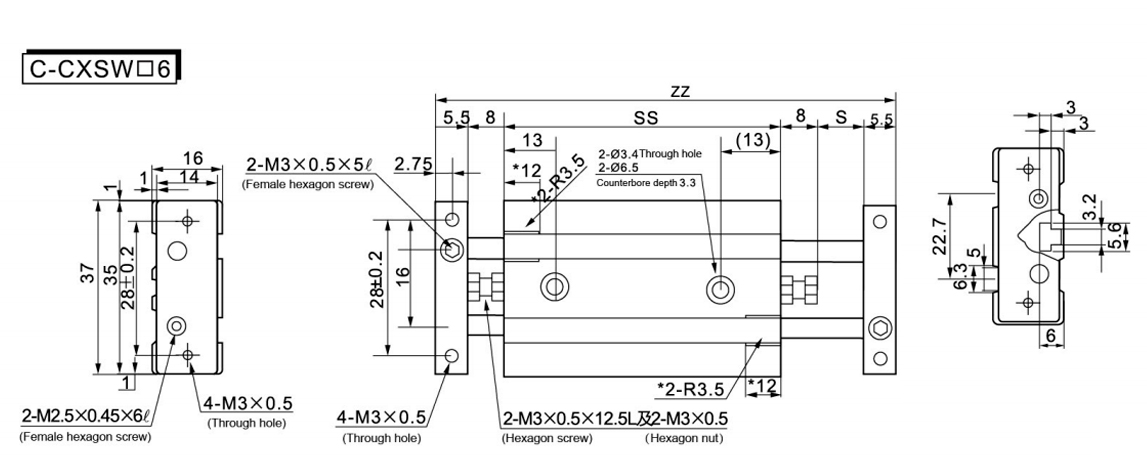

  • Exemplar S SS ZZ Z W
    C-CXSW□6-10 10 66 103 40 46
    C-CXSW□6-20 20 76 123 50 56
    C-CXSW□6-30 30 86 143 60 66
    C-CXSW□6-40 40 96 163 70 76
    C-CXSW□6-50 50 106 183 80 86

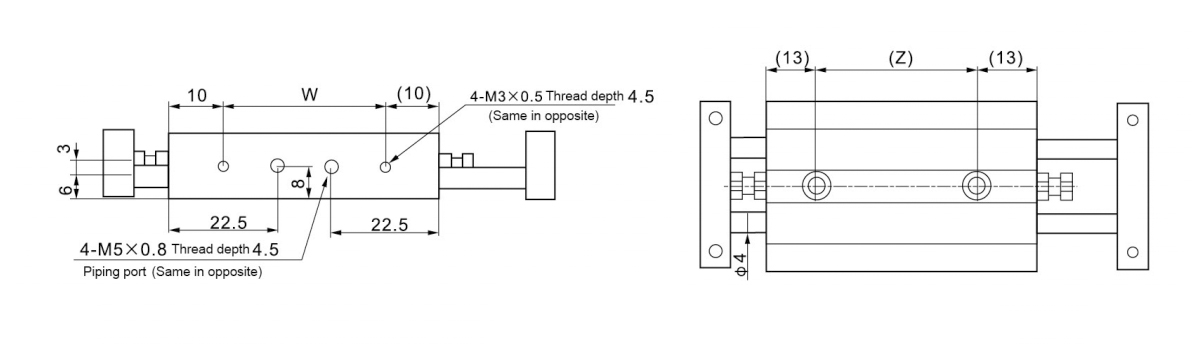

    Ad magnetes virgas pro C-CXSW□6-10   et C-CXSW□6-20   cylindros instituere, partem removere ad foveam magneticam commutandam adhibitam. (Dimensiones notatae *)

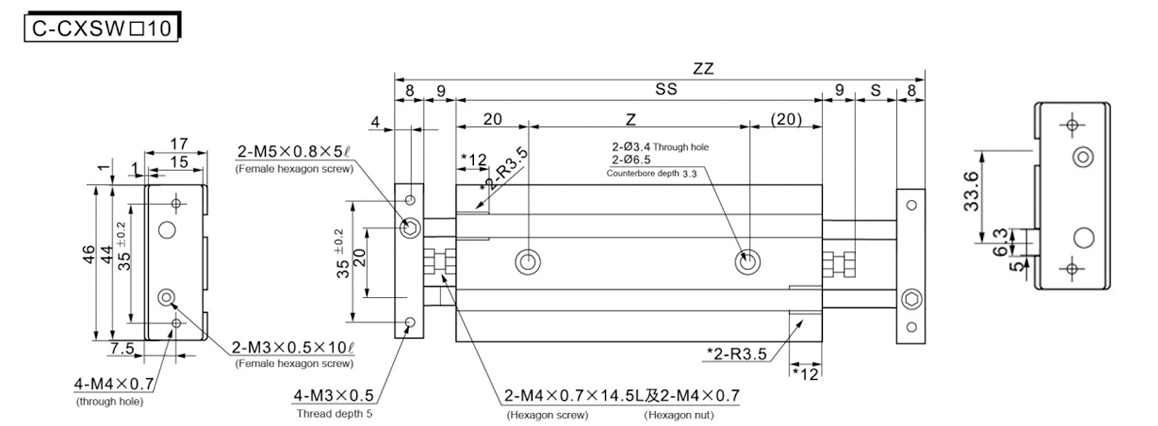

    Exemplar S SS ZZ Z
    Standard
    Plaga     		C-CXSW□10-10 10 92 136 52
    C-CXSW□10-20 20 102 156 62
    C-CXSW□10-30 30 112 176 72
    C-CXSW□10-40 40 122 196 82
    C-CXSW□10-50 50 132 216 92
    C-CXSW□10-75 75 157 266 117
    C-CXSW□10-100 100 182 316 142
    Long
    Plaga
    (-XB11)     		C-CXSW□10-125 125 207 366 167
    C-CXSW□10-150 150 232 416 192

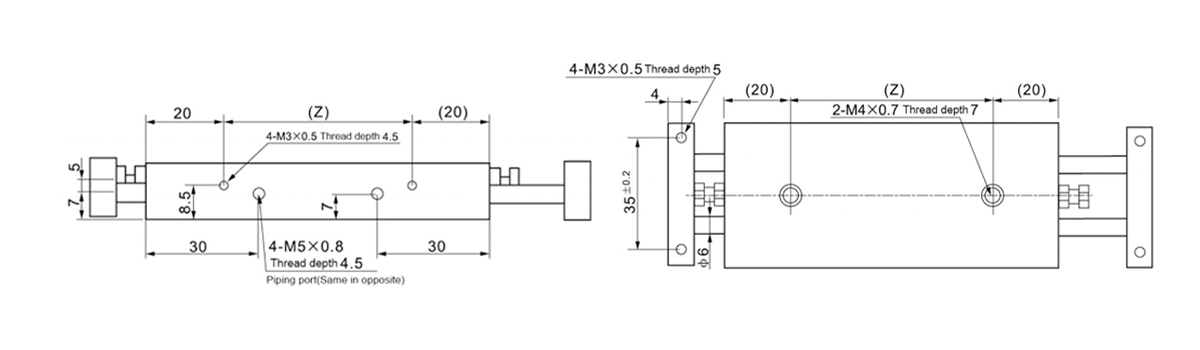

    Ut virgas magneticas pro C-CXSW□10-10 et C-CXSW□10-20 cylindris instituas, partem foveae magneticae transibit, quae ad magneticam transitum obtinendam adhibetur.

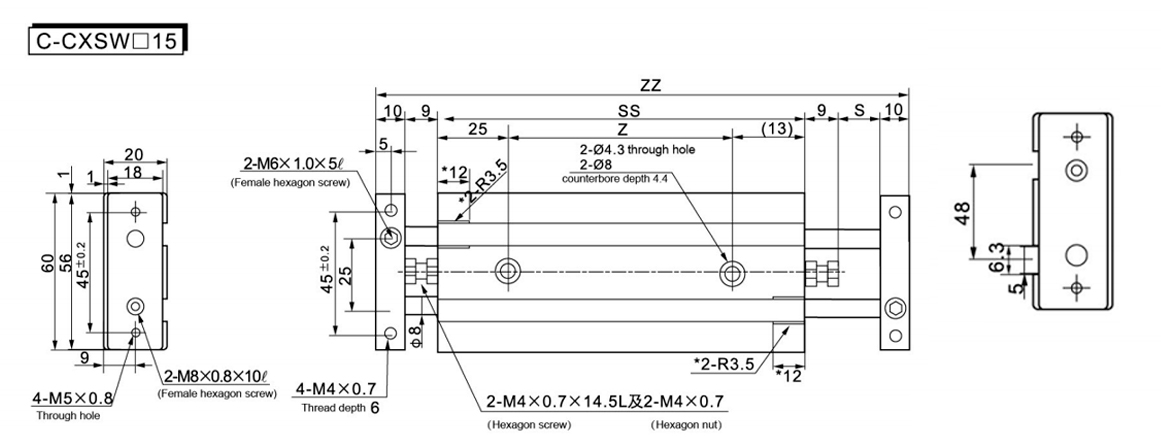

    Exemplar S SS ZZ Z
    Standard
    Plaga     		C-CXSW□15-10 10 105 153 55
    C-CXSW□15-20 20 115 173 65
    C-CXSW□15-30 30 125 193 75
    C-CXSW□15-40 40 135 213 85
    C-CXSW□15-50 50 145 233 95
    Long
    Plaga
    (-XB11)     		C-CXSW□15-75 75 170 283 120
    C-CXSW□15-100 100 195 333 145
    C-CXSW□15-125 125 220 383 170
    C-CXSW□15-150 150 245 433 195

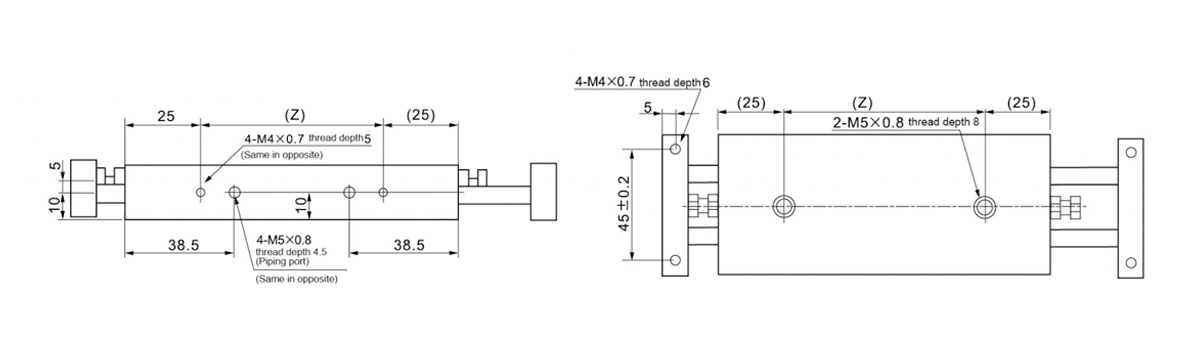

    Ut virgas magneticas pro C-CXSW□15-10 et C-CXSW□15-20 cylindros instituas, partem removere adhibitam ad foveam magneticam transitum tutandam.

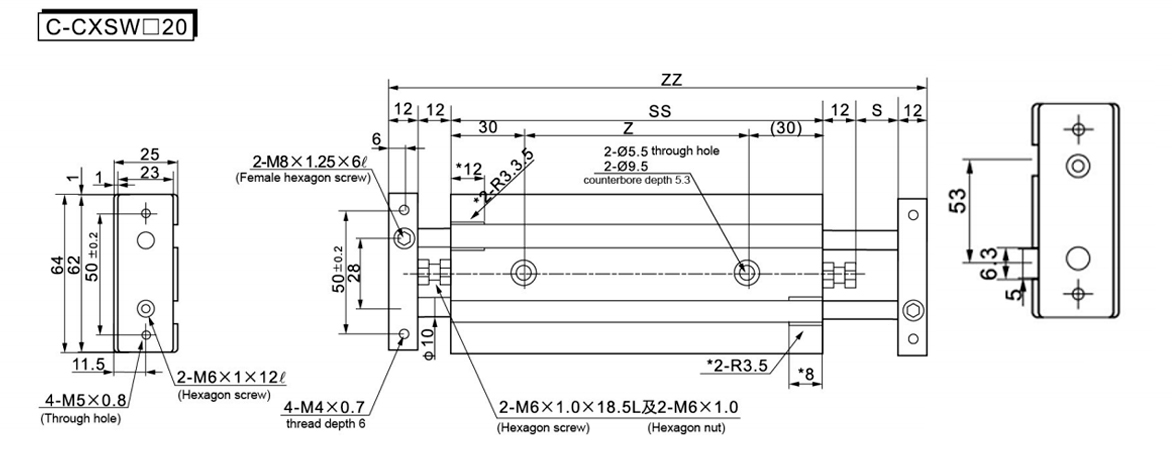

    Exemplar S SS ZZ Z
    Standard
    Plaga     		C-CXSW□-20-10 10 120 178 60
    C-CXSW□-20-20 20 130 198 70
    C-CXSW□20-30 30 140 218 80
    C-CXSW□20-40 40 150 238 90
    C-CXSW□20-50 50 160 258 100
    C-CXSW□20-75 75 165 308 125
    C-CXSW□20-100 100 210 358 150
    Long
    Plaga
    (-XB11)     		C-CXSW□20-125 125 235 408 175
    C-CXSW□20-150 150 260 458 200
    C-CXSW□20-175 175 285 508 225
    C-CXSW□20-20 200 310 558 250
    Ad magneticam transitum ad columpnam C-CXSW□20-10 instituendam, partem foveae transiti magneticae abscindendam, quae ad eam obtinendam adhibetur.

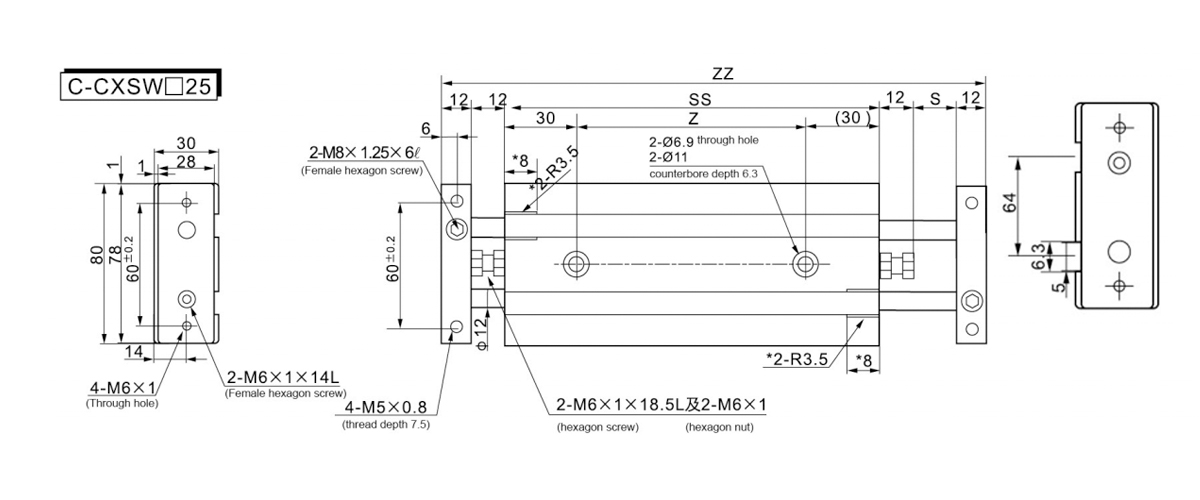

    Exemplar S SS ZZ Z
    Standard
    Plaga     		C-CXSW□25-10 10 122 180 62
    C-CXSW□25-20 20 132 200 72
    C-CXSW□25-30 30 142 220 82
    C-CXSW□25-40 40 152 240 92
    C-CXSW□25-50 50 162 260 102
    C-CXSW□25-75 75 187 310 127
    C-CXSW□25-100 100 212 360 152
    Long
    Plaga
    (-XB11)     		C-CXSW□25-125 125 237 410 177
    C-CXSW□25-150 150 262 460 202
    C-CXSW□25-175 175 287 510 227
    C-CXSW□25-200 200 321 560 252
    Ad magneticam transitum ad columpnam C-CXSW□25-10 instituendam, partem removere adhibitam ad foveam magneticam transitum obtinendam.
    (Dimensiones notatae sunt*)

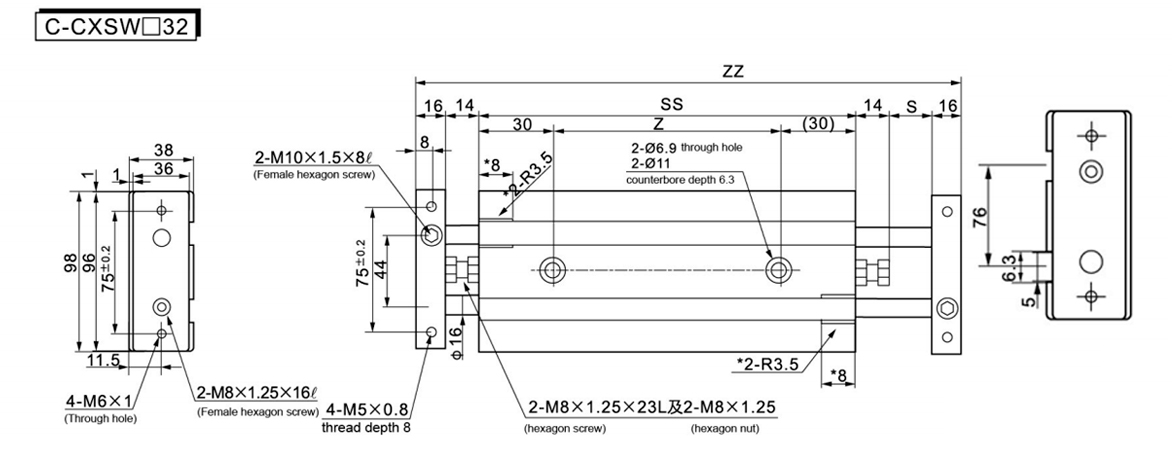

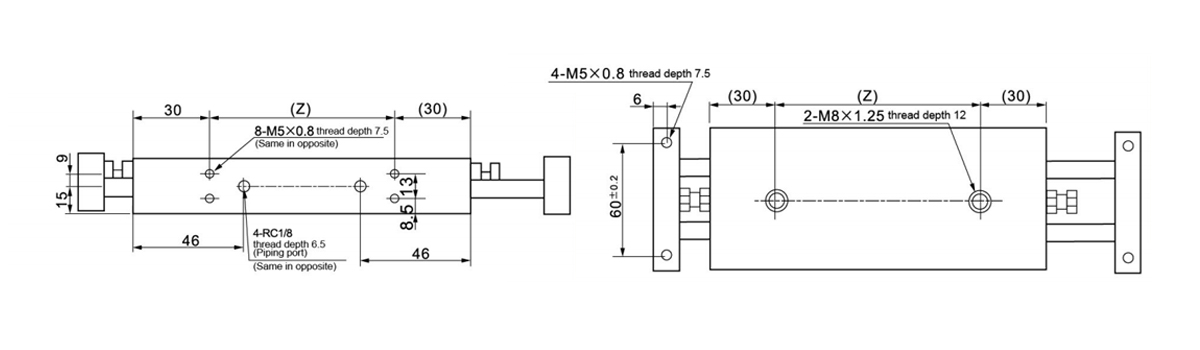

    Exemplar S SS ZZ Z




    Standard
    Plaga     		C-CXSW□32-10 10 143 213 83
    C-CXSW□32-20 20 153 233 93
    C-CXSW□32-30 30 163 253 103
    C-CXSW□32-40 40 173 273 113
    C-CXSW□32-50 50 183 293 123
    C-CXSW□32-75 75 208 343 148
    C-CXSW□32-100 100 233 393 173
    Long
    Plaga
    (-XB11)     		C-CXSW□32-125 125 258 443 198
    C-CXSW□32-150 150 283 493 223
    C-CXSW□32-175 175 308 543 248
    C-CXSW□32-200 200 333 593 273

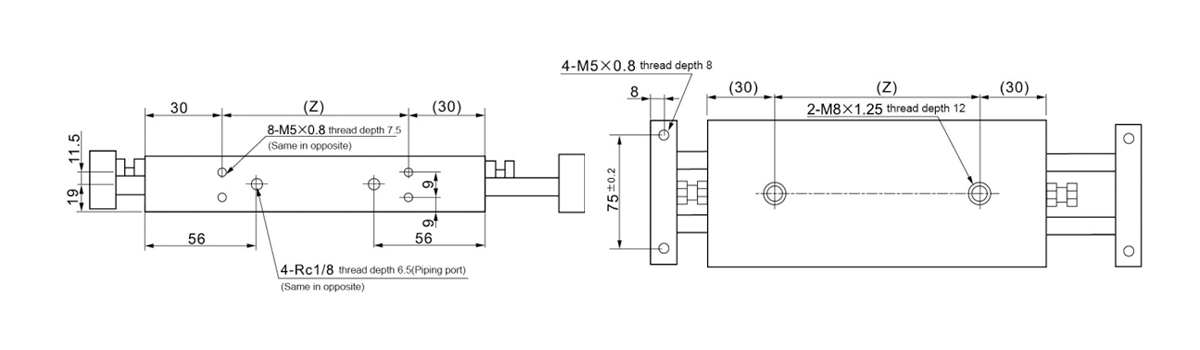

    Ad magneticam transitum ad columpnam C-CXSW□32-10 instituendam, partem removendam ad foveam magneticam transitum obtinendam. (Dimensiones cum *)
