CY3B/CY3R Series Magnetica Copulata Rodless Cylindri Basic Type/Direct Mount Type Fornitores

Home / Products / Air Cylindri / Rodless Cylindri / CY3B/CY3R Series Magnetica Copulata Rodless Cylindri Basic Type/Direct Mount Type

CY3B/CY3R Series Magnetica Copulata Rodless Cylindri Basic Type/Direct Mount Type CY3B/CY3R Series Magnetica Copulata Rodless Cylindri Basic Type/Direct Mount Type CY3B/CY3R Series Magnetica Copulata Rodless Cylindri Basic Type/Direct Mount Type
  • CY3B/CY3R Series Magnetica Copulata Rodless Cylindri Basic Type/Direct Mount Type
  • CY3B/CY3R Series Magnetica Copulata Rodless Cylindri Basic Type/Direct Mount Type
  • CY3B/CY3R Series Magnetica Copulata Rodless Cylindri Basic Type/Direct Mount Type
Rodless Cylindri

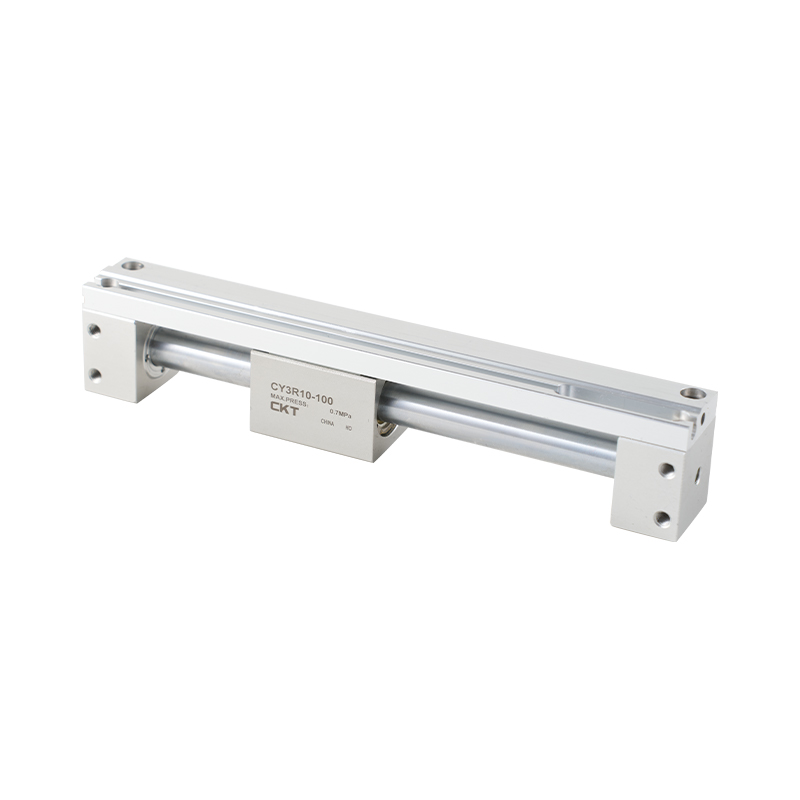

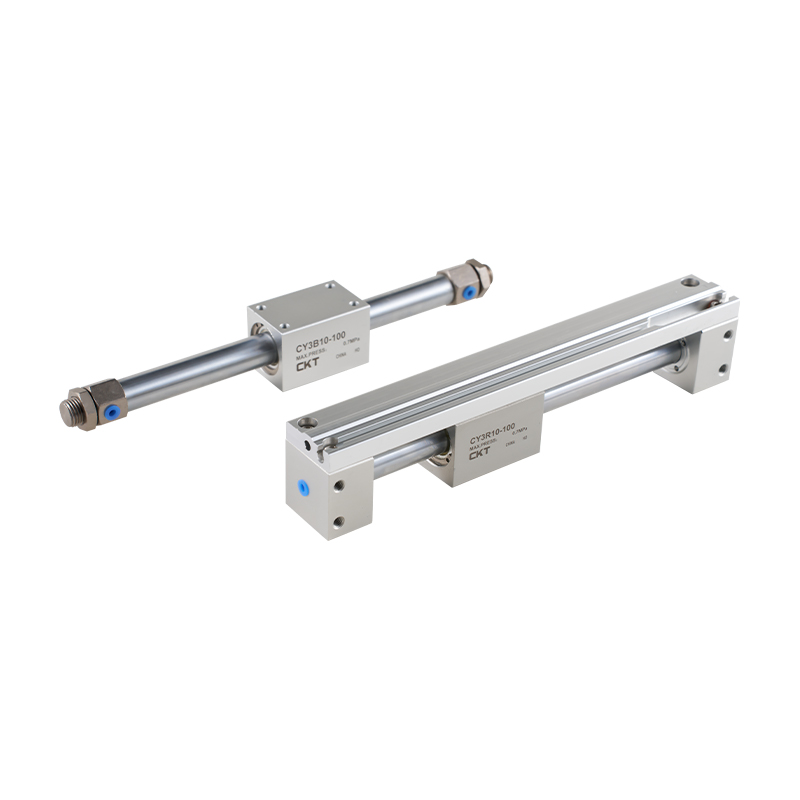

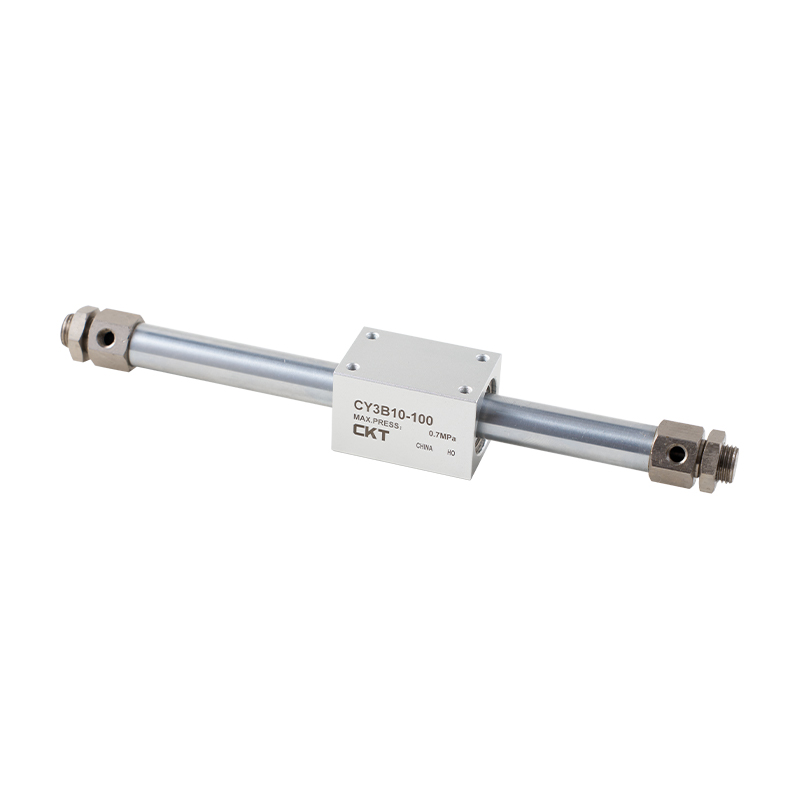

CY3B/CY3R Series Magnetica Copulata Rodless Cylindri Basic Type/Direct Mount Type

Figura principalis corporis et operimentum capitis mutata est, et connexio magnetica adhibita ad massam redigendam. Lubricatio anulum retinens piston potest continue lubricationem pelliculare et levitatem emendare.

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：MY1B Series Mechanica Articulus Rodless Cylinder (Basic Type)
SUCCESSIVO：CY1L Series Magnetica Copulata Rodless Cylindri (Ball ferens Type)
  • Latin specifications
    Diameter cylindricus (mm) 15 20 25 32 40
    Liquor usus est Aer (sine oleo)
    Maximum operating pressura MPa 0.7
    Minimum operating pressura MPa 0.16 0.15 0.14 0.12
    Ambiens et fluidum temperatus -10 ad LX ° F (sed non constringitur)
    Celeritas Piston mm / s * CY3B:50~400;CY3R:50~500
    Buffering Cushioning pads ad utrumque
    Longitudo patientia mm plaga 0~250 1°,251~1000 14,1001~ 1.8
    Copiam magneticam captionem   N 137 231 363 588 922
    Limbis nexum M5×0.8 Rc/8 ·NPT18 ·G/₈

  • Pars numerus Apta diametri cylindrici (mm) d H B C
    SNJ-016B 15 M10×1.0 4 14 16.2
    SN-020B 20 M20×1.5 8 26 30
    SN-032B 2532 M26×1.5 8 32 37
    SN-040B 40 M32×2.0 10 41 47.3

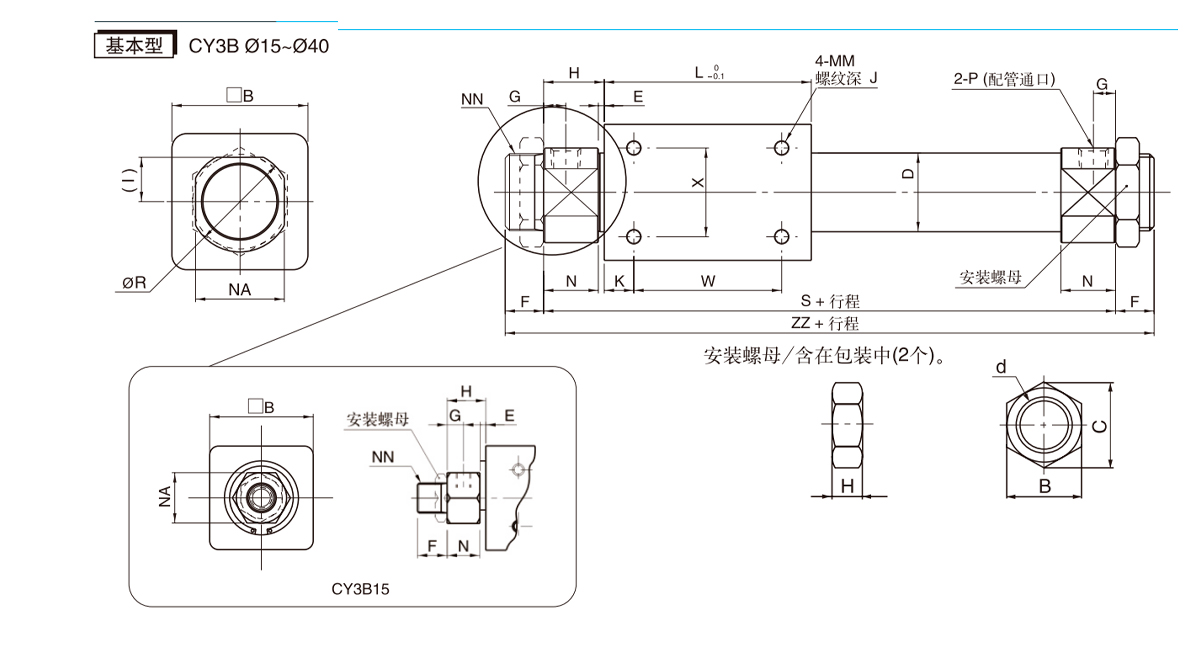

    Exemplar B D E F G H I J K L MM N NA NN R S W X ZZ
    CY3B15 35 16.6 3 10 5.5 13 - 6 11 57 M4×0.7 11 17 M10×1 - 83 35 19 103
    CY3B20 36 21.6 2 13 7.5 20 12 6 8 66 M4×0.7 18 24 M20×1.5 28 106 50 25 132
    CY3B25 46 26.4 2 13 7.5 20.5 15 8 10 70 M5×0.8 18.5 30 M26×1.5 34 111 50 30 137
    CY3B32 60 33.6 2 16 8 22 18 8 15 80 M6×1 20 36 M26×1.5 40 124 50 40 156
    CY3B40 70 41.6 3 16 11 29 23 10 16 92 M6×1 26 46 M32×2 50 150 60 40 182

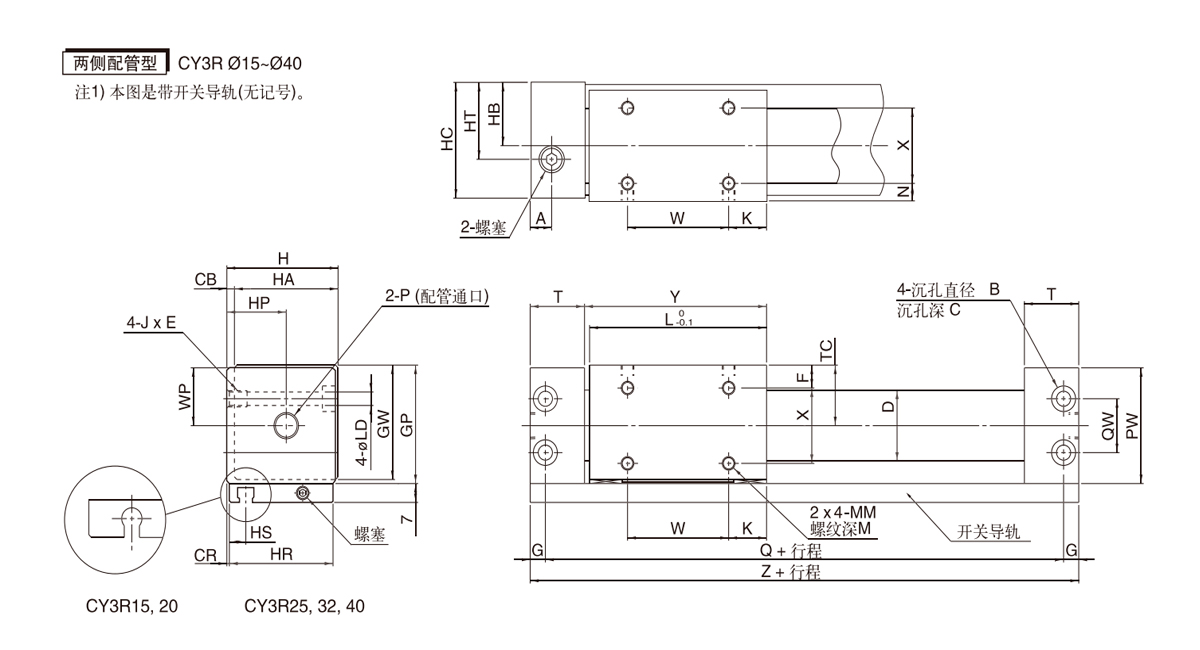

    Exemplar A B C CB CR D F G GP GW H HA HB HC HP HR HS HT JxE K
    CY3R15 10.5 8 4.2 2 0.5 16.6 8 5 33 31.5 32 30 17 31 17 30 8.5 17 M5×0.8x7 14
    CY3R20 9 9.5 5.2 3 1 21.6 9 6 39 37.5 39 36 21 38 24 36 7.5 24 M6×1x8 11
    CY3R25 8.5 9.5 5.2 3 1 26.4 8.5 6 44 42.5 44 41 23.5 43 23.5 41 6.5 23.5 M6×1x8 15
    CY3R32 10.5 11 6.5 3 1.5 33.6 10.5 7 55 53.5 55 52 29 54 29 51 7 29 M8×1.25×10 13
    CY3R40 10 11 6.5 5 2 41.6 13 7 65 63.5 67 62 36 66 36 62 8 36 M8×1.25×10 15

    Exemplar L LD M MM N PW* Q QW T TC W WP X Y Z
    CY3R15 53 4.3 5 M4×0.7 6 32 84 18 19 17 25 16 18 54.5 94
    CY3R20 62 5.6 5 M4×0.7 7 38 95 17 20.5 20 40 19 22 64 107
    CY3R25 70 5.6 6 M5×0.8 6.5 43 105 20 21.5 22.5 40 21.5 28 72 117
    CY3R32 76 7 7 M6×1 8.5 54 116 26 24 28 50 27 35 79 130
    CY3R40 90 7 8 M6×1 11 64 134 34 26 33 60 32 40 93 148

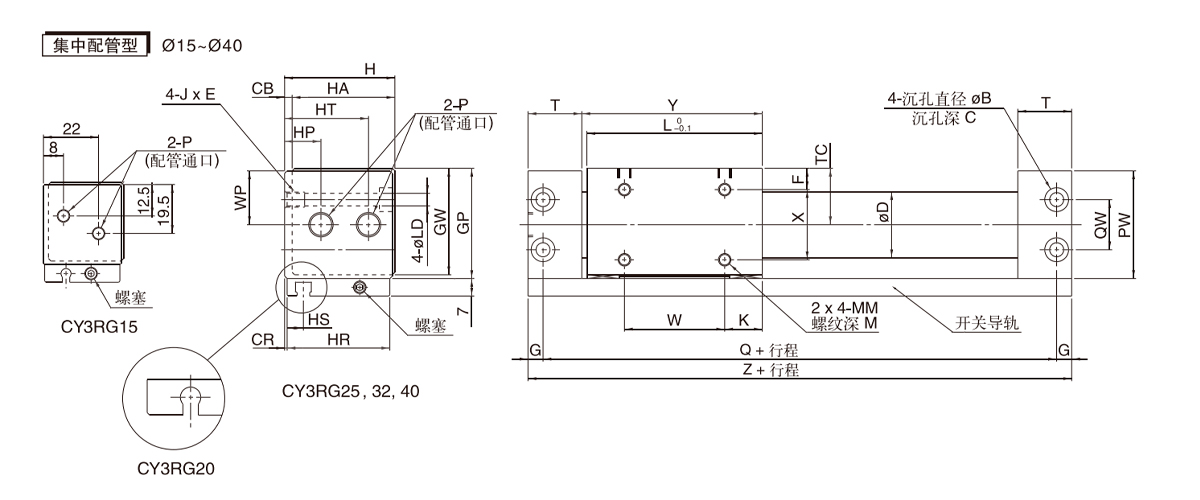

    Exemplar HP HT
    CY3RG15 - -
    CY3RG20 11 28
    CY3RG25 14.5 33.5
    CY3RG32 20 41
    CY3RG40 25 50
    Dimensiones non specificatae sunt eadem quae ad fistulam generis utrinque.
