MY1H Series Mechanice Joined Rodless Cylindri (linear Guide Type)
  • MY1H Series Mechanice Joined Rodless Cylindri (linear Guide Type)
Rodless Cylindri

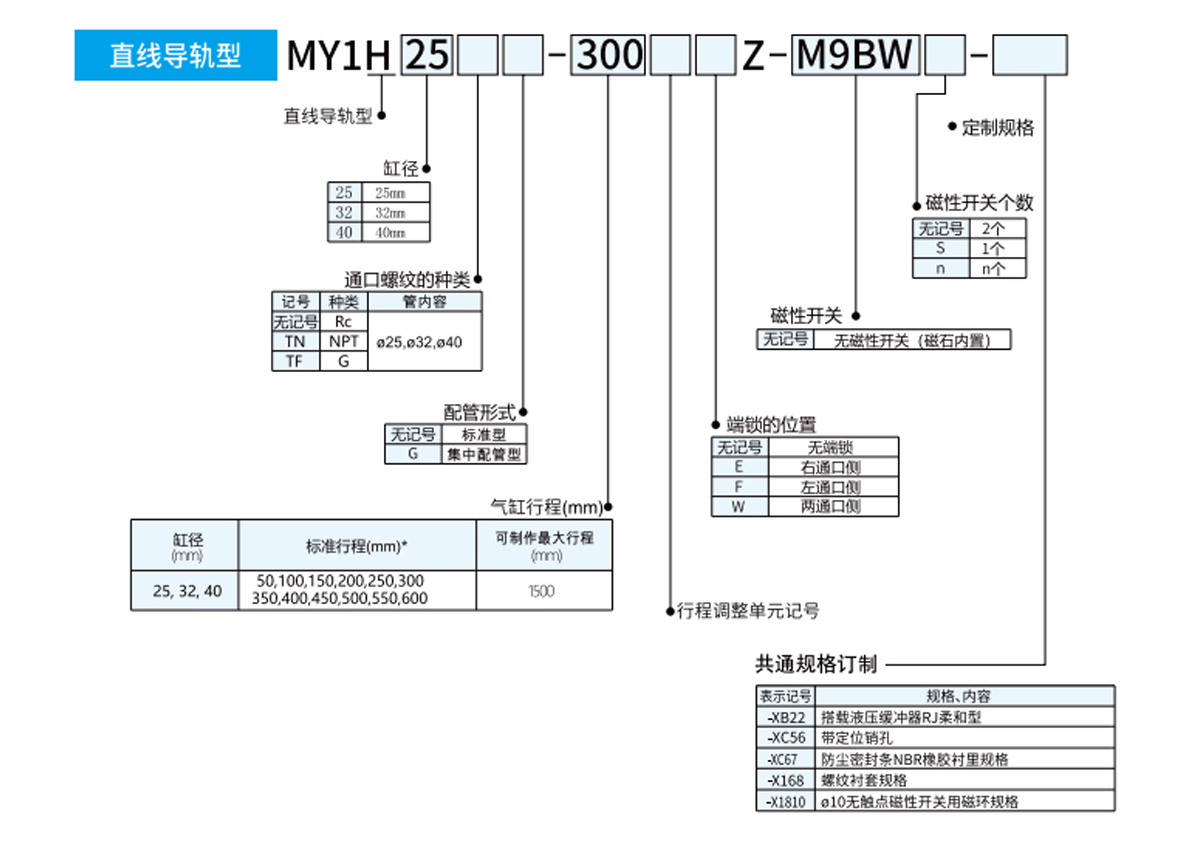

MY1H Series Mechanice Joined Rodless Cylindri (linear Guide Type)

MY1H Series Mechanice coniungitur Rodless Cylindrus rodless cylindrus qui utitur articulis mechanicis ad motum transmissionis consequendum et specialiter integratur cum structura duce lineari. Intendit providere pacti, certae et certae solutionem depellendi lineari-satiabili pro communibus applicationibus vagum et locum in systematis automation.

Core vis urget genus: Core eius in unica structura iuncturae mechanica iacet, quae motui pistonis lineari callide transmittit directe ad onus externum lapsus per mechanismum internum, sine necessitate ad extensionem pistonis cylindrici traditi, et cognoscit compactam integrationem corporis cylindrici et onus motus.

Subtilitas dux lapis angularis; E contra exemplaribus conventionalibus, haec series systematis ductor lineari-in summo rigore constructum habet. Hoc subsidium ac regimen praebet ad lapsus oneris, quod longe ducatum ipsius cylindrici facultatem excedit, signanter lenitatem motus auget et altius repetabilitatem affert, quae ad opportunitates positionis aptas cum modica subtilitate requisita est.

Typical application positioning: Disposita onera capacitatis et vagandi huius seriei aptissimam faciunt ad frequentes legendi, transferendi et collocandi operationes operum parvorum et mediocrium mediocrium ponderum in lineis productionis automated. Maxime convenit missionibus ubi amplitudo operis amplitudo est in specificationibus typicis parvis et mediis (exempli gratia: diameter est in gradu decem millimetris).

Space efficientiae utilitas: Cum spatium anterior et posterior requiritur ad extensionem ac retractationem pistonium tollendam, coniuncta cum ductore suo integrato rail consilio, altiore structura valde compacta est, quae maxime confert ad institutionem axialem conservandam pretiosam in spatio instrumenti ad extensionem constricti.

Reliability considerations: Mechanica coniunctio designa plerumque significat requisita sigilli minus devolvente (ad magneticam copulationem comparata), quae vitam servitutis emendare potest et dependentiam in sustentatione aliquatenus minuere, et operatio certius est..

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：MY1M Series Mechanice Joined Rodless Cylinder Illapsum Rector Type
SUCCESSIVO：MY1B Series Mechanica Articulus Rodless Cylinder (Basic Type)
  • Diameter cylindricus (mm) 25 32 40
    Air
    Liquor usus est Duplex agens
    Modus operating 0.1~0.8MPa
    Operans pressura range 1.2MPa
    Pressura test pressura 5~60℃
    Ambiens temperatus et fluidus temperatus
    Buffering Pulvinar Air
    Lubricatio Non oleum
    Longitudo patientiae plaga 1.80
    Diameter pipe Ante et latus openings Rc1/8 Rc1/4
    Solum ostium 6 8

    Obfirmo specifications
    Diameter cylindricus (mm) 25 32 40
    Obfirmo loco Una parte (libitum), utrimque
    Vim obtinens (MAX.) N 270 450 700
    Travel fine temperatio range (mm) 0~-11.5 0~-12 0~-16
    Clearance Minus quam I mm
    Manual emissio Potest (reserata genus)

  • Limbis in fundo-mounted centralis limbis systems

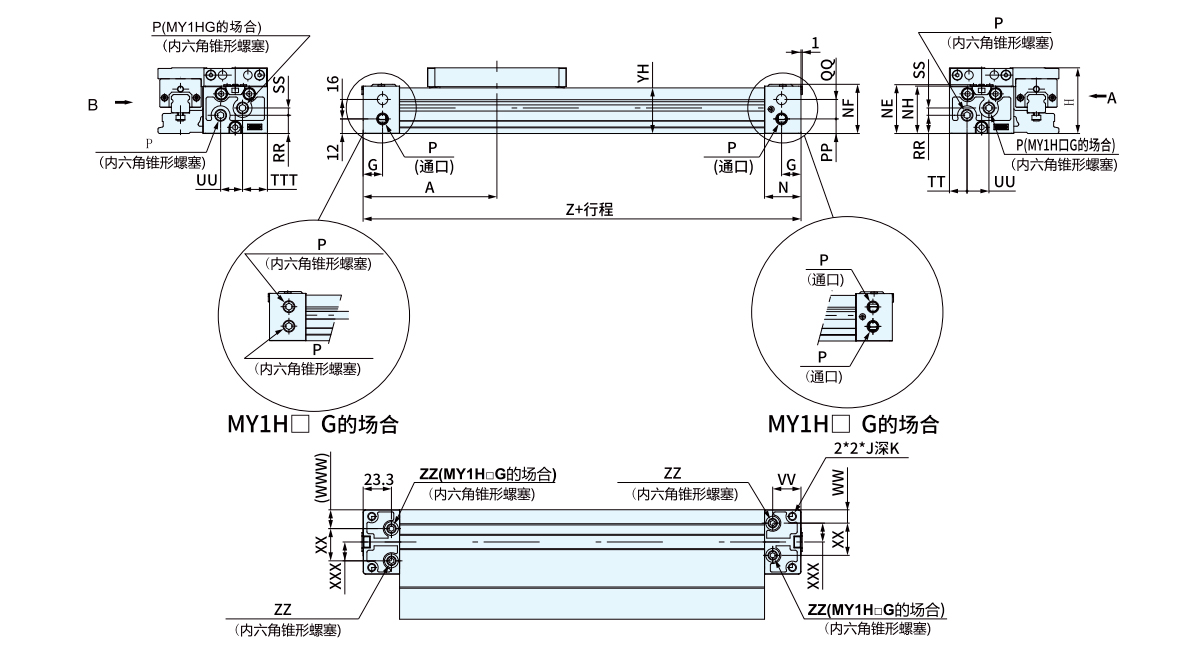

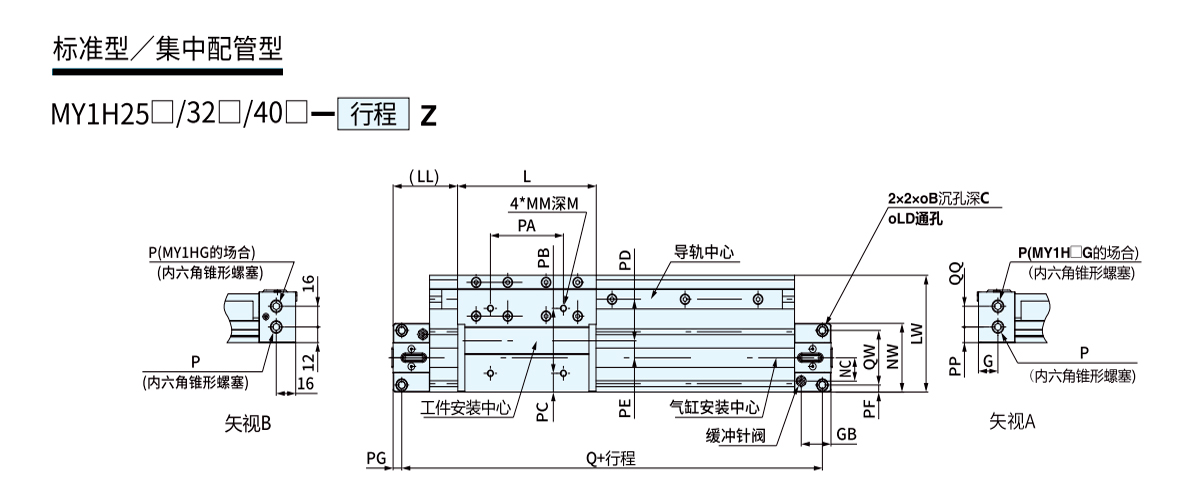

    Model A B C G GB H J K L LD LL LW M MM N NC NE NF NH NW P PA PB** PC
    MY1H25 110 9 5.5 16 24.5 54 M6*1 9.5 114 5.6 53 90 9 M5*0.8 30 18 40.2 40.5 39 53 Rc1/8 60 50 14.5
    MY1H32 140 11 6.6 19 28.5 68 M8*1.25 16 140 6.8 70 110 13 M6*1 37 22 50.2 50 49 64 Rc1/8 80 60 15
    MY1H40 170 14 8.5 23 35 84 M10*1.5 15 170 8.6 85 121 13 M6*1 45 26.5 62.7 62 61.5 75 Rc1/4 100 80 20.5

    Model PD PE PF PG PP Q QW RR TT TTT VV WW WWW XXX YH Z ZZ In casibus de centralized limbis Model QQ SS UU XX
    MY1H25 32 13 5.5 7 12 206 42 15 14.5 20.5 23.3 11 15.5 15.5 37.5 220 Rc1/16 MY1H25 16 6 18 26.5
    MY1H32 42 13 6.5 8 16 264 51 16 16 16 28.5 12 12 20 47 280 Rc1/16 MY1H32 16 11 32 40
    MY1H40 37.5 23 8 9 18.5 322 59 23.5 20 20 35 14 14 23.5 59.5 340 Rc1/8 MY1H40 24 12 35 47

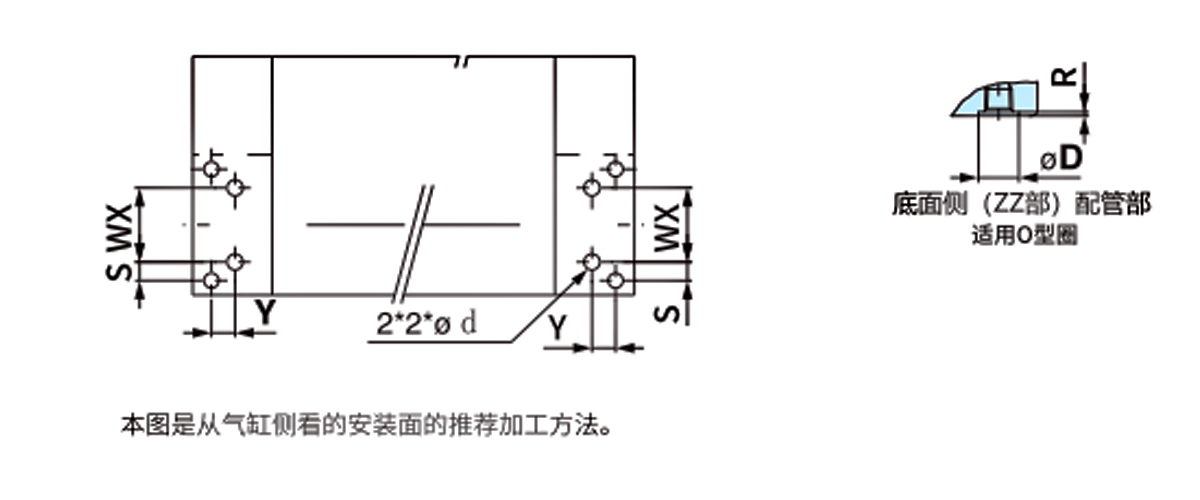

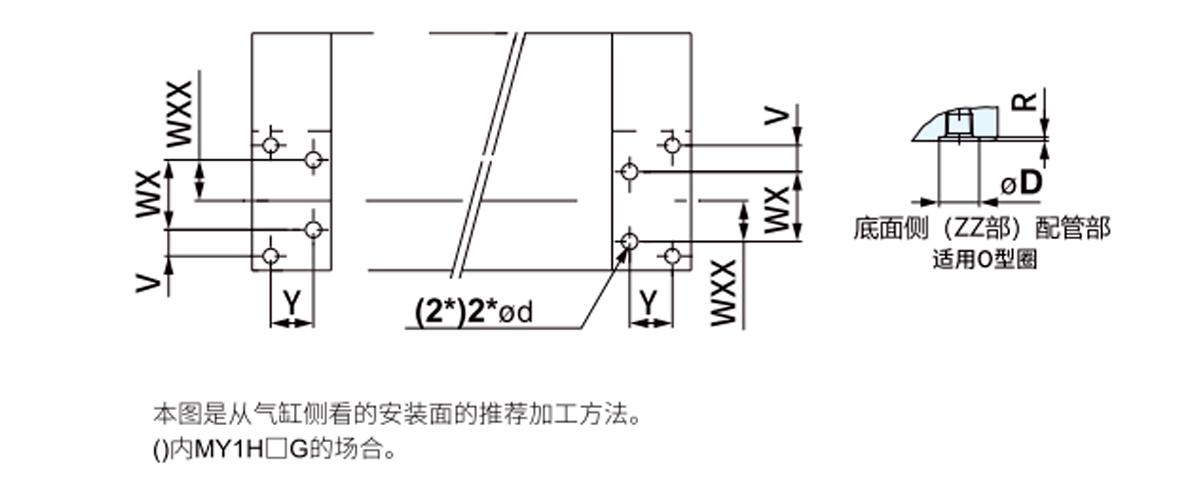

    Mensa fistulae foraminis magnitudinum pro limbis in superficie ima contractis (placere his magnitudinibus uti ad superficierum processus et institutionem)
    Limbis vexillum / centralised limbis communis In casibus de centralized limbis
    Model WXX Y d D R Idoneum pro o-annulis Model WX V
    MY1H25 15.5 16.2 6 11.4 1.1 C9 MY1H25 26.5 10
    MY1H32 20 20.4 6 11.4 1.1 MY1H32 40 5.5
    MY1H40 23.5 25.9 8 13.4 1.1 C11.2 MY1H40 47 6

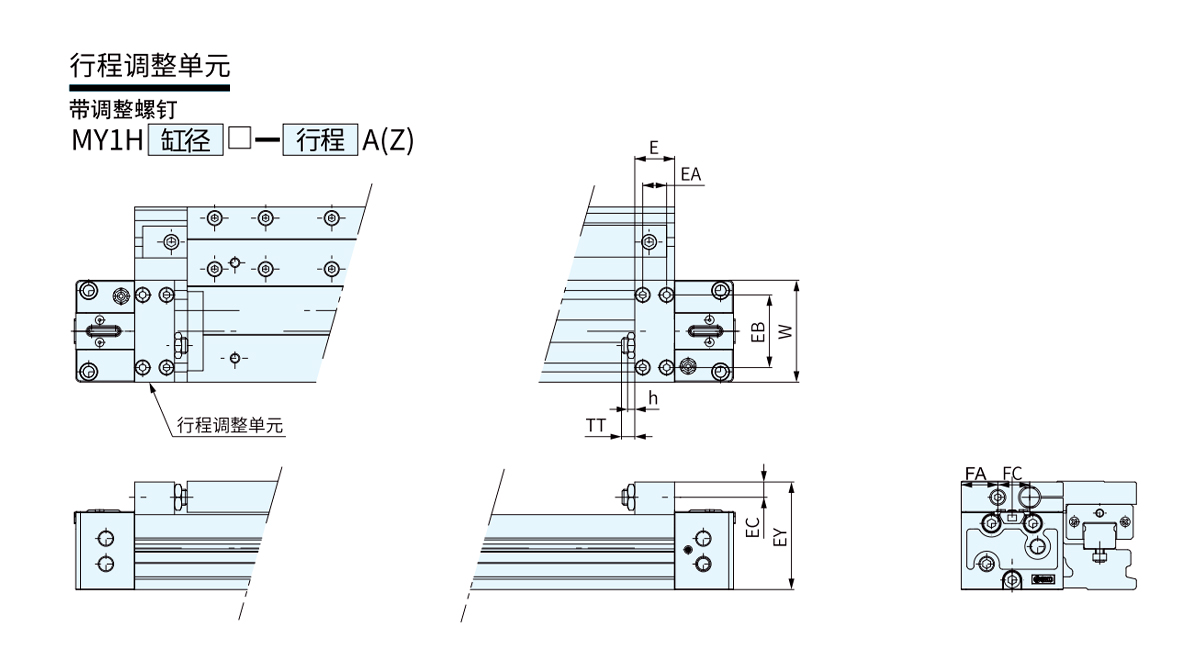

    Apta cylindri E EA EB EC EY FA FC h TT W
    MY1H25 18 9 40 7.5 53.5 16 21 3.5 5(MAX.16.5) 53
    MY1H32 25 14 45.6 9.5 67.5 23 20 4.5 8(MAX.20) 64
    MY1H40 31 19 55 11 82 24.5 26 4.5 9(MAX.25) 75

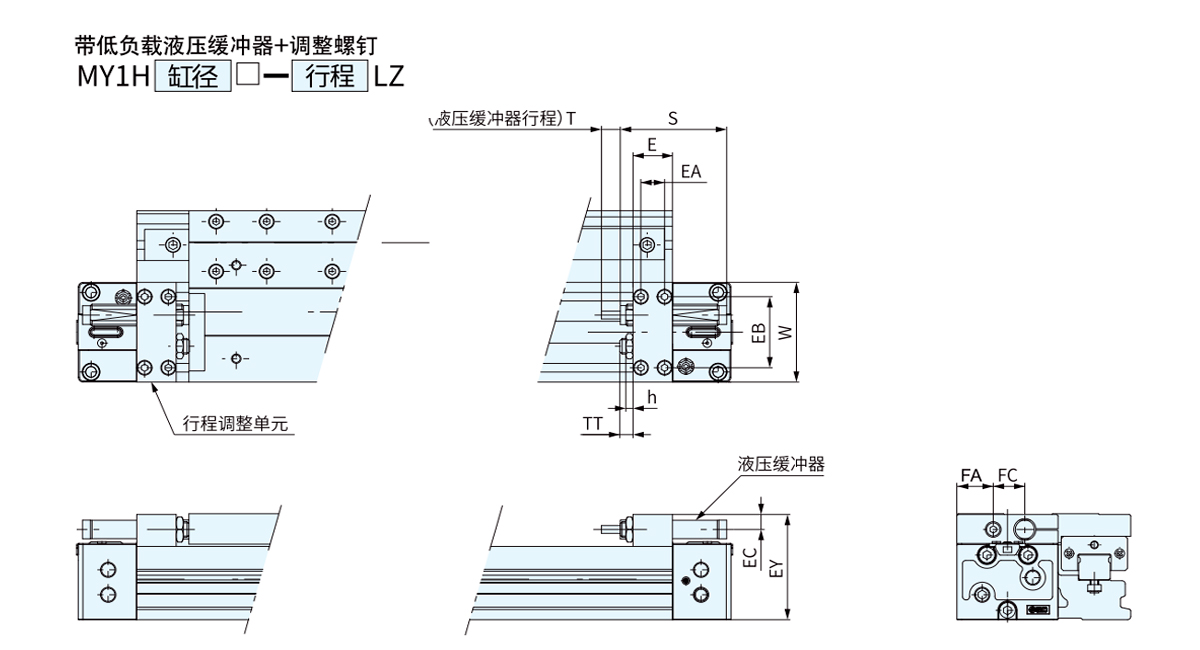

    Apta cylindri E EA EB EC EY F FA FC h S T TT W Hydraulica Buffer Model
    MY1H25 18 9 40 7.5 53.5 - 16 21 3.5 46.7 7 5(MAX.16.5) 53 RB1007
    MY1H32 25 14 45.6 9.5 67.5 - 23 20 4.5 67.3 12 8(MAX.20) 64 RB1412
    MY1H40 31 19 55 11 82 - 24.5 26 4.5 67.3 12 9(MAX.25) 75 RB1412

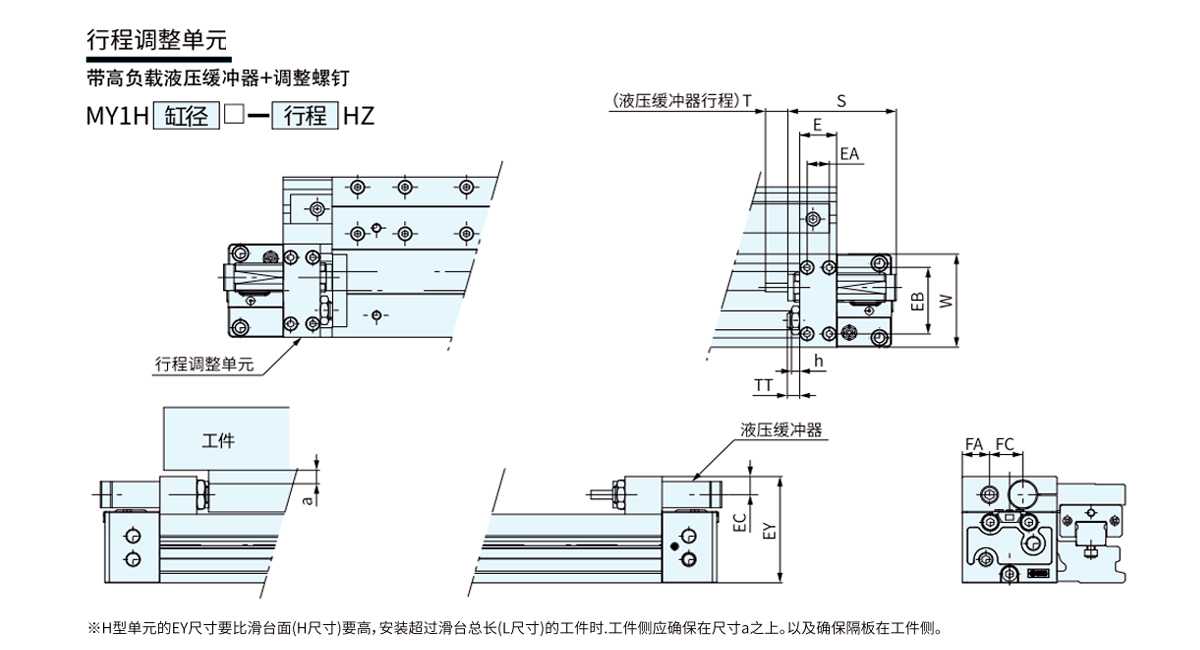

    Apta cylindri E EA EB EC EY F FA FC h S T TT W Hydraulica Buffer Model a
    MY1H25 18 9 40 9 57 - 18 17.5 4.5 67.3 12 5(MAX.16.5) 53 RB1412 3.5
    MY1H32 25 14 45.6 12.4 73 - 18.5 22.5 5.5 73.2 15 8(MAX.20) 64 RB2015 5.5
    MY1H40 31 19 55 12.4 86 - 26.5 22 5.5 73.2 15 9(MAX.25) 75 RB2015 2.5

    Limbis in fundo-mounted centralis limbis systems

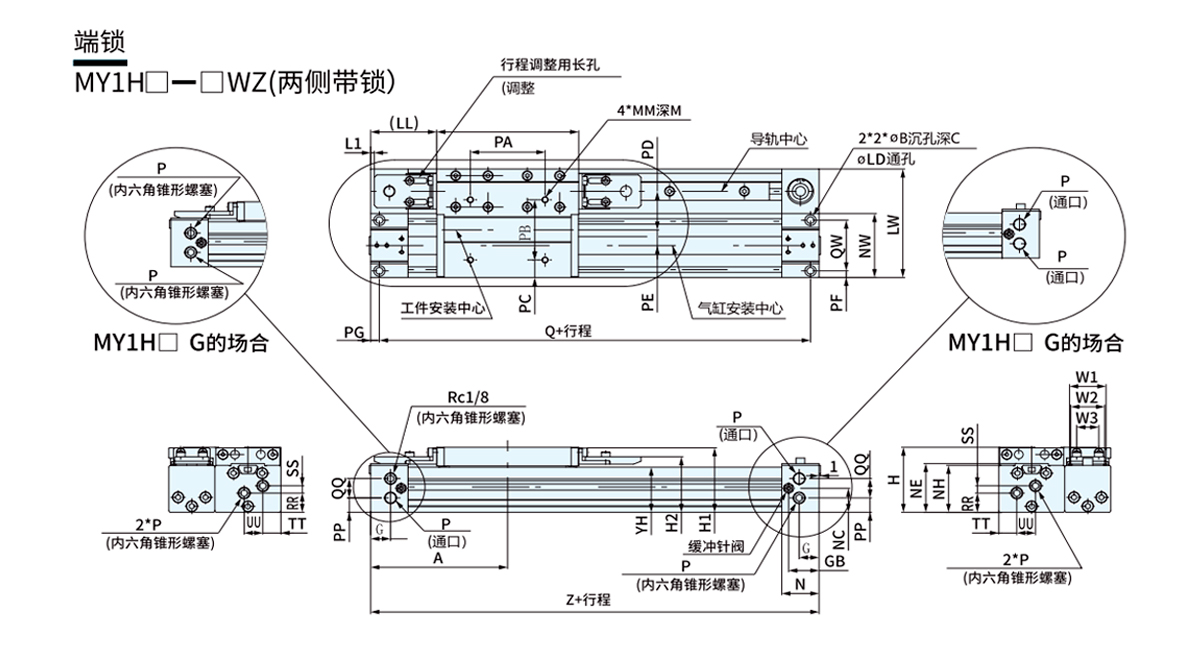

    Model A B C G GB H J K L LD LL LW M MM N NC NE NF NH NW P PA PB** PC
    MY1H25 110 9 5.5 16 24.5 54 M6*1 9.5 114 5.6 53 90 9 M5*0.8 30 18 40.2 40.5 39 53 Rc1/8 60 50 14.5
    MY1H32 140 11 6.6 19 28.5 68 M8*1.25 16 140 6.8 70 110 13 M6*1 37 22 50.2 50 49 64 Rc1/8 80 60 15
    MY1H40 170 14 8.5 23 35 84 M10*1.5 15 170 8.6 85 121 13 M6*1 45 26.5 62.7 62 61.5 75 Rc1/4 100 80 20.5

    Limbis in fundo-mounted centralis limbis systems
    Model PD PE PF PG PP Q QW RR TT TTT VV WW WWW XXX YH Z ZZ
    MY1H25 32 13 5.5 7 12 206 42 15 14.5 20.5 23.3 11 15.5 15.5 37.5 220 Rc1/16
    MY1H32 42 13 6.5 8 16 264 51 16 16 16 28.5 12 12 20 47 280 Rc1/16
    MY1H40 37.5 23 8 9 18.5 322 59 23.5 20 20 35 14 14 23.5 59.5 340 Rc1/8

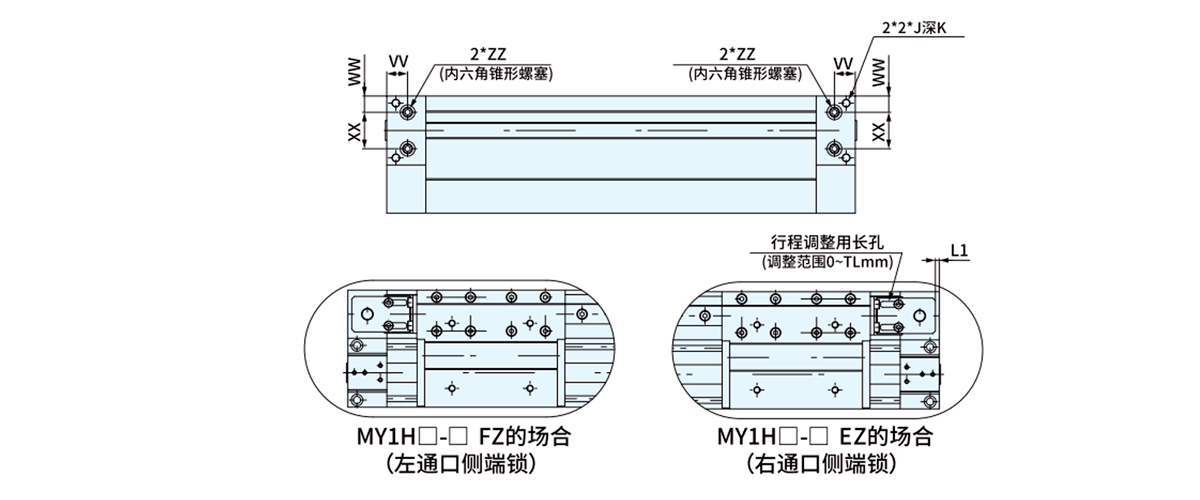

    Cincinno mechanism (vexillum limbis / limbis centralised communis)
    Model H1 H2 L1 TL W1 W2 W3
    MY1H25 53.5 46 3 11.5 29.3 27.3 17.7
    MY1H32 67 56 6.5 12 29.3 27.3 17.7
    MY1H40 83 68.5 10.5 16 38 35 24.4

    Limbis vexillum / centralised limbis communis
    Model WX Y d D R Idoneum pro o-annulis
    MY1H25 28 9 6 11.4 1.1 C9
    MY1H32 32 11 6 11.4 1.1
    MY1H40 36 14 8 13.4 1.1 C11.2
    Mensa fistulae foraminis magnitudinum pro limbis in superficie ima contractis (placere his magnitudinibus uti ad superficierum processus et institutionem)

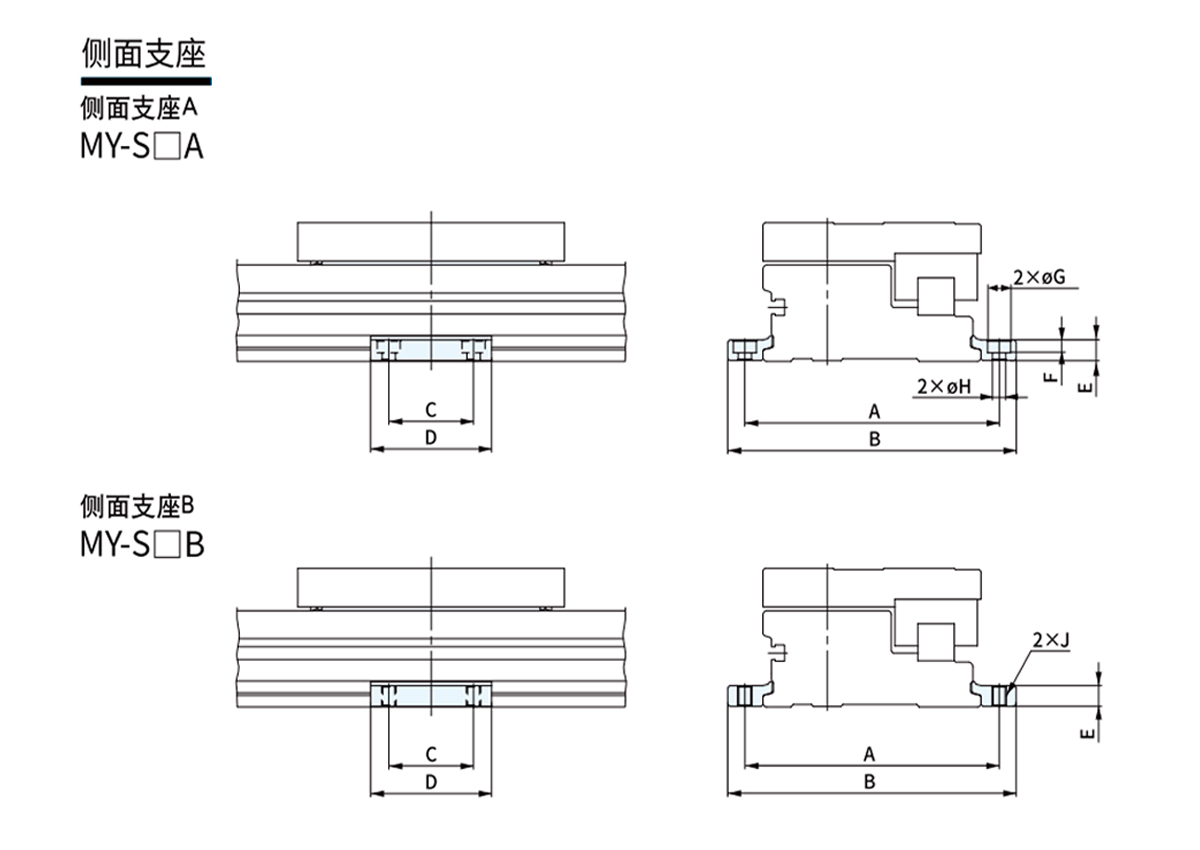

    Model Apta cylindri A B C D E F G H J
    MY1H25 A MY1H25 105 119 35 50 8 5 9.5 5.5 M6!1
    B
    MY1H32 A MY1H32 130 148 45 64 11.7 6 11 6.6 M8!1.25
    B
    MY1H40 A MY1H40 145 167 55 80 14.8 8.5 14 9 M10
    B
