MXH Series Small Slide Cylinder (Guide Linear) (Ø6~Ø20) Fornitores

Home / Products / Air Cylindri / Slide Cylindrus / MXH Series Small Slide Cylinder (Guide Linear) (Ø6~Ø20)

MXH Series Small Slide Cylinder (Guide Linear) (Ø6~Ø20) MXH Series Small Slide Cylinder (Guide Linear) (Ø6~Ø20) MXH Series Small Slide Cylinder (Guide Linear) (Ø6~Ø20)
  • MXH Series Small Slide Cylinder (Guide Linear) (Ø6~Ø20)
  • MXH Series Small Slide Cylinder (Guide Linear) (Ø6~Ø20)
  • MXH Series Small Slide Cylinder (Guide Linear) (Ø6~Ø20)
Slide Cylindrus

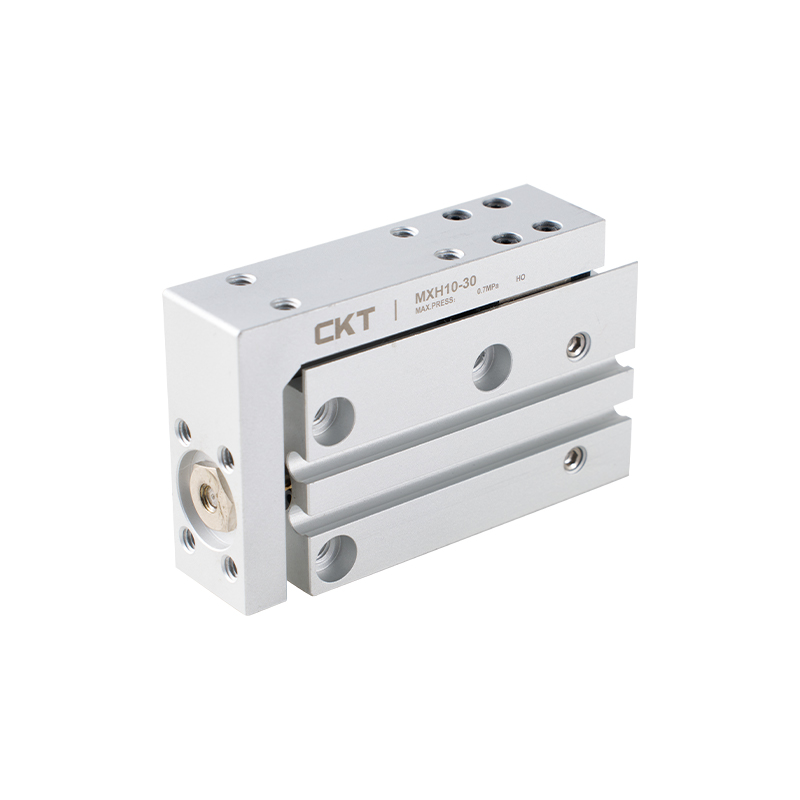

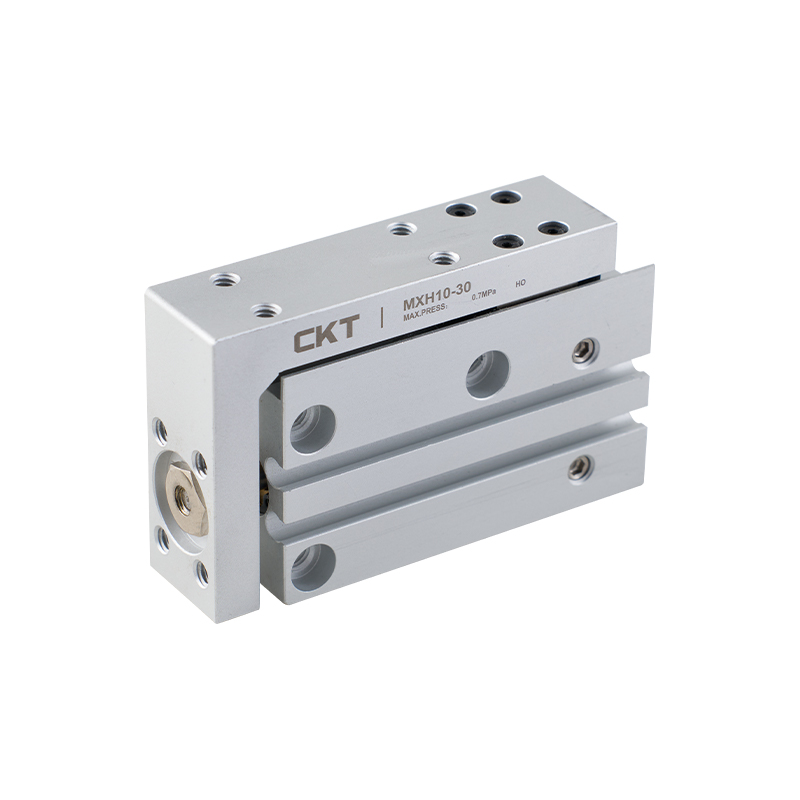

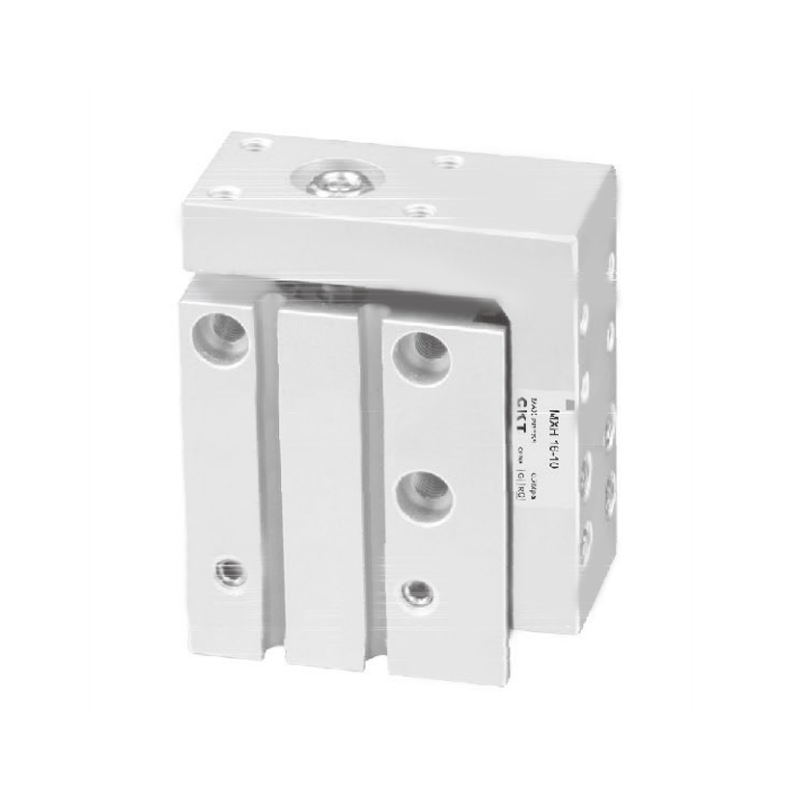

MXH Series Small Slide Cylinder (Guide Linear) (Ø6~Ø20)

1. Praeceptor lineares inaugurare gestus ad emendandum non rotationem accuratam de anconis;
2. Latin in anulo magnetico constructo, cum sensibilibus magneticis transitum iter institui potest;

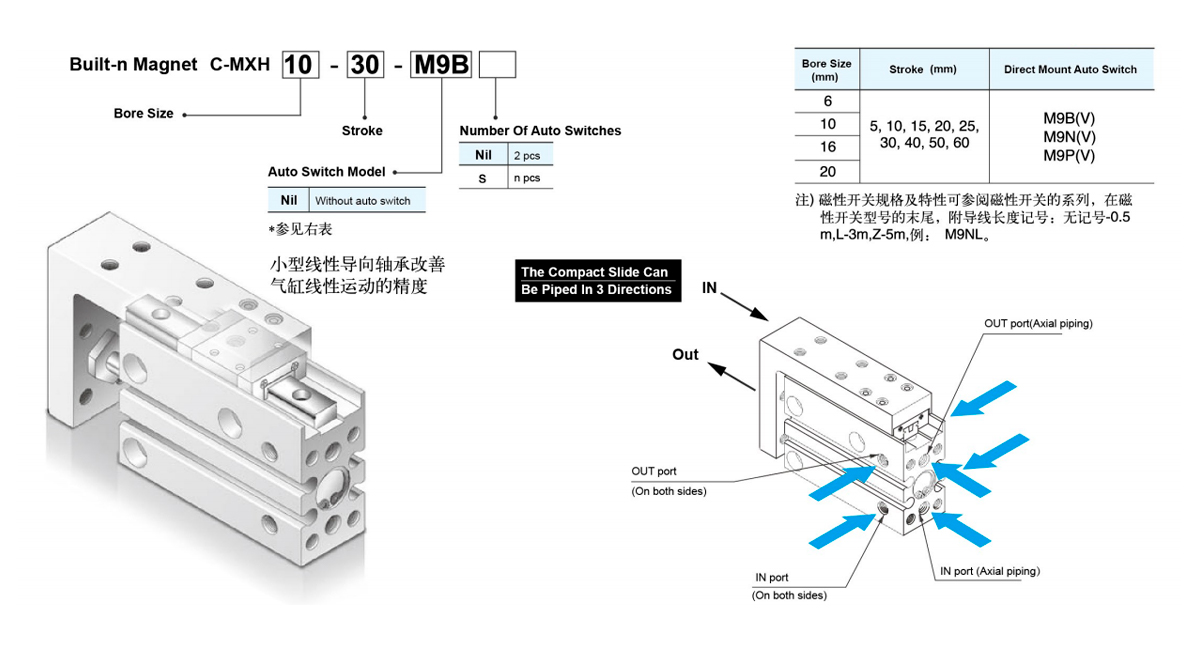

3. Potest coniungi caeli principium ex tribus partibus;
4. Potestas magneticae virgas in duas partes inaugurare;
5. Latin rubbers buffers at both ends;
6. Aureus licitus est sex temporum seriei MXU.

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：STM Series Slide Cylinder (Ø10~Ø25)
SUCCESSIVO：MXQ Series Slide Cylinder (Circulating Guide Linear) Double Cylinder Type (Ø6~Ø25)
  • Standard Specification
    Bore Size (mm) 6 10 16 20
    Rector Ferens Width 5 7 9 12
    Liquor Air
    Actio Duplex agens
    Min Operating Pressura 0.15MPa 0.06MPa 0.05MPa
    Max Operating Pressura 0.7  MPa
    Ambient Et Fluidus Temperature Sine auto switch: -10～ 70℃
    Cum auto switch: -10～ 60℃     		(Nec frigore)
    Piston Volo 50～500     mm/s
    Licita motu Energy J 0.0125 0.025 0.05 0.1
    *Lubrication Non requiratur
    Pulvinar Flexilis adfixum in utramque partem
    Longitudo tolerantia plaga (mm) 1.00
    Auto Switch (Option) Reed auto switch:D-A9□,
    Solidum statum auto- switch: D-M9□
    Limbis Portus Location M5×0.8
    * Quaeso, utere ISOVG32   si vis   utere   lubricatione.

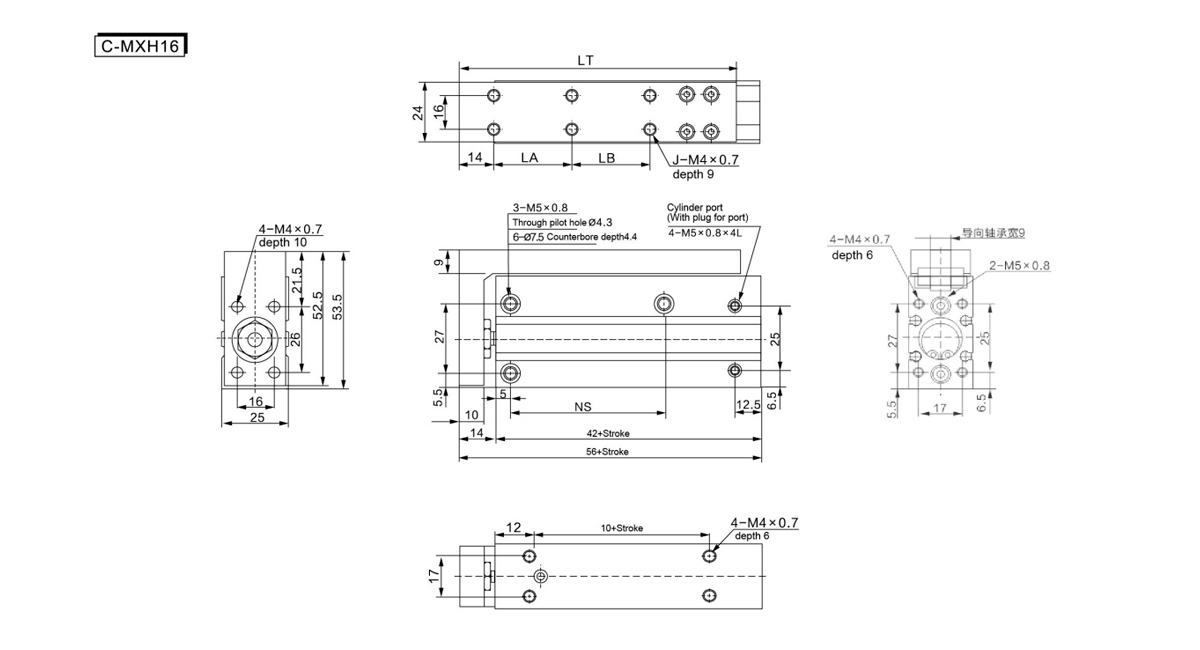

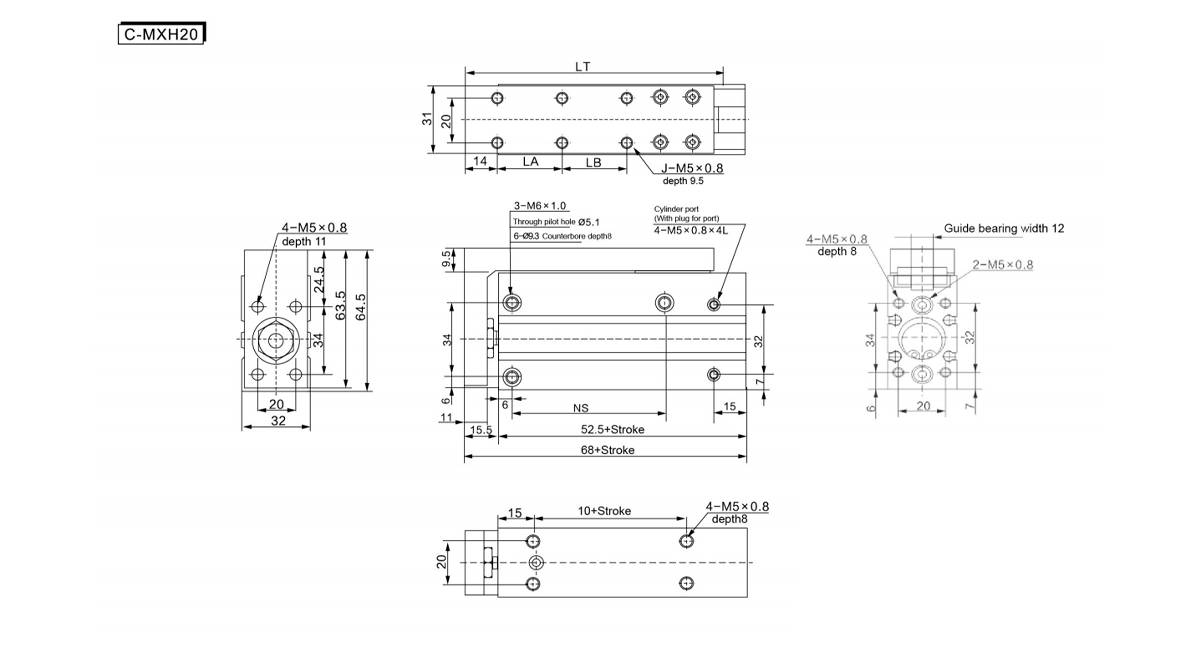

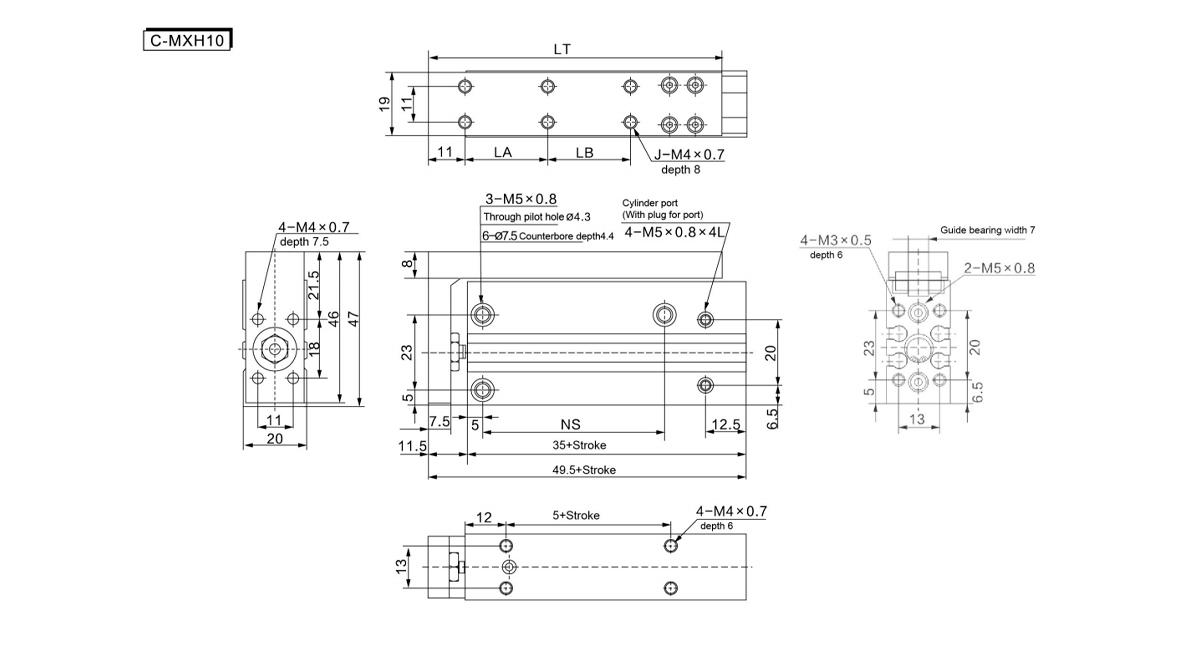

  • Exemplar (mm) J LA LB LT NS
    5 4 10 - 42 14
    10 4 10 - 42 14
    15 4 20 - 52 24
    20 4 20 - 52 24
    25 4 30 - 62 30
    30 4 30 - 62 30
    40 6 20 20 72 45
    50 6 25 25 82 55
    60 6 30 30 92 60

    Exemplar (mm) J LA LB LT NS
    5 4 10 - 49 14
    10 4 10 - 49 14
    15 4 20 - 59 24
    20 4 20 - 59 24
    25 4 30 - 69 30
    30 4 30 - 69 30
    40 6 20 20 79 45
    50 6 25 25 89 55
    60 6 30 30 99 60

    Plaga (mm) J LA LB LT NS
    5 4 10 - 58 20
    10 4 10 - 58 20
    15 4 20 - 68 30
    20 4 20 - 68 30
    25 4 30 - 78 40
    30 4 30 - 78 40
    40 6 20 20 88 50
    50 6 25 25 98 60
    60 6 30 30 108 60

    Plaga (mm) J LA LB LT NS
    5 4 10 - 64 20
    10 4 10 - 64 20
    15 4 20 - 74 30
    20 4 20 - 74 30
    25 4 30 - 84 40
    30 4 30 - 84 40
    40 6 20 20 94 50
    50 6 25 25 104 70
    60 6 30 30 114 70
