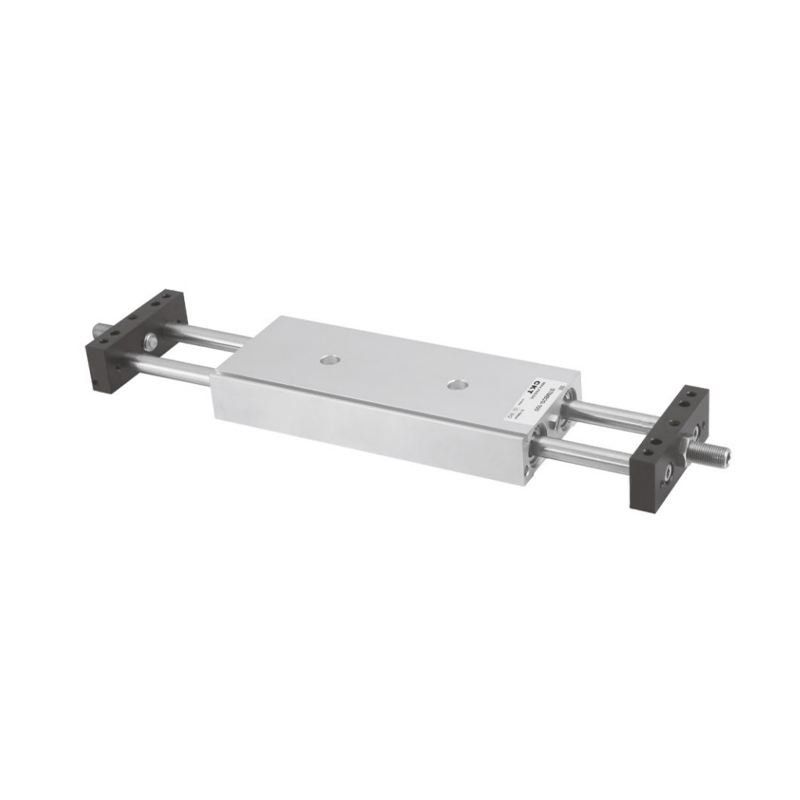

STM Series Slide Cylinder (Ø10~Ø25)
  • STM Series Slide Cylinder (Ø10~Ø25)
Slide Cylindrus

STM Series Slide Cylinder (Ø10~Ø25)

1. Duae institutionis ac figendi formas: corporis institutionem vel lapsus institutionem;
2. Anconius duplex structura facit cylindrum melius habere anti-flexionem et anti-torsionem perficiendi, et onera magna seu onera lateralia sustinere potest;
3. Quiddam machinae ut pads collisio vel oleum pressionis anti- stimulationis ad utrumque finem efficaciter retardare possunt ictum celeritatem et servitium vitae cylindrici extendi;
4. Lego caliditas resistens materias obsignantes ut operatio normalis cylindrici sub 150 conditionibus conservetur.

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：Nessun articolo precedente
SUCCESSIVO：MXH Series Small Slide Cylinder (Guide Linear) (Ø6~Ø20)
  • Signa       Specification
    Bore Size (mm) 10 16 20 25
    Actio Duplex agens
    Liquor Air
    Operans Impetus dolor 0.1~1.0MPa(14~145psi)
    Probatur Pressura 1.5MPa (215ps)
    Temperatus operating (℃) -20~70
    Celeritate range operating (mm/s) 30~500
    Longitudo plaga tolerantia 1.00
    Pulvinar Nil Codex vel oleum quiddam bumper (optionem)
    * Non gyratur Accuracy ±0.1° ±0.05°
    * Limbis Port M5×0.8 PT1/8
    * Accurate non rotationis angulum refert ad quem lamina figens cylindri gyrari potest cum cylindrus plene retractatur.
    **NPT et G filorum genera praesto sunt ad nexum fistulae.
    Nota: series C-STM plene magnetica est.

  • Vexillum Specification
    Bore Size (mm) Standard Stroke(mm) Max.Stroke Permissa Stroke
    10 25 50 75 100 100 150
    16 25 50 75 100 125 175 200 200 250
    2,025 25 50 75 100 125 175 200 250 250 300
    Nota: 1. Intra licitum ictum eminus, cum plaga maxima maior est quam ictum, processus non-commodus peragetur. Pro aliis singularibus ictibus, quaeso, societatem nostram attinge.

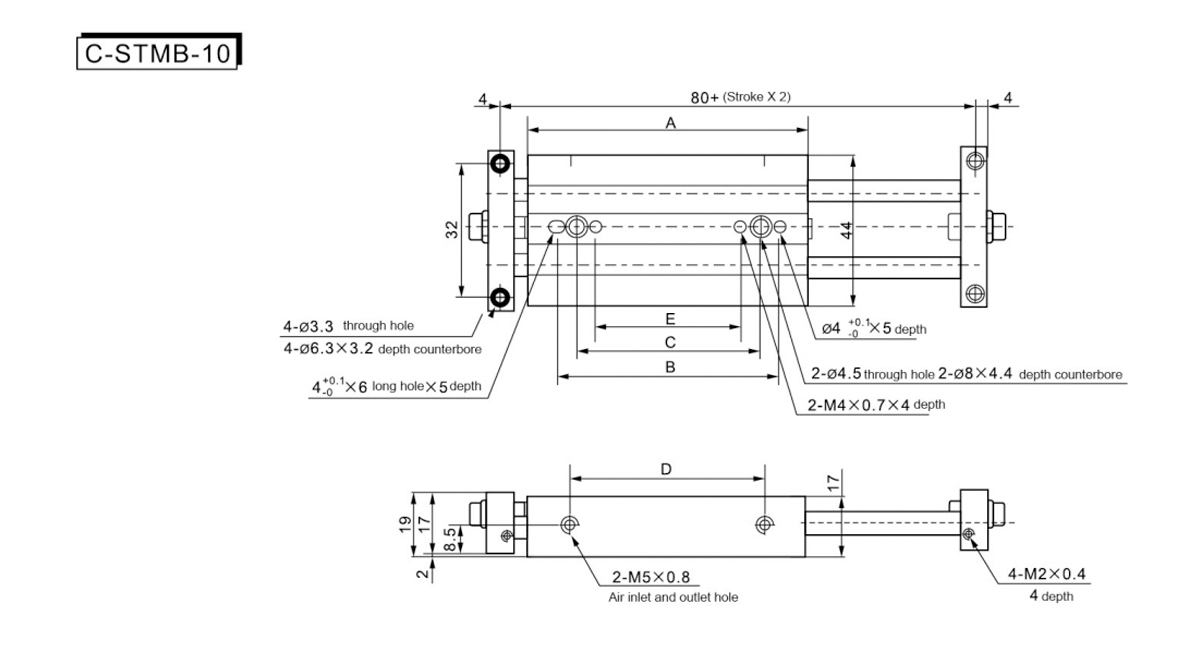

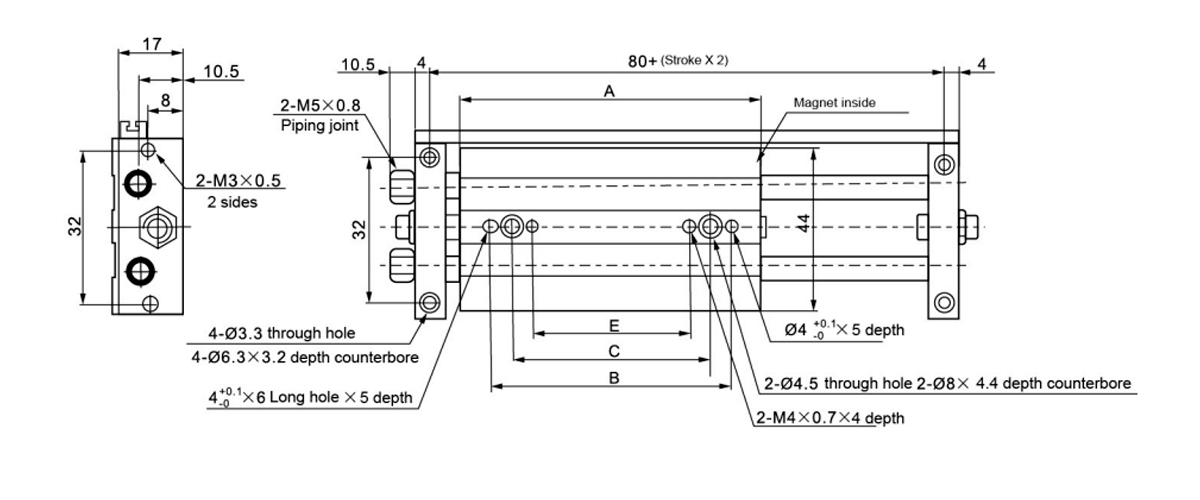

    Plaga/Symbol 25 50 75 100
    A 81 106 131 156
    B 65 85 85 85
    C 35 60 60 60
    D 46 71 96 121
    E 15 40 40 40

    Plaga/Symbol A B C D E
    25 86 55 - 48 25
    50 111 80 - 73 50
    75 136 105 75 98 45
    100 161 130 100 123 70
    125 186 150 120 148 90
    150 211 150 120 173 90
    175 236 150 120 198 90
    200 261 150 120 223 90

    Plaga/Symbol A B C D E
    25 94 60 50 53 35
    50 119 85 50 78 45
    75 144 110 75 103 45
    100 169 135 100 128 70
    125 194 150 120 153 90
    150 219 150 120 178 90
    175 244 150 120 203 90
    200 269 150 120 228 90
    250 319 150 120 278 90

    Plaga/Symbol A B C D E
    25 101 65 50 50 35
    50 126 90 50 75 45
    75 151 115 75 100 45
    100 176 140 100 125 70
    125 201 140 100 150 95
    150 226 140 100 175 100
    175 251 140 100 200 100
    200 276 140 100 225 100
    250 326 140 100 275 100

    Plaga/Symbol 25 50 75 100
    A 81 106 131 156
    B 65 85 85 85
    C 35 60 60 60
    E 15 40 40 40

    Plaga/Symbol A B C E
    25 86 55 - 25
    50 111 80 - 50
    75 136 105 75 45
    100 161 130 100 70
    125 186 150 120 90
    150 211 150 120 90
    175 236 150 120 90
    200 261 150 120 90

    Plaga/Symbol A B C E
    25 94 60 50 35
    50 119 85 50 45
    75 144 110 75 45
    100 169 135 100 70
    125 194 150 120 90
    150 219 150 120 90
    175 244 150 120 90
    200 269 150 120 90
    250 319 150 120 90

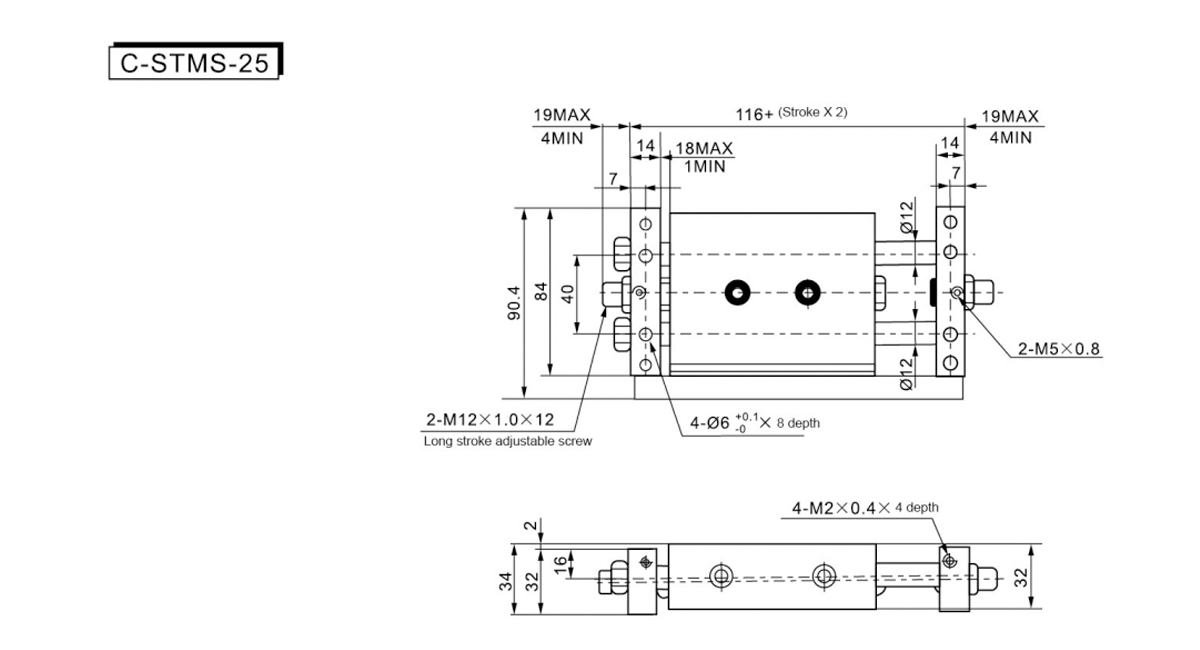

    Plaga/Symbol A B C E
    25 101 65 50 35
    50 126 90 50 45
    75 151 115 75 45
    100 176 140 100 70
    125 201 140 100 95
    150 226 140 100 100
    175 251 140 100 100
    200 276 140 100 100
    250 326 140 100 100
