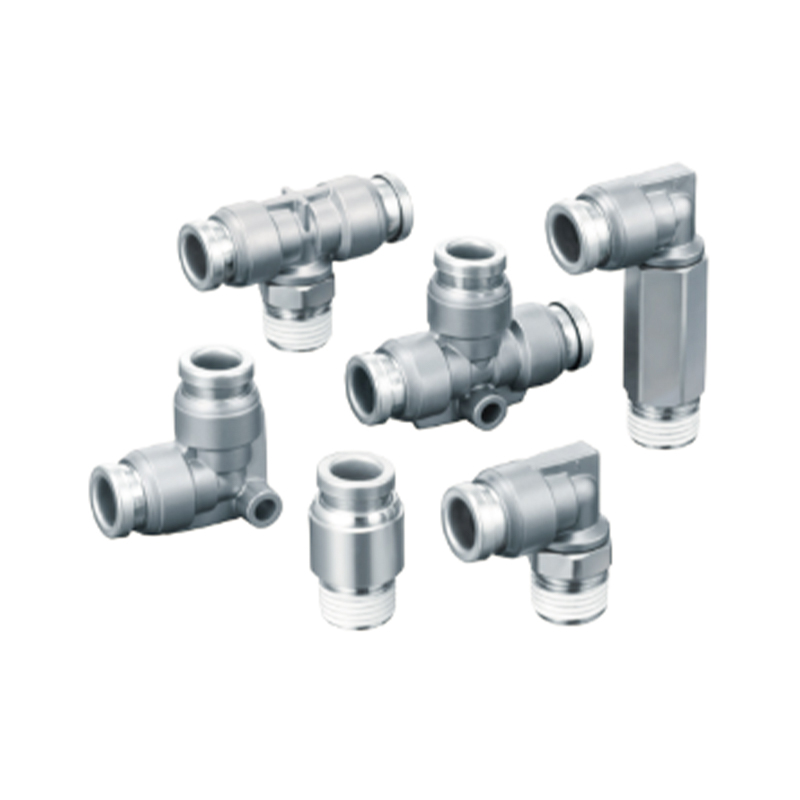

KQB2 Series Steel unum tactum decet
  • KQB2 Series Steel unum tactum decet
Aliquam ferro tactus Fitting

KQB2 Series Steel unum tactum decet

Series KQB2 inactus chalybeus unus tactus congruus adhibet summus gradus incorruptus chalybs technologiae integralis fingens, quae peculiariter destinatur ad missiones transmissionis fluidas, quae celeriter disconventus et certa signatio requirunt, occurrentes comprehensivis exigentiis munditiae et firmitatis in ambitus industriae.

core features
Materia stabilitas; Tota chalybeis compages incorrupta resistentiam habet indigenam corrosionem, periculum contagionis mediae vitat et ad ambitus acido-basi et temperaturae et pressioni fluctuationes accommodat.
Instantaneae densis mechanism: Dis-traho unum-modo cincinno designans caecus operationem cognoscit nexum, et aedificatur in auto-compensando signationem annulum eliminat lacus metus
Ratio dilatationis convenientiae: Connexionem seriei modularis sustinet plurium diametrorum fistulae connexionem, praebens flexibilem figuram nodis ramorum in organis multiplicibus
Sumptus optimization sustentationem: Instrumentum-liberi disassembletici et conventus notam valde minuit apparatum downtime, et retinens structuram vere restitui potest independenter ad expensas conservandas

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：KQG2 Series SUS316 Steel
SUCCESSIVO：Nessun articolo successivo
  • Specifications
    Liquor usus est Aer, aqua, vapor
    Pressura range nota 2) -100 kPa ad 1 MPa Nota 3)
    Pressura test pressura 3.0MPa
    Temperies ambiens et fluida temperatus Nota 4) -5 ad 150° F (sed non constringitur) Nota 3)
    Adipe usus est Non adipe speciem
    Stamineas partes signantes cum sealant
    Nota 1) Aqua mollis nylon tubing adhiberi non potest.
    Nota 2) Cum lacus nulla non sit, evitanda sustentatio vacui ad lacus probationes, etc. Nota 3) Confirma pressionis operativae range et temperatura operativa iugi limbis.
    Nota 4) Lineam inaugurare in sequentibus conditionibus (praeter □3.2).
    · Cum usus in ambitibus vel cum fluidis mutationibus subitis temperatus est.
    ·Quando in calidis temperaturis adhibetur.

    Apta tibiae
    Tubus materialis FEP, PFA, nylon, mollis nylon Nota 1), polyurethane, polyolefin
    Tubus diametri exterioris 1/8", 5/32", 1/4", Ø5/16", 3/8", 1/2"

    Lining posuit condiciones temperatus
    Tubuli usus Temperature
    FEP tubes/TH series Supra LXXX°C
    PFA tubes/TL series Supra CXX°C
    parce partes
    Nomen Diameter exterior organi Model Materia
    Gasket 一 M-5G3 SUS316
    Specialis FKM
    Panel ascendens nut 3.2 4 KQB223-P01 SUS316
    6 KQB206-P01
    8 KQB208-P01
    10 KQB210-P01
    12 KQB212-P01
    16 KQB216-P01

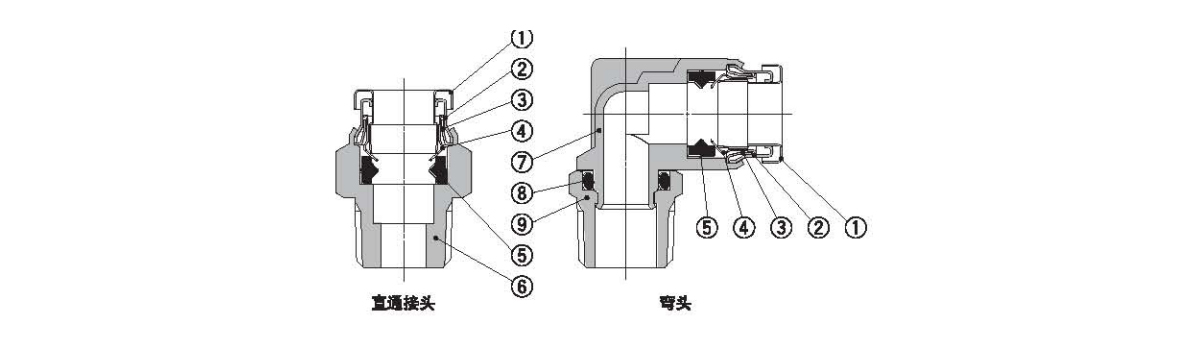

  • Nec. Nomen Materia
    1 Dimittis sleeve SUS304
    2 Dux sleeve 1 SUS304
    3 Dux sleeve 2 SU8304
    4 Ver clip SUS304
    5 Sigillum Specialis FKM (fluorine coating)
    6 Recta iungo corpus C3604 (electroless nickel plating)
    7 Cubitus corporis SU8316
    8 O anulum Specialis FKM (fluorine coating)
    9 Press-in button C3804 (electroless beryllium nickel plating)

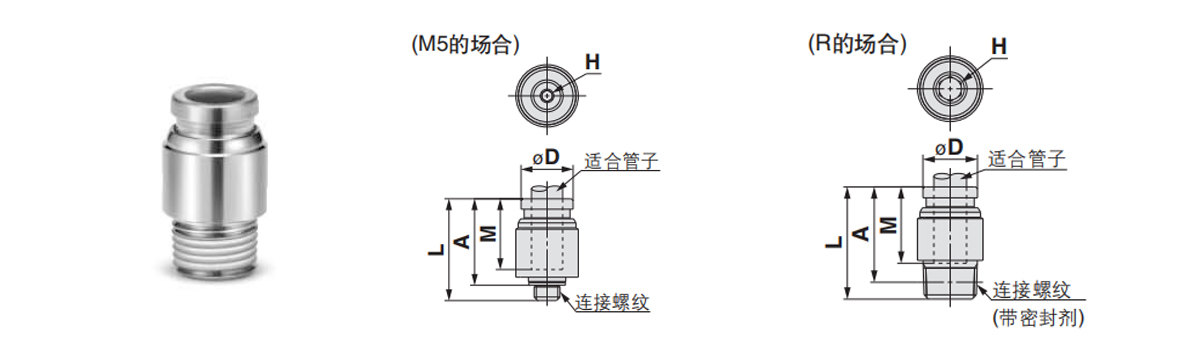

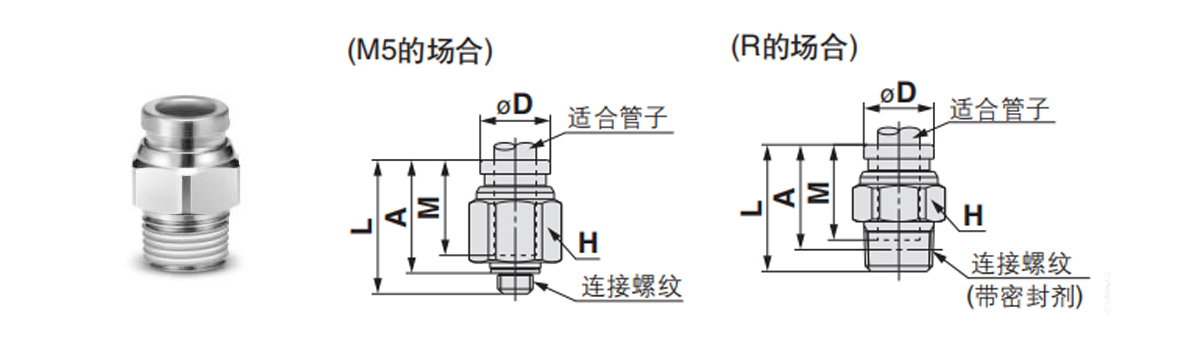

  • Directus iungo: KQB2H
    Apta fistulae diametri exterioris mm Connection filum
    R,M     		Model H
    (Exagonum latera)     		D Nota 1) L A※ M Nota II) efficax crucis-Lorem area mm² Qualitas g*
    3.2 M5×0.8 KQB2H23-M5 8 8 16.5 13.5 12 3 3.4
    1/8 KQB2H23-01S 10 15.4 12.3 3.4 6
    1/4 KQB2H23-02S 14 21 16.3 17.8
    4 M5×0.8 KQB2H04-M5 10 8.7 17.1 14.1 12.6 4 5.3
    1/8 KQB2H04-01S 15.3 12.2 5.6 5.6
    1/4 KQB2H04-029 14 20.9 16.2 172
    6 M5×0.B KQB2H06-M5 12 11.1 19.1 16.1 13.6 4 8
    1/8 KOB2H06-01S 18.1 15 13.1 7.3
    1/4 KQB2H06-02S 14 20.8 16.1 152
    3/B KQB2H08-033 17 23 17.9 28.8
    8 1/8 KCB2H08-01S 14 13.4 24.5 21.4 18.1 28.1 13.5
    1/4 KQB2H08-029 22.3 17.6
    3/B KQB2H08-033 17 23.7 18.6 26
    10 1/B KQB2H10-01S 17 16.4 25.5 22.4 17 26.1 19.8
    1/4 KQB2H10-02S 27.9 23.2 41.5 22.7
    3/B KQB2H10-03S 23 17.9 21.6
    1/2 KQB2H10-04S 22 28.6 22.2 53.9
    12 1/4 KQB2H12-02S 19 18.5 30.5 25.8 18.6 58.3 28.8
    3/B KQB2H12-033 24.7 19.6 21.5
    1/2 KQB2H12-04S 22 28.7 22.3 47
    16 3/B KQB2H16-03S 24 24.6 33.6 28.5 20.8 81 48.3
    1/2 KQB2H16-04S 29.5 23.1 113 392
    * R Reference dimensions after screwing in the screw.
    Nota 1) Ø diam maximam indicat.
    Nota 2) Denotat valorem Tubing cum usura FEP.
    16 indicates the value when using nylon tubing only.

    nervus hexagonus directus iungo: KQB2S
    Apta fistulae diametri exterioris mm Connection filum
    R,M     		Model H
    (Exagonum latera)     		D Nota 1) L A※ M Nota 2） efficax feodo Area mm² Qualitas g*
    3.2 M5×0.B KQB2S23-M5 2 9 16.5 13.5 12 3 4
    4 M5×0.8 KQB2S04-M5 2 9 17.1 14.1 12.8 4 3.9
    1/B KQB2804-01S 3 10 20.4 17.3 4.1 7.9
    6 M5×0.B KQB2S08-M5 2 12 18.6 16.6 13.8 4 7.8
    1/B KQB2S06-01S 4 20.6 17.5 10 9.1
    1/4 KQB2S06-02S 14 15.9 10.7 14.7
    8 1/8 KQB2S08-01S 5 14 24.7 21.6 18.1 17.2 13
    1/4 KQB2S08-02S 6 22.9 18.2 23.3 13.5
    3B KQB2S08-03S 17 23.1 18 24
    10 1/8 KQB2610-01S 5 17 25.6 22.5 17 17.2 18.6
    1/4 KQB2S10-02S 8 27.5 22.8 39 20
    3/B KQB2$10-03S 24 18.9 22
    1/2 KQB2810-04S 22 17.8 39.2
    12 1/4 8 19 30.6 25.8 18.6 48 28
    3/B KQB2$12-03S 10 24.9 19.8 60 202
    1/2 KQB2812-04S 22 18.5 35.3
    16 3/B KQB2S16-03S 10 24.6 33.2 28.1 20.8 81 43.6
    1/2 KQB2316-04S 12 29.4 23 113 40.3
    ※ R Reference dimensions after screwing in the thread.
    Nota 1) D diam maximam significat.
    Nota 2) valores FEP tubulis utens indicat.
    16 indicates values when using nylon tubes only.

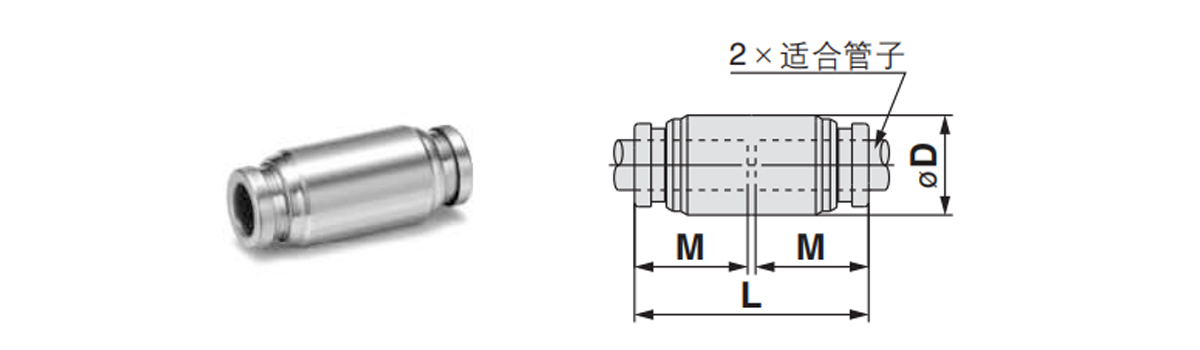

    Directus iungo: KQB2H
    Apta fistulae diametri exterioris mm Model D Nota 1) L M Nota II) efficax crucis-Lorem area mm² Qualitas g*
    3.2 9 25 12 3.4 8.8
    4 KQB2H04-00 9 26.2 12.6 5.6 6.8
    6 12 28.2 13.6 13.1 12
    8 KOB2H08-00 14 33.2 18.1 26.1 17.4
    10 KOB2H10-00 17 35 17 41.5 272
    12 KQB2H12-00 19 38.2 18.6 58.3 33.7
    Ø18 KOB2H16-00 24.6 42.6 20.8 113 58.1
    Nota 1) D diam maximam.
    Nota 2) Valores FEP Tubing cum usura indicat.
    16 indicates values when using nylon tubing only.

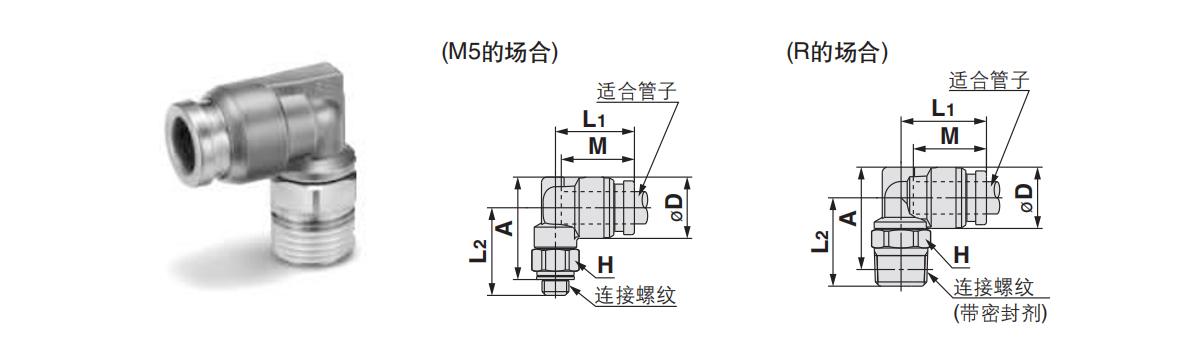

    Cubitus: KQB2L
    Apta fistulae diametri exterioris mm Connection filum
    R,M     		Model H
    (Exagonum latera)     		Nota 1)
    ØD     		L1 L2 A※ M Nota 2)
    Effective cross-sectional area mm 2     		Qualitas g*
    3.2 M5×0.B KQB2L23-M5 8 8.3 13.1 14.B 16 12 2.6 6.5
    1/8 KQB2L23-01S 10 13.6 14.9 15.9 3 8
    1/4 KQB2L23-029 14 18.7 18.1 16.6
    4 M5×0.B KQB2L04-M5 8 9.1 13.7 152 16.8 12.8 3.5 7
    1/8 KQB2L04-01S 10 14.4 15.3 16.7 4.2 8.6
    1/4 KQB2L04-02S 14 19.1 18.8 17.5
    6 M5×0.B 8 11.4 14.7 16.3 19 13.6 3.5 9
    1/8 KQB2L06-01S 10 15.9 18.4 11.4 10.2
    1/4 KQB2L06-02S 14 202 21.2 19.1
    38 KQB2L06-035 17 21.6 22.2 31.2
    8 1/8 KQB2L08-01S 12 13.7 18.6 18.3 22 18.1 21.8 14.8
    1/4 KQB2L08-02S 14 19.1 21.5 23.6 20.8
    3/8 KQB2L08-03S 17 22.9 24.6 32.8
    10 1/8 KQB2L10-01S 12 16.6 20 19.7 24.9 17 21.6 20.4
    1/4 KOB2L10-02S 14 21 22.9 26.5 35.2 23.7
    38 KQB2L10-03S 17 24.3 27.5 34.5
    1/2 KQB2L10-04S 22 28.5 30.4 62.6
    12 1/4 KCB2L12-028 14 18.7 22.6 24 28.6 18.6 50.2 27.4
    38 KQB2L12-03S 17 23.6 25.3 29.5 34.3
    1/2 KQB2L12-04S 22 29.5 32.4 60.8
    16 3/8 KQB2L16-03S 19 24.6 28.3 28 34.5 20.8 71 47
    1/2 KQB2L16-049 22 27.3 31.8 37 100 62.6
    ※Reference dimensions after screwing in the R thread.
    Nota 1) D diam maximam.
    Nota 2) Valores FEP Tubing cum usura indicat.
    16 indicates values when using nylon tubing.

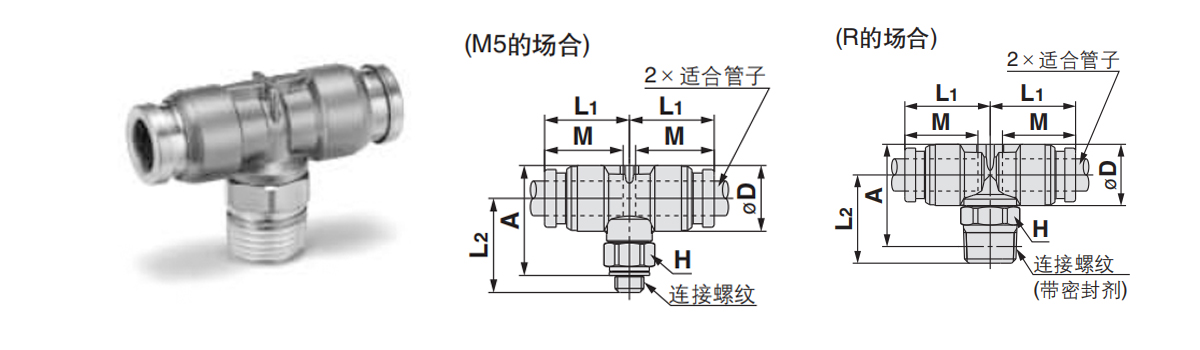

    Tubus duplicatus T conformatus: KQB2T
    Apta fistulae diametri exterioris mm Connection filum
    R,M     		Model H
    (Exagonum latera)     		Nota 1)
    ØD     		L1 L2 A※ M Nota 2)
    Effective crucis-Lorem area mm²     		Qualitas g*
    3.2 M5×0.8 KQB2T23-M5 8 8.3 13.1 14.8 16 12 3.2 8.2
    1/8 KQB2L23-01S 10 13.8 14.9 15.9 3.4 9.6
    1/4 KQB2T23-02S 14 18.7 18.1 18.4
    4 M5×0.B KQB2T04-M5 8 9.1 13.7 15.2 16.8 12.6 4.5 9.1
    18 KQB2T04-019 10 14.4 15.3 16.7 B 10.6
    1/4 KQB2T04-02S 14 19.1 18.9 19.4
    6 M5×0.B KQB2T06-M5 8 11.4 14.7 18.3 19 13.6 4.5 12.1
    1/8 KQB2T06-019 10 15.9 16.4 13.9 13.6
    1/4 KQB2T06-028 14 20.2 21.2 22.5
    3/8 KQB2T06-03S 17 21.8 22.2 35
    8 1/8 KQB2T08-01S 12 13.7 18.6 18.3 22 16.1 26.3 20
    1/4 KQB2T08-028 14 19.1 21.5 23.6 26.1
    3/8 KQB2T08-03S 17 22.9 24.6 38
    10 1/8 KCB2T10-018 12 16.6 20 19.7 24.9 17 40.8 28.6
    1/4 KQB2T10-028 14 21 22.9 26.5 31.5
    3/8 KQB2T10-03S 17 24.3 27.5 42.4
    1/2 KQB2T10-049 22 28.5 30.4 70.4
    12 1/4 KQB2T12-028 14 18.7 22.6 24 28.6 18.6 57.2 38.1
    3/8 KQB2T12-03S 17 23.6 25.3 29.5 39.7
    1/2 KQB2T12-04S 22 29.5 32.4 70.8
    16 38 KQB2T16-03S 19 24.6 26.3 28 34.5 20.8 71 64.4
    1/2 KQB2T16-04S 22 27.3 31.8 37 100 79
    ※Reference dimensions after screwing in the R thread.
    Nota 1) D diam maximam.
    Nota 2) Valores FEP Tubing cum usura indicat.
    16 indicates values when using nylon tubing only.

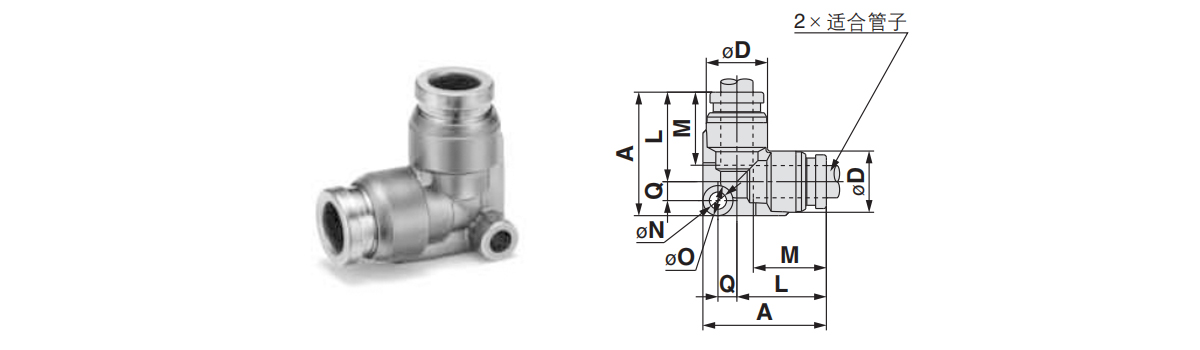

    Cubitus recti angulus: KQB2L
    Apta fistulae diametri exterioris mm Model Nota 1)
    6D     		L A Q M N O Nota 2)
    Effective crucis-Lorem area mm²     		Qualitas g*
    3.2 KQB2L23-00 8.3 13.6 19.3 2.8 12 3.2 5.6 3 6.3
    4 KQB2L04-00 9.1 14.6 20.5 3.1 12.6 3.2 5.6 4.2 7.4
    6 KQB2L06-00 11.4 16.6 23 3.6 13.6 3.2 5.6 11.4 11
    8 KQB2L08-00 13.7 20.1 29.1 5 16.1 4.2 8 21.6 202
    10 KQB2L10-00 16.6 22 31.7 5.7 17 4.2 8 35.2 29.6
    12 KQB2L12-00 18.7 24.6 35 6.4 18.6 4.2 8 50.2 37.1
    16 KQB2L16-00 24.6 28.8 40.5 7.7 20.8 4.2 8 100 59.7
    Nota 1) D diam maximam.
    Nota 2) Valores FEP Tubing cum usura indicat.
    Ø18 valores indicat cum tantum utens nylon tubing.

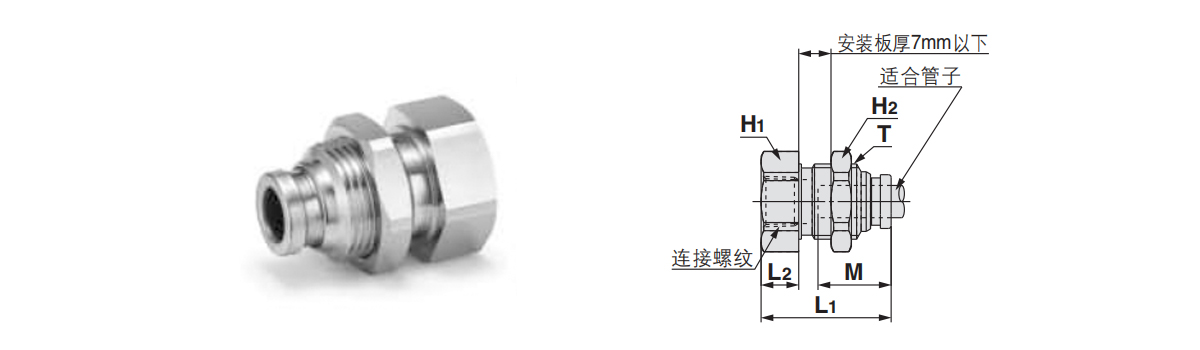

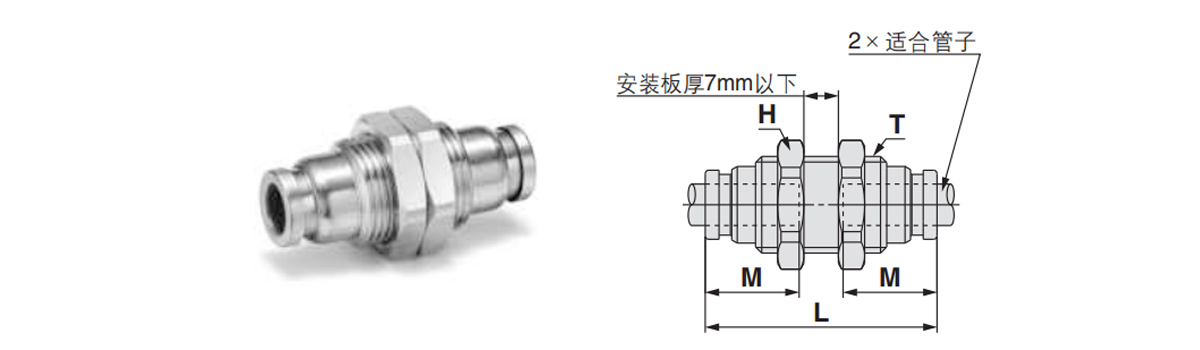

    Panel-ascensus recti-per iungo: KQB2E
    Apta fistulae diametri exterioris mm Model T
    (M)     		H
    (Exagonum latera)     		L Adscendens foramina M Nota 2)
    Effective crucis-Lorem area mm²     		Qualitas g*
    3.2 KQB2E23-00 M10×1 12 322 11 12 3.4 14.8
    4 KQB2E04-00 M10×1 12 32.4 11 12.6 5.6 14.7
    6 KQB2E06-00 M14×1 17 35.4 15 13.6 13.1 29.2
    8 KQB2E08-00 M15×1 19 38.8 16 16.1 26.1 34.9
    10 KQB2E10-00 M18×1 21 40 19 17 41.5 47.1
    12 KQB2E12-00 M20×1 24 42.4 21 18.6 58.3 58.7
    16 KQB2E16-00 M27×1 30 48.8 28 20.8 113 107.2
    Nota: Valores pro FEP Tubing illae indicant.
    16 indicates values for nylon tubing only.

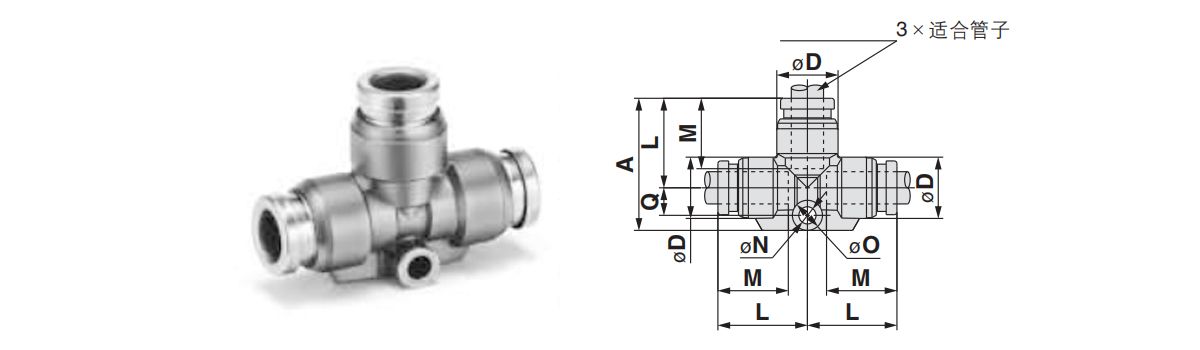

    Fistula t-aptata: KQB2T
    Apta fistulae diametri exterioris mm Model Nota 1)
    D     		L A Q M N O Nota 2)
    Effective crucis-Lorem area mm²     		Qualitas g*
    3.2 KQB2T23-D0 8.3 13.6 20.5 4.1 12 3.2 5.6 3.4 7.9
    4 KQB2T04-00 9.1 14.6 21.8 4.4 12.6 3.2 5.6 6.4 9.5
    6 KQB2T06-00 11.4 16.6 24.6 52 13.6 3.2 5.6 13.4 142
    8 KQB2T08-D0 13.7 20.1 31.1 7 16.1 4.2 8 25.6 24.4
    10 KQB2T10-00 16.6 22 34 8 17 4.2 8 40 38.8
    12 KQB2T12-00 16.7 24.6 37.7 9.1 18.6 4.2 8 57.4 47
    16 KQB2T16-D0 24.6 28.8 43.4 10.6 20.8 4.2 8 100 75.5
    Nota 1) D diam maximam significat.
    Nota 2) Valores FEP Tubing cum usura indicat.
    16 indicates values when using nylon tubing only.

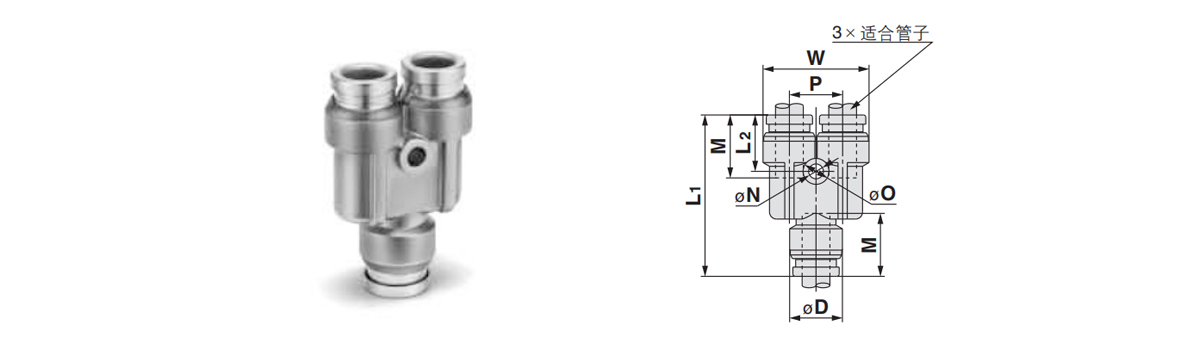

    Fistula y informibus apta: KQB2U
    Apta fistulae diametri exterioris mm Model Nota 1)
    ØD     		W L1 L P M N 60 Nota 2)
    Effective crucis-Lorem area mm²     		Qualitas g*
    3.2 KQB2U23-00 8.3 16.4 29 11 8.1 12 32 5.6 3.4 9.2
    4 KQB2U04-00 9.1 18.2 30.4 11.3 8.1 12.6 3.2 5.6 4.2 11.1
    6 11.4 22.9 34.9 12.2 11.5 13.8 32 5.6 13.4 18.8
    8 KQB2U08-00 13.7 28.3 40.1 14.1 14.6 16.1 4.2 8 25.6 29.7
    10 KQB2U10-00 16.8 34.2 44 14.4 17.6 17 4.2 8 40 47.4
    12 KQB2U12-00 18.7 38.5 48.4 15.8 19.8 18.8 42 8 57.4 62.1
    16 KQB2U16-00 24.6 49.3 56.6 17.3 26 20.8 4.2 8 113 110.2
    Nota 1)②ØD means maximum diameter.
    Nota 2) valores FEP tubulis utens indicat.
    16 indicates values when using nylon tubes only.

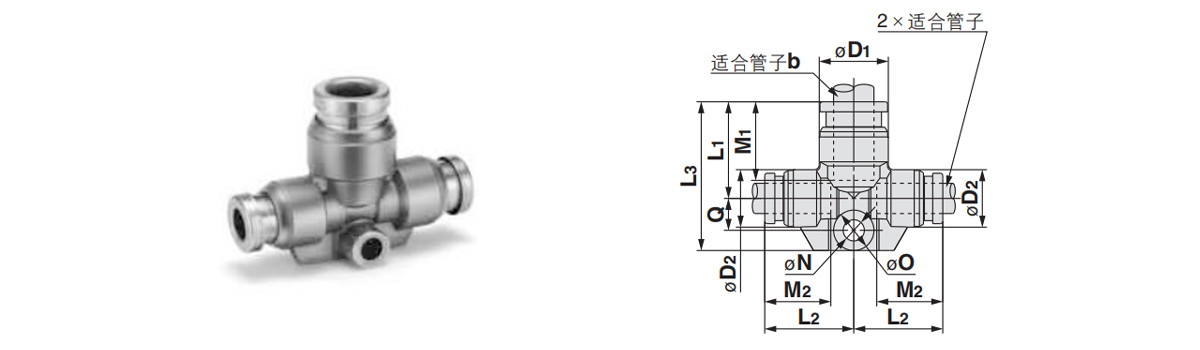

    Reducendo tee: KQB2T
    Apta fistulae diametri exterioris mm Model Nota 1)
    D1     		Nota 1)
    D2     		L1 L L3 Q M1 M2 N O Nota 2)
    Effective crucis-Lorem area mm²     		Qualitas g*
    a b
    3.2 4 KQB2T23-04 9.1 8.3 142 14.1 21.1 4.1 12.6 12 3.2 5.6 3.8 8.5
    4 6 KQB2T04-06 11.4 9.1 15.6 15.7 22.8 4.4 13.6 126 3.2 5.6 7.1 11
    6 8 KQB2T06-08 13.7 11.4 19.1 17.7 29.5 6.4 16.1 13.6 4.2 8 16.4 20
    8 10 KQB2T08-10 18.B 13.7 21 21.2 32.1 7.1 17 18.1 4.2 8 38 29.8
    10 12 KQB2T10-12 18.7 16.6 23.6 23.1 35.7 8.1 18.6 17 4.2 8 56 41.3
    12 16 KQB2T12-16 24.6 18.7 26.8 26.7 39.9 9.1 20.8 18.6 4.2 8 108.5 58
    Nota 1) ØD1, ØD2  means maximum diameter.
    Nota 2) Indicates values when using FEP pipes.

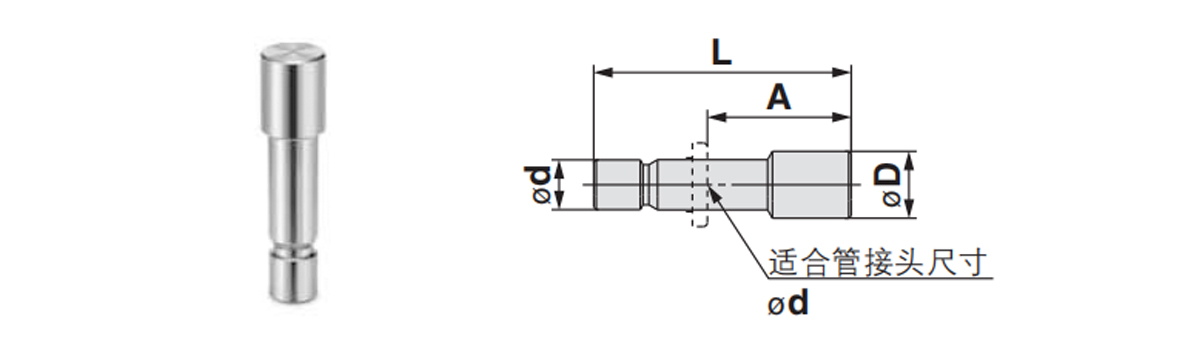

    Plug: KQB2R
    Apta fistulae diametri exterioris mm Mole iuncturam od fistulam idoneam Model D Nota 1) L A M Nota 2)
    Effective crucis-Lorem area mm²     		Qualitas g*
    3.2 4 KQB2R23-04 9 32.9 20.3 12 3.4 4.9
    4 6 KQB2R04-06 9 34.4 20.8 12.6 5.6 7
    6 8 KQB2R06-08 12 38.4 22.3 13.6 13.1 12.7
    8 10 KQB2R08-10 14 41.9 24.9 16.1 26.1 19.2
    10 12 KQB2R10-12 17 44.8 26.2 17 41.5 27.8
    12 Ø18 KQB2R12-16 19 42.9 22.1 18.6 58.3 37.2
    Nota 1) D diam maximam significat.
    Nota 2) valores FEP tubulis utens indicat.

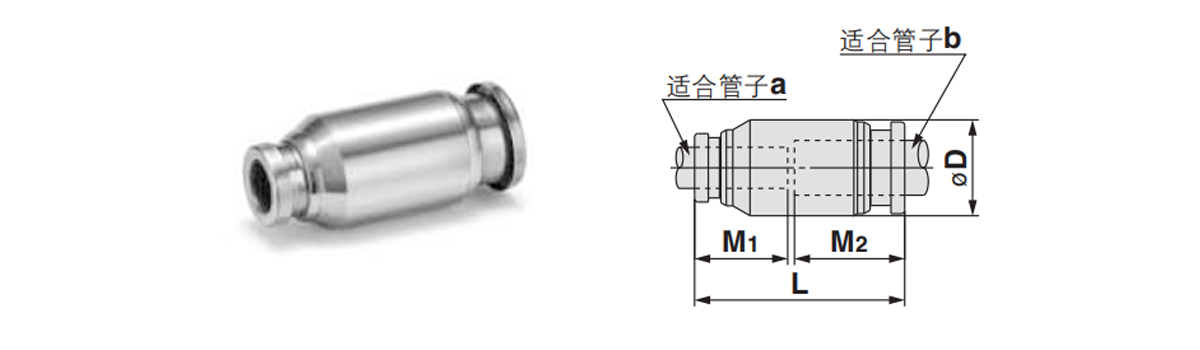

    Fistula recta minuens: KQB2H
    Apta fistulae diametri exterioris mm Model D Nota 1) L M1 M2 Nota 2)
    Effective crucis-Lorem area mm²     		Qualitas g*
    a b
    3.2 4 KQB2H23-D4 9 25.6 12 12.6 3.4 6.8
    4 6 KQB2H04-06 12 27.2 12.6 13.6 5.6 12.1
    6 8 KQB2H06-08 14 30.7 13.6 16.1 13.1 17.1
    8 10 KQB2H08-10 17 34.1 16.1 17 26.1 27.2
    10 12 KQB2H10-12 19 38.6 17 18.6 41.5 34.8
    12 16 KQB2H12-16 24.6 40.4 18.6 20.8 58.3 57.3
    Nota 1) D diam maximam.
    Nota 2) valores FEP tubulis utens indicat.

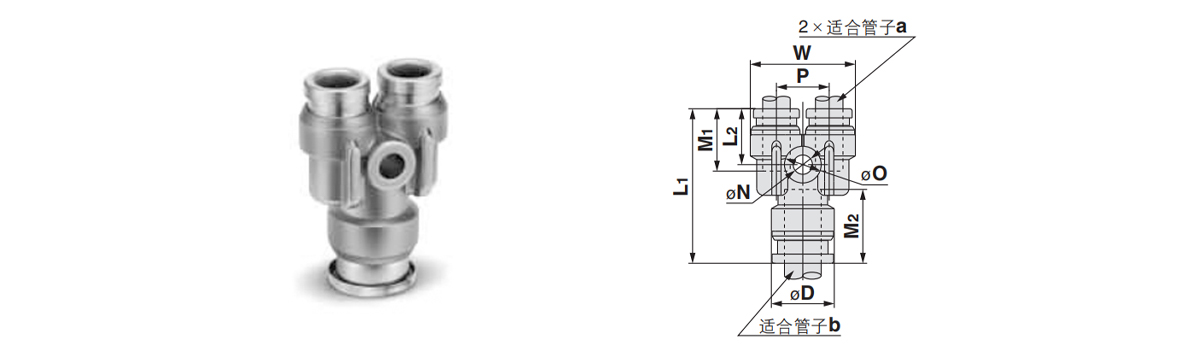

    Fistula reducendo aptata Y informata: KQB2U
    Apta fistulae diametri exterioris mm Model Nota 1)
    ØD     		L1 L2 P W M1 M2 N 0 Nota 2)
    Effective crucis-Lorem area mm²     		Qualitas g*
    a b
    3.2 4 KQB2U23-04 9.1 27 10.8 8.1 16.4 12 12.6 3.2 5.6 3.2 8.5
    4 6 KQB2U04-06 11.4 29.3 11.2 9.1 18.2 12.8 13.6 3.2 5.6 4.2 11.9
    6 8 KQB2U06-08 13.7 33.7 12.2 11.5 22.9 13.6 18.1 4.2 8 13.4 19.3
    8 10 KQB2U08-10 16.6 38.3 13.8 14.6 28.3 16.1 17 4.2 8 25.6 32
    10 12 KQB2U10-12 18.7 43 14 17.6 34.2 17 18.6 4.2 8 40 47.6
    12 16 KQB2U12-16 24.8 47.4 15.6 19.8 38.5 18.6 20.8 4.2 8 57.4 87.8
    Nota 1) D diam maximam significat.
    Nota 2) Indicates values when using FEP pipes.

    Decuria filorum internorum e recta fistula iungentium: KQB2E
    Apta fistulae diametri exterioris mm Connectens filum
    Pe     		Model T
    (M)     		Exagonum latera L1 L2 Adscendens foraminis M Nota 2)
    Effective crucis-Lorem area mm²     		Qualitas g*
    Hi H2
    3.2 1/4 KQB2E23-02 M10×1 17 12 31 14.8 11 12 3.4 27.5
    4 1/8 KQB2E04-01 M10×1 14 12 25.8 9.7 11 12.6 5.6 16.9
    1/4 KQB2E04-02 17 30.9 14.8 27.1
    6 1/B KQB2E06-01 M14×1 17 17 24.2 6.1 15 13.6 13.1 25
    1/4 KQB2E06-02 31.6 13.5 33.2
    3/B KQB2E06-03 19 33 14.9 34.8
    8 1/B KQB2E08-01 M15×1 17 19 26.3 6.9 16 16.1 26.1 28.7
    1/4 KQB2E08-02 32.4 13 34.2
    3/B KQB2E08-03 19 34 14.6 35.9
    10 1/4 KQB2E10-02 M18×1 19 21 31.6 11.6 19 17 41.5 44
    3/8 KQB2E10-03 33.6 13.6 40.2
    12 3/B KQB2E12-03 M20×1 21 24 34 12.8 21 18.6 58.3 52
    1/2 KQB2E12-04 24 39.6 18.4 62.5
    16 3/B KQB2E18-03 M27×1 29 30 35.3 11.2 28 20.8 96 111
    1/2 KQB2E16-04 40.6 16.5 113 118.2
    Nota: Valores pro FEP Tubing illae indicant.
    16 indicates values for nylon tubing only.

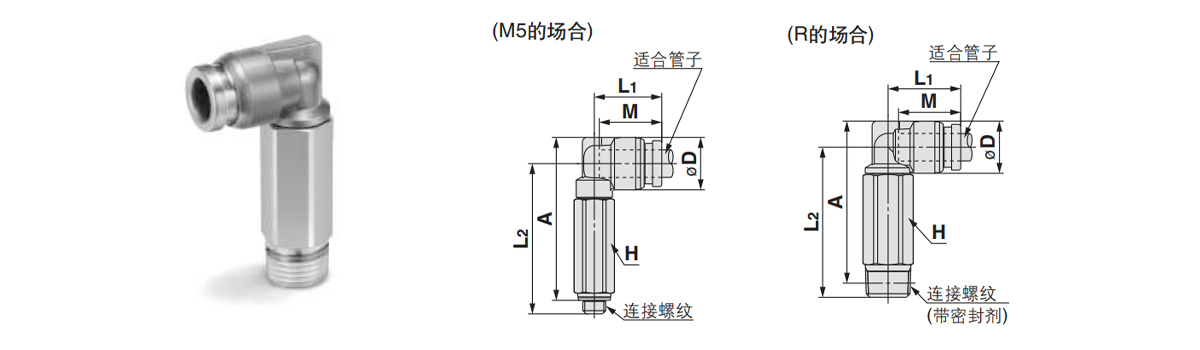

    Longus cubitus: KQB2W
    Apta fistulae diametri exterioris mm Connection filum
    R,M     		Model H
    Sexangulus latera     		D Nota 1) L1 L A※ M Nota 2)
    Effective crucis-Lorem area mm²     		Qualitas g*
    3.2 M5×0.B KCB2W23-M5 8 8.3 13.1 31.2 32.4 12 2.8 13.5
    1/B KCB2W23-01S 10 13.6 31.3 32.3 15.3
    1/4 KQB2W23-02S 14 35.1 34.5 34.7
    4 M5×0.B KCB2W04-M5 8 9.1 13.7 31.6 33.2 12.6 3 14.1
    1/B KQB2W04-01S 10 14.4 31.7 33.1 4 16.2
    1/4 KQB2W04-028 14 35.5 35.3 35.6
    6 M5×0.B KQB2WO8-N5 8 11.4 14.7 32.7 35.4 13.6 3 16
    1/B KQB2W06-01S 10 15.9 32.8 10.9 17.8
    1/4 KOB2W06-028 14 36.6 37.6 37.2
    3/B KQB2W08-03S 17 38 38.6 60.3
    8 1/8 KQB2W08-01S 12 13.7 18.6 37 40.7 16.1 20.5 28.8
    1/4 KOB2W08-028 14 19.1 40.2 42.3 39.2
    3/B KQB2W08-03S 17 41.6 43.3 63.7
    10 1/4 KCB2W10-02S 14 16.6 21 46.6 50.2 17 33.5 42.1
    3/B KOB2W10-03S 17 45.9 49.1 64.5
    1/2 KQB2W10-04S 22 50.1 52 123
    12 1/4 KQB2W12-02S 14 18.7 22.8 47.7 52.3 18.6 47.7 46
    3/B KQB2W12-03S 17 23.8 49 53.2 58.2
    1/2 KQB2W12-04S 22 53.2 56.1 118
    16 3/8 KQB2W16-03S 19 24.6 28.3 57.6 64.1 20.8 71 89.6
    1/2 KGB2W16-04S 22 27.3 61.4 66.6 100 116
    -Relatio dimensionum cum intorto in F sequela.
    Nota 1) D diam maximam significat.
    Nota 2) valores FEP tubulis utens indicat.
    Ø18 valores indicat cum tantum utens nylon tubulis.

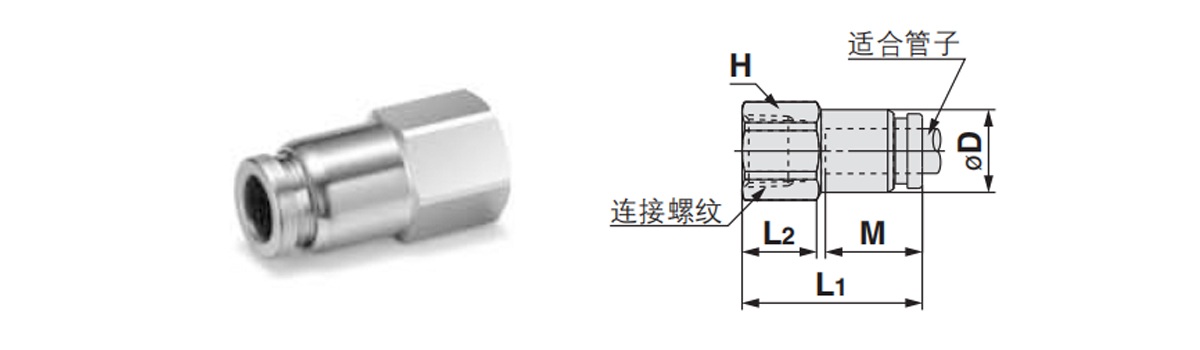

    Filum internum rectum per: KQB2F
    Apta fistulae diametri exterioris mm Connection filum
    Rc     		Model H
    （Hexagonal latera opposita)     		D Nota 1) L1 L2 M Nota 2)
    Effective crucis-Lorem area mm²     		Qualitas g*
    3.2 1/8 KQB2F23-01 12 8 23.3 9.8 12 3.4 9.3
    4 1/8 KQB2F04-01 12 8.7 23.7 9.8 12.6 5.6 9.7
    1/4 KQB2F04-02 17 28.7 13.2 22.7
    6 1/8 KQB2F06-01 12 11.1 24.2 10 13.6 13.1 11.1
    1/4 KQB2F06-02 17 28.2 13.4 24.3
    3/8 KQB2F06-03 19 30.6 14.2 25.8
    8 1/8 KQB2F08-01 14 13.4 26.3 9.6 16.1 26.1 17.1
    1/4 KQB2F08-02 17 31.3 13.7 26.8
    38 KQB2F08-03 19 32.7 14.4 28.4
    10 1/4 KQB2F10-02 17 16.4 31.6 13.9 17 41.5 30.3
    3/8 KQB2F10-03 19 33 14.7 32
    12 1/4 KQB2F12-02 19 18.5 32.6 13.3 18.6 58.3 39.4
    38 KQB2F12-03 34 14.7 33.9
    12 KQB2F12-04 24 38.3 18.4 52.9
    16 3/8 KOB2F16-03 24 24.6 35.3 13.5 20.8 81 82.8
    1/2 KQB2F16-04 40.6 18.8 113 59.9
    Nota 1) D diam maximam.
    Nota 2) Valores FEP Tubing cum usura indicat.
    16 indicates values when using nylon tubing only.

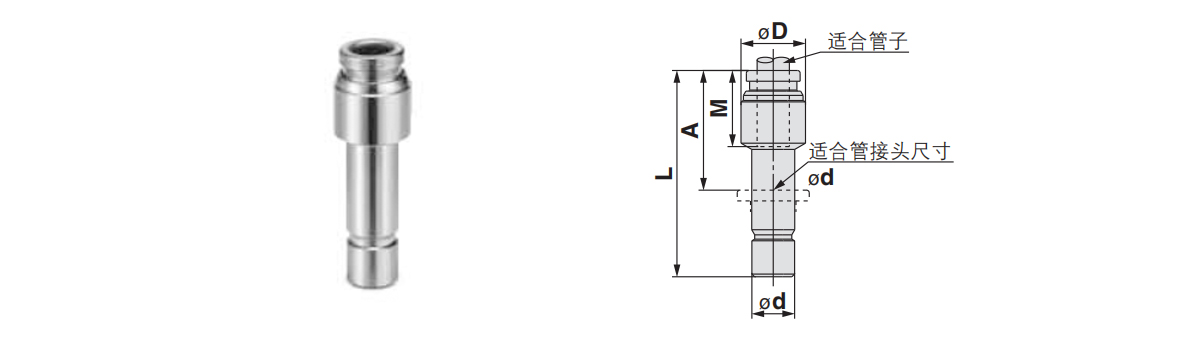

    Plug: KQG2P
    Mole iuncturam od fistulam idoneam Model ØD L A Qualitas g*
    3.2 KQB2P-23 5 28.9 18.9 2.8
    4 KQB2P-04 6 29.6 17 4.3
    6 KQB2P-0B 8 30.8 172 9
    8 KQB2P-08 10 33.7 17.6 16.3
    10 KQB2P-10 12 34.6 17.6 25.4
    12 KQB2P-12 14 36.5 17.9 37.8
    16 KQB2P-16 18 38.8 17.8 89.2

Prodotti Correlati

Blog e Notizie

Le Nostre Ultime Notizie e
Blog

Vedi Altro

Qualità Autentica e Affidabile che si Distingue Naturalmente.

La scelta nasce dalla fiducia, e la cooperazione dall'onestà.

  • D: Quam mox responsum accipere possumus postquam inquisitionem tibi mittimus?

    Respondebimus tibi intra XXIV horas post inquisitionem in diebus ferialibus.

  • D: Esne directus fabrica vel societas mercaturae?

    Fabrica sumus, et venditiones internationales proprias habemus. Ita nosmetipsos omnia producere et vendere possumus.

  • D: Lorem products facere potes?

    Ita, nos evolvere et producere fructus secundum delineationes vel exempla a clientibus provisum possumus

  • D: Quomodo societas tua praestat productum qualitas?

    Primum inspectionem post singulos processum faciemus. Pro effectibus perfectis, inspectionem C% secundum exigentias clientium et vexillum internationale faciemus..

  • D: Ubi sunt vestra producta maxime emitur?

    Producta nostra maxime in Germaniam, Civitates Americae Unitas, Daniam et plusquam duodecim nationes in Europa et America Septentrionali . exportantur
