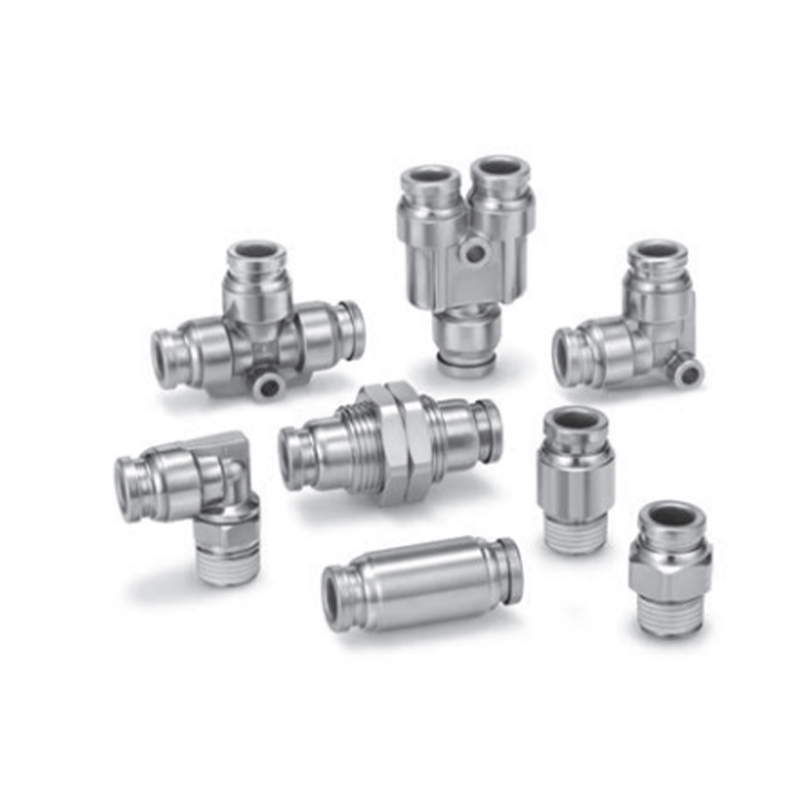

KQG2 Series SUS316 Steel
  • KQG2 Series SUS316 Steel
Aliquam ferro tactus Fitting

KQG2 Series SUS316 Steel

KQG2 series SUS316 ferro immaculato unum tactum caerimoniae durae ambitus industriae designantur. Eae fiunt instrumenti chirurgici gradus SUS316 ferro immaculato ut nexum et disiunctio instrumentorum canalium instrumentorum celeriter obsignandi efficiat. Eius structurae resistentiam facilem operationi coniungit altam corrosionem et apta est ad systemata fluidi temperantiae cum strictis requisitis ad munditiem et constantiam.

core features
Medicus basis resistentia corrosionis gradus
Materia principalis corporis est SUS316 ultra-humilis carbonis austenitici immaculatus ferrum. Superficies corrosionis resistentia iacuit confirmatur processu passivationis, qui signanter chloridum ion corrosionem et corrosionem intergranulare vetat, et acido, alcali solventibus et imbre salso magno ambitus resistit.

Una actio densis mechanism
Inaedificata in structuram fibulae propriae obfirmato, una actio impulsio bidirectionalem signationem pipelini complere potest, sine instrumentis auxiliaribus vel gyrationis operatione, valde levandi apparatum sustentationem et tempus ordinandi pipeline.

Plena range dynamica signatio cautione
Multi-scaena signatio componentis utitur materiis compositis polymerorum, et elastomer emendatio systematis pipeline vibrationem et thermarum expansionem et contractionem deformationem haurire potest, conservans nulla lacus sub extrema pressione fluctuationis conditiones.

Non polluit fluunt channel design
Alveus plenus-diametri fluens nullum angulum mortuum habet, coniunctum cum curatione parietis electrolyticae politionem interiorem, ne particula retentione et incrementi biofilm, occurrens integritati fluidi requisita ad translationem mediarum puritatis summus.

Architectura modularis compatible
Interfacii normatum aptatio mutuae accommodationis cum congruis fistulae industrialis amet, varias topologicas variantes praebens sicut rectum-per, rectum et triduum, ut celeri dilatatio et instauratio rationum retis multiplicis fistulae perficiat..

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：Nessun articolo precedente
SUCCESSIVO：KQB2 Series Steel unum tactum decet
  • Apta tibiae
    Tubus materialis FEP, PFA, nylon, mollis nylon Nota 1), polyurethane, polyolefin
    Tubus diametri exterioris 1/8", 5/32", 1/4", 5/16", 3/8", 1/2"

    Specifications
    Liquor usus est Aer, aqua, vapor nota 2) Nota 3)
    Pressura range Nota 4) -100 kPa ad 1 MPa Nota 5)
    Pressura test pressura 3.0MPa
    Ambiens temperatus et fluidus temperatus Nota 6) -5 ad 150°C (sed non constringitur) Nota 5)
    Adipe usus est Non adipe speciem
    Stamineas partes signantes cum sealant

    parce partes
    Nomen Diameter exterior organi Exemplar Materia
    Gasket 一 M-5G3 SUS316
    Specialis FKM
    Panel ascendens nut 1/8", 5/32" KQG201-P01 SUS316
    Ø1/4" KQG207-P01
    5/16" KQG209-P01
    3/8" KQG211-P01
    Ø1/2" KQG213-P01

    Liner adaptatio mensae
    Tubus diametri exterioris Materia pipe Apta interior tunica sleeve
    TH/TIH
    (FEP)     		TL/TIL
    (PFA)     		Exemplar Longitudo
    Ø5/32" TH0402 一 TJG-0402 18
    TH0425 一 TJG-0425 18
    一 TL0403 TJG-0403 18
    Ø1/4" TIHB07 TIL07 TJG-0604 19
    TIHA07 一 TJG-0746 19
    5/16" TH0806 TL0806 TJG-0806 20.5
    3/8" TIHB11 TIL11 TJG-1065 23
    TIHA11 一 TJG-1107 23
    Ø1/2" TIH13 TIL13 TJG-1395 24
    ※ Materia seriei TJG est SUS316

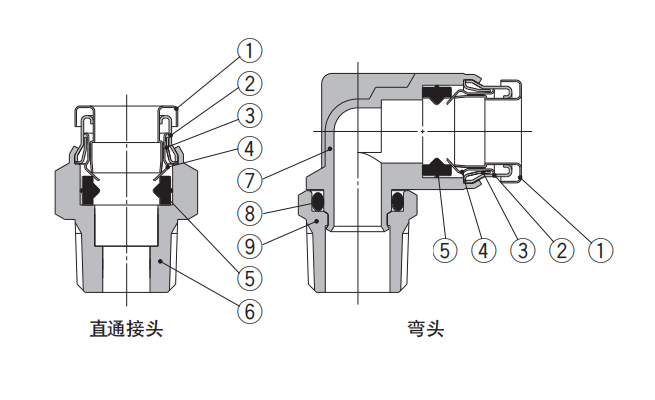

  • Components
    Vide numerum Nomen Materia
    1 Dimittis sleeve SUS316
    2 Dux sleeve 1 SUS316
    3 Dux sleeve 2 SUS316
    4 Collet SUS316
    5 signantes fragmen Specialis FKM (fluorine coating)
    6 Recta iungo corpus SUS316
    7 Cubitus corporis SUS316
    8 O anulum Specialis FKM (fluorine coating)
    9 Torcular apta iungo SUS316

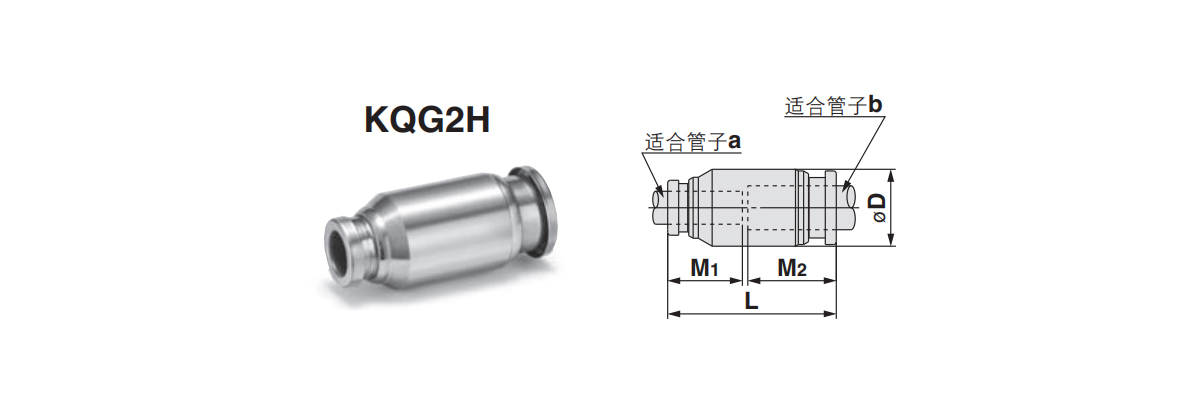

  • Directus iungo: KQG2H
    Apta tibiae
    Diameter exterior mm     		Connection filum
    R, M     		Model H
    (Exagonum latera)     		D Nota 1) L A※ M Nota 2)
    Effective crucis-Lorem area mm²     		Qualitas g*
    3.2 M5×0.8 KQG2H23-M5 8 8 16.5 13.5 12 3 3.3
    1/8 KQG2H23-01S 10 15.4 12.3 3.4 5.7
    1/4 KQG2H23-02S 14 21 16.3 16.9
    4 M5×0.8 KQG2H04-M5 10 8.7 17.1 14.1 12.6 4 5
    1/8 KQG2H04-01S 15.3 12.2 5.6 4.7
    1/4 KQG2H04-02S 14 20.9 16.2 15.8
    6 M5×0.8 KQG2H06-M5 12 11.1 19.1 16.1 13.6 4 7.7
    1/8 KQG2H06-01S 18.1 15 13.1 7
    1/4 KQG2H06-02S 14 20.8 16.1 14.5
    3/8 KQG2H06-03S 17 23 17.9 27.3
    8 1/8 KQG2H08-01S 14 13.4 24.5 21.4 16.1 26.1 12.8
    1/4 KQG2H08-02S 22.3 17.6 12.9
    3/8 KQG2H08-03S 17 23.7 18.6 24.7
    10 1/8 KQG2H10-01S 17 16.4 25.5 22.4 17 26.1 18.9
    1/4 KQG2H10-02S 27.9 23.2 41.5 21.6
    3/8 KQG2H10-03S 23 17.9 20.6
    1/2 KQG2H10-04S 22 28.6 22.2 51.1
    12 1/4 KQG2H12-02S 19 18.5 30.5 25.8 18.6 58.3 27.4
    3/8 KQG2H12-03S 24.7 19.6 20.5
    1/2 KQG2H12-04S 22 28.7 22.3 44.6
    16 3/8 KQG2H16-03S 24 24.6 33.6 28.5 20.8 81 46
    1/2 KQG2H16-04S 29.5 23.1 113 37.4
    ※ R Reference dimensions after screwing in the thread.
    Nota 1) D indicat diametrum maximam.
    Nota 2) Indicates values when using FEP tubes.
    16 indicates values when using nylon tubes only.

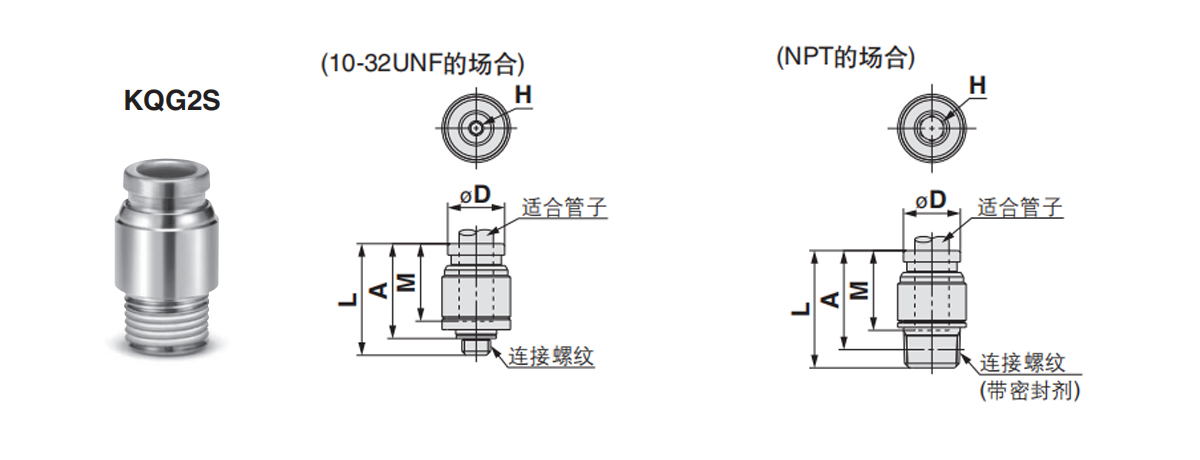

    In-linea hexagona recta iungo: KQG2S
    Apta tibiae
    Diameter exterior mm     		Connection filum
    R, M     		Model H
    (Exagonum latera)     		D Nota 1) L A※ M Nota 2)
    Effective crucis-Lorem area mm²     		Qualitas g*
    3.2 M5×0.8 KQG2S23-M5 2 9 16.5 13.5 12 3 3.8
    4 M5×0.8 KQG2S04-M5 2 9 17.1 14.1 12.6 4 3.7
    1/8 KQG2S04-01S 3 10 19.6 16.5 4.1 7.6
    6 M5×0.8 KQG2S06-M5 2 12 19.6 16.6 13.6 4 7.4
    1/8 KQG2S06-01S 4 20.6 17.5 10 8.7
    1/4 KQG2S06-02S 14 15.9 10.7 14
    8 1/8 KQG2S08-01S 5 14 24.7 21.6 16.1 17.2 12.3
    1/4 KQG2S08-02S 6 22.9 18.2 23.3 12.8
    3/8 KQG2S08-03S 17 23.1 18 22.8
    10 1/8 KQG2S10-01S 5 17 25.6 22.5 17 17.2 17.7
    1/4 KQG2S10-02S 8 27.5 22.8 39 19.1
    3/8 KQG2S10-03S 24 18.9 20.9
    1/2 KQG2S10-04S 22 17.6 37.2
    12 1/4 KQG2S12-02S 8 19 30.6 25.9 18.6 46 24.8
    3/8 KQG2S12-03S 10 24.9 19.8 60 19.3
    1/2 KQG2S12-04S 22 18.5 33.6
    16 3/8 KQG2S16-03S 10 24.6 33.2 28.1 20.8 81 41.6
    1/2 KQG2S16-04S 12 29.4 23 113 38.4
    ※ R Reference dimensions after screwing in the thread.
    Nota 1) D indicat diametrum maximam.
    Nota 2) Indicates values when using FEP tubes.
    16 indicates values when using nylon tubes only.

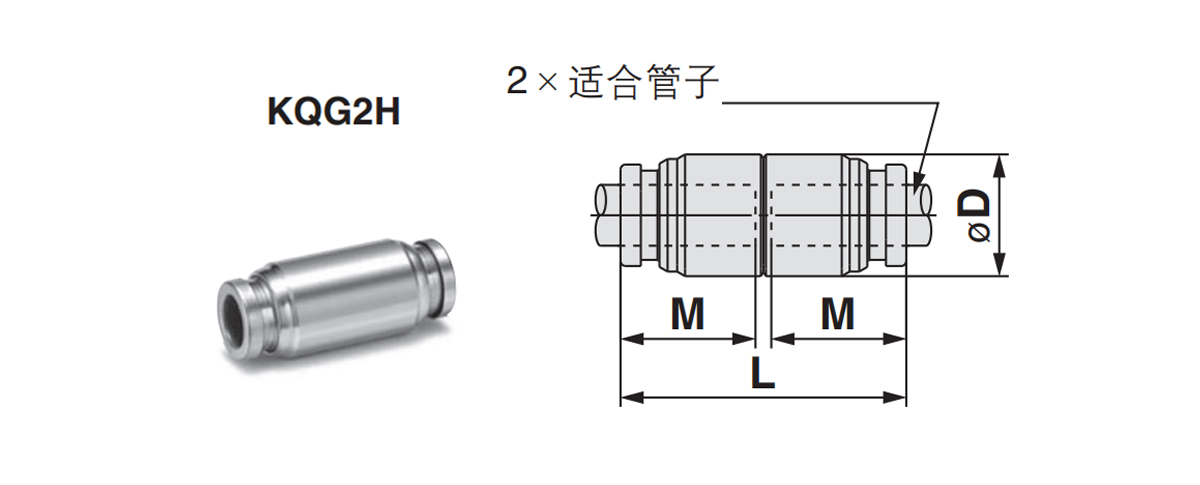

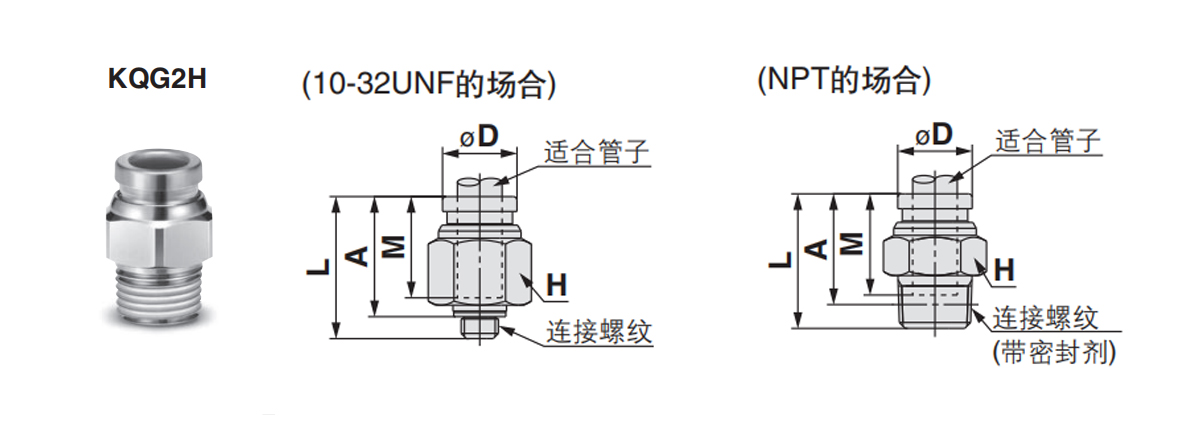

    Directus nexus: KQG2H
    Apta tibiae
    Diameter exterior mm     		Model D Nota 1) L M Nota 2)
    Effective crucis-Lorem area mm²     		Qualitas g*
    3.2 KQG2H23-00 9 25 12 3.4 6.5
    4 KQG2H04-00 9 26.2 12.6 5.6 6.5
    6 KQG2H06-00 12 28.2 13.6 13.1 11.5
    8 KQG2H08-00 14 33.2 16.1 26.1 16.6
    10 KQG2H10-00 17 35 17 41.5 26
    12 KQG2H12-00 19 38.2 18.6 58.3 32.2
    16 KQG2H16-00 24.6 42.6 20.8 113 53.7
    Nota 1) D diam maximam indicat.
    Nota 2) Indicates the value when using FEP tubing.
    16 indicates the value when using nylon tubing only.

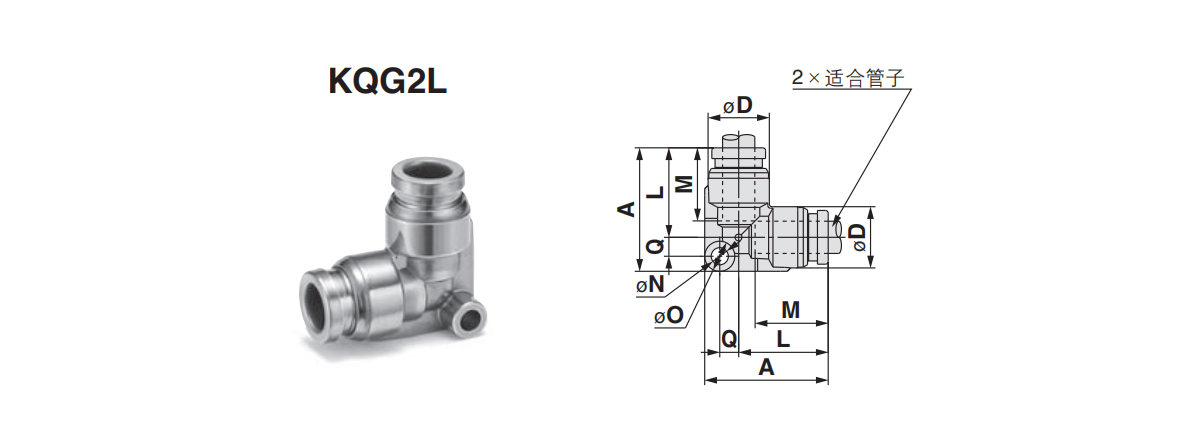

    Cubitus: KQG2L
    Apta tibiae
    Diameter exterior mm     		Connection filum
    R, M     		Model H
    (Exagonum latera)     		Nota 1)
    D     		L1 L2 A※ M Nota 2)
    Effective crucis-Lorem area mm²     		Qualitas g*
    3.2 M5×0.8 KQG2L23-M5 8 8.3 13.1 14.8 16 12 2.6 6.3
    1/8 KQG2L23-01S 10 13.6 14.9 15.9 3 7.6
    1/4 KQG2L23-02S 14 18.7 18.1 16
    4 M5×0.8 KQG2L04-M5 8 9.1 13.7 15.2 16.8 12.6 3.5 6.9
    1/8 KQG2L04-01S 10 14.4 15.3 16.7 4.2 8.5
    1/4 KQG2L04-02S 14 19.1 18.9 16.8
    6 M5×0.8 KQG2L06-M5 8 11.4 14.7 16.3 19 13.6 3.5 8.8
    1/8 KQG2L06-01S 10 15.9 16.4 11.4 10.1
    1/4 KQG2L06-02S 14 20.2 21.2 18.4
    3/8 KQG2L06-03S 17 21.6 22.2 29.9
    8 1/8 KQG2L08-01S 12 13.7 18.6 18.3 22 16.1 21.6 14.6
    1/4 KQG2L08-02S 14 19.1 21.5 23.6 20.3
    3/8 KQG2L08-03S 17 22.9 24.6 31.6
    10 1/8 KQG2L10-01S 12 16.6 20 19.7 24.9 17 21.6 20.2
    1/4 KQG2L10-02S 14 21 22.9 26.5 35.2 23.3
    3/8 KQG2L10-03S 17 24.3 27.5 33.6
    1/2 KQG2L10-04S 22 28.5 30.4 60.1
    12 1/4 KQG2L12-02S 14 18.7 22.6 24 28.6 18.6 50.2 27.1
    3/8 KQG2L12-03S 17 23.6 25.3 29.5 33.7
    1/2 KQG2L12-04S 22 29.5 32.4 58.7
    16 3/8 KQG2L16-03S 19 24.6 26.3 28 34.5 20.8 71 46.3
    1/2 KQG2L16-04S 22 27.3 31.8 37 100 61.3
    ※ R Reference dimensions after screwing in the thread.
    Nota 1) D indicat diametrum maximam.
    Nota 2) Indicates values when using FEP tubes.
    16 indicates values when using nylon tubes only.

    Tubus duplicatus T conformatus: KQG2T
    Apta tibiae
    Diameter exterior mm     		Connection filum
    R, M     		Model H
    (Exagonum latera)     		Nota 1)
    D     		L1 L2 A※ M Nota 2)
    Effective crucis-Lorem area mm²     		Qualitas g*
    3.2 M5×0.8 KQG2T23-M5 8 8.3 13.1 14.8 16 12 3.2 8.1
    1/8 KQG2T23-01S 10 13.6 14.9 15.9 3.4 9.4
    1/4 KQG2T23-02S 14 18.7 18.1 17.7
    4 M5×0.8 KQG2T04-M5 8 9.1 13.7 15.2 16.8 12.6 4.5 9
    1/8 KQG2T04-01S 10 14.4 15.3 16.7 9 10.4
    1/4 KQG2T04-02S 14 19.1 18.9 18.8
    6 M5×0.8 KQG2T06-M5 8 11.4 14.7 16.3 19 13.6 4.5 11.9
    1/8 KQG2T06-01S 10 15.9 16.4 13.9 13.4
    1/4 KQG2T06-02S 14 20.2 21.2 21.8
    3/8 KQG2T06-03S 17 21.6 22.2 33.3
    8 1/8 KQG2T08-01S 12 13.7 18.6 18.3 22 16.1 26.3 20
    1/4 KQG2T08-02S 14 19.1 21.5 23.6 25.5
    3/8 KQG2T08-03S 17 22.9 24.6 36.8
    10 1/8 KQG2T10-01S 12 16.6 20 19.7 24.9 17 40.8 28.4
    1/4 KQG2T10-02S 14 21 22.9 26.5 31.1
    3/8 KQG2T10-03S 17 24.3 27.5 41.4
    1/2 KQG2T10-04S 22 28.5 30.4 68
    12 1/4 KQG2T12-02S 14 18.7 22.6 24 28.6 18.6 57.2 37.8
    3/8 KQG2T12-03S 17 23.6 25.3 29.5 39.3
    1/2 KQG2T12-04S 22 29.5 32.4 68.8
    16 3/8 KQG2T16-03S 19 24.6 26.3 28 34.5 20.8 71 63.7
    1/2 KQG2T16-04S 22 27.3 31.8 37 100 77.6
    ※ R Reference dimensions after screwing in the thread.
    Nota 1)Ø D indicates the maximum diameter.
    Nota 2) Indicates values when using FEP tubes.
    16 indicates values when using nylon tubes only.

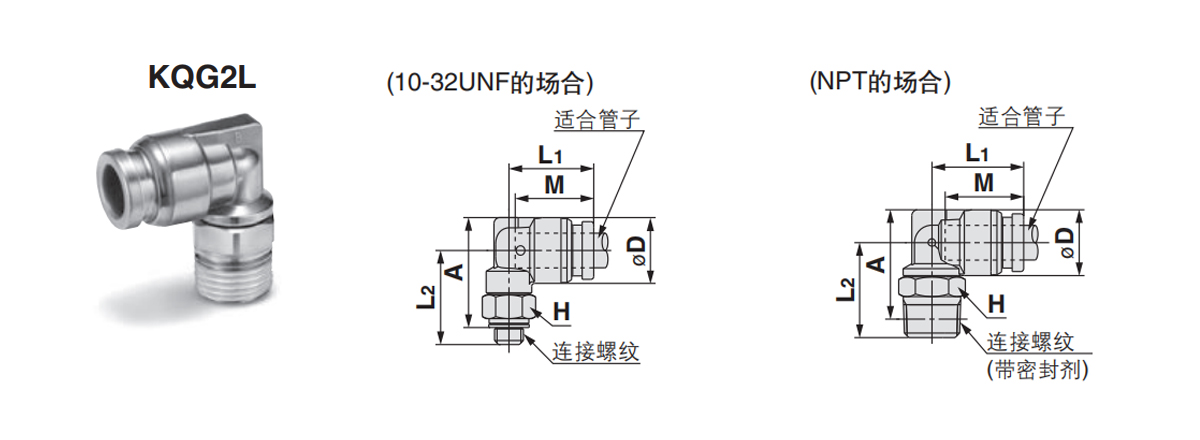

    Tibia curva: KQG2L
    Apta tibiae
    Diameter exterior mm     		Model Nota 1)
    D     		L A Q M N O Nota 2)
    Effective crucis-Lorem area mm²     		Qualitas g*
    3.2 KQG2L23-00 8.3 13.6 19.3 2.9 12 3.2 5.6 3 6.3
    4 KQG2L04-00 9.1 14.6 20.5 3.1 12.6 3.2 5.6 4.2 7.4
    6 KQG2L06-00 11.4 16.6 23 3.6 13.6 3.2 5.6 11.4 11
    8 KQG2L08-00 13.7 20.1 29.1 5 16.1 4.2 8 21.6 20.2
    10 KQG2L10-00 16.6 22 31.7 5.7 17 4.2 8 35.2 29.6
    12 KQG2L12-00 18.7 24.6 35 6.4 18.6 4.2 8 50.2 37.1
    16 KQG2L16-00 24.6 28.8 40.5 7.7 20.8 4.2 8 100 59.7
    Nota 1)Ø D indicates the maximum diameter.
    Nota 2) Indicates the value when using FEP tubing.
    16 indicates the value when using nylon tubing only.

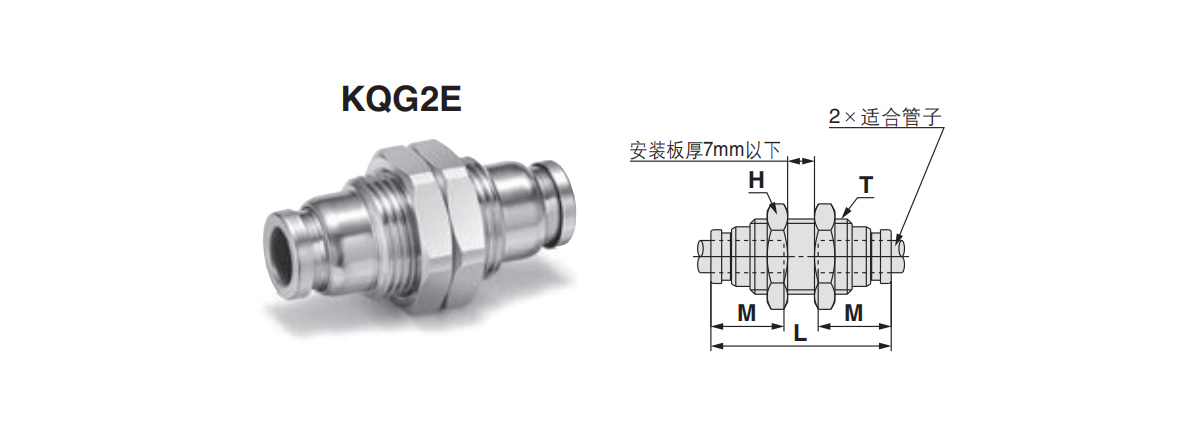

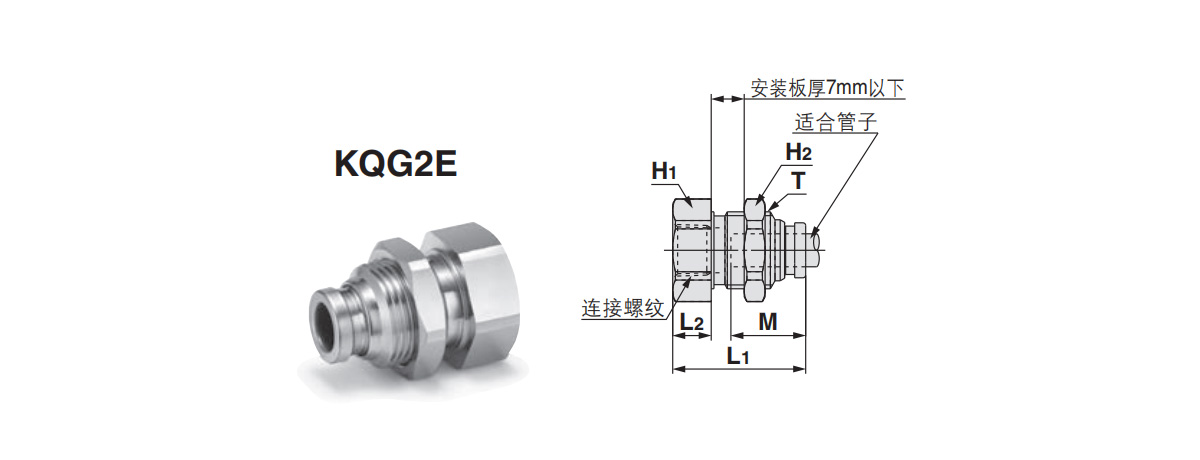

    Panel-ascensus recti-per iungo: KQG2E
    Apta tibiae
    Diameter exterior mm     		Model T
    (M)     		H
    (Exagonum latera)     		L Adscendens foraminis M Nota )
    Effective crucis-Lorem area mm²     		Qualitas g*
    3.2 KQG2E23-00 M10×1 12 32.2 11 12 3.4 14
    4 KQG2E04-00 M10×1 12 32.4 11 12.6 5.6 14
    6 KQG2E06-00 M14×1 17 33.6 15 13.6 13.1 25.8
    8 KQG2E08-00 M15×1 19 36.4 16 16.1 26.1 30.4
    10 KQG2E10-00 M18×1 21 37.2 19 17 41.5 40.3
    12 KQG2E12-00 M20×1 24 39.2 21 18.6 58.3 49.9
    16 KQG2E16-00 M27×1 30 42.6 28 20.8 113 87.3
    Nota 1)Ø D indicates the maximum diameter.
    16 only indicates the value when using nylon tubes.

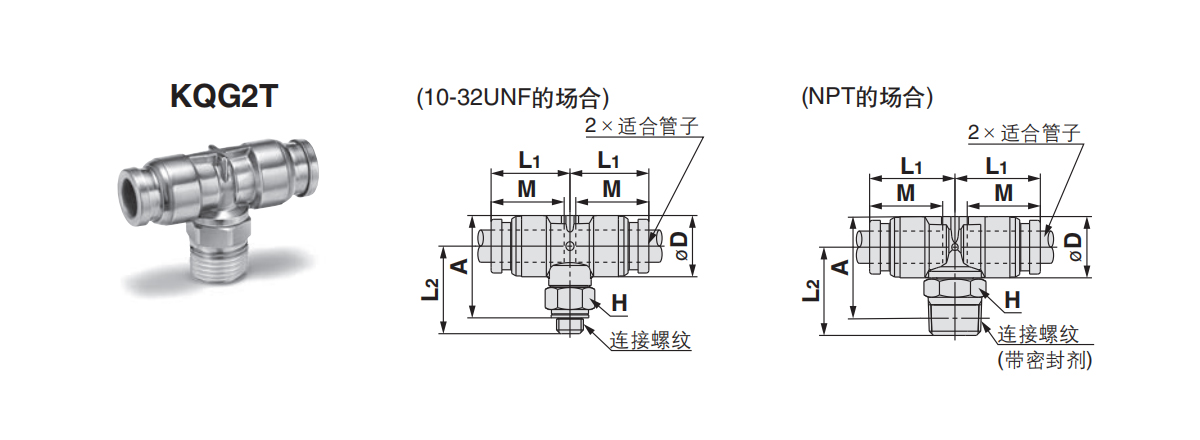

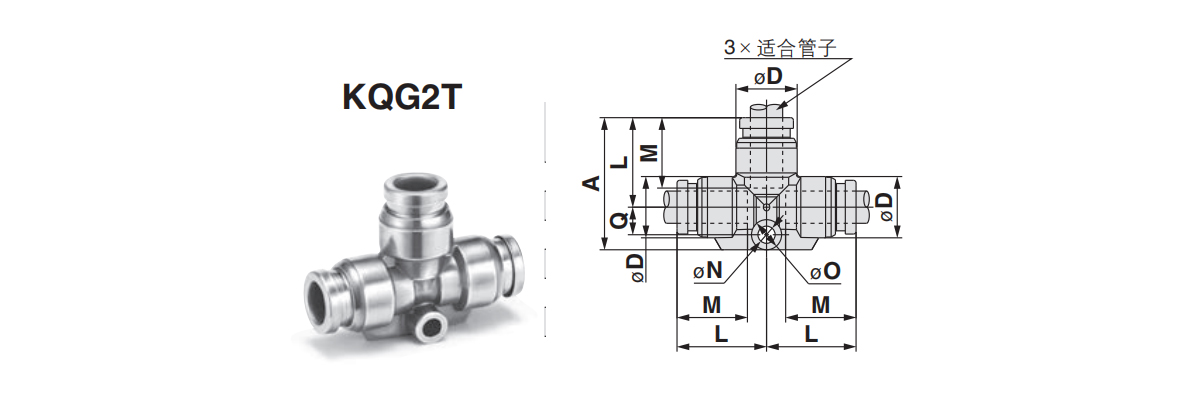

    Fistula t aptata: KQG2T
    Apta tibiae
    Diameter exterior mm     		Model Nota 1)
    D     		L A Q M on- oO* Nota 2)
    Effective crucis-Lorem area mm²     		Qualitas g*
    3.2 KQG2T23-00 8.3 13.6 20.5 4.1 12 3.2 5.6 3.4 7.9
    4 KQG2T04-00 9.1 14.6 21.8 4.4 12.6 3.2 5.6 6.4 9.5
    6 KQG2T06-00 11.4 16.6 24.6 5.2 13.6 3.2 5.6 13.4 14.2
    8 KQG2T08-00 13.7 20.1 31.1 7 16.1 4.2 8 25.6 24.4
    10 KQG2T10-00 16.6 22 34 8 17 4.2 8 40 36.8
    12 KQG2T12-00 18.7 24.6 37.7 9.1 18.6 4.2 8 57.4 46.9
    16 KQG2T16-00 24.6 28.8 43.4 10.6 20.8 4.2 8 100 75.5
    Nota 1) D indicat diametrum maximam.
    Nota 2) Indicates the value when using FEP tubing.
    16 indicates the value when using nylon tubing only.

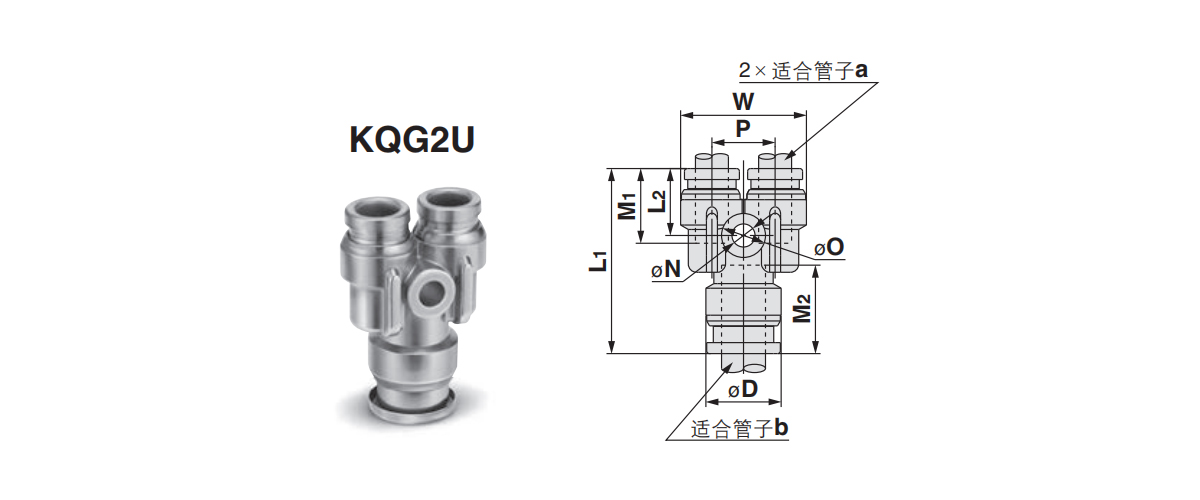

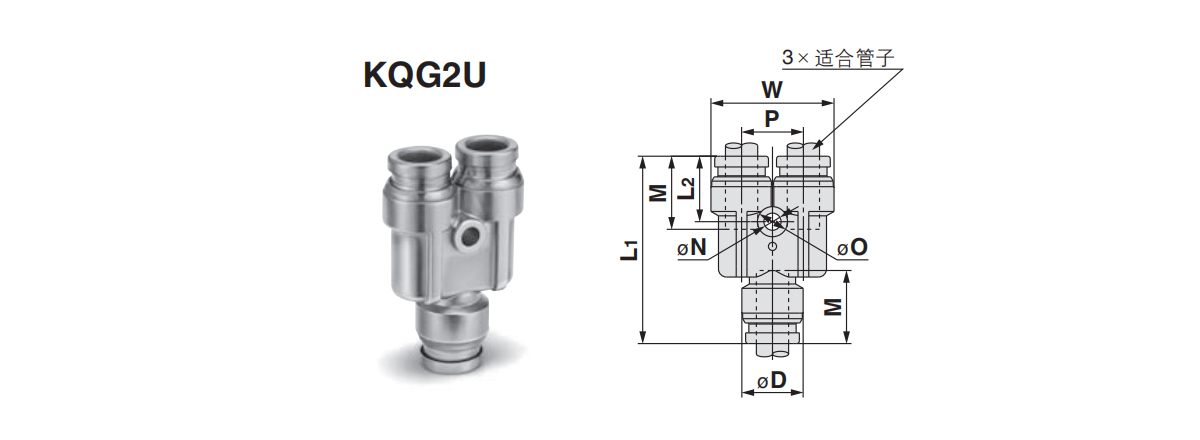

    Fistula y informibus apta: KQG2U
    Apta tibiae
    Diameter exterior mm     		Model Nota 1)
    D     		W L1 L2 P M N O Nota 2)
    Effective crucis-Lorem area mm²     		Qualitas g*
    3.2 KQG2U23-00 8.3 16.4 29 11 8.1 12 3.2 5.6 3.4 9.2
    4 KQG2U04-00 9.1 18.2 30.4 11.3 9.1 12.6 3.2 5.6 4.2 11.1
    6 KQG2U06-00 11.4 22.9 34.9 12.2 11.5 13.6 3.2 5.6 13.4 18.8
    8 KQG2U08-00 13.7 28.3 40.1 14.1 14.6 16.1 4.2 8 25.6 29.7
    10 KQG2U10-00 16.6 34.2 44 14.4 17.6 17 4.2 8 40 47.4
    12 KQG2U12-00 18.7 38.5 48.4 15.8 19.8 18.6 4.2 8 57.4 62.1
    16 KQG2U16-00 24.6 49.3 56.6 17.3 26 20.8 4.2 8 113 110.2
    Nota 1) D indicat diametrum maximam.
    Nota 2) Indicates values when using FEP tubing.
    16 indicates values when using nylon tubing only.

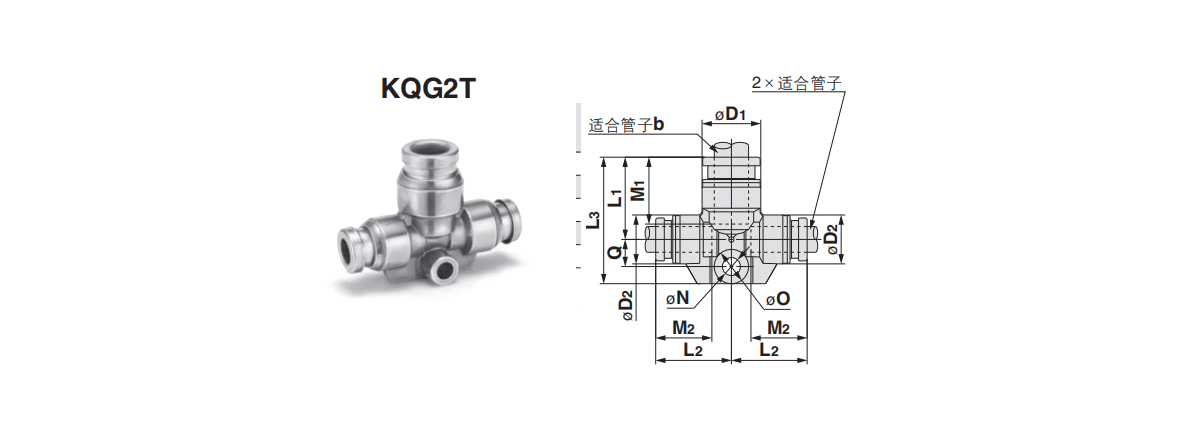

    Diversi diametri fistulae T-fibulatae iuncturae: KQG2T .
    Apta fistulae
    m m     		Model Nota 1)
    D1     		Nota 1)
    D2     		L1 L2 L3 Q M1 M2 N O Nota 2)
    Effective crucis-Lorem area mm²     		Qualitas g*
    a b
    3.2 4 KQG2T23-04 9.1 8.3 14.2 14.1 21.1 4.1 12.6 12 3.2 5.6 3.8 8.5
    4 6 KQG2T04-06 11.4 9.1 15.6 15.7 22.8 4.4 13.6 12.6 3.2 5.6 7.1 11.5
    6 8 KQG2T06-08 13.7 11.4 19.1 17.7 29.5 6.4 16.1 13.6 4.2 8 16.4 20
    8 10 KQG2T08-10 16.6 13.7 21 21.2 32.1 7.1 17 16.1 4.2 8 36 29.8
    10 12 KQG2T10-12 18.7 16.6 23.6 23.1 35.7 8.1 18.6 17 4.2 8 56 41.3
    12 16 KQG2T12-16 24.6 18.7 26.8 26.7 39.9 9.1 20.8 18.6 4.2 8 108.5 58
    Nota 1) Ø D1 and Ø D2 indicate the maximum diameter.
    Nota 2) Indicates the value when using FEP pipes.

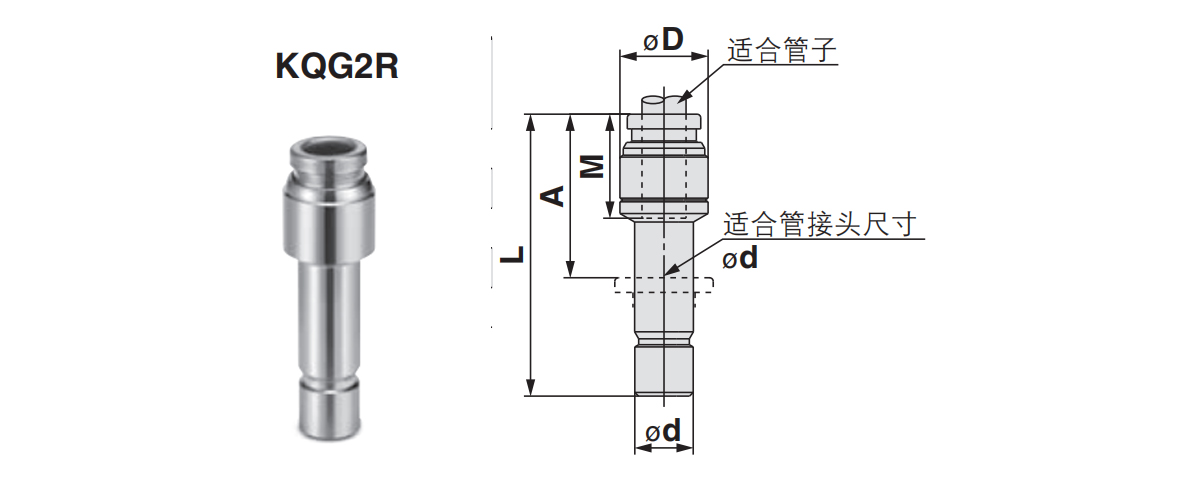

    Fistula minuendo aptam: KQG2R
    Apta tibiae
    Diameter exterior mm     		Apta fistulae articulis Model D Nota 1) L A M Nota 2)
    Effective crucis-Lorem area mm²     		Qualitas g*
    a b
    3.2 4 KQG2R23-04 9 32.9 20.3 12 3.4 4.7
    4 6 KQG2R04-06 9 34.4 20.8 12.6 5.6   6.7
    6 8 KQG2R06-08 12 38.4 22.3 13.6 13.1 12.1
    8 10 KQG2R08 10    14 41.9 24.9 16.1 26.1  18.3
    10 12 KQG2R10-12 17 44.8 26.2 17 41.5 26.5
    12 16 KQG2R12-16 19 42.9 22.1 18.6 58.3 35.4
    Nota 1) D diam maximam indicat.
    Nota 2) Indicates the value when using FEP tubing.

    Fistula recta minuens: KQG2H
    Apta tibiae
    Diameter exterior mm     		Model D Nota1) L M1 M2 Nota 2)
    Effective crucis-Lorem area mm²     		Qualitas g*
    a b
    3.2 4 KQG2H23-04 9 25.6 12 12.6 3.4 6.5
    4 6 KQG2H04-06 12 27.2 12.6 13.6 5.6 11.6
    6 8 KQG2H06-08 14 30.7 13.6 16.1 13.1 16.3
    8 10 KQG2H08-10 17 34.1 16.1 17 26.1 26
    10 12 KQG2H10-12 19 36.6 17 18.6 41.5 33.3
    12 16 KQG2H12-16 24.6 40.4 18.6 20.8 58.3 54.7
    Nota 1) D indicat diametrum maximam.
    Nota 2) Indicates the value when using FEP tubing.

    Differentia diametri fistulae Y informata iunctura: KQG2U
    Apta tibiae
    Diameter exterior mm     		Model Nota1)
    D     		L1 L2 P W M1 M2 N O Nota 2)
    Effective crucis-Lorem area mm²     		Qualitas g*
    a b
    3.2 4 KQG2U23-04 9.1 27 10.8 8.1 16.4 12 12.6 3.2 5.6 3.2 8.5
    4 6 KQG2U04-06 11.4 29.3 11.2 9.1 18.2 12.6 13.6 3.2 5.6 4.2 11.9
    6 8 KQG2U06-08 13.7 33.7 12.2 11.5 22.9 13.6 16.1 4.2 8 13.4 19.3
    8 10 KQG2U08-10 16.6 38.3 13.8 14.6 28.3 16.1 17 4.2 8 25.6 31.6
    10 12 KQG2U10-12 18.7 43 14 17.6 34.2 17 18.6 4.2 8 40 47.6
    12 16 KQG2U12-16 24.6 47.4 15.6 19.8 38.5 18.6 20.8 4.2 8 57.4 67.6
    Nota 1) D indicat diametrum maximam.
    Nota 2) Indicates the value when using FEP tubing.

    Panel ascendens stamina interna recta iungo: KQG2E
    Apta tibiae
    Diameter exterior mm     		Connection filum
    Rc     		Model T
    (M)     		exagonum latera L1 L2 adscendens foraminis M Nota)
    Effective crucis-Lorem area mm²     		Qualitas g*
    H1 H2
    3.2 1/4 KQG2E23-02 M10×1 17 12 31 14.8 11 12 3.4 26.1
    4 1/8 KQG2E04-01 M10×1 14 12 25.8 9.7 11 12.6 5.6 16
    1/4 KQG2E04-02 17 30.9 14.8 25.6
    6 1/8 KQG2E06-01 M14×1 17 17 24.2 7 15 13.6 13.1 24.4
    1/4 KQG2E06-02 30.9 13.7 30.9
    3/8 KQG2E06-03 19 32.1 14.9 32
    8 1/8 KQG2E08-01 M15×1 17 19 26.3 8.1 16 16.1 26.1 28
    1/4 KQG2E08-02 31.3 13.1 31.2
    3/8 KQG2E08-03 19 32.8 14.6 32.7
    10 1/4 KQG2E10-02 M18×1 19 21 31.6 13 19 17 41.5 42.8
    3/8 KQG2E10-03 33 14.4 37.5
    12 3/8 KQG2E12-03 M20×1 21 24 34 14.4 21 18.6 58.3 50.3
    1/2 KQG2E12-04 24 39.3 19.7 60.7
    16 3/8 KQG2E16-03 M27×1 29 30 35.3 13.3 28 20.8 96 107.8
    1/2 KQG2E16-04 40.6 18.6 113 114.6
    Nota: Valores pro FEP Tubing illae indicant.
    16 indicates values for nylon tubing only.

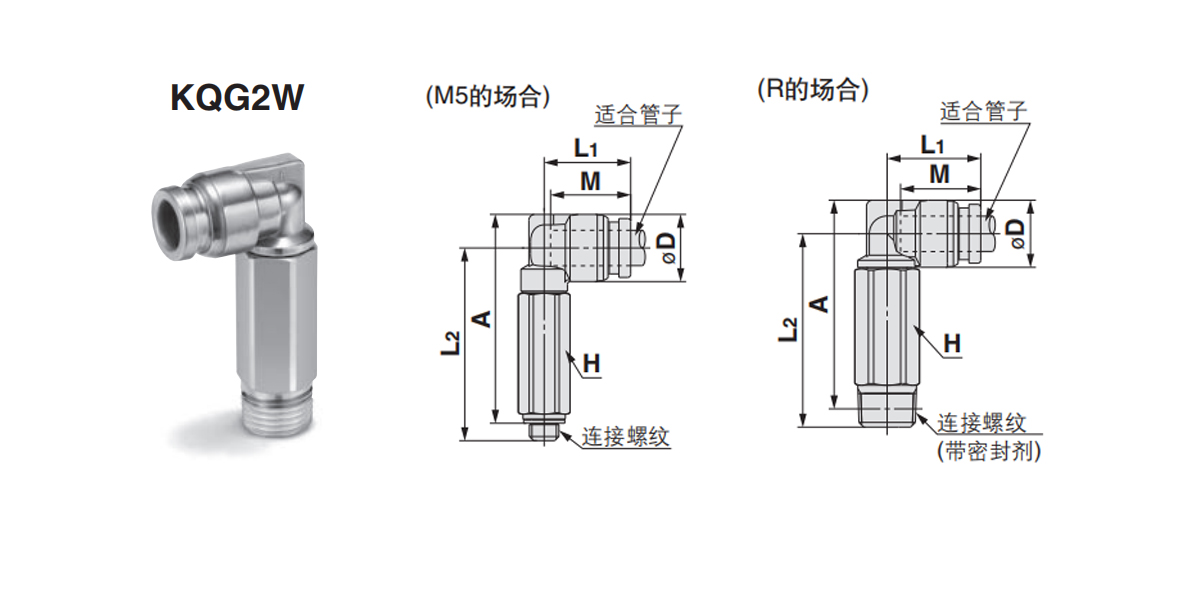

    Cubitus extensus: KQG2W
    Apta tibiae
    Diameter exterior mm     		Connection filum
    R,M     		Model H
    (Exagonum latera)     		Nota1)
    D     		L1 L2 A※ M Nota 2)
    Effective crucis-Lorem area mm²     		Qualitas g*
    3.2 M5×0.8 KQG2W23-M5 8 8.3 13.1 31.2 32.4 12 2.8 13
    1/8 KQG2W23-01S 10 13.6 31.3 32.3 14.7
    1/4 KQG2W23-02S 14 35.1 34.5 33.1
    4 M5×0.8 KQG2W04-M5 8 9.1 13.7 31.6 33.2 12.6 3 13.6
    1/8 KQG2W04-01S 10 14.4 31.7 33.1 4 15.6
    1/4 KQG2W04-02S 14 35.5 35.3 33.9
    6 M5×0.8 KQG2W06-M5 8 11.4 14.7 32.7 35.4 13.6 3 15.5
    1/8 KQG2W06-01S 10 15.9 32.8 10.9 17.2
    1/4 KQG2W06-02S 14 36.6 37.6 35.5
    3/8 KQG2W06-03S 17 38 38.6 57.4
    8 1/8 KQG2W08-01S 12 13.7 18.6 37 40.7 16.1 20.5 28
    1/4 KQG2W08-02S 14 19.1 40.2 42.3 37.7
    3/8 KQG2W08-03S 17 41.6 43.3 60.9
    10 1/4 KQG2W10-02S 14 16.6 21 46.6 50.2 17 33.5 40.7
    3/8 KQG2W10-03S 17 45.9 49.1 61.9
    1/2 KQG2W10-04S 22 50.1 52 117.3
    12 1/4 KQG2W12-02S 14 18.7 22.6 47.7 52.3 18.6 47.7 44.6
    3/8 KQG2W12-03S 17 23.6 49 53.2 56.3
    1/2 KQG2W12-04S 22 53.2 56.1 112.9
    16 3/8 KQG2W16-03S 19 24.6 26.3 57.6 64.1 20.8 71 86.6
    1/2 KQG2W16-04S 22 27.3 61.4 66.6 100 111.8
    ※ R Reference dimensions after screwing in the thread.
    Nota 1) D indicat diametrum maximam.
    Nota 2) Indicates values when using FEP tubes.
    16 indicates values when using nylon tubes only.

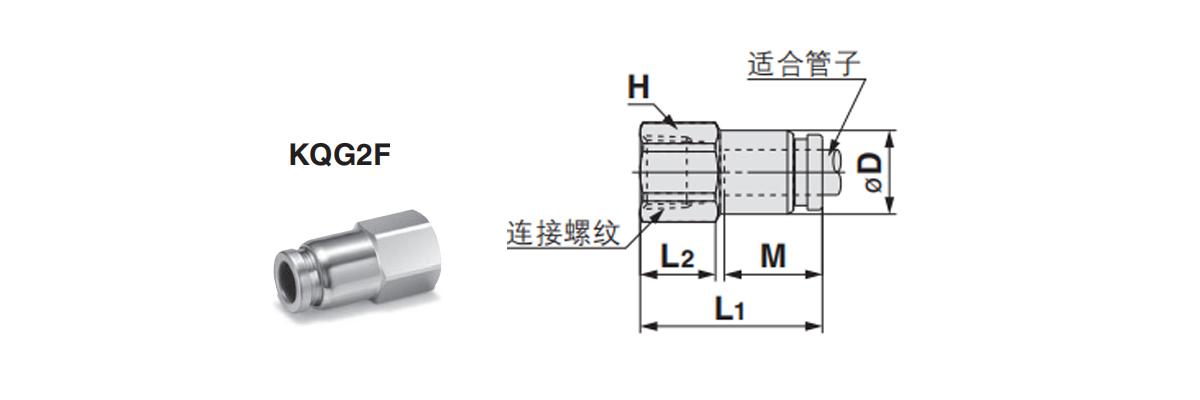

    Filum internum rectum connectens: KQG2F
    Apta tibiae
    Diameter exterior mm     		Connection filum
    Rc     		Model H
    (Exagonum latera)     		D Nota1) L1 L2 M Nota 2)
    Effective crucis-Lorem area mm²     		Qualitas g*
    3.2 1/8 KQG2F23-01 12 8 23.3 9.8 12 3.4 8.9
    4 1/8 KQG2F04-01 12 8.7 23.7 9.8 12.6 5.6 9.2
    1/4 KQG2F04-02 17 28.7 13.2 21.6
    6 1/8 KQG2F06-01 12 11.1 24.2 10 13.6 13.1 10.5
    1/4 KQG2F06-02 17 29.2 13.4 23.1
    3/8 KQG2F06-03 19 30.6 14.2 24.5
    8 1/8 KQG2F08-01 14 13.4 26.3 9.6 16.1 26.1 16.3
    1/4 KQG2F08-02 17 31.3 13.7 25.5
    3/8 KQG2F08-03 19 32.7 14.4 27
    10 1/4 KQG2F10-02 17 16.4 31.6 13.9 17 41.5 28.8
    3/8 KQG2F10-03 19 33 14.7 30.4
    12 1/4 KQG2F12-02 19 18.5 32.6 13.3 18.6 58.3 37.5
    3/8 KQG2F12-03 34 14.7 32.3
    1/2 KQG2F12-04 24 39.3 18.4 50.2
    Ø 16 3/8 KQG2F16-03 24 24.6 35.3 13.5 20.8 81 59.7
    1/2 KQG2F16-04 40.6 18.8 113 57
    Nota 1) D indicat diametrum maximam.
    Nota 2) Indicates values when using FEP tubing.
    16 indicates values when using nylon tubing only.

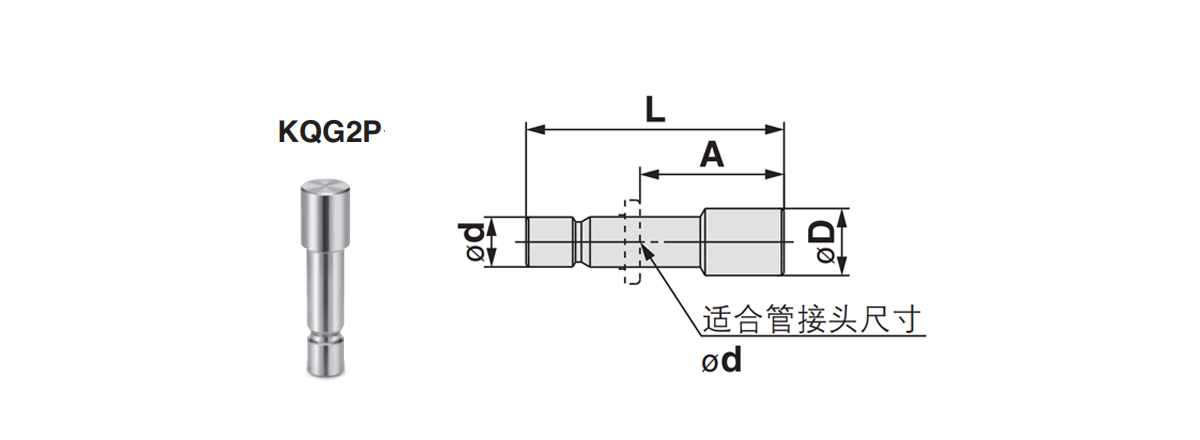

    Plug: KQG2P
    Apta fistulae articulis
    Dimensiones od     		Model D L A Qualitas g*
    3.2 KQG2P-23 5 28.9 16.9 2.7
    4 KQG2P-04 6 29.6 17 4.1
    6 KQG2P-06 8 30.8 17.2 8.5
    8 KQG2P-08 10 33.7 17.6 15.5
    10 KQG2P-10 12 34.6 17.6 24.1
    12 KQG2P-12 14 36.5 17.9 35.8
    16 KQG2P-16 18 38.6 17.8 65.5

Prodotti Correlati

Blog e Notizie

Le Nostre Ultime Notizie e
Blog

Vedi Altro

Qualità Autentica e Affidabile che si Distingue Naturalmente.

La scelta nasce dalla fiducia, e la cooperazione dall'onestà.

  • D: Quam mox responsum accipere possumus postquam inquisitionem tibi mittimus?

    Respondebimus tibi intra XXIV horas post inquisitionem in diebus ferialibus.

  • D: Esne directus fabrica vel societas mercaturae?

    Fabrica sumus, et venditiones internationales proprias habemus. Ita nosmetipsos omnia producere et vendere possumus.

  • D: Lorem products facere potes?

    Ita, nos evolvere et producere fructus secundum delineationes vel exempla a clientibus provisum possumus

  • D: Quomodo societas tua praestat productum qualitas?

    Primum inspectionem post singulos processum faciemus. Pro effectibus perfectis, inspectionem C% secundum exigentias clientium et vexillum internationale faciemus..

  • D: Ubi sunt vestra producta maxime emitur?

    Producta nostra maxime in Germaniam, Civitates Americae Unitas, Daniam et plusquam duodecim nationes in Europa et America Septentrionali . exportantur
