Language

+86-13757875258

About

CKT Pneumatic was founded in 2002 and officially registered the CKT brand in 2005.

Take the responsibility of revitalizing national industry.

News

Provide you with the latest enterprise and industry news.

Take the responsibility of revitalizing national industry.

CA2 Series Standard Cylindri Fornitores

Home / Products / Air Cylindri / Standard Cylinder / CA2 Series Standard Cylindri

CA2 Series Standard Cylindri
  • CA2 Series Standard Cylindri
Standard Cylinder

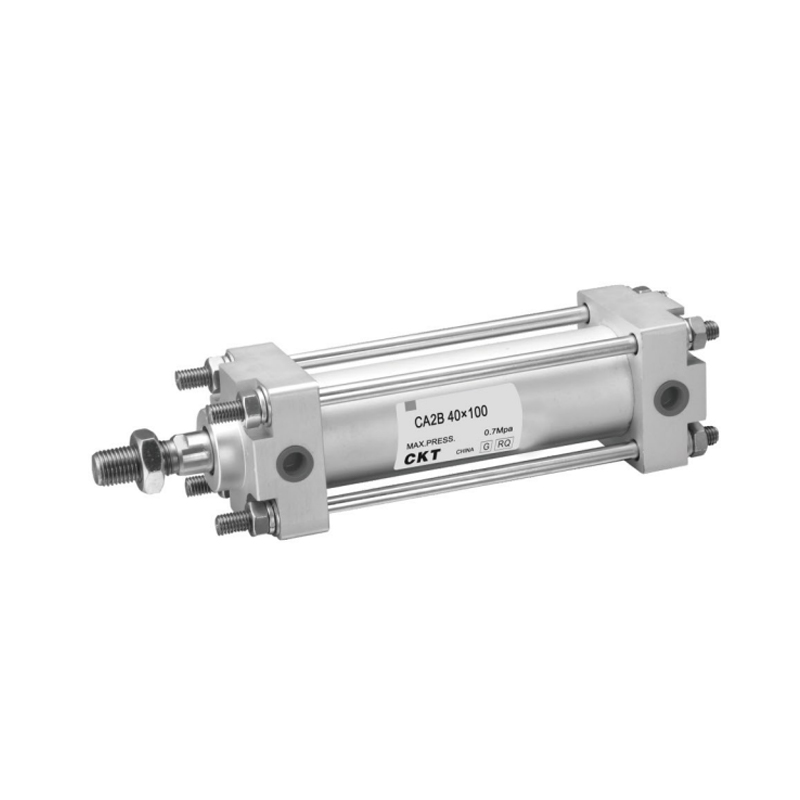

CA2 Series Standard Cylindri

1. Missa est 5~15% seriei CA1 levior;
2. Facultas buffering melioratur, et anconia non citius extendetur;
3. Valvae quiddam facilius est accommodare, et valvae quiddam cylindricum superficiei capitis non exponere;
4. In motu energiae, quae absorberi potest, usque ad 30% cum seriei CA1 augeri potest, et vita quiddam sigillum per 5 fere tempora extendi potest;
5. Inflexio pistonis deorsum est circiter 5~10% minor quam series CA1;
6. Dimensiones institutionis eaedem sunt ac series CA1 ;
7. Praeter Rc, tibia etiam filum NPT et G linum habet

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：Nessun articolo precedente
SUCCESSIVO：SE Series Standard Cylinder (No Tie Rod Type)

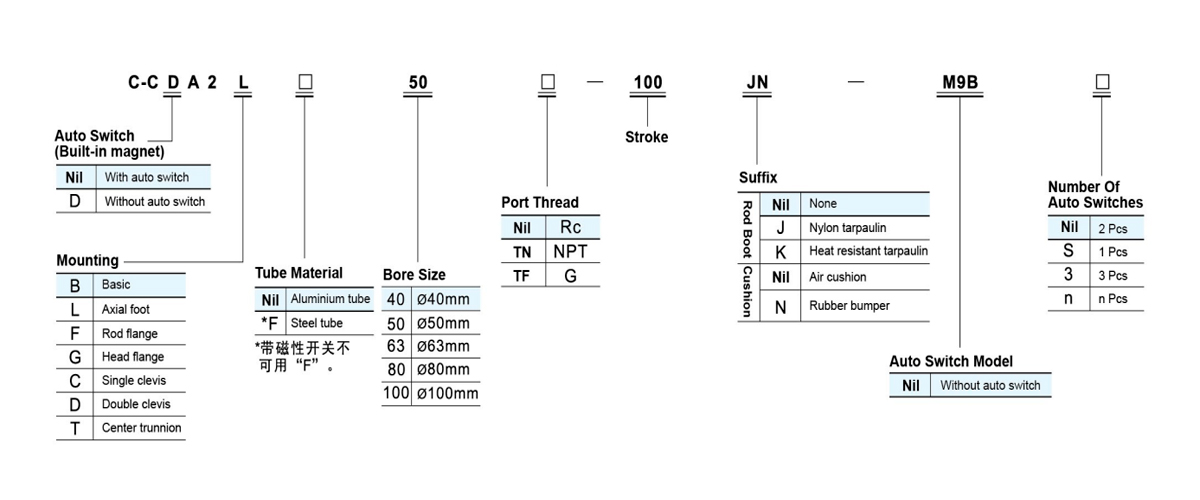

  • Bore Size (mm) 40 50 63 80 100
    Operans Impetus dolor 0.05~1.0MPa
    Ambient Et Fluidus Temperature Sine auto switch: -10℃~ 70℃, Cum auto switch: -10℃~ 60℃
    Operans Piston Volo 50~500mm/s
    Pulvinar Pulvinar Air
    Longitudo tolerantia plaga (mm) ~250:1°, 251~ 1000:14,1001~ 1500:1-8
    Lubricatio Non requiratur
    Port Size (Rc) 45661 45724 45659

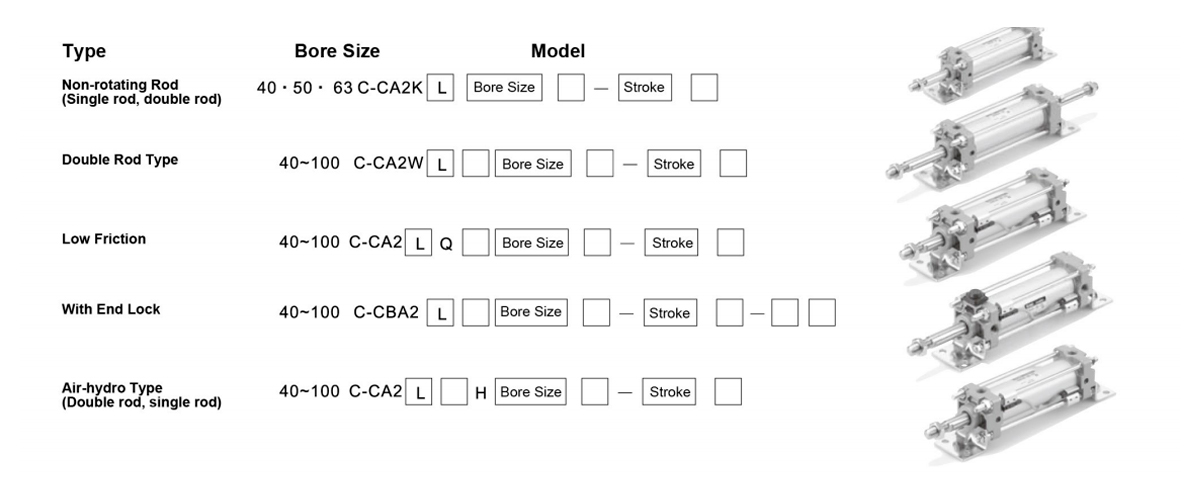

  • Bore
    Magnitudo

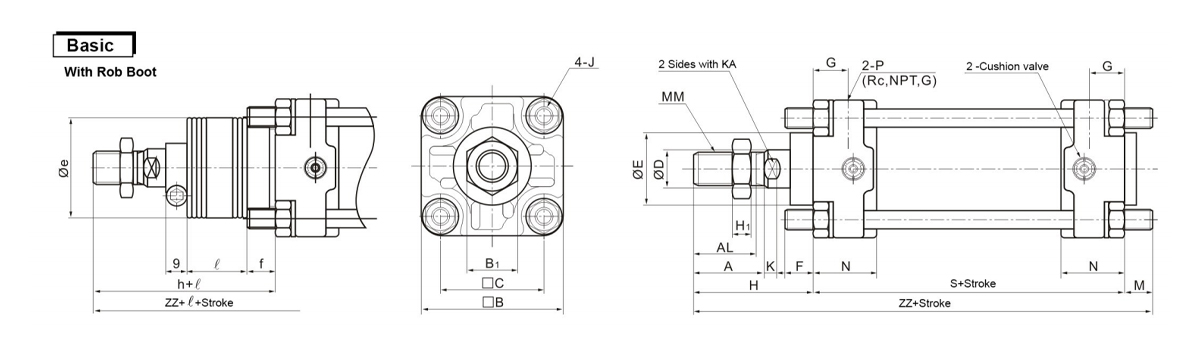

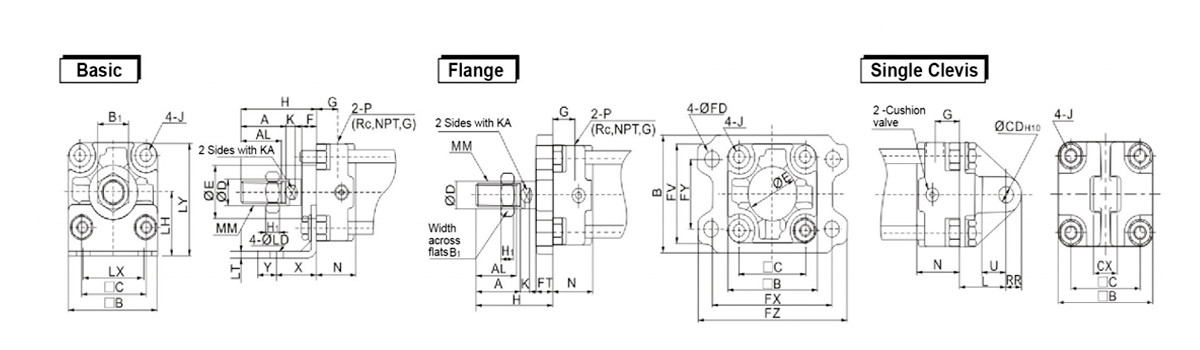

    (mm)     		Plaga Range (mm) A AL* B B1 C D E F G H₁ J K KA M MM N P S Sine virga Booz Cum virga Booz
    Sine
    Virgam Boot     		Cum virga Booz H ZZ e f h ℓ ZZ
    40 ~500 20~500 30 27 60 22 44 16 32 10 15 8 M8×1.25 6 14 11 M14×1.5 27 45661 84 51 146 43 11.2 59 1/4 Stroke 154
    50 ~600 20~600 35 32 70 27 52 20 40 10 17 11 M8×1.25 7 18 11 M18×1.5 30 45724 90 58 159 52 11.2 66 1/4 Stroke 167
    63 ~600 20~600 35 32 85 27 64 20 40 10 17 11 M10×1.5 7 18 14 M18×1.5 31 45724 98 58 170 52 11.2 66 1/4 Stroke 178
    80 ~750 20~750 40 37 102 32 78 25 52 14 21 13 M12×1.75 10 22 17 M22×1.5 37 45659 116 71 204 65 12.5 80 1/4 Stroke 213
    100 ~750 20~750 40 37 116 41 92 30 52 14 21 16 M12×1.75 10 26 17 M26×1.5 40 45659 126 72 215 65 14 81 1/4 Stroke 224

    Bore
    Magnitudo
    (mm)     		Foot Foot Unius Clevis
    Components No LH LX LY X Y LT LD Components No FT FD B FV* FX FY* FZ Components No CD U L RR CX
    40 CA2-L04 40 42 70 27 13 3.2 9 CA2-F04 12 9 71 60 80 42 100 CA2-C04 10 0.058 16 30 10 15 -0.1
    0 -0.3
    50 CA2-L05 45 50 80 27 13 3.2 9 CA2-F05 12 9 81 70 90 50 110 CA2-C05 12 0.058 19 35 12 15 -0.1
    0 -0.3
    63 CA2-L06 50 59 93 34 16 3.2 11.5 CA2-F06 15 11.5 101 86 105 59 130 CA2-C06 16 0.058 23 40 16 25 -0.1
    0 -0.3
    80 CA2-L08 65 76 116 44 16 4.5 13.5 CA2-F08 18 13.5 119 102 130 76 160 CA2-C08 20 0.058 28 48 20 31.5 -0.1
    0 -0.3
    100 CA2-L10 75 92 133 43 17 6 13.5 CA2-F10 18 13.5 133 116 150 92 180 CA2-C10 25 0.058 36 58 25 35.5 -0.1
    0 -0.3

    Bore
    Magnitudo

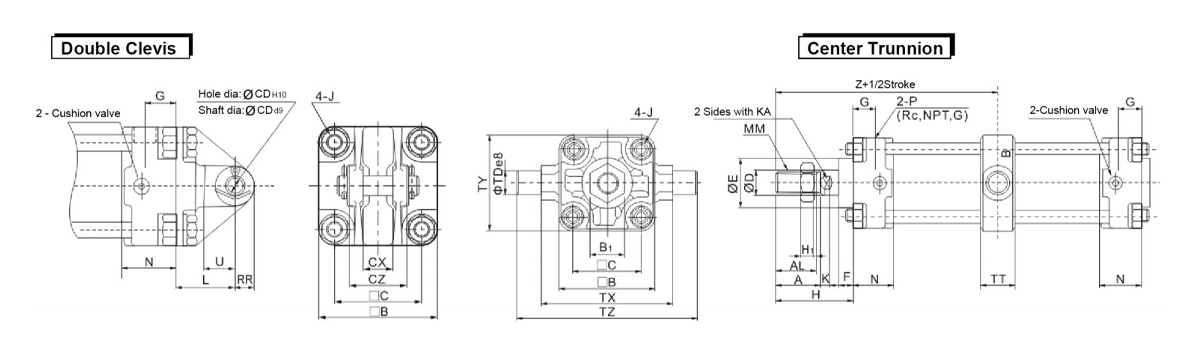

    (mm)     		Geminus Clevis Centrum Trunnion
    Components No CD U L RR CX CZ TY TD TX TZ TT
    40 CA2-D04 10 0.058 16 30 10 15 0.1 29.5 62 15 -0.032 85 117 22 CA2-S04
    0 0.3 -0.059
    50 CA2-D05 12 0.07 19 35 12 18 0.1 38 74 15 -0.032 95 127 22 CA2-S05
    0 0.3 -0.059
    63 CA2-D06 16 0.07 23 40 16 25 0.1 49 90 28 -0.032 110 148 28 CA2-S06
    0 0.3 -0.059
    80 CA2-D08 20 0.084 28 48 20 31 0.1 61 110 25 -0.04 140 192 34 CA2-S08
    0 0.3 -0.093
    100 CA2-D10 25 0.084 36 58 25 35 0.1 64 130 25 -0.04 162 214 40 CA2-S10
    0 0.3 -0.093

    Model Bore
    Magnitudo

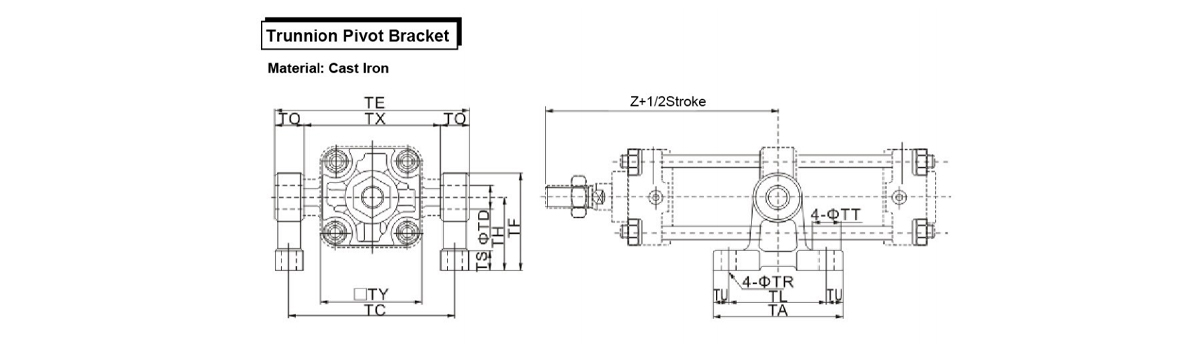

    (mm)     		TA TL TU TC TX TE TO TR TT TS TH TF TY Z TD-H10
    (Hole)
    C-CA2-S04 40 80 60 10 102 85 119 17 9 17 12 45 60 62 93 15 -0.070
    0
    50 80 60 10 112 95 129 17 9 17 12 45 60 74 103 15 -0.070
    0
    C-CA2-S06 63 100 70 15 130 110 150 20 11 22 14 55 73 90 107 28 -0.070
    0
    C-CA2-S10 80 120 90 15 166 140 192 26 13.5 24 17 75 100 110 129 25 -0.084
    0
    100 120 90 15 188 162 214 26 13.5 24 17 75 100 130 135 25 -0.084
    0

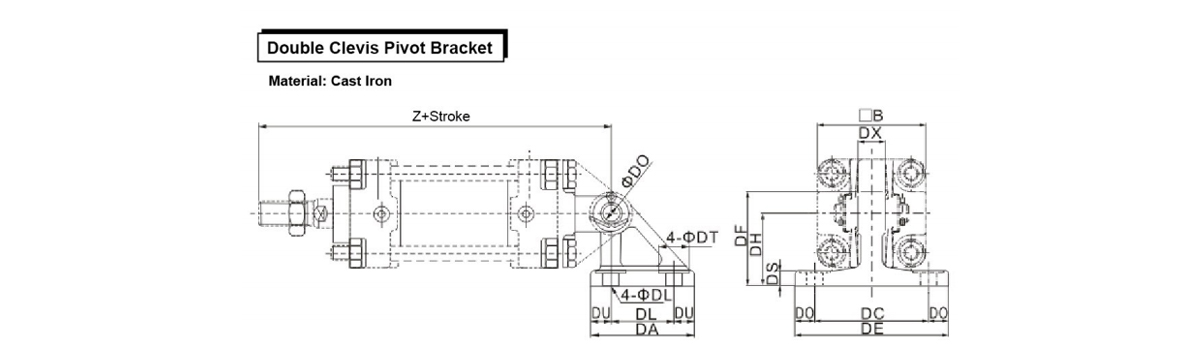

    Model Bore
    Magnitudo
    (mm)     		DA DL DU DC DX DE DO DR DT DS DH DF B Z TD-H10
    (Hole)
    C-CA2-B04 40 57 35 11 65 15 85 10 9 17 8 40 52 60 165 10 0.058
    0
    C-CA2-B05 50 57 35 11 65 18 85 10 9 17 8 40 52 70 183 12 0.070
    0
    C-CA2-B06 63 67 40 13.5 80 25 105 12.5 11 22 10 50 66 85 196 16 0.070
    0
    C-CA2-B08 80 93 60 16.5 100 31.5 130 15 13.5 24 12 65 90 102 235 20 0.084
    0
    C-CA2-B10 100 93 60 16.5 100 35.5 130 15 13.5 24 12 65 90 116 256 25 0.084
    0

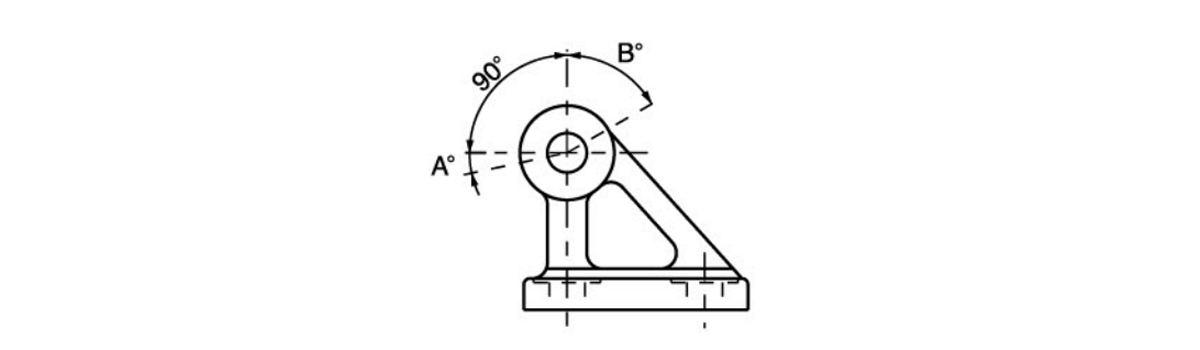

    Rotating Anglus
    Bore Size (mm) A° B° A° B° 90°
    40
    100     		12° 60° 162°

    Materia: Iacta    Iron

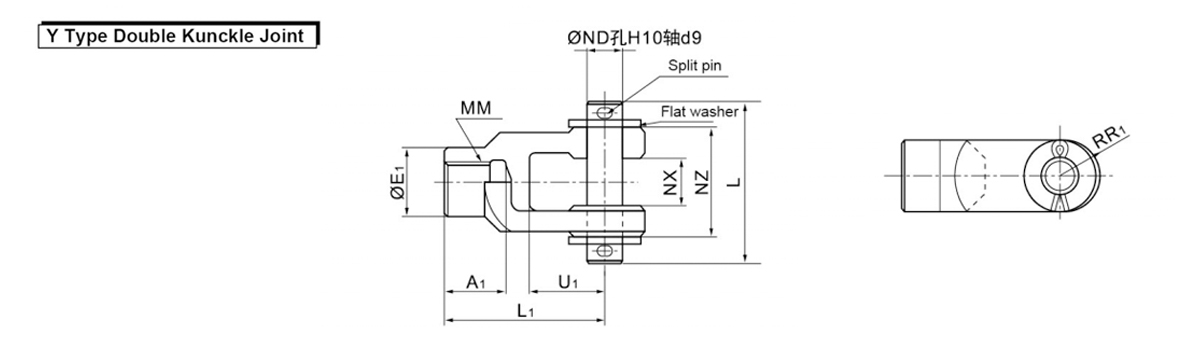

    Model Locum Bore Location
    (mm)     		A1 E1 L1 MM RR1 U1 ND NX NZ L Split Pin Location Plana elementum Location
    Y-04D 40 22 24 55 M14×1.5 13 25 12 16 0.3 38 55.5 3×180ℓ Per XII polita "
    0.1
    Y-05D 50·63 27 28 60 M18×1.5 15 27 12 16 0.3 38 55.5 3×180ℓ Per XII polita "
    0.1
    Y-08D 80 37 36 71 M22×1.5 19 28 18 28 0.3 55 76.5 4×250ℓ Subpolitum per XVIII "
    0.1
    Y-10D 100 37 40 83 M26×1.5 21 38 20 30 0.3 61 83 4×300ℓ Per XX polita "
    0.1
    * Articulatio cubiti cum paxillo, fisso paxillo, et fullonibus fullonibus.

    Materia:Carbon   Steel

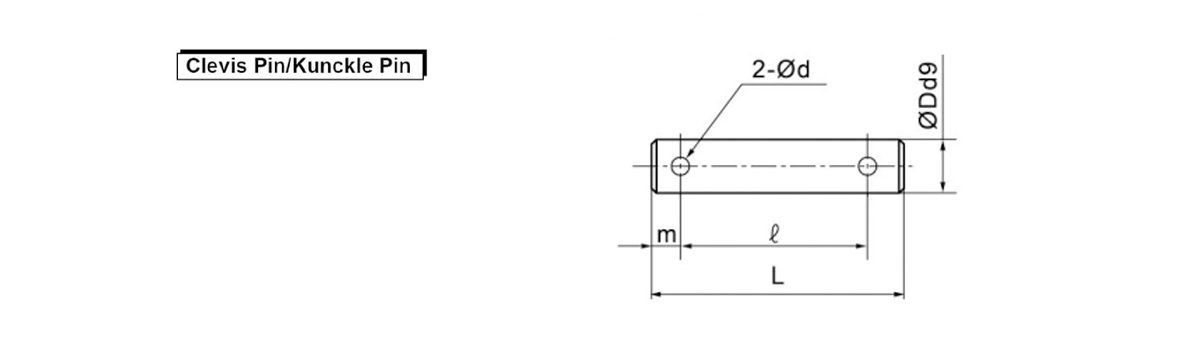

    Model Locum Bore Location(mm) Dd9 L ℓ m d
    EXERCITATIO
    Per     		Includitur Split Pin Flat elementum includitur
    Clevis Kunckle
    CDP-2A 40 - 10 -0.040 46 38 4 3 3×180ℓ Expolitum per 10
    -0.072 46
    CDP-3A 50 40 ·50·63 12 -0.050 55.5 47.5 4 3 3×180ℓ Per XII polita "
    -0.093
    CDP-4A 63 - 16 -0.050 71 61 5 4 4×250ℓ XVI polita per "
    -0.093
    CDP-5A - 80 18 -0.050 76.5 66.5 5 4 4×250ℓ Subpolitum per XVIII "
    -0.093
    CDP-6A 80 100 20 -0.065 83 73 5 4 4×300ℓ Per XX polita "
    -0.117
    CDP-7A 100 - 25 -0.065 88 78 5 4 4×360ℓ Expolitum per 24
    -0.117

    Materia: Free cutting sulphuris Steel
    Model Lorem

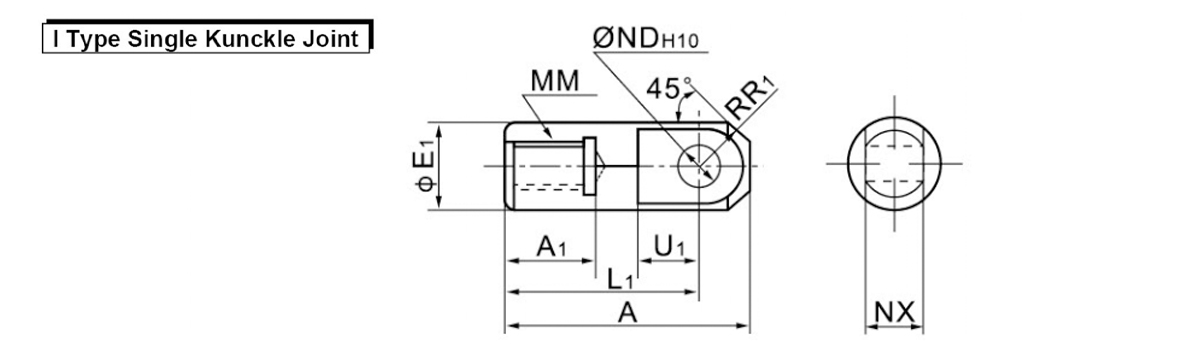

    Bore Size     		A A₁ E1 L1 MM R₁ U1 NDH10 NX
    I-04A 40 69 22 24 55 M14×1.5 15.5 20 120°.070 0.070 0.672257 -0.1
    0 -0.3
    I-05A 50·63 74 27 28 60 M18×1.5 15.5 20 128°-070 0.070 0.666701 -0.1
    0 -0.3
    I-08A 80 91 37 36 71 M22×1.5 22.5 26 180.07 0.070 280:3 -0.1
    0 -0.3
    I-10A 100 105 37 40 83 M26×1.5 24.5 28 2080.084 0.084 30°:3 -0.1
    0 -0.3

    Materia: Rolled Steel
    Model Lorem
    Bore Size     		d H B C D

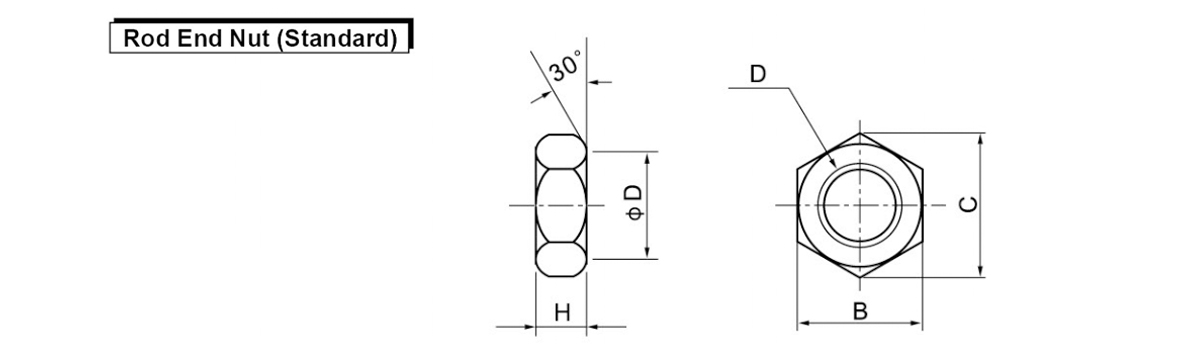

    NT-04 40 M14×1.5 8 22 25.4 21
    NT-05 50·63 M18×1.5 11 27 31.2 26
    NT-08 80 M22×1.5 13 32 37 31
    NT-10 100 M26×1.5 16 41 47.3 39

Prodotti Correlati

Blog e Notizie

Le Nostre Ultime Notizie e
Blog

Vedi Altro

Qualità Autentica e Affidabile che si Distingue Naturalmente.

La scelta nasce dalla fiducia, e la cooperazione dall'onestà.

  • D: Quam mox responsum accipere possumus postquam inquisitionem tibi mittimus?

    Respondebimus tibi intra XXIV horas post inquisitionem in diebus ferialibus.

  • D: Esne directus fabrica vel societas mercaturae?

    Fabrica sumus, et venditiones internationales proprias habemus. Ita nosmetipsos omnia producere et vendere possumus.

  • D: Lorem products facere potes?

    Ita, nos evolvere et producere fructus secundum delineationes vel exempla a clientibus provisum possumus

  • D: Quomodo societas tua praestat productum qualitas?

    Primum inspectionem post singulos processum faciemus. Pro effectibus perfectis, inspectionem C% secundum exigentias clientium et vexillum internationale faciemus..

  • D: Ubi sunt vestra producta maxime emitur?

    Producta nostra maxime in Germaniam, Civitates Americae Unitas, Daniam et plusquam duodecim nationes in Europa et America Septentrionali . exportantur
