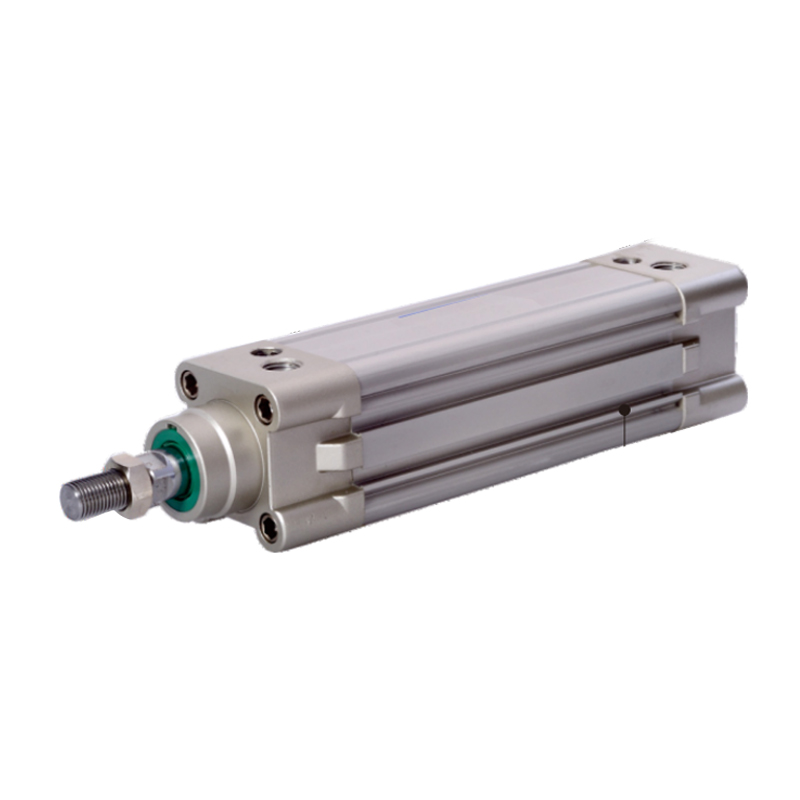

SE Series Standard Cylinder (No Tie Rod Type)
  • SE Series Standard Cylinder (No Tie Rod Type)
Standard Cylinder

SE Series Standard Cylinder (No Tie Rod Type)

1. Piston sigillum specialem conformationem adhibet duplici modo obsignandi structuram cum magnitudine compacta et functione repono oleum;
2. Aluminium quadratum tubus, virga ligatura, corrosio anti- bona effectus;
3. Cylindrus temperatio quiddam firmum est;
4. Cylindri et cylindrici institutionem accessiones variarum specificationum praesto sunt pro clientibus ad eligendum.

E-mail: manager@cktworld.com
Scarica
PRECEDENTE：CA2 Series Standard Cylindri
SUCCESSIVO：SI Series Standard Cylinder (No Tie Rod Type)
  • Diameter interior (mm) 32 40 50 63 80 100 125
    Modus operating Reciproco genus
    medium opus Aer (percolatur per 40μm filter)

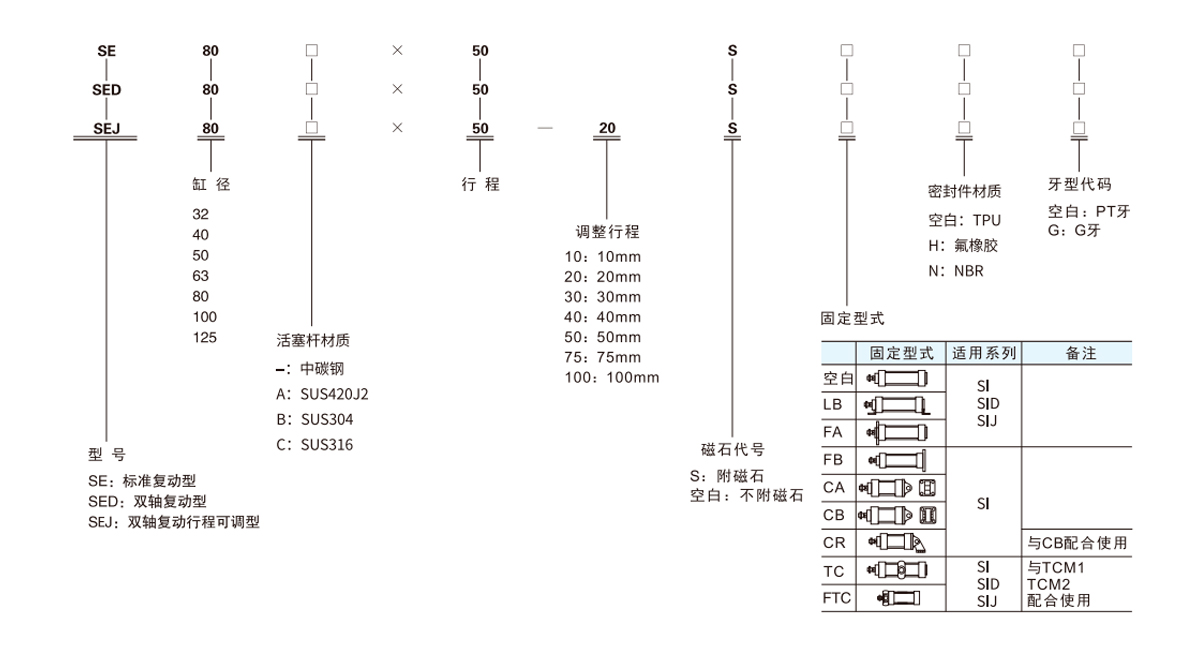

    Genus certum SE Series Typus fundamentalis FA FB CA CB CR LB TC TCM1 TCM2 FTC
    SE D, SE J series Basic type FA LB TC TCM1 TCM2 FTC
    Operans pressura range 0.15~1.0MPa(22~145psi) (1.5~10.0bar)
    Guaranteed pressura resistentia 1.5MPa(215psi) (15bar)
    °C -20~70
    Celeritas range operating mm / s * 30~800 30~500
    Iter tolerantia range 0~250 60251~1000 151001~1500 20
    Genus quiddam Product quiddam
    Plaga quiddam mm 27 30 36 40
    *Donec diam PT1/8 PT1/4 PT3/8 PT1/2
    * NPT et G filo genera praesto sunt pro nexu.

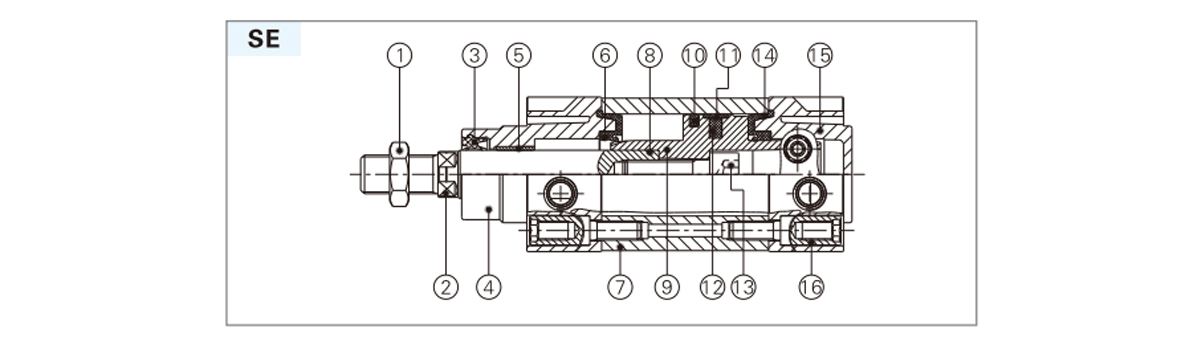

  • Nomen Materia Nomen Materia
    1 Nucis Carbon chalybe/immaculata chalybe 9 Piston Aluminium alloy
    2 Piston rod S45C dura chrome-patella, stridor baculi 10 Piston O-anulus TPU
    Diver Repugnans materia gere
    3 Front cover O-anulum TPU 11 anulum gere Plastic (φ100 minusve)
    4 Front cover Aluminium alloy 12 Magnet Flexilis (alia)
    5 Bushing Repugnans materia gere 13 Hexagon ostium tabernaculi Carbon chalybe
    6 O anulum quiddam TPU 14 Codex sigillum quiddam TPU
    7 Corpus cylindricum Aluminium alloy 15 Back cover Aluminium alloy
    8 Piston o anulum NBR 16 Support nut Carbon chalybe/immaculata chalybe

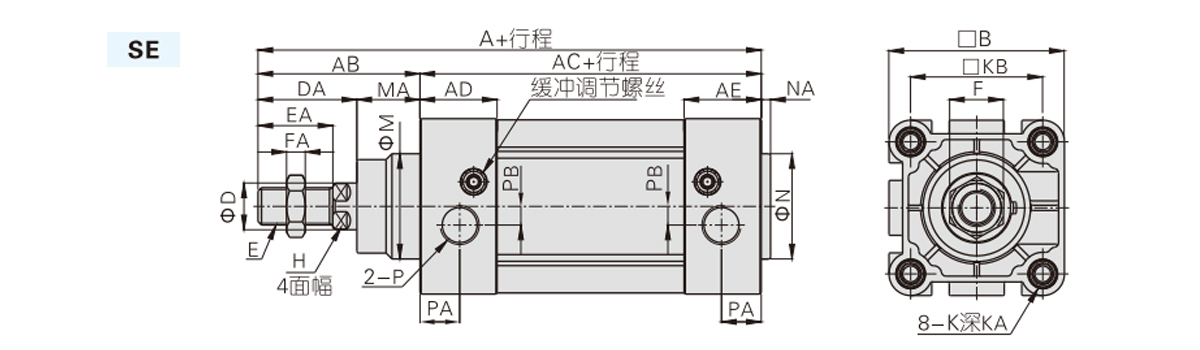

    Diameter Cylindrus/symbolum A AB** AC AD AE* B D DA E EA F FA M MA H K KA KB N NA P PA PB*
    32 142 48 94 27.5 27.5 46.5 12 29 M10×1.25 22 17 6 30 19 10 M6 16 32.5 30 3 PT1/8 13.5 6
    40 159 54 105 32 32 54 16 33 M¹2×1.25 24 17 7 35 21 13 M6 17 38 35 3.5 PT1/4 17.5 6
    50 175 69 106 31 31 64 20 42 M16×1.5 32 23 8 40 27 17 M8 17 46.5 40 3.5 PT1/4 14 8
    63 190 69 121 33 33 75 20 42 M16×1.5 32 23 8 45 27 17 M8 17 56.5 45 4 PT3/8 17 8
    80 214 86 128 33 33 93 25 53 M20×1.5 40 26 10 45 33 22 M10 19 72 45 4 PT3/8 16.5 8
    100 229 91 138 37 37 110 25 55 M20×1.5 40 26 10 55 36 22 M10 19 89 55 4 PT1/2 19.5 10
    125 279 119 160 46 46 134 32 74 M27×2.0 54 41 13.5 60 45 27 M12 22 110 60 4 PT1/2 23 11
    Nota: dimensiones generis magnetici et non-magnetici generis eaedem sunt.

    Diameter Cylindrus/symbolum A AB** AC DA DB E FA
    规格代号 SED SEJ
    32 190 188 48 94 29 27 M10X1.25 6
    40 213 208 54 105 33 28 M12X1.25 7
    50 244 231 69 106 42 29 M16X1.5 8
    63 259 246 69 121 42 29 M16X1.5 8
    80 300 282.5 86 128 53 35.5 M20X1.5 10
    100 320 300.5 91 138 55 35.5 M20X1.5 10
    125 398 366.5 119 160 74 42.5 M27X2.0 13.5
    Nota: dimensiones generum magnetici et non magnetici eaedem sunt. Dimensiones non specificatae sunt eadem quae SI vexillum genera.
